See all parts that fit your 2008 Mariner

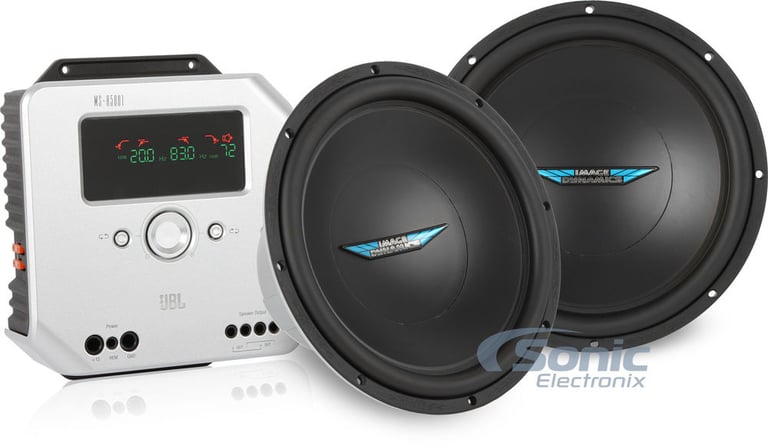

500 Watt RMS Package: 2) Image Dynamics ID12 D2 V.3 Subs + JBL MS-A5001 Amp

MS-A5001 Class D Monoblock Amplifier + 2) Image Dynamics ID12 D2 V.3 450W 12" Dual 4 Ohm Subwoofers

highlight-star-icon

• Dual Image Dynamics ID12 D2 V.3 12" ID V.3 Series Subwoofers
• • 450W Peak, 250W RMS (Each)
• Mica Polypropylene Cone Woofer & Rubber Surround
• JBL MS-A5001 Monoblock Amplifier
• RMS: 500 x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Tested at 750W RMS on our Amp Dyno

Learn more about the 2-id12d2v3_msa5001

We apologize

This item has been discontinued


Loading...
XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

Belva BMV712

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Phone Mirroring

23
-63.34%

$54.99

List price $149.99

Description


Image Dynamics brand icon

Authorized dealer

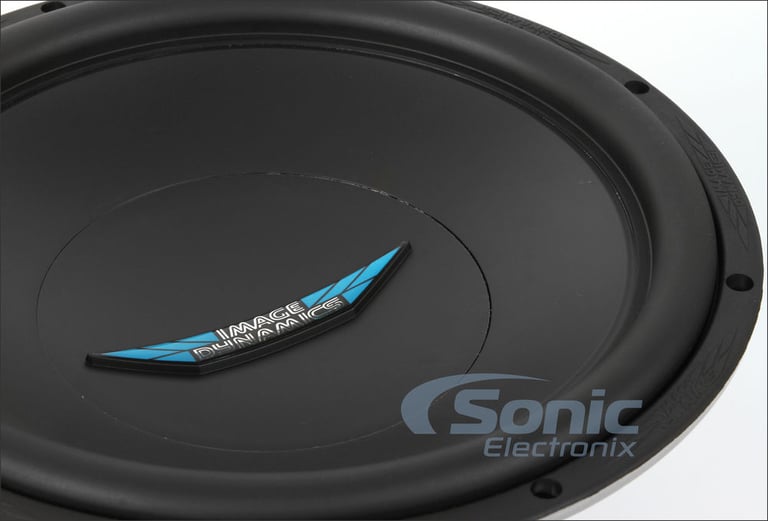

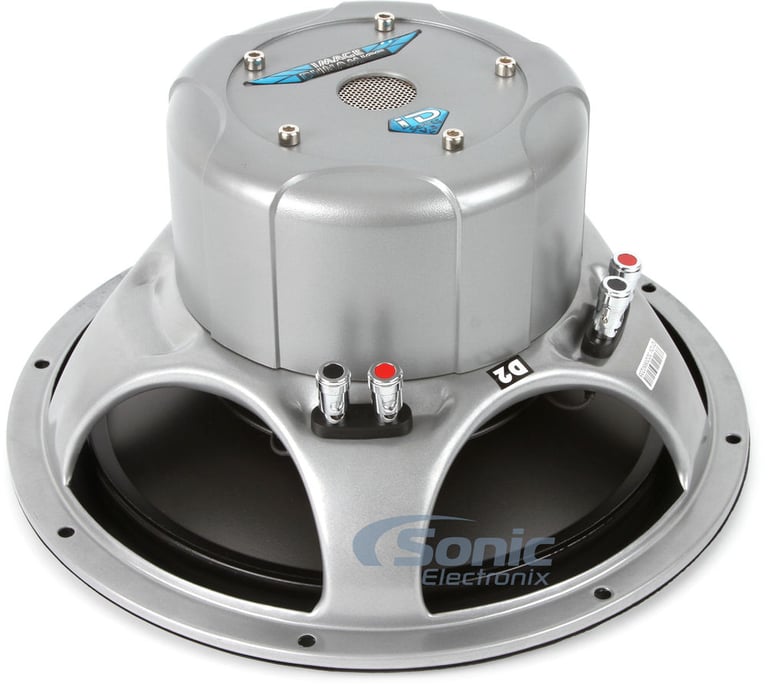

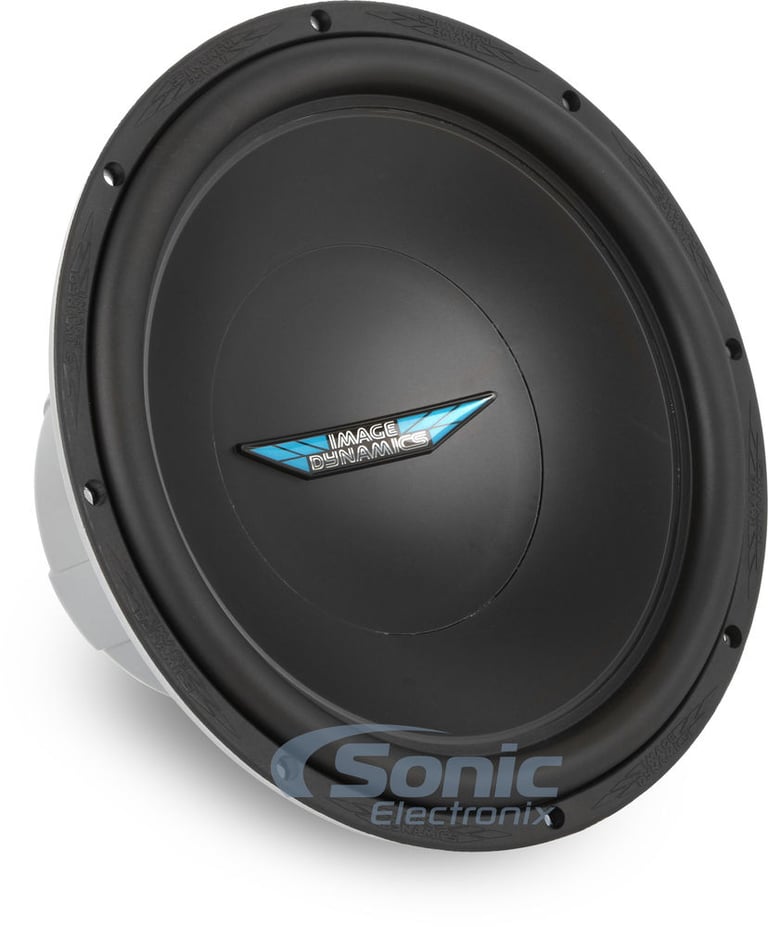

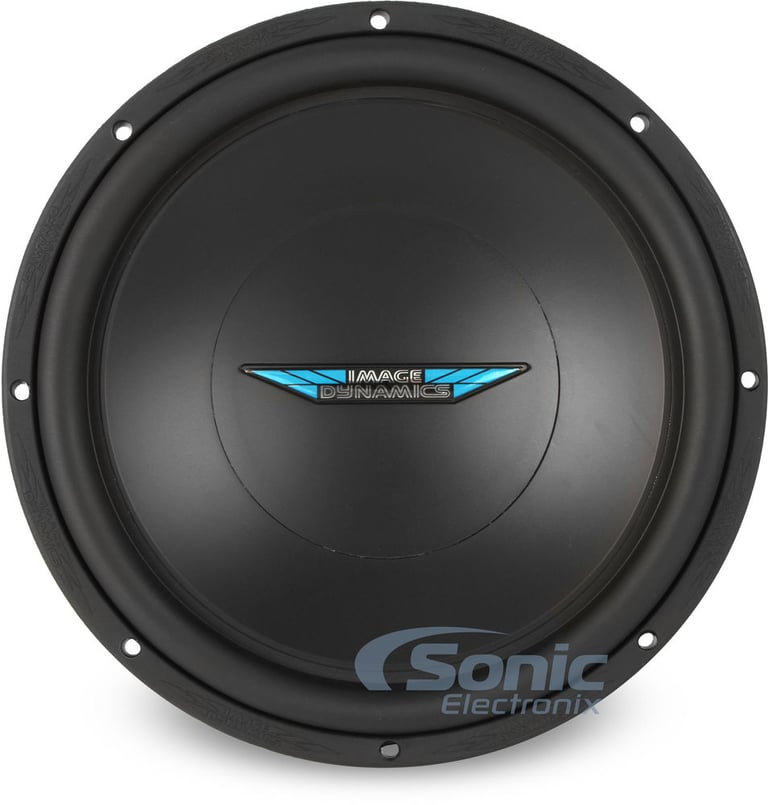

Image Dynamics ID12 D2 V.3

250W 12" ID V.3 Series Dual 2 ohm Subwoofer
Quantity: 2 Subwoofers

  • 12" Dual 2 ohm ID V.3 Series Subwoofer
  • Power Handling:
    • Peak: 900 watts total / 450 watts each
    • RMS: 500 watts total / 250 watts each
    • Recommended Power Range: 100-400 watts
  • Impedance: Dual 2 ohm
  • Mica Polypropylene cone woofer
  • Rubber surround
  • Black anodized aluminum high temperature copper voice coil
  • Stamped steel basket for improved rigidity and better power handling
  • Optimized motor structure that uses finite element analysis for symmetrical and long linear excursion
  • Also found as: ID12D2 V.3, ID12 V.3 D2, ID12 D2, ID12D2, ID12V.3 D2, IDv3
  • Sensitivity: 88.6dB
  • Mounting Depth: 6"
  • Cutout dimensions: 11"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

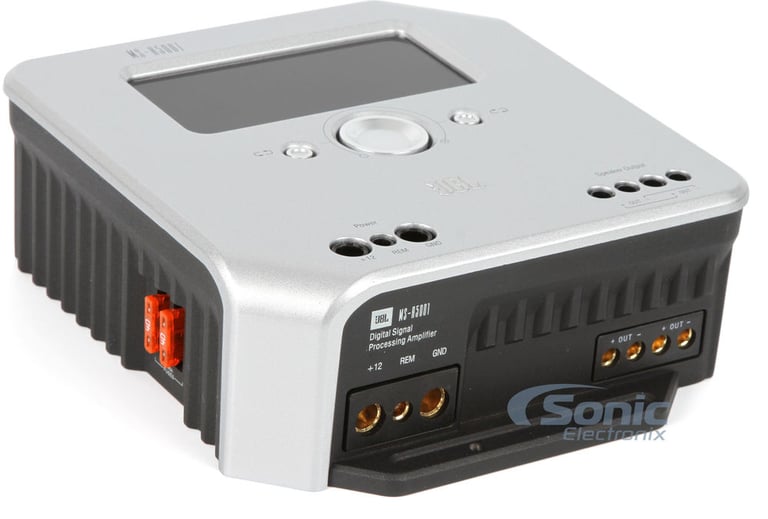

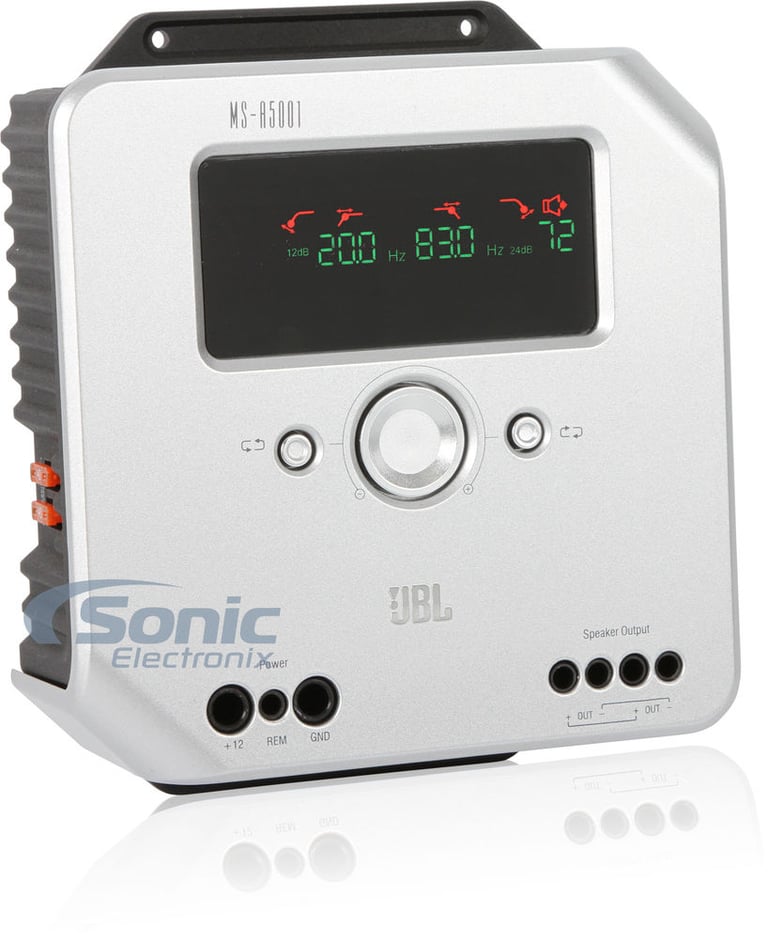

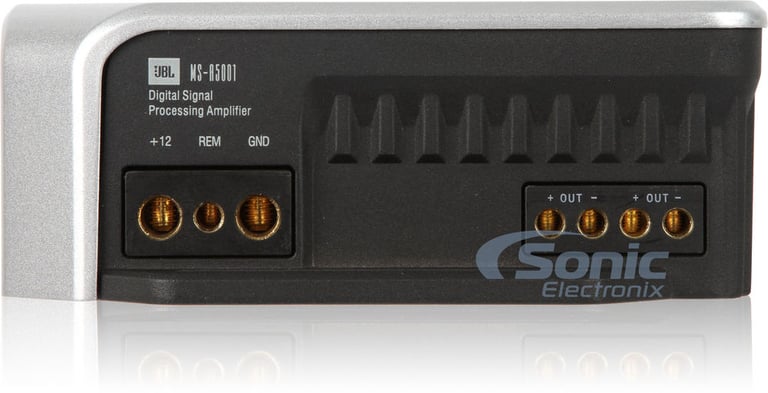

JBL MS-A5001

Tested at 750W RMS on our Amp Dyno! (Rated 500W RMS by JBL), 1-Channel Monoblock Amplifier with Digital Input Mixer and Graphical Status Display
Quantity: 1


General Features

  • MS Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 500 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
    • TESTED ON OUR AMP DYNO MACHINE AT 750W RMS!!
  • Digital signal processing amplifier
  • Pulse Width Modulated MOSFET power supply
  • Wireless Remote bass level input (JBL MS-WBC remote level control sold separately)
  • Built-in display shows tone and gain settings
  • Soft Start Turn-on
  • Mono channel operation
  • "Hi2" input setting provides factory system amps with output loads, eliminating "speaker disconnected" error messages
  • Speaker-level inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Digital input-mixer control eliminates the need for Y adapters
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • CD for system setup included
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Input sensitivity:
    • Level: 100mV-15V
  • Variable low-pass filter (20-270 Hz, 6, 12, or 24 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-270 Hz
  • Dimensions: 8-13/16"L x 7-1/4"W x 2-13/16"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(81)

$279.99

List price $323.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
500 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
20 - 270 Hz
Signal-to-Noise Ratio
80 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
40A x 2
CEA-2031 Compliant
Yes
Subwoofer Specifications
Series
ID V.3 Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
250 watts
Peak Power Handling
450 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene-Mica
Minimum Sealed Box Volume
0.8 cubic feet
Maximum Sealed Box Volume
1.50 cubic feet
Minimum Ported Box Volume
1.50 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Sensitivity
88.6 dB
Xmax (millimeters)
17.00 mm
Top-Mount Depth (Mounting Depth)
6"
Cutout Diameter
11"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

2-ID12 D2 V.3_MS-A5001

Weight:

33.00lbs

Internal SKU:

2-id12d2v3_msa5001

Internal Product ID:

92436

Customer Ratings & Reviews


500 Watt RMS Package: 2) Image Dynamics ID12 D2 V.3 Subs + JBL MS-A5001 Amp thumbnail image

5 star
75%
4 star
15%
3 star
10%
2 star
0%
1 star
0%



Durability
4.7
Value
4.9
Features
4.9
Design
4.9
Usability
4.7

Customer Reviews

Sort by:

Loading...

good product

The following review is for MS-A5001, which is a part of the bundle you are viewing.

I have no complaints this product is great i would recommend This to anyone looking for easy Setup .

By frank on January 13, 2015

94 found this helpful


Great seller

The following review is for MS-A5001, which is a part of the bundle you are viewing.

I advise!! Fast shipping!! I received my amp perfect!!

By JPFURCN on October 13, 2014

91 found this helpful


Simply Awesome

The following review is for MS-A5001, which is a part of the bundle you are viewing.

When I saw this amp and read up on it I had to have it. It's a lot of bang for the buck. Setup is scary simple. The digital circuitry and class D design is clean and second to none. I have this paired with a JBL P1224 in a ported box and it is much louder than I expected. Very nice.

By Geege on July 13, 2011

90 found this helpful


JBL MS A5001

The following review is for MS-A5001, which is a part of the bundle you are viewing.

This Amp is beautifully designed, easy to use and set up! I have it running one 10" JL W1 in a small sealed enclosure in my 2014 4runner. Power is clean and plenty of it. I highly recommend it for its design, flexibility, and clean power!

By Tony on September 20, 2014

86 found this helpful


Serious power, I love the amp for the value

The following review is for MS-A5001, which is a part of the bundle you are viewing.

I paired this with two 10" GTO JBL 528 subs wired in parallel, 4 ohm, and it hits so freaking hard, my jeep bounces! Seriously, this is a great amp for the cost. I also own JL Audio and can't tell the difference.

By Scott on January 14, 2015

86 found this helpful


Nice Amplifier!

The following review is for MS-A5001, which is a part of the bundle you are viewing.

I am using this for a pair of Pioneer TS-W260S4 subwoofers and a Kenwood Excelon 998 in a 2003 F-150.

This was a huge improvement over the OEM installation, and I am really enjoying the punch that these deliver!

The installation and setup of the amplifier went well enough without any major issues.

By Mr Sparkie on September 11, 2014

81 found this helpful


great little amp

The following review is for MS-A5001, which is a part of the bundle you are viewing.

The shipping was fast and packaged appropriately. The only minor inssue I ran into during installation was the remote input. The input had a 1.5 hex instead of 2.5, so the supplied Allen wrench wouldn't fit. I would suggest reading the book a couple of times b4 setup. I have it pushing a Fi Audio X10 in a 1.3 ported enclosure tuned at 33hz. It sounds better than when I had the kicker zx750.1 pushing it. I'll have to update this review once I have it for awhile to give opinion on durability.

By Rolando on February 17, 2015

78 found this helpful


Awesome features

The following review is for MS-A5001, which is a part of the bundle you are viewing.

Purchased this amp for the features. Upon arrival, it did not work. I hooked up my Kicker and completely forgot about it. Sonic has a great warranty, so I sent it back- even after the warranty had expired. They gave me another even, so I hooked it up and mounted it on the box, as my box has an amp rack. I blew the screen. It still works great but I can't change anything on the amp as I cant see what I am doing without the digital display. Shame on me for that one!

By Jason on December 27, 2014

76 found this helpful


jbl ms-a5001

The following review is for MS-A5001, which is a part of the bundle you are viewing.

Awesome amp for the money. Pushing 2 rockford fosgate p1. Sounds amazing.

By jensen on May 12, 2014

78 found this helpful


great amp

The following review is for MS-A5001, which is a part of the bundle you are viewing.

This amp is great easy to use and set up nothin bad to say about it

By lil a on April 2, 2015

73 found this helpful




Kunai PS4 Headset (Black) small

Tritton Kunai PS4 Headset (Black)

Stereo Gaming Headset for Sony Playstation Consoles

$41.99

List price $49.99

DMAGW05G10-T45 small

MTX Audio Thunderform DMAGW05G10-T45 (Light Gray, Loaded)

Dodge Magnum 2005-2008, 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure

$349.99

List price $399.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2013 Audi RS5

2022 Jeep Compass

2008 Mercury Mariner

1997 Nissan Quest

2012 Ford Expedition

2017 Chevrolet Impala

2017 Ford Escape

1991 Ford Explorer

2000 Jeep Cherokee

2005 Chrysler Pacifica

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
