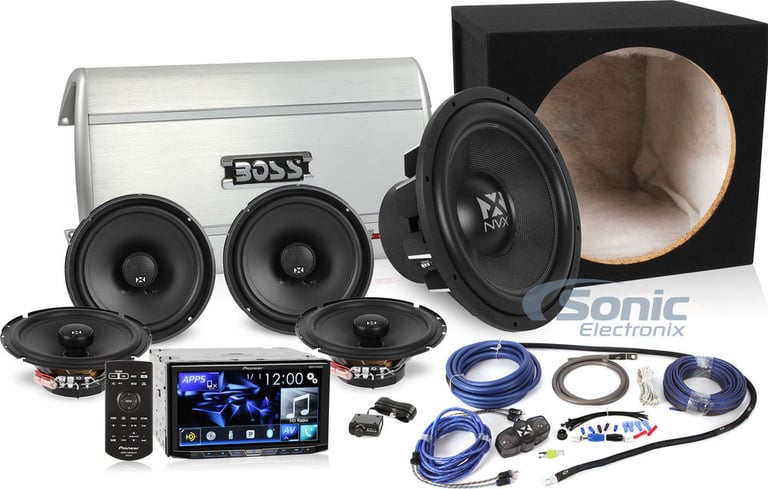

Pioneer + NVX Car Stereo Upgrade

General Features:

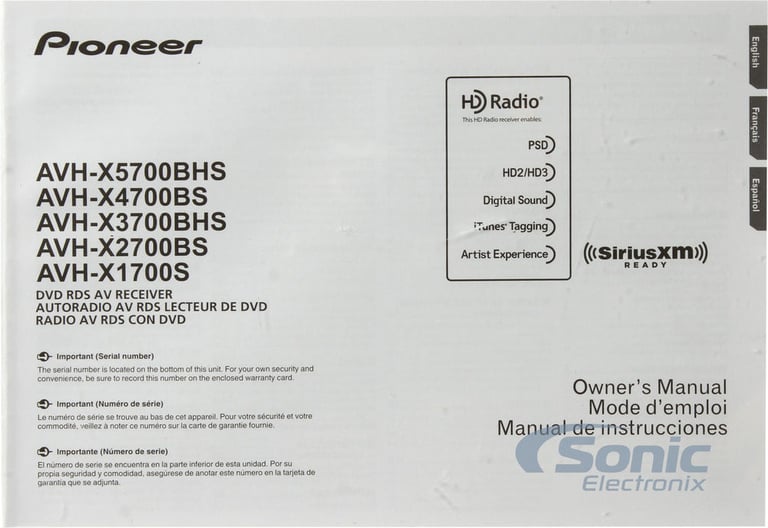

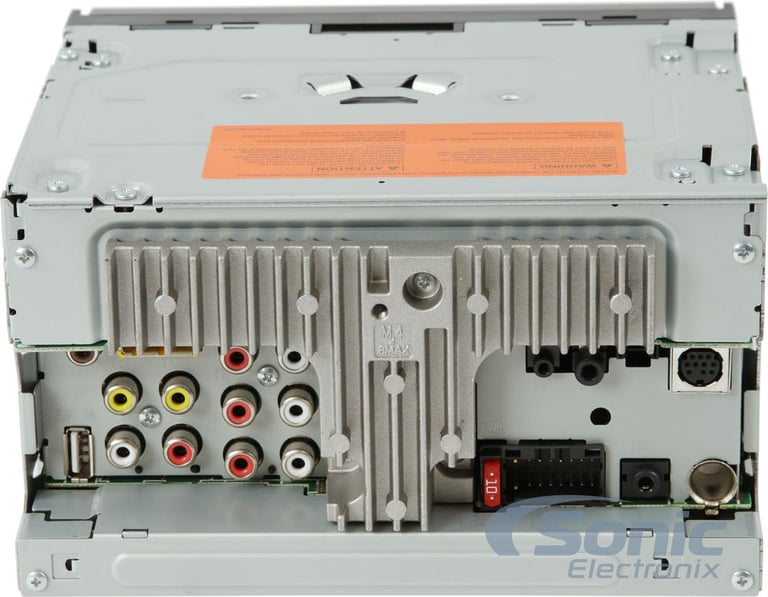

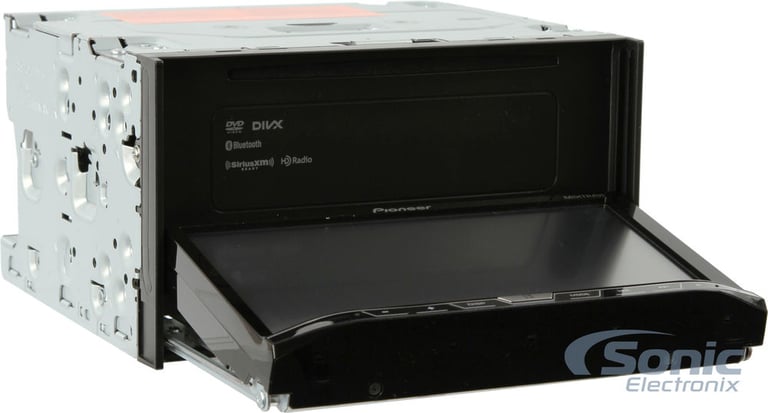

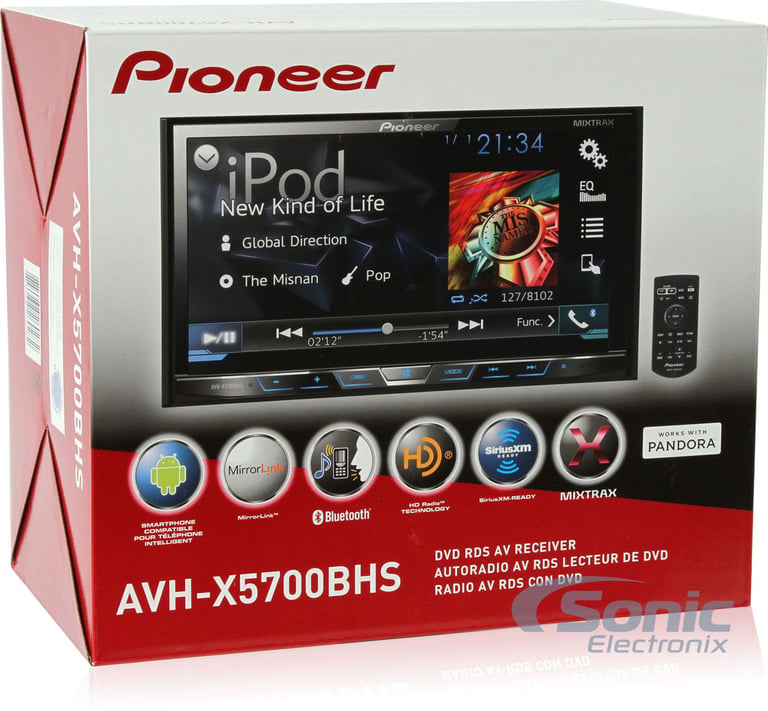

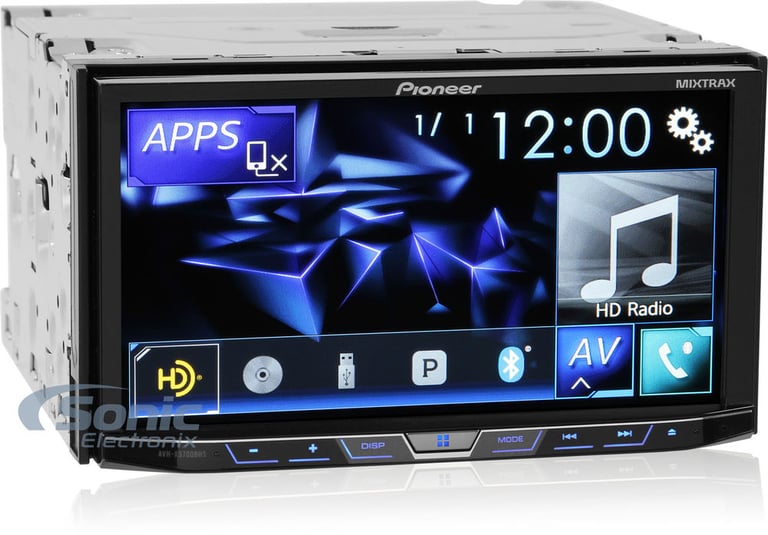

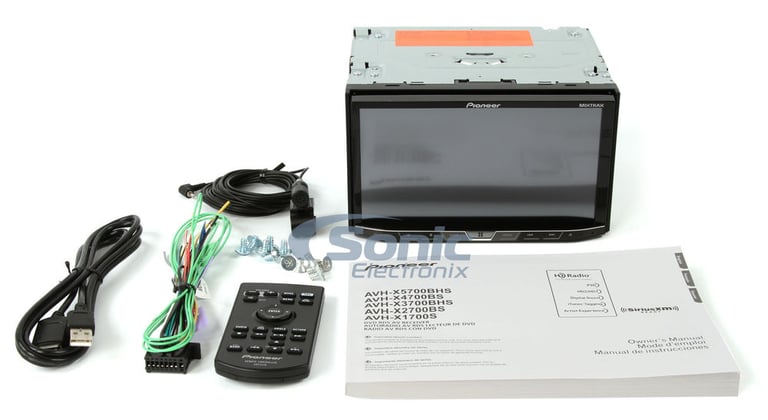

• Pioneer AVH-X5700BHS In-Dash Receiver
• CEA-2006 compliant amplifier
• Power Output:
• Peak: 50 watts x 4 channels
• RMS: 14 watts x 4 channels
• 7" motorized LCD touchscreen display
• Anti-glare screen coating
• Last angle memory
• Color and display customization
• Dimmer setting
• Brightness control
• Resolution: 800 x 480
• Aspect Ratio: 16:9
• MIXTRAX app Illumination Effects
• Customizable homescreen shortcuts

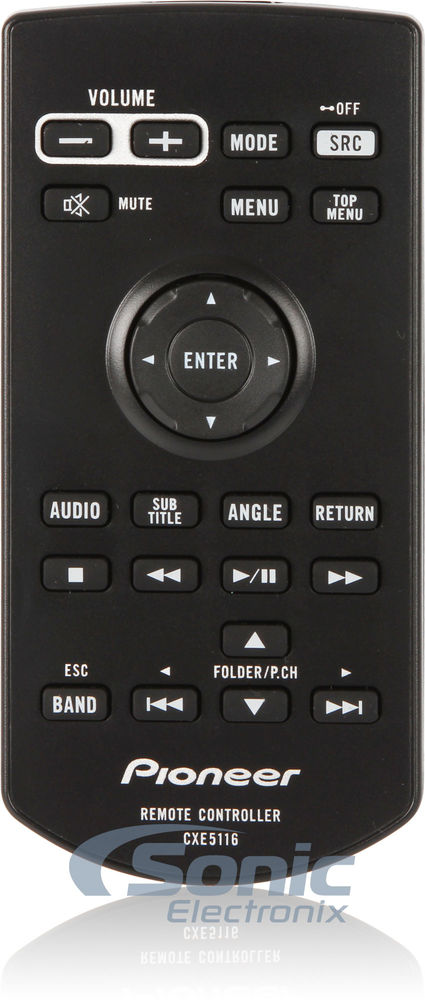

• Remote control included
• 1-year Sonic Electronix Warranty

Playback and Audio Features:

• CD, CD-R/RW, DVD, DVD-R/RW, MP3/WMA/AAC/MP4
• AM/FM tuner with 18FM/6AM presets
Built-in HD radio
• HD Radio Artist Experience
• HD radio multicasting
• Pandora station creation
• Siri Eyes Free mode
• iPod and iPhone Ready: Standard USB-to-iPod Cable and USB-to-Lightning Cable compatible
• Android music support
• 13-band customizable graphic equalizer
• Android music support
• 13-band customizable graphic equalizer
• Subwoofer Level Adjustable
• Built-in LPF/HPF
• Advanced Sound Retriever
• 24-bit D/A converter
• Time alignment
• Listening position selector
• 3.5mm Rear Auxiliary Input

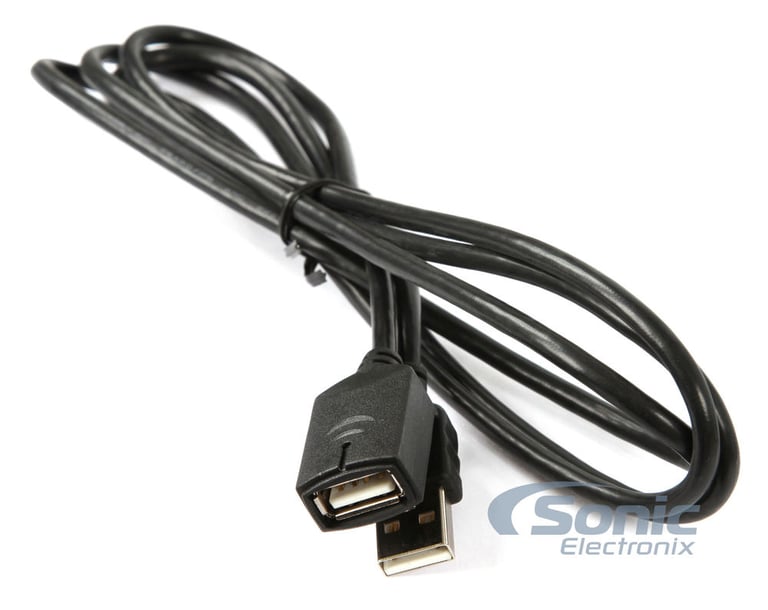

• Rear USB Input
• Composite Video Output
• Composite A/V Input
• CD text information display
• MP3 ID3 Tag Display (Title/Artist/Album)

Bluetooth Features:

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Supports:
• A2DP audio streaming
• Hands Free Profile 1.6
• AVRCP remote control 1.5
• Content browsing support via Bluetooth
• Wideband speech Hands Free Profile
• Works with most Bluetooth enabled cell phones

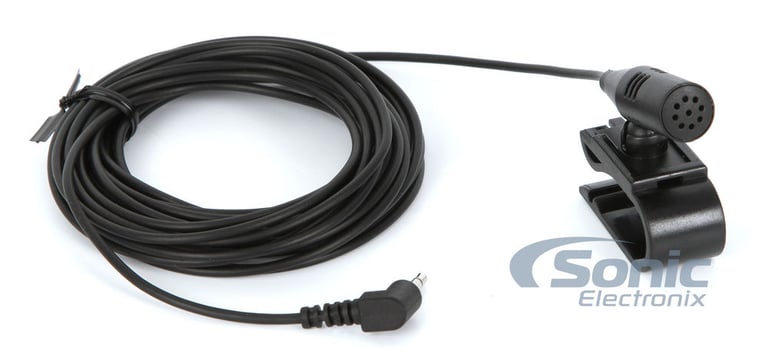

• Includes an external wired microphone for clear, convenient talking

Expandability Options:

• 3 Sets of 4V preamp outputs (front, rear and subwoofer)
• SiriusXM Satellite Radio Ready: SiriusXM Radio Package and subscription required and sold separately
• MirrorLink Ready: CD-MU200 Interface Cable with MirrorLink cable required and sold separately
• Navigation Ready: Pioneer AVIC-U260 Add-On GPS Navigation System required and sold separately
• Steering Wheel Control Ready: PAC ControlPRO or Axxess ASWC-1 are required and sold separately
• Backup Camera Input: Universal Backup Camera recommended and sold separately

General Features:

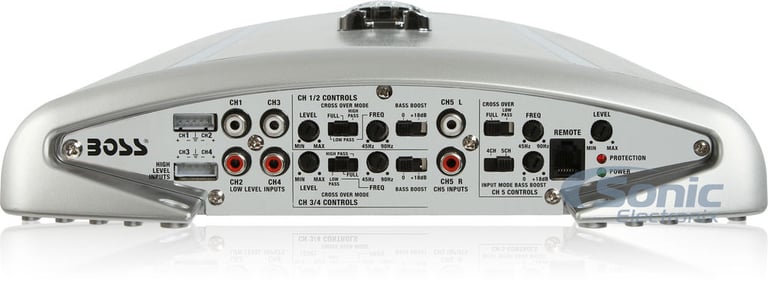

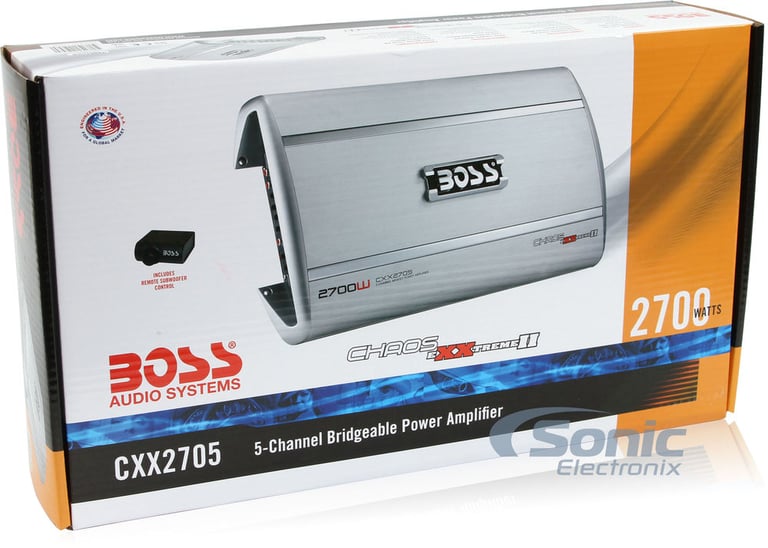

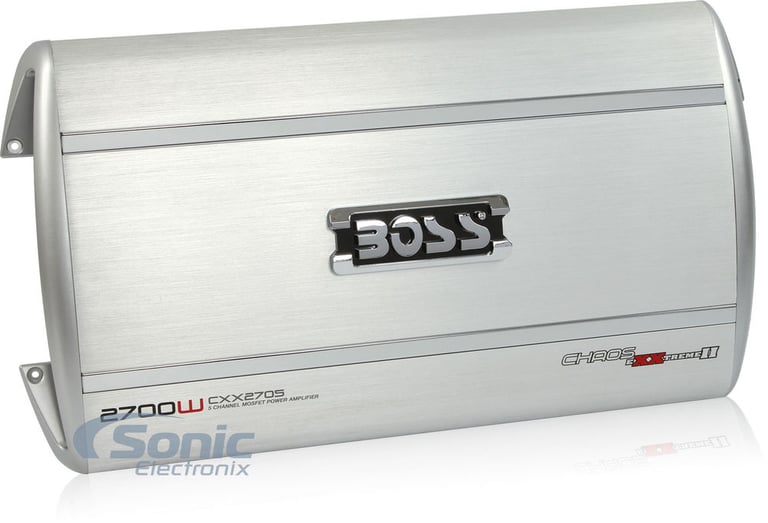

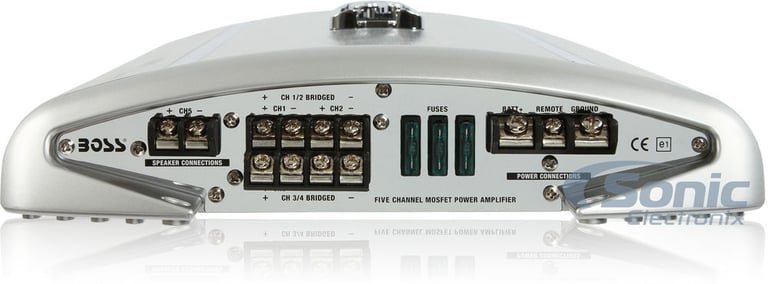

• Chaos Extreme Series 5-Channel Class AB Car Amplifier
• Channel 1-4 RMS Power Rating:
• 4 ohm: 150 watts x 4 chan.
• Subwoofer Channel RMS Power Rating:
• 4 ohm: 600 watts x 1 chan.
• Max power output: 2700 watts
• Pulse Width Modulated MOSFET power supply

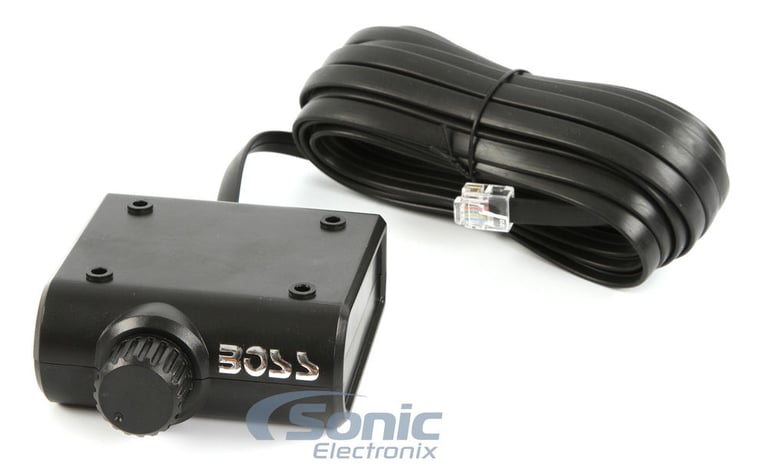

• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
• Soft turn-on circuit
• 5/4/3/2 or Mono channel operation
• Speaker-level (high-level) inputs with signal sensing for automatic turn-on
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink
• Fixed high-pass filter (80 Hz)
• Variable low-pass filter (35-160 Hz)
• 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
• Dimensions: 11"W x 20-1/4"L x 2-7/8"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

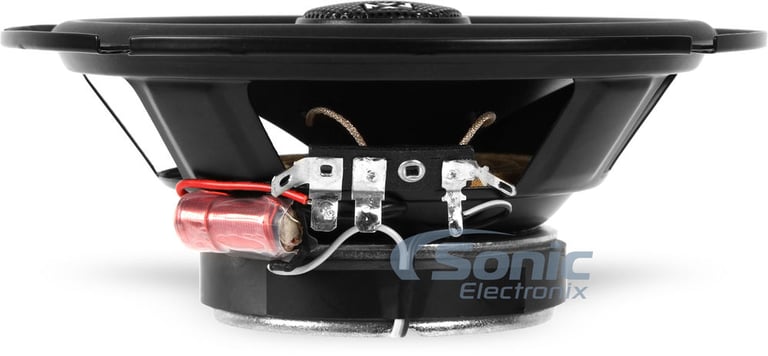

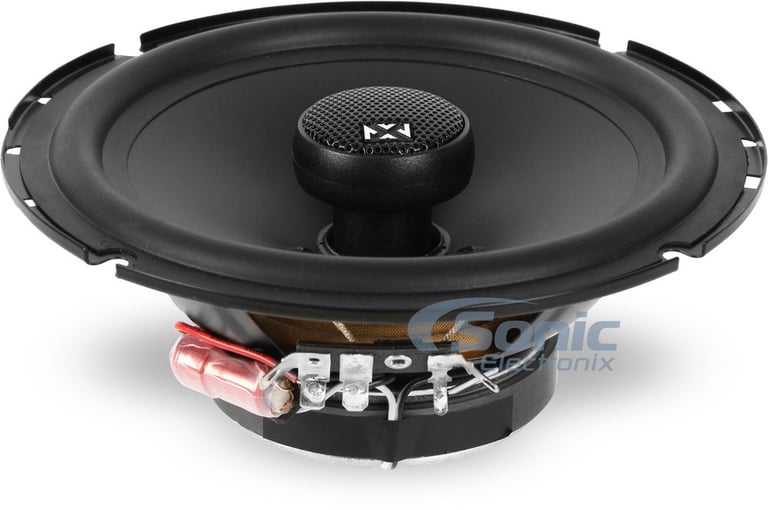

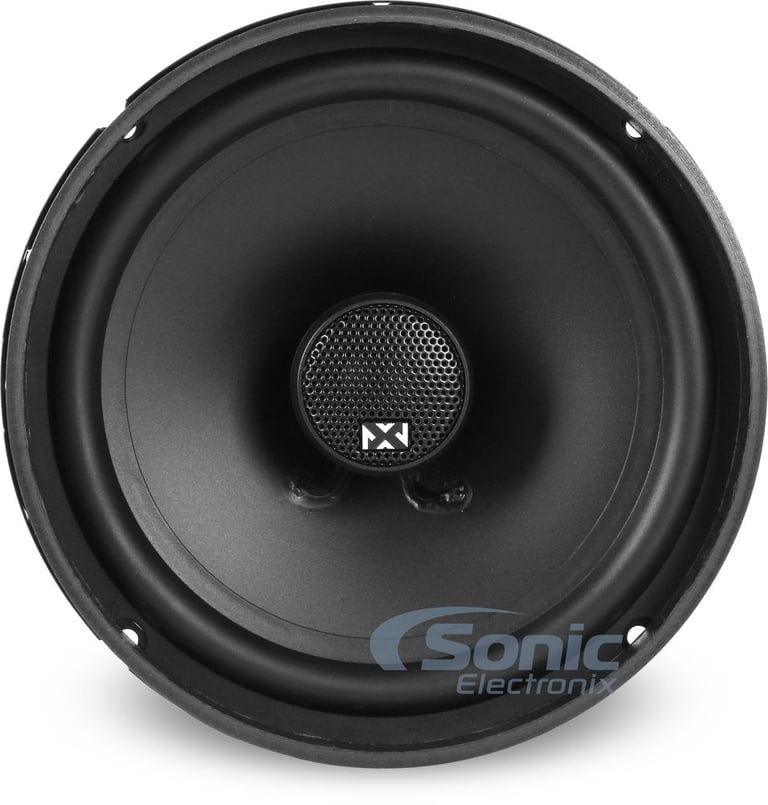

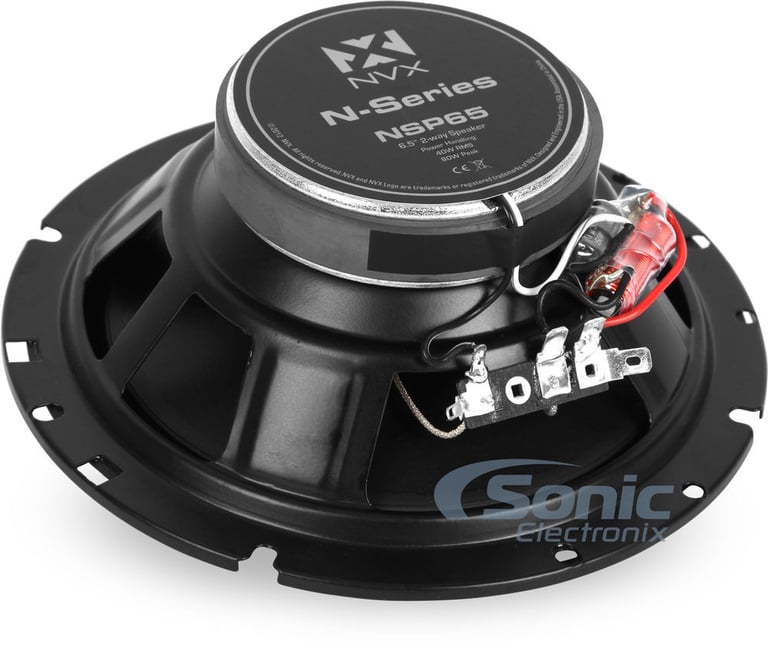

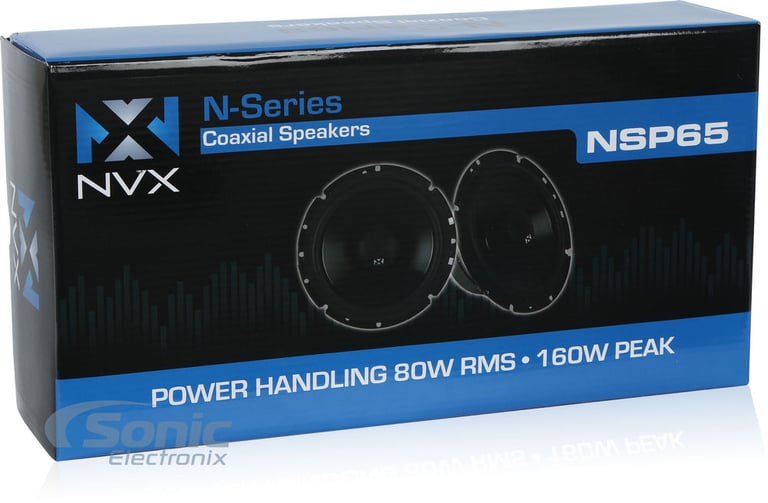

• 6-1/2" N-Series 2-Way Car Speakers
• Power Handling:
• Peak: 320 watts total / 80 watts each
• RMS: 160 watts total / 40 watts each
• Polypropylene cone material is strong, yet lightweight for accurate mid and low tone
• Nitrile Butadiene Rubber Surround supports smooth, linear movement for optimal accuracy

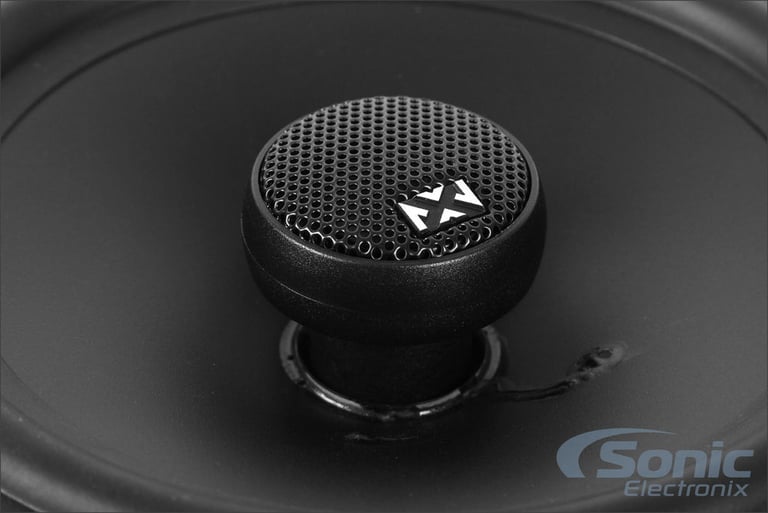

• 20mm Silk Dome Tweeter delivers rich, warm treble with remarkable clarity and definition
• High Temperature KSV Voice Coil provides superior current distribution with effective heat dissipation
• Y30 Ferrite Magnet motor structure maintains control of the driver for tight, crisp sound reproduction
• Stamped Steel Basket Provides a sturdy foundation for a durable and long-lasting speaker
• 4 ohm impedance
• CEA-2031 compliant speakers
• Frequency response: 70-20,000 Hz
• Top-mount depth: 2-7/16"
• Sensitivity: 89dB
• Also found as: NSP 65, NSP6.5
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

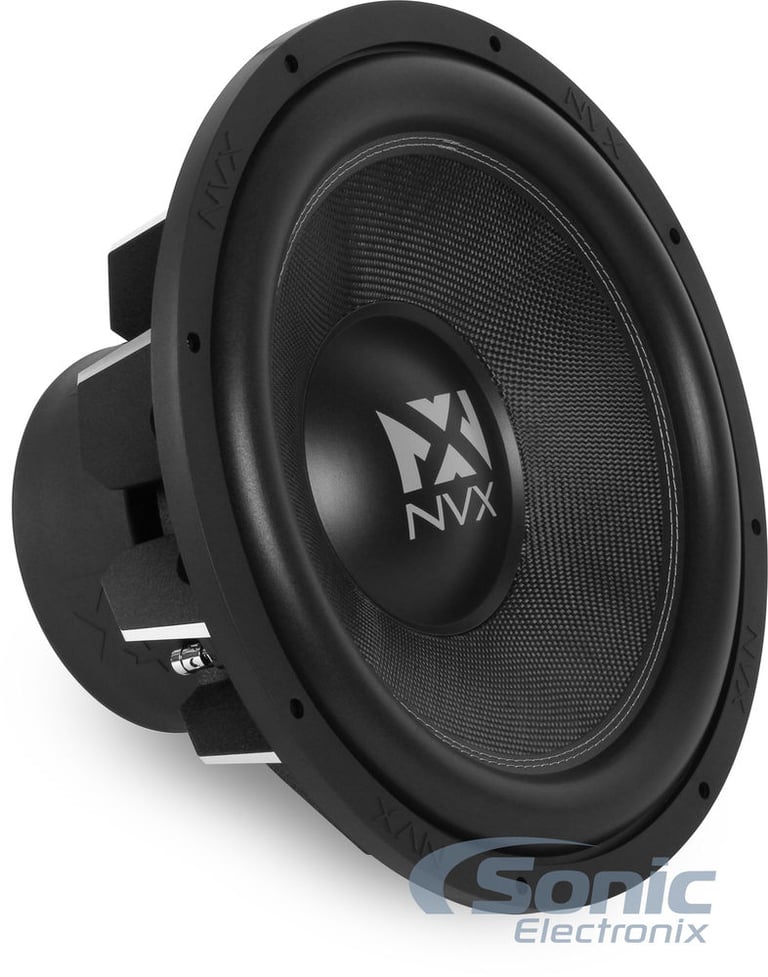

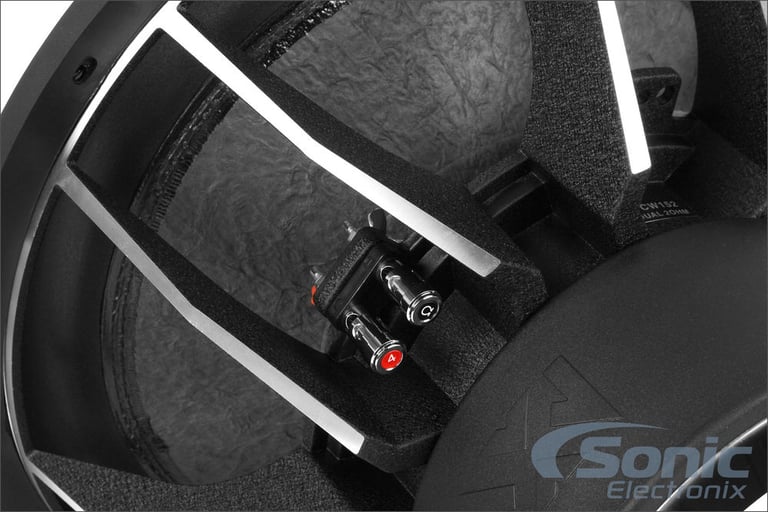

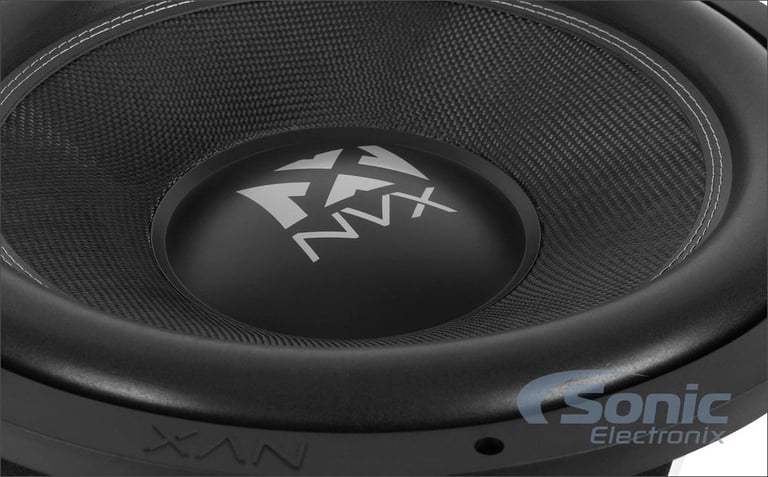

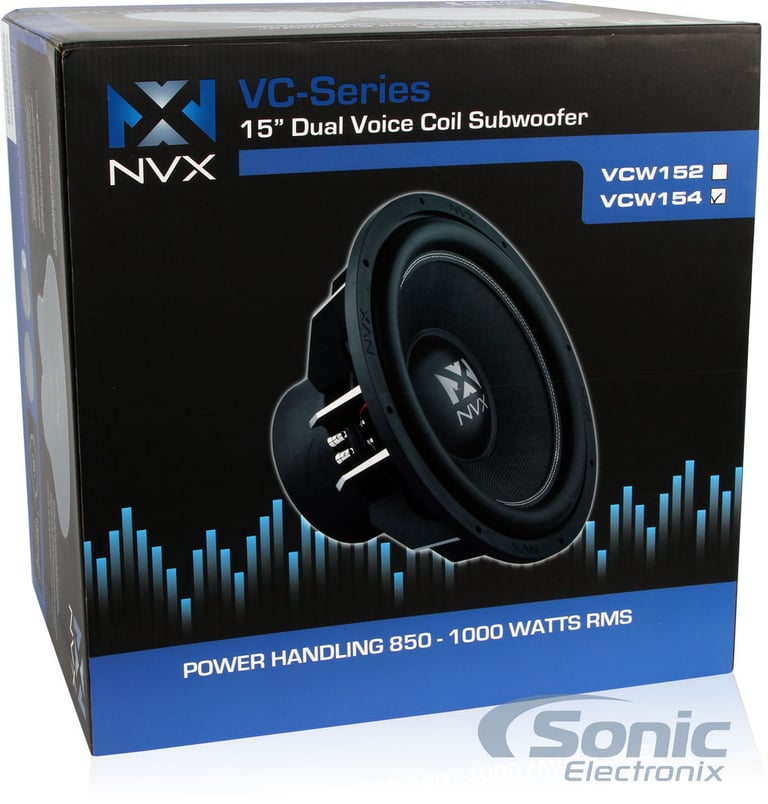

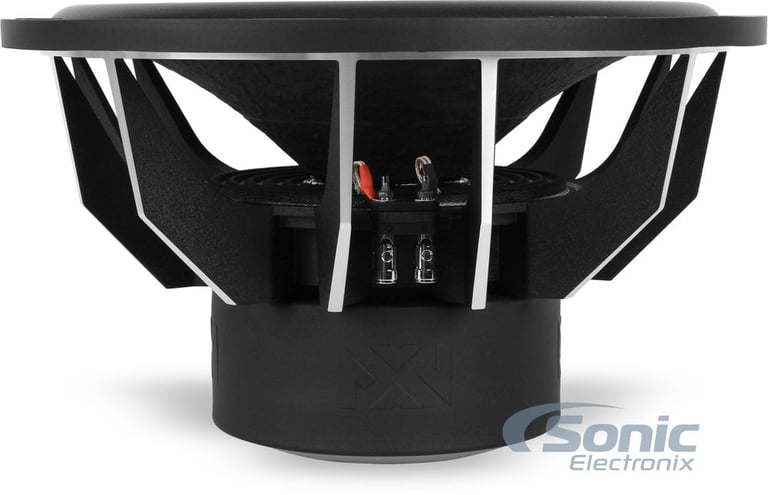

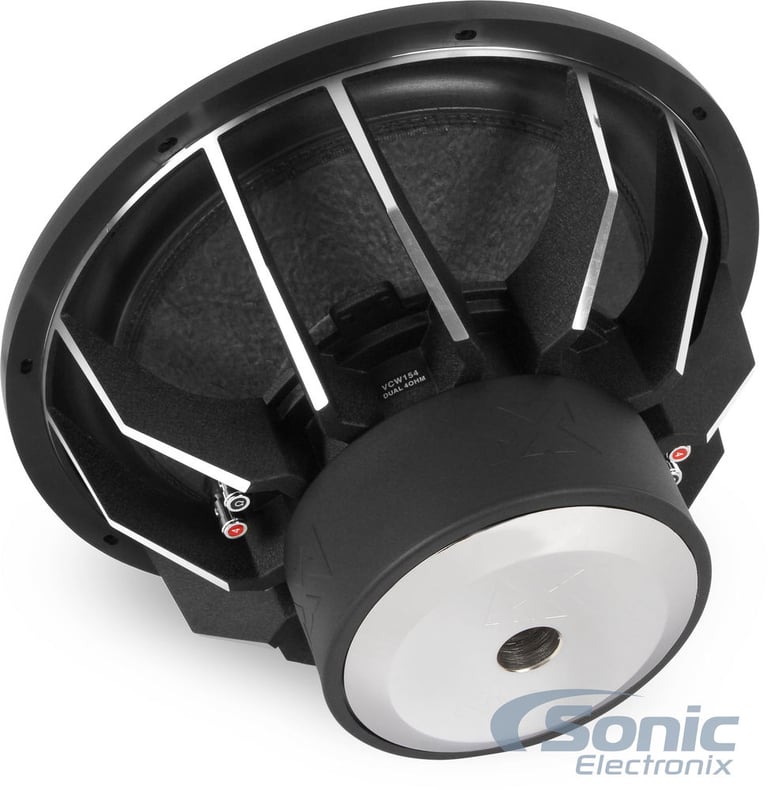

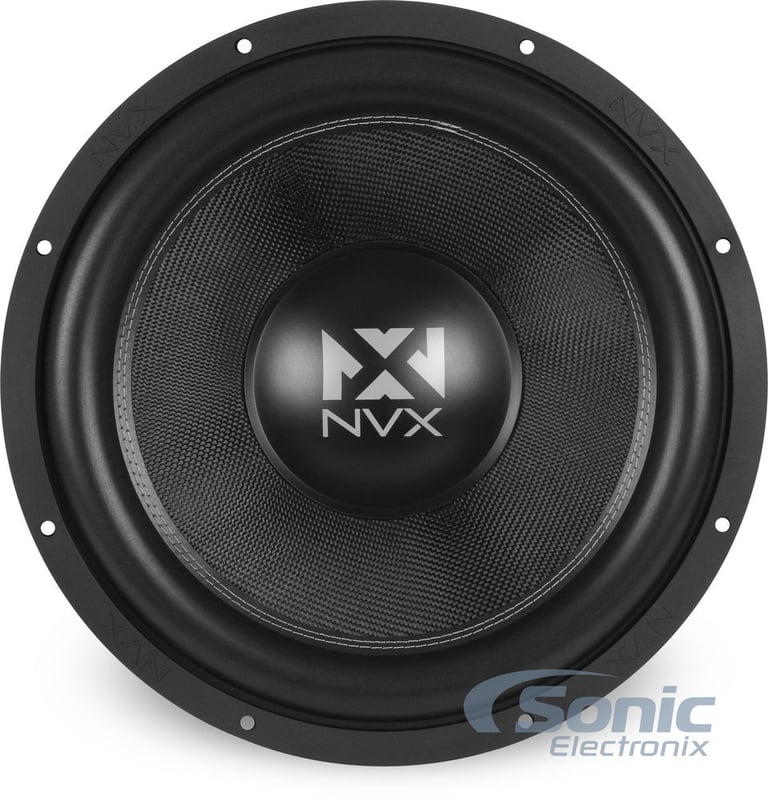

• 15" Dual 4-ohm VC-Series Car Subwoofer
• Power Handling:
• RMS Power Range: 850-1000 watts
• Impedance: Dual 4 ohm
• Pressed paper cone with woven fiber top
• High excursion foam surround
• Die Cast aluminum basket for maximum rigidity
• Dual Poly-Cotton Spiders
• 3" Aluminum Voice coil
• 195oz. Triple stacked Ferite magnet motor structure with protective rubber boot
• Frequency response: 20-220 Hz
• Resonance Frequency (Fs): 26 Hz
• Optimal sealed box volume: 1.50 cubic feet tuned at 40 Hz
• Optimal ported box volume: 2.50 cubic feet tuned at 33 Hz
• Top-mount depth: 7-9/16"
• Sensitivity: 87dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Additional Information:

*CEA-2031 Compliant: All CEA-2031 compliant loudspeakers adopt the same testing and measurement methods so comparing them side by side is easy. Loudspeakers include car speakers and subwoofers. The Consumer Electronics Association created new testing and measurement methods for mobile loudspeaker systems that define test procedures for rating the performance and physical size of speakers. This is important because you can now compare different speakers on the same playing field. Any manufacturers who adopt the CEA-2031 logo product mark can be compared evenly to other speaker manufacturers with the same mark.

General Features:

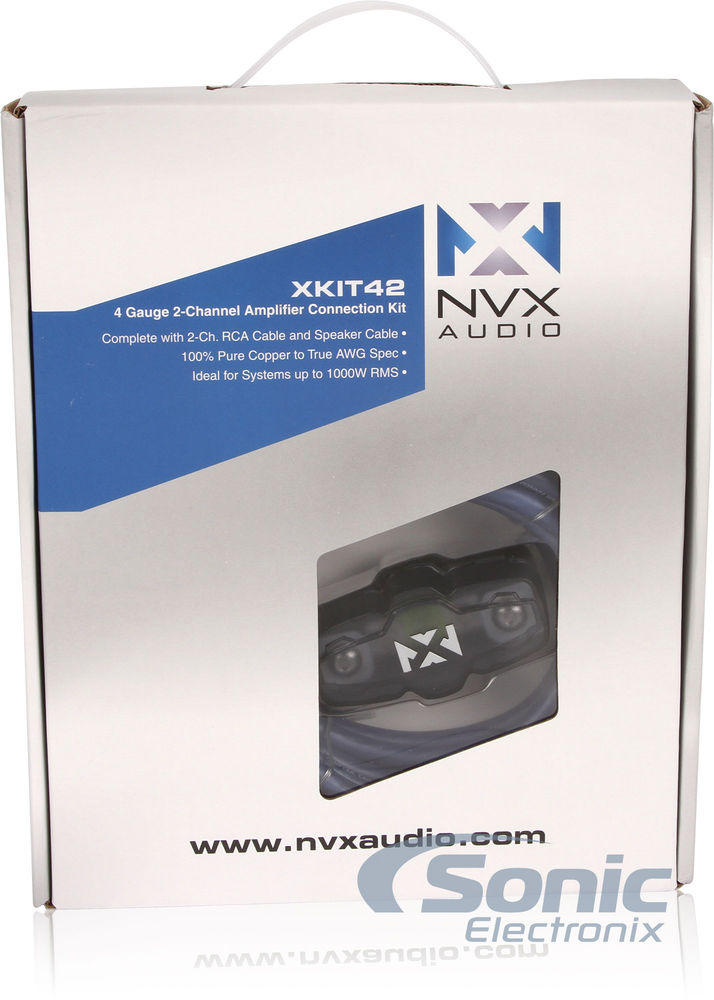

• 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium power and ground wire provides optimal power transfer
• Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal
• Audio Interconnect RCA cables are made with twisted-pair technology for noise reduction
• Solid Brass and satin-chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
• True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
• Strand Count: 1862
• BC-5W2 Compliant
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

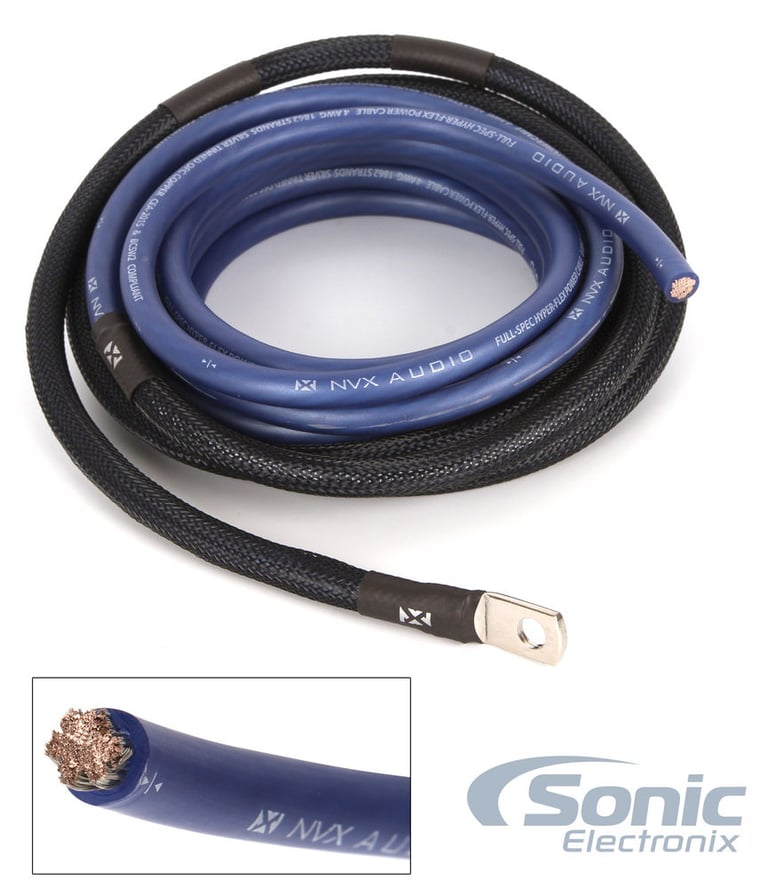

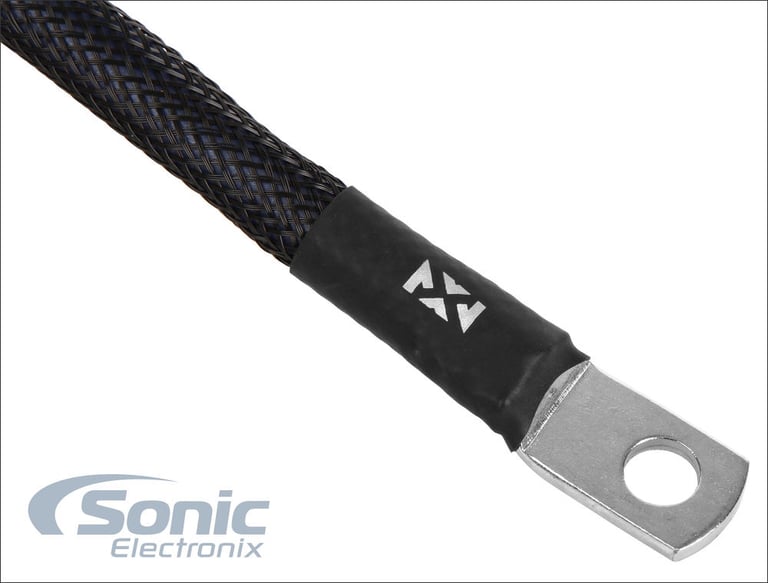

1. 20 ft. (6.1 meters) Frosted Blue 4 gauge power wire with seamless crimp ring terminal

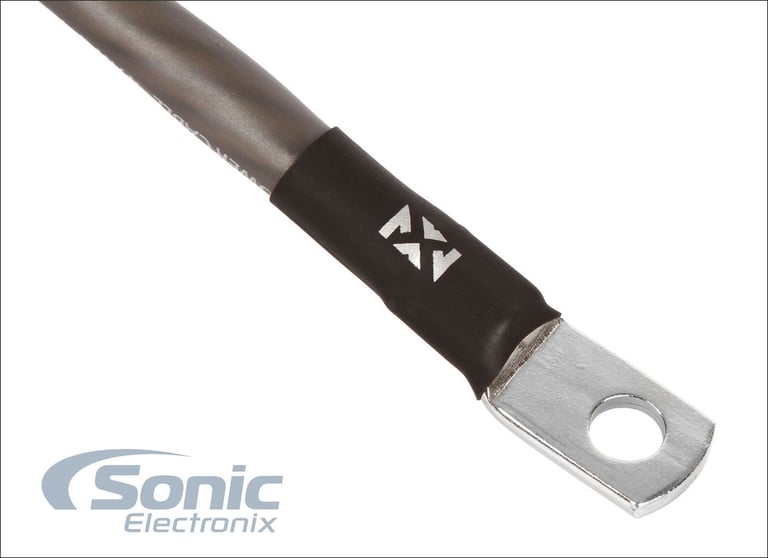

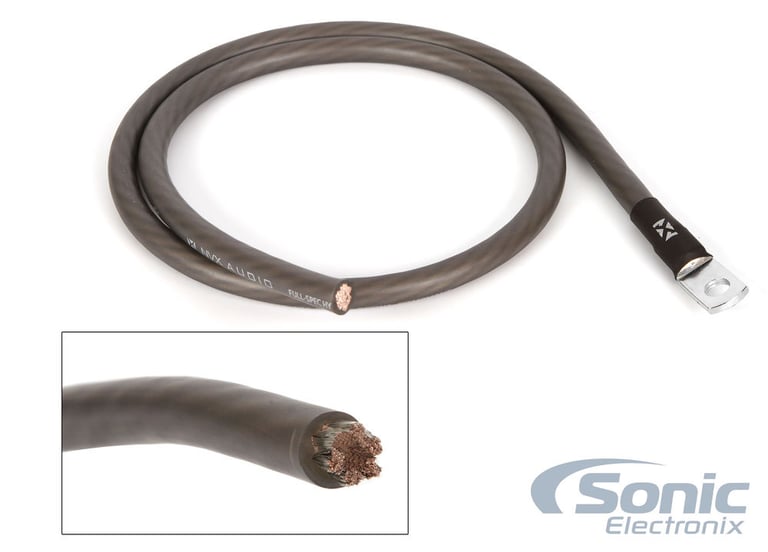

2. 3 ft. (.91 meters) Frosted Black 4 gauge ground wire with seamless crimp ring terminal

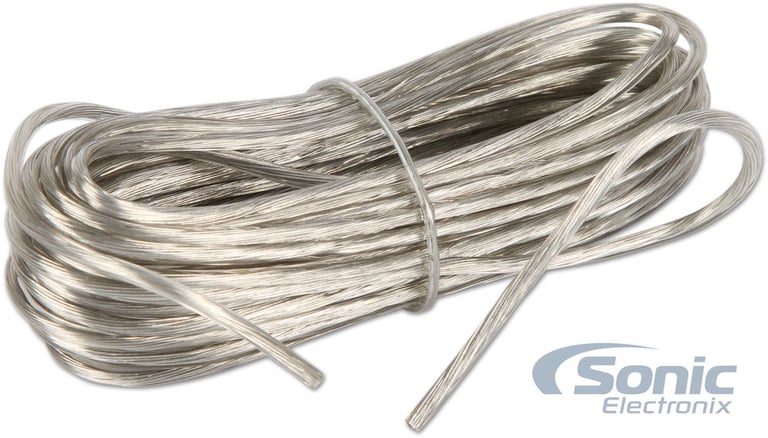

3. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

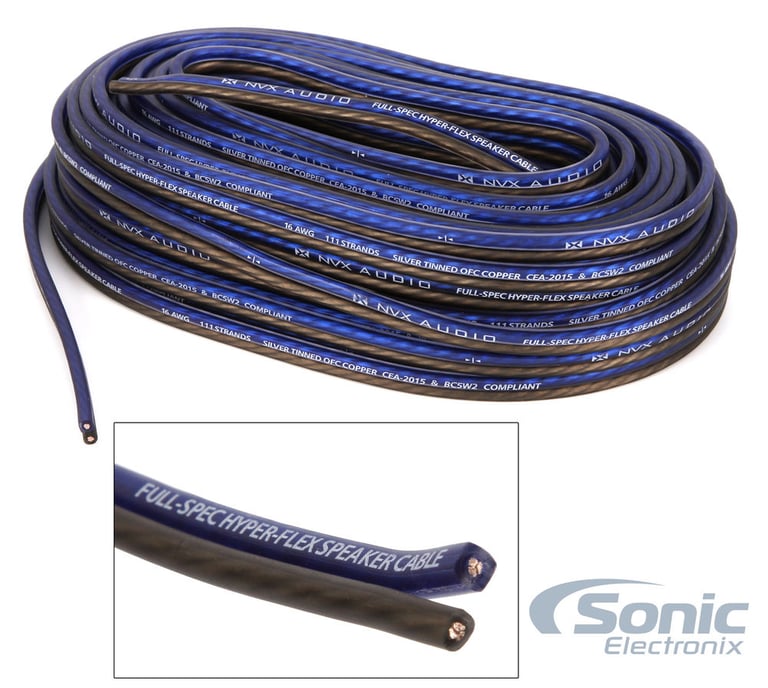

4. 40 ft. (12.2 meters) Frosted Black/Blue 16 gauge speaker wire

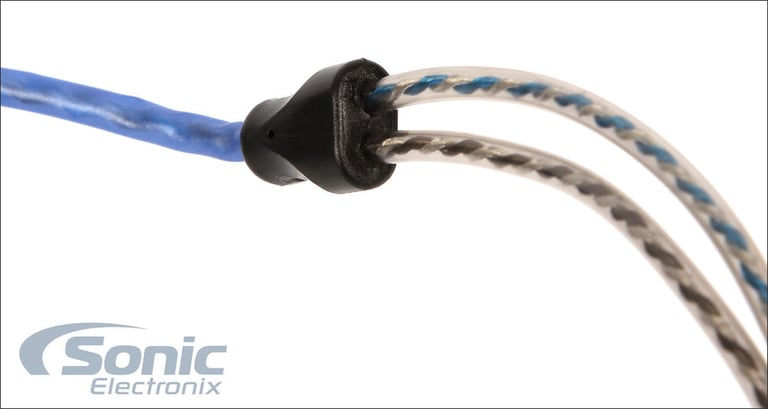

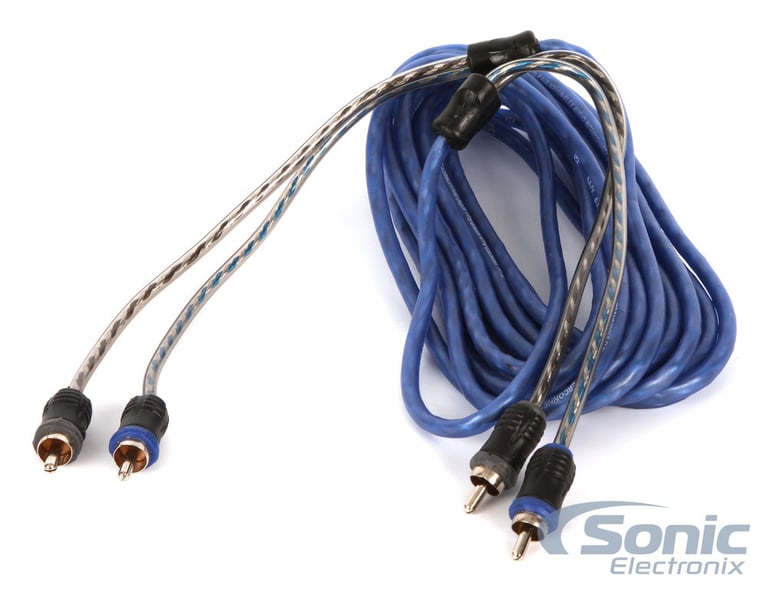

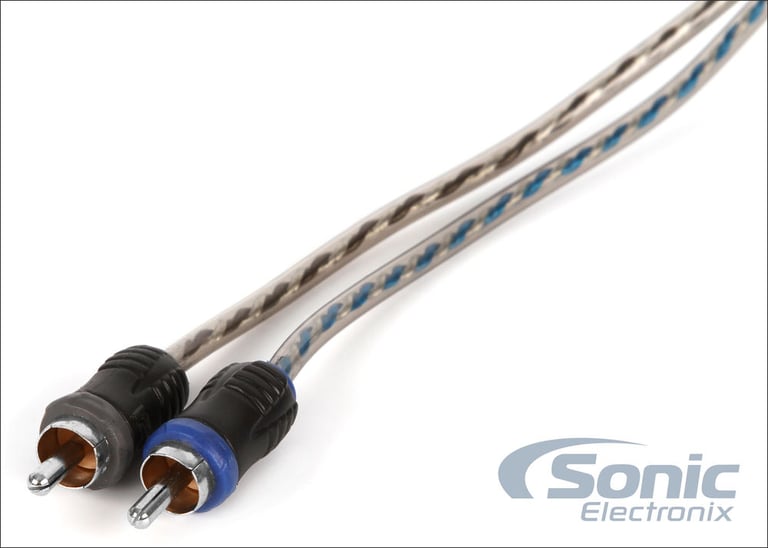

5. One 16 ft. (5 meters) 2-channel twisted construction RCA interconnect Cable (NVX XIV25)

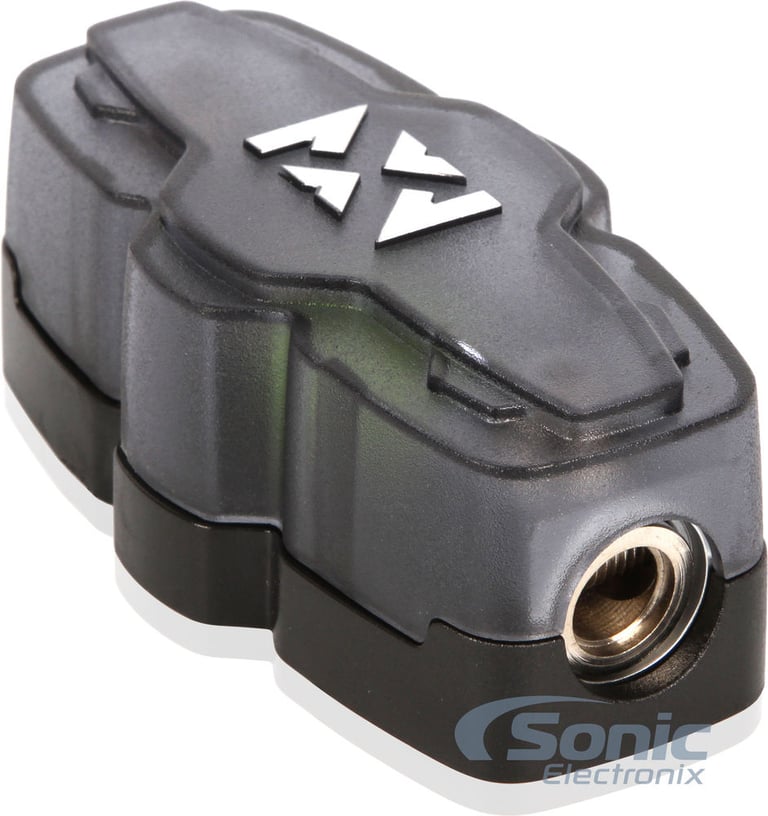

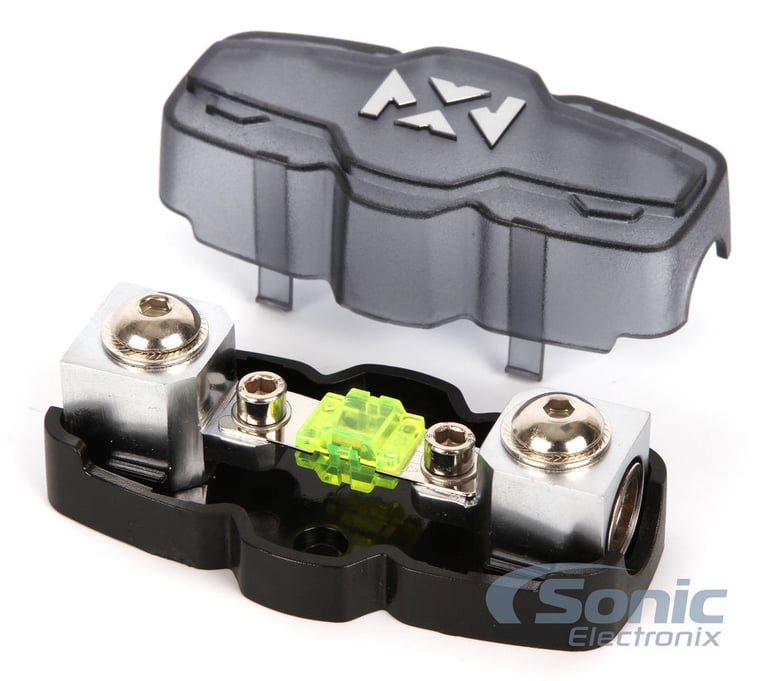

6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse

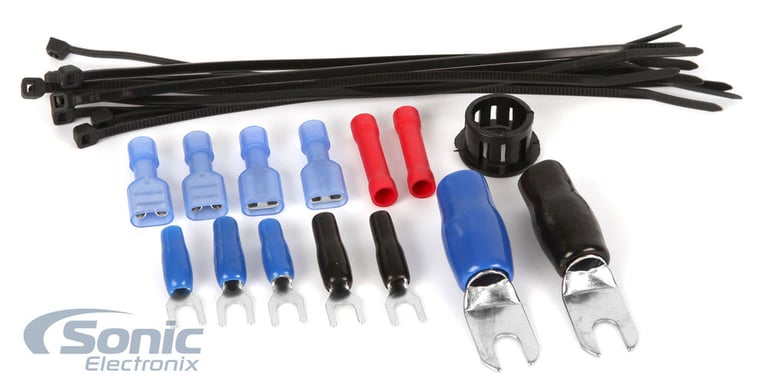

7. One Black rubber firewall grommet
8. Two 4 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Ten 6" Black zip ties

Product Features:

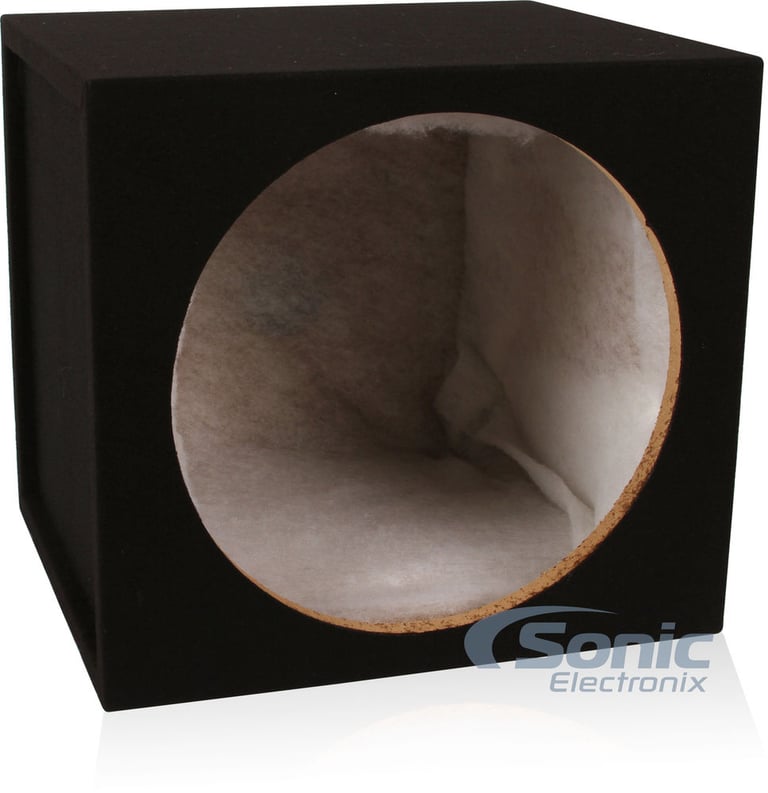

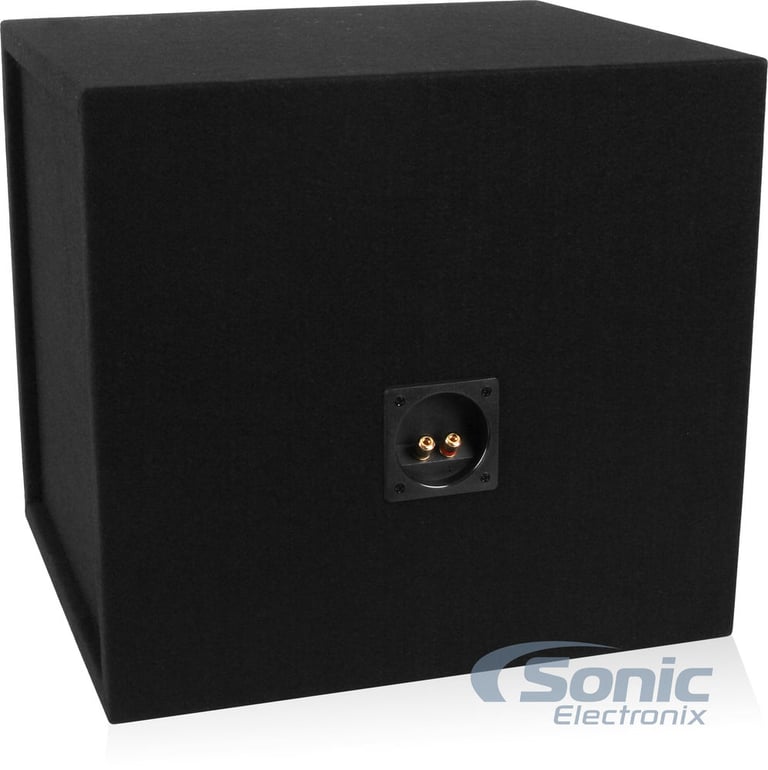

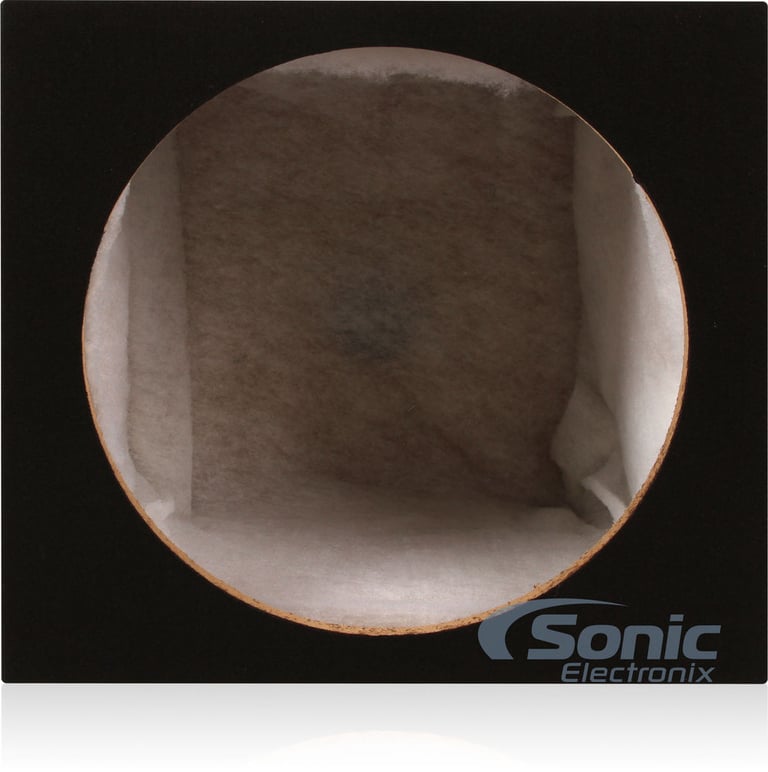

• 15" Single Sealed Subwoofer Enclosure
• 3/4" High Quality MDF Material machine-cut to perfection
• Now lined with Poly-fill
• Professionally Sealed, caulked, and carpeted
• Terminal cup installed with gold screw posts
• Durable black carpeting
• Mounting Depth: 14-1/2"
• Cutout Diameter: 14-3/4"
• Internal Box Volume: 1.90 cubic ft.
• Box Dimensions: 17-3/4"W x 16-1/4"H x 15-1/4"D
• 1 Year Manufacturer's Warranty
