12W0v3-4 | 12" 4-Ohm 600W Car Subwoofers Pair | JL Audio

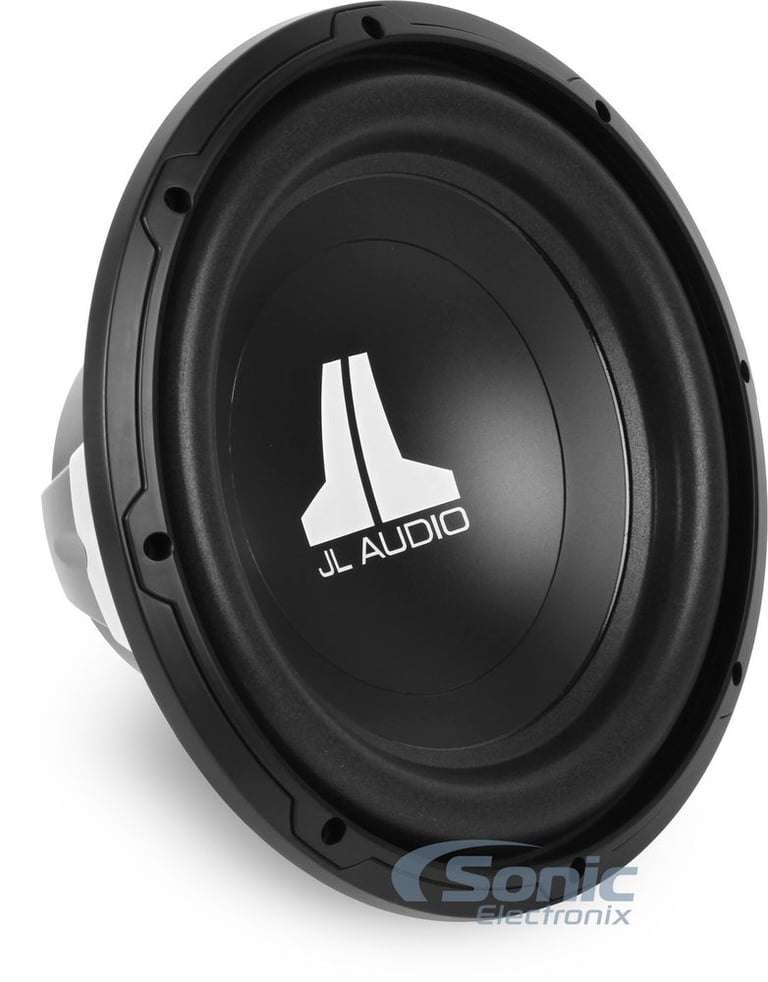

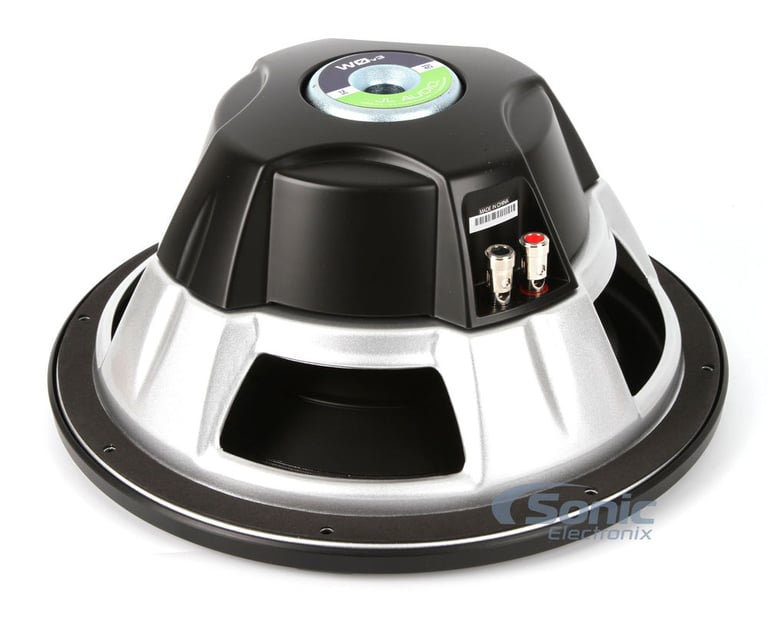

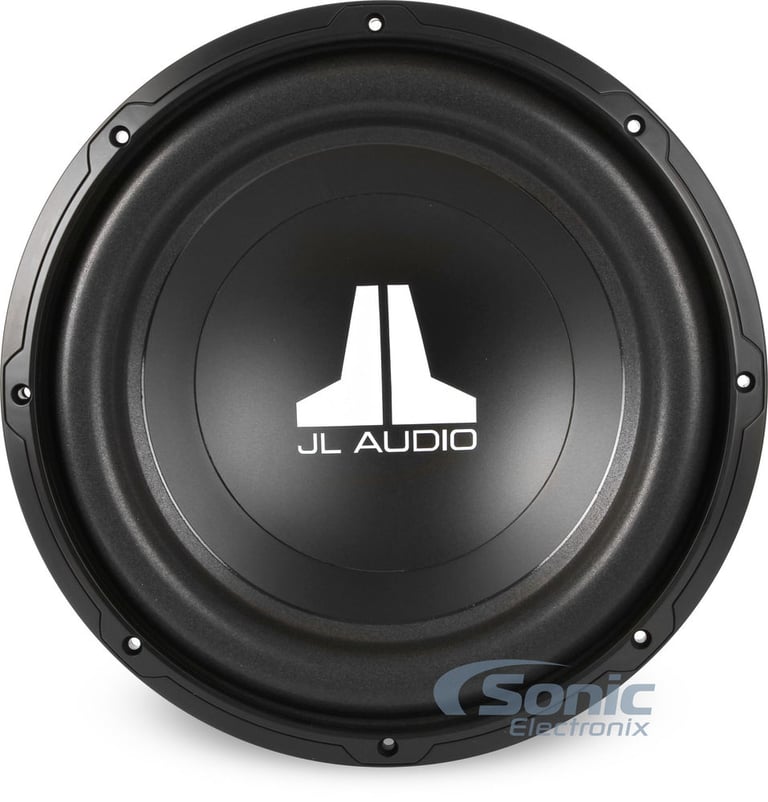

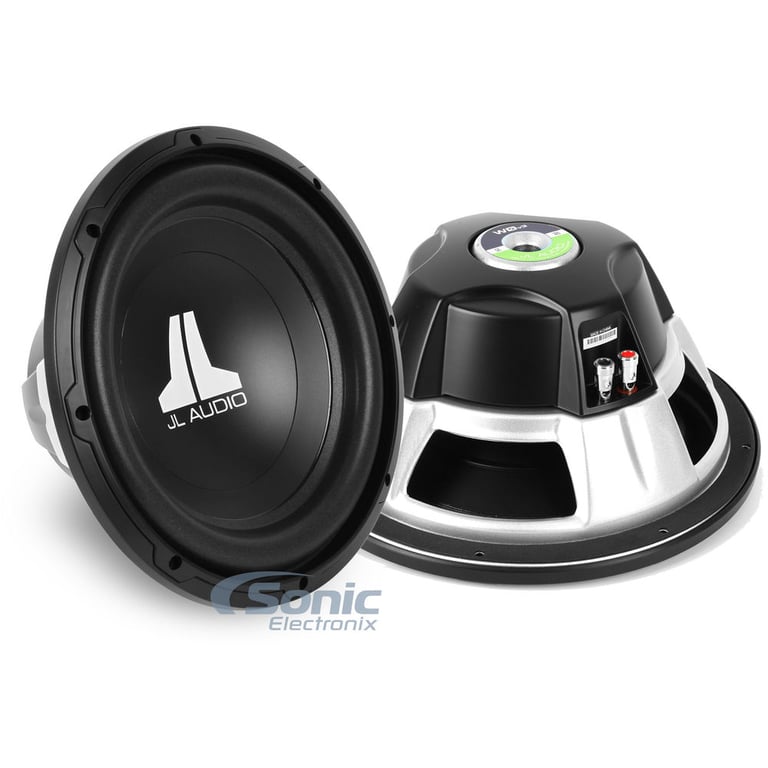

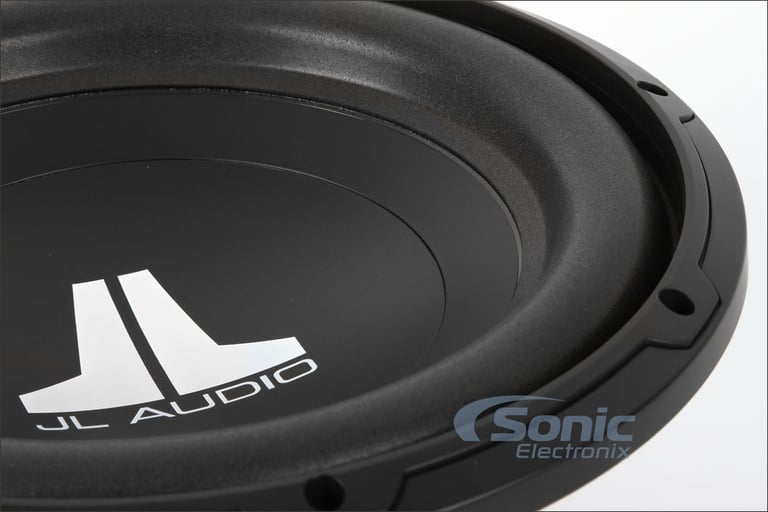

(2) JL Audio 12W0v3-4 Subwoofers

Pair of 300W 12" W0v3 Series Single 4 Ohm Subwoofers

Pair of 300W 12" W0v3 Series Single 4 Ohm Subwoofers

• 2 Subs
• 1200W Peak
• 600W RMS
• Mineral-Filled, Polypropylene Cone Woofer
• DMA Optimized Motor System
• Elevated Frame Cooling
• Lead Wire Woven Into Spider

5.0

(420)

$307.48

In Stock with warranty
Thanks , You Pay:
Order within 19 hrs 1 min to ship 6/23

FREE delivery: Fri, June 25 to VA.

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
JL Audio

Authorized dealer

Product Features:

  • 1 Pair of 12" Single 4 Ohm W0v3 Series Subwoofers
  • Not sure which model you're looking for?
    • Click here to compare!
  • Power Handling:
    • RMS: 600 watts per pair / 300 watts each
  • Recommended Power Range: 200-600 watts total
  • Impedance per Pair: 2 Ohm or 8 Ohm
  • Mineral-filled, polypropylene cone woofer for excellent durability
  • Large roll surround for generous amounts of excursion
  • Elevated frame cooling brings air directly to the voice coil
  • Designed for compact sealed enclosures or medium-sized ported enclosures
  • Large excursion for louder bass and less distortion
  • DMA Optimized motor system reduces distortion and tight, clean bass
  • Lead wire woven into spider for added strength
  • Metallic silver frame finish
  • 2" Voice coil size
  • 5-1/4" Magnet diameter
  • Sensitivity: 85.64 dB
  • Black Steel-Mesh Grille Insert Available: JL Audio SGRU-12
  • 1-year Manufacturer's Warranty

JL Model Comparison
From entry level woofers to competition grade, JL has them all. Let us find which one works for you.

Model RMS Power Cone Material Surround Material Sensitivity (dB) Frequency Response Xmax (mm Terminals Made In America
W7 Series 500-1500 Watts Polypropylene Foam Overroll 82.7 - 86.3 15-250 Hz 19-32 Push Terminals
W6 Series 600 Watts Polypropylene Rubber 82.7 - 85.4 20-200 Hz 19 Push Terminals
W3 Series 150-600 Watts Polypropylene Rubber 80.5-87.90 20-250 Hz 8.89-15.5 Push Terminals
W1 Series 150-300 Watts Polypropylene Rubber 83.9-86.1 22-200 8-11 Push Terminals
W0 Series 300-500 Watts Polypropylene Foam 84-88.20 20-250 Hz 11.4-12.7 Push Terminals
WX Series 200 Watts Polypropylene Foam 86-87.17 22-250 Hz 10 Spade Terminals

Product history:

JL Audio 12W0v3-4,12W0v3-4 thumbnail
(newest, current model)
JL Audio 12W0v2-4 thumbnail
(previous model, replaced by (2) JL Audio 12W0v3-4 Subwoofers)
JL Audio 12W0 thumbnail
(previous model, replaced by JL Audio 12W0v2-4)
FEATURES & SPECS
Subwoofer Specifications
Subwoofer Series
W0v3 (JL Audio)
Subwoofer Size
12"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohms
Frequency Response
22 - 250 Hz
Sensitivity
85.64 dB
Xmax (millimeters)
11.4 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Foam
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.37 cubic feet
Maximum Sealed Box Volume
1.37 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Maximum Ported Box Volume
1.75 cubic feet
Top-Mount Depth
5-7/6"
Cutout Diameter
11-1/16"
Shallow Mount Installation
No
What is in the box?
WITB: Subwoofers
Paperwork
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Authorized Dealer
Authorized Dealer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
