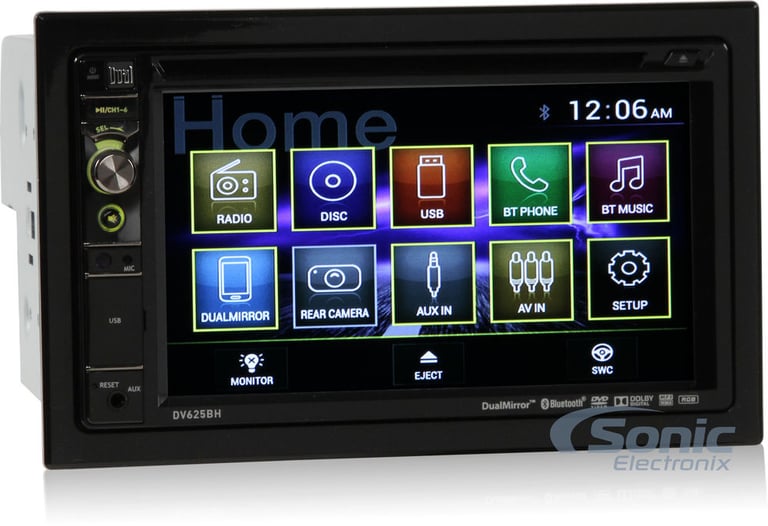

Dual DV625BH Open Box Complete

Double DIN Bluetooth In-Dash DVD/CD/AM/FM Car Stereo w/ 6.2" LCD Touchscreen DualMirror Technology

Dual
Shop all Dual
highlight-star-icon

• Item Condition: Open Box Complete
• 85W x 4 Chan. MAX • 16W x 4 Chan. RMS
• 3 Sets of 4V Preamp Outputs
• 3-band parametric equalizer with 7 selectable tone curves
• Front and Rear USB Input
• 3.5mm Front Audio Auxiliary Input

Learn more about the ls-dv625bh-obc6

We apologize

This item has been discontinued

Description


Dual brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.











  • A part that is fully functional but shows no sign of use outside of installation.

General Features:

  • Dual DV625BH In-Dash Receiver
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 85 watts x 4 channels
    • RMS: 16 watts x 4 channels
  • Signal to Noise Ratio: 80dBA
  • Frequency response: 20Hz - 20kHz
  • Channel separation @ 1kHz: >80dB
  • 24 Bit Digital to Analog Converter
  • 6.2" Digital LED Backlit TFT Display
  • 800 x 480 - 1,152,000 pixels
  • CD text information display

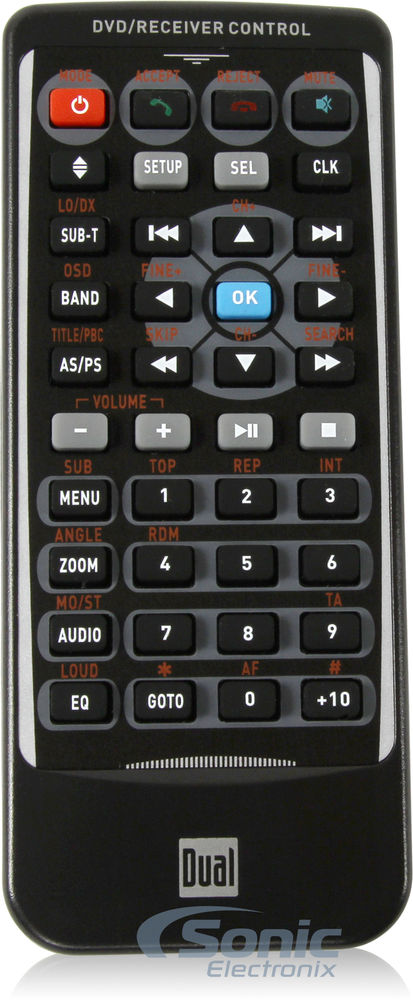

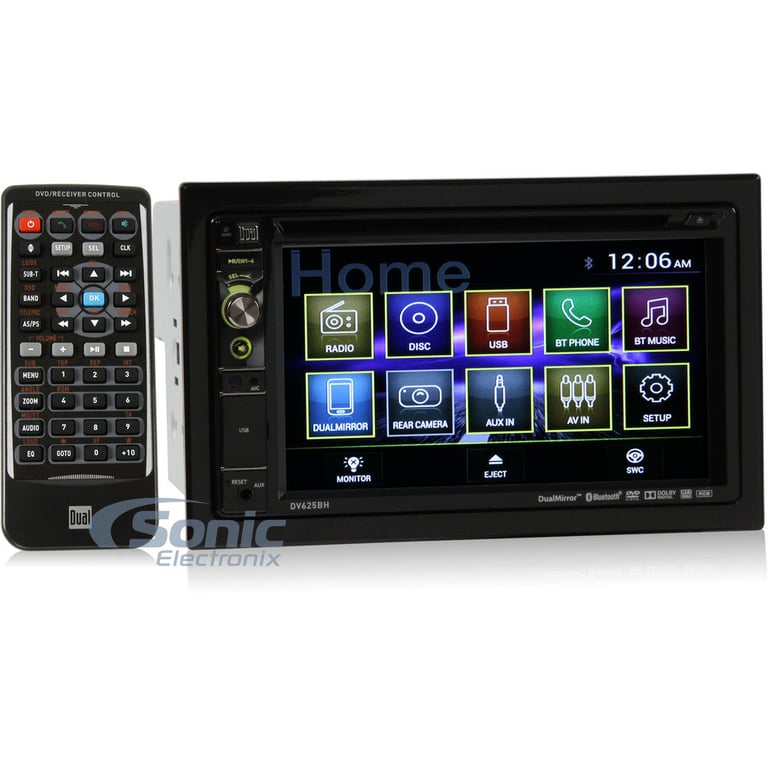

  • Remote control included
  • Chassis dimensions: 7" W x 7" D x 2" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

DualMirror Technology

  • Allows user to mirror the screen of an iPhone, iPod or Android device
  • Built-in digital-to-digital HDMI video converter
  • Compatible with select Apple and Android smartphones
  • Wireless connectivity option requires Dual DMH25 Dualcast WiFi dongle, sold separately
  • Wired connectivity available, cable sold separately
    • Dual SL55A - 5-Pin 5 Foot Cable for Using Select Android Smartphones
    • Dual SL113A - 11-Pin 3 Foot Cable for Using Samsung Android Smartphones
    • Dual SL115A - 11-Pin 5 Foot Cable for Using Select Android Smartphones
    • Dual DL5i - 5 Ft. HDMI Display Link Cable and USB Extension Cable for Apple Devices
  • Stream Navigation, Music, Video, Games and More...

Playback and Audio Features:

  • AM/FM tuner with 18FM/12AM presets
  • CD/CD-R/RW, DVD Video, DVD+R/RW, DVD-R/RW,DivX/Xvid, MP3/WMA
  • SD/USB format type: FAT32/FAT

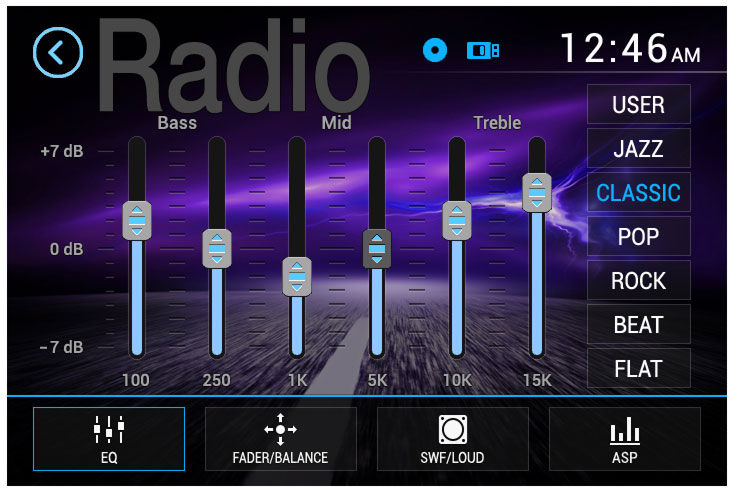

  • Audio Sound Processor (Equalizer) with 7 selectable tone curves
    • Bass Center Frequency: 60Hz, 80Hz, 100Hz or 200Hz.
    • Bass Q Value: 1.0, 1.25, 1.5 or 2.0.
    • Middle Center Frequency: 500Hz, 1 kHz, 1.5kHz or 2.5kHz.
    • Middle Q Value: 0.5, 0.75, 1.0 or 1.25.
    • Treble Center Frequency: 10kHz, 12.5kHz, 15kHz, 17.5kHz.
    • Loudness Center Frequency: FLAT, 400Hz, 800Hz, 2400Hz.
    • Subwoofer Center Frequency: FLAT, 80Hz, 120Hz, 160Hz.
  • 3.5mm Front Audio Auxiliary Input
  • Front and Rear USB Input
    • Rear Charging only (2.1A)

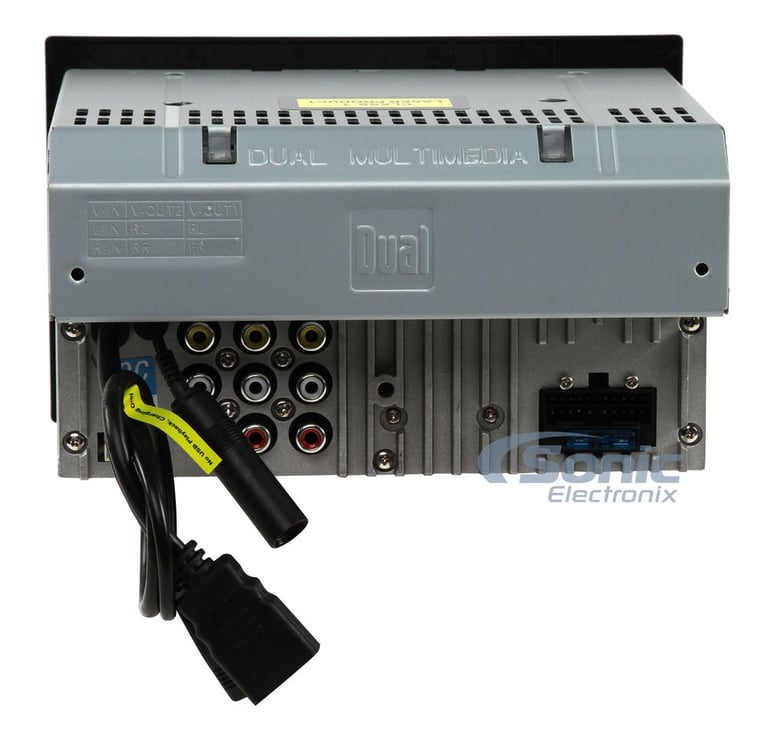

  • 3 Sets of 4V preamp outputs (front, rear and subwoofer)

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • ID3 Tag Display (Title/Artist/Album)
  • Bluetooth Profiles Supported:
    • HFP 1.6: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • Works with most Bluetooth enabled cell phones
  • Includes a built-in microphone for clear, convenient, distortion-free talking

Expandability Options:

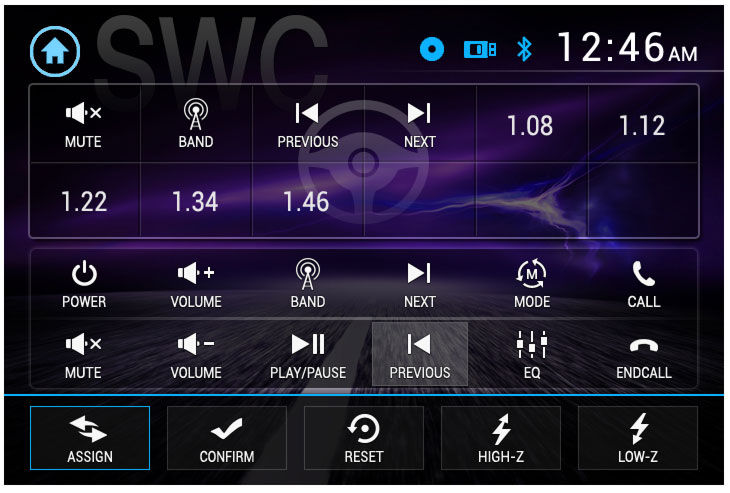

  • Steering Wheel Control Ready: PAC ControlPRO or the Axxess ASWC-1 required and sold separately

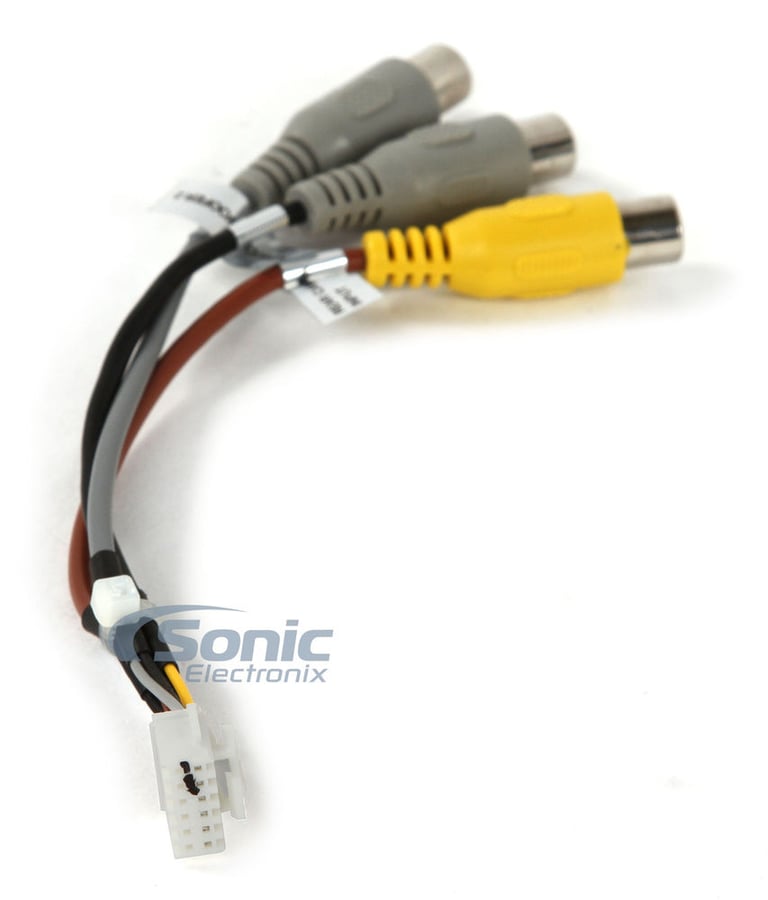

  • Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input.
  • Rear RCA Video Output: Used for connection to separate monitors and other devices

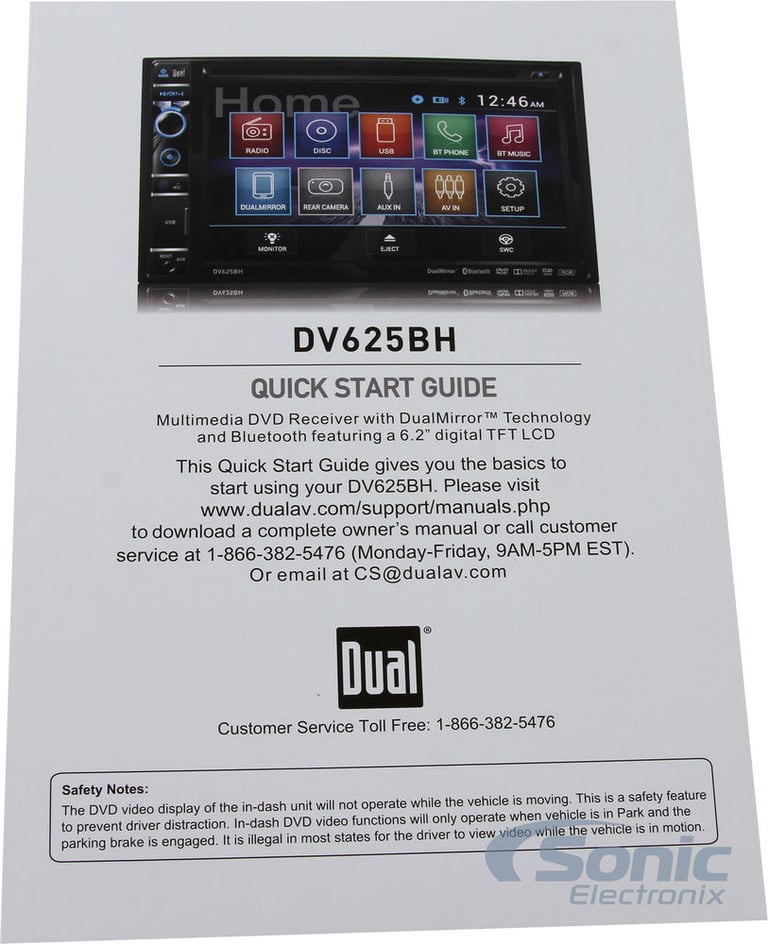

Check out the Dual DV625BH User Manual



Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Double DIN
Wireless Remote
Yes
Peak Power Output
85 watts x 4 channel
RMS Power Output
16 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
4 volts
Built-In Equalizer
Yes
Display Type
TFT-LCD Display
Touchscreen
Yes
Screen Size
6.2"
Smartphone Integration
Compatible Smartphones
iPhone (iOS)
Android
Expandability Features
Inputs
Auxiliary (Front)
Auxiliary (Rear)
Backup Camera
Steering Wheel Control Compatible
DO NOT USE - Yes
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
12
Radio Data System (RDS)
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DV625BH Open Box Complete

Weight:

4.40lbs

Internal SKU:

ls-dv625bh-obc6

Internal Product ID:

130301
