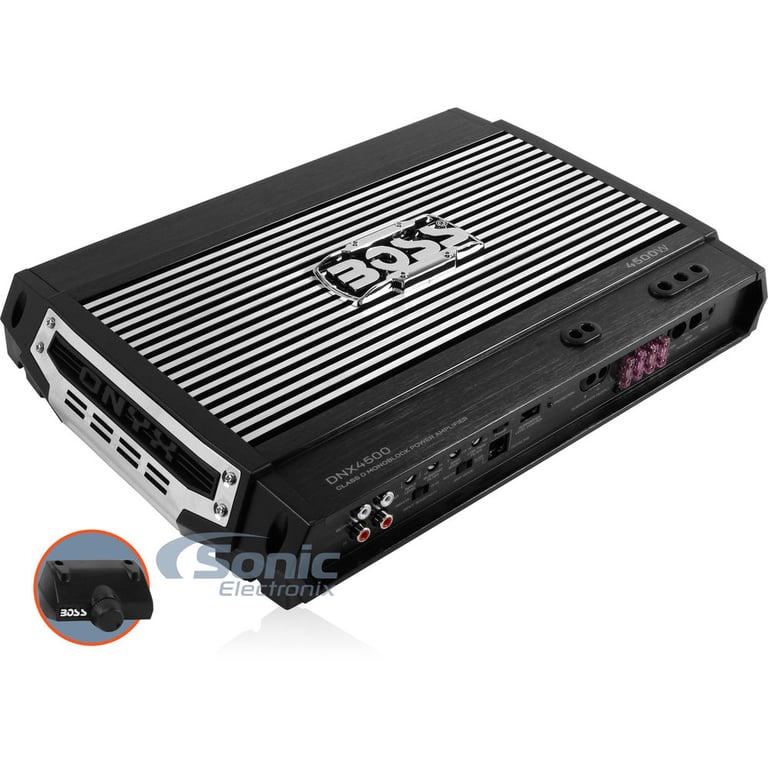

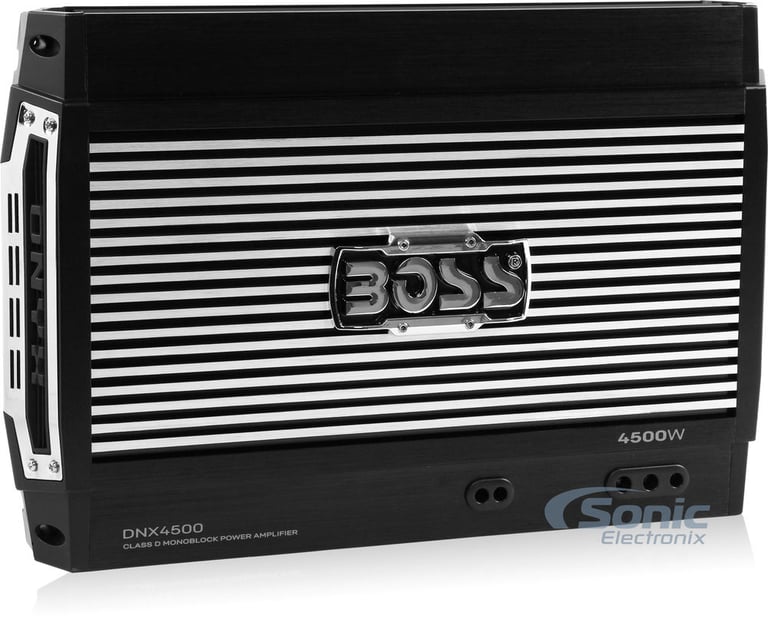

Boss DNX4500

4500W Monoblock Onyx Series Class D Amplifier

Boss
Shop all Boss
Product videos
highlight-star-icon

• RMS: 2100W x 1 @ 4 ohm
• Total Peak Power: 4500W
• Nickel-plated RCA low level inputs/outputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)

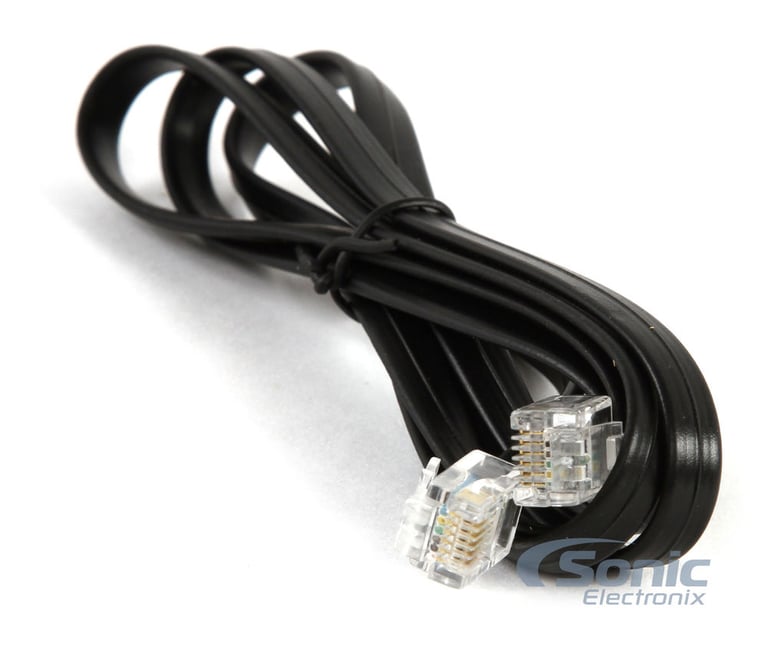

• Wired remote bass level control included
• 10.00" W x 15.25" L x 2.25" H

Learn more about the dnx4500

We apologize

This item has been discontinued


Loading...
BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Product Highlights


• RMS: 2100W x 1 @ 4 ohm
• Total Peak Power: 4500W
• Nickel-plated RCA low level inputs/outputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Wired remote bass level control included
• 10.00" W x 15.25" L x 2.25" H

Description


Boss brand icon

Authorized dealer

General Features:

  • Onyx Series Monoblock Class D Amplifier
  • RMS Power Rating:
    • 4 ohm: 2100 watts x 1 chan.
  • Peak Power Rating:
    • 2 ohm: 3500 watts x 1 chan.
    • 1 ohm: 4500 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • 1 Ohm stable mono operation

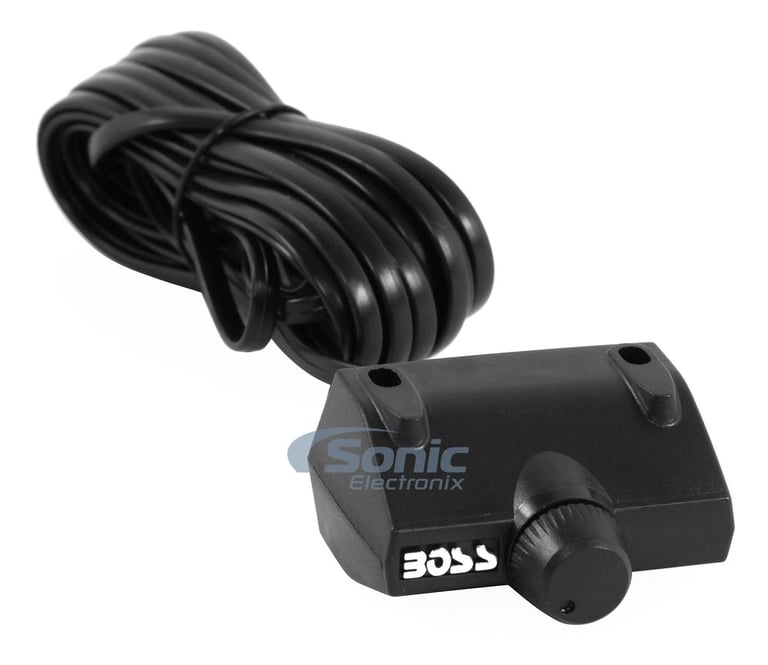

  • Wired remote bass level control included
  • Soft start turn-on
  • Nickel-plated speaker and power terminals
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Gunmetal aluminum heat-sink
  • Input sensitivity: Selectable
    • 2V - 8V
    • 100mV - 2V
  • Frequency Response: 40 - 150 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ration: 100 dB
  • Variable Bass Boost: 0 to +18dB
  • Variable low-pass filter: 45 - 150Hz
  • Variable subsonic filter: 15 - 45 Hz
  • Phase control: 0 - 180°
  • Fuse Rating: 35A x 4
  • 4 gauge power and ground wiring minimum is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 10.00"W x 15.25"L x 2.19"H
  • Authorized Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty
Check out the Boss DNX4500 Owner's Manual

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
2100 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 2 ohms
3500 watts x 1 channel
Peak Power @ 1 ohm
4500 watts x 1 channel
Amplifier Specifications
Series
ONYX Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
4500 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.01%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
45 - 150 Hz
Subsonic Filter
15 - 45 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
35A x 4
Strappable
Yes
Sonic Certified Amplifier
Not Tested
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DNX4500

Weight:

10.80lbs

Internal SKU:

dnx4500

Internal Product ID:

93798
