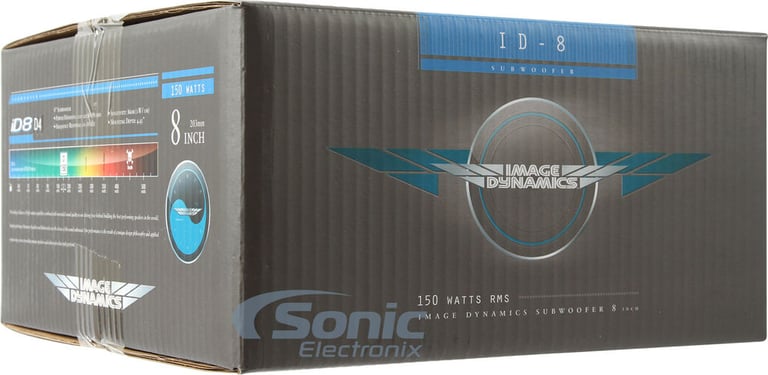

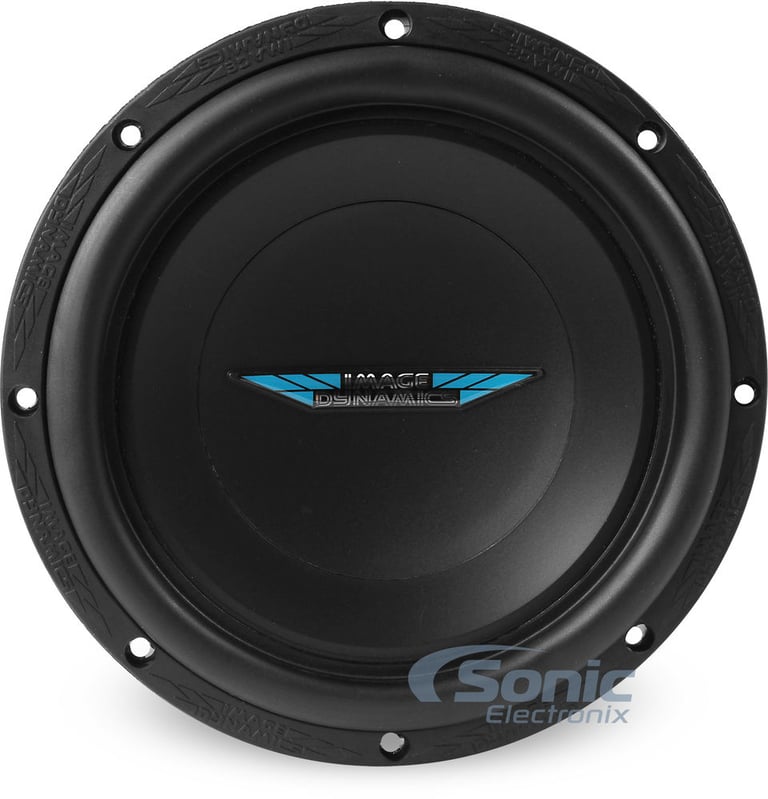

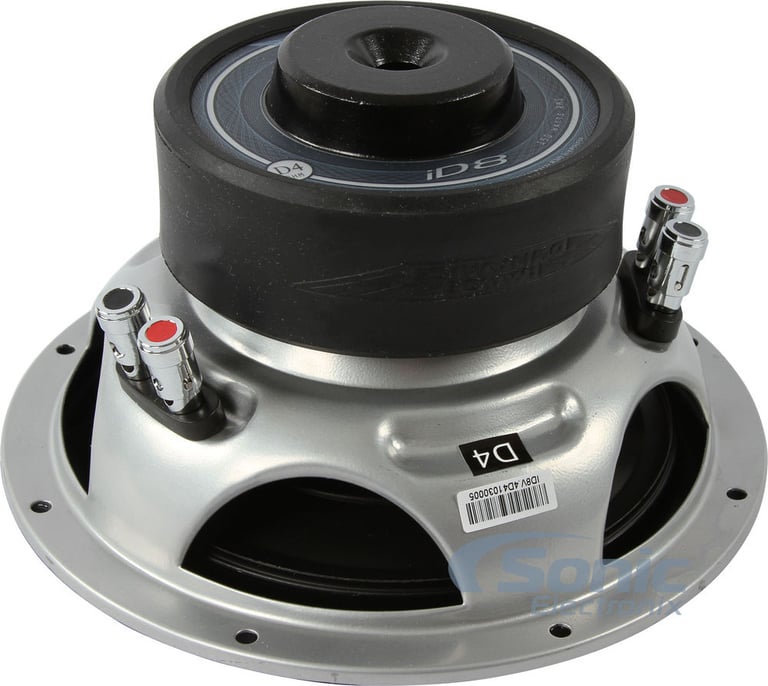

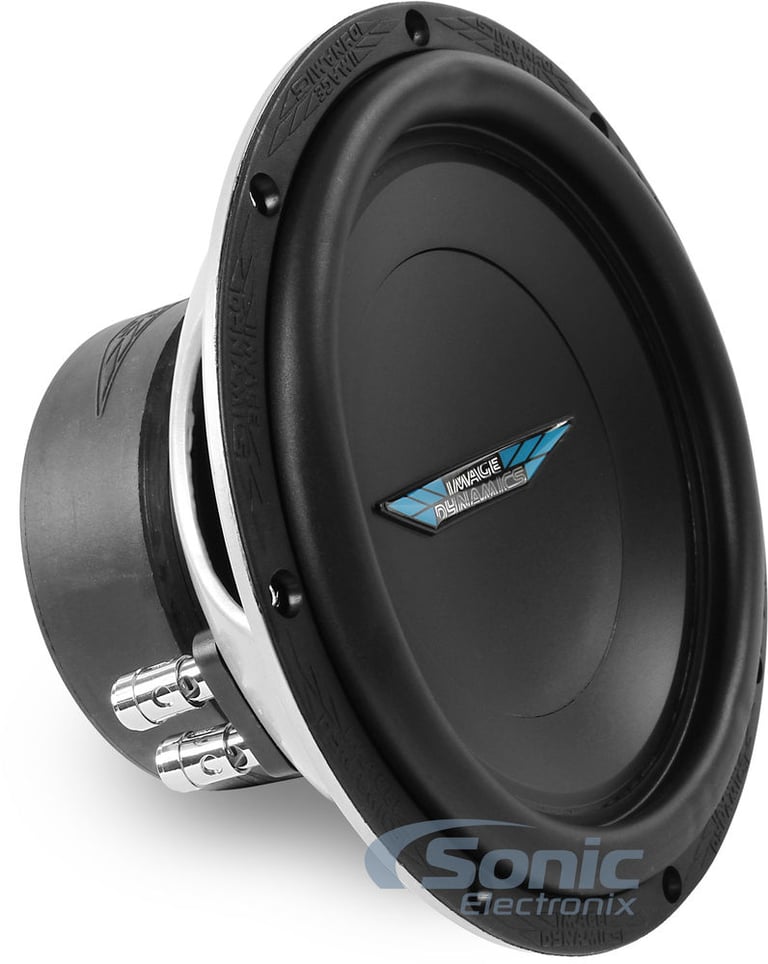

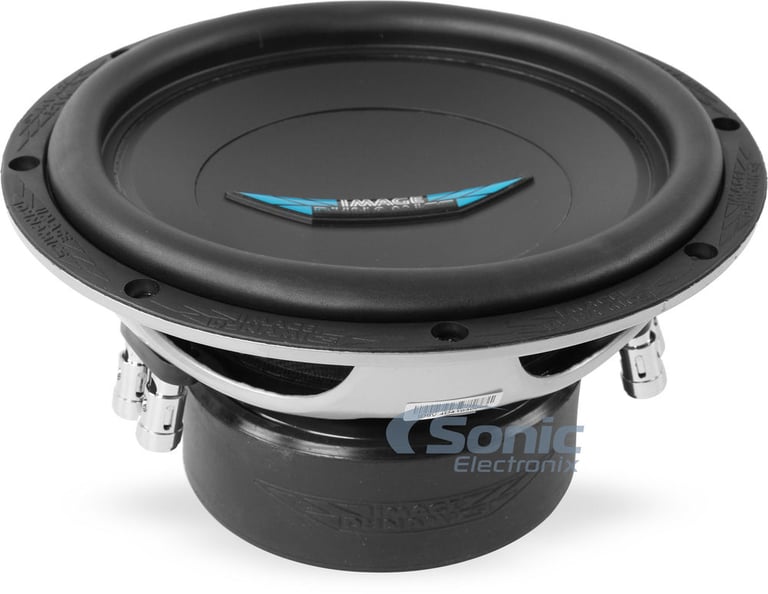

Image Dynamics ID8 D4 V.4

150W RMS 8" ID V.4 Series Dual 4 ohm Car Subwoofer

Product videos
highlight-star-icon

• Peak Power: 300W
• RMS Power: 150W
• Polypropylene Cone
• Rubber Surround

Learn more about the id8d4v4

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

Product Highlights


• Peak Power: 300W
• RMS Power: 150W
• Polypropylene Cone
• Rubber Surround

Description


Image Dynamics brand icon

Authorized dealer

General Features:

  • 8" Dual 2 ohm ID V.4 Series Subwoofer
  • Power Handling:
    • Peak: 300 watts
    • RMS: 150 watts
  • Recommended power range: 50 - 150 watts RMS
  • Mica Polypropylene cone woofer
  • Rubber surround
  • Top-mount depth: 4.75"
  • Cutout Diameter: 7.125"
  • Sensitivity: 85.6dB
  • Stamped steel basket for improved rigidity and better power handling
  • Optimized motor structure that uses finite element analysis for symmetrical and long linear excursion
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

T/S Parameters:

  • Re: 1.95/7.8 ohm
  • FS: 24.7 Hz
  • Qes: .367
  • Qms: 3.572
  • Qts: .332
  • Vas: 1.55ft3/44 L
  • Xmax: 15mm
  • Sd: 231 cm2

Product history:

Image Dynamics ID8 D4 V.4 thumbnail
(newest, current model)
Image Dynamics ID8 D4 V.3 thumbnail
(previous model, replaced by Image Dynamics ID8 D4 V.4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Image Dynamics ID8 D4 V.4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Image Dynamics ID8 D4 V.4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Image Dynamics ID8 D4 V.4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Image Dynamics ID8 D4 V.4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

DB-SA2508 D1 small

Deaf Bonce Apocalypse DB-SA2508 D1

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 5.22"
• Sensitivity: 84.7 dB

(1)

$229.90

List price $229.90

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

VCW84v3 small

NVX VCW84 Version 3 (VCW84v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(15)

$169.99

List price $203.99

8W3V3-4 small

JL Audio 8W3V3-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mineral-Filled Polypropylene Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 4.63"
• Sensitivity: 83.24 dB

(45)

$349.99

List price $349.99

L7S82 small

Kicker L7S82 (44L7S82)

• Peak Power: 900 watts
• RMS Power: 450 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 4-3/4"
• Sensitivity: 82.37 dB

(1)

$175.96

List price $239.99

SPK-8S4 small

AudioControl SPK-8S4

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 4.291"
• Sensitivity: 81.9876 dB

(1)

$179.00

List price $229.00

KAPPA 83WDSSI small

Infinity Kappa 83WDSSI (INFSUBKA83WDSSIAM)

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 5.42"
• Sensitivity: 91 dB

(2)

$149.95

List price $289.95

8W1v3-4 small

JL Audio 8W1v3-4


• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 3.86"
• Sensitivity: 84.8 dB

(10)

$199.99

List price $199.99

CWRT84 small

Kicker CWRT84 (48CWRT84)

• Peak Power: 600 watts
• RMS Power: 300 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 2-11/16"
• Sensitivity: 81.8 dB

(4)

$151.96

List price $209.99

Specifications & Details


Subwoofer Specifications
Series
ID V.4 Series
Subwoofer Size
8"
Peak Power Handling
300 watts
RMS Power Handling
150 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
85.6 dB
Xmax (millimeters)
15.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
.2 cubic feet
Optimum Sealed Box Volume
.35 cubic feet
Maximum Sealed Box Volume
.45 cubic feet
Minimum Ported Box Volume
.5 cubic feet
Optimum Ported Box Volume
.6 cubic feet
Maximum Ported Box Volume
.9 cubic feet
Top-Mount Depth (Mounting Depth)
4.75"
Cutout Diameter
7.125"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
24.7 Hz
Equivalent Compliance (Vas)
44 liters
Total Speaker Q Value (Qts)
.332
Electrical Q Value (Qes)
.317
Electrical Resistance of Voice Coil (Re)
7.8 ohm
Mechanical Q Value (Qms)
3.572
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ID8 D4 V.4

Weight:

8.80lbs

Internal SKU:

id8d4v4

Internal Product ID:

94034
