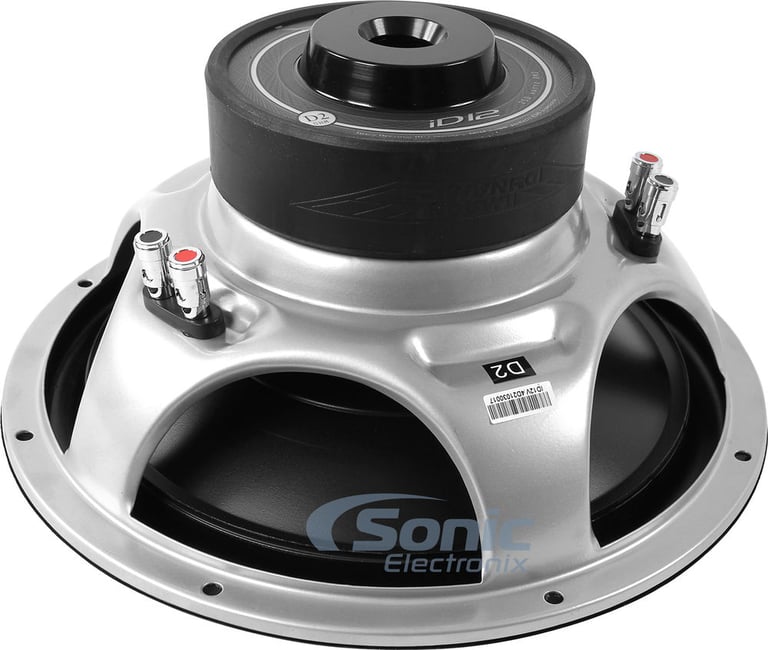

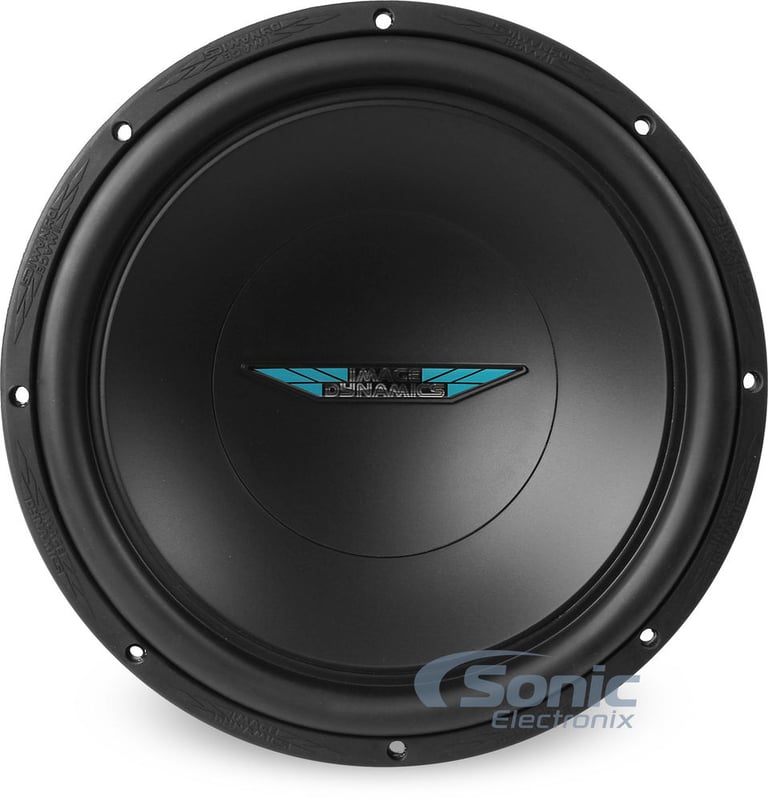

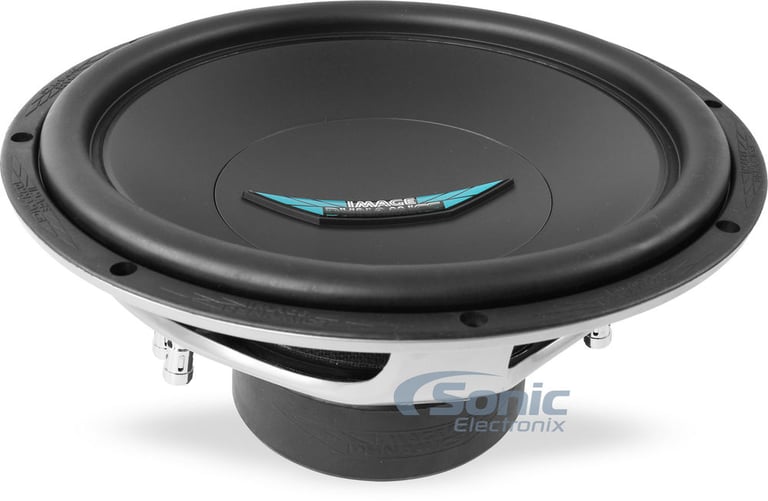

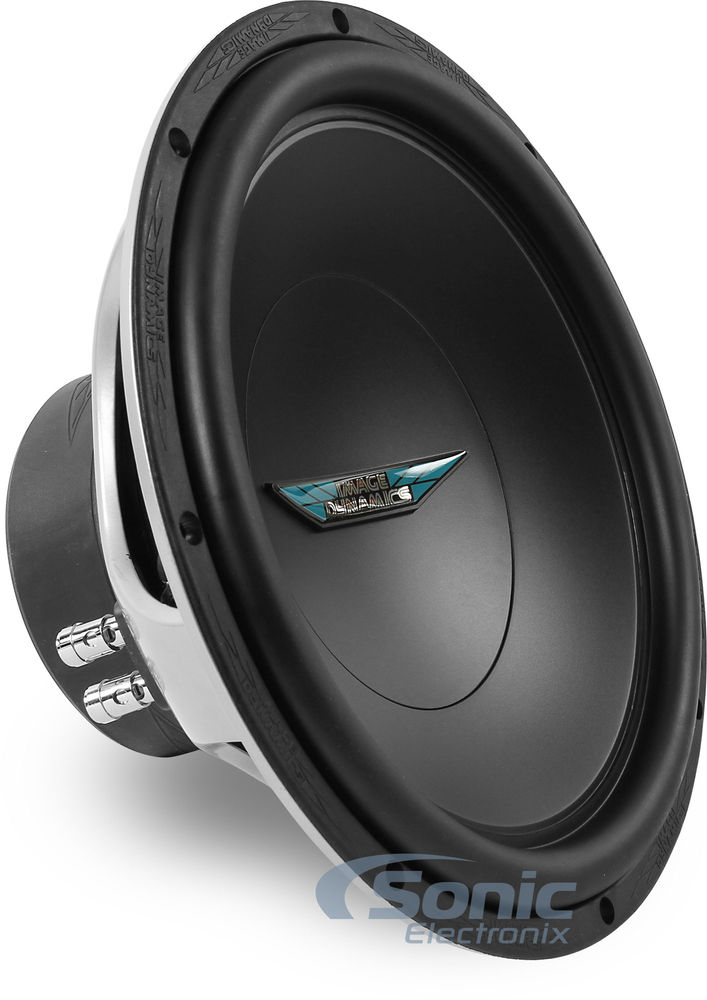

Image Dynamics ID12 D2 V.4

250W RMS 12" ID V.4 Series Dual 2 ohm Car Subwoofer

Product videos
highlight-star-icon

• Peak Power: 500W
• RMS Power: 250W
• Mica-Reinforced Cone Woofer
• Parabolic Surround

Learn more about the id12d2v4

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
P1T-S main

Rockford Fosgate Punch P1 P1T-S

240W Peak (120W RMS) 1" Punch Series PEI Car Tweeter Kit with External Crossovers

17

Product Highlights


• Peak Power: 500W
• RMS Power: 250W
• Mica-Reinforced Cone Woofer
• Parabolic Surround

Description


Image Dynamics brand icon

Authorized dealer

General Features:

  • 12" Dual 2 ohm ID V.4 Series Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Recommended Power Range: 100 - 250 watts RMS
  • Mica-reinforced polypropylene cone woofer
  • Parabolic roll surround
  • High-temperature aluminum voice coil
  • Top-mount depth: 6"
  • Cutout diameter: 11"
  • Sensitivity: 89dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Also found as: ID12D2V4, ID12D2V.4

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Image Dynamics ID12 D2 V.4 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Image Dynamics ID12 D2 V.4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Image Dynamics ID12 D2 V.4 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Image Dynamics ID12 D2 V.4 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

3
-20.01%

$119.95

List price $149.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
ID V.4 Series
Subwoofer Size
12"
Peak Power Handling
500 watts
RMS Power Handling
250 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Sensitivity
89 dB
Xmax (millimeters)
17 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Parabolic Roll
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.25 cubic feet
Optimum Ported Box Volume
2 cubic feet
Top-Mount Depth (Mounting Depth)
6"
Cutout Diameter
11"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ID12 D2 V.4

Weight:

12.60lbs

Internal SKU:

id12d2v4

Internal Product ID:

94038

Product and How-to Videos


Customer Ratings & Reviews


Image Dynamics ID12 D2 V.4 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Image Dynamics ID12 D2 V.4

So I did a review a few weeks ago when I first installed these id 12's in to replace my old kicker comp c's.The id's are broken in now so I am doing part two of my review. They are clean as advertised and get deep and hit hard. I used to have to have the bass boost turned up on my head unit when I had my comp c's now i have my bass boost turned off and still get better bass with the id's and I mentioned this in my last review,sonic got everything to me in two days. Great product,great service.

By Anonymous on June 17, 2018

11 found this helpful


Wow.

I had been wanting to try out ID drivers for years. First read about them at Elite Car Audio and never read anything bad.
Now that my daughter is driving it was her turn for a beat. So the deal was to good to pass. Free cabinet.... Which is solid and clean and sounds super fat.
The control and SQ of this driver is amazing. I dig SPL but being a musician i need to hear the music clean AND loud. This freaking sub does it all.The first thing Every person my daughter has demoed her car to says is " Wow this is so clean."
Then it starts to play low and loud and their eyes light up. I have 3 people interested in installs now! All of them wanting ID drivers!
I am sorts old school. I like the warmth of paper cones. I have used many poly cones since 1986. Never loved any of them for their sound.
This driver will be the only one I can truly say is warm and musical.
Buy it.

By G on March 23, 2016

11 found this helpful


CLEAN SMOOTH

Truly a blessing to my ears this is clean smooth warm and a pleasure to use very little output as expected with such a small power rating im going to transfer this into my house for home audio its incredibly clean buy this now
