Kicker Q-Class 42CWQ104

700W RMS 10” CompQ Series Dual 4 Ohm Voice Coil Subwoofer

Kicker
Shop all Kicker
Product videos
highlight-star-icon


• RMS Power: 700 watts
• Impedance: Dual 4 ohm
• SoloKon Polypropylene Cone
• Santoprene Rubber Surround
• Mount depth: 6-3/8"
• Sensitivity: 85.7 dB

Learn more about the 42cwq104

We apologize

This item has been discontinued


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

Product Highlights



• RMS Power: 700 watts
• Impedance: Dual 4 ohm
• SoloKon Polypropylene Cone
• Santoprene Rubber Surround
• Mount depth: 6-3/8"
• Sensitivity: 85.7 dB

Description


Kicker brand icon

Authorized dealer

Product Details:

  • 10" Dual 4 ohm CompQ Series Subwoofer
  • Power Handling:
    • RMS: 700 watts
  • SoloKon Polypropylene Cone
  • Santoprene Rubber Surround
  • UniPlate pole piece & backplate ensure the CompQ stays cool
  • FEA optimized motor structures for increased power handling
  • Blue-Lace spider for improved control & durability
  • Built for high power handling and extremely accurate bass reproduction
  • Spring-loaded copper terminals hold up to 8-gauge speaker wire
  • High Temperature Computer-optimized Voice coil
  • 20.15 mm Xmax
  • Ceramic magnet motor structure
  • Frequency Response: 24 - 100 Hz
  • Resonance Frequency (Fs): 41 Hz
  • Sensitivity: 85.7 dB
  • Recommended sealed box volume: 0.66 cubic feet - 1.25 cubic feet
  • Recommended ported box volume: 1.25 cubic feet - 2.25 cubic feet
  • Top-mount depth: 6-3/8"
  • Cutout diameter: 9-3/16"
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kicker Q-Class 42CWQ104 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker Q-Class 42CWQ104 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker Q-Class 42CWQ104 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Kicker Q-Class 42CWQ104 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Series
CompQ Series
Subwoofer Size
10"
RMS Power Handling
700 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Material
Computer-optimized
Frequency Response
24 - 100 Hz
Sensitivity
85.7 dB
Xmax (millimeters)
20.15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
SoloKon Polypropylene
Woofer Surround
Santoprene Rubber
Magnet Type
Ceramic
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.66 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
2.25 cubic feet
Top-Mount Depth (Mounting Depth)
6-3/8"
Cutout Diameter
9-3/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
41 Hz
Equivalent Compliance (Vas)
14.4242 liters
Total Speaker Q Value (Qts)
0.5045
Electrical Q Value (Qes)
0.5355
Electrical Resistance of Voice Coil (Re)
6.585 ohm
Mechanical Q Value (Qms)
8.6625
What is in the box?
Paperwork
User manual
Brand sticker/decal
WITB: Subwoofers
Subwoofer
Mounting screw cover (detached)
See below for additional accessories
Other Accessory #1
Mounting template
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

42CWQ104

Weight:

24.00lbs

Internal SKU:

42cwq104

Internal Product ID:

94184

Product and How-to Videos


Customer Ratings & Reviews


Kicker Q-Class 42CWQ104 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Best subs I have ever baught !! ????????

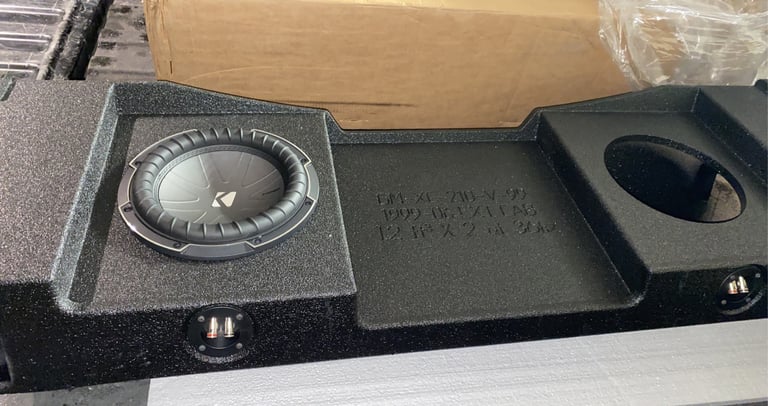

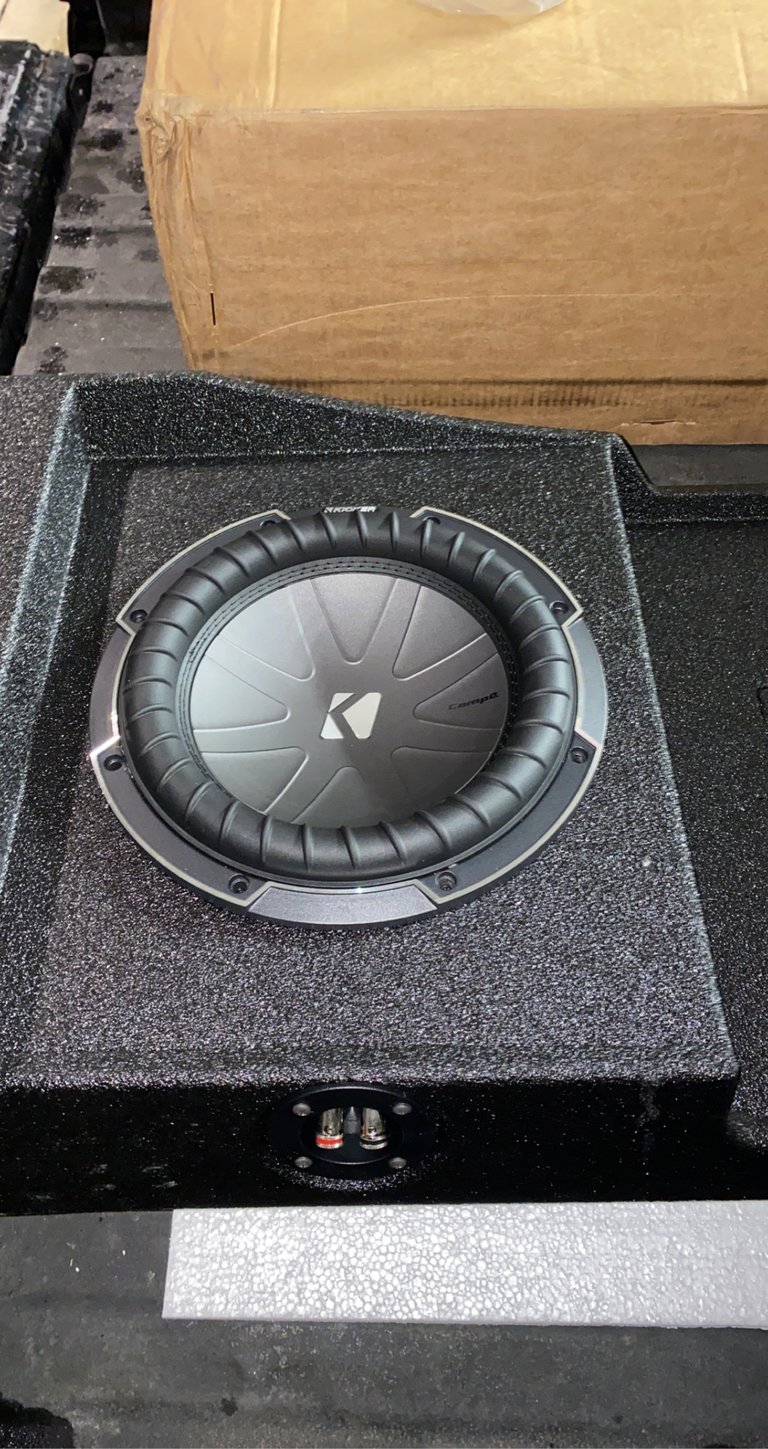

These are one of the best subs I have baught . They sound amazing lots of powerful clear bunchy bass .I’m running them at 1 ohm with a Rockford fosgate 1200 watt mono block amplifier and they hit hard .

By Javier on January 10, 2023 Checkmark Icon Verified purchase

32 found this helpful
