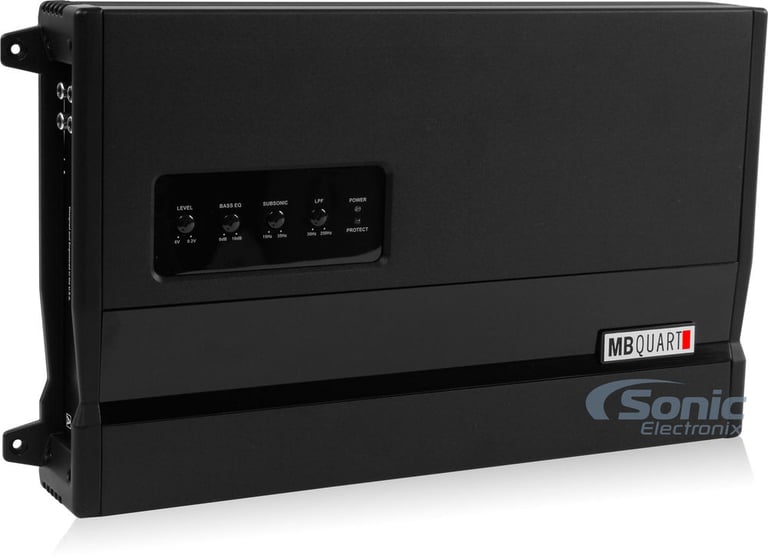

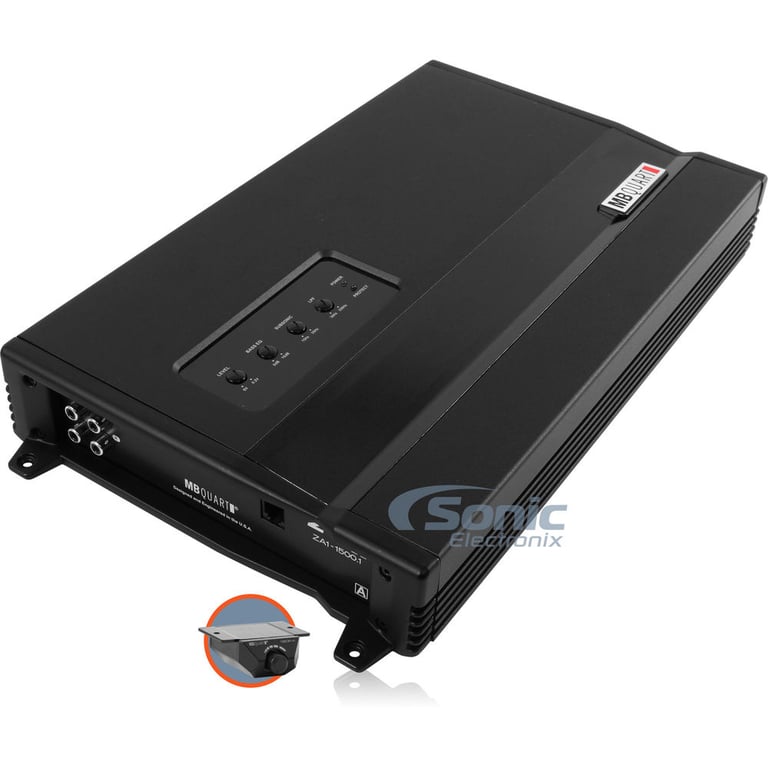

MB Quart ZA1-1500.1

1500W Monoblock Z-Line Series Class SQ A/B Amplifier

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

• RMS: 500W x 1 @ 4 ohm, 1000W x 1 @ 2 ohm, 1500W x 1 @ 1 ohm
• Fluid-FETS hand selected insulated MOSFETS
• Q-Stasis preamp stage with wide input range
• Top mounted controls for simple setup & adjustment
• Frequency Response: 15 - 250 Hz

Learn more about the za115001

We apologize

This item has been discontinued


Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

DB5252 main

Polk Audio DB5252 (DB 5252)

600W Peak (200W RMS) 5.25” DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4

$200.00

List price $209.99

DSK 130.3 main

Hertz DSK 130.3

240W Peak (120W RMS) 5.25” Dieci Series 2-way 4-ohm Component Speaker System

-13.05%

$199.99

List price $230.00

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

DB522 main

Polk Audio DB522 (DB 522)

600W Peak (200W RMS) 5.25" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

13
-9.08%

$100.00

List price $109.99

Product Highlights


• RMS: 500W x 1 @ 4 ohm, 1000W x 1 @ 2 ohm, 1500W x 1 @ 1 ohm
• Fluid-FETS hand selected insulated MOSFETS
• Q-Stasis preamp stage with wide input range
• Top mounted controls for simple setup & adjustment
• Frequency Response: 15 - 250 Hz

Description


MB Quart brand icon

Authorized dealer

Z-Line Series: Designed for Sound Quality

With the Z-Line Series, MB Quart focused not only on creating amplifiers with great output, but with great sound quality as well. The Z-Line Series Amplifiers feature Q-Stasis pre-amp technology, Class SQ A/B and Class Q1 proprietary class D topology, and Fluid-FETS outputs all utilized to deliver high end quality.

Q-Stasis Pre-Amps

Keeps noise from source units at near immeasurable levels to improve sound quality.


Class SQ A/B

Paired with Q-Stasis, the amplifier exceeds the sonic accuracy and clarity of standard A/B Amplifiers.


Class Q1

Keeps distortion low and maintains a musical signal by utilizing the efficiency of Class-D engineering.


Fluid-FETS

Produces an efficient power output similar to the quality of many high end home amplifiers.






Sonic Electronix Power Certified Amplifier

The MB Quart ZA1-1500.1 monoblock amplifier is a Sonic Electronix Certified Amplifier This amp's power output has been professionally tested with our SMD Amplifier Dyno, bringing you it's true power ratings
Learn more about this amp's Sonic Electronix Certified Power Here!


Impedance
Claimed Output
Dynamic Results
4 Ω
500W @ 14.4V
495W @ 14.07V
2 Ω
1000W @ 14.4V
981W @ 13.87V
1 Ω
1500W @ 14.4V
1492W @ 14.05V



General Features:

  • Z-Line Series Monoblock Class SQ A/B Amplifier
  • RMS Power Rating:
    • 4 ohm: 500 watts x 1 chan.
    • 2 ohm: 1000 watts x 1 chan.
    • 1 ohm: 1500 watts x 1 chan.
  • Sonic Electronix Certified Power Rating*:
    • 4 ohm: 495 watts x 1 chan.
    • 2 ohm: 981 watts x 1 chan.
    • 1 ohm: 1492 watts x 1 chan.

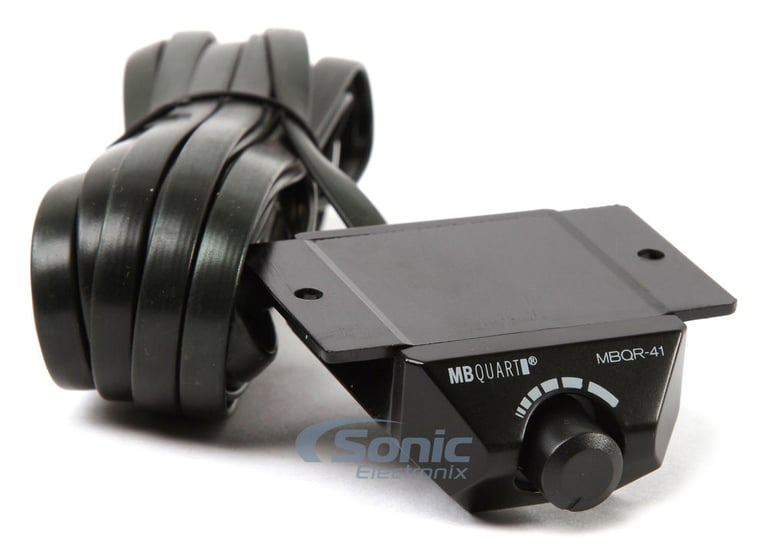

  • Wired remote bass level control included
  • Fluid-FETS hand selected insulated MOSFETS
  • Focused mass heat sink designs
  • Q-Stasis preamp stage with wide input range

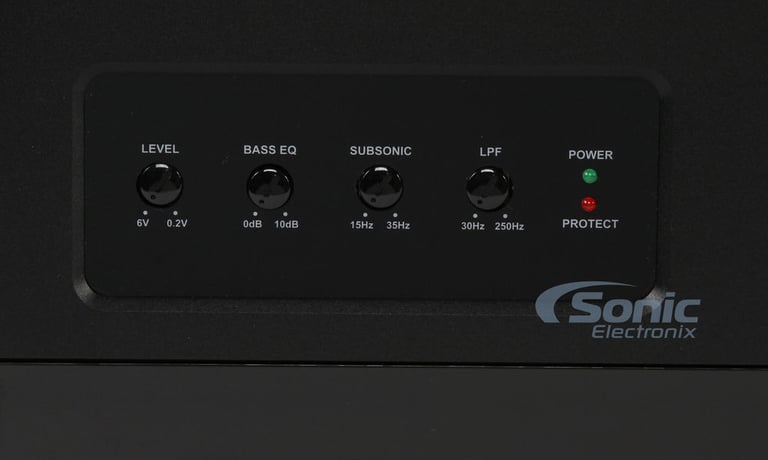

  • Top mounted controls for simple setup & adjustment
  • Elaborate preamplifier with extended control

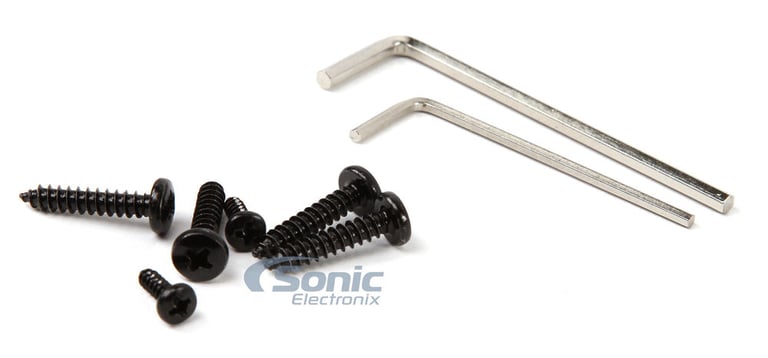

  • Easy access mounting tabs for a secure install
  • LED power (green) and protect (red) indicators
  • Input sensitivity: 200mV - 6V
  • Frequency Response: 15 - 250 Hz
  • Signal to Noise Ratio: >90
  • Total Harmonic Distortion (THD): <0.5%
  • Variable Bass Boost: 0 to +10 dB bass boost at 45Hz
  • Variable low-pass filter: 30- 250 Hz
  • Subsonic filter: 15- 35 Hz

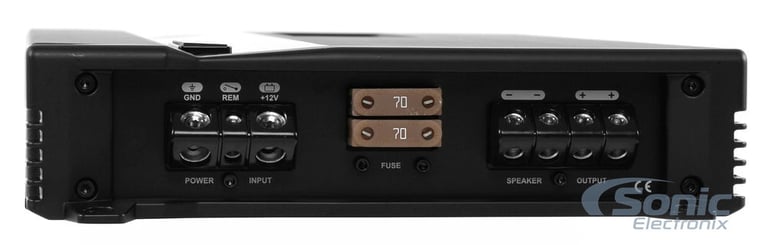

  • Fuse Rating: 70A x 2
  • CEA-2006 compliant amplifier
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 9.20"W x 16.50"L x 2.20"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
1000 watts x 1 channel
RMS Power @ 1 ohm
1500 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
1000 watts x 1 channel
Peak Power @ 2 ohms
2000 watts x 1 channel
Peak Power @ 1 ohm
3000 watts x 1 channel
Amplifier Specifications
Series
Z-Line Series
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
3000 watts
Total RMS Power Output
1500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.5%
Speaker Level Inputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
15 - 35 Hz
Signal-to-Noise Ratio
>90 dB
Bass Boost
0 - 10 dB
Remote bass/level controller
Yes
Fuse Rating
70A x 2
Strappable
No
Sonic Certified Amplifier
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ZA1-1500.1

Weight:

12.00lbs

Internal SKU:

za115001

Internal Product ID:

94880
