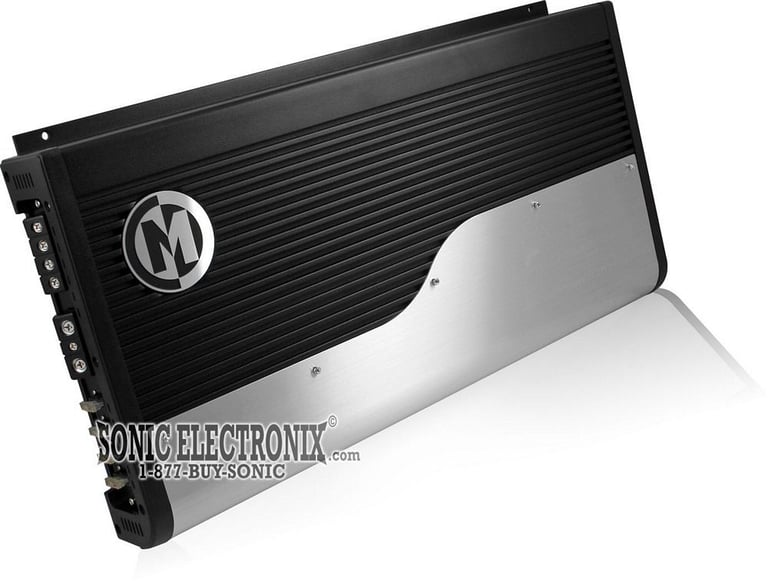

Memphis 16-PR300.2

600W Max, Power Reference 2-channel Amplifier

Memphis
Shop all Memphis
Product videos
highlight-star-icon

Power Reference Series 2-Channel Class AB Car Amplifier • 150W x 2 chan. @ 4 ohm • 210W x 2 chan. @ 2 ohm • 500W x 1 chan. @ 4 ohm Bridged • 600W Max x 2 chan. • LED power and protection indicators

Learn more about the 16pr3002

We apologize

This item has been discontinued


Loading...
99-5802 main

Metra 99-5802 Dash Kit

Install a new Single-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

3
-46.17%

$13.99

List price $25.99

70-5602 main

Metra 70-5602

Amplifier Bypass Harness for Select 1986-2001 Ford Vehicles

-10.91%

$48.99

List price $54.99

FM-K552 main

American International FM-K552

Single DIN or Double DIN Stereo Dash Kit for select 1995-2011 vehicles from Ford, Lincoln, Mazda

21
-55.03%

$8.99

List price $19.99

70-5600 main

Metra 70-5600 Wiring Harness

Install a new car stereo in select 1995-1998 vehicles from Ford, Mercury, Lincoln

6
SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$89.99

List price $107.99

DEH-S4220BT main

Pioneer DEH-S4220BT

Single DIN CD Receiver with Bluetooth and Amazon Alexa

9
-11.77%

$149.99

List price $170.00

DPX305MBT main

Kenwood DPX305MBT

Double DIN Digital Media Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

15
-20.50%

$159.00

List price $200.00

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

20
-35.00%

$194.99

List price $300.00

Product Highlights


Power Reference Series 2-Channel Class AB Car Amplifier • 150W x 2 chan. @ 4 ohm • 210W x 2 chan. @ 2 ohm • 500W x 1 chan. @ 4 ohm Bridged • 600W Max x 2 chan. • LED power and protection indicators

Description


Memphis brand icon

Authorized dealer

  • Power Reference Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 2 chan.
    • 2 ohm: 210 watts x 2 chan.
    • Bridged, 4 ohm: 500 watts x 1 chan.
  • Max power output: 600 watts x 2 chan.
  • Remote bass level input (remote level control sold separately)
  • LED power and protection indicators
  • Tuned Bass EQ (0-18 dB bass boost at 45 Hz)
  • Preamp RCA outputs
  • Built-in cooling fan
  • Variable high-pass filter (40-400 Hz, 24 dB/octave)
  • Variable low-pass filter (40-400 Hz, 24 dB/octave)
  • Frequency response: 20-20,000 Hz
  • Dimensions: 9.37"L x 20.16W x 2.60"H
  • 8-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • 1-year parts only warranty by Sonic Electronix (any labor related warranty charges are the responsibility of the customer)

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 2 channel
RMS Power @ 2 ohms
210 watts x 2 channel
Bridged RMS Power
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
1200 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 400 Hz
Low-Pass Crossover Frequency
40 - 400 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
60 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
100A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

16-PR300.2

Weight:

14.50lbs

Internal SKU:

16pr3002

Internal Product ID:

9571
