DPX501BT Open Box, Very Good Condition (Used)

Double DIN Bluetooth In-Dash CD/AM/FM/Digital Media Receiver w/ Front 3.5mm & USB Auxiliary Inputs, Siri Eyes Free, and Android Audio Playback

Kenwood
Shop all Kenwood
Product videos
highlight-star-icon

• Double DIN In-Dash CD/MP3/USB Receiver
• 50W x 4 Chan. MAX • 22W x 4 Chan. RMS
• 3 Sets of 2.5V Preamp Outputs
• 3-band parametric equalizer with 8 selectable tone curves
• AOA2 Support (Android Open Accessory Protocol V2)

Learn more about the dpx501bt

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

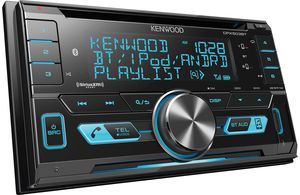

dpx503bt thumbnail

Kenwood DPX503BT

OUR PRICE: $149.95

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

7
-10.01%

$8.99

List price $9.99

TWPZ main

DS18 TWPZ

80W Peak (40W RMS) 1" Slim Dome Super Tweeters

6
P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

86
51KSC6804 main

Kicker KSC68 (51KSC6804)

150W Peak (75W RMS) 6x8" KS Series 2 Way Coaxial 4-ohm Speakers

3
-13.33%

$129.99

List price $149.99

51KSS6804 main

Kicker KSS68 (51KSS6804)

500W Peak (250 RMS) 6x8" KS-Series 2-way 4-ohm Component Speaker System (KSS6804)

-10.71%

$249.99

List price $279.99

Product Highlights


• Double DIN In-Dash CD/MP3/USB Receiver
• 50W x 4 Chan. MAX • 22W x 4 Chan. RMS
• 3 Sets of 2.5V Preamp Outputs
• 3-band parametric equalizer with 8 selectable tone curves
• AOA2 Support (Android Open Accessory Protocol V2)

Description


Kenwood brand icon

Authorized dealer


















General Features:

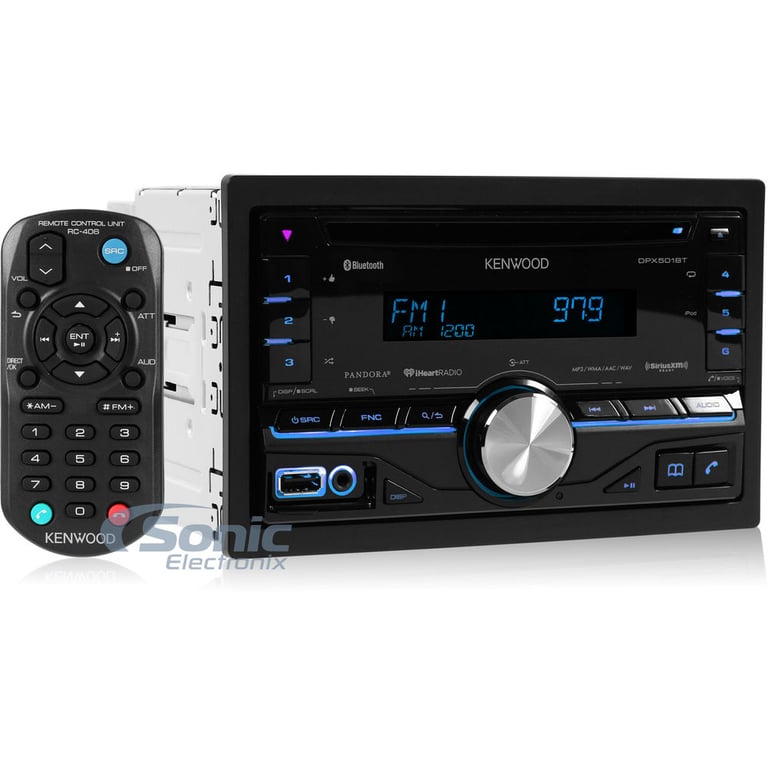

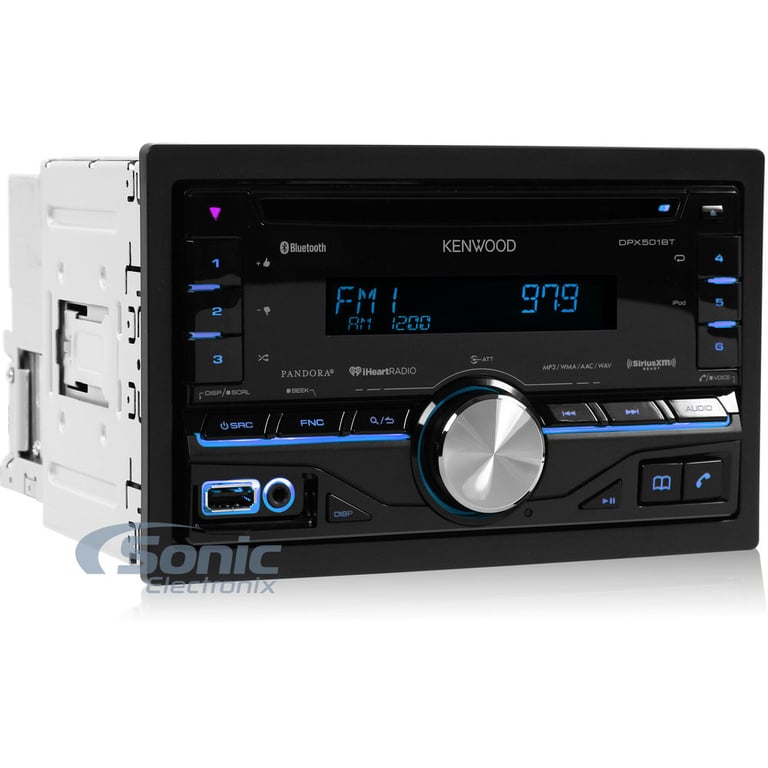

  • Kenwood DPX501BT Bluetooth In-Dash Receiver
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 22 watts x 4 channels
  • Speaker Impedance: 4 - 8Ω
  • 13 Digit + 8 Digit 1.5Line LCD Display
  • Variable Color Illumination

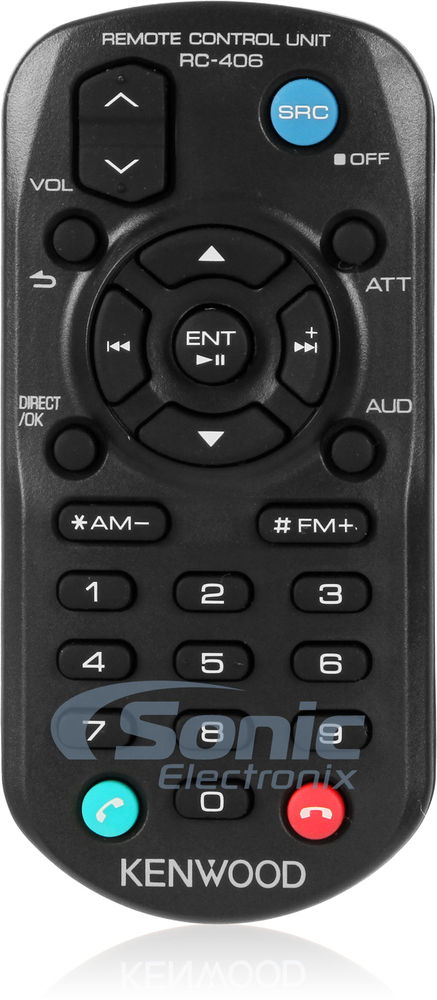

  • Remote control included
  • Manual Dimmer Control Function (on/off)
  • CD Signal to Noise Ratio: 105 dB
  • Frequency Response: 20 - 20,000 Hz
  • Total Harmonic Distortion: 0.01% (1kHz)
  • Dynamic Range: 90 dB
  • Channel Separation: 85 dB
  • 1-year Sonic Electronix Warranty

Playback and Audio Features:

  • CD/CD-R/RW, MP3/WMA/AAC/WAV
  • AM/FM tuner with 18FM/6AM presets, w/ RBDS Radio Text
  • Compatible with Apple iPhone 6/6+ and iOS 8 software
  • AOA2 Support (Android Open Accessory Protocol V2)
    • Download "Kenwood Music Play" App & Connect via USB
  • 3-band parametric equalizer with 8 selectable tone curves (7 Preset, 1 User)
  • 3.5mm Front Audio Auxiliary Input
  • Front USB Input
  • CD text information display
  • MP3 ID3 Tag Display (Title/Artist/Album)

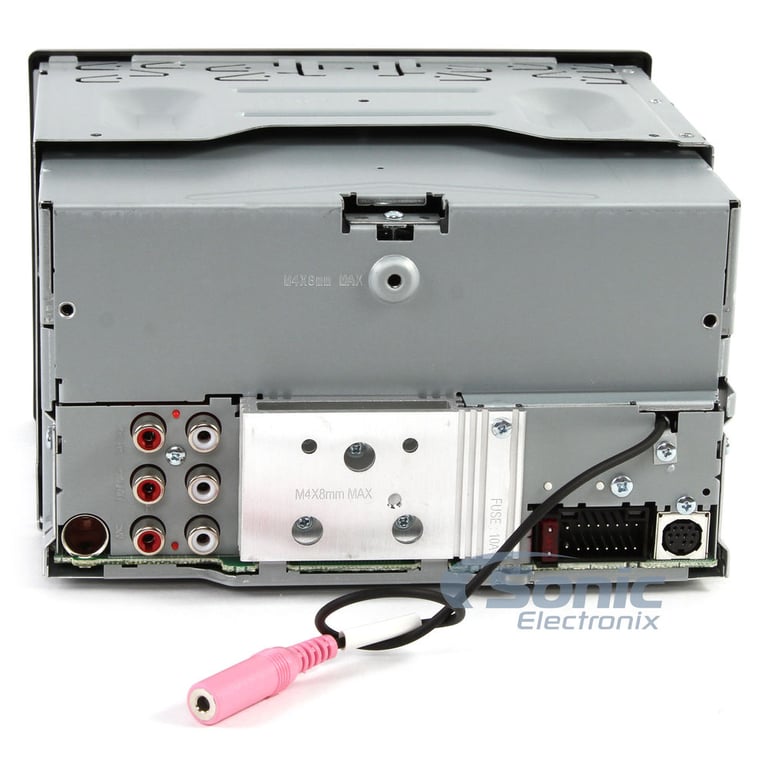

  • 3 Sets of 2.5V preamp outputs (front, rear and subwoofer)
  • Subwoofer level adjustment
  • Bass Boost / Loudness Control
  • Built-in LPF/HPF

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth V2.1+EDR /Bluetooth 3.0
  • Auto pairing function for iPhone & Android via USB
  • Bluetooth Profiles Supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
    • OPP: Object Push Profile for sending basic "objects" such as pictures and other virtual material
    • SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
  • Works with most Bluetooth enabled cell phones

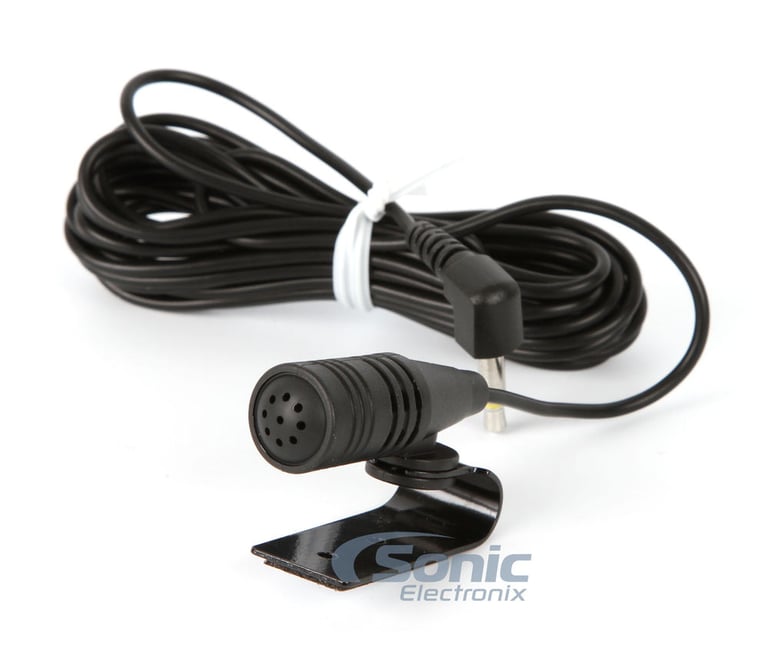

  • Includes a (external wired/built-in) microphone for clear, convenient, distortion-free talking

Expandability Options:

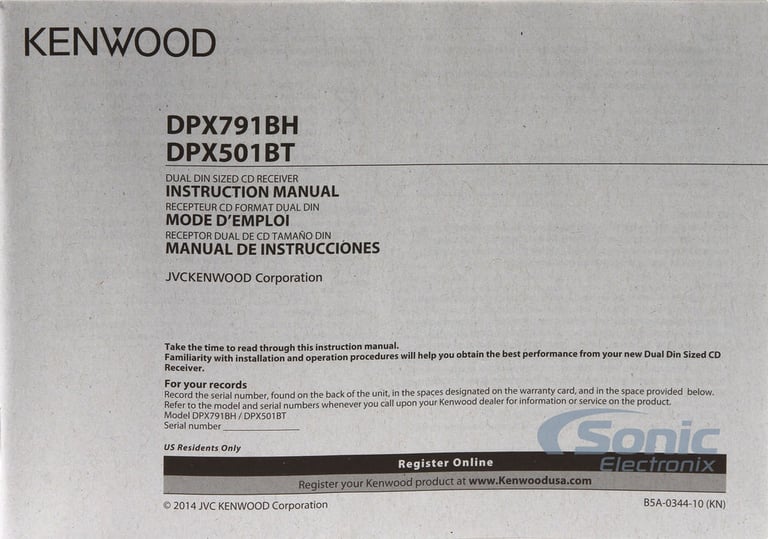

Check out the Kenwood DPX501BT User Manual

Product history:

Kenwood DPX503BT thumbnail
(newest, current model)
Kenwood DPX502BT thumbnail
(previous model, replaced by Kenwood DPX503BT)
Kenwood DPX501BT thumbnail
(previous model, replaced by Kenwood DPX502BT)
Kenwood DPX500BT thumbnail
(previous model, replaced by DPX501BT Open Box, Very Good Condition (Used))
Kenwood DPX308U thumbnail
(previous model, replaced by Kenwood DPX500BT)
Kenwood DPX303 thumbnail
(previous model, replaced by Kenwood DPX308U)
Kenwood DPX302 thumbnail
(previous model, replaced by Kenwood DPX303 (DPX-303))
Kenwood DPX301 thumbnail
(previous model, replaced by Kenwood DPX302)

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.96

List price $2282.96

KW-Z1000AW small

JVC KW-Z1000AW

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2023 vehicles from Ram, Jeep, Ford
• 10.1" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

$1449.00

List price $1699.00

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Double DIN
Wireless Remote
Yes
Peak Power Output
50 watts x 4 channel
RMS Power Output
22 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
2.5 volts
Built-In Equalizer
3-Band
Display Type
LCD Text Display
Smartphone Integration
Compatible Smartphones
iPhone (iOS)
Android
Expandability Features
Inputs
Auxiliary (Front)
Auxiliary (Rear)
Steering Wheel Control Compatible
DO NOT USE - Yes
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Radio Data System (RDS)
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

DPX501BT

Weight:

7.00lbs

Internal SKU:

dpx501bt

Internal Product ID:

96711

Product and How-to Videos


Customer Ratings & Reviews


DPX501BT Open Box, Very Good Condition (Used) thumbnail image

5 star
66%
4 star
28%
3 star
4%
2 star
1%
1 star
1%



Durability
4.7
Value
4.7
Features
4.6
Design
4.6
Usability
4.3

Customer Reviews

Sort by:

Loading...

Nice head unit.

The following review is for a previous version (DPX500BT).

This is a clean and sleek looking head unit. It boosted my factory speakers and sounds really good. The bluetooth sounds good and I like the fact that the bluetooth button lights up as a different color than the other bottons. I put the bluetooth mic right on top of my steering column where it is out of sight and was easy to run into the dash. The unit is light and easy to install depending on vehicle. I put mine in a 04 Mazda Tribute and it was impossible to remove the radio so I had to take apart part of the dash to remove it. The unit looks good, sounds great, has plenty of cool options, and a very nice little remote. The unit is made well and the buttons and knob feel like they are of good quality. The only thing that bugs me is that the display is hard to see on sunny days. Other than that I am very happy with the stereo! Delivery was very fast to El Paso, TX and the price was a lot better than local dealers so thank you Sonic Electronix!

By Mark on November 24, 2014

37 found this helpful


Great Deal

The following review is for a previous version (DPX500BT).

Love the radio. Very easy to use. Nice step up from my factory unit.

By David on October 14, 2014

35 found this helpful


Great choice, better value!

The following review is for a previous version (DPX500BT).

This radio is definitely what you would be looking for if you are looking for some nice features like Bluetooth connectivity, Equalization, native app support, and 3 sets of rca preamped outputs for all your sub support or other tech that needs connections. Would also make a good radio to put in a car for beginners, very simple setup and installation.

Overall, a great product for amazing value.

By Christian on October 12, 2014

34 found this helpful


Great buy for the money

The following review is for a previous version (DPX500BT).

I love the radio. Installed easily. Works great. Read mixed reviews on line but for me this is a perfect upgrade from my factory installed radio that came with the car 13 years ago.

By Chet on July 13, 2014

34 found this helpful


Good value

Overall this is a quality head unit for those who do not want or need the fancy touch screens. It has enough pre-outs to allow for some versatile setups and a good selection of features to keep most people happy.

The only real downsides I have discovered are the over-simplified equalizer (which is to be expected) and the difficulty viewing the screen during the daytime with a majority of the color options available.

By shadowmonk on July 11, 2015 Checkmark Icon Verified purchase

33 found this helpful


great radio

The following review is for a previous version (DPX500BT).

sounds great, installed easy good looking radio if I need another radio I ll buy from you guys

By Dale on September 15, 2014

32 found this helpful


Great Radio for the price

The following review is for a previous version (DPX500BT).

I would definitely buy this radio again. It was pretty easy to install and the brackets from my original Toyota radio bolted right to the side of the new radio and it lined it up perfectly. The only challenge came in installing the microphone for the Bluetooth phone. I wanted it above the rearview mirror near the center of the windshield so I had to remove the pillar cover and feed the wires down through the dash. The wire did not want to stay tucked into the headliner. I wrapped tape around the wire in a few places to make it thicker so that when I tucked it into the headliner it stayed up. Now it works great. The manual that comes with the radio is just a quick installation guide. To get the full manual I went to the Kenwood website and download the manual. I printed it off in booklet form so I could easily refer to it. It was something like 148 pages long. I printed it two sided and two pages per page of paper and it still came out 3/8" thick when folded in half, but it was worth it to get all of the information because not all of the controls are intuitive and the book really helps.

By David on June 8, 2014

32 found this helpful


Love the bluetooth

I did a lot of research before I bought a radio for my car, this was the best bang for the buck I could find. I love the large volume knob, it's just the right size to always be within reach. I especially love the Bluetooth, and the microphone works great, though it does need to be set up in the settings or the other person won't hardly hear or understand. Overall, great radio, goes REALLY loud, and almost no distortion from it

By Jake on July 26, 2015 Checkmark Icon Verified purchase

32 found this helpful


quality unit

The following review is for a previous version (DPX500BT).

Quality headunit

pros-
great amount of eq options and the unit is very easy to use.
looks good
good rms power handling for someone that isnt amplifying their spits
trim piece in box fit perfectly in a toyota hilux using factory brackets and factory mount.

cons-
not sure if its just me but with my iphone on bluetooth, it isnt sending a signal to my sub amp, so if i want bass i have to use aux or ipod input, not bluetooth.
no rear usb port or rem+ wire (you will have to solder and heatshrink)
cant read the screen on a sunny day (dont have window tint)

Conclusion-
Although there are some design flaws/ things i would like, you will not get the huge amounts of features on any other product in the same price range
10/10 would reccomend

By Dane P on January 10, 2015

30 found this helpful


Awesome!

The following review is for a previous version (DPX500BT).

Just installed the Kenwood DPX500BT in a 2004 Toyota Tundra. It fit perfectly with no need for a dash kit, just used my factory mounts. I will say the trim piece that comes with it seems a little flimsy but its still nice since I believe its actually made to fit a Toyota double din hole. Wiring was easy even with the added Axxess ASWC-1 steering wheel control which also works great. It really made my shitty factory speakers sound a lot better but I will still be adding door speakers and a sub in the future. The controls are fairly easy to use after you get used to how they work. Bluetooth also works great! Overall a great stereo. This was my first experience with Sonic Electronix and it was awesome. Free shipping and great price! I would definitely recommend Sonic as well as this stereo.

Pros: Kenwood quality, expandability for XMSirius, Pandora, etc. Bluetooth and 3 amp preouts. Also the nicest looking double din out there.

Cons: Trim piece a little flimsy (be careful when attaching to stereo). Also, like other reviews have mentioned the screen is a little hard to see sometimes in direct sunlight.

By Travis on December 12, 2014

31 found this helpful




AMW120H small

Audiobahn AMW120H

400W 12" Murdered Out Series Dual 4 Ohm Subwoofer

(9)

$49.99

List price $64.99

IX-8D4 small

SKAR Audio IX-8D4

150W 8" IX Series Dual 4 ohm Car Subwoofer

(1)

$49.99

List price $79.99

AW1051T small

Audiobahn AW1051T

10" Dual 4 ohm Natural Sound Series Car Subwoofer

(33)

$41.99

List price $89.99

REFERENCEON-EAR-GEN-III_BLACK small

Reference On-Ear (Gen-III) Black

Reference Series On-Ear Headphones

(1)

$69.00

List price $199.00

IX-12D4 small

SKAR Audio IX-12D4

250W 12" IX Series Dual 4 ohm Car Subwoofer

$69.99

List price $99.99

MC-1000HD-4M small

Monster Cable MC 1000HD-4M

13.12 ft. (4 meters) of HDMI 1000hd Ultimate High Speed HDMI Cable

$74.95

List price $249.99

PNV9620I small

Planet Audio PNV9620I

In-Dash 6.2" Touchscreen DVD/CD/MP3/USB Car Stereo Receiver w/ GPS Navigation and Bluetooth

(5)

$274.99

List price $339.00

SM4-1000 small

Autotek SM4-1000

1000W Max, 4-Channel Street Machines Series Car Amplifier

(1)

$94.99

List price $239.99

MIC-YCHGBK-T small

TYLT MIC-YCHGBK-T

Y-Charge Dual USB Car Charger w/ Cable (Black)

$13.99

List price $34.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2013 Ford Flex

2002 Dodge Ram 2500

1981 Ford Bronco

2014 Ram 2500

2016 Jeep Cherokee

1976 Volkswagen Scirocco

2008 Ford Explorer

2020 Mazda 3

1999 Dodge Intrepid

2004 Lexus GS430

Vehicle
Store
Delete

2019 Harley Davidson FLHT Electra Glide Standard

2001 Harley Davidson FLHTC/I Electra Glide Classic

Vehicle
Store
Delete

2013 Can-Am Commander E

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
