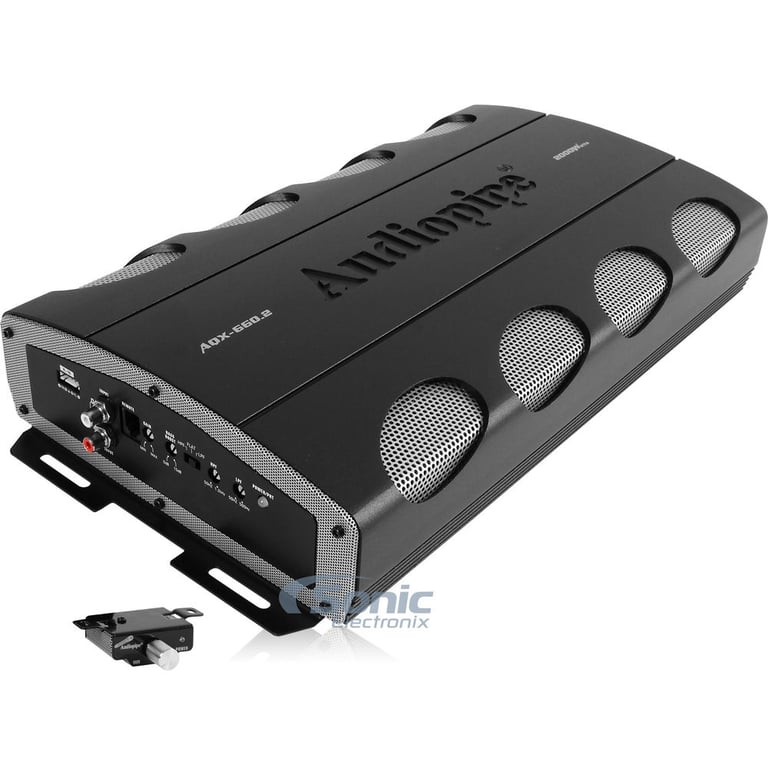

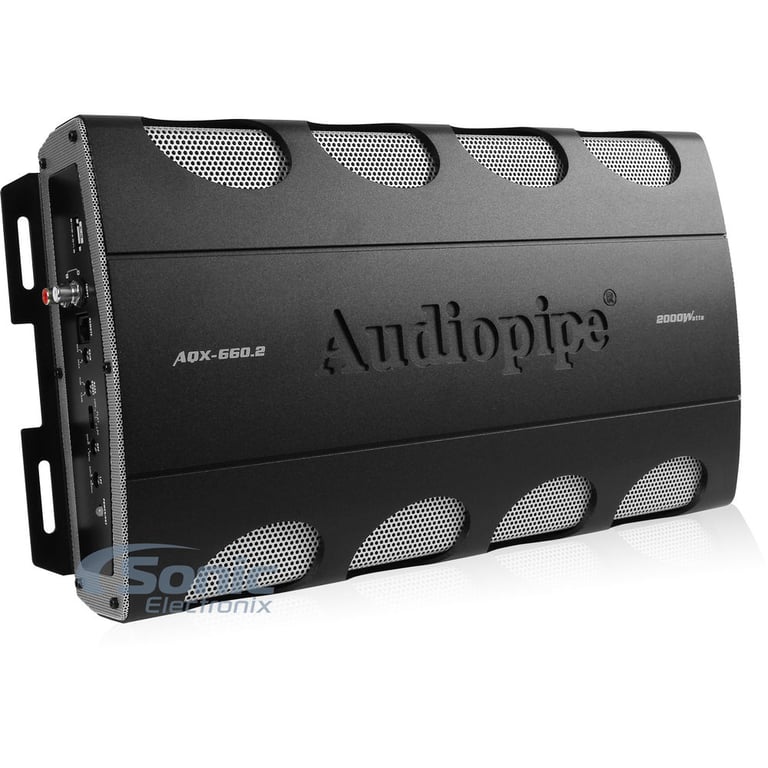

Audiopipe AQX-660.2

2000W Peak (890W RMS) AQX Series Class-AB 2-Channel 2-Ohm Stable Amplifier

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• 248 Watts RMS x 2 @ 4 ohm
• 445 Watts RMS x 2 @ 2 ohm
• 890 Watts RMS x 1 @ 4 ohm
• Total Peak Power: 2000 Watts
• Speaker-level (high-level) inputs
• Variable high-pass filter: 50 - 1200Hz
• Variable low-pass filter: 50 - 500Hz
• Dimensions: 9.8"W x 15.7"L x 2.6"H

Learn more about the aqx6602

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

43DSC504 main

Kicker DSC50 (43DSC504)

400W Peak (100W RMS) 5.25" DS Series 2-way 4-ohm Coaxial Car Speakers (DSC504)

17
-11.77%

$74.99

List price $84.99

VSP525KIT main

NVX VSP525KIT

750W Peak (250W RMS) 5.25" V-Series 2 Way Component Car Speakers

27
-16.67%

$99.99

List price $119.99

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
VSP525 main

NVX VSP525

480W Peak (160W RMS) 5.25" V-Series 2 Way Coaxial Car Speakers

23
-16.67%

$79.99

List price $95.99

Product Highlights


• 248 Watts RMS x 2 @ 4 ohm
• 445 Watts RMS x 2 @ 2 ohm
• 890 Watts RMS x 1 @ 4 ohm
• Total Peak Power: 2000 Watts
• Speaker-level (high-level) inputs
• Variable high-pass filter: 50 - 1200Hz
• Variable low-pass filter: 50 - 500Hz
• Dimensions: 9.8"W x 15.7"L x 2.6"H

Description


Audiopipe brand icon

Authorized dealer

General Features:

  • Audiopipe AQX Series AQX-660.2
  • FullRange 2-Ohm Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 248 watts x 2 chan.
    • 2 ohm: 445 watts x 2 chan.
    • Bridged, 4 ohm: 890 watts x 1 chan.
  • Total power output: 2000 watts
  • Pulse Width Modulated MOSFET power supply

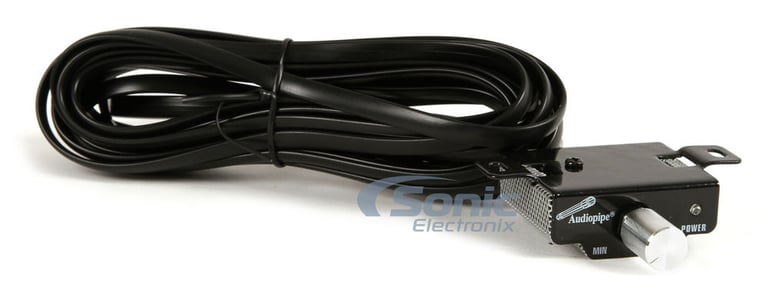

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 0.2V-6V
  • Frequency Response: 5 - 30000Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ration: >80dB
  • Variable high-pass filter: 50 - 1200Hz
  • Variable low-pass filter: 50 - 500Hz
  • Variable Bass Boost: 0 to +15 dB bass boost

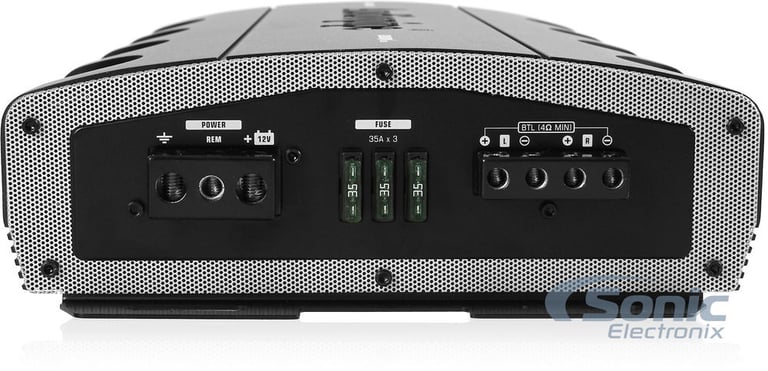

  • Fuse Rating: 35 A x 3
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9.8"W x 15.7"L x 2.6"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

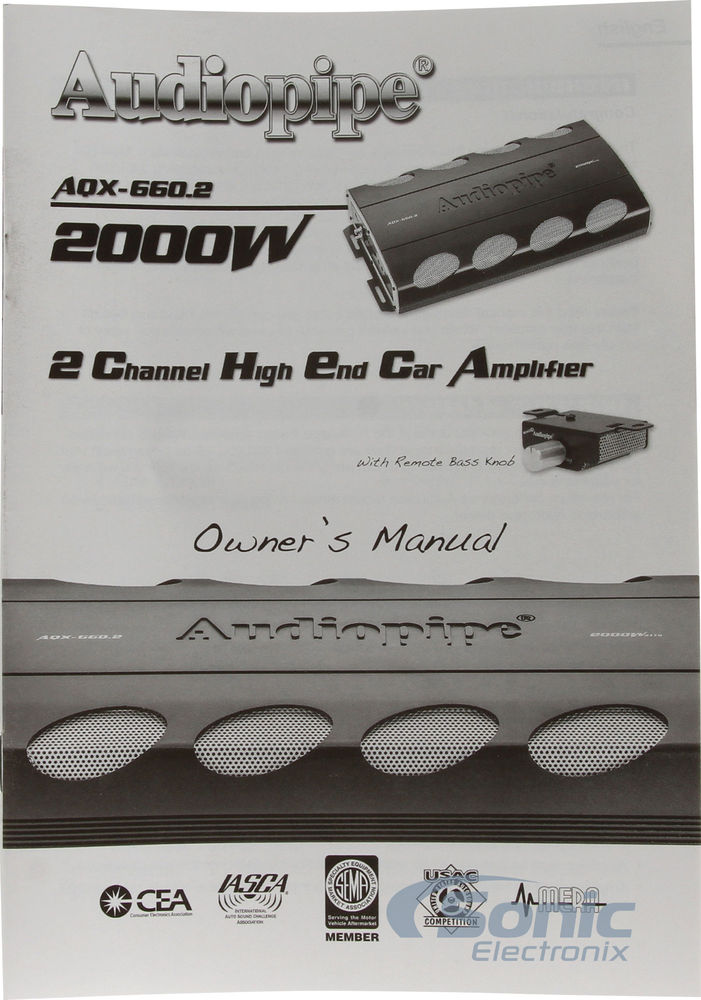

Check out the AQX-660.2 Owner's Manual

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
248 watts x 2 channel
RMS Power @ 2 ohms
445 watts x 2 channel
Bridged RMS Power
890 watts x 1 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
496 watts x 2 channel
Peak Power @ 2 ohms
890 watts x 2 channel
Bridged Peak/Max Power
2000 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
2000 watts
Total RMS Power Output
890 watts
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 1200 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
>80 dB
Bass Boost
0 - 15 dB
Remote bass/level controller
Yes
Fuse Rating
35A x 3
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AQX-660.2

Weight:

16.40lbs

Internal SKU:

aqx6602

Internal Product ID:

98399
