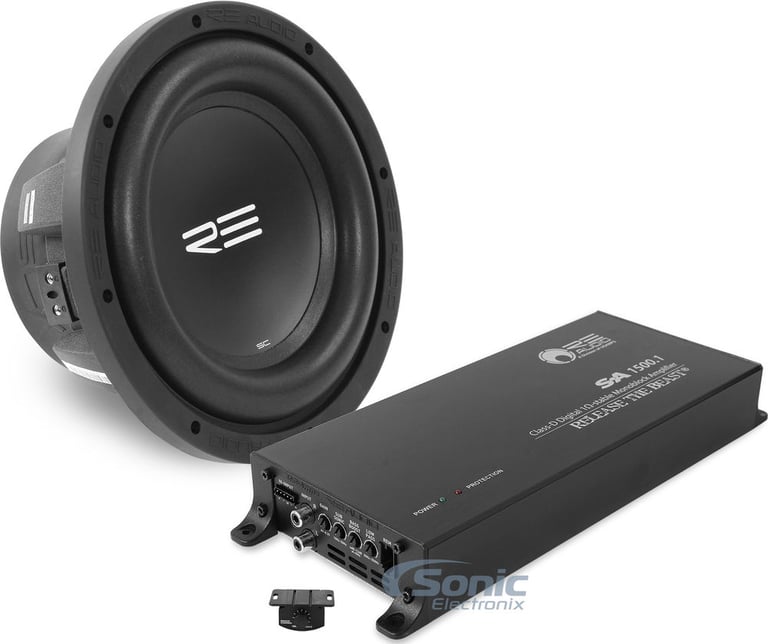

RE Audio 450 Watt RMS 10" Subwoofer + Amplifier Bass Bundle

RE Audio SCX 10 v2 10" SCXv2 Series Dual 4 Ohm Subwoofer + RE Audio SA 1500.1 Monoblock SA Series Class D Amplifier

RE Audio
Shop all RE Audio
EXCLUSIVE
Product videos
highlight-star-icon

• 450 Watts RMS @ 2ohm
• Dual composite 2-piece cone
• Rubatek foam surround
• CEA-2006 compliant amplifier
• Speaker-level (high-level) inputs
• Remote bass level control included

Learn more about the scxv210d4_sa15001

We apologize

This item has been discontinued


Loading...
82-7805 main

Metra 82-7805

6" to 6-3/4" Speaker Plate Adapter for select 2004-2023 vehicles from Honda, Acura

12
-47.38%

$19.99

List price $37.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

TWPZ main

DS18 TWPZ

80W Peak (40W RMS) 1" Slim Dome Super Tweeters

6
C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
C1-650 main

JL Audio C1-650

100W RMS 6.5" C1 Series 2 Way Component 4-ohm Car Speakers

30
VSP65KIT2F main

NVX VSP65KIT2F

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

11
-16.67%

$119.99

List price $143.99

ZS65CXS main

Hifonics ZS65CXS

600W Peak (100W RMS) 6.5" Zeus Series 2-way 4-ohm Coaxial Car Speakers

18
-5.72%

$32.99

List price $34.99

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

$119.95

Rockford Fosgate Punch P1 P1675-S

240W Peak (120W RMS) 6.75" Punch Series 2 Way Component 4-ohm Speakers

20

$159.99

Product Highlights


• 450 Watts RMS @ 2ohm
• Dual composite 2-piece cone
• Rubatek foam surround
• CEA-2006 compliant amplifier
• Speaker-level (high-level) inputs
• Remote bass level control included

Description


RE Audio brand icon

Authorized dealer

The all new SCX v2 Subwoofer Series by RE Audio is a replacement of the very celebrated SRX series. RE Audio went above and beyond to provide the market with a high quality, reliable and well performing driver. This goal resonates with the architecture of the driver, going from a lame stamped basket frame to a higher quality, better looking and more durable cast basket. In addition, the power handling is from a lowly 300 watts (RMS) to an above modest 450 watts. Expect louder output and lower lows along with better exotic styling, while still maintaining the desirable RE Audio look and Performance! Complete the setup with the matching RE Audio SA 1500.1 amplifier, that provides the exact power that the subwoofer is asking for. Moreover, a proper bank of settings allow for the setup to be tuned in for a proper low end frequency range that can integrate into any build. The included remote bass level control gives you the freedom to adjust your sub level on the fly, for a truly flexible system.

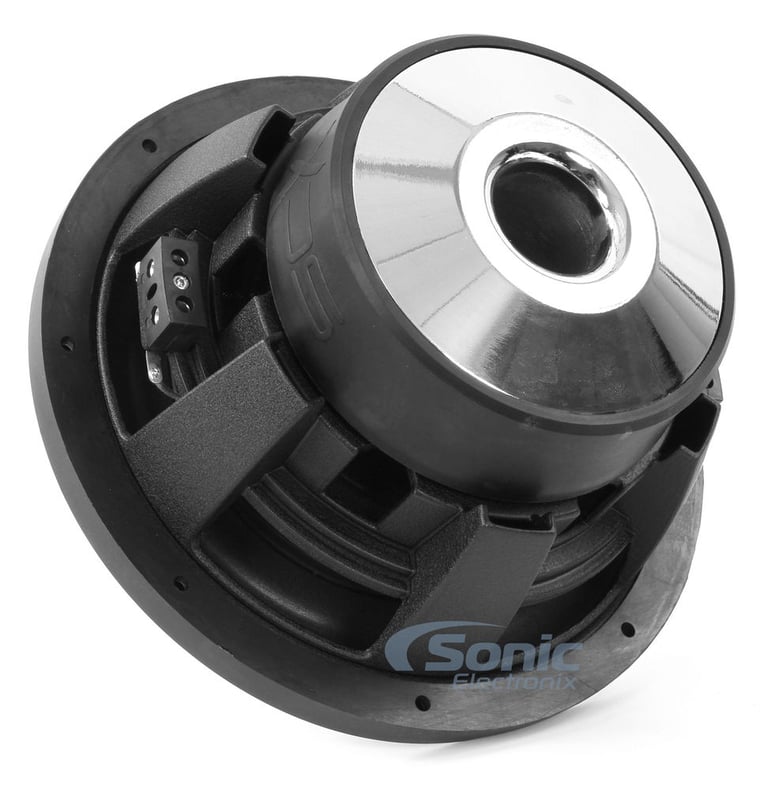

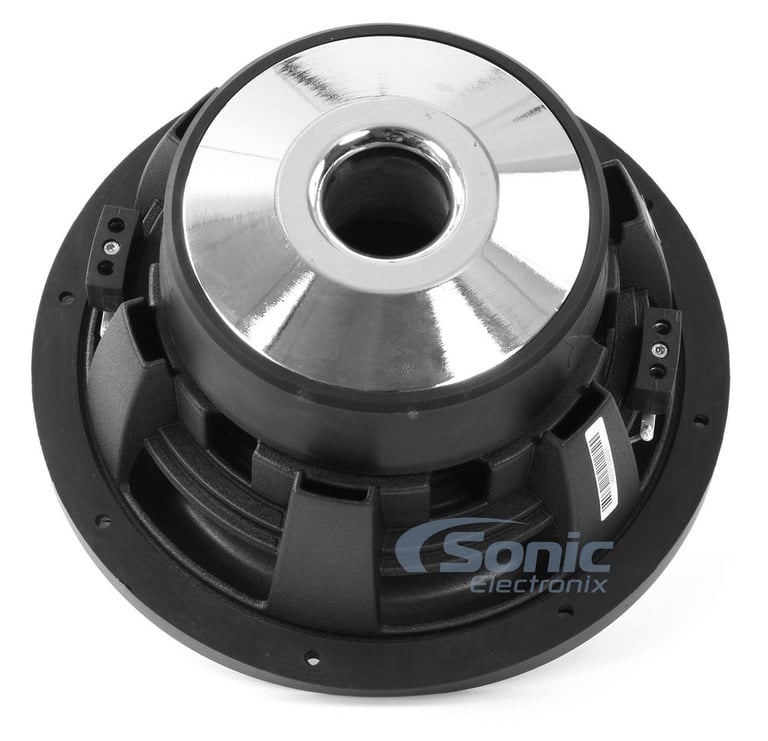

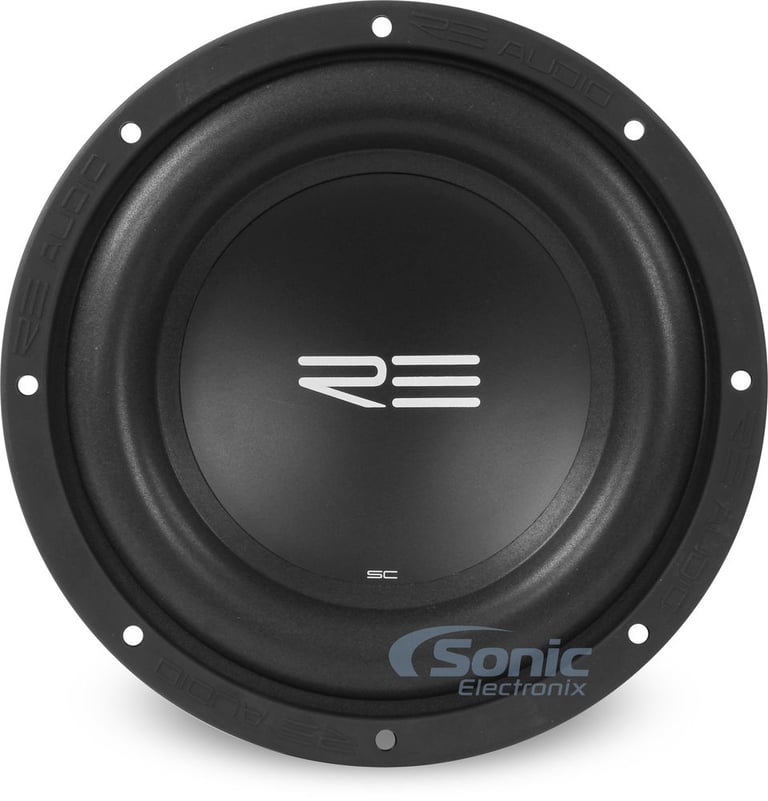

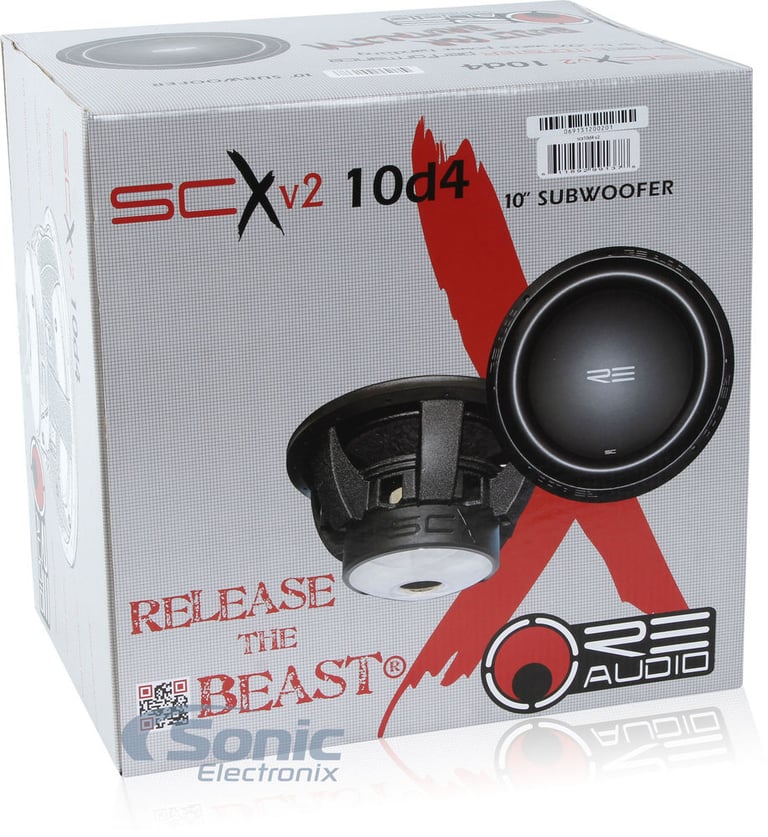

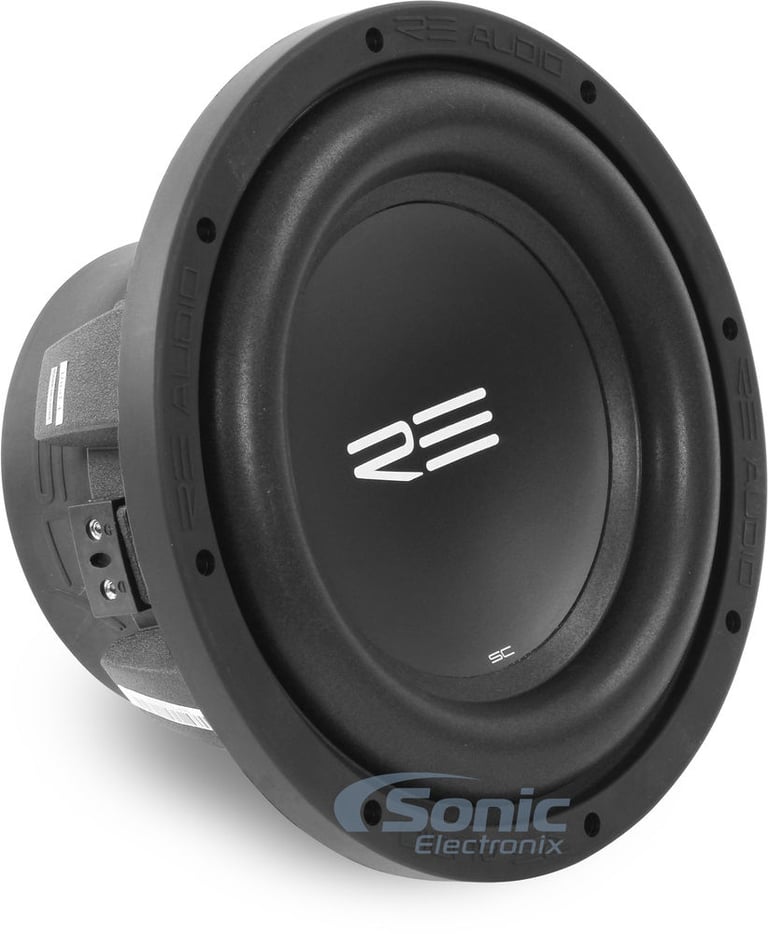

RE Audio SCX 10 v2

450W 10" SCXv2 Series Dual 4 Ohm Subwoofer
Quantity: 1

General Features:

  • 10" Dual 4 Ohm SCXv2 Series Subwoofer
  • Power Handling:
    • RMS: 450 watts
  • Final Impedance: 2 ohm - Wired in Parallel
  • Dual composite 2-piece cone
  • Rubatek foam surround
  • Cast aluminum basket
  • Tork-Tite terminals
  • Double stacked magnets
  • FEA optimized motor structure
  • 2.5" 4-layer aluminum voice coil
  • One-Way Linear Excursion (Xmax): 18.6 mm
  • Sensitivity: 86.4 dB 1 watt / 1 meter
  • Top-mount depth: 5.50"
  • Cutout Diameter: 9.30"
  • Displacement: 0.14 ft³
  • Weight: 16.4 lb
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Also Found As: SCX10D4-V2, SCXV2-10D4, SCXV210D4

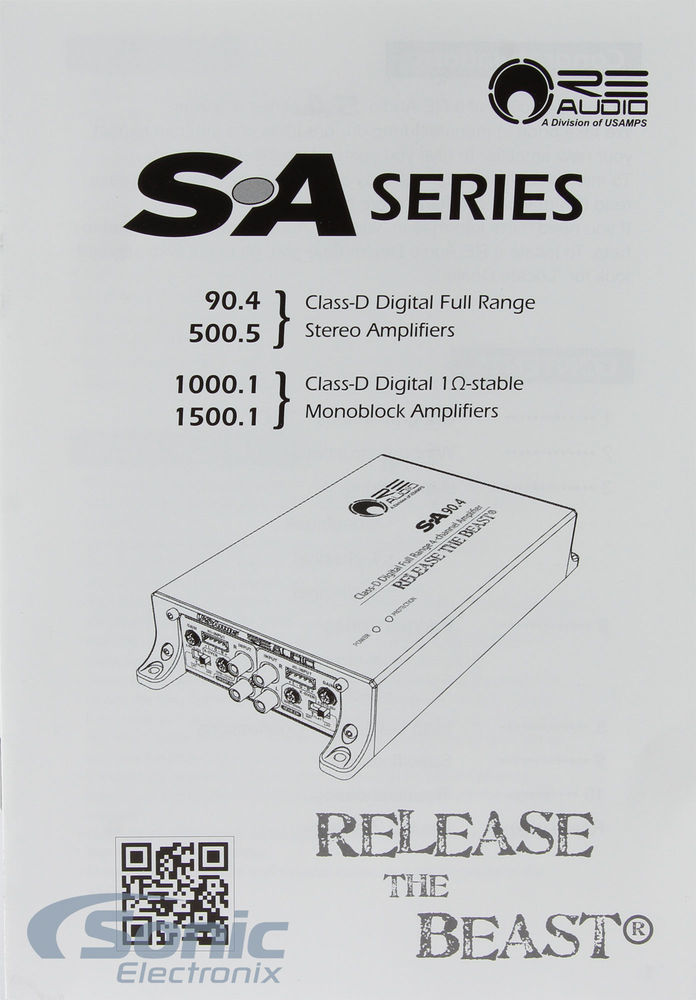

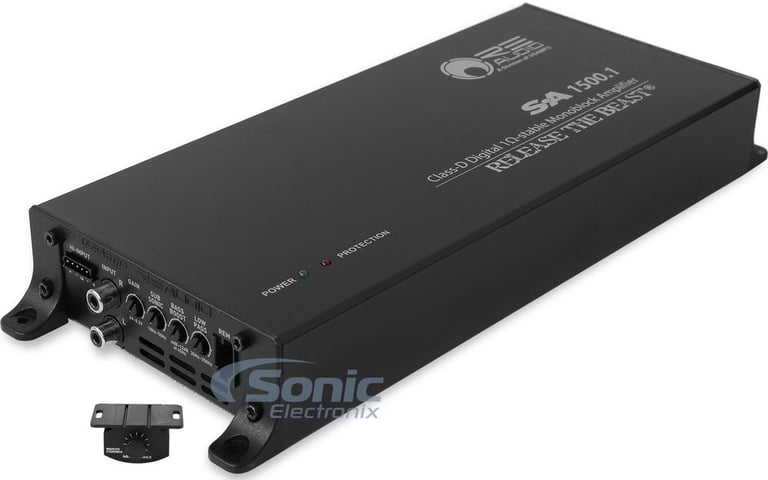

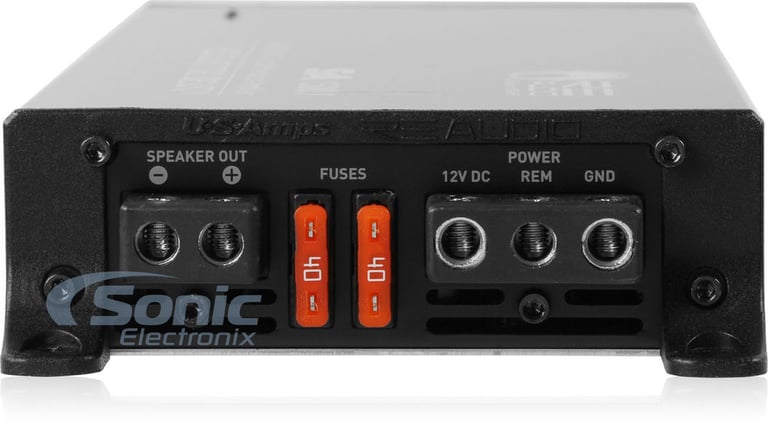

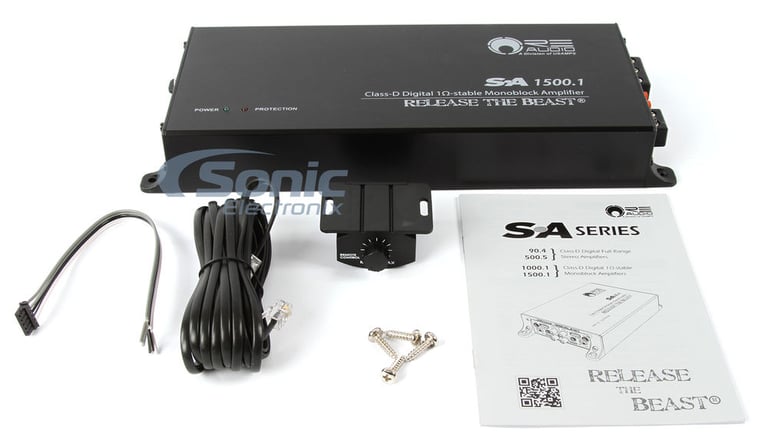

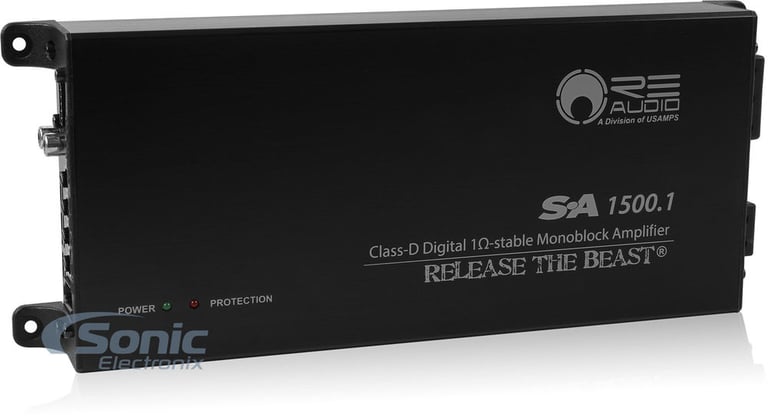

RE Audio SA 1500.1

1800W Monoblock SA Series Class D Amplifier
Quantity: 1

General Features:

  • SA Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 280 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
    • 1 ohm: 900 watts x 1 chan.
  • Max power output: 1800 watts
  • CEA-2006 compliant amplifier
  • Auto Turn on when using hi level input
  • Speaker-level (high-level) inputs
  • Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on

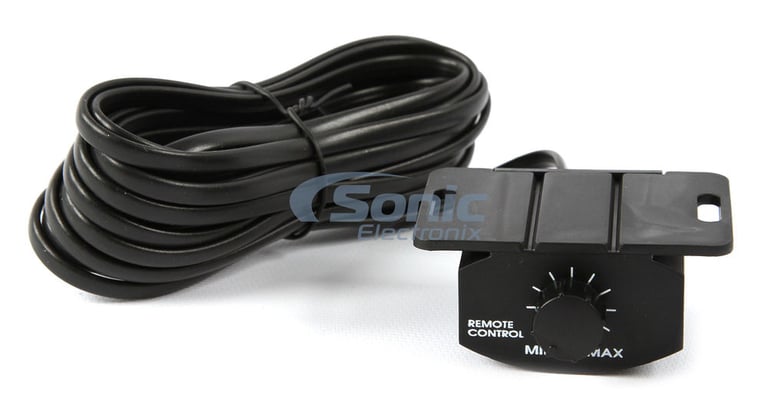

  • Remote bass level control included

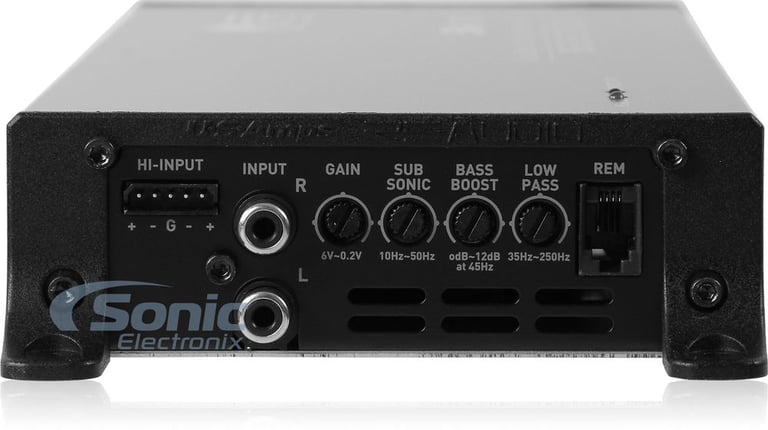

  • Nickel-plated RCA level inputs
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input Sensitivity: 200mV - 6V
  • Variable Subsonic Filter: 10 - 50 Hz
  • Variable Bass Boost: 0 ~12 dB @ 45 Hz
  • Variable Low-pass Filter: 35 - 250 Hz
  • Frequency Response: 10 - 250 Hz
  • Total Harmonic Distortion: <0.05%
  • Signal-to-Noise Ratio: 80 dB
  • 4 gauge power and ground wiring is recommended for installation
  • Dimensions: 4.72"W x 10.24"L x 1.57"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Need the Perfect Subwoofer Enclosure?

Check out the RE Audio RE Audio SCX 10 v2 Subwoofer Enclosure Guide

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
280 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
RMS Power @ 1 ohm
900 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1800 watts
Total RMS Power Output
900 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.05%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
35 - 250 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 2
CEA-2031 Compliant
Yes
Subwoofer Specifications
Series
SCX v2 Series
Subwoofer Size
10"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
450 watts
Woofer Surround
Foam
Woofer Composition
Composite Polypropylene Cone - CPPC
Minimum Sealed Box Volume
0.35 cubic feet
Maximum Sealed Box Volume
1.08 cubic feet
Minimum Ported Box Volume
0.65 cubic feet
Maximum Ported Box Volume
1.77 cubic feet
Sensitivity
86.4 dB
Xmax (millimeters)
18.6 mm
Top-Mount Depth (Mounting Depth)
5.50"
Cutout Diameter
9.30"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SCXv2-10d4_SA 1500.1

Weight:

22.00lbs

Internal SKU:

scxv210d4_sa15001

Internal Product ID:

98468

Product and How-to Videos


Customer Ratings & Reviews


RE Audio 450 Watt RMS 10

5 star
57%
4 star
43%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.7
Features
4.4
Design
4
Usability
4.5

Customer Reviews

Sort by:

Loading...

great quality and great sound!

The following review is for SCXv2-10d4, which is a part of the bundle you are viewing.

At first i was a little hesistant when sonic sent me this woofer cause the older model before this was discontinued,but after we built a custom 1.8 cu foot ported enclosure for my truck and heard this baby, WOW I WAS SHOCKED! my first thought was it sounded like 2 12's ...lol i have about 440 watts to it at 2ohms and this baby SLAMS,I know it could handle more but im happy for now cause im still breaking this baby in, I will probably go with a new mono amp with a more powerful re sub when i do upgrade but for now im very happy, this sub sounds great with rap, metal, old school classic rock as well:)

By sin city basshead on February 15, 2015

48 found this helpful


Beasting!!!!!

The following review is for SA 1500.1, which is a part of the bundle you are viewing.

Just put this in today……… And this little thing has my 2 p3 on beast mode! Great bang for your buck. Hopefully it last as long as my last memphis audio amp.

By KC on May 7, 2015

22 found this helpful


nice amp

The following review is for SA 1500.1, which is a part of the bundle you are viewing.

bought this amp to go with 2 RE scx 10's. matches perfectly with the subs and hits hard.

By michael on September 24, 2015

16 found this helpful


nice sub

The following review is for SCXv2-10d4, which is a part of the bundle you are viewing.

bought 2 of these to go with my RE Audio SA 1500.1 matches perfectly and hits hard.

By michael on September 24, 2015

16 found this helpful


Awesome sub for the price

The following review is for SCXv2-10d4, which is a part of the bundle you are viewing.

IV got this RE Audio scx 10" dvc 4ohm sub in a 1.5 slot ported box on a kicker 500.1 mono amp at 2ohms with 500 rms going to it and it sounds great on everything from Rock to hick-hop.. would recommend to anyone and Sonic got it to me really quick.

By Thumper on January 30, 2017

11 found this helpful


More than I expected

The following review is for SCXv2-10d4, which is a part of the bundle you are viewing.

This is my first RE audio sub and I was skeptical about using a brand I never heard of. But this sub is more than I expected. This bad boy hits pretty low and hard for a 10. And for the price you can't go wrong.

By Newbie enthusiast on November 9, 2015

12 found this helpful


The following review is for SA 1500.1, which is a part of the bundle you are viewing.
By angel on March 10, 2025 Checkmark Icon Verified purchase




No picture

KICKER 43TC104 Comp 10" Subwoofer In Sub Box Enclosure+2-Ch. Amplifier+Amp Kit

300W Peak (150W RMS) Single 10" 4-Ohm Comp Series Subwoofer Loaded Truck Box Package

(105)

$189.94

List price $289.97

QX2-980 small

Kole Audio QX2-980

980W Max, 2-Channel Amplifier

$104.99

List price $239.99

TRQ2.2600 small

Planet Audio TRQ2.2600

2600W 2 Channel Torque Series Class AB Amplifier

(2)

$84.99

List price $184.00

GC3DG small

Xscorpion GC3DG (Dark Gray)

36" x 66" Piece of UV Treated Speaker/Subwoofer Grille Cloth

(2)

$10.99

List price $16.99

JBLREFLECTBTRED small

JBL Synchros SPORT Series Reflect - Red

In-ear Wireless Bluetooth Sports Headphones

$69.95

List price $120.00

APMI-2125 small

Audiopipe APMI-2125

1200W Mini 2-Channel APMI Series Amplifier

$89.99

List price $249.99

No picture

P.I.E. ECL/E-3.5M

Eclipse E-LAN Plug to 3.5mm Stereo Adapter Cable for Select Eclipse Receivers

$21.99

List price $26.99

No picture

NVX VCW102v3RC

Recone Kit for VCW102v3 Version 3 Subwoofers

$89.99

List price $107.99

ME03G small

Master & Dynamic ME03 G (Gunmetal)

In-Ear Headphones w/ Remote and Mic

$159.00

List price $159.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2014 Honda Pilot

2009 Mitsubishi Eclipse Spyder

2007 Kia Rondo

2017 Dodge Journey

2007 Chrysler Pacifica

2009 GMC Canyon

2017 BMW M4

2017 Kia Optima

2018 Ford Explorer

2004 Dodge Durango

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
