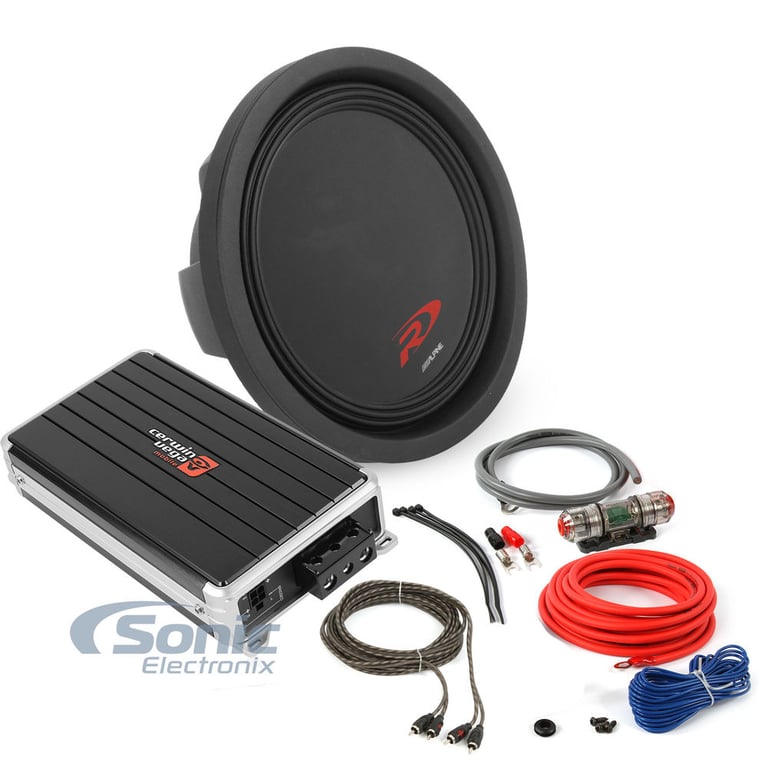

Alpine 10" Type-R + Cerwin Vega Ultra-Compact Subwoofer System

Product Features:

• 10" Single 4 Ohm Type-R Shallow-Mount Subwoofer
• Power Handling:
  • Peak: 1800 watts
  • RMS: 300-600 watts
• Impedance: 4 Ohm
• Aluminum woofer cone
• Injection Molded Santoprene rubber surround
• High-Amplitude Multi-Roll (HAMR) suspension results in the highest X-max and SPL output in its category
• Thin design allows for installation in compact areas
• FEA-Optimization allows for maximum linearity, greatly reduces distortion, and improves power handling and output
• Vented voice coil heat sink, and airflow management system keeps subwoofer cool, while reducing distortion
• 4" diameter single layer edge-wound ribbon wire voice coil
• Unique spider and pass-through gap design, provide over 50mm of peak-to-peak excursion
• Neodymium 35SH magnet structure
• Frequency response: 28-200 Hz
• Sensitivity: 83dB
• 1-year Sonic Electronix warranty

General Features:

• Bomber Series 2-Channel Class D Digital Amplifier
• RMS Power Rating:
• 4 ohm: 150 watts x 2 chan.
• 2 ohm: 250 watts x 2 chan.
• Bridged, 4 ohm: 500 watts x 1 chan.
• Ultra compact high density aluminium alloy chassis
• Direct FET Power Mosfet Output Stage
• IC audio driver provides superior overload protection
• Switchable Crossover
• Flat
• Low-pass filter: 40 - 400 Hz
• High-pass filter: 40 - 400 Hz
• Frequency Response: 10 - 35,000 Hz
• Total Harmonic Distortion: 0.5%
• Signal to Noise Ration: 85 dBA @1w
• Damping Factor: >250 (50Hz @ 4Ω
• Auxiliary for use when RCA connections are not available
• For MP3 Players, iPhone or Android Smartphones, etc..
• Only connect AUX OR RCA input, not both
• 8 gauge power and ground wiring is required for installation
• Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
• Dimensions: 4.02"W x 6.99"L x 1.4"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

• 8 gauge Power Amplifier Installation Kit
• Designed specifically for car audio systems up to 275 watts
• Premium power and ground wire provides optimal power transfer
• Twisted RCA audio interconnect cable engineered to the highest quality
• Terminals are Nickel-plated for excellent signal transfer
• ANL Fuse holder offers ideal protection
• True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Package Includes:

1. 17 ft. of 8 AWG Red power cable
2. 3 ft. of 8 AWG Gray ground cable
3. 16.40 ft. Black 2-Channel RCA Audio Cables
4. 17 ft. of Blue remote turn-on wire
5. In-line mini ANL fuseholder
6. 60 Amp ANL fuse
7. Ring Terminals
8. Ground Terminals
9. Vinyl Cable Ties
10. Screws
11. Spade Terminals
12. Grommets
