DC Audio Level 6 M3 18D2

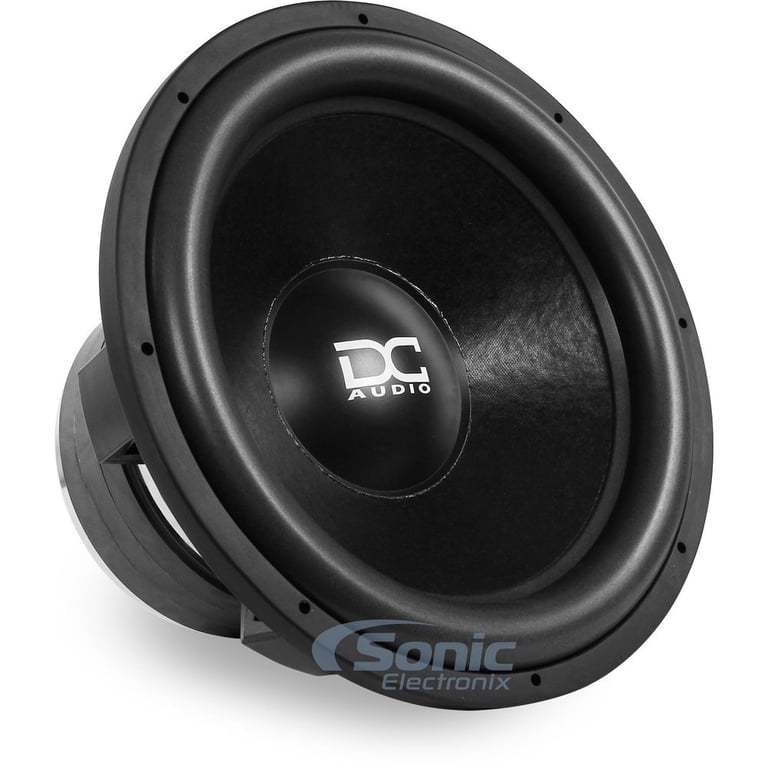

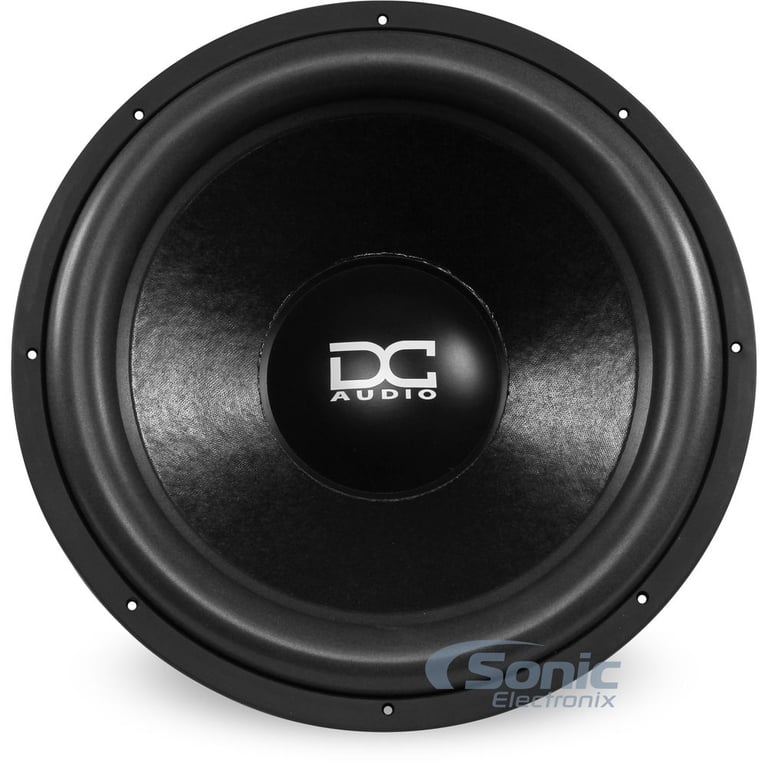

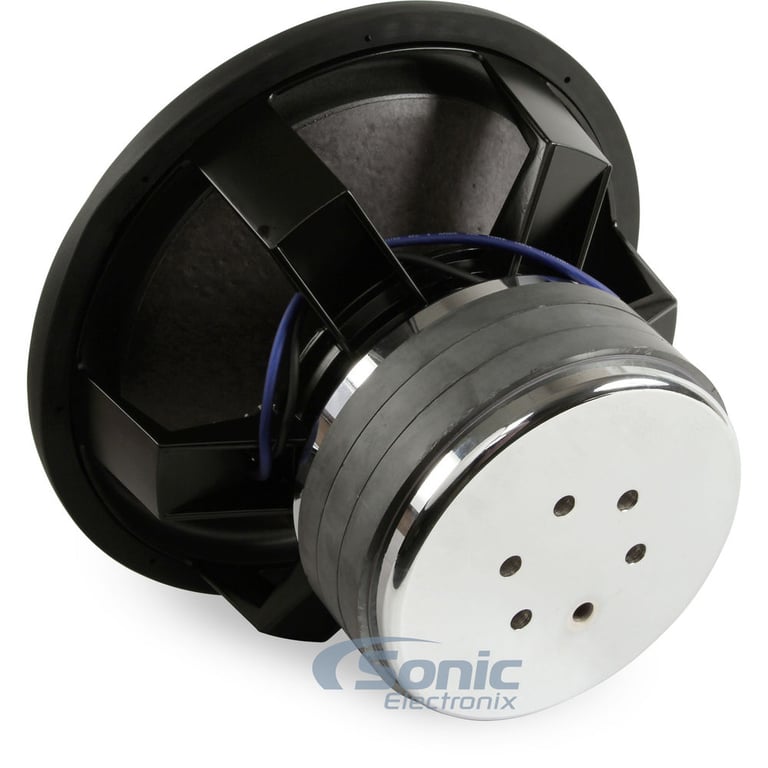

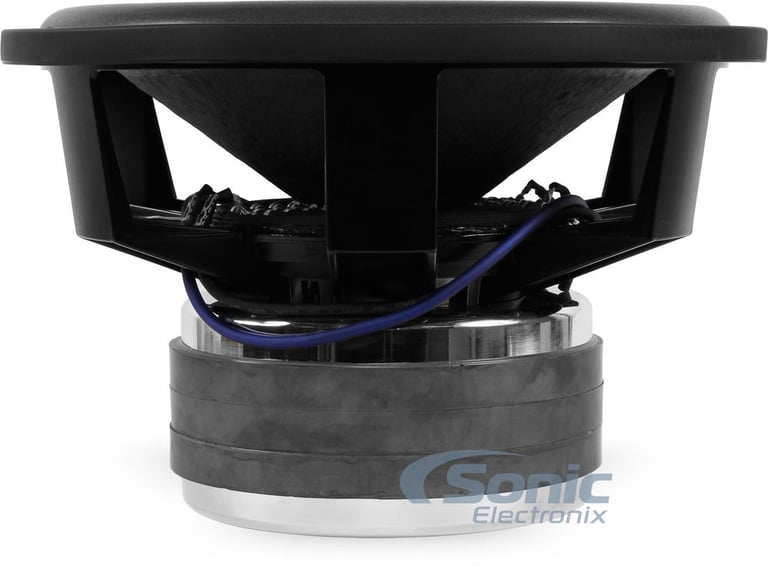

9000W Peak 18" Level 6 m3 Series Dual 2-Ohm Subwoofer - M3LV618D2

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• Peak Power: 9000W
• RMS Power: 4500W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Learn more about the m3lv618d2

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

m5lv618d2 thumbnail

DC Audio Level 6 18M5D2 (M5LV618D2)

OUR PRICE: $1229.99

View item

Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
95-5817 main

Metra 95-5817 Dash Kit

Install a new Double-DIN car stereo in select 1995-2011 vehicles from Ford, Mercury, Mazda

44
-21.92%

$17.95

List price $22.99

72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

107
-33.36%

$9.99

List price $14.99

82-5601 main

Metra 82-5601

5 1/4" Component Speaker to 6" x 8" Adapter Kit for select 1990-2019 vehicles from Ford, Mazda, Mercury

3
-13.64%

$18.99

List price $21.99

FM-K552 main

American International FM-K552

Single DIN or Double DIN Stereo Dash Kit for select 1995-2011 vehicles from Ford, Lincoln, Mazda

21
-55.03%

$8.99

List price $19.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Product Highlights


• Peak Power: 9000W
• RMS Power: 4500W
• Dual 2 ohm Voice Coil
• Extremely Rigid Non-Pressed Paper Cone Assembly
• Multilayered Polymer Wide Roll Foam Surround

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 18" Dual 2 ohm Level 6 M3 Series Subwoofer
  • Power Handling:
    • Peak: 9000 watts
    • RMS: 4500 watts
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer wide roll foam surround
  • Polypropylene dust cover with embossed DC logo
  • 9" OD linear roll spider
    • 16 extra heavy duty interweaved tinsel lead wire
  • 4" 8 layer high temperature aluminum voice coil
  • Rubber mounting gasket
  • 8 AWG direct leads
  • FEA analyzed and optimized motor assembly
    • Fully CNC machined
  • Top-mount depth: 11.50"
  • Cutout Diameter: 16.75"
  • Weight: 85.0 lbs
  • Displacement: 0.26ft³
  • Xmax: 31.25mm
  • Sensitivity: 90.7dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Level 6 M3 18" T/S Parameters:

  • Electrical Q Value (Qes): .0416
  • Mechanical Q Value (Qms): 22.43
  • Total Speaker Q Value (Qts): .409
  • Free Air Resonance (Fs): 36.4
  • Equivalent Compliance (Vas): 67.02 liters
  • One-Way, Linear Excursion (Xmax): 31.25mm
  • Efficiency (Ref SPL @ 1W): 90.7dB
  • Effective Piston Area (Sd): 1217 cm²
  • DC Resistance (Re): 4.02
  • Force Factor (Bl): 36.25
  • Mechanical Compliance (Cms): .0325 mm/N
  • Mechanical Mass (Mms): 588.52g
  • Voice Coil Inductance (Le): 7.5 mH
  • Suggested Sealed Enclosure: Not Recommended
  • Suggested Ported Enclose: 5.50 ft³

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

DC Audio M5LV618D2 thumbnail
(newest, current model)
DC Audio M4LV618D2 thumbnail
(previous model, replaced by DC Audio Level 6 18M5D2 (M5LV618D2))
DC Audio M3LV618D2 thumbnail
(previous model, replaced by DC Audio Level 6 18 m4 D2)
DC Audio M2LV618D2 thumbnail
(previous model, replaced by DC Audio Level 6 M3 18D2)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DC Audio Level 6 M3 18D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DC Audio Level 6 M3 18D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DC Audio Level 6 M3 18D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 DC Audio Level 6 M3 18D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

TS9924-22 small

MTX TS9924-22

• Peak Power: 8000 watts
• RMS Power: 4000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 24.00"
• Sensitivity: 92 dB

(3)

$9999.95

List price $12500.00

13W7AE-D1.5 small

JL Audio 13W7AE-D1.5


• RMS Power: 1500 watts
• Impedance: Dual 1.5 ohm
• Polypropylene Cone
• Polyester Foam Surround
• Mount depth: 10.50"
• Sensitivity: 86.3 dB

(19)

$1899.99

List price $1899.99

13W7 small

JL Audio 13W7-D1.5

• Sensitivity: 86.3 dB
• OverRoll™ Surround
• W-Cone
• Forced-Air-Cooled Aluminum Alloy Frame
• Radially Cross-Drilled Pole Piece
• Dual Ultra-Long Voice Coils
• Black Powder-Coating

(59)

$1899.99

List price $1899.99

13TW5V24_2 small

JL Audio 13TW5v2-4 - Pair

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$1859.98

List price $1859.98

T2S2-16 small

Rockford Fosgate Power T2 T2S2-16

• Peak Power: 5000 watts
• RMS Power: 2500 watts
• Impedance: Single 2 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 10.47"
• Sensitivity: 90 dB

$1299.99

List price $1299.99

13TW5v2-4 small

JL Audio 13TW5v2-4

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$929.99

List price $929.99

13W3v3-2 small

JL Audio 13W3v3-2

• Sensitivity: 87.63 dB
• Mounting depth: 7.63"
• Injection-molded, mineral-filled polypropylene cone
• Nitrile butadiene rubber surround
•Customization trim ring
• Floating Cone Attach Method
• DMA Optimized Motor

(6)

$519.99

List price $519.99

T3S1-19 small

Rockford Fosgate Power T3 T3S1-19

• Peak Power: 6000 watts
• RMS Power: 3000 watts
• Impedance: Single 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 15.62"
• Sensitivity: 91 dB

$2199.99

List price $2199.99

T2S1-13 small

Rockford Fosgate Power T2 T2S1-13

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Triple 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 9.7"
• Sensitivity: 90 dB

(3)

$1099.99

List price $1099.99

T2S2-13 small

Rockford Fosgate Power T2 T2S2-13

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Single 2 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 9.7"
• Sensitivity: 87 dB

$1099.99

List price $1099.99

Specifications & Details


Subwoofer Specifications
Series
Level 6 Series
Subwoofer Size
18"
Peak Power Handling
9000 watts
RMS Power Handling
4500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
4"
Sensitivity
90.7 dB
Xmax (millimeters)
31.25 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Optimum Sealed Box Volume
N/A
Optimum Ported Box Volume
5.50 cubic feet
Top-Mount Depth (Mounting Depth)
11.5"
Cutout Diameter
16.75"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
36.4 Hz
Equivalent Compliance (Vas)
67.02 liters
Total Speaker Q Value (Qts)
.409
Electrical Q Value (Qes)
.0416
Electrical Resistance of Voice Coil (Re)
4.02 ohm
Mechanical Q Value (Qms)
22.43
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M3LV618D2

Weight:

85.00lbs

Internal SKU:

m3lv618d2

Internal Product ID:

99771

Product and How-to Videos


Customer Ratings & Reviews


DC Audio Level 6 M3 18D2 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

its great

its a good product good sound and good bass great over all

By mj on December 1, 2015

20 found this helpful




ECP-HDM2 small

Icarus ECP-HDM2

6.5 ft. (2 meters) of HDMI v1.3 High Speed Cable

$5.99

List price $20.99

IPUSBK2 syncABLE II small

Scosche syncABLE II IPUSBK2

iPod, iPhone, & iPad 30-Pin Sync/Charge Cable USB 2.0 Cord (3 1/2 Foot, Black)

(8)

$11.99

List price $19.99

SPV44 small

Stinger SPV44

660 Amp Power Series Dry Cell Battery w/ Protective Steel Case for Systems up to 1320W

(10)

$199.99

List price $299.99

ATO52B-RB small

Phoenix Gold ATO52B (Black) R/B

(Factory Refurbished) 5.25" Indoor/Outdoor 2-way Box Speakers (ATO-52B)

$29.99

List price $139.99

FB8 small

StreetWires FB8

8 AWG / 8 Gauge Firewall Bushing

(9)

$8.99

List price $9.95

HFi1000D small

Hifonics HFi1000D Open Box

(Open Box) 1000W RMS, Class D Monoblock HFi Series Amplifier (HFi 1000D)

(1)

$119.99

List price $499.99

ZR800-CW small

JL Audio ZR800-CW

225W 8.0" Evolution ZR Series Component Midbass Woofer Driver

(7)

$229.99

List price $259.99

TS8512-22 small

MTX Audio TS8512-22

12" Dual 2 ohm Thunder Square TS85 Series Car Subwoofer

(3)

$249.95

List price $549.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2007 Ford Ranger

2002 Suzuki Vitara

2000 Dodge Neon

2011 Rolls Royce Ghost

2024 Tesla Model S

1967 Cadillac DeVille

1992 Mazda Protege

2019 Audi A3

1969 Cadillac DeVille

1990 Mazda B2600

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
