See all parts that fit your 2018 Transit Connect

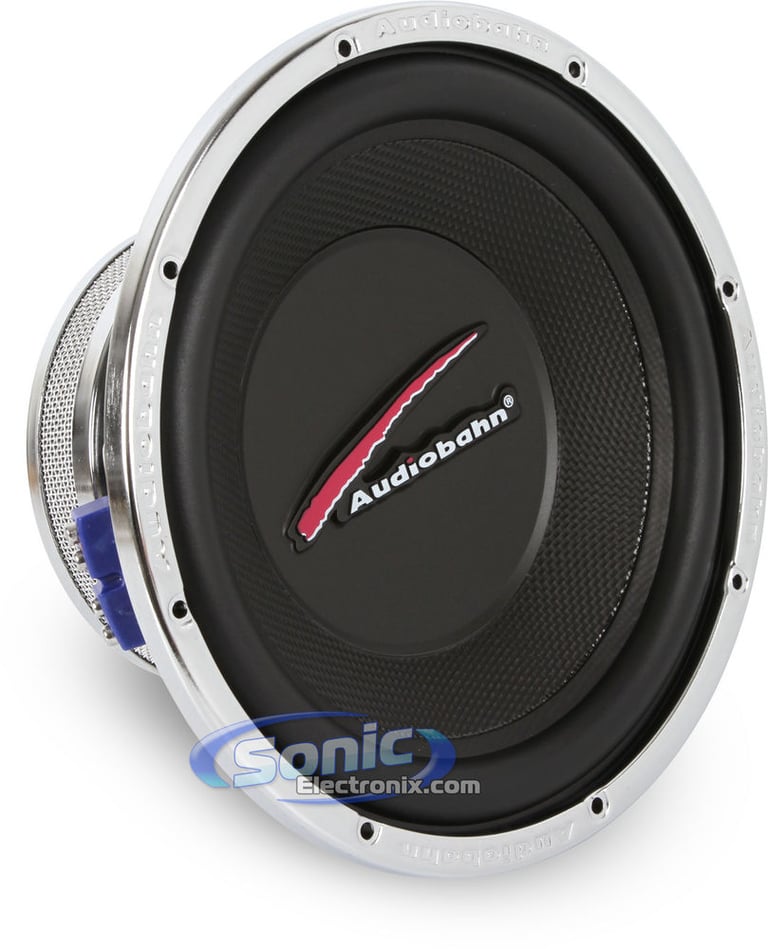

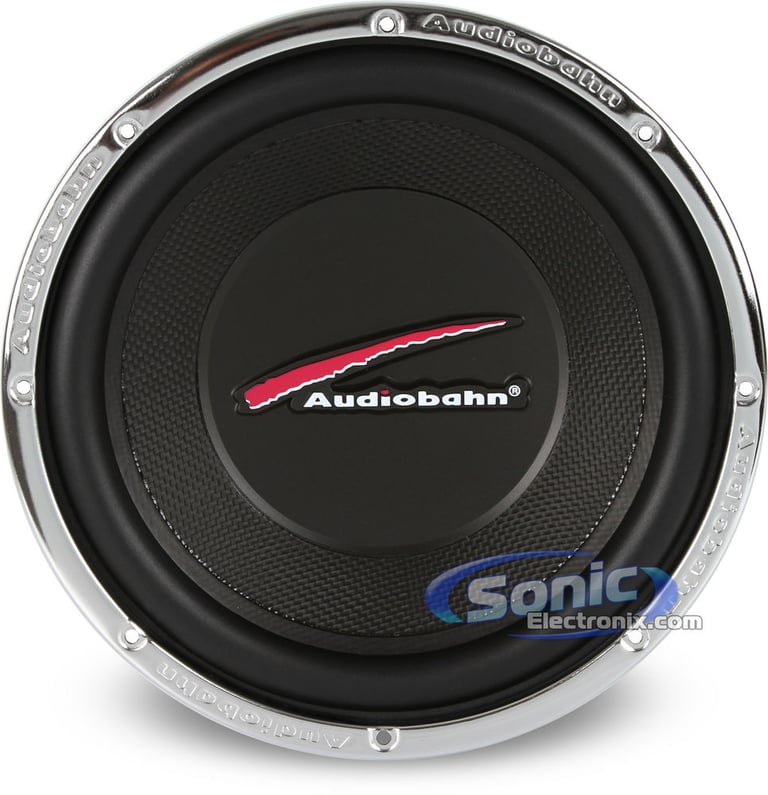

Audiobahn AWC10T

10" Dual 4 ohm High-Performer Series Car Subwoofer

Audiobahn
Shop all Audiobahn
Product videos
highlight-star-icon

• 800W Max
• 400W RMS
• Dual 4 ohm
• Molded, Texture Injected Poly Cone
• EPDM Rubber Surround
• Multi-Connect Lug Lock Terminals
• 60 oz. Strontium Magnet

Learn more about the awc10t

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
AXDI-FOC main

Axxess AXDI-FOC

Install New Car Stereo and Retain Steering Wheel Controls and Other Factory Features In select 2011-2019 vehicles from Ford

-10.37%

$120.99

List price $134.99

Limited time!
DMX809S main

Kenwood eXcelon DMX809S

6.8” Double DIN Digital Multimedia Touchscreen Bluetooth Receiver with Wireless Apple CarPlay and Android Auto (SiriusXM Ready)

11
-37.63%

$499.00

List price $800.00

Product Highlights


• 800W Max
• 400W RMS
• Dual 4 ohm
• Molded, Texture Injected Poly Cone
• EPDM Rubber Surround
• Multi-Connect Lug Lock Terminals
• 60 oz. Strontium Magnet

Description


  • 10" Dual 4 ohm High Performance Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: 4 ohm
  • Molded, texture injection molded polypropylene cone
  • EPDM Rubber surround
  • Bumped and vented polished t-yoke

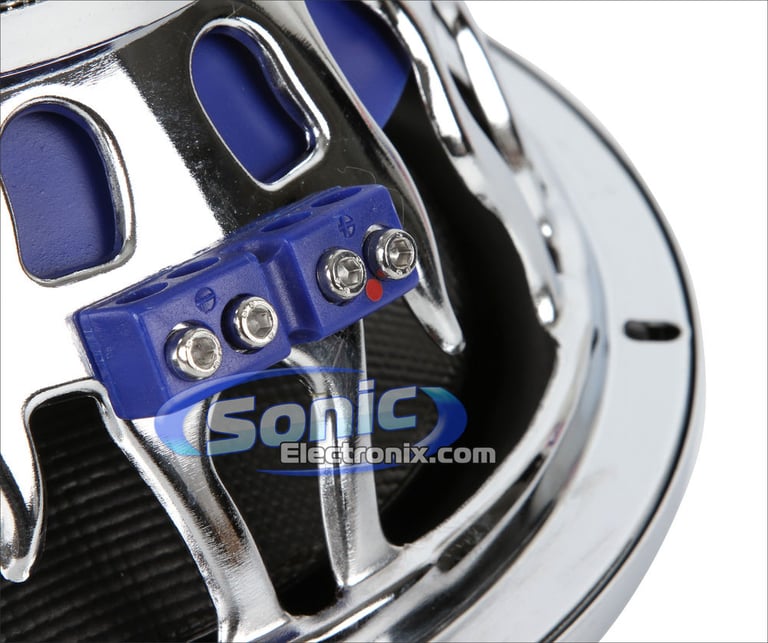

  • Lug lock terminals
  • Extended pole piece and vented oversized back plate
  • 2" Four player black aluminum voice coil
  • Rubber gasket and mesh magnet cover
  • 60 oz. Strontium magnet
  • Frequency response: 25-800 Hz
  • Sensitivity: 92.5 dB
  • Mounting Depth: 4-3/4"
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Audiobahn AWC10T Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Audiobahn AWC10T Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Audiobahn AWC10T Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Audiobahn AWC10T Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(15)

$189.95

List price $159.95

R2-W10D2 small

Alpine R2-W10D2

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 5.92"
• Sensitivity: 82.3 dB

(3)

$319.95

List price $480.00

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
25 - 800 Hz
Sensitivity
92.5 dB
Xmax (millimeters)
7 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
EPDM Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.5 cubic feet
Maximum Sealed Box Volume
2.0 cubic feet
Minimum Ported Box Volume
0.65 cubic feet
Maximum Ported Box Volume
2.35 cubic feet
Top-Mount Depth (Mounting Depth)
4-3/4"
Cutout Diameter
10-1/4"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AWC10T

Weight:

10.00lbs

Internal SKU:

awc10t

Internal Product ID:

7692

Product and How-to Videos


Customer Ratings & Reviews


Audiobahn AWC10T thumbnail image

5 star
60%
4 star
20%
3 star
20%
2 star
0%
1 star
0%



Durability
3.8
Value
4.4
Features
4.6
Design
4.6
Usability
4.8

Customer Reviews

Sort by:

Loading...

starter subs for rookies

These subs look alot nicer than they are. The so called natural sound subs just dont have the bass inpact that you would expect from a sub that handles 400 RMS but you get what you pay for and overal a great price and honestly you cant get a better $50 sub good luck!

By steffan on September 22, 2011

15 found this helpful


Not really what I expected

I purchased 4 and dropped them into a custom ported box 1.6 cubic ft tuned to 35 for each sub and it hit okay, a week later I cut the box down about 1 cubic ft sealed per sub and it hit a lil harder. the subs would pop after a while of playing at medium volume and a week later they would pop at lower volumes, i know i have to take it easy until the subs break in but at that low of a volume and such little bass before they start crappin out and all that extra weight isnt worth it but hopefully they will break in soon and no more poppin.

By Brek on July 29, 2011

14 found this helpful


Tight bass!!

I bought 1 AWC10T. I try it in my civic 90'. I made a 4 cubic feet box for it. It was amazing! Later, I bought a 2nd AWC10T, I remade another box for these 2 subs. I used an Alpine MRP-M350 to power these subwoofers, 1 for each sub. I never have been scared with these subs! BUY IT NOW!! ;) A+++++

By Lastkall on February 4, 2011

14 found this helpful


Great Cheep Subs

I have 2 of these in a sealed box in the trunk of my 91 Totota celica. I used half of a Massive Audio 40wx4ch. The 2 bridged channels for about 300watts and that was about all the subs needed to sound great. The hit pretty low even in a sealed enclosure of about 2cu ft. I would recommend these to anyone looking for some great subs for a low price.

By Ryan on July 12, 2007

12 found this helpful


Good subs!

I have two of these in a bandpass box hooked up to an autotek 1000 watt amp. These subs aren't knock down the block, but they rattle the trunk. Great value at Sonic's price.

By Eman on August 21, 2011

12 found this helpful
