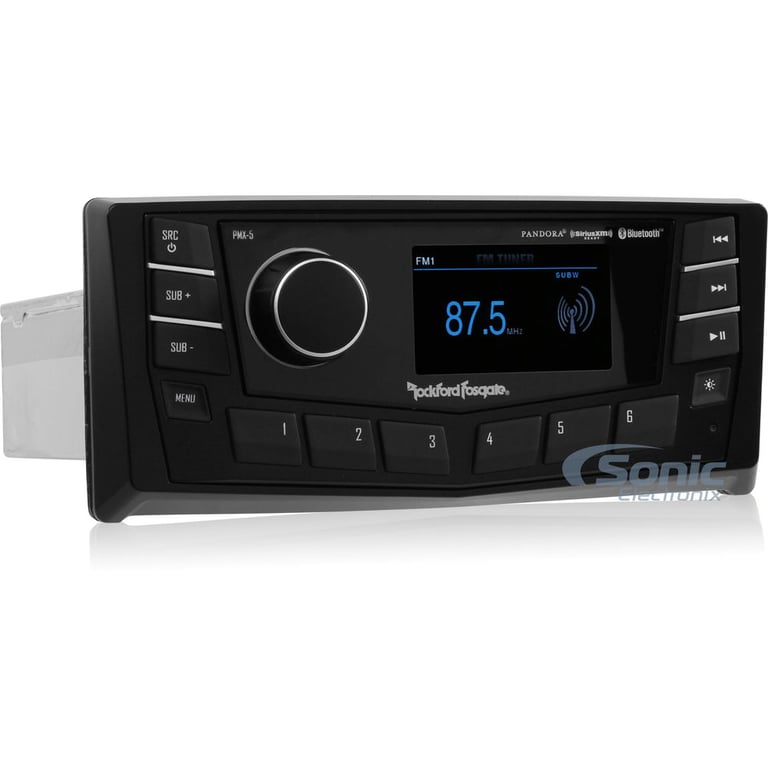

Rockford Fosgate PMX-5

AM/FM/WB Tuner and Digital Media Receiver with 2.7" Full Color Display, SiriusXM Ready and made for iPhone/iPod and Android devices

Product videos
highlight-star-icon

• 25W x 4 Chan. @ 4 ohms • 50W x 4 Chan. @ 2 ohms
• 3 Sets of 5V Preamp Outputs
• 7-Band Graphic EQ
• 2.7" Full color TFT display w/ auto dimming backlighting
• CD text information display
• MP3 ID3 Tag Display (Title/Artist/Album)
• AM/FM/WB tuner with 18FM/12AM/6WB presets
• IPX6 Marine Grade
• ISO8846/SAE J1171 Ignition Protection Certified
• Stainless Steel Rear Chassis

Learn more about the pmx5

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

pmx5can thumbnail

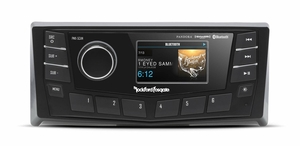

Rockford Fosgate PMX-5CAN

OUR PRICE: $379.99

View item

Product Highlights


• 25W x 4 Chan. @ 4 ohms • 50W x 4 Chan. @ 2 ohms
• 3 Sets of 5V Preamp Outputs
• 7-Band Graphic EQ
• 2.7" Full color TFT display w/ auto dimming backlighting
• CD text information display
• MP3 ID3 Tag Display (Title/Artist/Album)
• AM/FM/WB tuner with 18FM/12AM/6WB presets
• IPX6 Marine Grade
• ISO8846/SAE J1171 Ignition Protection Certified
• Stainless Steel Rear Chassis

Description


Rockford Fosgate brand icon

Authorized dealer
















General Features:

  • Rockford Fosgate PMX-5 Receiver
  • CEA-2006 compliant
  • Power Output:
    • 4 ohms: 25 watts x 4 chan.
    • 2 ohms: 50 watts x 4 chan.
  • With the PMX-CAN, you will be able to connect a Raymarine Multifunction (MFD) Screen and control functions of the PMX-5, like dual zone audio operation, straight from the MFD! ( PMX-CAN and MFD sold seperately)
  • 2.7" Full color TFT display w/ auto dimming backlighting
  • CD text information display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • AM/FM/WB tuner with 18FM/12AM/6WB presets
  • IPX6 Marine Grade
  • ISO8846/SAE J1171 Ignition Protection Certified
  • Stainless Steel Rear Chassis
  • FCC, CE, IC, and C-Tick Certified
  • Multi Region Radio Frequencies
  • Low Voltage Warning Alert
  • Operating voltage: 10.5V - 16.0V
  • Fuse rating: 15A
  • WB Frequency range: 162.40 - 162.55
    (US & Canada)
  • No on-board clock
  • General Dimensions:
    • Width 8" (20.3cm)
    • Face Depth 1.5" (3.8cm)
    • Mount Depth 7.1" (18.2cm)
    • Height 3.5" (8.9cm)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Playback and Audio Features:

  • MP3/WMA Playback
  • Pandora Internet Radio Control
  • Compatible with Apple iPhone 6/6+ and iOS 8 software
  • On Board Punch EQ Control
  • Independent Subwoofer Level Control
  • Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
  • 7-Band Graphic EQ
  • Zone Control: 2 Zone / 2 Source (F/R/S + F)
  • RCA Rear Audio Auxiliary Input
  • Rear USB Input with 1A charging
  • 3 Sets of 5V preamp outputs (front, rear and subwoofer)
  • Wired Remote Compatible
    (3 Remote Limit, 100 ft Total Wired Distance)

Bluetooth Features:

  • Built-in Bluetooth technology for audio streaming
  • Bluetooth version 3.0+EDR certified
  • A2DP and AVRCP Bluetooth Wireless Streaming
  • Android audio streaming support

Expandability Options:



Check out the Rockford Fosgate PMX-5 User Manual



Product history:

Rockford Fosgate PMX-5CAN thumbnail
(newest, current model)
Rockford Fosgate PMX-5 thumbnail
(previous model, replaced by Rockford Fosgate PMX-5CAN)

Specifications & Details


In-Dash Receiver Specifications
Wireless Remote
No
Peak Power Output
50 watts x 4 channel
RMS Power Output
25 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
5 volts
Built-In Equalizer
7-Band
Display Type
TFT-LCD Display
Touchscreen
No
Expandability Features
Inputs
Audio/Video (Rear)
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Tuner
AM/FM Tuner
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PMX-5

Weight:

7.00lbs
