Name: Belva BB15002v2( Open Box Complete)
Brand: Belva
SKU: ls-bb15002v2-obc8
Price: 89.99 USD
Availability: Discontinued

by Belva

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

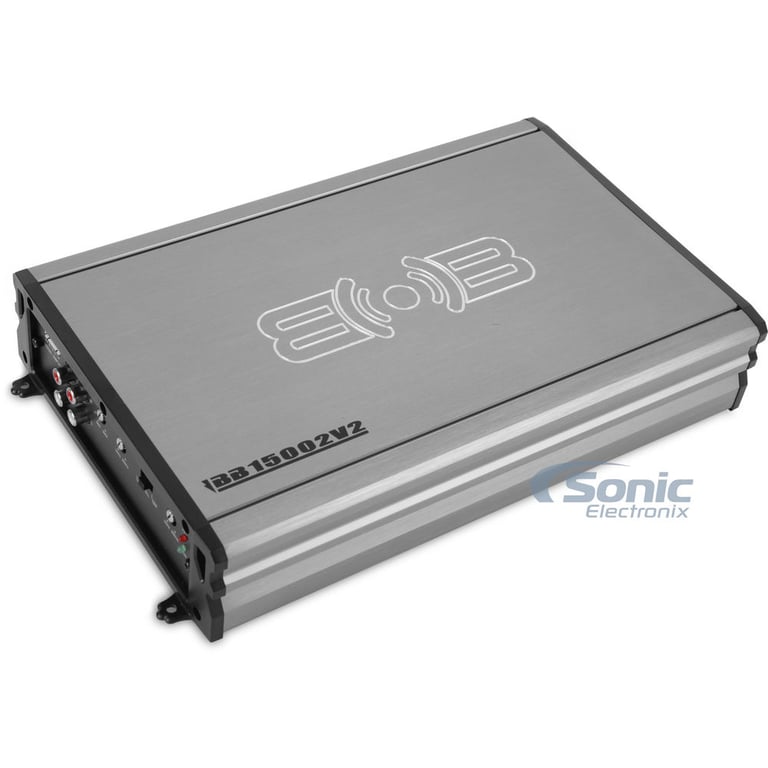

Belva BB15002v2( Open Box Complete) Image 1 — Belva BB15002v2( Open Box Complete)

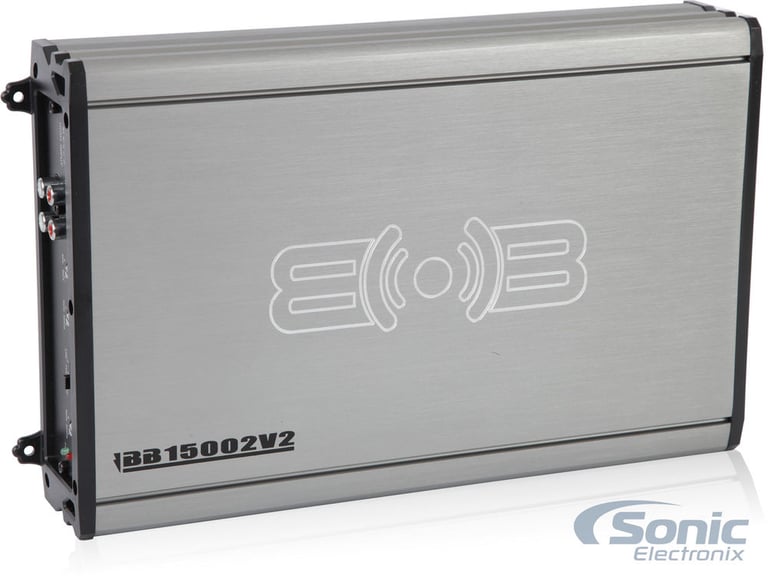

Belva BB15002v2( Open Box Complete) Image 2 — Belva BB15002v2( Open Box Complete)

Belva BB15002v2( Open Box Complete) Image 3 — Belva BB15002v2( Open Box Complete)

Belva BB15002v2( Open Box Complete) Image 4 — Belva BB15002v2( Open Box Complete)

Belva BB15002v2( Open Box Complete) Image 5 — Belva BB15002v2( Open Box Complete)

Belva BB15002v2( Open Box Complete) Image 6 — Belva BB15002v2( Open Box Complete)

Belva BB15002v2( Open Box Complete) Image 7 — Belva BB15002v2( Open Box Complete)

Belva BB15002v2( Open Box Complete) Image 8 — Belva BB15002v2( Open Box Complete)

Product highlights

• 170 Watts RMS x 2 @ 4 ohm
• 300 Watts RMS x 2 @ 2 ohm
• 600 Watts RMS x 1 @ 4 ohm, Bridged
• Total Peak Power: 1500 Watts
• 1 Pair of Preamp Outputs
• Variable low-pass filter (50-250 Hz, 12 dB/octave)
• Variable high-pass filter (50-250 Hz, 12 dB/octave)
• Dimensions: 12.25"W x 8"D x 2.25"H

Learn more about the ls-bb15002v2-obc8

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Open Box, Very Good Condition:
A Very Good Open Box used product represents a well-cared-for product that has seen only brief installation and/or limited use, but remains in great condition. The item is complete, unmarked, and undamaged, but may show some limited signs of wear. Original packaging, paperwork or protective wrapping may be missing or slightly damaged from the item being opened. Product works perfectly. Warranty details are included in the item description or comments.

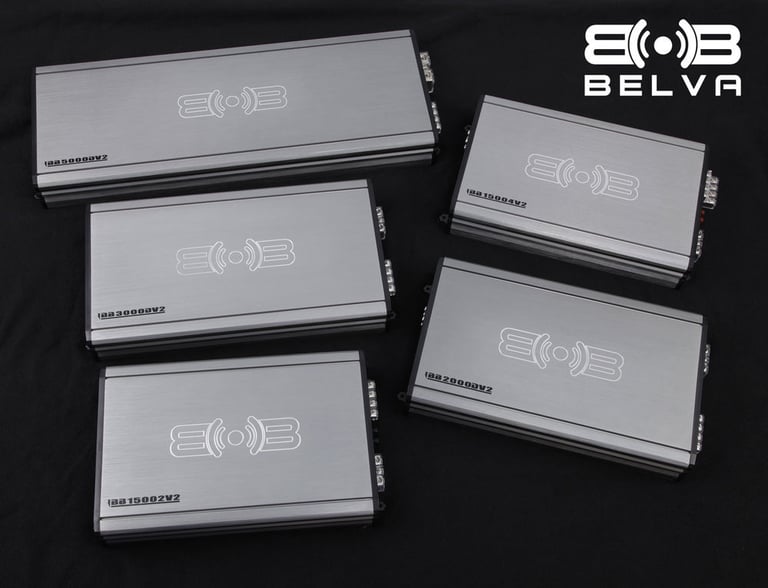

BB Series: Power, Power and More Power!

The BB Series by Belva are designed to get loud! These beasts are exceptional performance amps engineered to output maximum power. If you need an amplifier that can output heavy power levels without a problem, the Belva BB Series amplifiers are right for you!

High Quality, High Power Output

These amplifiers are built with a high quality, organized circuit board. Every amplifier in the BB Series has high power output. The BB15002v2 is capable of outputting 600 watts of RMS power. This amount of power is sure to be able to adequately supply most subwoofer systems with the proper amount of wattage. Belva amplifiers will keep your woofers pumping out deep bass with honest sound reproduction and reduced distortion.

General Features:

BB Series 2-Channel Class AB Car Amplifier
RMS Power Rating:

4 ohm: 170 watts x 2 chan.
2 ohm: 300 watts x 2 chan.
Bridged: 600 watts x 1 chan.

Max power output: 1500 watts
Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators

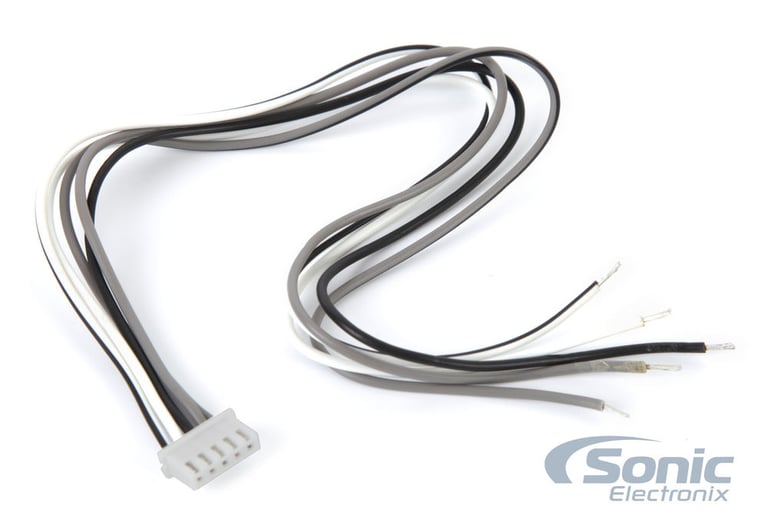

High-level speaker inputs
2 or Mono channel operation
Preamp RCA outputs to daisy chain multiple amps
Heavy duty aluminum alloy heat-sink
3-way protection circuitry (thermal, overload, and speaker short protection)

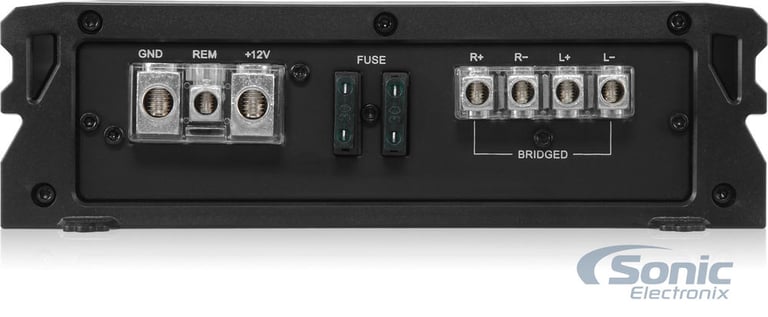

Nickel plated RCA, Speaker and Power connections
Input sensitivity: 200mV - 5V

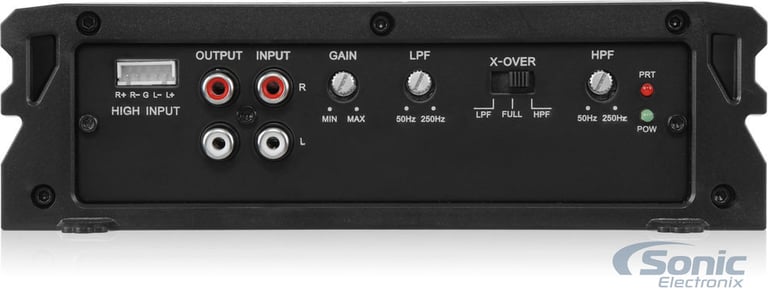

Selectable crossover modes: LPF / FULL / HPF
Variable high-pass filter: 50 - 250 Hz, 24 dB/octave
Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
Total Harmonic Distortion (THD): <1.0%
Frequency response: 15-20,000 Hz
Signal to Noise Ratio: 86dB @ 1W
Fuse Rating: 30 A x 2
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
Dimensions: 12.25"W x 8"D x 2.25"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

170 watts x 2 channel

RMS Power @ 2 ohms

300 watts x 2 channel

Bridged RMS Power

600 watts x 1 channel

Power Specifications - Full Range Channels

Peak Power @ 4 ohms

340 watts x 2 channel

Peak Power @ 2 ohms

600 watts x 2 channel

Bridged Peak/Max Power

1500 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

2-Channel

Total Peak Power Output

1500 watts

Total RMS Power Output

600 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

<1.00%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

50 - 250 Hz

Low-Pass Crossover Frequency

50 - 250 Hz

Remote bass/level controller

Fuse Rating

30A x 2

Total Fuse Rating

Strappable

Sonic Certified Amplifier

Not Tested

Amp Bluetooth Connectivity

Hi-Res Certified

What is in the box?

Paperwork

User manual

WITB: Amplifiers

Amplifier

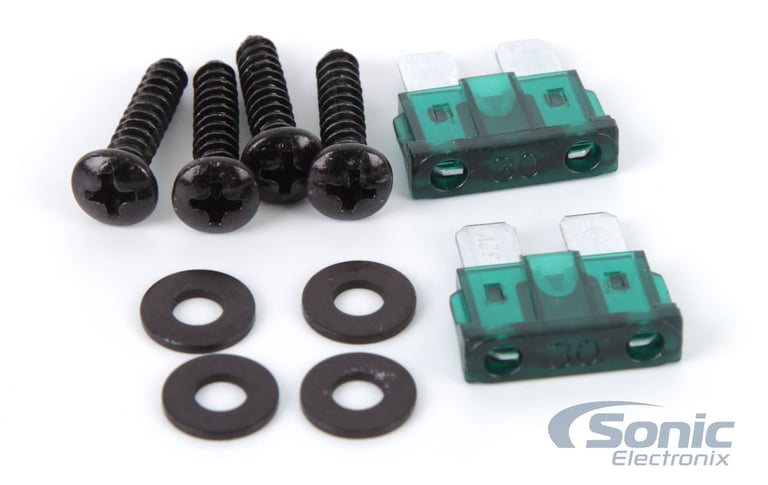

Mounting screws (4)
Washers (4)

Warranty and Return Policy

Parts Warranty Duration

30 days

Labor Warranty Duration

30 days

Warranty Provider

Sonic Electronix
