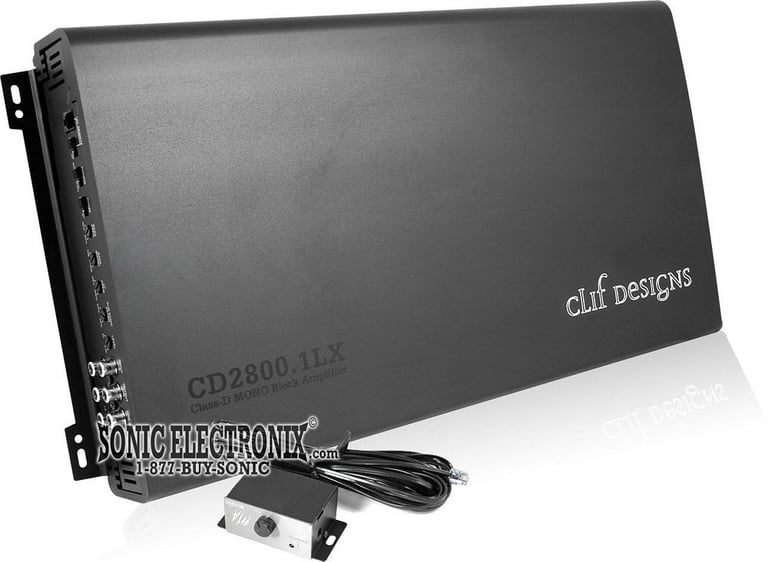

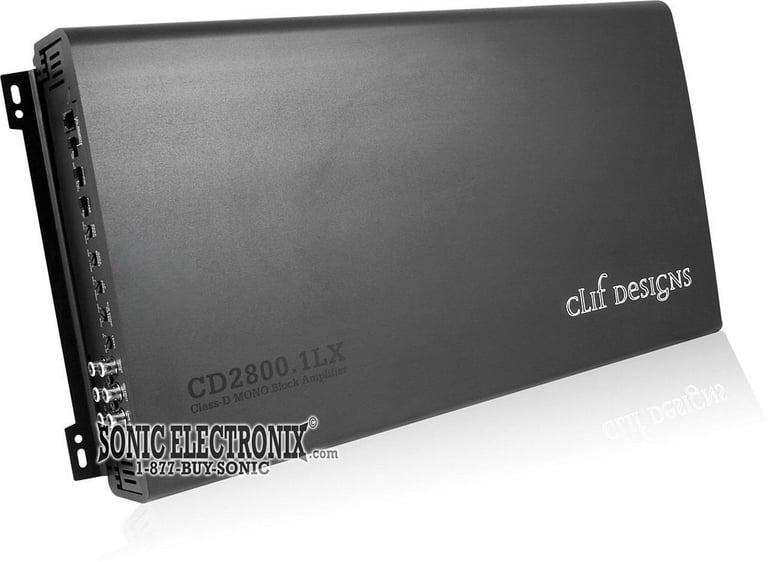

Clif Designs CD2800.1LX Factory Refurbished

Class D Monoblock Amplifier

Clif Designs
Shop all Clif Designs
Product videos
highlight-star-icon

LX Series Class D Monoblock Car Amplifier • 860W x 1 chan. @ 4 ohm • 1675W x 1 chan. @ 2 ohm • 3200W x 1 chan. @ 1 ohm • ***NON-CLIF DESIGNS REMOTE (MA Audio)*** • Stackable (master/slave capable) operation

Learn more about the LS-cd28001lx-RB

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Product Highlights


LX Series Class D Monoblock Car Amplifier • 860W x 1 chan. @ 4 ohm • 1675W x 1 chan. @ 2 ohm • 3200W x 1 chan. @ 1 ohm • ***NON-CLIF DESIGNS REMOTE (MA Audio)*** • Stackable (master/slave capable) operation

Description


Clif Designs brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

  • LX Series Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 850 watts x 1 chan.
    • 2 ohm: 1675 watts x 1 chan.
    • 1 ohm: 3200 watts x 1 chan.
  • Unregulated MOSFET power supply

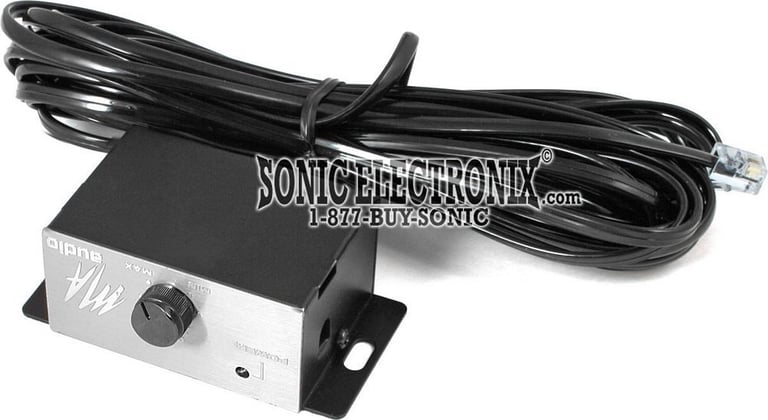

  • Wired remote bass level control included: ***NON-CLIF DESIGNS REMOTE (MA Audio)***

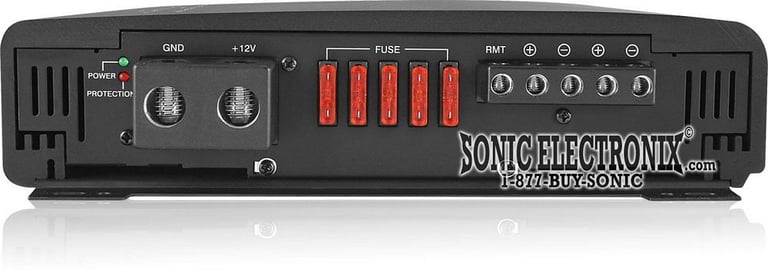

  • LED power and protection indicators
  • Tuned Bass EQ (0-18 dB bass boost at 45 Hz)
  • Sigma-Delta Platform
  • Stackable (master/slave capable) operation
  • Through pole technology
  • Double sided epoxy military standard PCB
  • Center path technology (patent pending)

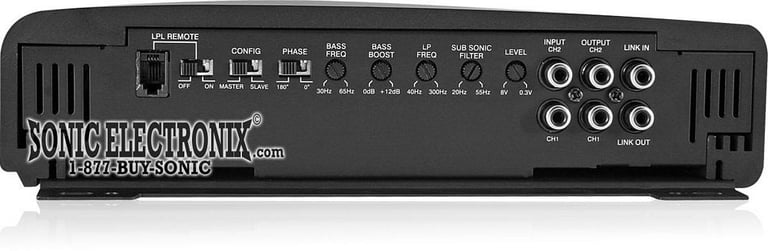

  • Preamp RCA outputs
  • Alloy heatsink
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable low-pass filter (30-300 Hz, 18 dB/octave)
  • Subsonic Filter (20-55 Hz)
  • Frequency response: 20-330 Hz
  • Dimensions: 10.5"L x 19.8"W x 2.28"H
  • 0-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Authorized Internet Dealer
  • 1-year SonicElectronix.com warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
850 watts x 1 channel
RMS Power @ 2 ohms
1675 watts x 1 channel
RMS Power @ 1 ohm
3200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
3200 watts
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.03%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
30 - 300 Hz
Subsonic Filter
20 - 55 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes

Item Details


Manufacturer:

Model Number:

CD2800.1LX-RB

Weight:

24.00lbs

Internal SKU:

LS-cd28001lx-RB

Internal Product ID:

10456
