Product Highlights


Ultimate Series "The Big Three" 3-Channel Class AB Car Amplifier • 85W x 2 chan. + 300W x 1 sub chan. • 100W x 2 chan. + 500W x 1 sub chan. • Short circuit, DC offset, and thermal protection circuitry • Built-in fan with output for external control

Description


DLS brand icon

Authorized dealer

  • Ultimate Series "The Big Three" 3-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 85 watts x 2 chan. + 300 watts x 1 sub chan.
    • 2 ohm: 100 watts x 2 chan. + 500 watts x 1 sub chan.
  • LED power and protection indicators
  • Bridgeable operation
  • Automatic remote turn on/off on high level input without connecting any remote wire
  • Short circuit, DC offset, and thermal protection circuitry
  • Built-in fan with output for external control
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Variable high-pass filter:
    • 1 + 2 channels: 50-150 Hz, 6 dB/octave
    • Subsonic: 25 Hz, 18 dB/octave
  • Variable low-pass filter:
    • Sub channel: 40-90 Hz, 18 dB/octave
  • Frequency response: 10-50000 Hz
  • Dimensions: 16.15"L x 9.45"W x 2.87"H
  • 4-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Best selling similar products

MX600/3 small

JL Audio MX600/3

• 75 watts x 2 channel + 250 watts x 1 channel @ 4 ohm
• 100 watts x 2 channel + 400 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm + 400 watts x 1 channel @ 2 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 3-Channel Amplifier

(4)

$579.99

List price $579.99

XDM500/3 small

JL Audio XDM500/3

• 75 watts x 2 channel + 180 watts x 1 channel @ 4 ohm
• 100 watts x 2 channel + 300 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm + 300 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 3-Channel Amplifier

$679.99

List price $679.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
85 watts x 2 channel
RMS Power @ 2 ohms
100 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
Not Bridgeable
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
3-Channel
Total RMS Power Output
700 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
1 + 2 channels: 50-150 Hz, 6 dB/octave
Low-Pass Crossover Frequency
40-90 Hz, 18 dB/octave
Subsonic Filter
25 Hz @ 18 dB/octave
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB

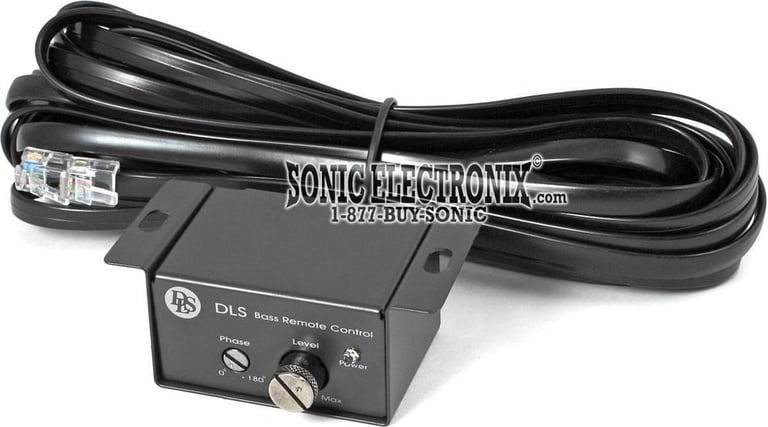

Remote bass/level controller
Yes
Fuse Rating
30A x 3
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

DLS

Model Number:

DLS-A5

Weight:

17.00lbs

Internal SKU:

dlsa5

Internal Product ID:

10507
