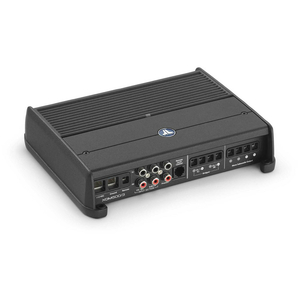

JL Audio XDM500/3

500W RMS XDM Series Class-D 3-Channel Marine Amplifier

JL Audio
Shop all JL Audio
Only 2 Left!
Product videos
highlight-star-icon

• 75 watts x 2 channel @ 4 ohms
• 100 watts x 2 channel @ 2 ohms
• Bridged: 200 watts x 1 channel @ 4 ohms
• Total RMS Power: 500 watts
• Class D 2 ohms Stable 3-Channel Amplifier

Learn more about the xdm5003
Thanks , You Pay:

$649.99

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one xdm5003.

Set your vehicle or Return to product page
shipping truck icon
FREE shipping to VA. Get it Wed, June 7
Quantity
In Stock. Only 2 Left!
Brand new

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, Available 24/7

For over 22 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

AwardWinning
Award-Winning Service
Shipping
FREE Shipping Orders $49+
60Days
60-Day Easy Returns
lowestPrice
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Expert built bundles that save you more (1)


Choose from any of our many bundles that include this product for even more savings!

JL Audio XDM500/3 with Amplifier Wiring Kit

500W RMS XDM Series Class-D 3-Channel Marine Amplifier

(65)

$649.99

Product Highlights


• 75 watts x 2 channel @ 4 ohms
• 100 watts x 2 channel @ 2 ohms
• Bridged: 200 watts x 1 channel @ 4 ohms
• Total RMS Power: 500 watts
• Class D 2 ohms Stable 3-Channel Amplifier

Description


JL Audio

Authorized dealer

Premium Technology

JL Audio's NexD™ switching technology is a high-speed switching amplifier design that allows for high efficiency and low distortion. This technology utilizes high-speed MOSFET switches and low-impedance driver stages to deliver high power with low distortion and low noise. This design also allows for a compact amplifier chassis, making it ideal for use in space-limited installations. Additionally, this helps to reduce the need for large, heavy heat sinks, resulting in a more lightweight and efficient amplifier design. Overall, JL Audio's NexD™ technology is a highly advanced and effective solution for amplifying audio signals with minimal distortion and maximum efficiency.

Product Details:

  • Class D 2 ohms Stable 3-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 75 watts x 2 channel
    • 2 ohms: 100 watts x 2 channel
    • Bridged, 4 ohms: 200 watts x 1 channel
  • Total power output: 500 watts
  • LED Power/Protect Light
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • DC offset or signal sensing auto turn-on eliminates need for remote lead
  • Input sensitivity:
    • Low level: .2 - 2 volts
    • High level: .8 - 8 volts
  • Frequency Response: 12 - 12,000 Hz
  • Total Harmonic Distortion (THD): <1.0%
  • Signal to Noise Ratio: 104 dB
  • Variable high-pass filter: 50 - 500 Hz, 24 dB/octave
  • Variable low-pass filter: 50 - 500 Hz, 24 dB/octave
  • Variable Bass Boost: 0 - 12 dB bass boost at 50 Hz
  • Fuse Rating: 50
  • Built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars
  • Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
  • 4 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 8-9/16" W x 7-1/8" L x 2" H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

JL Audio XDM500/3 Manual

Product history:

JL Audio XDM500/3 thumbnail
(newest, current model)
JL Audio XD500/3v2 thumbnail
(previous model, replaced by JL Audio XDM500/3)
JL Audio XD500/3 thumbnail
(previous model, replaced by JL Audio XD500/3v2)

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 2 channel
RMS Power @ 2 ohms
100 watts x 2 channel
Bridged RMS Power
200 watts x 1 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
180 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
Amplifier Specifications
Series
Marine Certified
Yes
Amplifier Class
D
Number of Channels
3
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Frequency Response
12 - 12,000 Hz
THD at Rated RMS Power
<1.0%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
104 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
50A x 1
Total Fuse Rating
50
Strappable
No
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
.2 - 2 volts
High-Level Input Sensitivity
.8 - 8 volts
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Adhesive brand badge
Allen wrench
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XDM500/3

Weight:

5.60lbs

Internal SKU:

xdm5003

Internal Product ID:

199524
