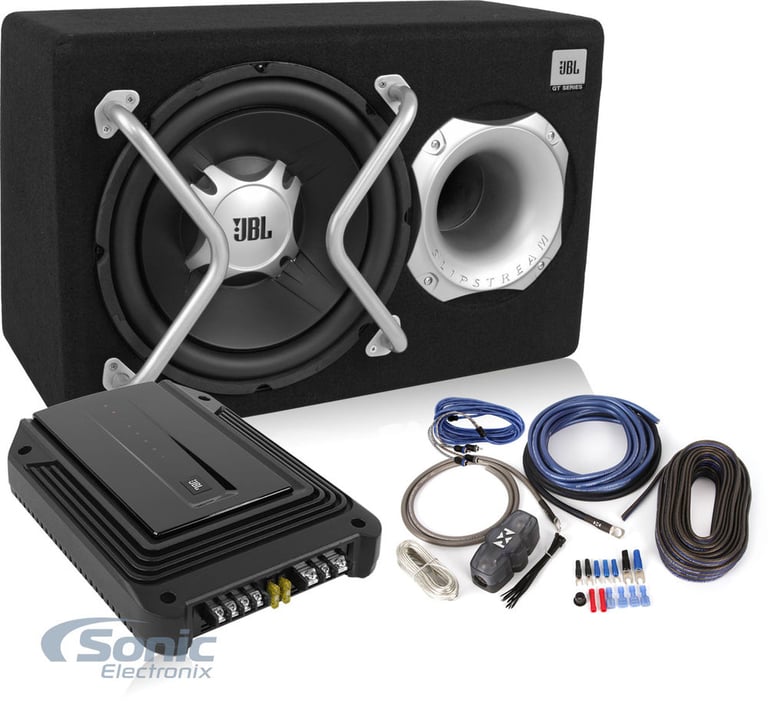

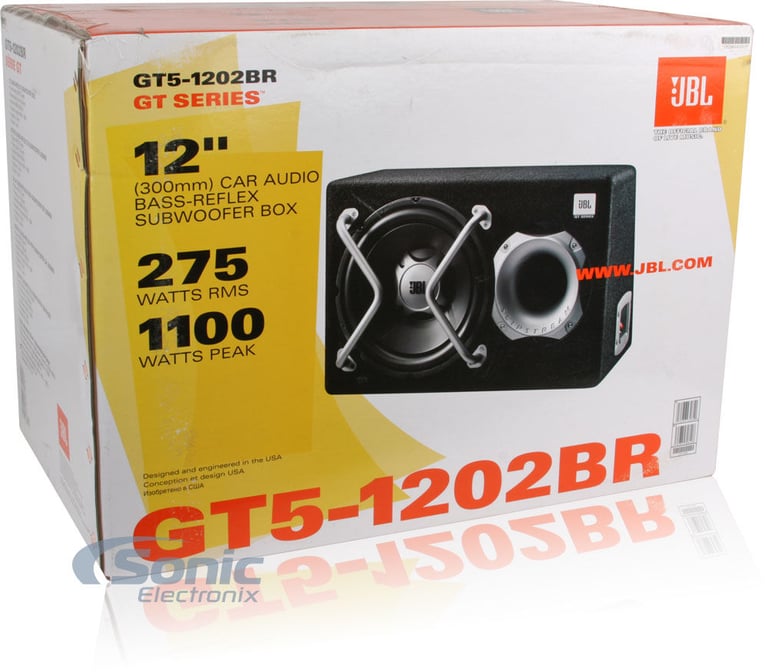

JBL GT5-1202BR + GX-A3001

• 12" Single GT Series Subwoofer
• Power Handling:
• Peak: 1100 watts
• RMS: 275 watts
• Final Impedance: 2 ohm
• Polypropylene cone woofer
• Rubber surround
• Rubber coated tinsel leads
• Vented motor structure
• Dual-stacked, oversized magnets
• Sensitivity: 90 dB
• Authorized Internet Dealer
• 1-year Manufacturer's warranty (subwoofer only)

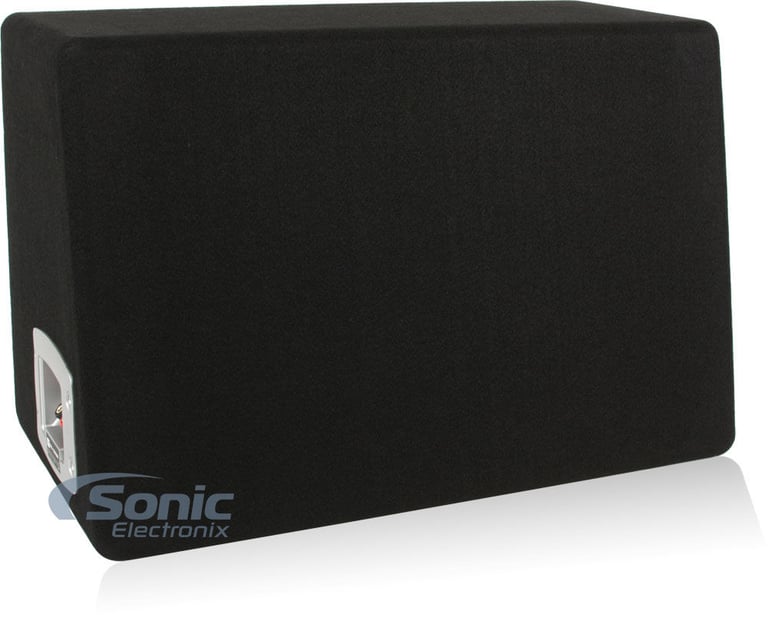

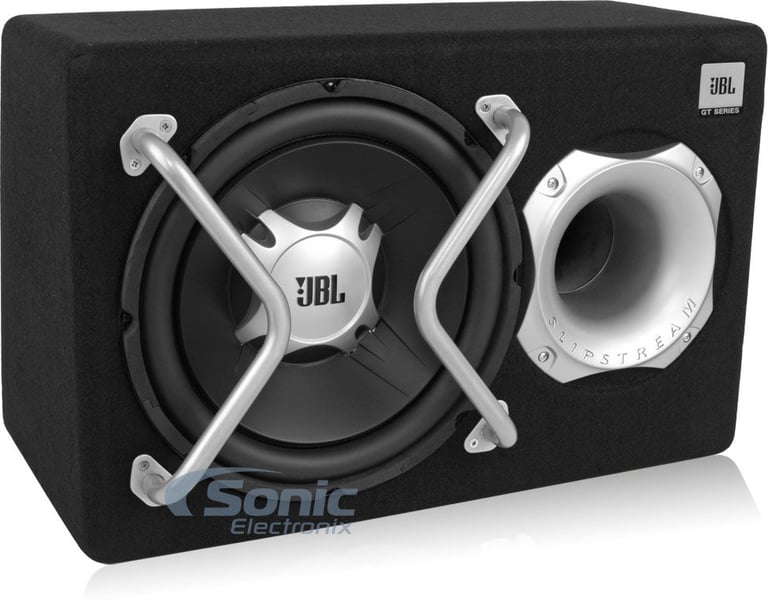

• JBL Tuned Slipstream Ported Enclosure
• Designed specifically for the JBL GT5-12 subwoofer
• Tuned to an optimal 45-150 frequency response
• Recommended power handling: 100-275 watts RMS
• Wired internally for a final impedance of 2 ohm
• Covered in black carpet for looks and durability
• Sturdy grill protects the subwoofer from unnecessary damage

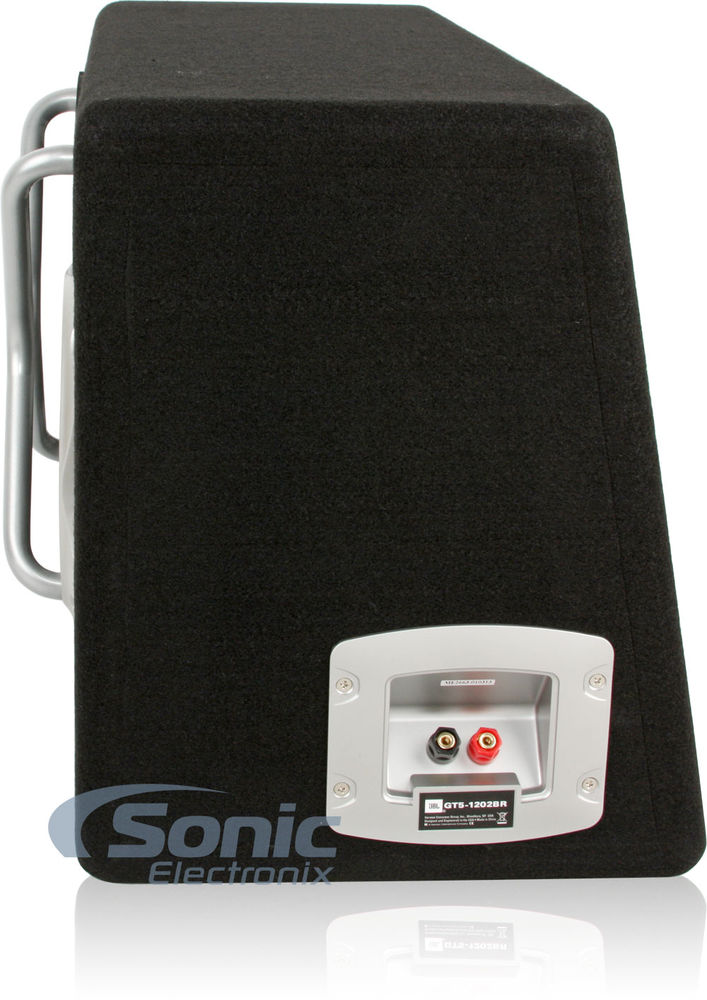

• Gold plated terminals or excellent connectivity
• Banana clip ready
• Made from durable 3/4" MDF (Medium Density Fiberboard
• Dimensions: 10-15/16"D1 x 14"D2 x 22-5/8"W x 14-9/16"H

General Features:

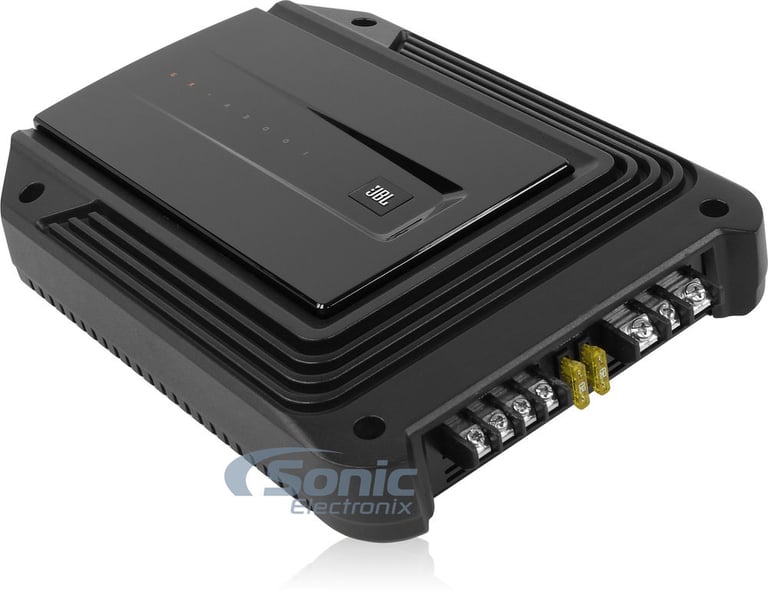

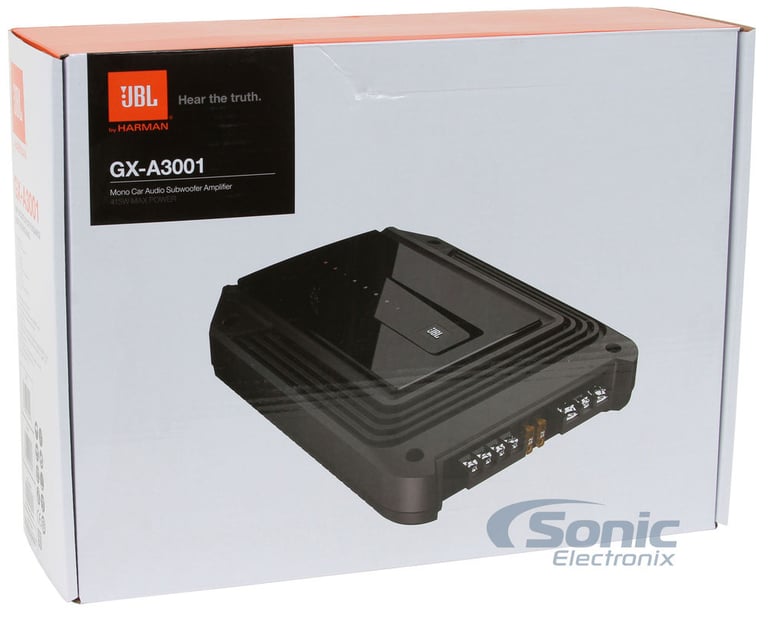

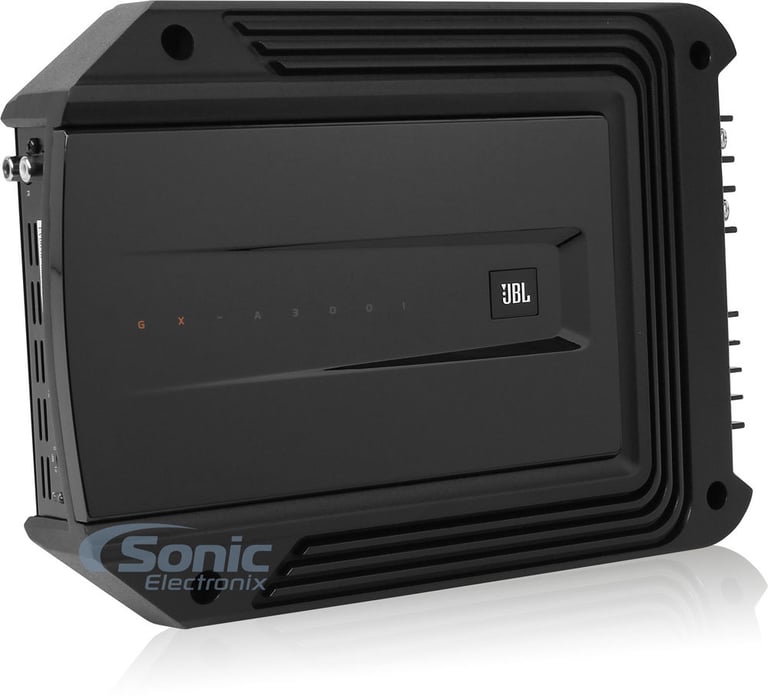

• GX Series Monoblock Class D Subwoofer Amplifier
• RMS Power Rating:
• 4 ohm: 200 watts x 1 chan.
• 2 ohm: 300 watts x 1 chan.
• Max power output: 415 watts
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Soft start turn-on

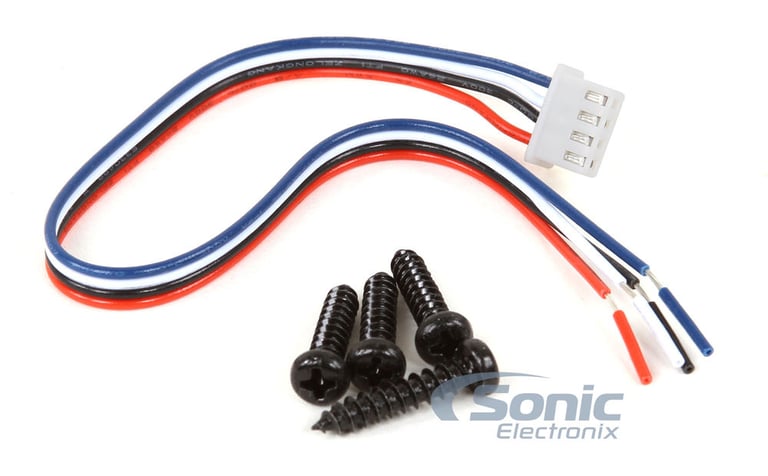

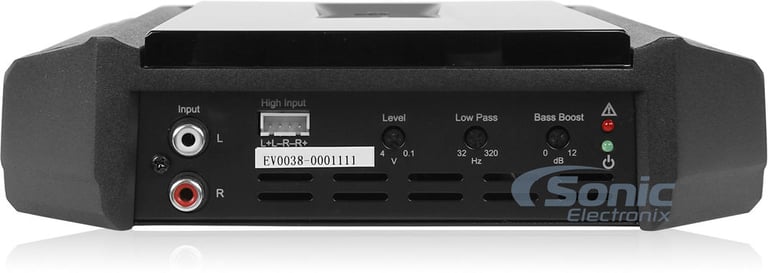

• Speaker-level (high-level) inputs

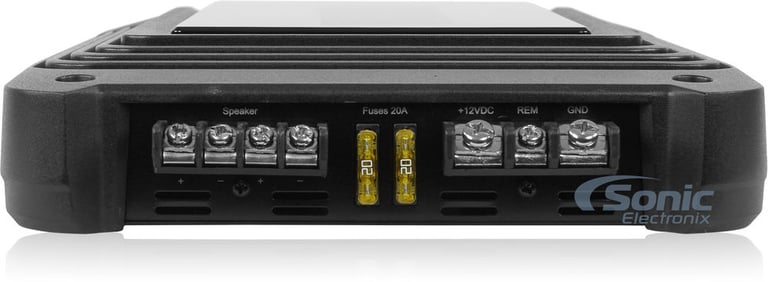

• Nickel-plate RCA, Speaker and Power/Ground connections
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Dual speaker terminals simplify the hookup of multiple speakers
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• Input sensitivity: 200mV - 20V
• Frequency Response: 10 - 320 Hz
• Total Harmonic Distortion (THD): <1.0%
• Signal to Noise Ration: >98dB
• Signal to Noise Ration: >75dB (2V @ 4 ohm)
• Variable low-pass filter: 32 - 320 Hz, 12 dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
• Fuse Rating: 20A x 2
• 8 gauge power and ground wiring is recommended for installation.
• Dimensions: 11-7/16"W x 8-1/8"L x 2-1/16"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

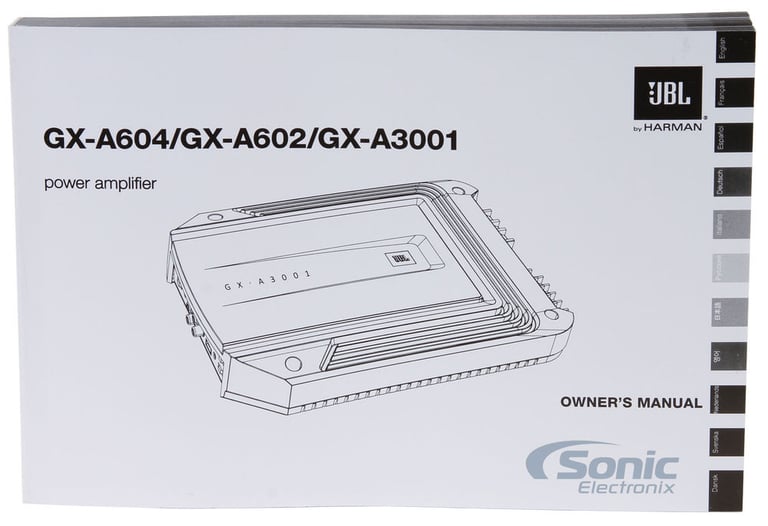

Check out the JBL GX-A3001 Owner's Manual

General Features:

• 8 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed specifically for car audio systems up to 600 watts RMS
• Premium power and ground wire provides optimal power transfer
• Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal
• Audio Interconnect RCA cables are made with twisted-pair technology for noise reduction
• Solid Brass and satin-chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
• True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
• Strand Count: 735
• BC-5W2 Compliant
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

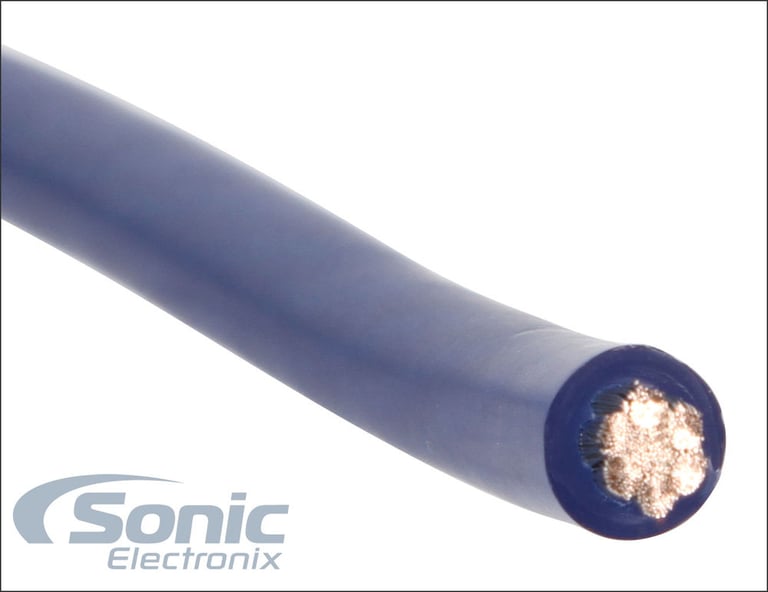

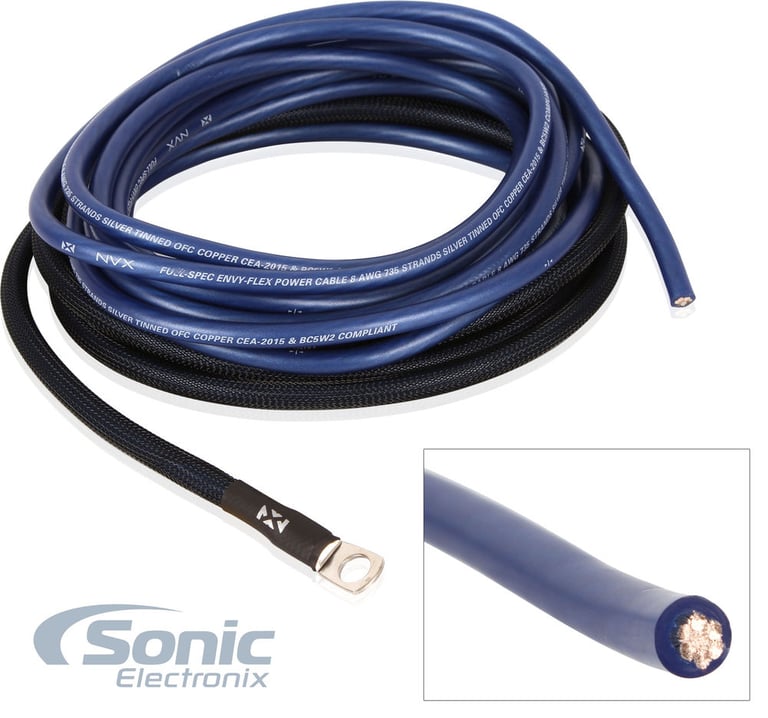

1. 20 ft. (6.1 meters) Frosted Blue 8 gauge power wire with seamless crimp ring terminal

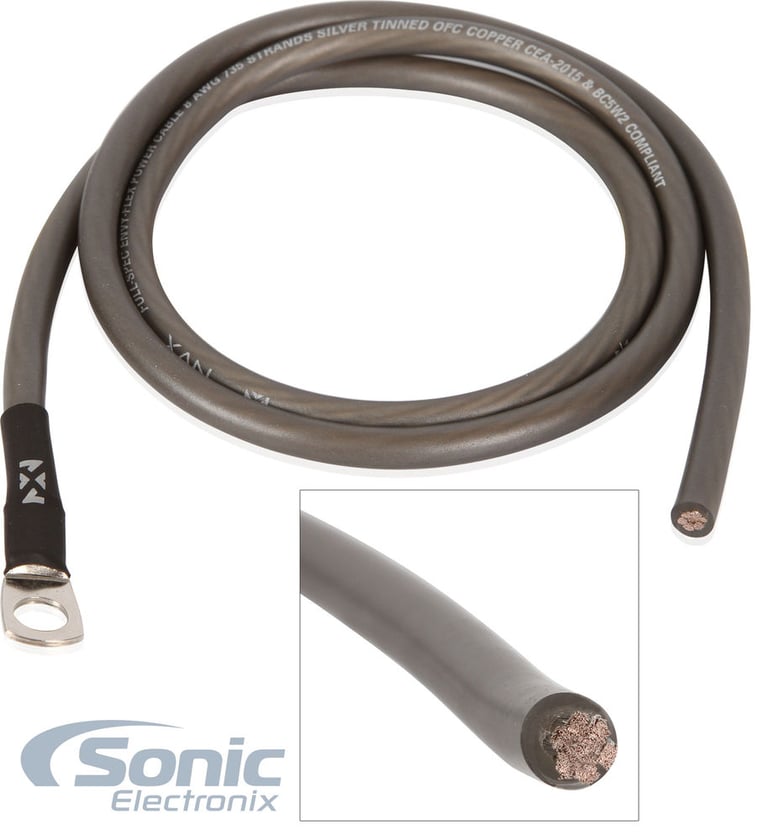

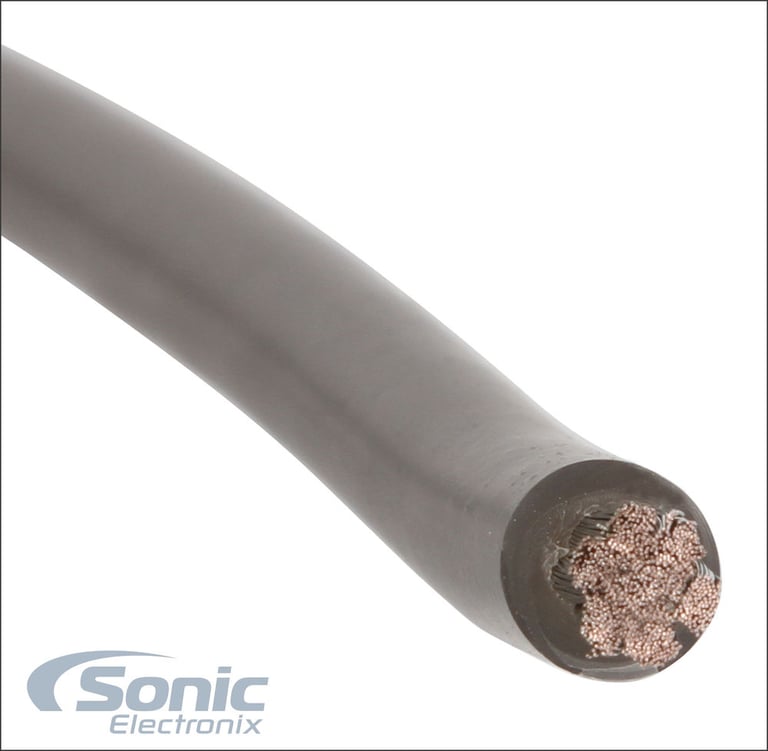

2. 3 ft. (.91 meters) Frosted Gray 8 gauge ground wire with seamless crimp ring terminal

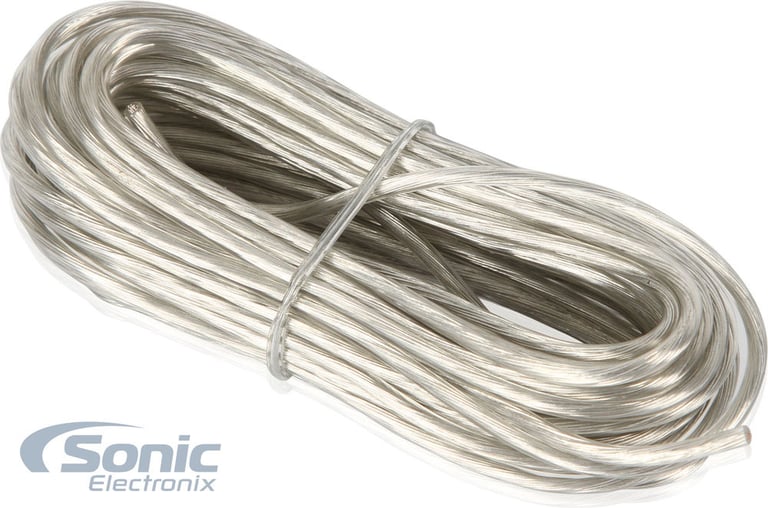

3. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

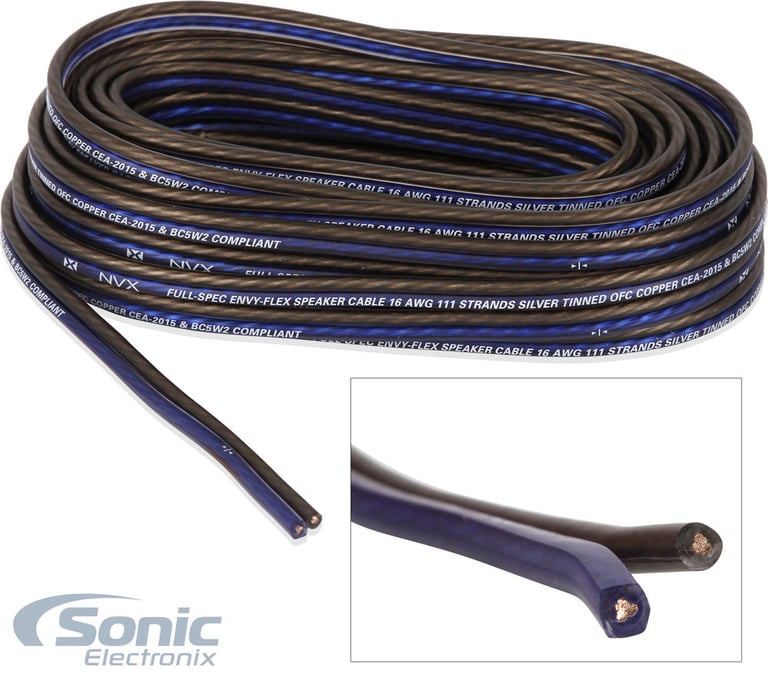

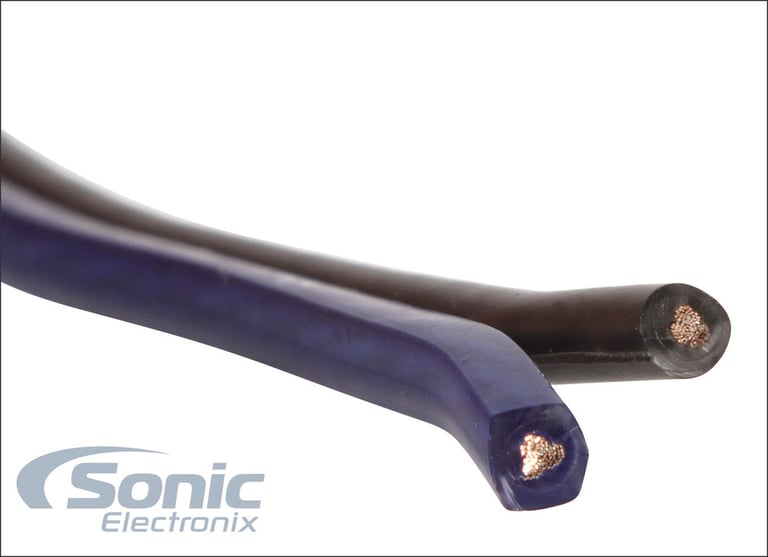

4. 40 ft. (12.2 meters) Frosted Gray/Blue 16 gauge speaker wire

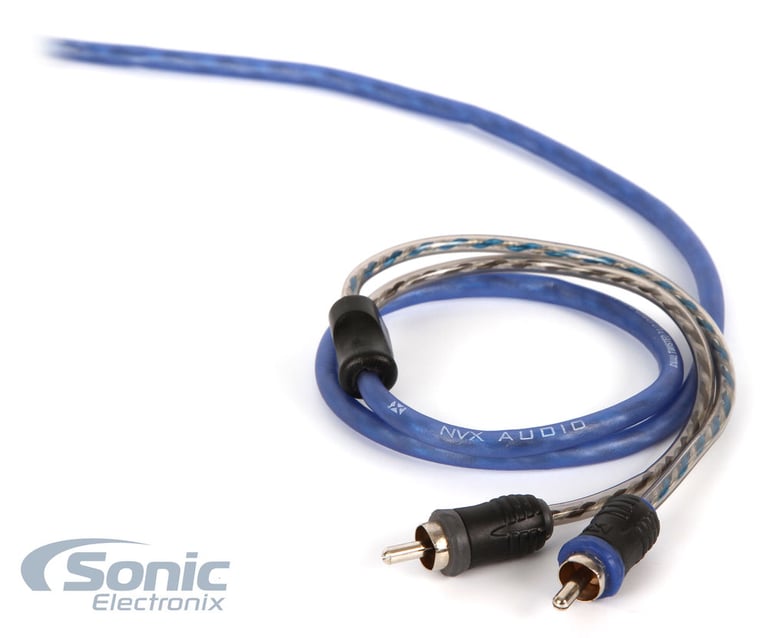

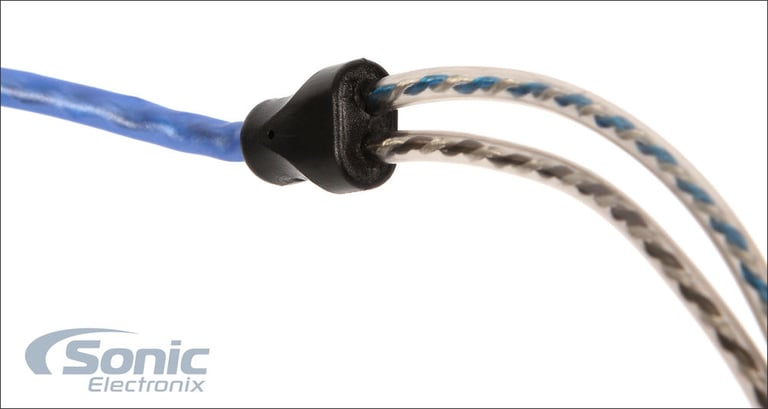

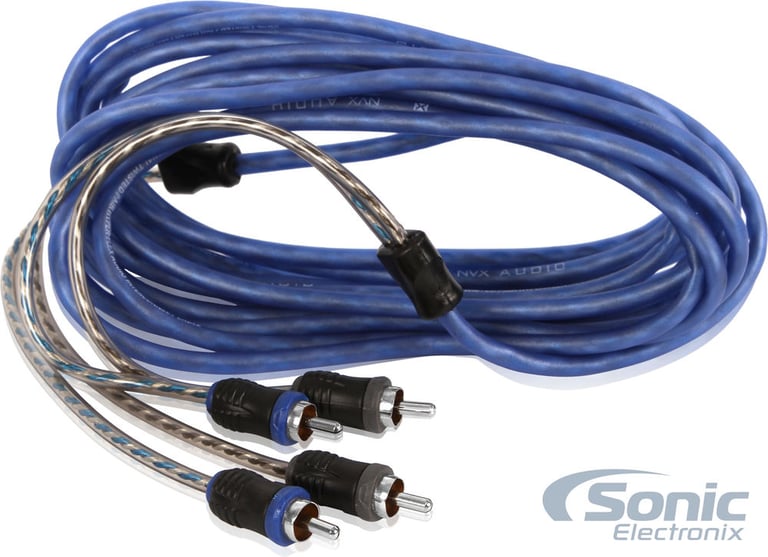

5. One 16 ft. (5 meters) 2-channel twisted construction RCA interconnect Cable (NVX XIV25)

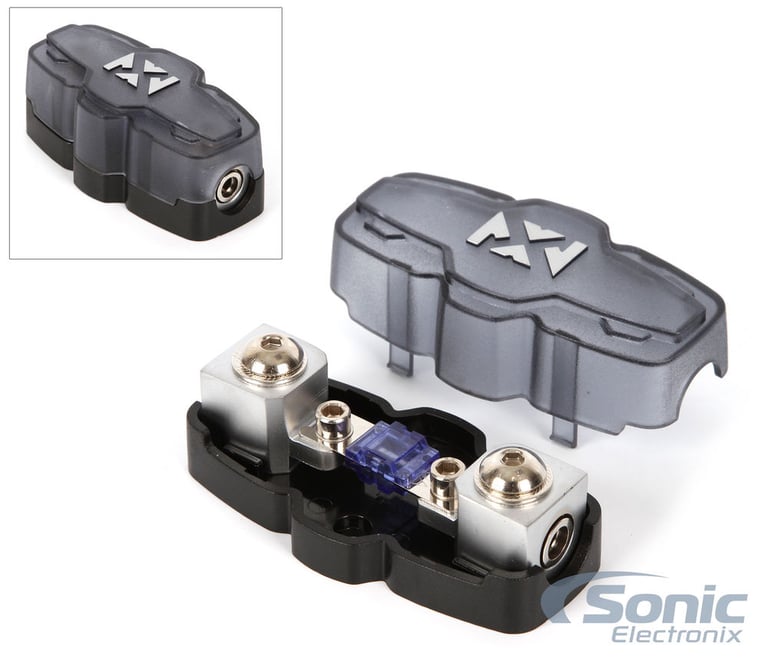

6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse

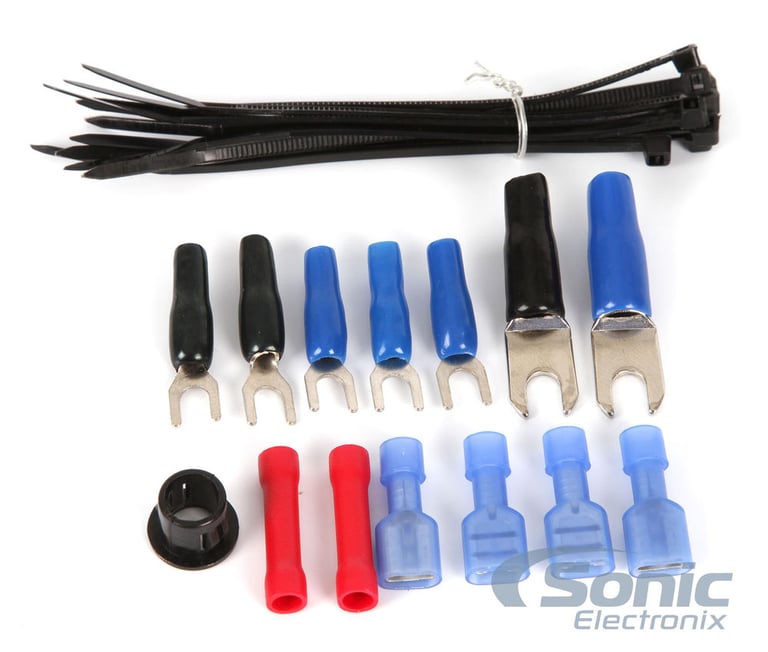

7. One 5/16" black rubber firewall grommet
8. Two 8 gauge spade terminals
9. Two black 16 gauge nickel-plated spade lugs
10. Three blue 16 gauge nickel-plated spade lugs
11. One black 18 gauge spade terminal
12. Two 18 gauge red butt connector
13. Ten 4" black zip ties
