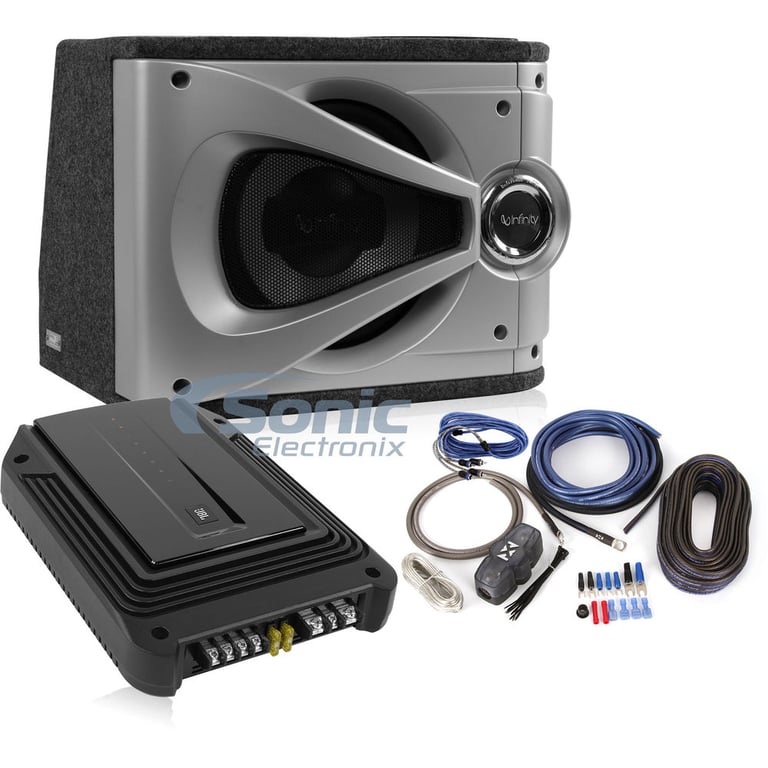

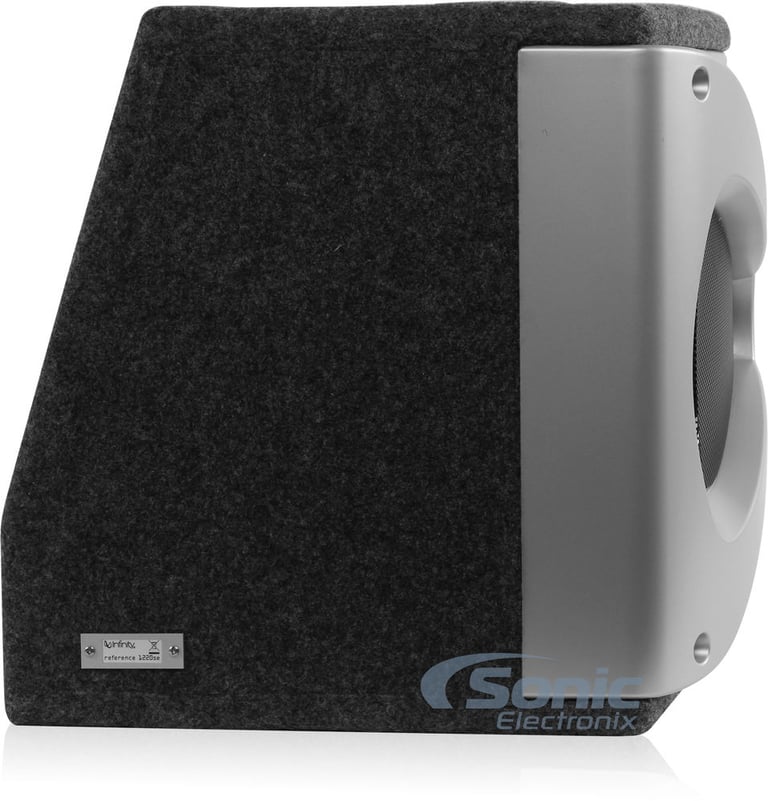

Infinity Reference 1220se (REF1220SE)
1200 Watt Single 12" Reference Series, Ported Loaded Subwoofer Box/Enclosure with Slipstream Port and LED Illumination
Quantity: 1
General Features
- Single12" Reference Series, Ported Loaded Subwoofer Enclosure
- Power Handling:
- Peak: 1200 watts
- RMS: 300 watts
- Recommended power range: 100 - 300 watts RMS
- Nominal Impedance: 2 ohm
- Pre-loaded with an Infinity Reference 1252W

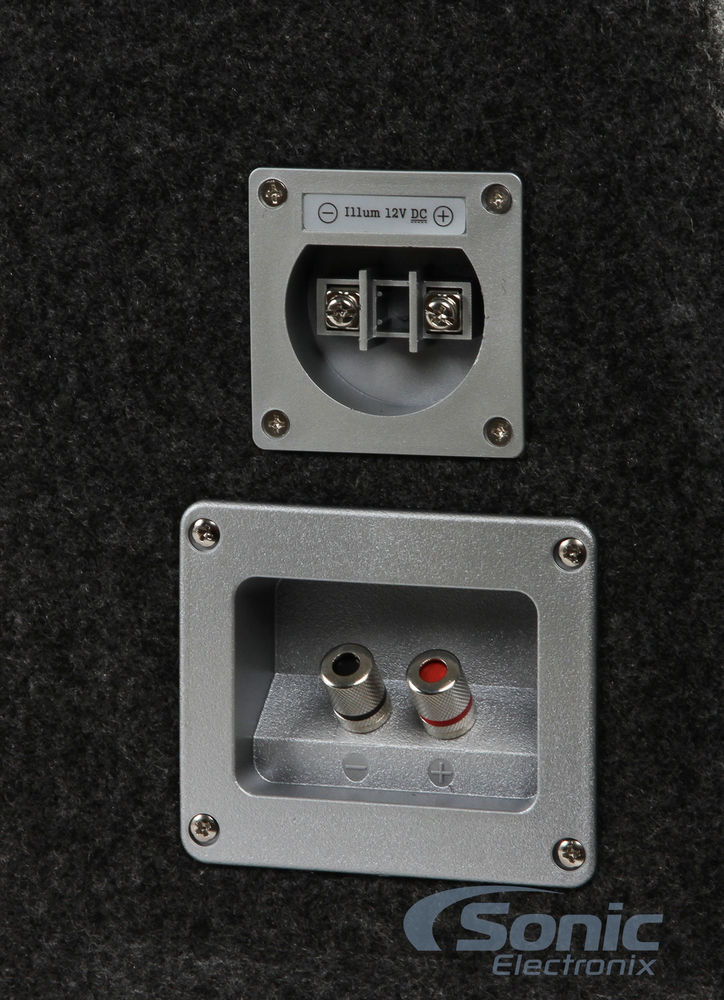

- Light-blue LED illumination, with Remote Turn-On connection
Installation Note: Requires a 12v Source. (e.g. Trunk Light) - Vented motor assembly
- Polypropylene cone woofer
- Large-roll butyl rubber surround
- Bumped backplate
- Vented pole piece
- Progressive spider
- Low resonance enclosure

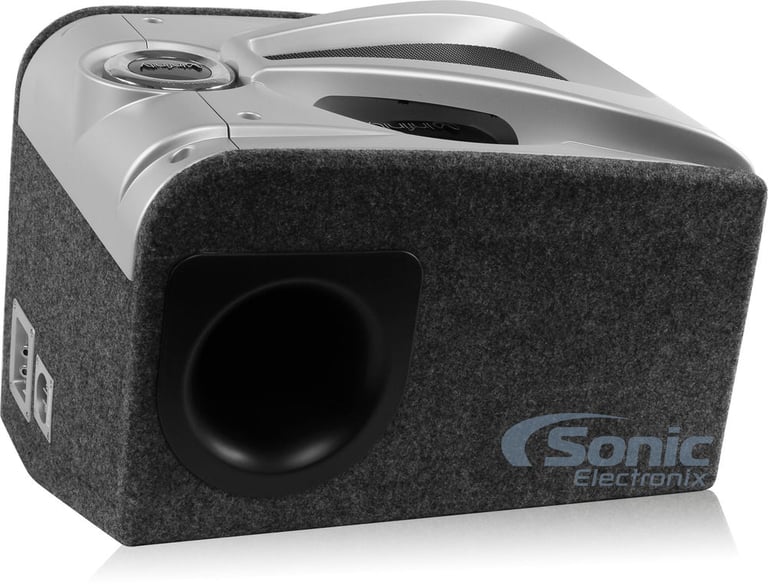

- Up-firing ported design
- Slipstream port for reduced distortion and clean bass
- High output enclosure for lower frequency response

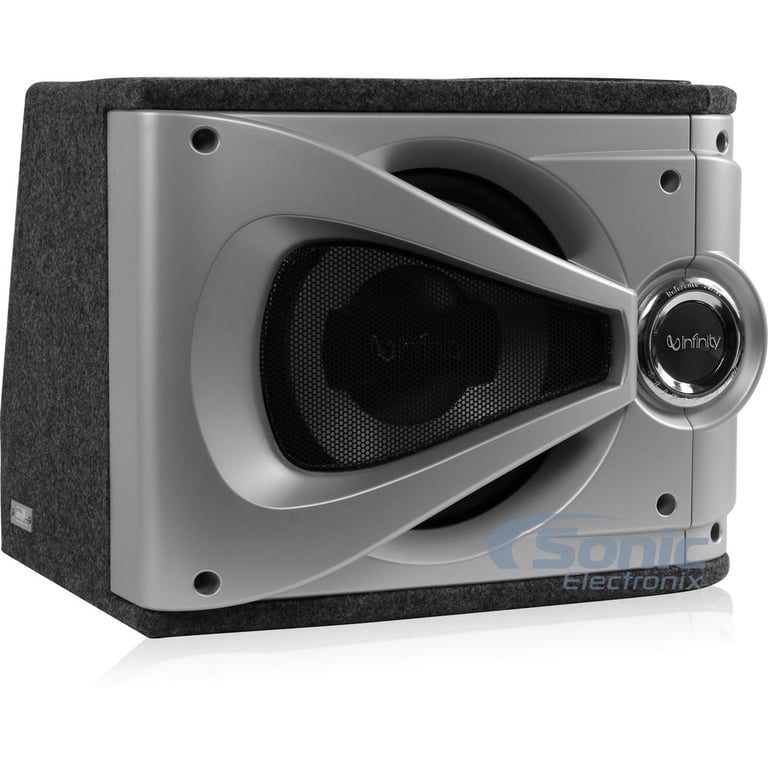

- Silver front beauty plate with pre-installed grill

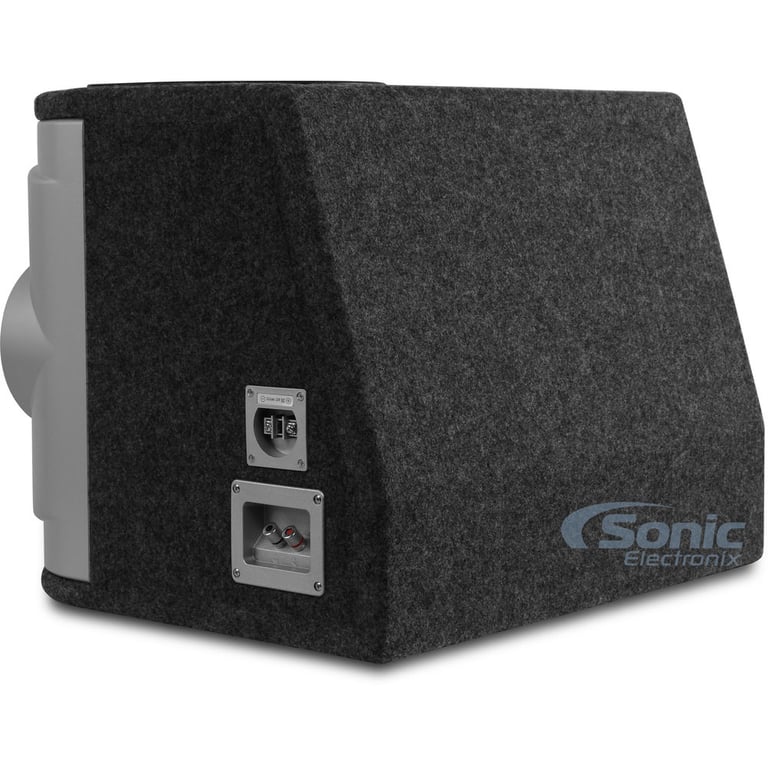

- Automotive-carpet wrapped enclosure
- Nickel-plate binding post for best connection possible
- Sensitivity: 94dB
- Frequency Response: 33Hz - 300Hz
- Dimensions: 17-1/8" L x 21-1/16" W x 16-5/16" H
- Authorized Internet Dealer
- 3-year Manufacturer's warranty (Subwoofer Only)

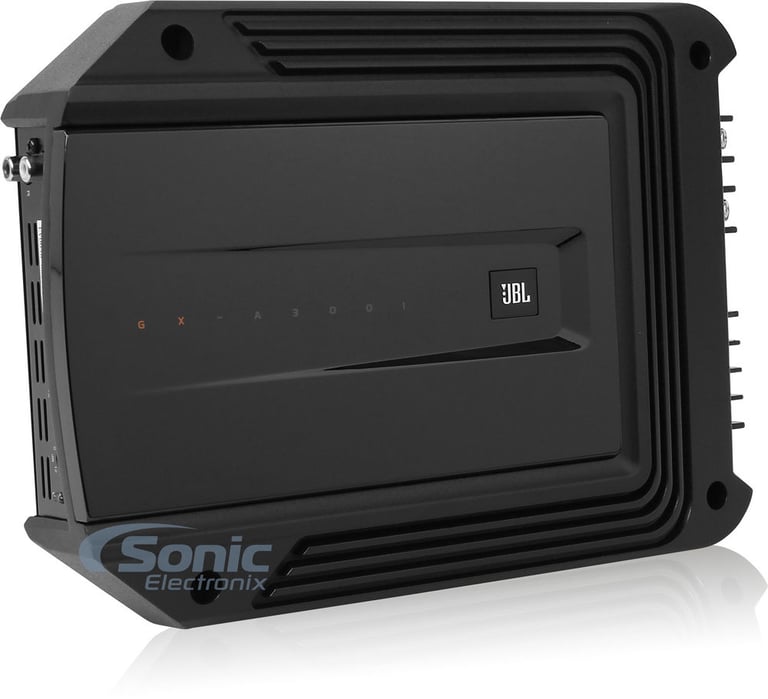

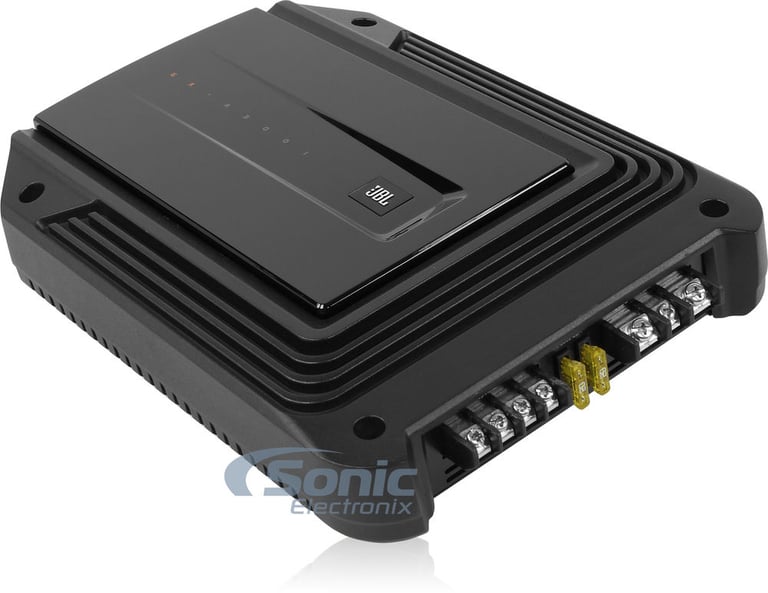

JBL GX-A3001
415W Monoblock GX Series Class D Subwoofer Amplifier
Quantity: 1
General Features:
- GX Series Monoblock Class D Subwoofer Amplifier
- RMS Power Rating:
- 4 ohm: 200 watts x 1 chan.
- 2 ohm: 300 watts x 1 chan.
- Max power output: 415 watts
- Pulse Width Modulated MOSFET power supply
- LED power (green) and protect (red) indicators
- Soft start turn-on
- Speaker-level (high-level) inputs

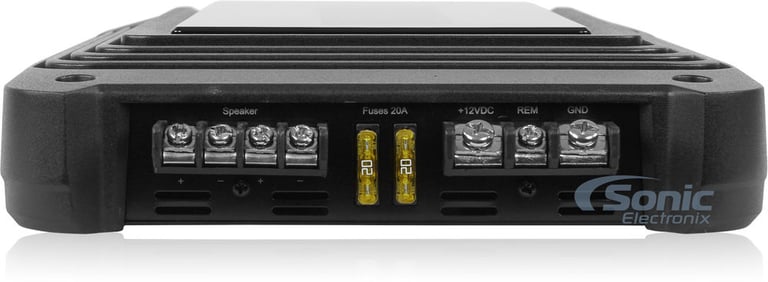

- Nickel-plate RCA, Speaker and Power/Ground connections
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Dual speaker terminals simplify the hookup of multiple speakers
- Heavy duty aluminum alloy heat-sink for extreme heat dissipation
- Input sensitivity: 200mV - 20V
- Frequency Response: 10 - 320 Hz
- Total Harmonic Distortion (THD): <1.0%
- Signal to Noise Ration: >98dB
- Signal to Noise Ration: >75dB (2V @ 4 ohm)

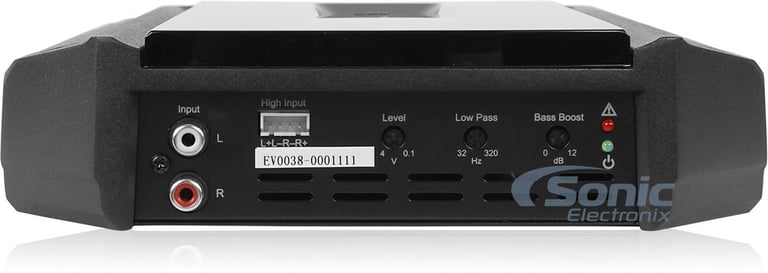

- Variable low-pass filter: 32 - 320 Hz, 12 dB/octave
- Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
- Fuse Rating: 20A x 2
- 8 gauge power and ground wiring is recommended for installation.
- Dimensions: 11-7/16"W x 8-1/8"L x 2-1/16"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty

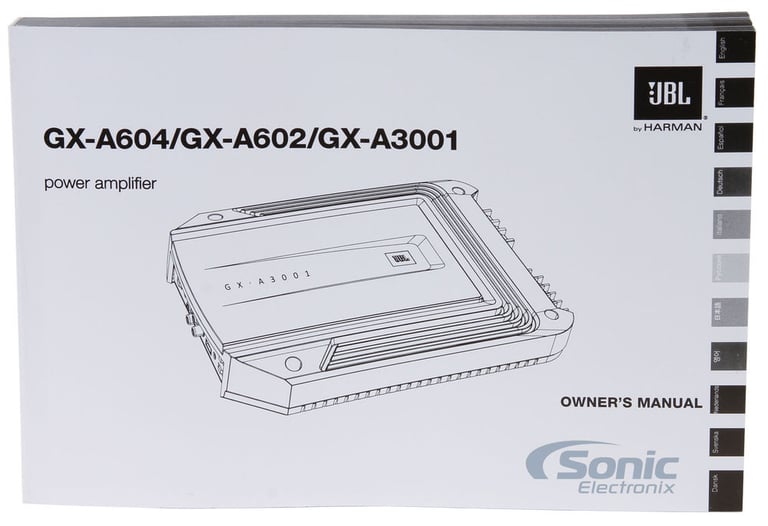

Check out the JBL GX-A3001 Owner's Manual
NVX XKIT82
100% Copper, 2-Channel True Spec 8 Gauge Amplifier Installation Kit w/ RCA Interconnect and 40 ft Speaker Cable
Quantity: 1
General Features:
- 8 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
- Designed specifically for car audio systems up to 600 watts RMS
- Premium power and ground wire provides optimal power transfer
- Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal
- Audio Interconnect RCA cables are made with twisted-pair technology for noise reduction
- Solid Brass and satin-chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
- True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size

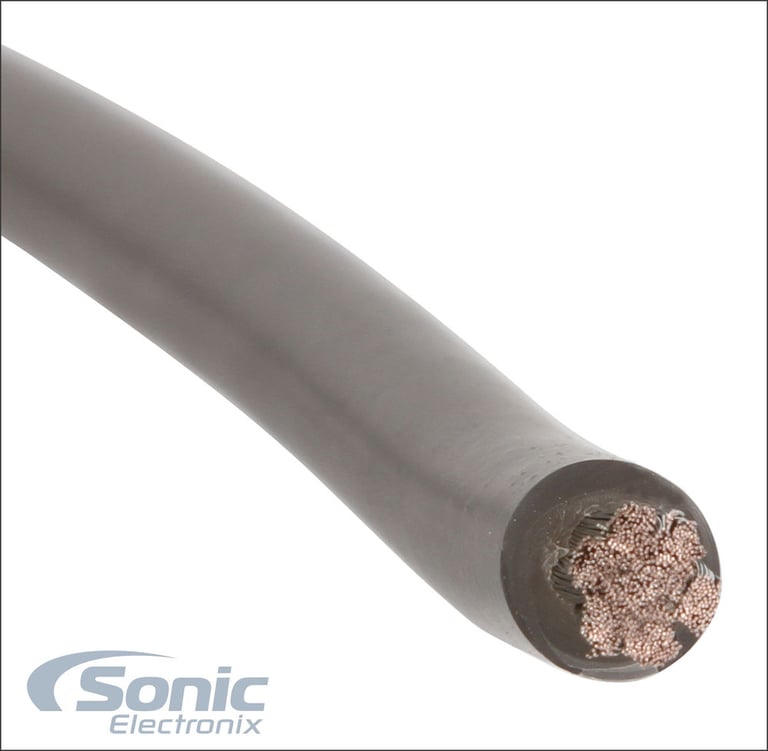

- Strand Count: 735
- BC-5W2 Compliant
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Kit includes:

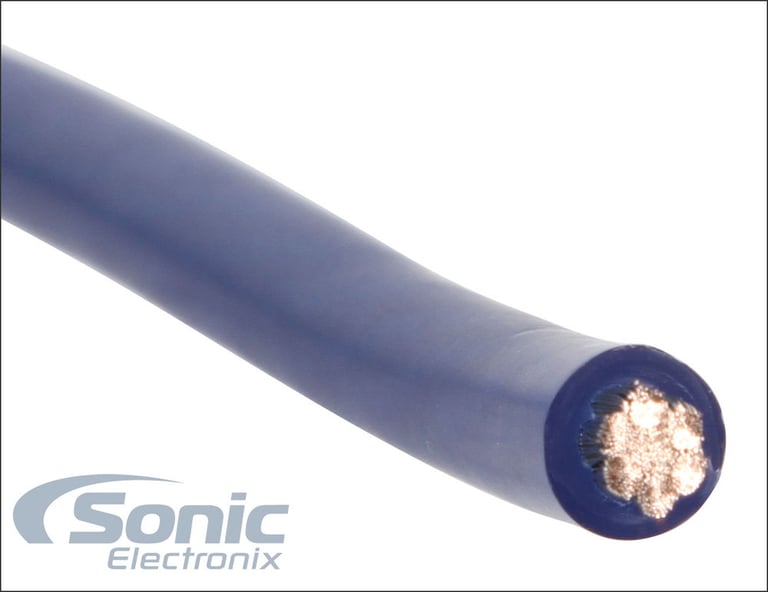

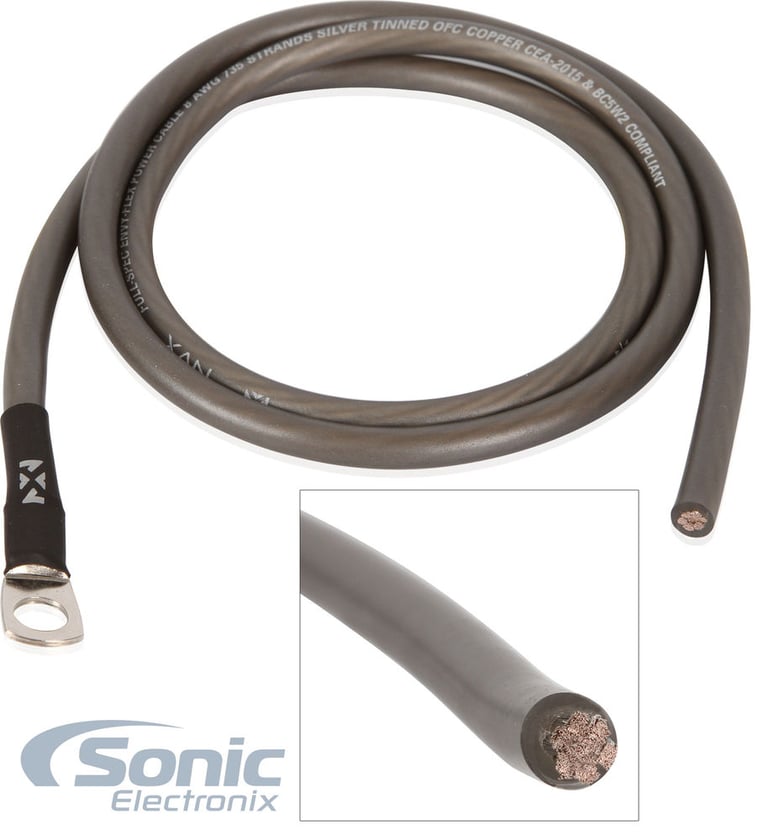

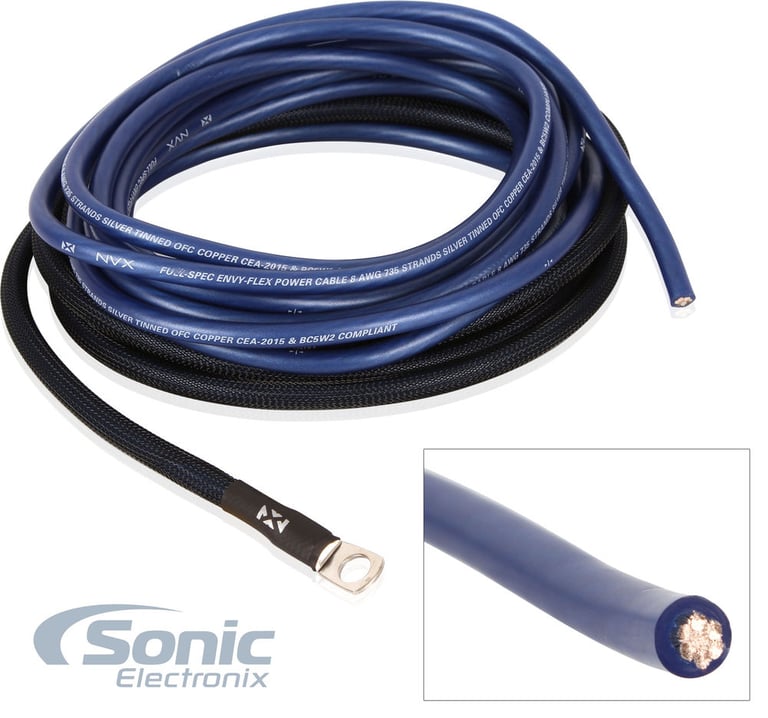

- 20 ft. (6.1 meters) Frosted Blue 8 gauge power wire with seamless crimp ring terminal
- 3 ft. (.91 meters) Frosted Gray 8 gauge ground wire with seamless crimp ring terminal

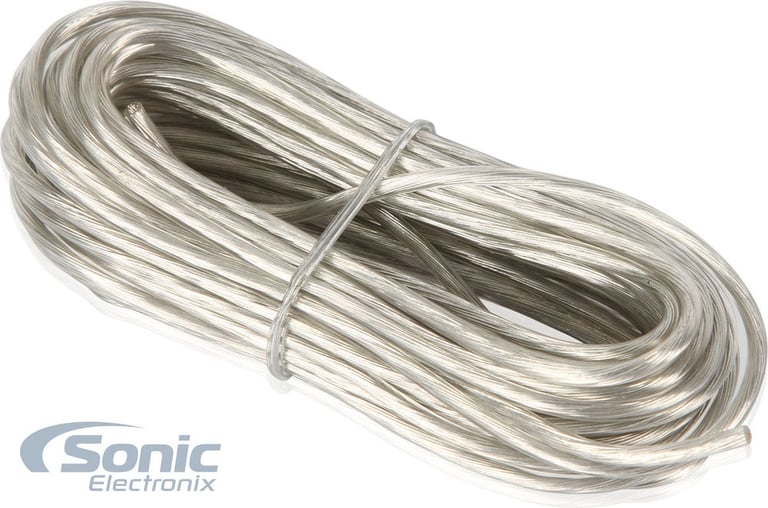

- 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

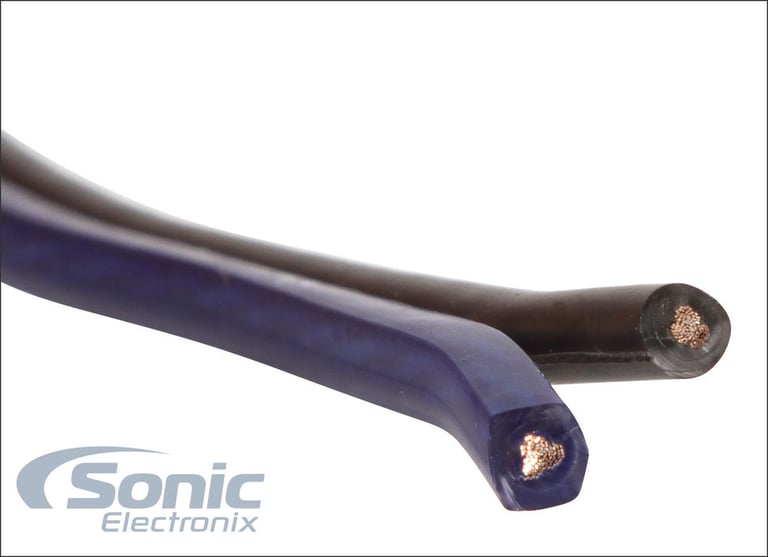

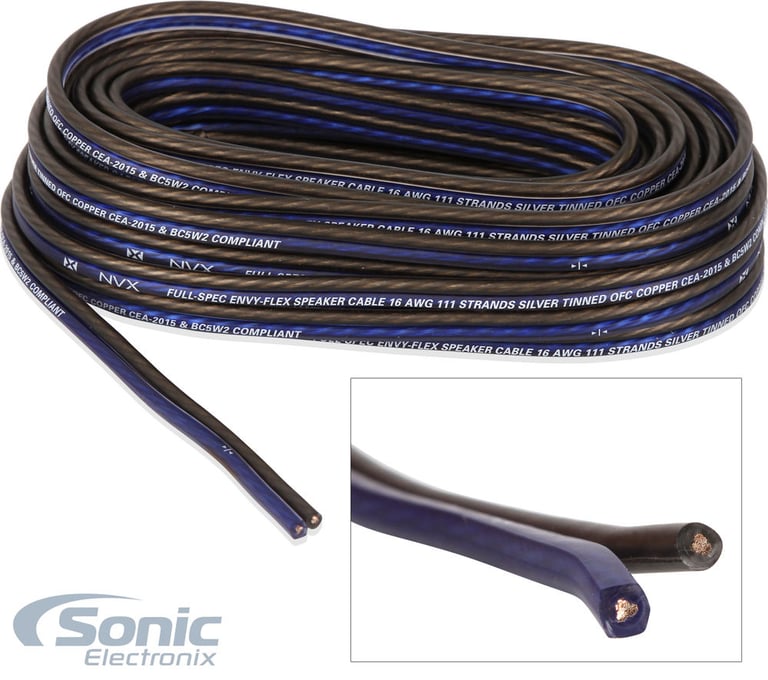

- 40 ft. (12.2 meters) Frosted Gray/Blue 16 gauge speaker wire

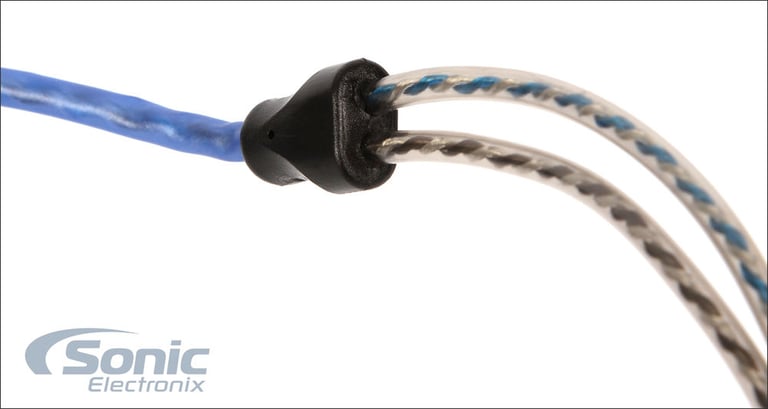

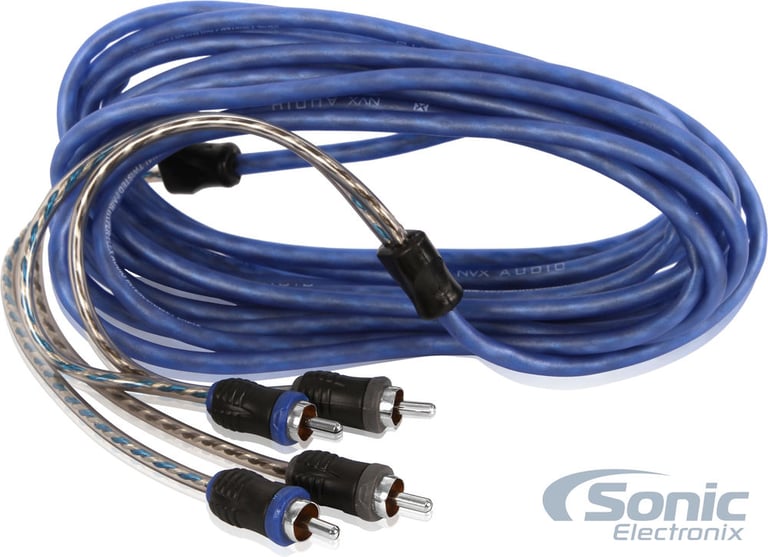

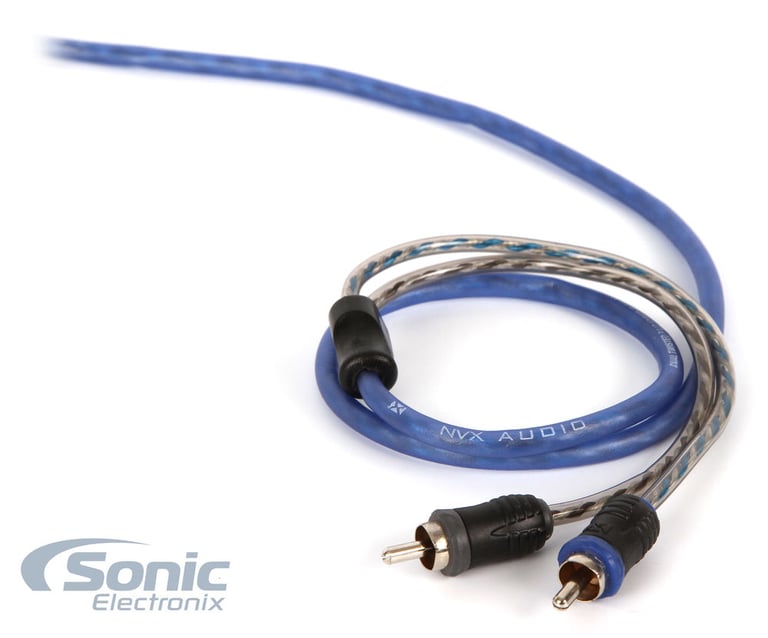

- One 16 ft. (5 meters) 2-channel twisted construction RCA interconnect Cable (NVX XIV25)

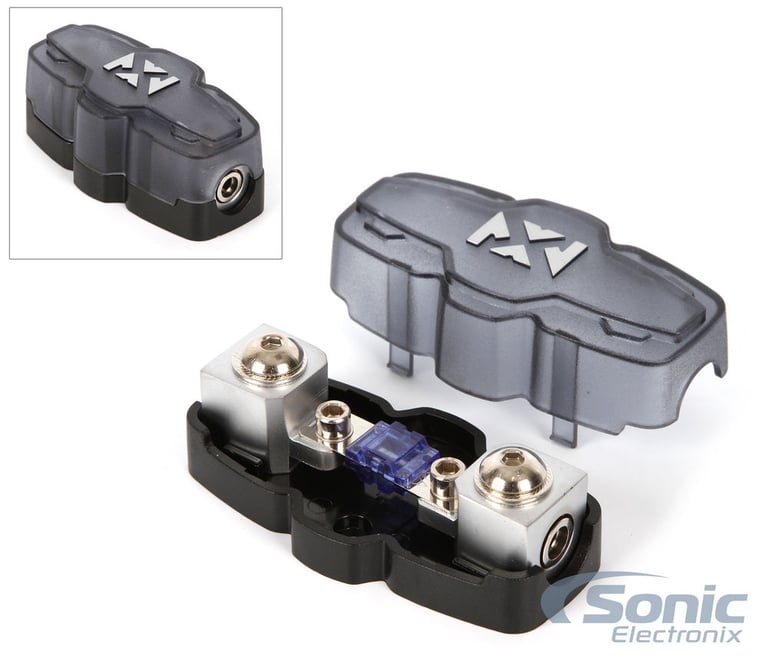

- One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
- One 5/16" black rubber firewall grommet

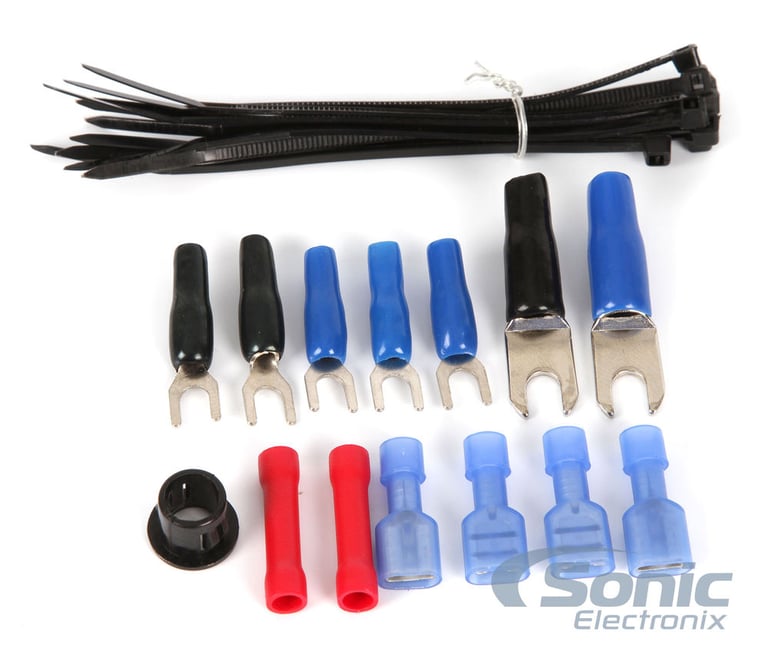

- Two 8 gauge spade terminals
- Two black 16 gauge nickel-plated spade lugs
- Three blue 16 gauge nickel-plated spade lugs
- One black 18 gauge spade terminal
- Two 18 gauge red butt connector
- Ten 4" black zip ties
