Pioneer AVH-X6800DVD

General Features:

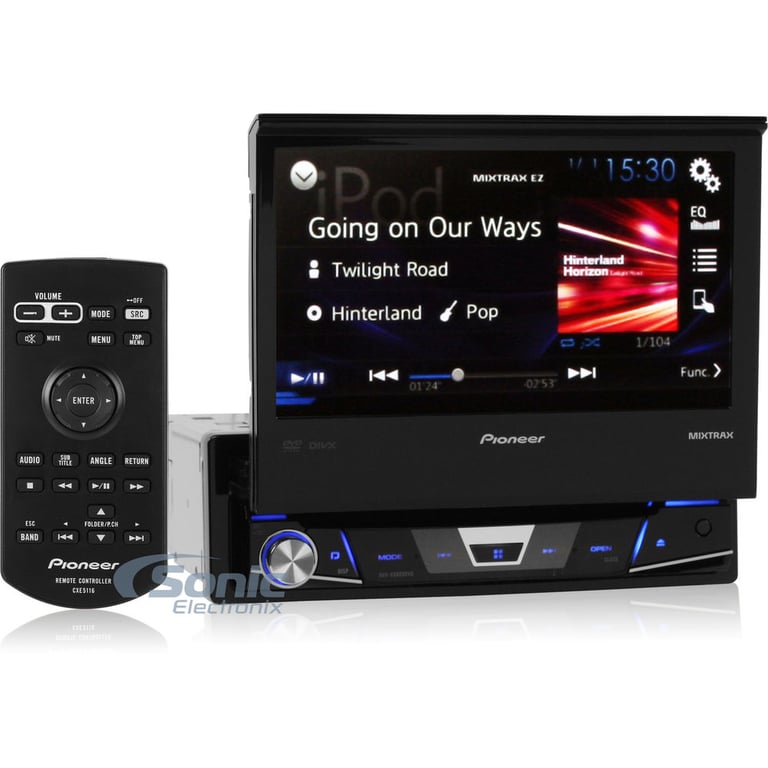

• Pioneer AVH-X6800DVD In-Dash A/V Receiver
• Features the responsive, powerful and intuitive NEX user interface
• Improved, Clear Resistive Touchscreen
• CEA-2006 compliant amplifier
• Power Output:
• Peak: 50 watts x 4 channels
• RMS: 22 watts x 4 channels, 5% THD
• CEA2006: 14 watts x 4 channels, <1% THD
• Theft-deterrent, detachable face plate
• AM/FM RDS tuner with 18FM/6AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)

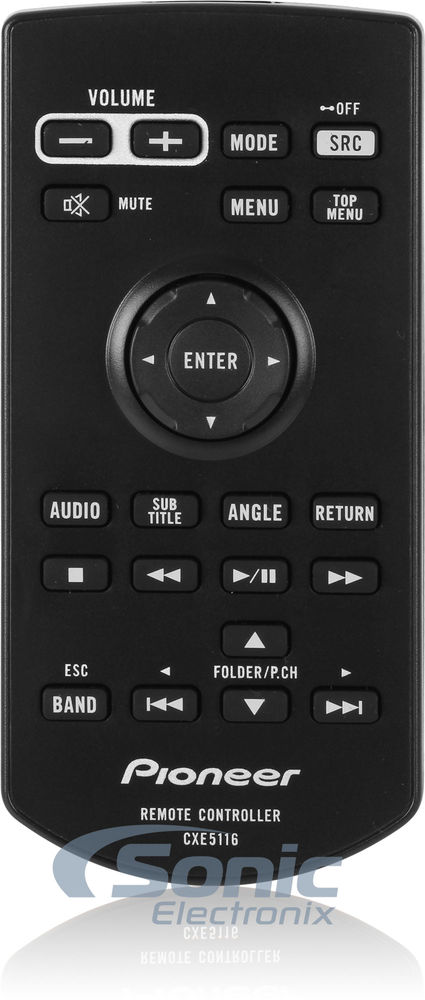

• Remote control included

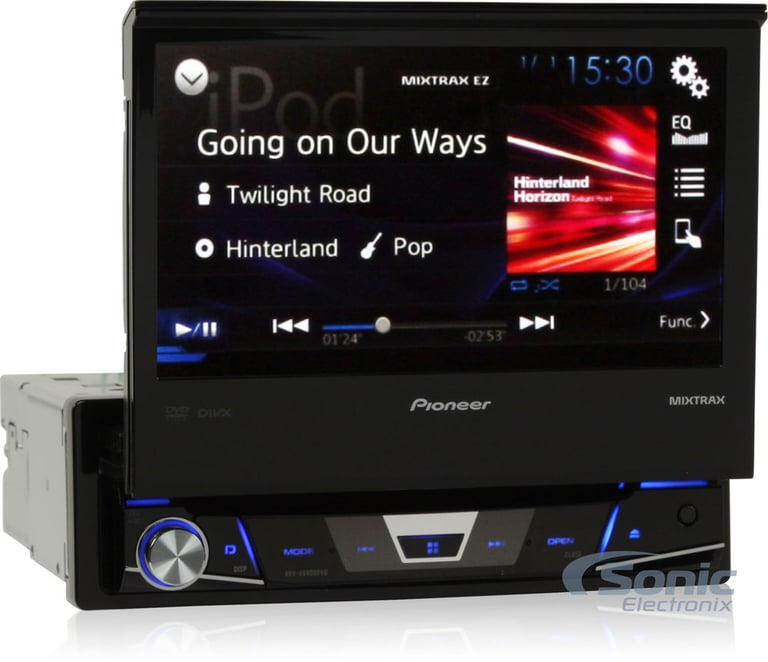

• 7" Flip-out TFT Active Matrix Driving Display
• On/Off Dimmer Setting & Brightness Control
• Variable button/key color illumination
• 13 Background, splash screen displays
• Home screen shortcuts customization
• Resolution: WVGA, 800 x 480
• Signal to Noise Ratio: 91dBA
• Dimensions (chassis): 7-1/8" W x 2" H x 6-1/4" D
• Effective display area: 6-1/8" x 3-3/8"
• 1-year Sonic Electronix Warranty

Playback and Audio Features:

• Pioneer MIXTRAX creates a nonstop mix of your music library, with effects
• Spotify control for iPhone/iPod via USB
• Pandora control for iPhone/iPod via USB
• Pioneer AppRadio One: view and control compatible iPhone and Android smartphone apps
• Please visit www.pioneerelectronics.com/PUSA/Car/AppRadioOne for more information
• FLAC file playback capability at up to 48 kHz/24 bit high resolution, via USB
• Android Music Support
• For Android devices running operating system 4.0 or later
• Connect and listen to music stored on a device, without the need for an app
• Made possible by using Media Transfer Protocol (MTP)
• Access music via USB stored on an Android device and operate basic operations
• Available Sources: Audio & AppRadioOne
  To use an Android Device for Control of Pandora and/or Spotify, consider the Pioneer AVH-X2800BS
• Compatible with Apple iPhone 6/6+ and iOS 8+ software

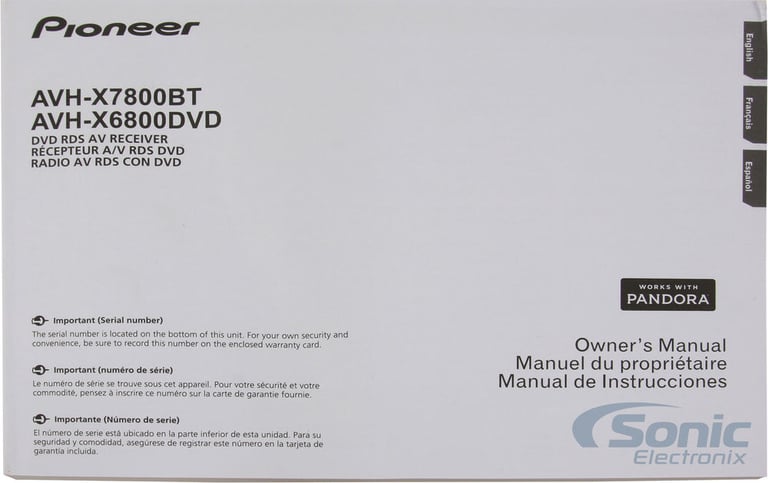

  Review manual for details
• iPod/iPhone with Lightning Connector requires standard USB to Apple Lightning connector
• Pioneer CD-IU52 available, sold separately
• Axxess AXM-I5USBMTS available, sold separately
• Available Sources: Audio, Pandora, and Spotify
• iPod/iPhone with 30-Pin Connector requires Pioneer CD-IU201V
• The Pioneer CD-IU201V will take up both the 3.5mm Input and USB Input
• Available Sources: Audio, Video, Pandora, Spotify, and AppRadioOne
• 24-bit Digital to Analog Converter
• 3.5mm Rear A/V Auxiliary Input
• Rear USB: FLAC/MP3WMA/AAC/WAV/H.264/MPEG4/JPEG
• CD/CD-R/RW: MP3//WMA/AAC/DivX/MPEG1/MPEG2/MPEG4
• 7 preset equalizer curves: S.Bass / Powerful / Natural / Vocal / Flat / Custom 1 / Custom 2
• 13-band graphic equalizer
• ±12 dB Gain at 50 Hz / 80 Hz / 125 Hz / 200 Hz / 315 Hz / 500 Hz / 800 Hz / 1.25 kHz / 2 kHz / 3.15 kHz / 5 kHz / 8 kHz / 12.5 kHz
• Selectable-Point High-pass Filter and Low-pass Filter
  (Standard mode, see Manual for "Network Mode")
• HPF: 50 Hz / 63 Hz / 80 Hz / 100 Hz / 125 Hz / 160 Hz / 200 Hz
• LPF: 50 Hz / 63 Hz / 80 Hz / 100 Hz / 125 Hz / 160 Hz / 200 Hz
• +10 dB to -24 dB variable gain
• Selectable Crossover Slopes: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, OFF
• Selectable Phase: Normal / Reverse
• Variable Bass Boost: 0 - +12 dB
• Adjustable time alignment, subwoofer control and listening position selector

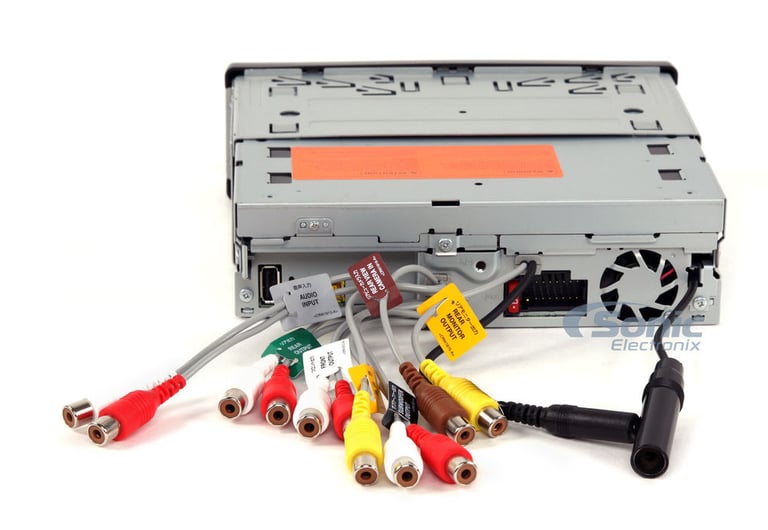

• 3 Sets of 4V preamp outputs (front, rear and subwoofer)

Expandability Options:

• Navigation Ready: Pioneer AVIC-U260 required, sold separately
• Steering Wheel Control Ready: PAC ControlPRO or the Axxess ASWC-1 required and sold separately
• Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input.
• Rear RCA Video Output: Used for connection to separate monitors and other devices
• Rear RCA Video Input: Used for connection auxiliary A/V devices to headunit
