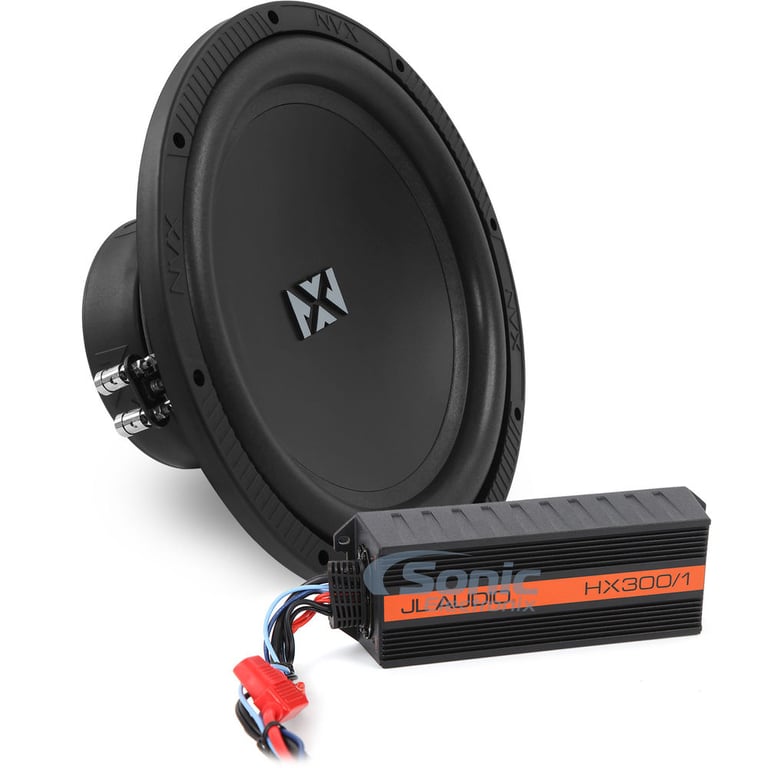

JL Audio Class D Amplifier + FREE NVX Audio 12" N-Series Subwoofer

JL Audio HX300/1 300W Monoblock Class D Full-Range Amplifier + NVX NSW124V2 12" N-Series V2 Dual 4-Ohm Car Subwoofer

JL Audio
Shop all JL Audio
EXCLUSIVE
highlight-star-icon

• 300 W x 1 @ 2 ohm <
• Ultra-Light Non Pressed Paper Cone
• Custom Blended Foam Surround
• NexD™ ultra-high-speed switching design
• Black powder-coated finish
• Gasketed cover for the controls
• Stainless steel hardware for durability
• Accepts RCA (low-level) & Speaker-level (high-level) signal
• Signal to Noise Ration: 85 dB

Learn more about the hx3001_nsw124v2

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

82-5606 main

Metra 82-5606

6x9" Front Door Speaker Bracket for select 2015-2025 vehicles from Ford, Lincoln

15
-48.62%

$16.95

List price $32.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

10
-38.81%

$20.80

List price $33.99

82-5602 main

Metra 82-5602

6X9" Speaker Adapter for select 2011-2020 Explorer and F-Pace

2
-47.51%

$20.99

List price $39.99

82-5603 main

Metra 82-5603

6" to 6-3/4" Speaker Adapter for select 2011-2019 Explorer

2
-50.01%

$19.99

List price $39.99

99-5858CH main

Metra 99-5858CH Dash Kit

[Single DIN and Double DIN Stereo Dash Kit and Harness for select 2011-2019 Explorer with Factory 8" Screens

-33.91%

$379.99

List price $574.99

AXAMP-FD2 main

Axxess AXAMP-FD2

Amplifier Integration Interface for select 2011-2023 vehicles from Ford

-10.07%

$410.99

List price $456.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Description


JL Audio brand icon

Authorized dealer

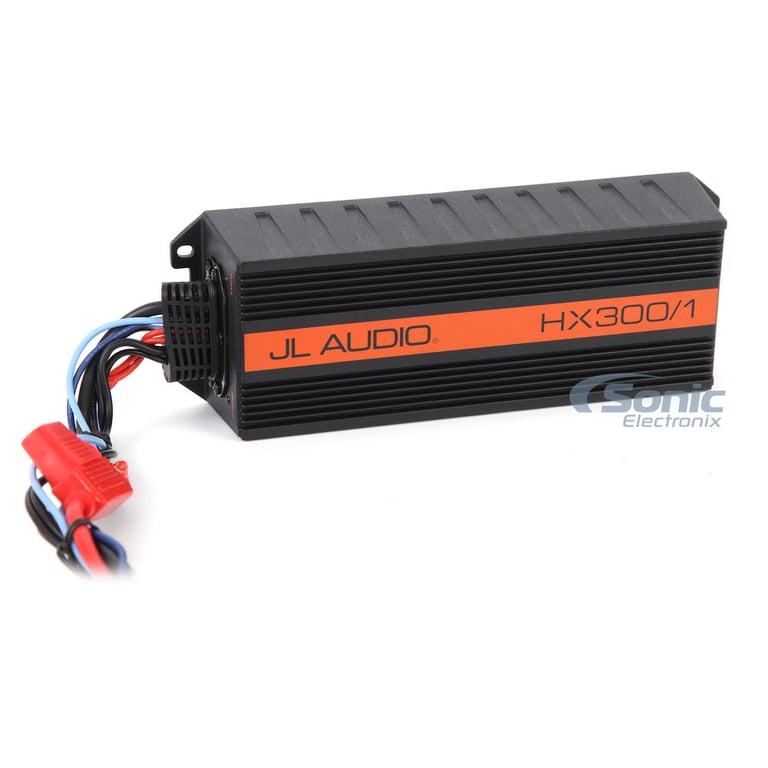

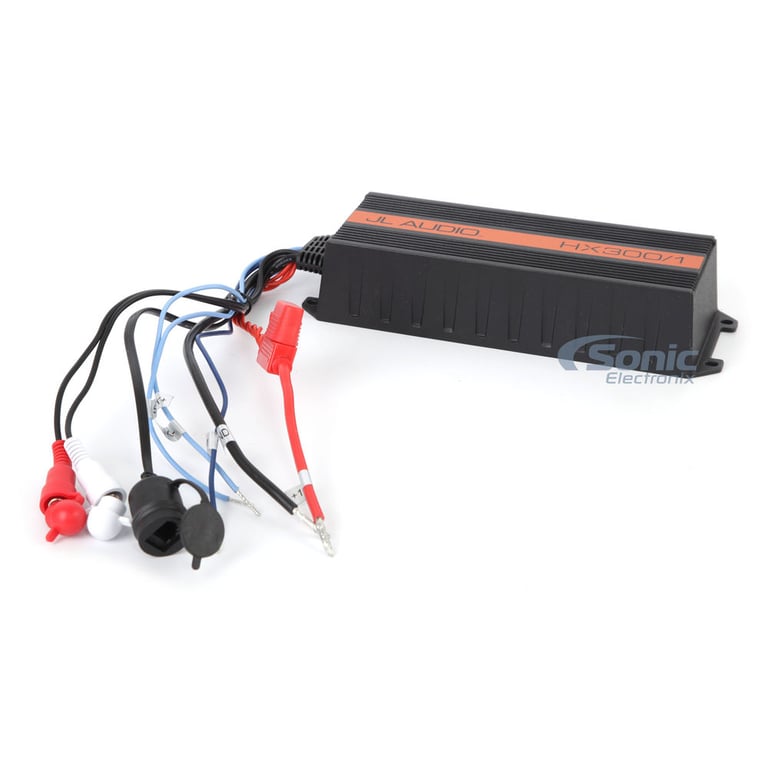

JL Audio HX300/1

300W Class D Full-Range Ultra-Compact Monoblock Amplifier for Powersport Vehicles / SSVs / UTVs / Motorcycles / Muscle Cars / HotRods / Cars
Quantity: 1

General Features:

  • Monoblock Class D Full Range Amplifier
  • RMS Power Rating @ 14.4 V:
    • 4 ohm: 160 watts x 1 chan.
    • 3 ohm: 220 watts x 1 chan.
    • 2 ohm: 300 watts x 1 chan.
    • 1 ohm: ----------N/A-----------
  • RMS Power Rating @ 12.5 V:
    • 4 ohm: 160 watts x 1 chan.
    • 3 ohm: 200 watts x 1 chan.
    • 2 ohm: 250 watts x 1 chan.
    • 1 ohm: ----------N/A-----------
  • Sonic Electronix Certified Power Rating*:
    • 4 ohm: 158 watts x 1 chan.
    • 3 ohm: 271 watts x 1 chan.
    • 2 ohm: 354 watts x 1 chan.
  • NexD ultra-high-speed switching design
  • Black powder-coated finish
  • Gasketed cover for the controls
  • Stainless steel hardware for durability
  • IPX6 water-resistance rating
  • M-RBC-1 remote level control (sold separately)
    Controls bass levels only

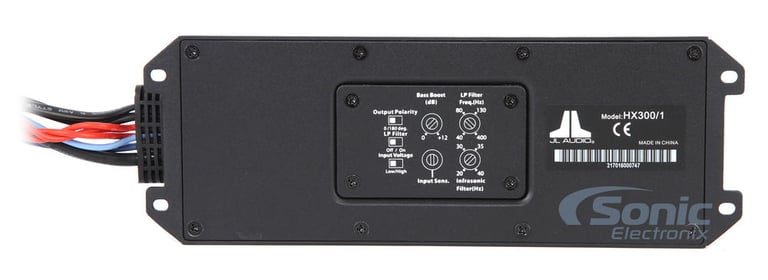

  • LED power (green) and protect (red) indicators
  • Accepts RCA (low-level) & Speaker-level (high-level) signal
  • Switchable Input sensitivity: 250 mV-4 V (Low) to 750 mV-15 V (High)
  • Variable Bass Boost: 0 to +12 dB bass boost at 43Hz
  • Variable low-pass filter: 40 - 400 Hz, 24 dB/octave
  • Frequency Response: 20 - 12,000 Hz
  • Total Harmonic Distortion (THD): <1.0%
  • Signal to Noise Ration: 85 dB
  • Subsonic filter: 20 - 40 Hz
  • Selectable phase: 0 / 180°
  • Fuse Rating: 30A x 1

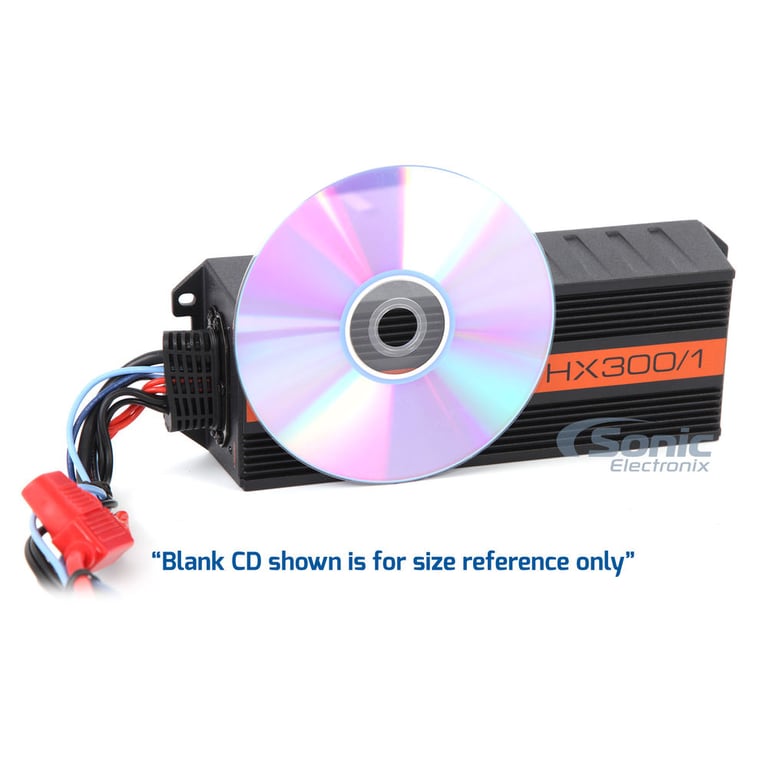

  • Dimensions: 8.66"W x 3.09"D x 1.77"H
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty


Check out the JL Audio HX300/1 Owner's Manual

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

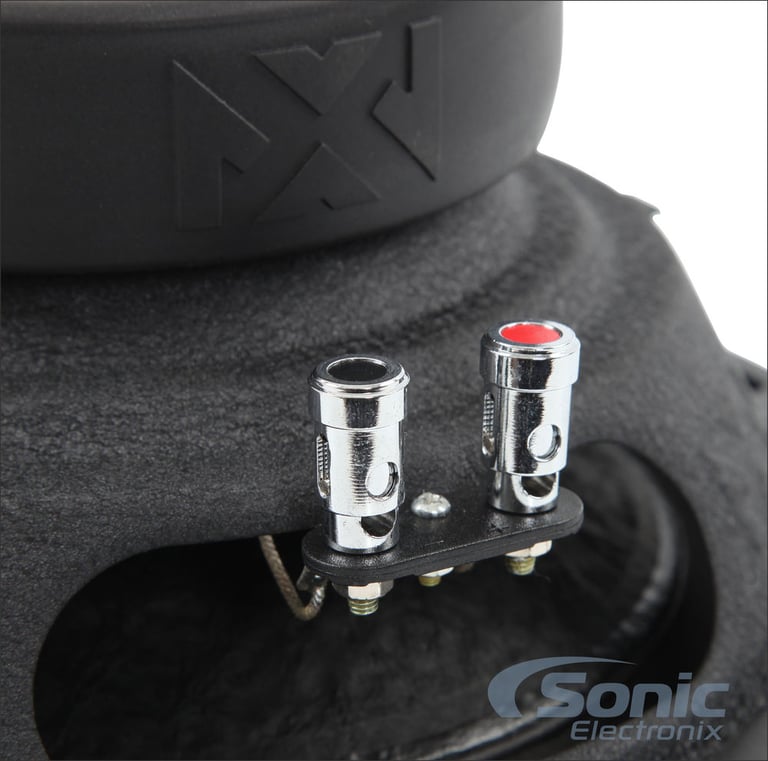

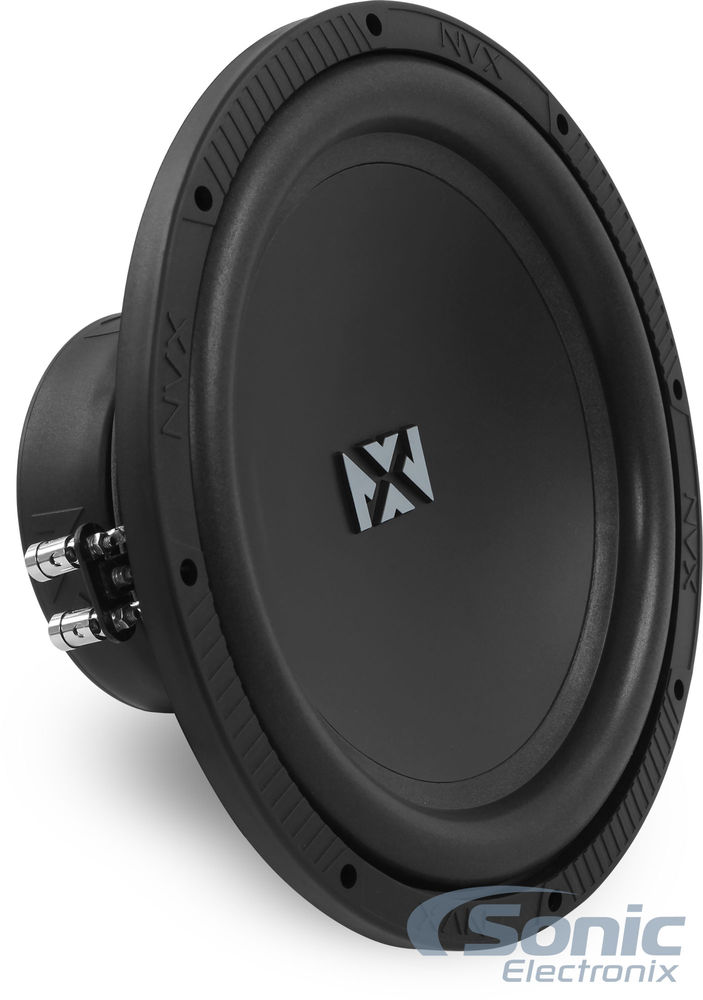

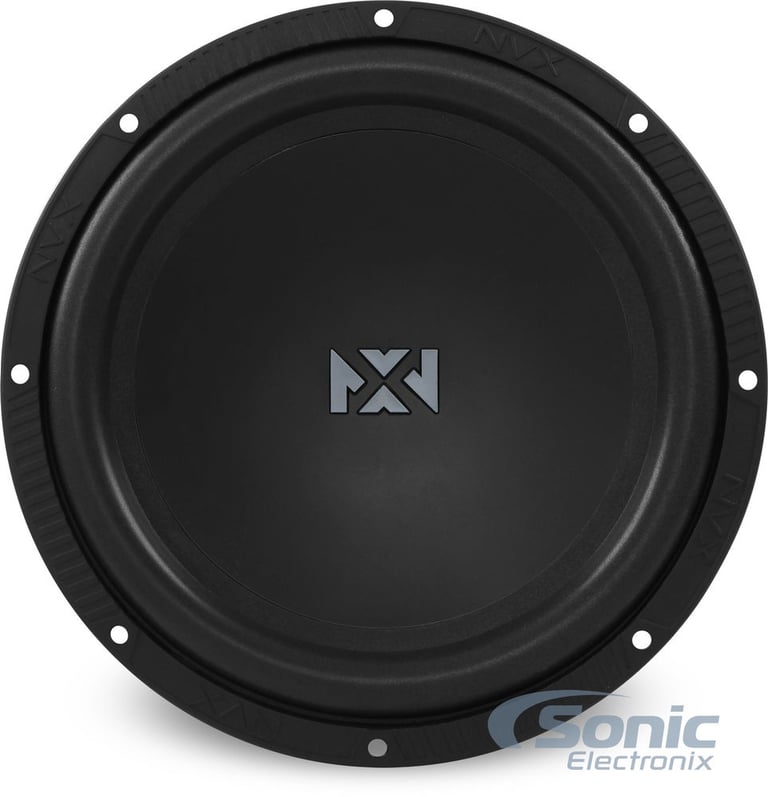

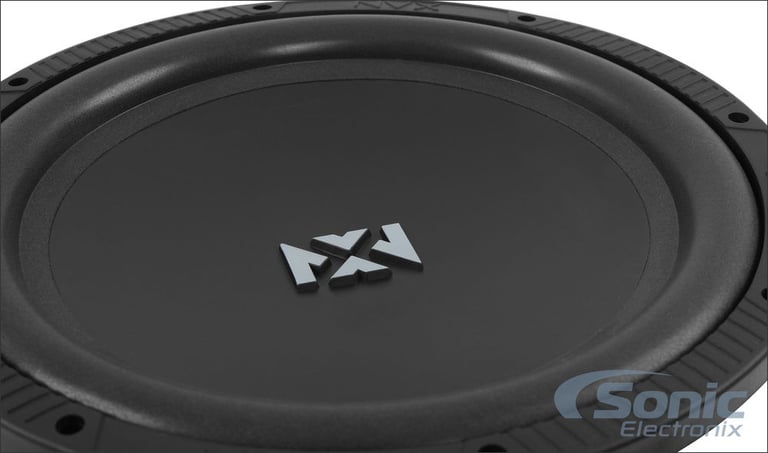

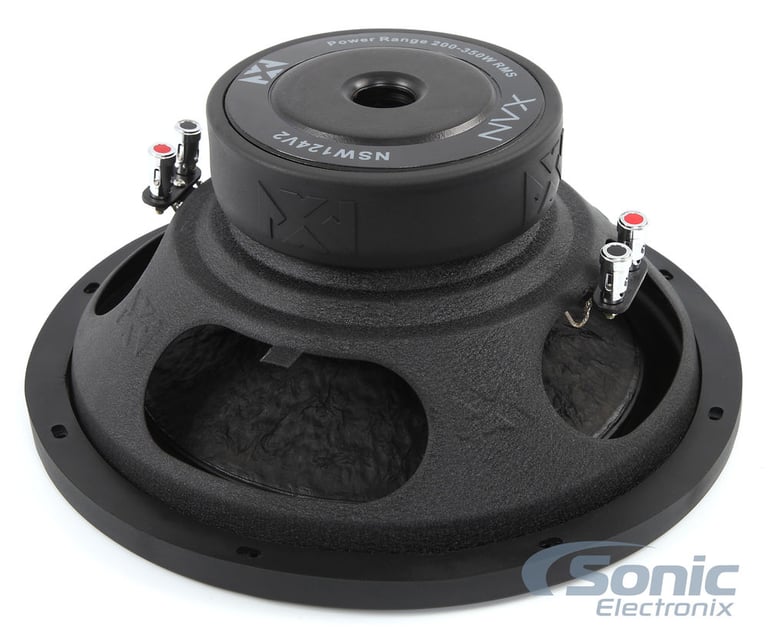

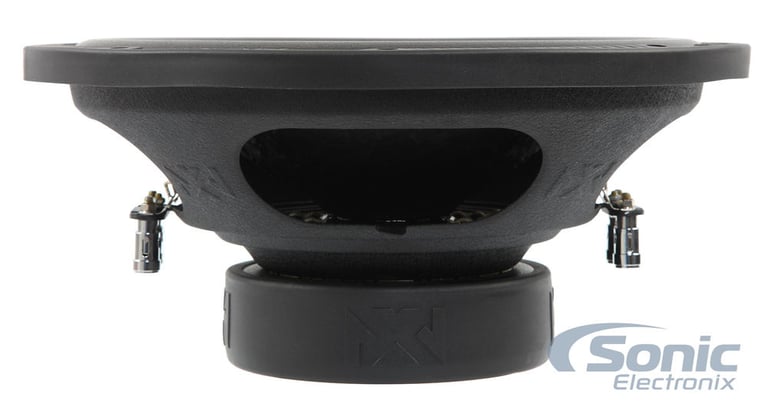

NVX NSW124 Version 3 (NSW124v3)

1000W Peak (500W RMS) N-Series v3 12" Dual 4-Ohm Car Subwoofer
Quantity: 1

Product Details:

  • 12" Dual 4 ohm N-Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • 12.5 mm Xmax
  • Enhanced Pressed Paper Cone
  • High-Roll Foam Surround
  • Stamped Steel Vented Basket with NVX Punched Logo
  • 2.0" High Temperature Copper Voice coil with Aluminum Former
  • Progressive Roll Single-layer Spider with Integrated Tinsel Leads
  • Optimized High-Velocity Pole Vent
  • 112 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 36.92 Hz
  • Sensitivity: 87 dB
  • Recommended sealed box volume: 1.25 cubic feet
  • Recommended ported box volume: 2.0 cubic feet
  • Top-mount depth: 6.0"
  • Cutout diameter: 10.86"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconNVX NSW124V3 owner’s manual

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
160 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1.0%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
40 - 400 Hz
Subsonic Filter
20 - 40 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
30A x 1
Subwoofer Specifications
Series
N Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
350 watts
Peak Power Handling
700 watts
Woofer Surround
Foam
Woofer Composition
Non-Pressed Paper
Sensitivity
86.9 dB
Frequency Response
20 - 200 Hz
Xmax (millimeters)
10.2 mm
Top-Mount Depth (Mounting Depth)
5.01"
Cutout Diameter
10.83"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HX300/1_NSW124V2

Weight:

20.10lbs

Internal SKU:

hx3001_nsw124v2

Internal Product ID:

105813

Customer Ratings & Reviews


JL Audio Class D Amplifier + FREE NVX Audio 12

5 star
83%
4 star
6%
3 star
6%
2 star
3%
1 star
3%



Durability
4.5
Value
4.8
Features
4.6
Design
4.6
Usability
4.8

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Perfect choice

The following review is for NSW124v3, which is a part of the bundle you are viewing.

i bought two of these NVX subs and installed in a down fire box that I also purchased from Sonic electronics, paired it with the Hifonics 1500 watt Rms amp and was blown away at the sound and bass!!!! Even though I only have it wired at 4Ohms (600 watt rms) it hits very hard. Perfect price and I can't believe the sound of the bass, very crisp to the sub sonic they are very clean sounding no mud here.... In my opinion these should be a lot higher in cost as these speakers blow away the competition by far. I've been building systems for over 20 years now and just can't say enough about these subs. Buy them you can't go wrong with these!!!!

By Travis on January 12, 2015 Checkmark Icon Verified purchase

86 found this helpful


Nvx sub

The following review is for NSW124v3, which is a part of the bundle you are viewing.

So far this sub is really good. I've compared it to a kicker comp 12 and a pioneer 12 and it is far better than either. I've ran it a t 250w rms and 400rms and at both the sub runs great. It hits really nice, right now it is in a slim truck box and it still slams! I would definitely go for this sub vs a kicker or pioneer and it cost the same! You can tell from the looks that it is a high quality sub and is well worth the money!

By Jeff on December 14, 2014

81 found this helpful


Great value

The following review is for NSW124v3, which is a part of the bundle you are viewing.

These subs are a very clean and hard hitting sub and are a great buy

By Ryan on March 22, 2015

73 found this helpful


Great bang for your buck !!

The following review is for NSW124v3, which is a part of the bundle you are viewing.

I have two of these running of a Boss cxx2705 amp pushing 600 watts at 4 ohms , one in a sealed box and one in a ported box . I am amazed at the base and throw of these subs for the price . Having two types of enclosures I get the best of both worlds nice tight base and thundering bass from the ported enclosure . I was told by the expert at crunchfield that I could not get any type of good bass with two different enclosures but I personally like what I hear , in fact I actually had a complete stranger compliment me on how good my system sounded ! I was pulled over for system not because of the volume but because the officer could see ripples in his coffee . I simply asked him what the decibals were from a Harley Davidson , so I got off with a warning and I have not even turned my system up past half way up during the break in period of my subs . For the money these are well worth it , you can tell they are built for quality . Having all this power I save gas money , I just turn it up a little , put my little Fiat 500 in neutral and bounce to where I am going ( just kidding on the last statement) but honestly they hit pretty hard with great throw . No noticeable distortion at least at half volume which is pretty damn loud . They will probably go up in price because of the quality . I do extensive research on all my car audio equipment before purchasing . I own all NVX products except for a Pioneer HU and a boss 5 channel amp . All my wiring , my cap , my four speakers . my excellent tweeters and passive crossovers . My next investment will be a NVX line driver which will super charge your amp without actually increasing the wattage but the intake voltage, which will increase the efficiency and sound output . I've read every review on almost every component and see people complaining about durability and blowing speakers to burning up HU to amps . In my opinion most of the problems people encounter is because they don't understand that these are not toys or your clock radio and they immediately try to push every thing to the limit . I learned 40 years ago once you turn up the volume past half way , you start producing heat where a 50 watt speaker can actually be blown 30 watt amp . I am 51 years old and I have done mostly home audio but I am no novice in car audio either . I started car audio at age 21 You can read what you want to read but experience is the best teacher !! NVX is a great quality brand and at a reasonable price . Take my advice with a grain of salt , but I could be right !! Enough about NVX . I am very impressed with Sonic on all my purchased equipment . Very fast and courteous service . I will ONLY use Sonic for my future car audio needs . Sonic rocks and rolls !! Try it you will like it with no disappointments just takeyour time for proper break in before you crank it up and NEVER turn volume all the way up because you WILL pay the price !! Sonic and NVX are 2 thumbs up in my book .

By Freddy Krueger on June 5, 2015 Checkmark Icon Verified purchase

73 found this helpful


Great sub

The following review is for NSW124v3, which is a part of the bundle you are viewing.

I ordered 2 for a friend they sounded good and hit low but had to much power on them so he blew them but they are perfect with the correct amount of power

By Anonymous on October 24, 2019 Checkmark Icon Verified purchase

61 found this helpful


nvx nsw124v2

The following review is for NSW124v3, which is a part of the bundle you are viewing.

These r good subs l have 2 of them on a 3500watt boss amp in a vented box & they sound pretty good if your not looking 2 spend a lot of $ go with the nvx's can't wait til I can get the nvx vcw124.

By chuck on June 22, 2015

65 found this helpful


More value than you know.

The following review is for NSW124v3, which is a part of the bundle you are viewing.

These subs look great. Their surround is high quality. Their travel/throw is surprising. They feel great. They can be used for SPL and SQ. The manufacturers even recommended an RMS wattage on the low side of what it's capable of.

By Nicholas Lemarr on March 23, 2015

66 found this helpful


Better than expected.

The following review is for NSW124v3, which is a part of the bundle you are viewing.

I didn't expect that much, based on thr price. But they have totally impressed me. Build quality is far better than anything I have seen I'm this price range. Amazing value. Of course there are better Subs on thr market, but not at this price. Don't expect these to compare with a pair of Sundown audio subs, but for the price, these can't be beat.

By D.J. on June 5, 2016 Checkmark Icon Verified purchase

57 found this helpful


Sound Quality with some Bang!

The following review is for NSW124v3, which is a part of the bundle you are viewing.

NVX is all I will purchase for my car audio needs. I have the VCW 15" in my car and this NSW 12" in my wife's car. I am more than satisfied with the build quality and performance of NVX PRODUCTS. I have had all the brands in my years and NVX beats them all. Better hurry and purchase any of their products before they realize they can charge twice as much and I will still buy anything from them. The sound you receive is impeccable and they look superb as well. Great job NVX please stick around in the industry. Sonicelwctronix.com is the only place I will buy from. I have been a customer of theirs since 2003. Great job Nate and everyone on the Sonix team.

By David on December 18, 2015 Checkmark Icon Verified purchase

55 found this helpful


Sounds clean

The following review is for NSW124v3, which is a part of the bundle you are viewing.

I have 2 of these dual 4 ohm 12s in a belva ported enclosure powered by a rockford fosgate 501s.. These subs pound and sound extremely clean as well. They handle lows way better than I had expected. Would deff. Recommend to anyone wanting to add some clean thump.

By Anonymous on April 30, 2019 Checkmark Icon Verified purchase

55 found this helpful




SB2MB small

JayBird Sportsband - SB2MB - Midnight Black

Flexible Over-The-Head Semi-Open Stereo Sportsband Headphones with Wireless Apt-X Technology

(13)

$19.99

List price $99.00

No picture

Blaupunkt ODx352 3-1/2" Overdrive Series

$39.99

List price $59.99

No picture

Sundown Audio SALT-1.5 (Open Box, Like New)

1500W RMS Class D SALT Series Monoblock Car Amplifier

(1)

$617.49

List price $689.99

XTC285VP small

Midland XTC285VP (Mossy Oak Camouflage)

Portable 1080p HD Wearable Action Camera

$129.99

List price $169.99

VSW124V3_MDFD12 small

NVX VSW124 Version 3 (VSW124v3) with Sealed Enclosure (MDFD12)

1200 Watt (600W RMS) 12" VS-Series v3 Dual 4-ohm Car Subwoofer + Sealed Sub Box and lined w/Polyfil

(157)

$359.97

List price $431.97

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2011 Volkswagen Eos

2013 MINI Cooper

2016 Ford Explorer

2013 Lexus LS460

2011 Chrysler 200

1996 Lexus LS400

2011 Kia Optima

2007 BMW X5

2005 Ford Taurus

2004 Lexus RX330

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
