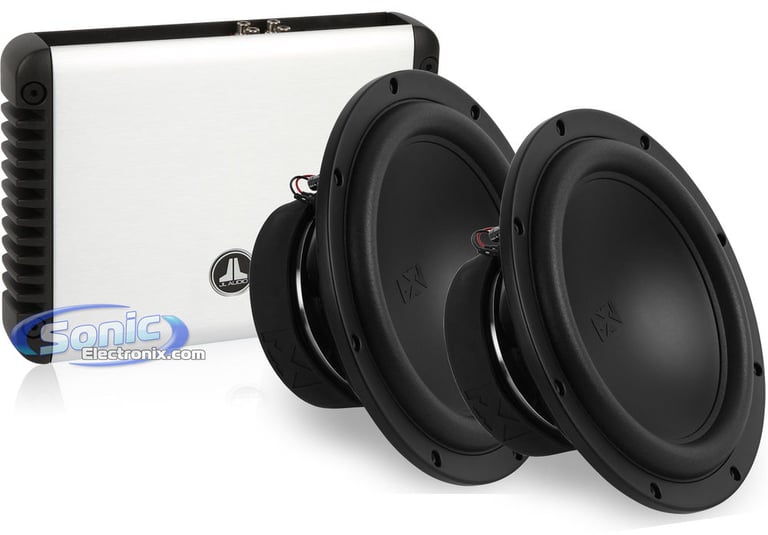

JL Audio HD1200/1 Amp + (2) NVX XQW124 Subs

High-End Matched Combo: JL Audio HD Amp + 2 NVX XQ (SQ) 12" Subs

JL Audio
Shop all JL Audio
highlight-star-icon

• Includes 2 12" NVX XQ Subs and a JL HD Mono Amp
• RMS: 1200W x 1 @ 4 ohm, 1200W x 1 @ 2 ohm, 1200W x 1 @ 1 ohm
• Total RMS Power: 1200W
• R.I.P.S. - Regulated, Intelligent Power Supply
• Single Cycle control - High Fidelity Class D
• 1 Pair of Buffered Preamps RCA Outputs
• Dimensions: 10-13/16"L x 8-1/4"W x 1-15/16"H

Learn more about the hd12001_2-xqw124

We apologize

This item has been discontinued


Loading...
Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

Description


JL Audio brand icon

Authorized dealer

More Power from a Smaller Chassis

The monoblock JL Audio HD1200/1 HD series car amplifier delivers unreal power in a very small and convenient size. Often times smaller amplifiers will lack power or even quality, however with the new JL Audio HD amplifiers this will not be the case. The HD amplifiers are equipped with amazing technologies like Single Cycle Control, which tracks audio signal and compares it to the real PWM waveform and then corrects it accordingly each and every cycle. This helps to control distortion causing mechanisms improving the quality of the amplifier tremendously. HD amplifiers also feature the R.I.P.S. System, R.I.P.S. stands for "Regulated, Intelligent Power Supply" and ensures consistent power delivery over a wide range of battery voltages and load impedance's. This means you will received the same power output at 4 ohms all the way down to 1.5 ohms each and every single time. With dual mounting options for added versatility and advanced heatsinks with vertically oriented fins for extreme heat control, the JL Audio HD amplifiers are unmatched by other amplifiers in the same class.

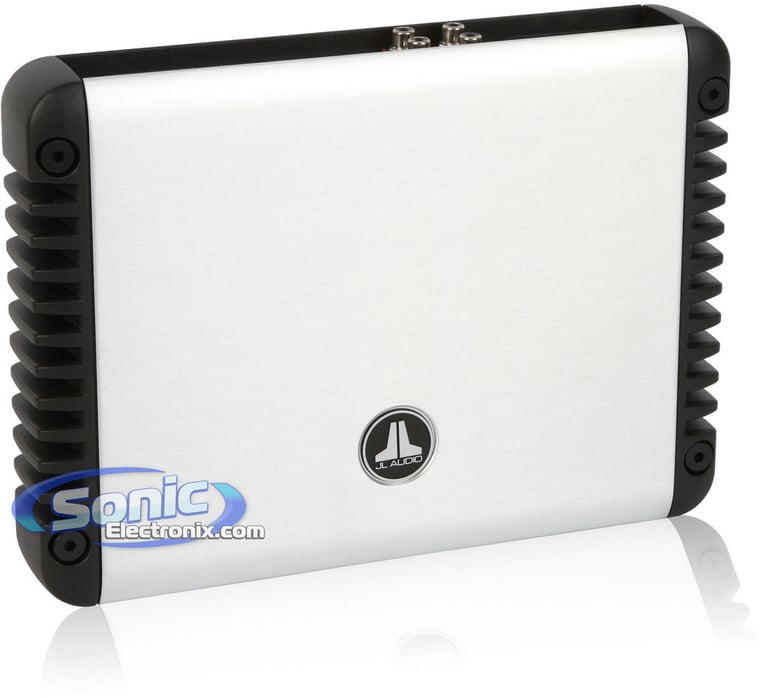

JL Audio HD1200/1

1200W RMS Class D HD Series Monoblock Car Amplifier
Quantity: 1

Product Details:

  • HD Series Class D 1.5 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 1200 watts x 1 channel
    • 2 ohm: 1200 watts x 1 channel
  • Total RMS power output: 1200 watts
  • LED Power/Protect Light
  • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
  • 1 pair of pre-amp outputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Delivers exceptional audio quality with reduced current draw and heat
  • Selectable 12-decibel/octave (Butterworth) or steep 24-decibel/octave (Linkwitz-Riley)
  • Feature advanced rollback protection
  • Brushed aluminum finish with black powder-coat cast
  • Black powder-coated gasketed cover provided
  • Removable power and speaker plugs
  • RealSink chassis and vertical cast-alloy fins to dissipate heat effectively
  • RIPS (Regulated, Intelligent Power Supply) technology to adjust amplifier's operation
  • Single cycle control technology
  • Optional remote level controller (sold separately)
  • Offers flexible mounting options via optional stacking kits
  • Optional stacking kit (sold separately)
    • Low level: 0.2 - 2 volts
    • High level: 0.8 - 8 volts
  • Frequency Response: 6 - 8000 Hz
  • Total Harmonic Distortion (THD): 0.03%
  • Signal to Noise Ratio: >110 dB
  • Variable low-pass filter: 50 - 500 Hz
  • Subsonic filter: 0 - 30 Hz
  • Fuse Rating: 100A (AFS, AGU or MaxiFuse)
  • 2 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 10-13/16" L x 8-13/16" W x 1.93" H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
  • MFR #: HD1200/1

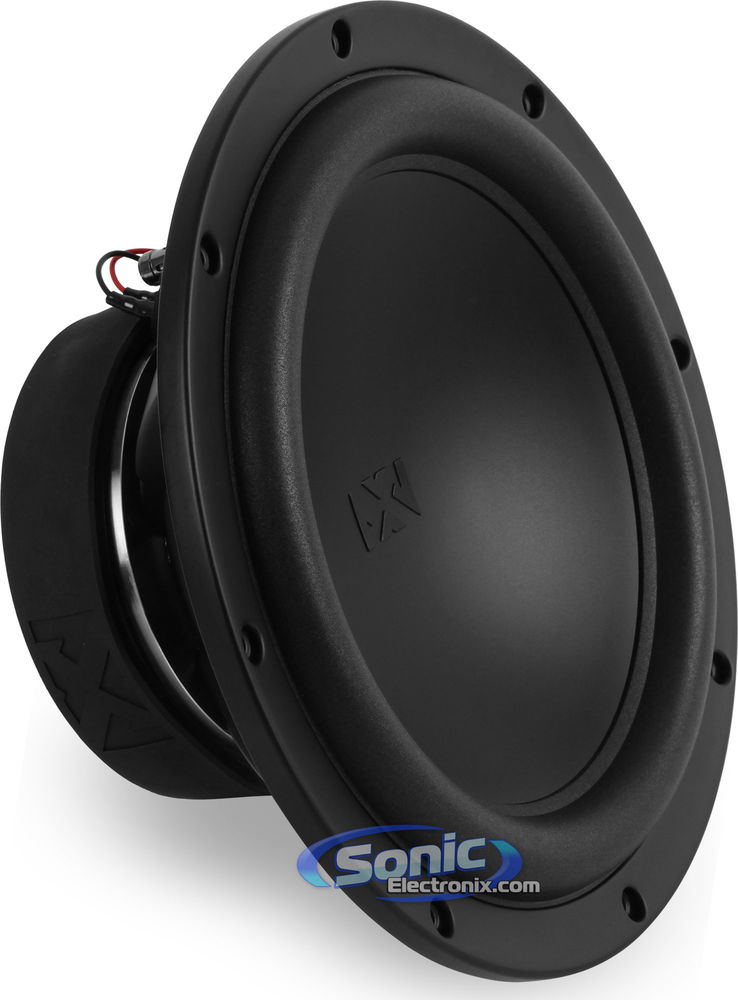

NVX XQW124 (Newest Version)

800W Peak 400W RMS, 12" X-Series Dual 4 ohm Car Subwoofer w/ Aluminum Shorting Ring (XQW 124)
Quantity: 2



General Features:

  • 12" Dual 4 Ohm X-Series Series Subwoofer
  • Power Handling:
    • RMS: 400 watts
  • Impedance: 4 ohm
  • Custom blend of finely milled pulp and Egyptian papyrus fiber cone with smooth matte finish
  • Multi-Radius Elliptical edge foam surround
  • Includes oSd surround technology (U.S. Patent #7,031,487) allowing for an extra 8-12% more surface area than competing subwoofers
  • Innovative aluminum shorting ring system with several positive impacts on the subwoofer:
    • Improved power delivery to the voice coil
    • Decreased inductive distortion
    • Improved cone linearity
    • Improved high-end extension
    • Decreased risk of overheating
  • 3" High temperature voice coil designed with an oxygen-free copper coil
  • 123 oz double stacked ferrite magnet
  • Optimal ported enclosure tuning frequency: 34 Hz
  • Frequency response: 20-200 Hz
  • Resonance Frequency (Fs): 29 Hz
  • Top-mount depth: 5-3/4"
  • Sensitivity: 89 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Tips for Installing the your NVX XQW124 subwoofer



Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(81)

$279.99

List price $323.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
1200 watts x 1 channel
RMS Power @ 2 ohms
1200 watts x 1 channel
RMS Power @ 1 ohm
1200 watts x 1 channel at 1.5 ohms
Peak Power Output
1200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1200 watts
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
1.5 ohm
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Subsonic Filter
30 Hz
Signal-to-Noise Ratio
110 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fan Cooled
No
CEA-2031 Compliant
Yes
Subwoofer Specifications
Series
X Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
600 watts
Woofer Surround
Foam
Minimum Sealed Box Volume
0.80 cubic feet
Minimum Ported Box Volume
1.1 cubic feet
Sensitivity
89 dB
Frequency Response
20 - 200 Hz
Xmax (millimeters)
20 mm
Top-Mount Depth (Mounting Depth)
5-3/4"
Cutout Diameter
12-1/16"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

HD1200/1 + 2 XQW124

Weight:

69.40lbs

Internal SKU:

hd12001_2-xqw124

Internal Product ID:

75425

Customer Ratings & Reviews


JL Audio HD1200/1 Amp + (2) NVX XQW124 Subs thumbnail image

5 star
85%
4 star
10%
3 star
5%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
5
Design
4.9
Usability
5

Customer Reviews

Sort by:

Loading...

jl 1200/1

The following review is for HD1200/1, which is a part of the bundle you are viewing.

Great amp make sure you upgrade your electrical alternator and battery uses a lot of power.

By kurt on September 22, 2012

67 found this helpful


No one does it like jl audio

The following review is for HD1200/1, which is a part of the bundle you are viewing.

I have run many systems over the years but none have compared to my current setup the staff at sonic have always led me in the rite direction this system rocks will blow you away crystal clear clean audio with all the bass one could ever want or need Once again thanks sonic

By Steve on January 21, 2014

63 found this helpful


sweetness

The following review is for HD1200/1, which is a part of the bundle you are viewing.

Bought this amp to run a 12w6v2, and wow, thats all I have to say. well worth the money, and if I want to add a second sub I always can. It will handle them both easy. A bit pricey, but im sure it will be the last sub amp i buy for a long time.

By greg on June 21, 2012

54 found this helpful


Bullet proof

The following review is for HD1200/1, which is a part of the bundle you are viewing.

I use one of these to power a 13w7 and it gives it every thing it can handle and more. The noise floor is non existent like the amp is silent completely until the music starts. And it barely gets warm even after hours of play on long trips and myself I have never had a shit down or anything. And all I have for electrical is stock 120amp alt 4 Gauge ran back to a 1000 watt capable secondary battery and 1/0 run from that bat to the amp and it’s so efficient I barely have any headlight flicker. I have been banging this amp for 6 years and could not be happier. I wonder how many so called better for cheaper amps have burned up in the 6 years I have had this amp. Yea it’s not cheap but if your serious about your audio like me and you plan to keep the stuff or actually want to get something back out of it if you do sell do yourself a favor and just save a little longer and get the good stuff the first time instead of doing like a lot of noobs and saying well this amp says 1500 Watts at 1ohm I will get that for half price, trust me you ain’t getting what you think. I dare you to compare this amp to any amp under 5k Watts that’s a unregulated amp and I bet this one in the car actually playing music is louder. I myself have a DC 2k and the HD 1200/1 is every bit as loud or louder on less electrical and less cone area on the sub.

By Anonymous on July 25, 2018

47 found this helpful


Incredible Sound Quality and Punch

The following review is for XQW124, which is a part of the bundle you are viewing.

Got a pair in a 1.5CF per side, FoxAcoustics box, tuned to 35htz, and wired to 1 Ohm, delivering 1100 RMS on a massive D2400. The sound quality is second to none. Transitions are tight and very pleasant. I can feel the percussion and get plenty of SPL. Beat the REAudio S E X hands down. Amazed at the quality of the woofer, and what it delivers in such a small enclosure.

By Cory on December 26, 2013

46 found this helpful


Unreal SQ and SPL

The following review is for HD1200/1, which is a part of the bundle you are viewing.

bought two of these bad boys to power 2 12w7AE's in a custom built ported box. however i only hooked up 1 amp to 1 sub.. and being honest it was twice as loud as my previous setup of 1 rockford t2d412 powered by a pdxm12. i cant imagine hooking the other amp and sub it would make me deaf. the sound quality is superb, doesnt need much power it will stay at 1200rms even at 11v and barely get warm. i would recommend this amp to anyone and everyone i know. ive had several different brands over the years and this one is by far the best if you are looking for both SQ and SPL

By sharma on October 2, 2015

37 found this helpful


Wicked Amps

The following review is for HD1200/1, which is a part of the bundle you are viewing.

Again, I did a lot of research on the amps to pair with my JL Audio C7’s. And these were by far the best. Very well made and with the intelligent power supply, They get nowhere near as hot. I have fans wired into my system which have yet to come on. The sound is amazing, and you hear every level of detail with no distortion. Paired with a my 13W7AE, this thing is a beast!!

By Anonymous on August 4, 2018 Checkmark Icon Verified purchase

33 found this helpful


The following review is for HD1200/1, which is a part of the bundle you are viewing.
By Donald on October 1, 2022 Checkmark Icon Verified purchase

30 found this helpful


Install review

The following review is for XQW124, which is a part of the bundle you are viewing.

The construction of the sub looks solid and it has nice terminals(pre wired for 2ohm).
That being said it's really a 12.5 inch sub and may not fit in pre-made boxes such as the belva example I ordered with mine. I had to cut at into the side of the box walls to make the sub sit into the cutout.

Will update on how it sounds in the recommended sealed box ~1 cu. Ft. Once I have finished my install.

By Anonymous on October 1, 2018

20 found this helpful


Can’t be beat!

The following review is for XQW124, which is a part of the bundle you are viewing.

The quality for the price paid on these NVX XQW subs just can’t be beat .
Amazing value for your dollars.

By Knightstormz on May 7, 2018

19 found this helpful




DES5001D_XKIT42 small

Diamond Audio DES500.1D with NVX 4 Gauge Amp Kit

500W RMS DES Series Class-D 1-Channel Full Range Amplifier

(124)

$596.98

List price $643.98

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2022 GMC Yukon XL

1995 Mazda B4000

2007 Jaguar S-Type

2004 Lexus RX330

2007 Chevrolet Equinox

2000 Volkswagen Beetle

2014 Jeep Compass

2006 Saab 9-7X

2000 Chevrolet Silverado 2500

1964 Ford Thunderbird

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
