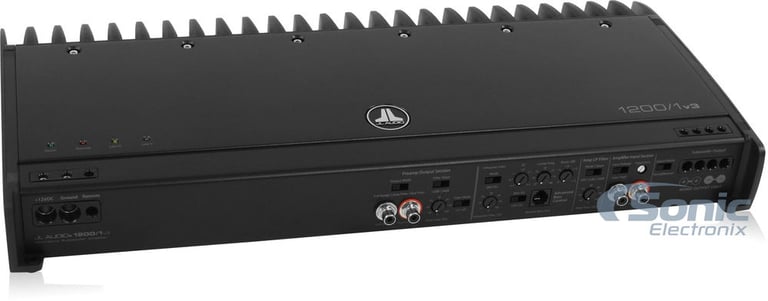

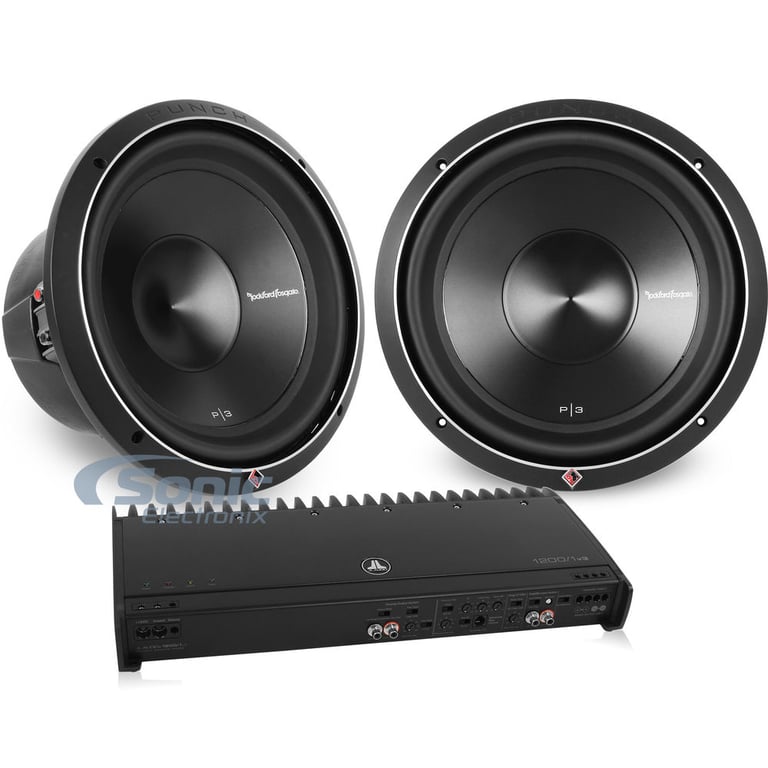

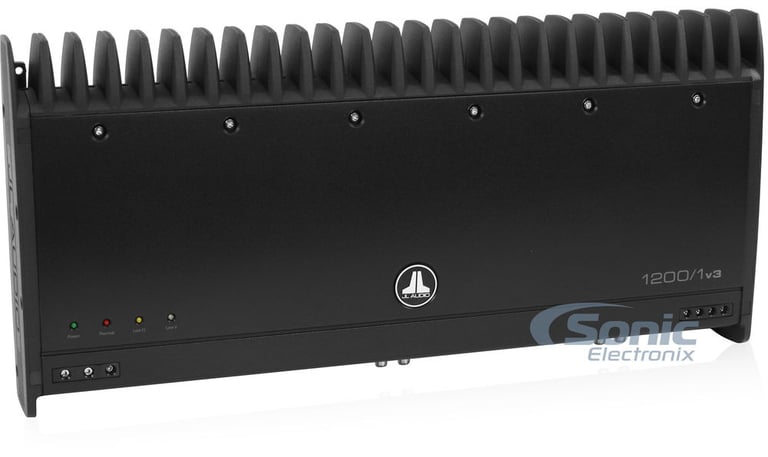

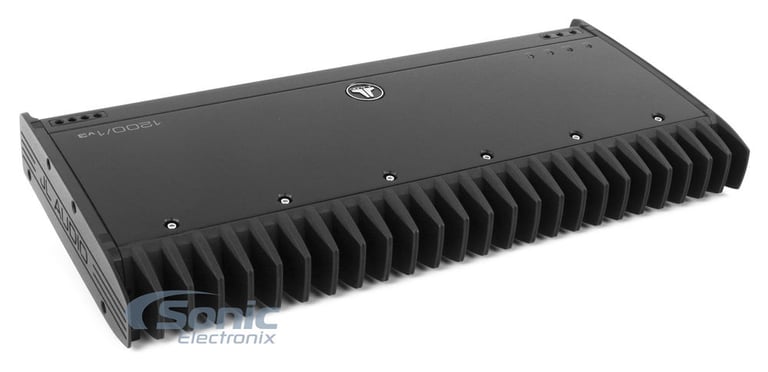

JL Audio Slash 1200/1v3
1200W RMS Monoblock Slash v3 Series Class D Car Amplifier
Quantity: 1
1200/1v3 Specifications:
- Slash v3 Series Class D Monoblock Car Amplifier
- RMS Power Rating (11V-14.5V):
- 4 ohm: 1200 watts x 1 chan.
- 3 ohm: 1200 watts x 1 chan.
- 2 ohm: 1200 watts x 1 chan.
- 1.5 ohm: 1200 watts x 1 chan.
- High-Damping H-Bridge, Class D Mono Circuit
- R.I.P.S. - Regulated, Intelligent Power Supply
- Pulse width modulation-regulated switching power supply

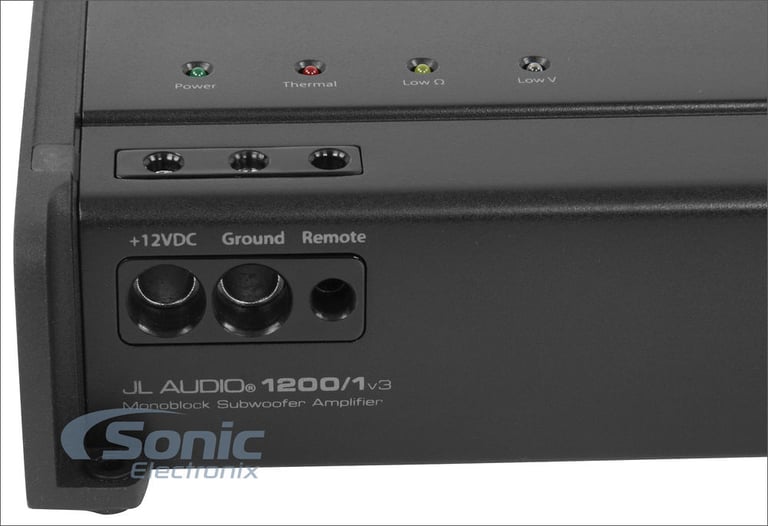

- LED power/thermal/low-impedance/low-voltage indicators
- Differential-balanced input type with RCA jack inputs
- Speaker level inputs via RCA, JL Audio XD-CLRAIC2-SW required

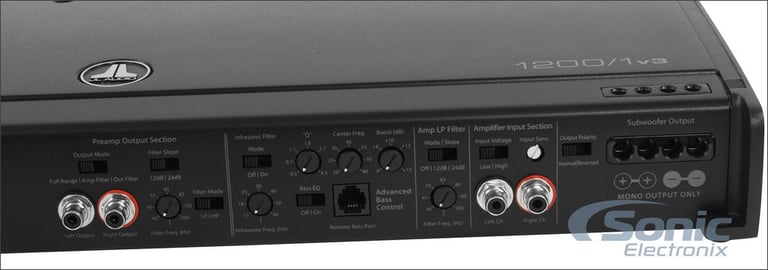

- Single-band, fully parametric equalizer with "Q" and boost adjustment
- Preamp RCA outputs w/ crossover filter options
- Remote bass port input (JL Audio RBC-1 sold separately)
- Input sensitivity:
- Low level: 200mV-2V
- High level: 800mV-8V
- State-variable, 12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley LPF
- Variable low-pass filter: 40 - 200 Hz
- Fully variable, 24 dB/octave Butterworth HPF
- Subsonic ("Infrasonic") Filter: 15 - 60 Hz
- Advanced Bass Control:
- "Q" Bandwidth Control: 0.5 - 4.3
- Center Frequency: 20 - 85 Hz
- EQ Boost Control: 0 - +15 dB
- Selectable output frequency mode: LP / HP
- Selectable output frequency slop: 12 dB / 24dB
- Output filter cutoff frequency: 40 - 200 Hz
- Total Harmonic Distortion: <0.05% @ 4Ω , 50 Hz
- Signal to Noise Ration: >95 dB
- Frequency response: 5 - 250 Hz (+0, -3 dB)
- Damping Factor: >500 @ 4Ω/50 Hz, >250 @ 2Ω/50 Hz
- Inline 100A x 1 ANL or MaxiFuse Recommended
- Dimensions: 19.70"L x 9.25"W x 2.36 "H
- 4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
- 2 Year Manufacturer's Warranty
 |
 |
 |
 |
Check out the JL Audio Slash 1200/1v3 Owner's Manual

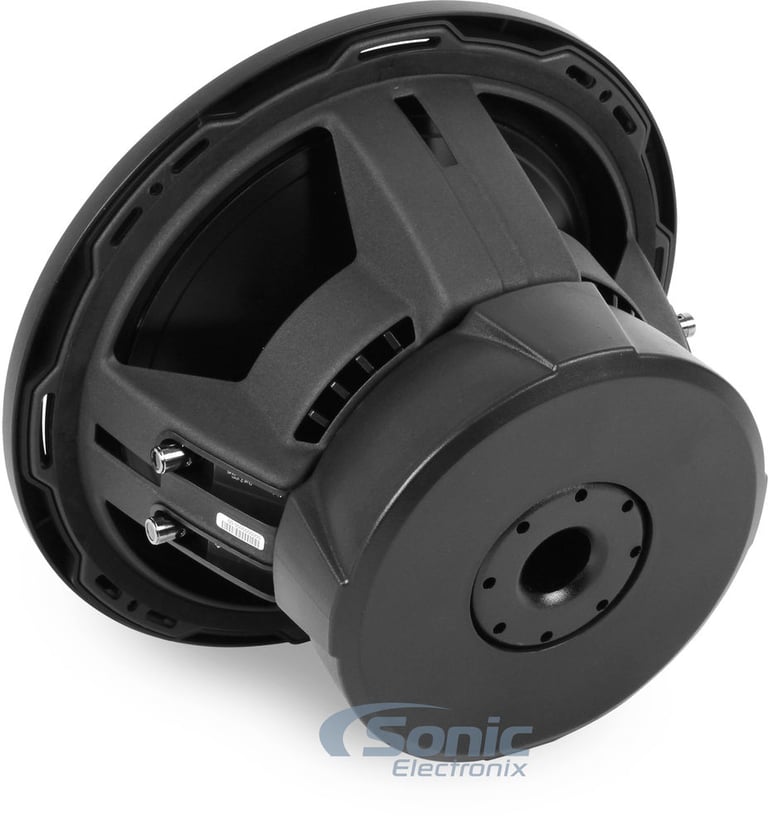

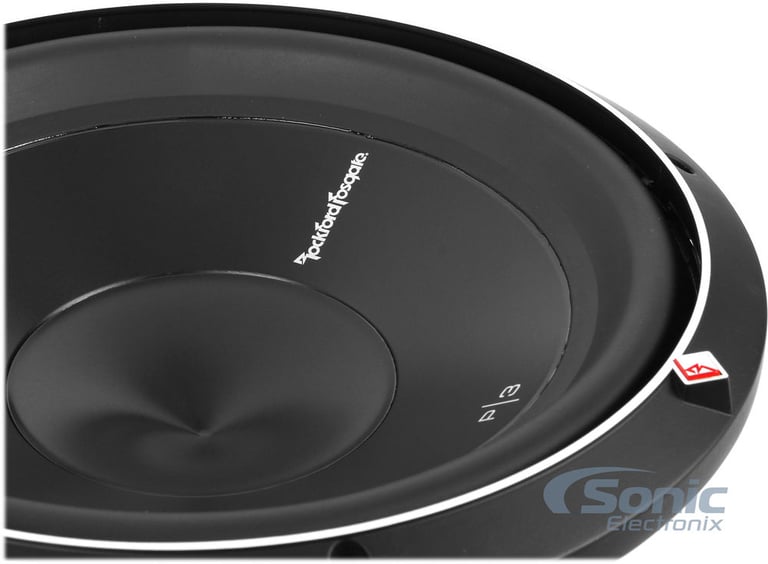

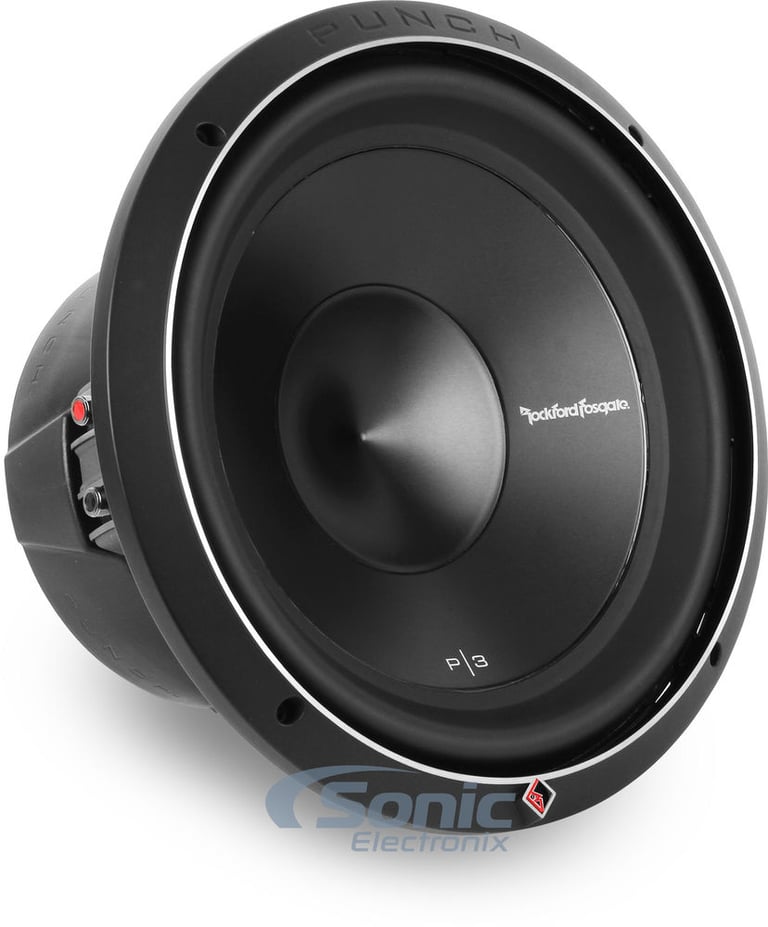

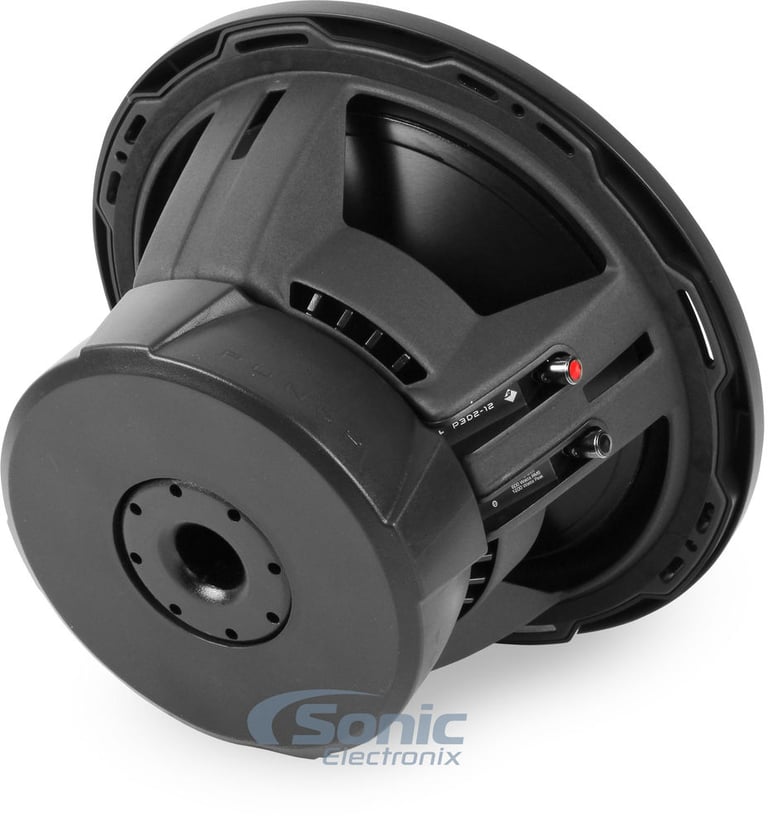

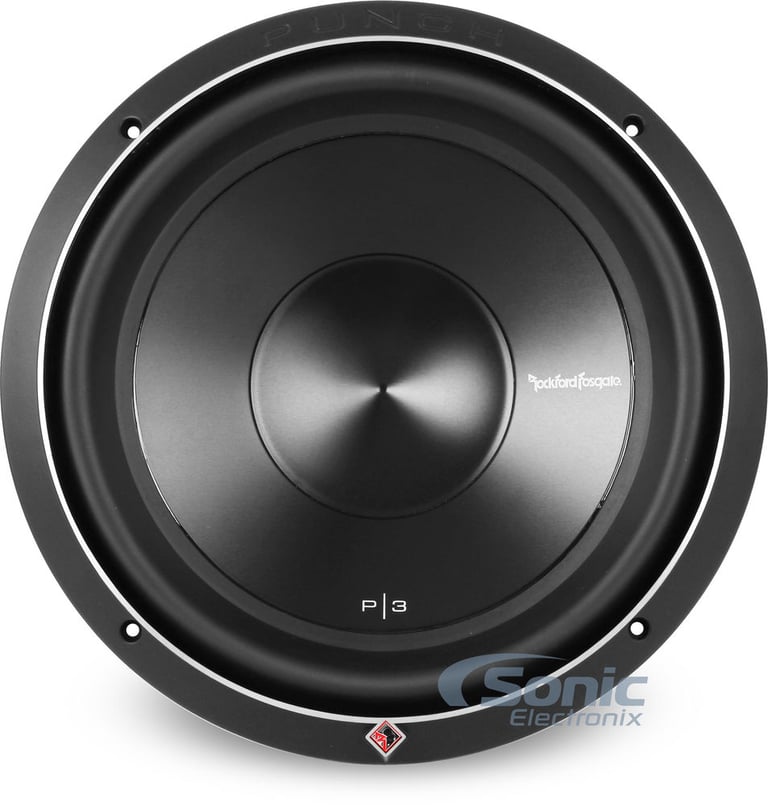

Rockford Fosgate Punch P3D2-12 (Newest Model)
600W 12" Punch Stage 3 Dual 2 ohm Subwoofer
Quantity: 2
 |
 |
 |
 |
Product Features:
- 12" Punch P3 Series Dual 2 Ohm Subwoofer
- Power Handling:
- Peak: 2400 watts per pair / 1200 watts each
- RMS: 1200 watts per pair / 600 watts each
- Recommended power range: 750 - 1200 watts RMS per pair
- Impedance: 2 ohm final impedance when Wired in Series/Parallel
- Anodized aluminum heat sinking cone & dustcap for strength and durability
- Tall profile true Santoprene vertical attach surround technique increases a speaker's effective radiating cone area
- Dual tear & fatigue resistant linear poly cotton spiders
- Optimized motor magnetics with extended pole and bumped backplate
- Fatigue resistant and reduced strain stitched tinsel leads
- Multi point high temp/strength neck joint bonding technique
- Sturdy 16 gauge compound bend frame geometry
- Semi-Flexible PVC removable protective motor cover
- Custom insulated compression input terminal assembly
- Proprietary spider venting/cooling technique
- Decorative die cast trim ring

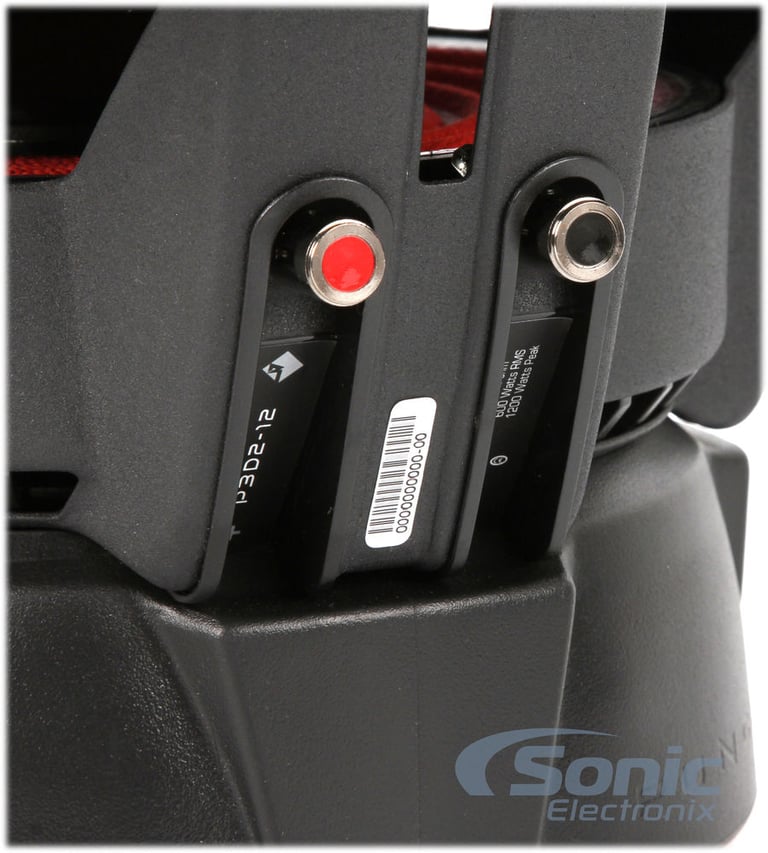

- Custom 10-AWG nickel plated push terminals
- High temperature 4-layer 2-1/2" voice coil with spun laced nomex insulating reinforcement collar
- 102 oz Double stacked ferrite magnet structure
- Frequency response: 27.7-250 Hz
- Sensitivity: 85 dB
- Xmax: 16.2 mm
- Mounting Depth: 6-11/16"
- Cutout Diameter: 11-1/4"
- Subwoofer Grille available, sold separately: Rockford Fosgate Punch P2P3G-12
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
