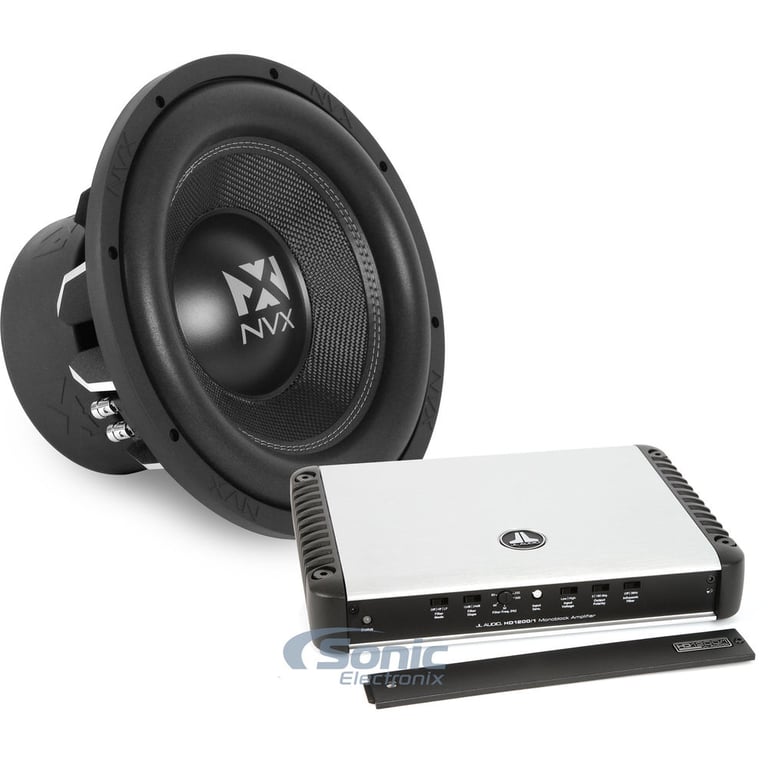

JL Audio Class D HD Series Amplifier + FREE NVX 12" VC-Series Subwoofer

JL Audio HD1200/1 Class D HD Series Amplifier with R.I.P.S. Technology + NVX VCW124 12" Dual 4-ohm Car Subwoofer

JL Audio
Shop all JL Audio
EXCLUSIVE
Product videos
highlight-star-icon

• Power Range (RMS) 850-1000 Watts
• Woven Fiber Pressed Paper Cone
• Custom High Roll Foam Surround With Nylon Stitching
• Die Cast Aluminum Basket
• Dual Poly-Cotton Spiders
• R.I.P.S. - Regulated, Intelligent Power Supply
• Single Cycle control - High Fidelity Class D
• 1 Pair of Buffered Preamps RCA Outputs
• Dimensions: 10.74"L x 7.85"W x 1.93"H

Learn more about the hd12001_vcw124

We apologize

This item has been discontinued


Loading...
FD-BROPOD1 main

Metra FD-BROPOD1

Empty Single 6.5" to 6.75" Rear Speaker Pods for select 2021-2025 Bronco

-42.31%

$179.99

List price $311.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

SBX-F-BRONCG6/10TW1 main

JL Audio Stealthbox® SBX-F-BRONCG6/10TW1

Custom Fit 12" Subwoofer Enclosure for select 2021-2025 Bronco

2

$1,149.99

Limited time!
MBQBRO-SUBR-1 main

MB Quart MBQBRO-SUBR-1

400W Peak 8" Subwoofer and Class D Amplifier Upgrade Kit for select 2021-2024 Bronco

-26.90%

$365.49

List price $499.99

Limited time!
FDBRONTG10PRO main

MEMPHIS FDBRONTG10PRO

Empty Single 10" Subwoofer, Dual 6.5" Speakers, and 4" Tweeters Sealed Enclosure for select 2021-2025 Bronco and Bronco Sport

1
-44.44%

$249.99

List price $449.95

72-5603 main

Metra 72-5603

Install New Tweeters in select 2015-2024 F-150 and Bronco and Maverick

3
-20.01%

$11.99

List price $14.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

VSP65 main

NVX VSP65

600W Peak (200W RMS) 6.5" V-Series 2 Way Coaxial Car Speakers

64
-15.39%

$109.99

List price $129.99

Product Highlights


• Power Range (RMS) 850-1000 Watts
• Woven Fiber Pressed Paper Cone
• Custom High Roll Foam Surround With Nylon Stitching
• Die Cast Aluminum Basket
• Dual Poly-Cotton Spiders
• R.I.P.S. - Regulated, Intelligent Power Supply
• Single Cycle control - High Fidelity Class D
• 1 Pair of Buffered Preamps RCA Outputs
• Dimensions: 10.74"L x 7.85"W x 1.93"H

Description


JL Audio brand icon

Authorized dealer

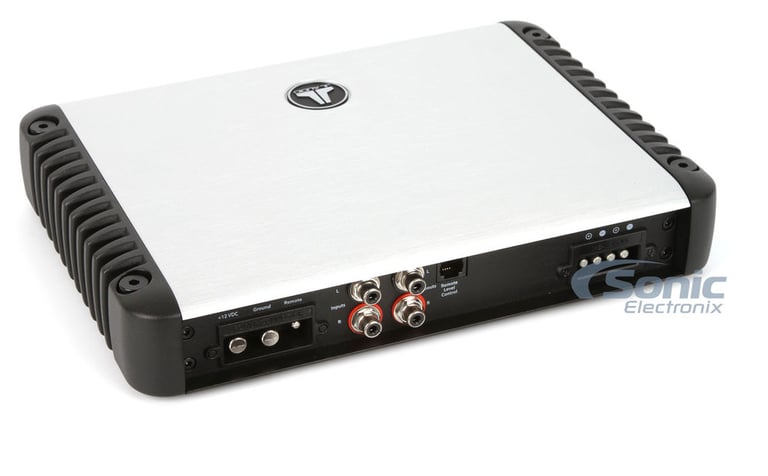

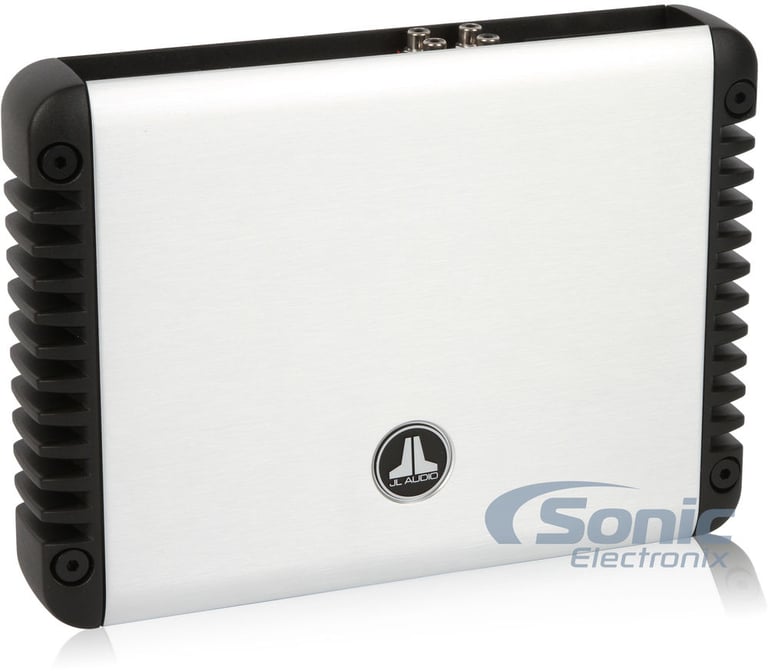

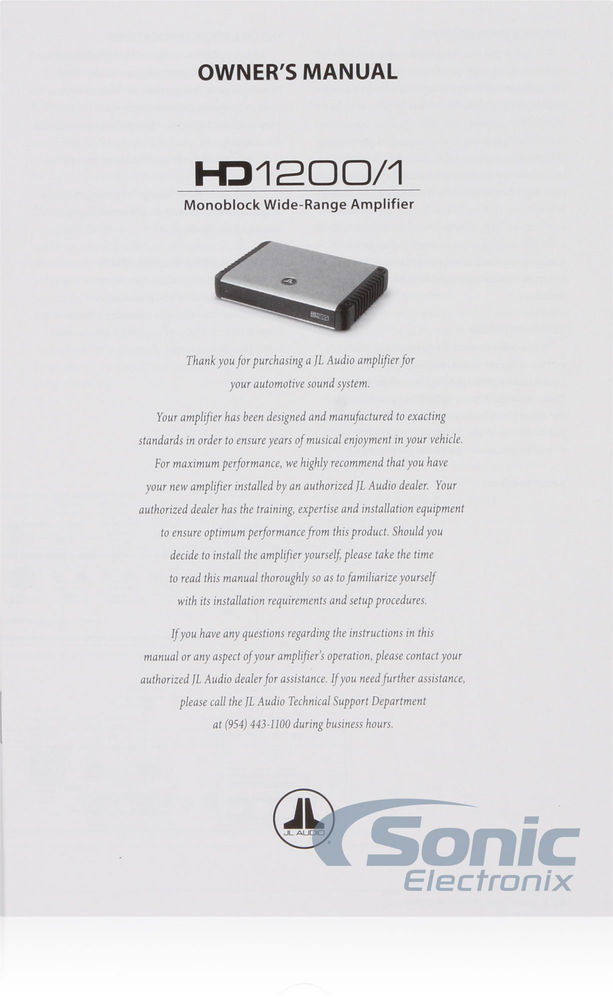

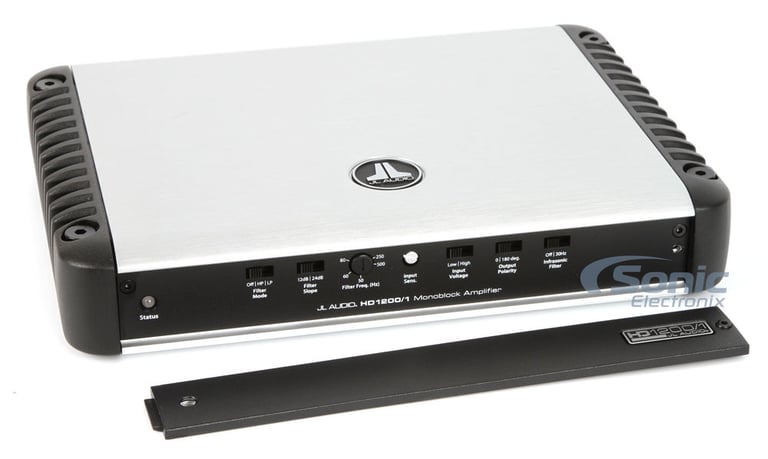

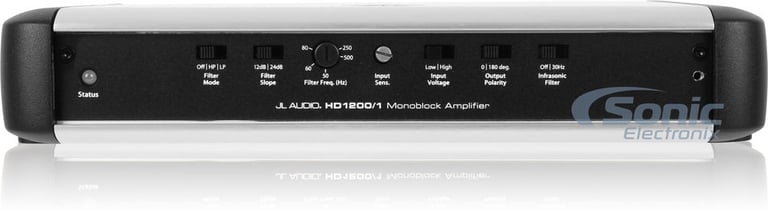

JL Audio HD1200/1

1200W RMS Class D HD Series Monoblock Car Amplifier
Quantity: 1

Product Details:

  • HD Series Class D 1.5 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 1200 watts x 1 channel
    • 2 ohm: 1200 watts x 1 channel
  • Total RMS power output: 1200 watts
  • LED Power/Protect Light
  • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

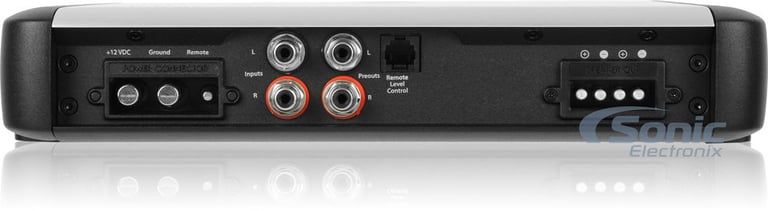

  • 1 pair of pre-amp outputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Delivers exceptional audio quality with reduced current draw and heat
  • Selectable 12-decibel/octave (Butterworth) or steep 24-decibel/octave (Linkwitz-Riley)
  • Feature advanced rollback protection
  • Brushed aluminum finish with black powder-coat cast
  • Black powder-coated gasketed cover provided

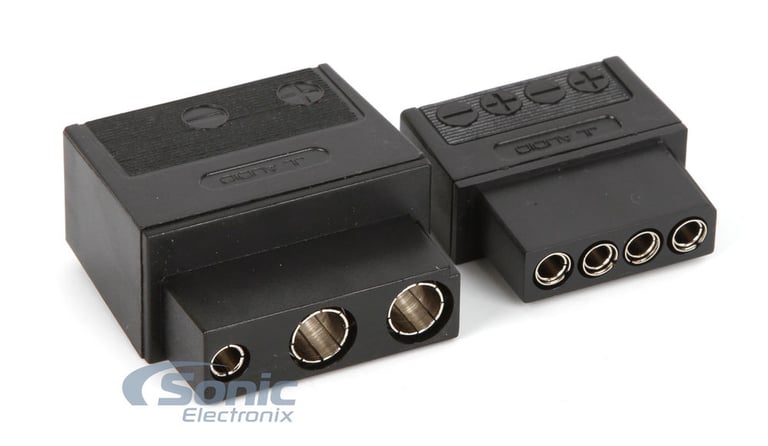

  • Removable power and speaker plugs
  • RealSink chassis and vertical cast-alloy fins to dissipate heat effectively
  • RIPS (Regulated, Intelligent Power Supply) technology to adjust amplifier's operation
  • Single cycle control technology
  • Optional remote level controller (sold separately)

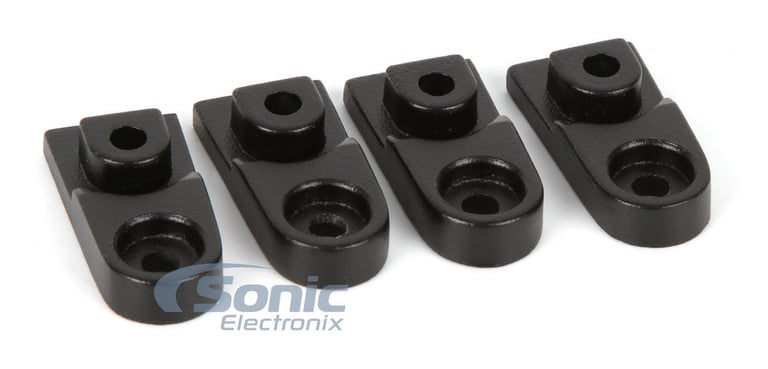

  • Offers flexible mounting options via optional stacking kits
  • Optional stacking kit (sold separately)
    • Low level: 0.2 - 2 volts
    • High level: 0.8 - 8 volts
  • Frequency Response: 6 - 8000 Hz
  • Total Harmonic Distortion (THD): 0.03%
  • Signal to Noise Ratio: >110 dB
  • Variable low-pass filter: 50 - 500 Hz
  • Subsonic filter: 0 - 30 Hz
  • Fuse Rating: 100A (AFS, AGU or MaxiFuse)
  • 2 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 10-13/16" L x 8-13/16" W x 1.93" H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
  • MFR #: HD1200/1

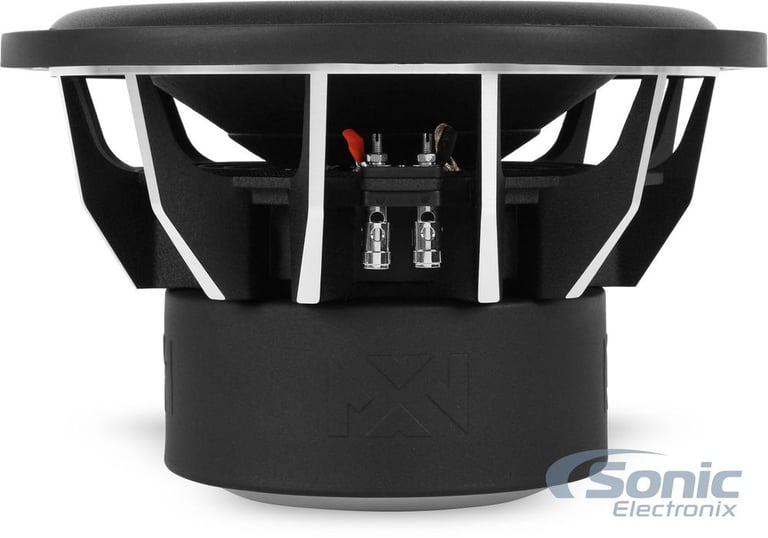

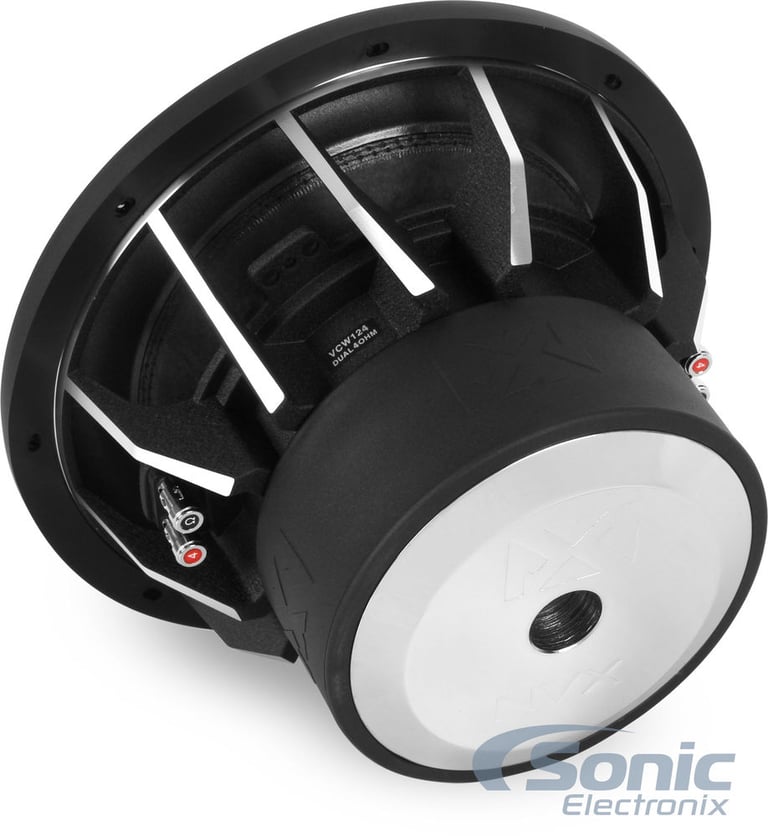

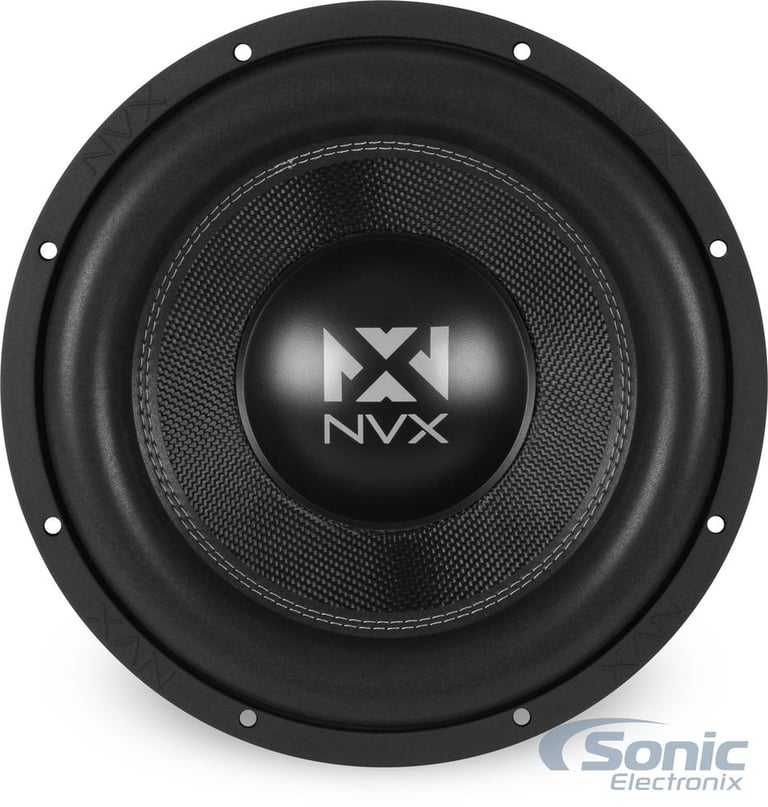

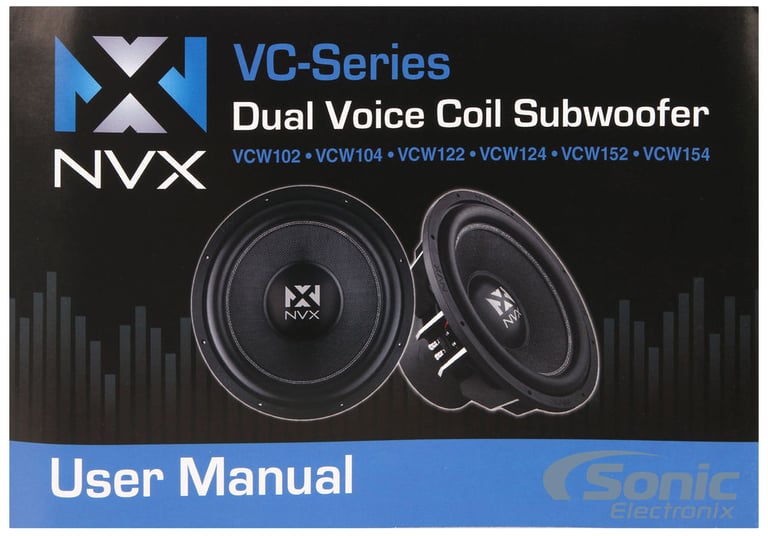

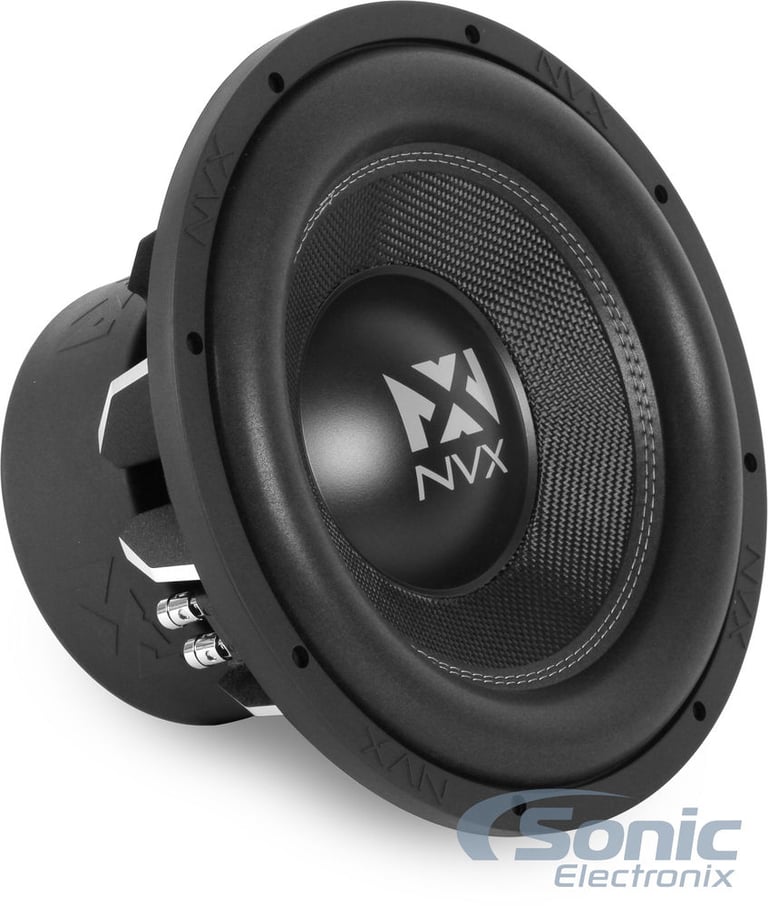

NVX VCW124 Version 3 (VCW124v3)

2400W Peak (1200W RMS) 12" VC-Series v3 Dual 4-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 12" Dual 4 ohm VC Series Subwoofer
  • Power Handling:
    • Peak: 2400 watts
    • RMS: 1200 watts

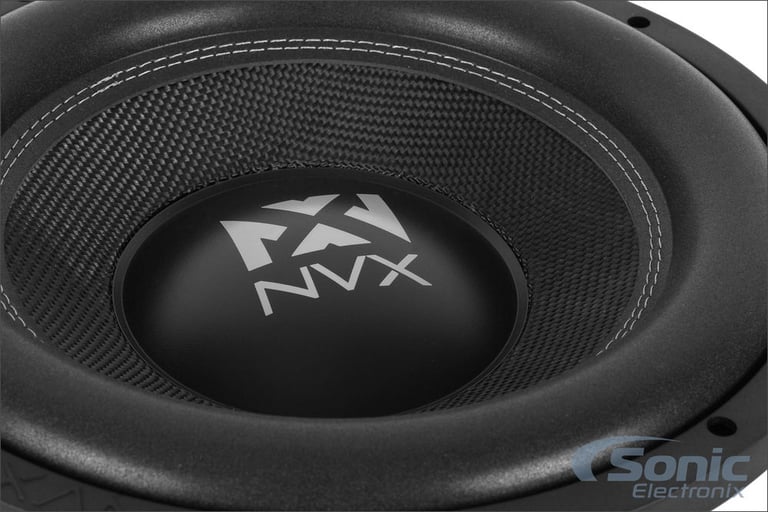

  • Carbon Fiber Enhanced Non-Pressed Paper Cone
  • Custom High Roll Foam Surround with black nylon stitching
  • Die cast aluminum vented basket

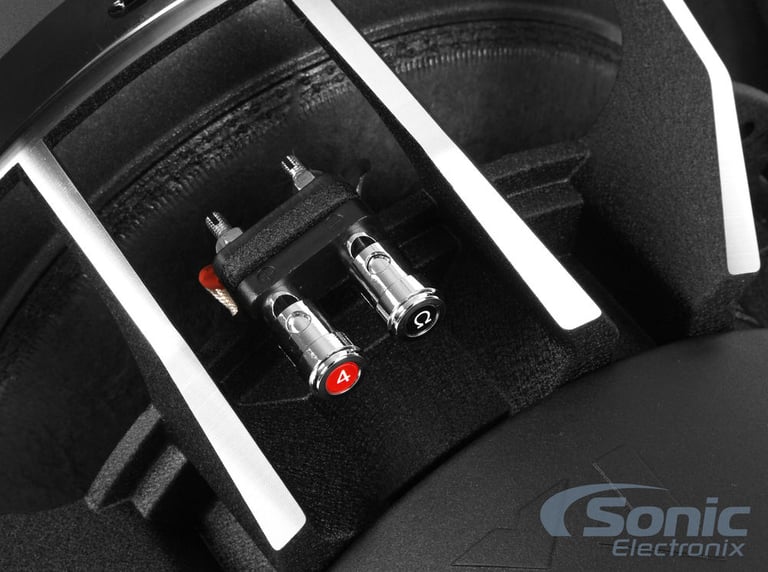

  • Dual progressive-roll spiders with integrated flat-braided leads
  • 3" 4-Layer High Temperature Black Aluminum Voice coil
  • Optimized high-velocity pole vent
  • One-piece T-Yoke with integrated gap venting
  • 202 oz. Triple Stacked High Energy Y35 Ferrite with protective rubber boot
  • 23 mm Xmax (one-way) for massive air movement
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 25 Hz
  • Sensitivity: 85 dB (1W/1m)
  • Optimal sealed box volume: 0.85 cubic feet
  • Optimal ported box volume: 1.85 cubic feet
  • Top-mount depth: 7.02"
  • Cutout diameter: 11.26"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually


Loading...
Limited time!
MBQBRO-302 main

MB Quart MBQBRO-302

400W Peak Loaded Single 12" Sealed Amplified Tailgate Enclosure for select 2021-2024 Bronco

-24.44%

$679.99

List price $899.99

240-BR-DS10V main

SSV Works 240-BR-DS10V

Loaded Single 10" 4-Door Rear Sealed Enclosure for select 2021-2025 Bronco and Bronco Sport

240-BR-DS10K main

SSV Works 240-BR-DS10K

Loaded Single 10" 4-Door Rear Sealed Enclosure for select 2021-2025 Bronco and Bronco Sport

SBX-F-BRONCG6/10TW1 main

JL Audio Stealthbox® SBX-F-BRONCG6/10TW1

Custom Fit 12" Subwoofer Enclosure for select 2021-2025 Bronco

2

$1,149.99

TXFBB12 main

AudioControl TXFBB12

400W RMS Loaded Single 12" Sealed Swing Gate Enclosure for

-21.28%

$629.00

List price $799.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
1200 watts x 1 channel
RMS Power @ 2 ohms
1200 watts x 1 channel
RMS Power @ 1 ohm
1200 watts x 1 channel at 1.5 ohms
Peak Power Output
1200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1200 watts
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1.5 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.03%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
Subsonic
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Subsonic Filter
Switchable Off/30 Hz
Signal-to-Noise Ratio
111 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
100A X 1 In-Line Fuse Recommended
Subwoofer Specifications
Series
VC Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
1000 watts
Peak Power Handling
2000 watts
Woofer Surround
Foam
Woofer Composition
Woven Fiber Pressed Paper
Sensitivity
85 dB
Frequency Response
20 - 220 Hz
Xmax (millimeters)
20 mm
Top-Mount Depth (Mounting Depth)
7"
Cutout Diameter
11-1/4"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HD1200/1_VCW124

Weight:

43.40lbs

Internal SKU:

hd12001_vcw124

Internal Product ID:

105965

Product and How-to Videos


Customer Ratings & Reviews


JL Audio Class D HD Series Amplifier + FREE NVX 12

5 star
94%
4 star
6%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
5
Features
4.9
Design
4.9
Usability
5

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Extremely Accurate

The following review is for VCW124v3, which is a part of the bundle you are viewing.

For a $200 subwoofer driver, this piece is one of the most accurate in it's price bracket.

What does it do for you? It creates a listening pleasure like no other, whether you listen to classical, rock, pipe organ, or any other genre of music, this speaker delivers.

It's quick response is well appreciated. I would or could go on and on about the different setups and what yielded the most listening pleasure, but that would be highly selective to my ears.

Bottom line is I would recommend this speaker on any given day of the week.

By samuel on May 19, 2014

145 found this helpful


well structured subs

The following review is for VCW124v3, which is a part of the bundle you are viewing.

Great subs, sounds awesome. Just can't get the subwoofers displacement anywhere and I'm having difficulty contacting technical support

By fredy on December 21, 2013

151 found this helpful


POUND POUND POUND!!!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

That's all these do is POUND! They sound amazing. I have them ran 1 ohm to my Hifonics X2200.1, giving them 1000 watts RMS easily, and they are begging for more. Can't wait to get them in a custom box (going to do 1.9 cubic ft per chamber tuned to 30-34 hz), and have them really perform. NVX is great quality, and sound amazing. Heads turn when you have these in your trunk!!!!

By Matt on August 20, 2014

140 found this helpful


Best subs yet!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

I bought the NVX VCW124s (2) to use in my vehicle with a Hifonics Brutus 2200 RMS Monoblock amp. The subs Voice coils are hooked in parallel giving me roughly a 2 Ohm load per speaker. So these babies are capable of getting 1100 amps RMS each but I don't push them that hard because I really don't need too and I want them to last. They hit harder than any sub I have ever bought and I am a solid NVX believer now. I also just bought the entry level NSW122s at a great deal, 2 for $99! If you are thinking about these, DO IT! You will not be disappointed one bit, and then you will likely not even consider anything else but NVX when it comes to serious performance and value.

By Ja_surplus on June 3, 2014

138 found this helpful


NVX for the win NVX>ALPINE FOR SURE!!!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

Took long to get home but worth the wait out of the box it was just an impressive subwoofer triple stack good looking and made Super tuff loaded them to a ported box and theyre louder than my broken in alpine type R subs i just love them definitely hi def sound thumbs up to nvx thanks sonicelectronix

By ARTILLERY CAR CLUB on January 16, 2014

124 found this helpful


great bass

The following review is for VCW124v3, which is a part of the bundle you are viewing.

The weight of the NVX Sub is nice and the bass is dumping.

By fresh on October 13, 2014

124 found this helpful


awsom powding bass beastly subwoofer

The following review is for VCW124v3, which is a part of the bundle you are viewing.

i recommend this subwoofer to any one who is looking to get big bass for the right money i have three of these in a q power three hole m.d.f box and running them off of a 3000 watt s.p.l amp and all i have to say is holey chees and bees knees i can hear the bass six block's away and feel the bass running on to my chest from three and people have told me when i am washing my car and i have every thing playing start's to knock their china and glass cups out from their place. i plan to un pug one until i get another battery as well as a battery isolator do to my head light's diming and having to jump start my car every now and then i already got a strike Capacitor that is 10 farad so as soon as that all comes in BOOM im back is business ... other than that al i got left to say is that give it a try and i know you will love it... i was a kicker hater i always hated those subwoofer's and when i heard them in my friend's car on a boss amp i was wowd so when i was told that n.v.x was just as good as m.t.x i said to my self i will try one for my self and i loved them so much i bought three as well as a q power 3 hole box

By shaun on August 25, 2014

124 found this helpful


NVX is a great company

The following review is for VCW124v3, which is a part of the bundle you are viewing.

Ok first off let me say my last system was 2 american bass xfl 12 (old style baskets) on a crescendo 2000d at .5ohm..could burp a mid 147db at 35hz.. had that setup for over a year..
anyhow i sold everything and went almost a entire year with NO bass at all..not even a cd player..
so i decided to get back into audio again..I 1st heard of nvx from mazda2284 on youtube.. and after talking to him i decided to order some nvx products..
i have 2 of these vcw 12s on a BELVA 5000d.. wired to 1ohm and gains set and O SCOPED for a CLEAN 2000w.. i have a 180a alternator and 150amp hr of battery bank and 0g wires..
i have these subs in a 3.8 cubic foot NET (meaning each sub really sees 1.9 cubes each) using 14" of port per cubic foot and tuned to 30hz..
i 1st tried the recommended 1.2 cube ported box but the ouput was absolutely HORRIBLE.. the 1.9 cubes REALLY made them come to life
they are JUST as loud as my xfls were and play a good bit lower also (xfls struggled below 25hz these nvx's play 20hz EASILY)
and they take the power all day long.. with my voltage dropping to around 13.2s full tilt i can play for a constant 1hr and the subs are still COOL and so is the amp

By jake on May 9, 2013

119 found this helpful


Buy it NOW before it's doubled in price!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

These subs are the BEST I have ever owned or heard anywhere and the price is way bellow what their competitors are asking for similar subs at NVX specs. I own 3 of these babies and am planning on buyin nothing but these subs for my subwoofer needs. Buy these subs NOW at these prices while you still can because the are definitely going to get more expensive and soon too. My next purchase will be for the VCW15 for another home subwoofer custome build. I only wish they made an 18" subwoofer for my current 18" subwoofer satellite custome built box that is good but could be so much better with an NVX subwoofer at its core. Amazing sound, quality, and value!

By Jlircs on September 30, 2014

120 found this helpful


amazing spl,sq, sub buy it !!!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

i just got this sub have it in a 1.8 cube box at 30 hz when i say 1.8 thats what the sub is getting with all displacements. this sub hits lows better than any sub i have heard in my life amazing then it still bangs every other note as well its just all around amazing powering a kicker 1200.1 and eating up the power has 20xmax wich is amazing as well just well built and flawless design buy this subwoofer

By zfenton on April 23, 2014

111 found this helpful




E5 small

FiiO E5 (McKinley) Portable Clip-On Headphone Amplifier

Single Input and Output 1/8" (3.5mm) Interface and USB Rechargeable Battery

(42)

$34.99

List price $39.95

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2013 Audi A5

2011 BMW 335i

2024 Dodge Durango

2010 Acura MDX

2015 MINI Cooper

2017 Audi Q3

1994 Plymouth Colt

2014 Jeep Compass

2015 Audi A5

2006 Kia Sorento

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
