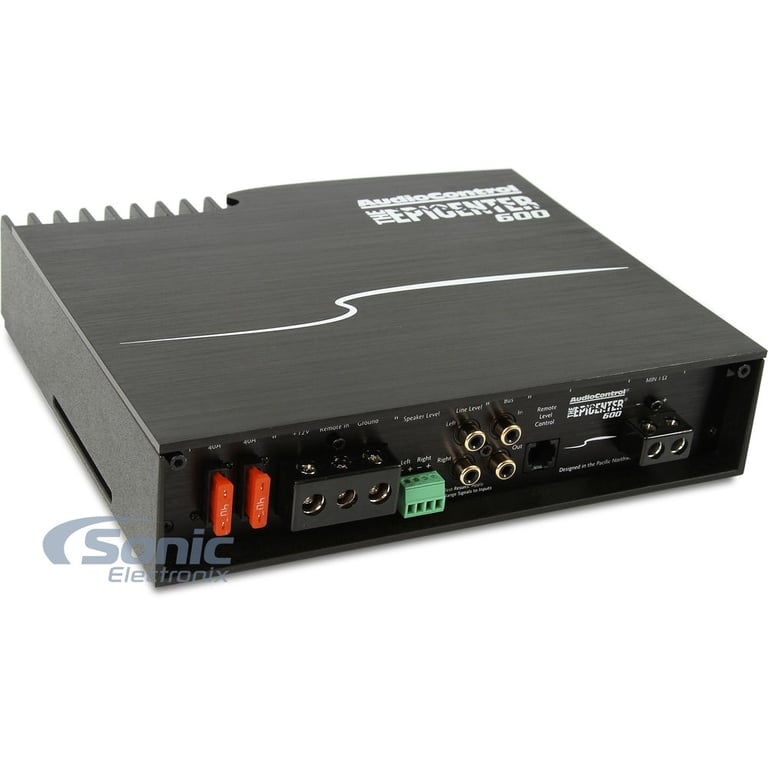

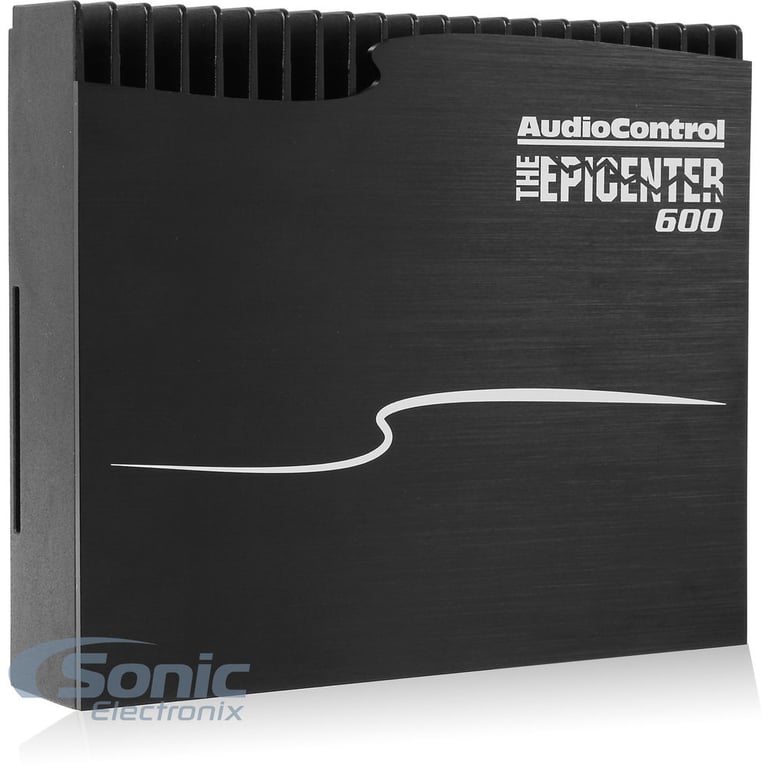

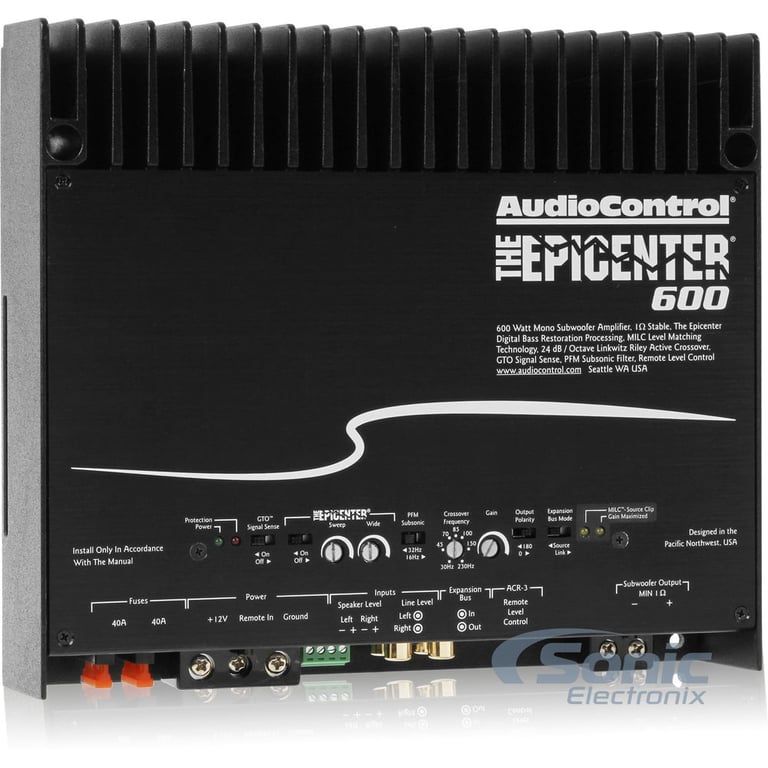

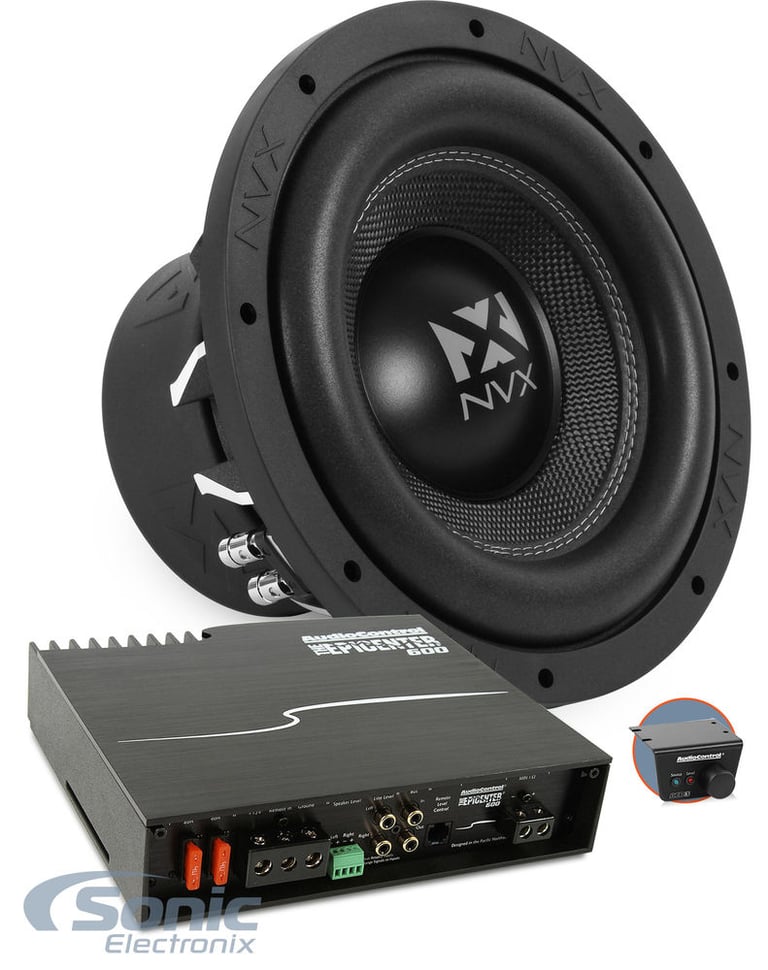

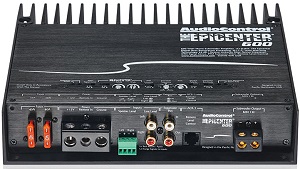

AudioControl The Epicenter 600
600W RMS Monoblock Epicenter Series Class D Amplifier w/ The Epicenter Bass Restoration Built-In
Quantity: 1
General Features:
- The Epicenter Monoblock Class D Car Amplifier
- RMS Power Rating:
- 4 ohm: 200 watts x 1 chan.
- 2 ohm: 350 watts x 1 chan.
- 1 ohm: 600 watts x 1 chan.
- Sonic Electronix Certified Power Rating*:
- 4 ohm: 262 watts x 1 chan.
- 2 ohm: 413 watts x 1 chan.
- 1 ohm: 611 watts x 1 chan.
- LED power (green) and protect (red) indicators
- Soft start turn-on
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Gold plated speaker and RCA terminals
- THE EPICENTER® Digital Bass Restoration Built-in
- MILC™ Maximum Input Level Control
- Maximum Input Level Control prevents clipping and damaging distortion
- 24 dB/octave Linkwitz-Riley Alignment Crossover
- GTO Signal Sense
- PFM Subsonic Filter

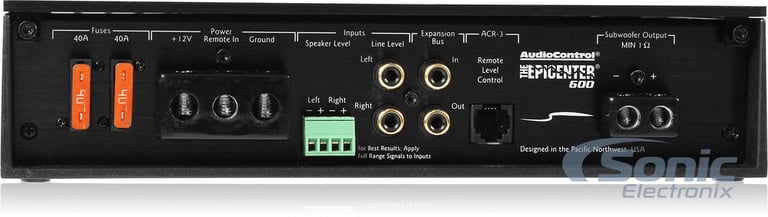

- Line-Level RCA Inputs and Active Speaker-Level Inputs
- Expansion Bus
- Allows two or more amps to be controlled by one set of controls
- Solid One-Piece Aluminum Chassis

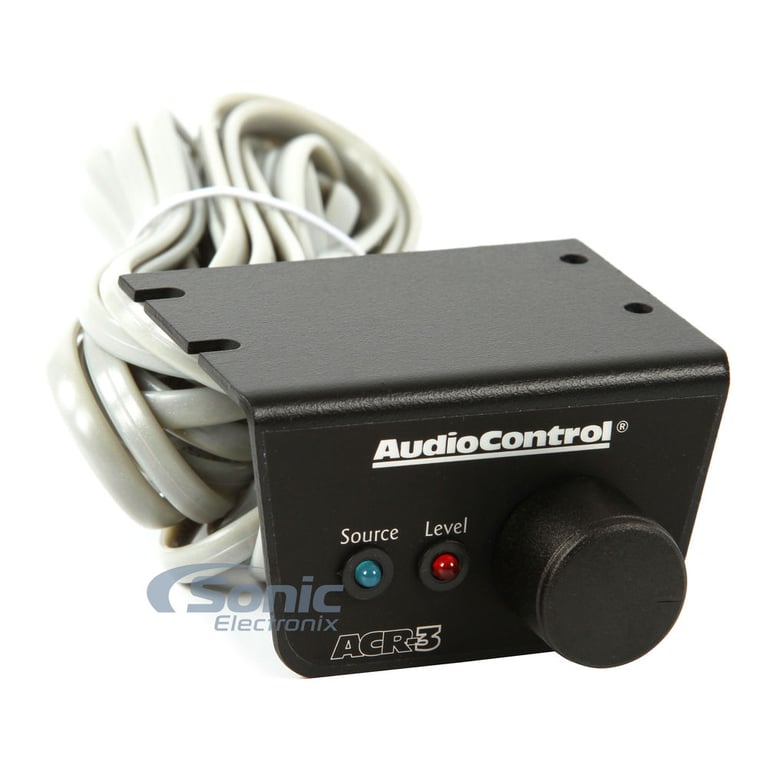

- ACR-3 Remote Control for Subwoofer Level and THE EPICENTER® effect
- Input sensitivity: 200mV - 6V
- Frequency Response: 16 - 250 Hz
- Total Harmonic Distortion (THD): <0.1%
- Signal to Noise Ration: 104 dBa, Ref 600 W at 1 Ohm
- Damping Factor: 670 at 10 V, 4 Ohm Output, 100 Hz
- Variable low-pass filter: 30 - 250 Hz, 24 dB/octave Linkwitz-Riley
- Subsonic filter: Selectable 16 or 32 Hz , 18dB/Octave
- Phase Selector: 0 - 180°
- Fuse Rating: 40A x 2
- CEA-2006 compliant amplifier
- 4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
- Dimensions: 7.95"W x 9.00"L x 2.10"H
- Authorized Internet Dealer
- 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)
Check out the AudioControl The Epicenter 600 Owner's Manual
*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

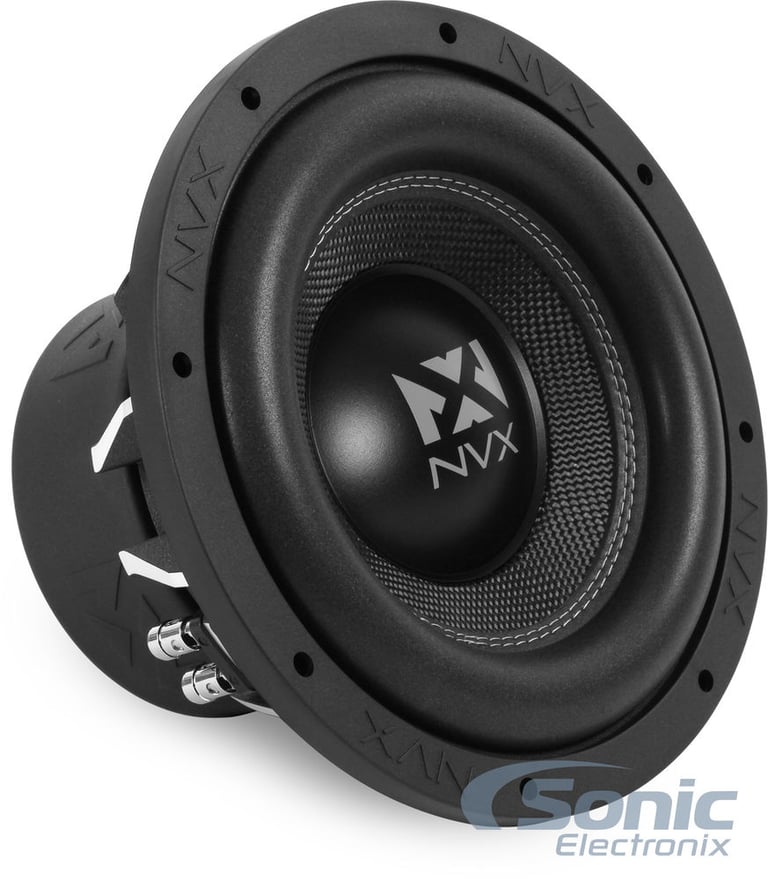

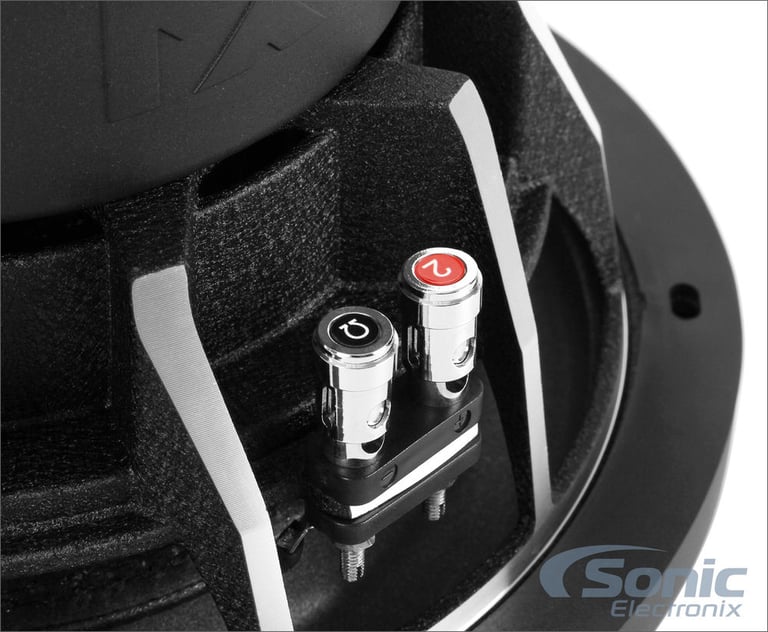

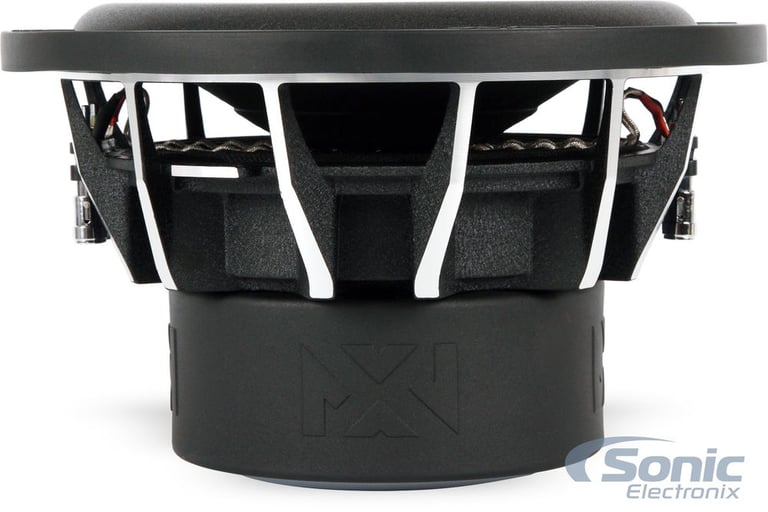

NVX VCW102
750W 10" VC-Series Dual 2-ohm Car Subwoofer
Quantity: 1
General Features:
- 10" Dual 2-ohm VC-Series Car Subwoofer
- Power Handling:
- RMS: 750 watts
- Recommended Power Range: 600 - 750 Watts RMS
- Impedance: Dual 2 ohm

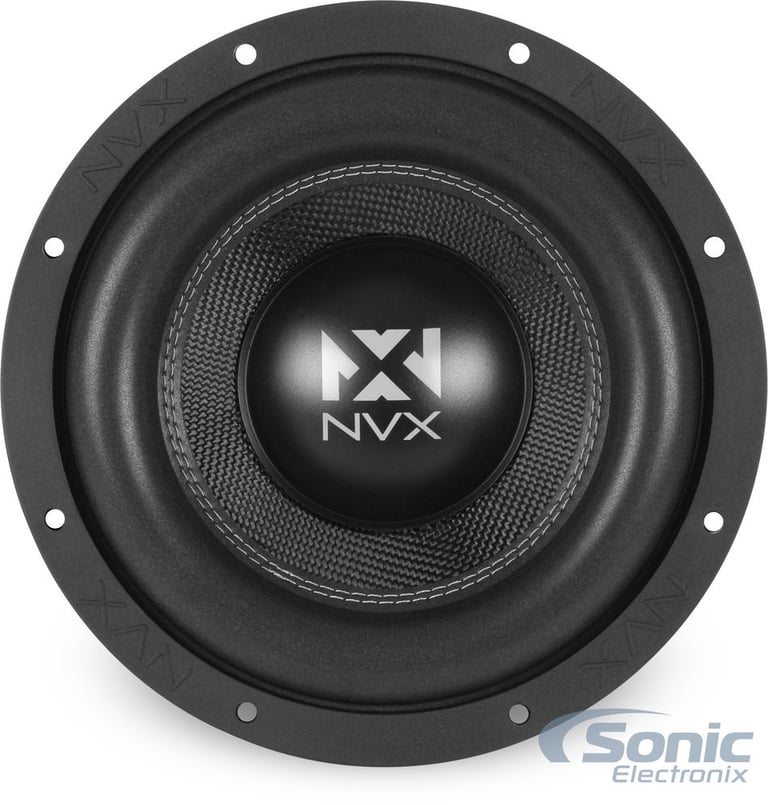

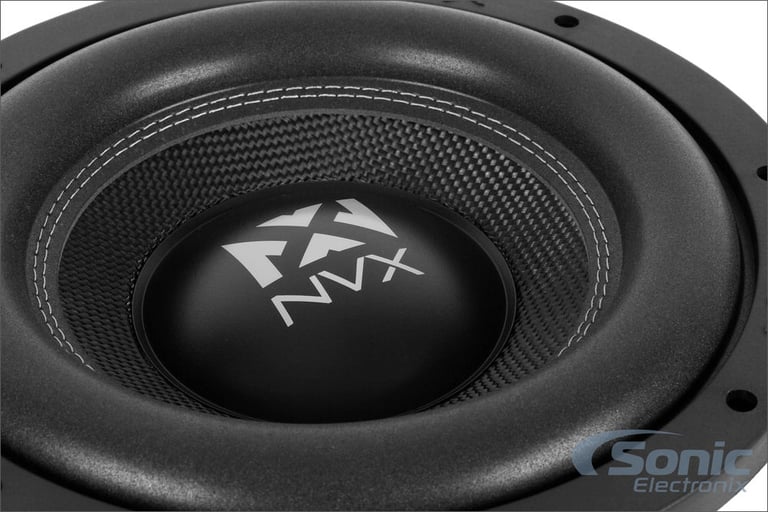

- Pressed paper cone with woven fiber top
- Custom High Roll foam surround with Nylon stitching
- Die-Cast aluminum basket for maximum rigidity
- Dual Poly-Cotton Spiders
- 2-1/2" Aluminum Voice coil

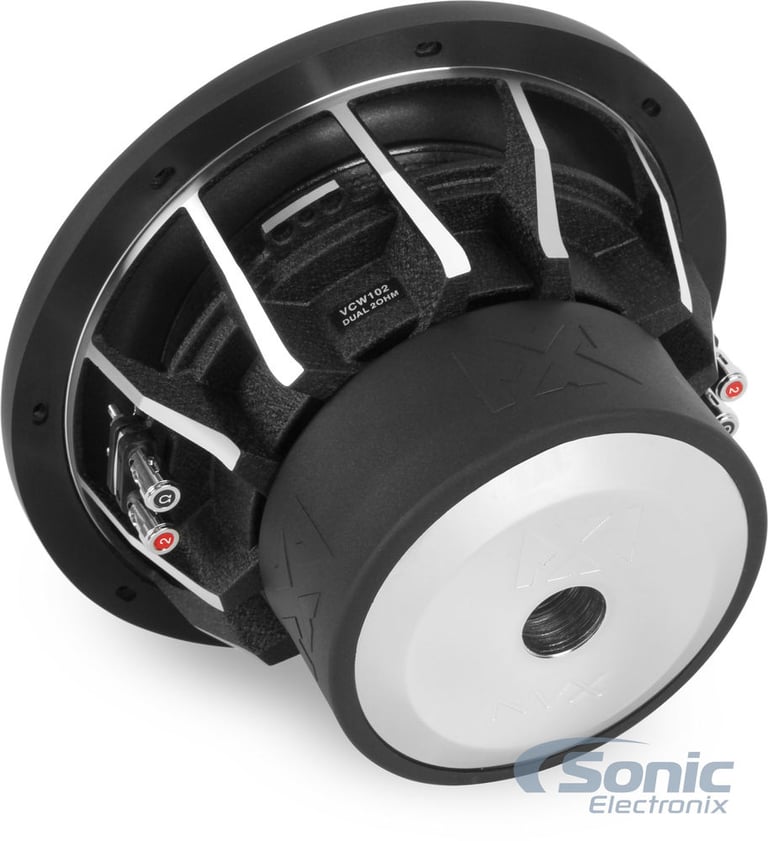

- 127oz. Triple stacked Ferite magnet motor structure with protective rubber boot
- Frequency response: 20-220 Hz
- Resonance Frequency (Fs): 29 Hz
- Optimal sealed box volume .70 cubic feet
- Optimal ported box volume: 1.50 cubic feet
- Top-mount depth: 6"
- Sensitivity: 83dB
- NVX VCW10GR protective subwoofer grille available (Sold Separately)
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Additional Information:
*CEA-2031 Compliant: All CEA-2031 compliant loudspeakers adopt the same testing and measurement methods so comparing them side by side is easy. Loudspeakers include car speakers and subwoofers. The Consumer Electronics Association created new testing and measurement methods for mobile loudspeaker systems that define test procedures for rating the performance and physical size of speakers. This is important because you can now compare different speakers on the same playing field. Any manufacturers who adopt the CEA-2031 logo product mark can be compared evenly to other speaker manufacturers with the same mark.
Need Help Convincing Yourself That You Need A 10" Subwoofer?: Check out our K-Base Article, that breaks down the difference in sound generated by the four most common subwoofer sizes. Click Here to read about the Differences In Subwoofer Sizes.
Check out the VC-Series Owner's Manual
