Massive Audio Drago 5K (D5K)

5000W Max (2600W RMS) Drago Series Class D 1-Ohm Stable Monoblock Amplifier

Massive Audio
Shop all Massive Audio
Product videos
highlight-star-icon

• 1400 Watts RMS x 1 @ 2 ohm
• 2600 Watts RMS x 1 @ 1 ohm
• Total Peak Power: 5200 Watts
• Variable low-pass filter: 30 - 250 Hz, 24 dB/octave
• Preamp RCA outputs to daisy chain multiple amps
• Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
• Dimensions: 9.4"W x 17.7"L x 2.3"H

Learn more about the d5k

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

C2-650X main

JL Audio C2-650x

120W RMS 6.5" C2 Series 2-Way Coaxial 4-ohm Car Speakers

26
51KSS6704 main

Kicker KSS67 (51KSS6704)

500W Peak (250W RMS) 6.75" KS Series 2 Way Component 4-ohm Speaker System

1
-10.71%

$249.99

List price $279.99

Limited time!

Infinity Kappa 603CF (INFSPKKA603CFAM)

660W Peak (220W RMS) 6.5" Kappa Series 2 Way 3-ohm Component Speaker System

6
-28.00%

$359.95

List price $499.95

Product Highlights


• 1400 Watts RMS x 1 @ 2 ohm
• 2600 Watts RMS x 1 @ 1 ohm
• Total Peak Power: 5200 Watts
• Variable low-pass filter: 30 - 250 Hz, 24 dB/octave
• Preamp RCA outputs to daisy chain multiple amps
• Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
• Dimensions: 9.4"W x 17.7"L x 2.3"H

Description


Massive Audio brand icon

Authorized dealer

General Features:

  • Massive Audio Drago Series D5K
  • Class-D 1-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 2 ohm: 1400 watts x 1 chan.
    • 1 ohm: 2600 watts x 1 chan.
  • Total power output: 5200 watts
  • Pulse Width Modulated MOSFET power supply

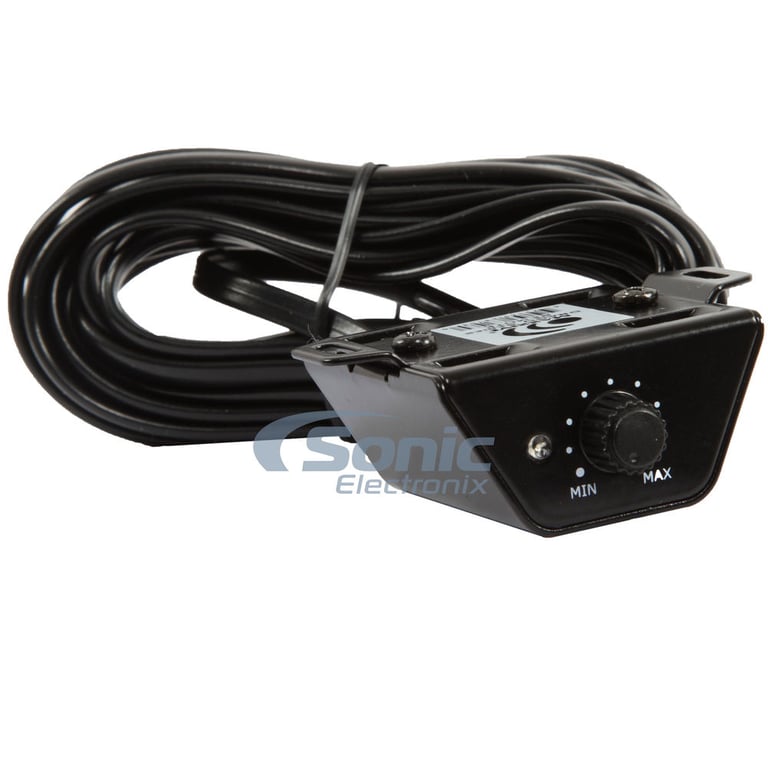

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 200mV to 8V
  • Frequency Response: 10 - 350 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ration: >90 dB
  • Variable low-pass filter: 30 - 250 Hz, 24 dB/octave
  • Subsonic filter: 10 - 60 Hz , 24 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
  • Phase Shift: 0° to 180°
  • 0 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9.4"W x 17.7"L x 2.3"H
  • 1-year Manufacturer's Warranty

Message from the Manufacturer: Any of these high performance products that have been diagnosed with Burnt PCBs or burnt voice coils due to electrical damage, operating beyond designed limitations or improper installation will be subject o repair or replacement charges.



Loading...
SB-F-EXPED4G/10TW1 main

JL Audio Stealthbox® SB-F-EXPED4G/10TW1

Custom-Fit Loaded 10" Subwoofer Enclosure for select 2018-2024 Expedition and Expedition Max

$1,449.99

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 2 ohms
1400 watts x 1 channel
RMS Power @ 1 ohm
2600 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 2 ohms
2800 watts x 1 channel
Peak Power @ 1 ohm
5200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
5200 watts
Total RMS Power Output
2600 watts
THD at Rated RMS Power
<1%
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
10 - 60 Hz
Signal-to-Noise Ratio
>90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Strappable
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

D5K

Weight:

7.00lbs

Internal SKU:

d5k

Internal Product ID:

107449
