43CXA300.1 | 600 Watt Monoblock Class-D Amplifier | Kicker

Kicker CXA300.1 Amplifier (43CXA300.1)

600W Peak (300W RMS) Monoblock Class-D Subwoofer Car Amplifier

600W Peak (300W RMS) Monoblock Class-D Subwoofer Car Amplifier


• 150 Watts RMS x 1 @ 4 ohms
• 300 Watts RMS x 1 @ 2 ohms
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Dimensions: 7-3/16"W x 8-1/8"L x 2-3/8"H

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

46cxa4001 thumbnail

Kicker CXA400.1 (46CXA4001)

OUR PRICE: $169.95

View item
DESCRIPTION
Kicker

Authorized dealer

Mount a Kicker CX amp vertically to save space

The CX Series spans all kinds of systems, whether you're just trying to get a little more out of your factory radio or you're ready to blow the doors off with a completely aftermarket setup. Either way, the quality of your sound is at the heart of the CX Series. Sleek, simple styling and installation flexibility all round out the amplifiers' functionality.

Kicker makes your installation simple, but gives you plenty of options. Make it easy on yourself when plugging in with Kicker's KISL so you can take high-level signal from the headunit's speaker outputs straight into the amp's RCA input. Also, most models are just more than two inches thick and included brackets allow you to install these vertically. If space is at a premium in your ride, the CX series gives off plenty of power while saving you some room.

CXA300.1

The CXA300.1 puts the thunder in your bass. This Class-D 2-ohm stable single channel amp is built to handle 300 watts at 2 ohms for 1 channel, or 150 watts at 4 ohms.

Like most of the amps in the CX series, it's easy to control your bass output from the driver's seat. Pick up a Kicker CXARC wired remote bass level control, plug it in, and optimize your sound easily.

Under the hood

The CX Series has a lot of built-in technology to make sure your system just keeps going for the long haul. With litz-wound transformers to maximize power transfer while minimizing power loss, high current switching, buffered RCA outputs, these amps are built to put out lasting, quality power.

These amps also include their own crossovers and an adjustable KickEQ Bass Boost. A 3-second turn-on delay helps eliminate any additional interference that might affect your system.

Power a sub or a whole system with Kicker CX amps

But these amps also have Kicker's Failsafe Integration Technology inside. That means they can take signal from any audio source and run it straight into the amp. For you, it means no need for line-out converters, step down modules, processors or less conventional wiring to complete your system. Kicker's FIT eliminated the need for additional equipment that could introduce additional noise to your signal. It even works well with factory amplified systems from other premium brands.

For a potent, versatile power solution for your sound system, pick up as many CX Series amps as you need here at Sonic Electronix. Add one, or however many you need, to your cart today.

Kicker Authorized Dealer

General Features:

  • Kicker CX Series CXA300.1
  • Class-D 2-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 150 watts x 1 chan.
    • 2 ohms: 300 watts x 1 chan.
  • Total power output: 600 watts
  • Pulse Width Modulated MOSFET power supply
  • Kicker CXARC wired remote bass level control available and sold separately
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Speaker-level (high-level) inputs via RCA
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

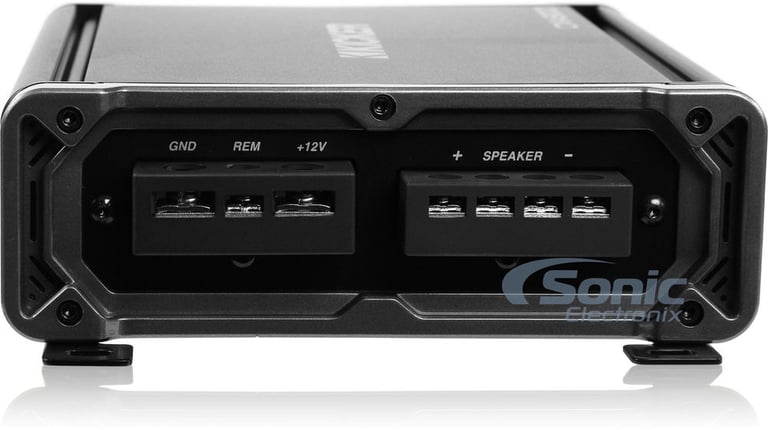

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Frequency Response: 25 - 200Hz
  • Signal to Noise Ration: >95dB
  • Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
  • Fixed Subsonic Filter @ 25hz, 24db/octave
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 7-3/16"W x 8-1/8"L x 2-3/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Kicker 46CXA4001T thumbnail
(newest, current model)
Kicker 43CXA300.1 thumbnail
(previous model, replaced by Kicker CXA400.1 (46CXA4001))
Kicker CX300.1 thumbnail
(previous model, replaced by Kicker CXA300.1 Amplifier (43CXA300.1))
FEATURES & SPECS
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
150 watts x 1 channels
RMS Power @ 2 ohms
300 watts x 1 channels
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
300 watts x 1 channels
Peak Power @ 2 ohms
600 watts x 1 channels
Amplifier Specifications
Amplifier Series
CX (Kicker)
Marine Certified
No
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
600 watts
Total RMS Power Output
300 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1.00%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
25 - 200 Hz
Subsonic Filter
25 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 12 dB
Bass/Gain Remote
Optional (Accessory required and sold separately)
Fan Cooled
No
Strappable
No
CEA-2006 Compliant
Yes
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer
What is in the box?
WITB: Amplifiers
Amplifier

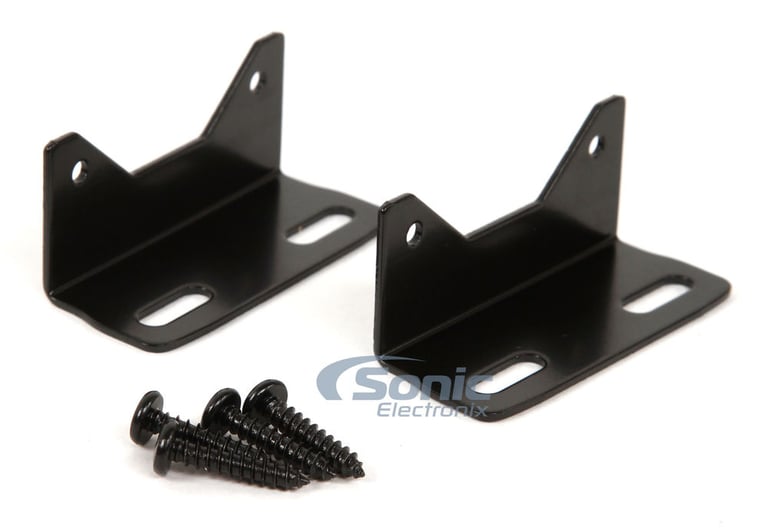

Mounting screws (4)
Paperwork
User manual
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
