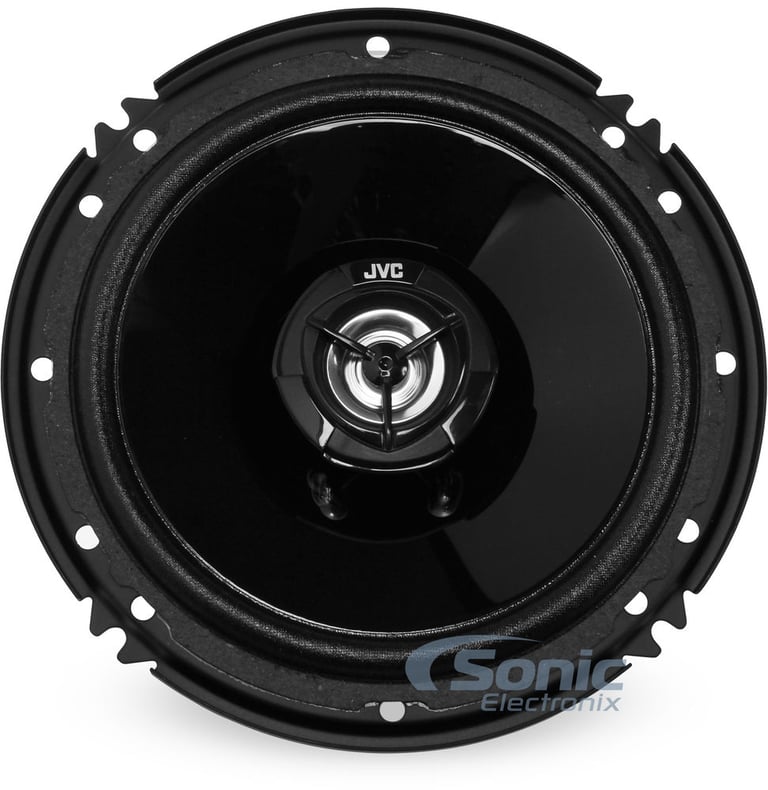

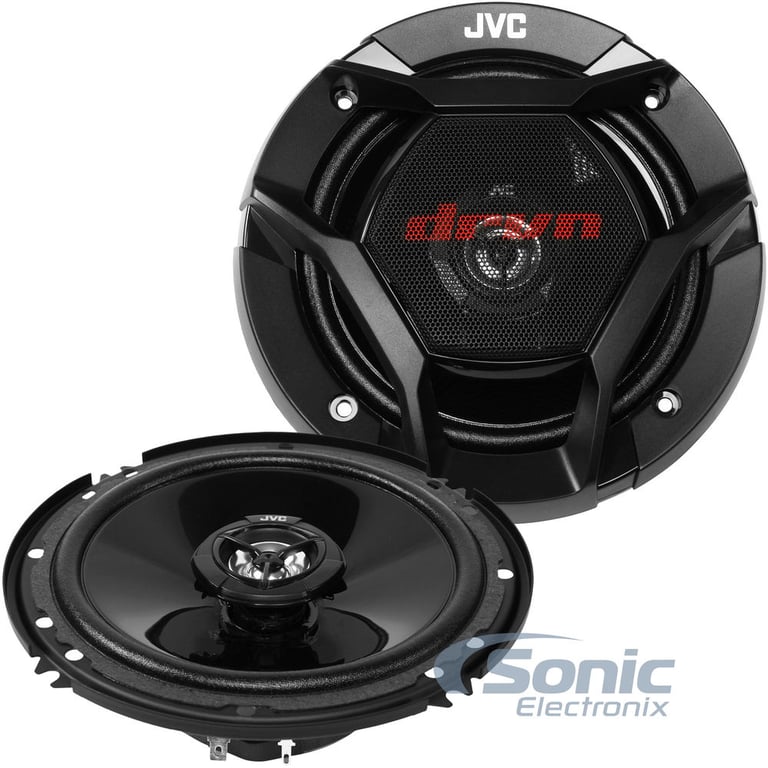

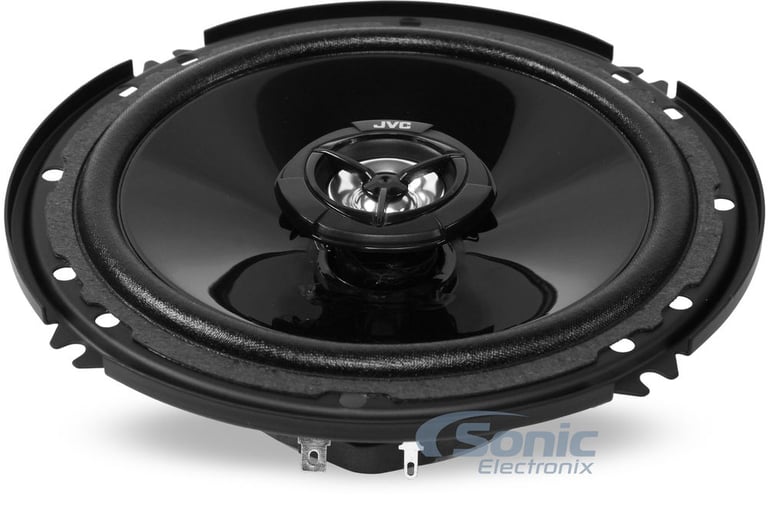

JVC CS-DR620

600W Peak (100W RMS) 6.5” DR Series 2-Way Coaxial Car Speakers

JVC
Shop all JVC
Product videos
highlight-star-icon

• 300 watts Peak Each, 50 watts RMS Each
• 1" Poly-Ether Imide Balanced Dome Tweeters
• Carbon Mica cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB

Learn more about the csdr620

We apologize

This item has been discontinued


Loading...
99-7006 main

Metra 99-7006 Dash Kit

Install a new Single-DIN car stereo in select 1995-1999 Eclipse and Talon

-10.00%

$35.99

List price $39.99

KDC-X705 main

Kenwood eXcelon KDC-X705

Single DIN CD Multimedia Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

4
-18.21%

$229.00

List price $280.00

Limited time!
Kappa 63XF main

Infinity Kappa 63XF (INFSPKKA63XFAM)

510W Peak (170W RMS) 6.5" Kappa Series 2 Way Coaxial 3-ohm Speakers

10
-33.34%

$199.95

List price $299.95

iLX-407 main

Alpine iLX-407

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

7
-16.93%

$539.95

List price $650.00

Limited time!
XR-1701 main

Kenwood eXcelon XR-1701

600W Peak (200W RMS) 6.5" eXcelon Reference Series 2-Way Coaxial 3-ohm Car Speakers (Hi-Res Audio Certified)

3
-38.28%

$179.00

List price $290.00

Limited time!
KFC-1066S main

Kenwood KFC-1066S

440W Peak (42W RMS) 4" Sport Series 2-Way Coaxial 4-ohm Car Speakers

4
-38.75%

$49.00

List price $80.00

Product Highlights


• 300 watts Peak Each, 50 watts RMS Each
• 1" Poly-Ether Imide Balanced Dome Tweeters
• Carbon Mica cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB

Description


JVC brand icon

Authorized dealer

Will fit most 6x9" and 5x7"/6x8" locations,
with appropriate speaker adapter. Click "Related Items" Tab.

Product Details:

  • Power Handling:
    • Peak: 600 watts per pair / 300 watts each
    • RMS: 100 watts per pair / 50 watts each
  • Carbon Mica cone material
  • Hybrid Surround (Rubber & Cloth) speaker surround
  • 1" Poly-Ether Imide Balanced Dome Tweeters
  • Small design tweeter cover
  • Wide opening grill
  • Great factory replacement

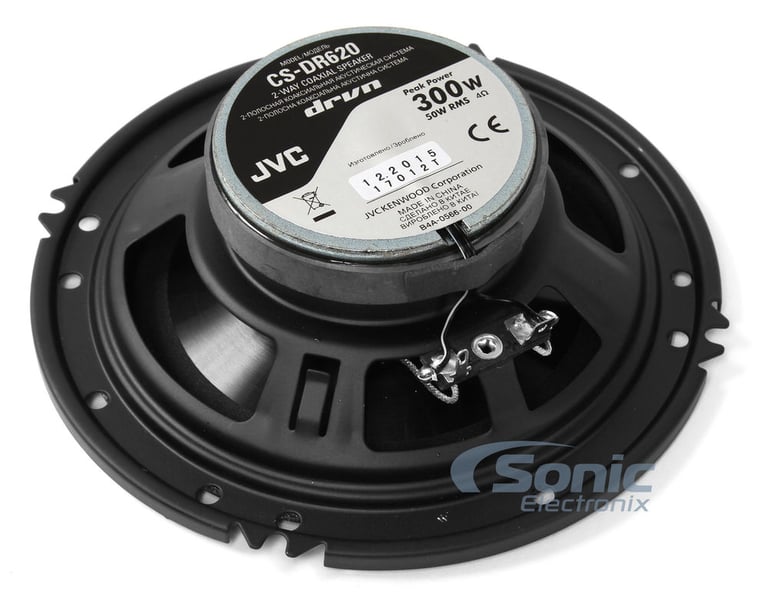

  • 6.4 oz. Neodymium magnet motor structure
  • Top-mount Depth: 1-3/4"
  • Cutout Dimensions: 4-15/16"
  • Impedance: 4 ohm
  • Frequency Response: 85 - 23800 Hz
  • Sensitivity: 89 dB
  • Grilles included
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Per Pair

Product history:

JVC CS-DR620-2 thumbnail
(newest, current model)
JVC CS-V628 thumbnail
(previous model, replaced by JVC CS-DR620)
JVC CS-V627 thumbnail
(previous model, replaced by JVC CS-V628)
JVC CS-V626 thumbnail
(previous model, replaced by JVC CS-V627)
JVC CS-V625 thumbnail
(previous model, replaced by JVC CS-V626)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

AVH-2550NEX main

Pioneer AVH-2550NEX

6.8" Double DIN Touchscreen DVD Receiver with Bluetooth, Apple CarPlay, and Android Auto (SiriusXM Ready)

-13.33%

$650.00

List price $750.00


Best selling similar products

46CSC654 small

Kicker CSC65 (46CSC654)

• 300 watts Peak Each, 100 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(122)

$79.96

List price $119.99

43DSC6504 small

Kicker DSC650 (43DSC6504)

• 240 watts Peak Each, 60 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome zero-protrusion tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(28)

$84.99

List price $94.99

DB652 small

Polk Audio DB652 (DB 652)

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(12)

$109.00

List price $119.99

Club 622 small

JBL Club 622

• 180 watts Peak Each, 60 watts RMS Each
• Silk Edge Driven Dome tweeters with 0dB or -3dB adjustable output levels
• UV-Resistant Polypropylene cone material with Plus One woofer cone architecture
• Impedance: 3 ohm
• Sensitivity: 93 dB

(5)

$99.95

List price $139.95

NSP65 small

NVX NSP65

• 270 watts Peak Each, 90 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB
• Mounting Depth: 2.40"

(93)

$69.99

List price $107.99

Club 620F small

JBL Club 620F (SPKCB620FAM)

• 165 watts Peak Each, 55 watts RMS Each
• 3/4" PEI (Polyetherimide) Balanced Dome tweeters
• UV-resistant Polypropylene cone material with Plus One woofer cone architecture
• Impedance: 3 ohm
• Sensitivity: 92 dB

(2)

$79.95

List price $129.95

XED62 small

Cerwin-Vega XED62

• 300 watts Peak Each, 35 watts RMS Each
• 3/4" Piezo Metal Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 94 dB

(15)

$49.99

List price $59.99

R165X3 small

Rockford Fosgate Prime R165X3

• 90 watts Peak Each, 45 watts RMS Each
• 1/2" Piezo pole-mounted Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

(154)

$69.99

List price $79.99

VSP65 small

NVX VSP65

• 300 watts Peak Each, 100 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB
• Mounting Depth: 2.51"

(64)

$109.99

List price $129.99

KFC-X175 small

Kenwood eXcelon KFC-X175

• 240 watts Peak Each, 80 watts RMS Each
• 1" Soft Dome Tweeters
• Injection Molded Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

$111.50

List price $180.00

Specifications & Details


Speaker Specifications
Priced Per
Pair
Number of Speakers
2
Speaker Size
6-1/2"
Design
2-way Coaxial
Tweeter Design
Balanced Dome
Tweeter Size
1"
Tweeter Composition
Poly-Ether Imide
Woofer Composition
Carbon Mica
Woofer Surround
Hybrid Surround (Rubber & Cloth)
Peak Power Handling
300 watts
RMS Power Handling
50 watts
Total PEAK Per Pair/Set
600 watts
Total RMS Per Pair/Set
100 watts
Sensitivity
89 dB
Frequency Response
85 - 23800 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Magnet weight
6.4 oz.
Magnet Type
Neodymium
Top-Mount Depth (Mounting Depth)
1-3/4"
Cutout Dimensions
4-15/16"
CTA-2031 Compliant
No
General specifications
Marine Certified
No
Hi-Res Certified
No
Color
Black
Illumination
None
Speaker Grilles
Yes
What is in the box?
Paperwork
User manual
WITB: Speakers
Speakers (2)

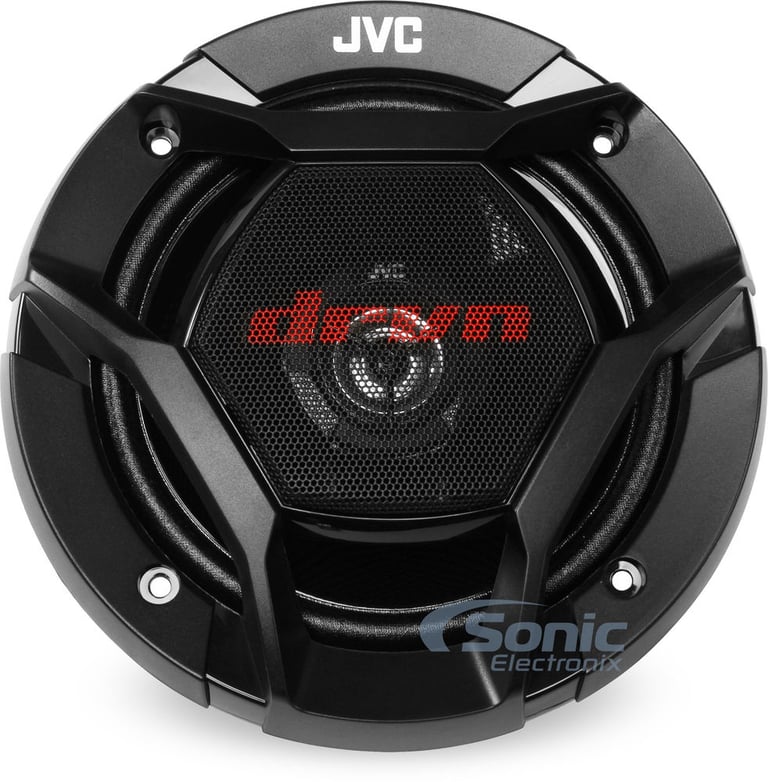

Grilles (2, attached)

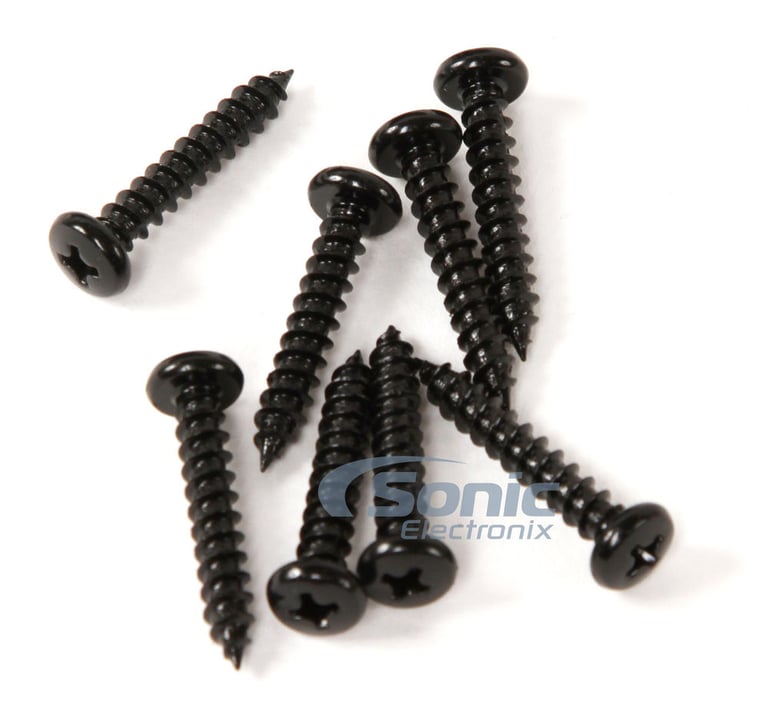

Mounting screws (8)
Mounting clips (8)

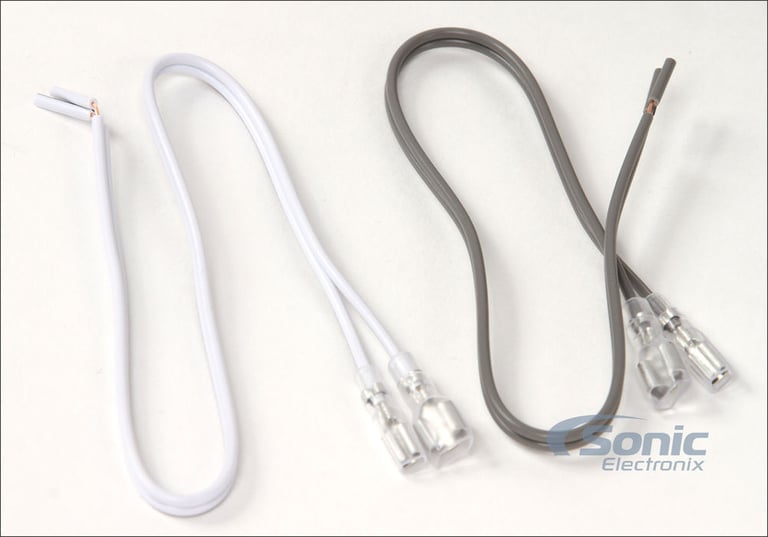

Speaker connection cables (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

CS-DR620-2

Weight:

5.00lbs

Internal SKU:

csdr620

Internal Product ID:

107797
