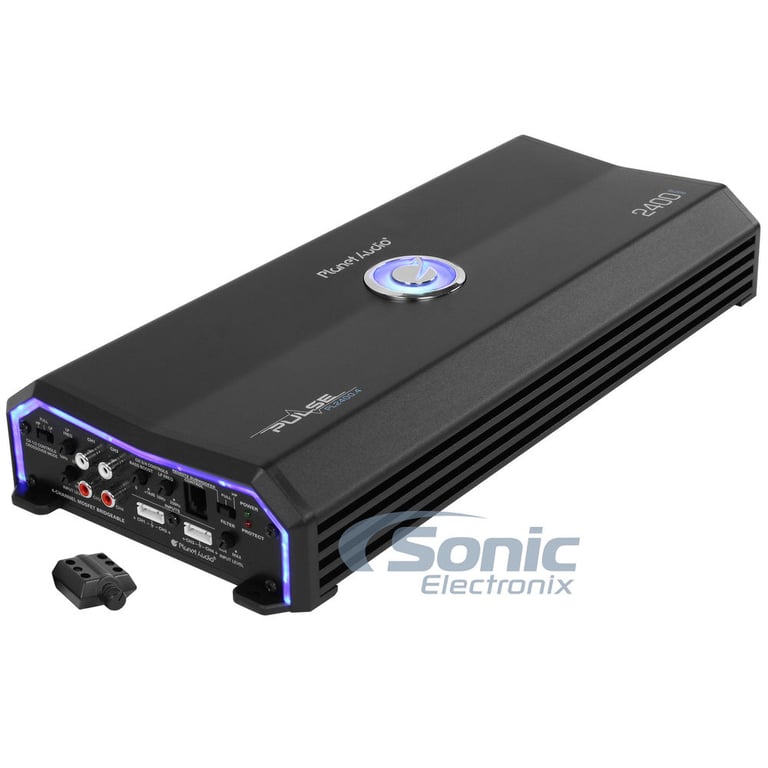

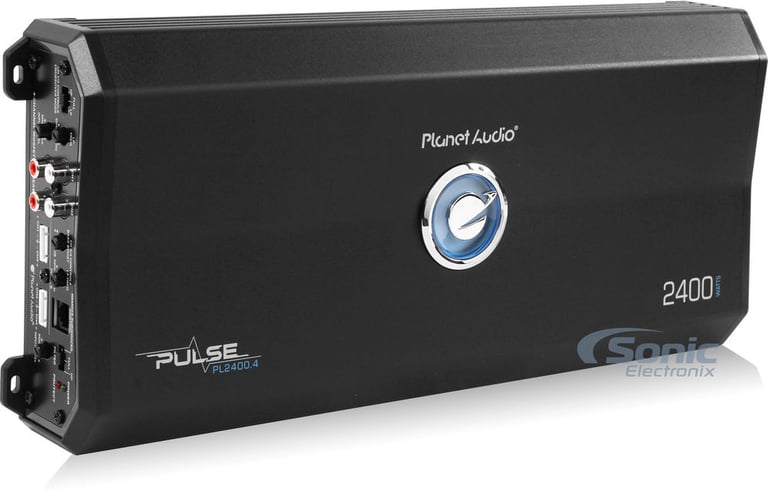

Planet Audio PL2400.4

2400W 4-Channel Pulse Series Bridgeable Car Amplifier

Product videos
highlight-star-icon

• Up to 225 W X 4 ohm
• Up to 450 W X 4 @ 2 ohm
• Bridged: Up to 900 W X 2 @ 4 ohm
• Total Peak Power: 2400 Watts
• Speaker-level (high-level) inputs
• Frequency Response: 9Hz - 50kHz
• Fixed high-pass filter: 200Hz
• Variable low-pass filter: 35 Hz to 160 Hz

Learn more about the pl24004

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DSX-A415BT main

Sony DSX-A415BT (DSXA415BT)

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

6
-21.33%

$118.00

List price $149.99

Limited time!
CST20 main

Kicker CST204 (46CST204)

200W Peak (100W RMS) 3/4” CS Series 4-ohm Titanium Dome Tweeters

21
-30.04%

$55.96

List price $79.99

XED1T main

Cerwin-Vega XED1T

1000W Peak (90W RMS) 1” XED Series 4-ohm Piezo Dome Tweeters

19
-16.67%

$29.99

List price $35.99

Product Highlights


• Up to 225 W X 4 ohm
• Up to 450 W X 4 @ 2 ohm
• Bridged: Up to 900 W X 2 @ 4 ohm
• Total Peak Power: 2400 Watts
• Speaker-level (high-level) inputs
• Frequency Response: 9Hz - 50kHz
• Fixed high-pass filter: 200Hz
• Variable low-pass filter: 35 Hz to 160 Hz

Description


Planet Audio brand icon

Authorized dealer

Planet Audio Authorized Dealer

General Features:

  • Planet Audio PL2400.4
  • Class-A/B FullRange 2-Ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: Up to 225 W X 4 chan.
    • 2 ohm: Up to 450 W X 4 chan.
    • Bridged, 4 ohm: Up to 900 W X 2 chan.

    *These are claimed wattages from the manufacturer and have not been verified from Sonic Electronix*

  • Total peak power output: 2400 watts
  • Pulse Width Modulated MOSFET power supply

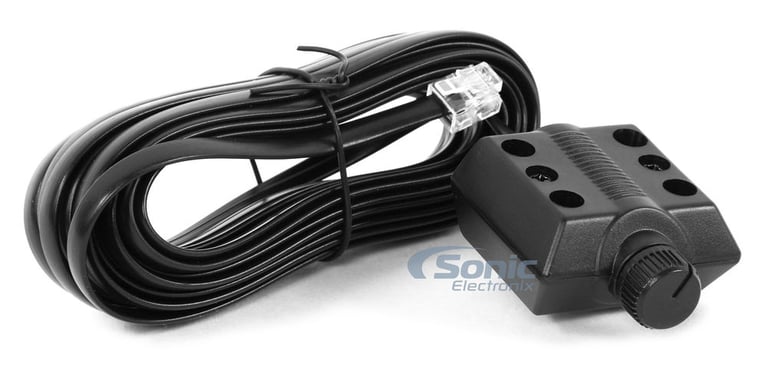

  • Wired remote bass level control included

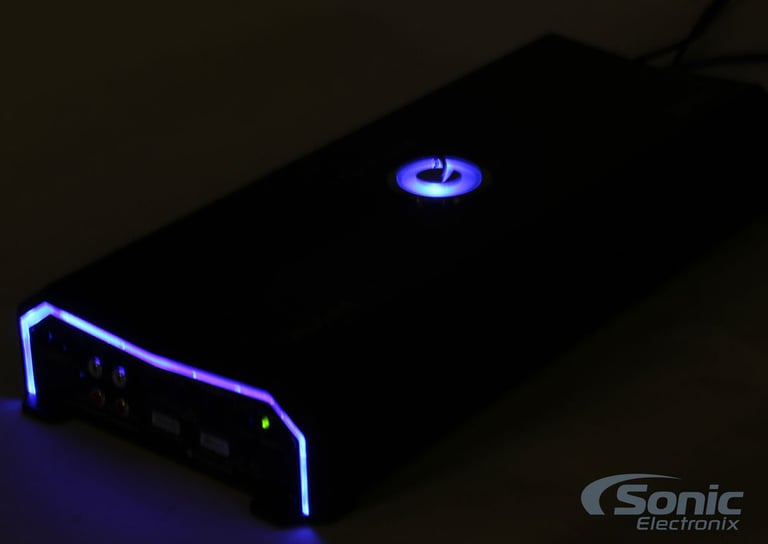

  • LED power (green) and protect (red) indicators
  • 4/3/2 channel operation
  • Soft start turn-on
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Black anodized heatsink
  • Frequency Response: 9Hz - 50kHz
  • Fixed high-pass filter: 200Hz
  • Variable low-pass filter: 35 Hz to 160 Hz
  • Variable Bass Boost: 0 to +18 dB bass boost
  • Fuse Rating: 35 A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 7"W x 15.875"L x 2.26"H
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty
Check out the Pulse Series Owner's Manual

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00


Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(22)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(111)

$209.99

List price $239.99

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(44)

$304.99

List price $379.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
225 watts x 4 channel
RMS Power @ 2 ohms
450 watts x 4 channel
Bridged RMS Power
900 watts x 2 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
300 watts x 4 channel
Peak Power @ 2 ohms
600 watts x 4 channel
Bridged Peak/Max Power
1200 watts x 2 channel
Amplifier Specifications
Series
Pulse Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
2400 watts
Total RMS Power Output
1800 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
9 - 50000 Hz
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Low-Pass Crossover Frequency
35 - 160 Hz
Signal-to-Noise Ratio
103 dB
Channel Separation
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
35A x 2
Total Fuse Rating
70
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No

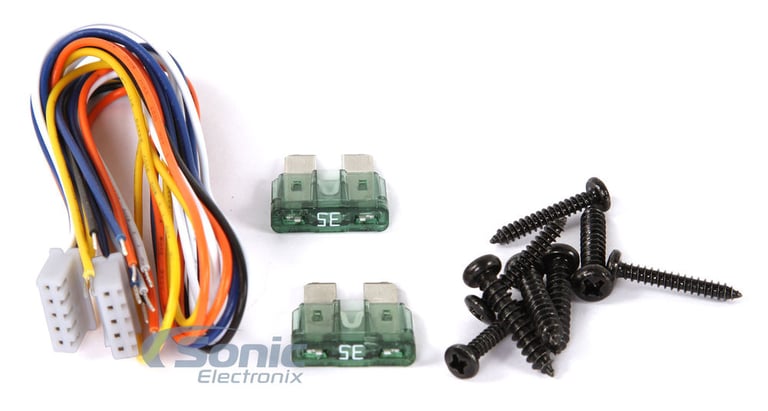

What is in the box?
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Mounting screws (6)
Two spare fuses
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PL2400.4

Weight:

8.60lbs

Internal SKU:

pl24004

Internal Product ID:

108553

Product and How-to Videos


Customer Ratings & Reviews


Planet Audio PL2400.4 thumbnail image

5 star
50%
4 star
25%
3 star
0%
2 star
0%
1 star
25%



Durability
3.8
Value
3.8
Features
3.8
Design
3.5
Usability
3.5

Customer Reviews

Sort by:

Loading...

No more expensive JL audio

I replaced my power hungry an expensive JL after 12yrs. This Planet Audio PL2400.4 turned out to be an awesome replacement at an excellent price.

By Triniboy on March 18, 2018

6 found this helpful


not a good amp

this amp is by means not what it is listed as, there is no way it puts out the power claimed and overheats after 20 minutes of use.
I'm running this amp solely on 4 prv 6.5-inch speakers, it not only doesn't produce loud music, but it also overheats excessively fast
all speakers are 4 ohms and I am running them via 1 speaker per channel.
JUNK

By ANTHONY on June 29, 2021

4 found this helpful


Great !!!!!

I recomended it's worth every penny I'm very happy to have this item.

By Eduardo on December 21, 2017

3 found this helpful
