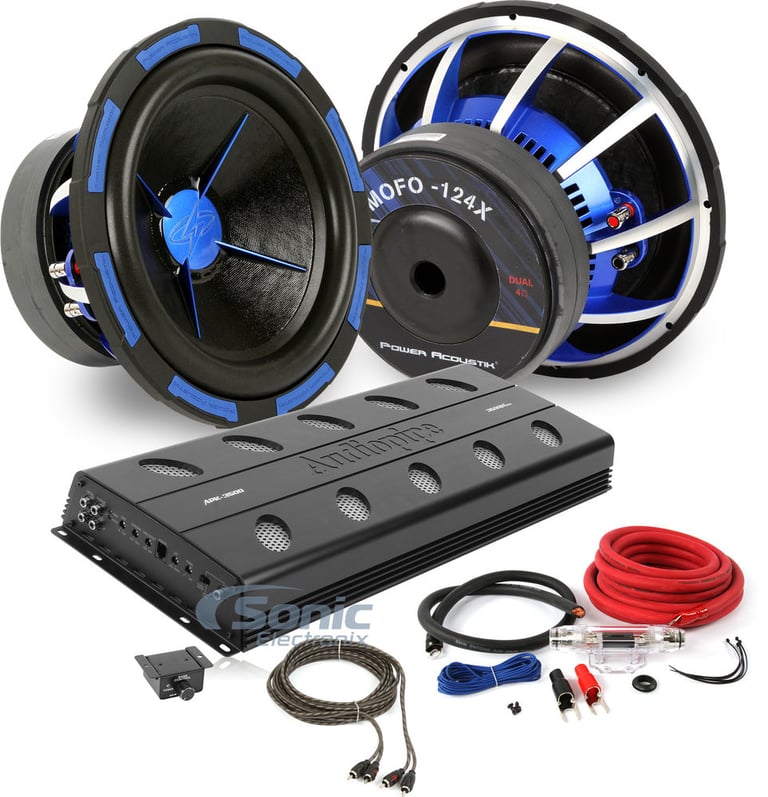

Audiopipe and PowerAcoustik Complete Amp and Subwoofer Upgrade Package

APK-3500 3500W Monoblock Amplifier + 2 MOFO-124X 12" Dual 4 ohm Subwoofers + TC6KIT-0B 1/0 Gauge OFC Amplifier Wiring Kit + 2-Ch RCA Cable

Product videos
highlight-star-icon

• RMS Power: 1040W x 1 @ 4 ohm, 1940W x 1 @ 2 ohm, 3000W x 1 @ 1 ohm
• Subwoofer: 1500W RMS
• 1/0 Gauge Power Amplifier Installation Kit
• 2 Channel RCA Audio Interconnect Cable

Learn more about the apk3500_mofo124x_tc6kit0b_bbic5

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

Product Highlights


• RMS Power: 1040W x 1 @ 4 ohm, 1940W x 1 @ 2 ohm, 3000W x 1 @ 1 ohm
• Subwoofer: 1500W RMS
• 1/0 Gauge Power Amplifier Installation Kit
• 2 Channel RCA Audio Interconnect Cable

Description


Audiopipe brand icon

Authorized dealer

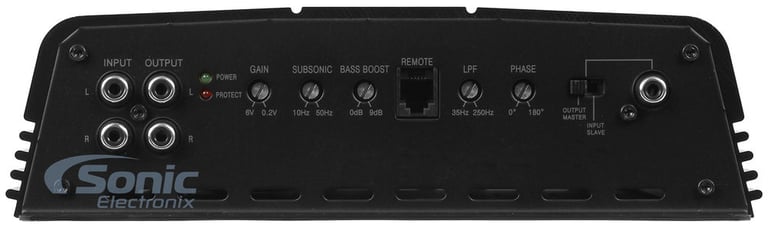

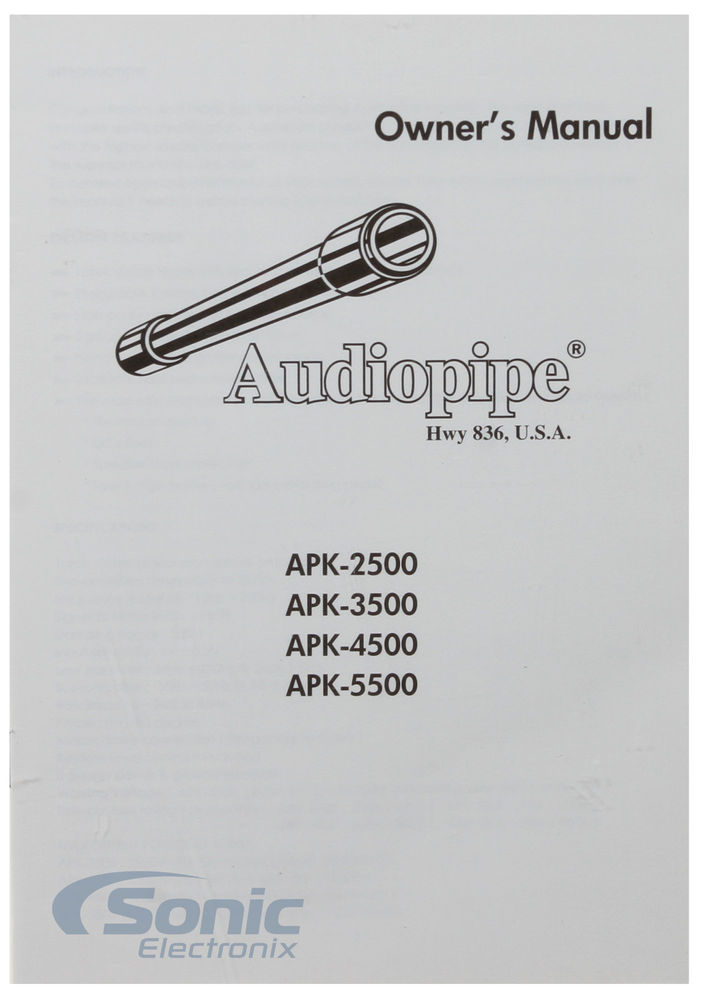

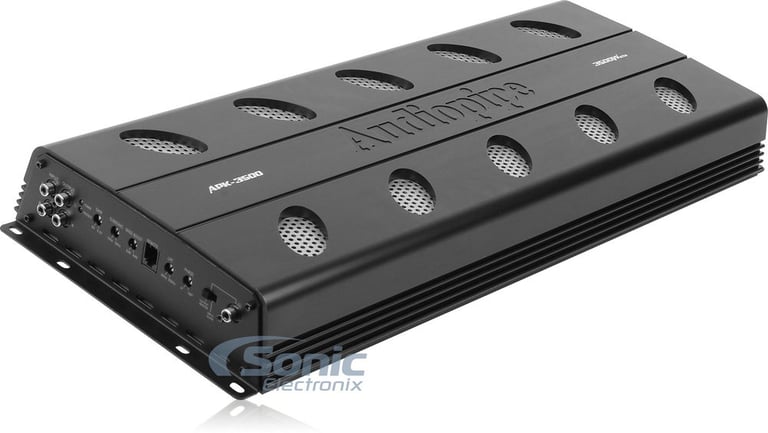

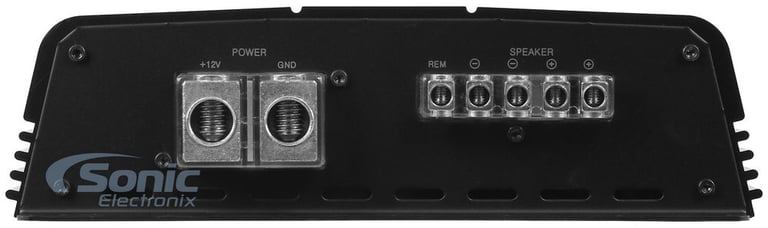

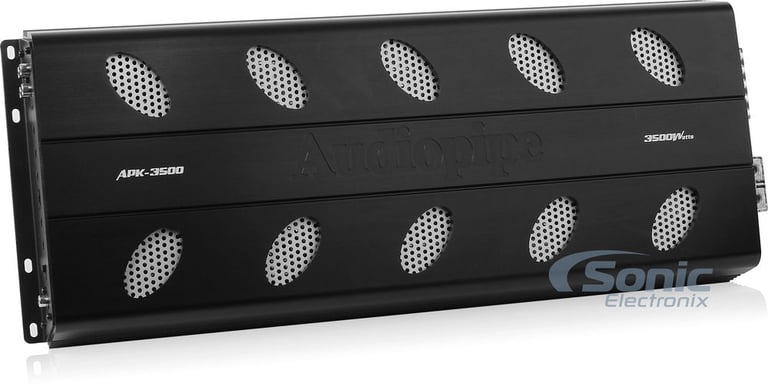

Audiopipe APK-3500

3500W APK Series Monoblock Class D Car Amplifier
Quantity: 1

General Features:

  • APK Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 1040 watts x 1 chan.
    • 2 ohm: 1940 watts x 1 chan.
    • 1 ohm: 3000 watts x 1 chan.
  • Max power output: 3500 watts
  • High purity copper trace circuit boards

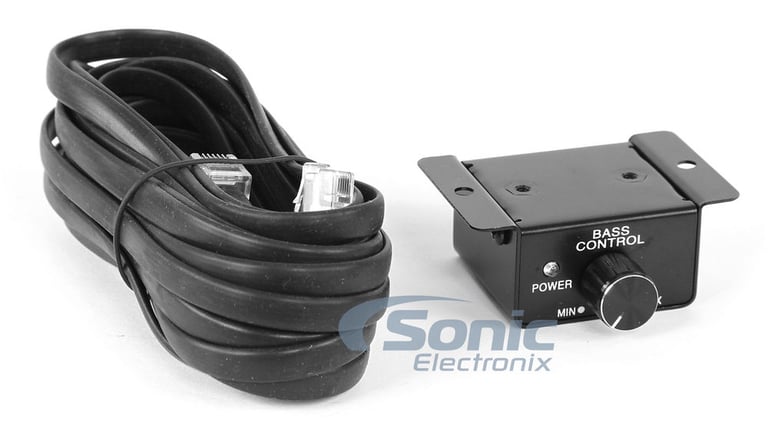

  • Wired remote bass level control included
  • Variable Bass Boost (0 to +9 dB bass boost at 45 Hz)
  • Mono channel operation
  • Variable low-pass filter (35-250 Hz, 24 dB/octave)
  • Subsonic filter (24 dB at 10-50 Hz)
  • 0/1 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 9"W x 21"L x 2.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

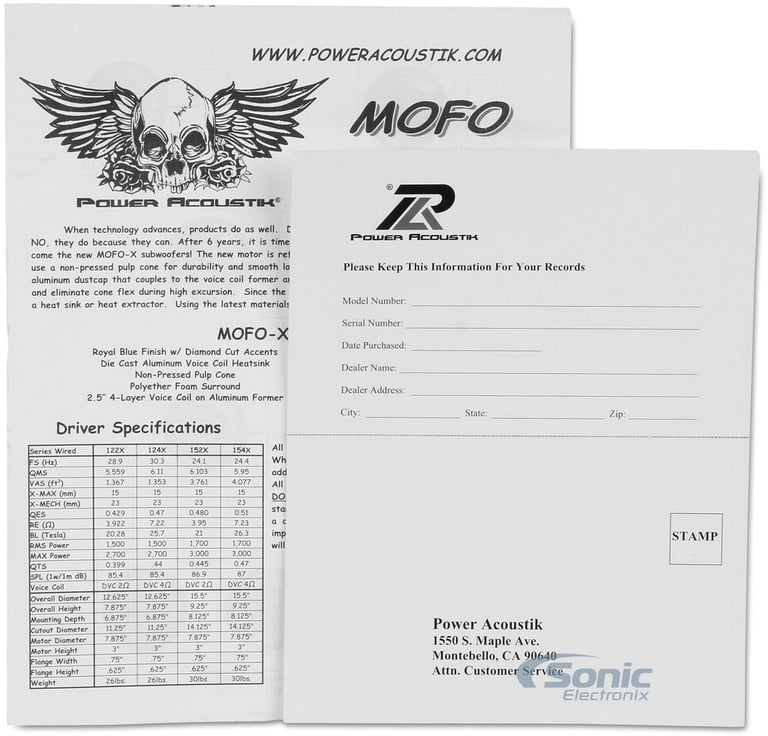

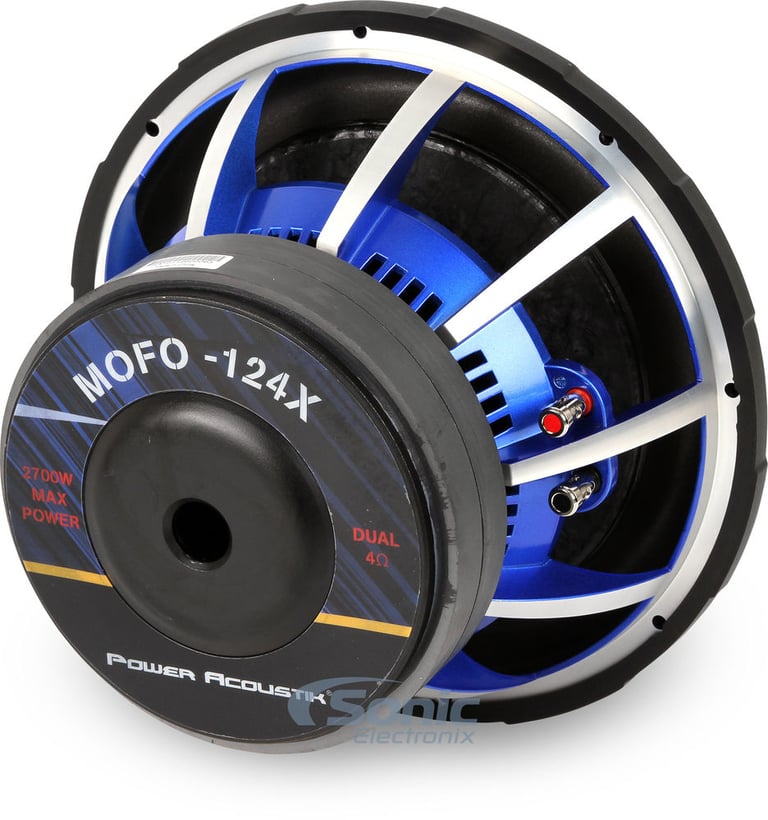

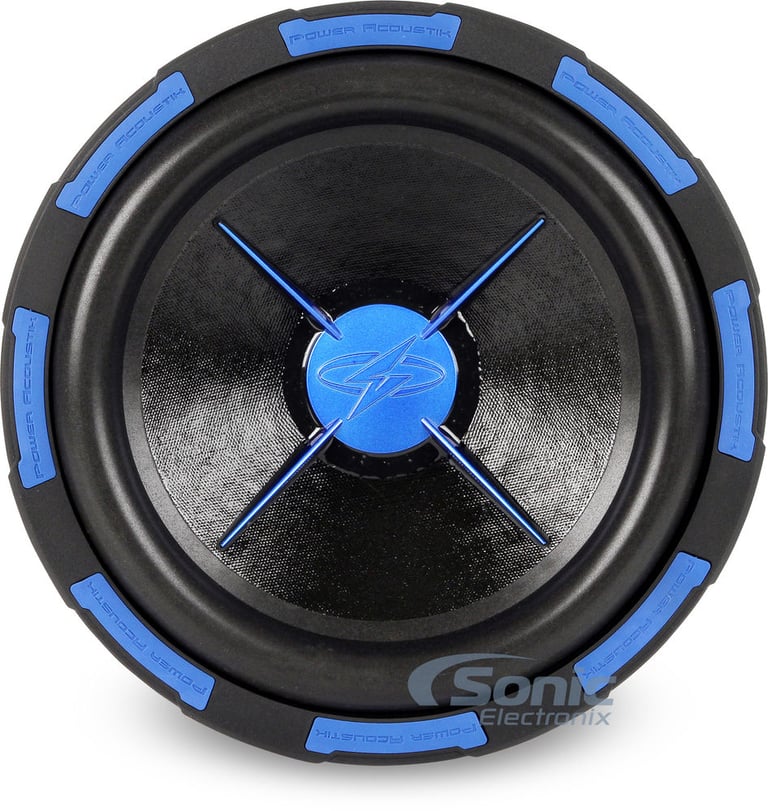

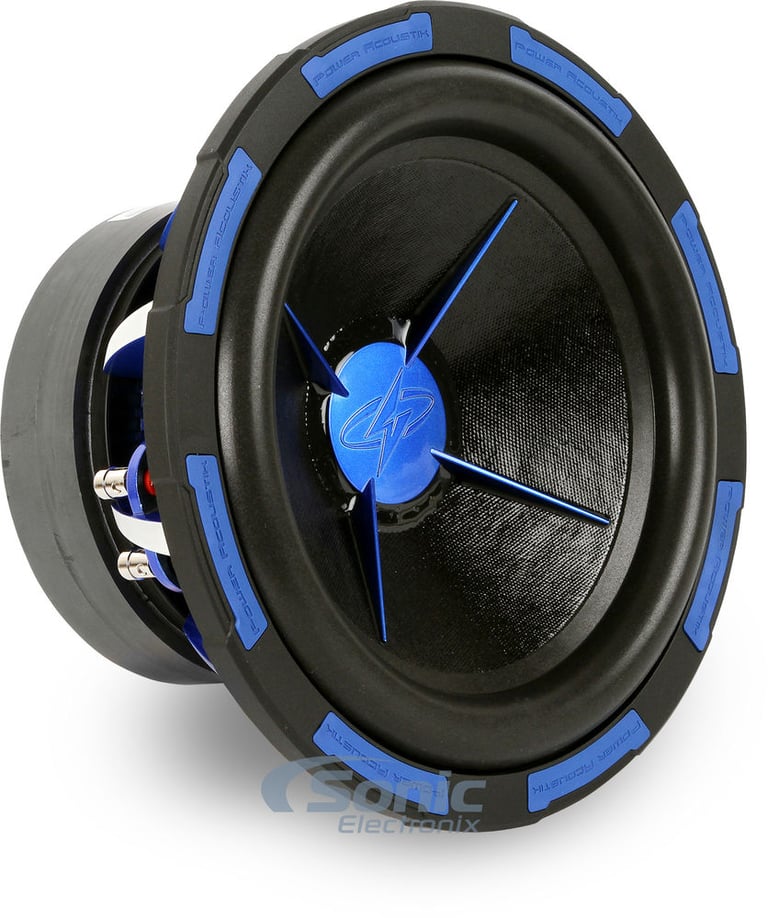

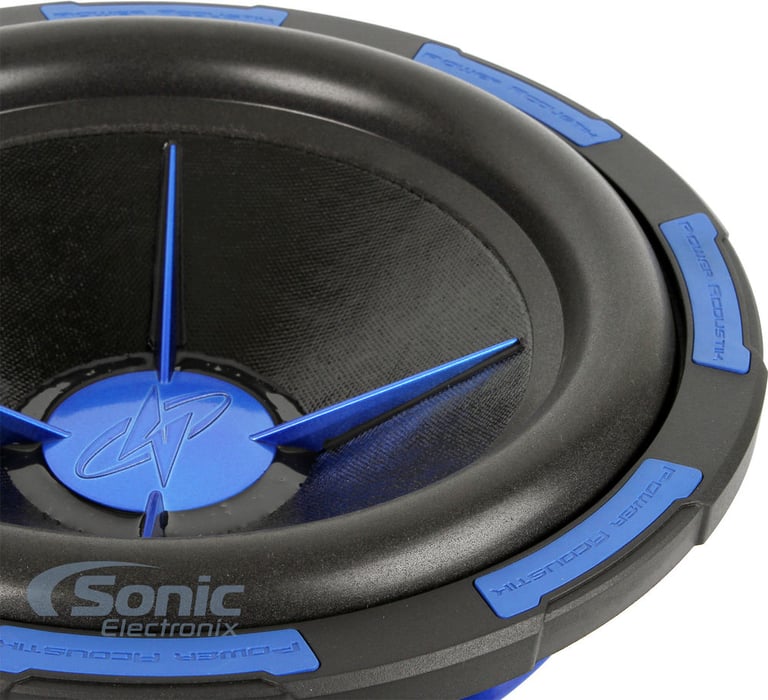

Power Acoustik MOFO-124X

2700W 12" MOFO Series Dual 4 ohm Subwoofer
Quantity: 2

General Features

  • 12" Dual 4 ohm Subwoofer
  • Power Handling:
    • Peak: 2700 watts
    • RMS: 1500 watts
  • Recommended power range: 1000 - 1500 watts RMS
  • Impedance: Dual 4 Ohm
  • Non pressed pulp cone woofer
  • Polyether foam surround for enhanced excursion
  • Die cast aluminum frame
  • 2-1/2" 4-layer voice coil
  • Anodized aluminum former

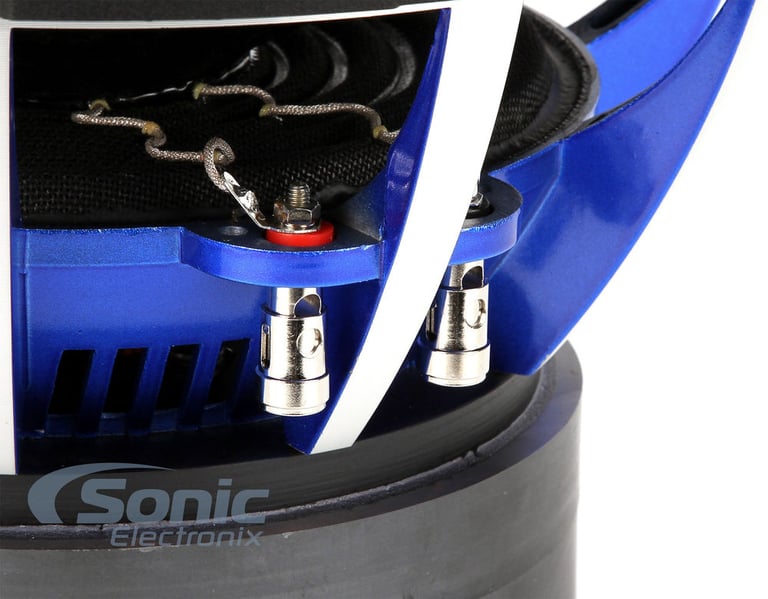

  • Nickel plated 8 gauge compression wire terminal
  • 170 oz Strontium ferrite magnet
  • Royal blue finish with diamond cut accents
  • Die cast aluminum voice coil heatsink
  • Dual poly cotton spiders
  • Vented pole piece
  • Mounting Depth: 6-15/16"
  • Recone Kit Power Acoustik MOFO-124X-RC
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

TruConnex TC6KIT-0B by Metra

1/0 Gauge Full Spec OFC Amplifier Wiring Kit for Systems up to 1500 Watts
Quantity: 1

General Features:

  • 1/0 gauge Power Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1500 watts
  • Premium Oxygen Free Copper power and ground wire provides optimal power transfer
  • Terminals are Nickel-plated for excellent signal transfer
  • ANL Fuse holder offers ideal protection
  • True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Package Includes:

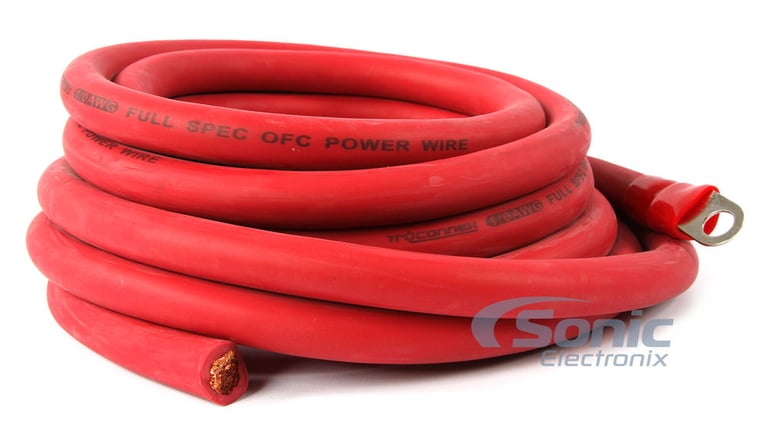

  1. 17 ft. of 1/0 AWG Red power cable
  2. 3 ft. of 1/0 AWG Gray ground cable

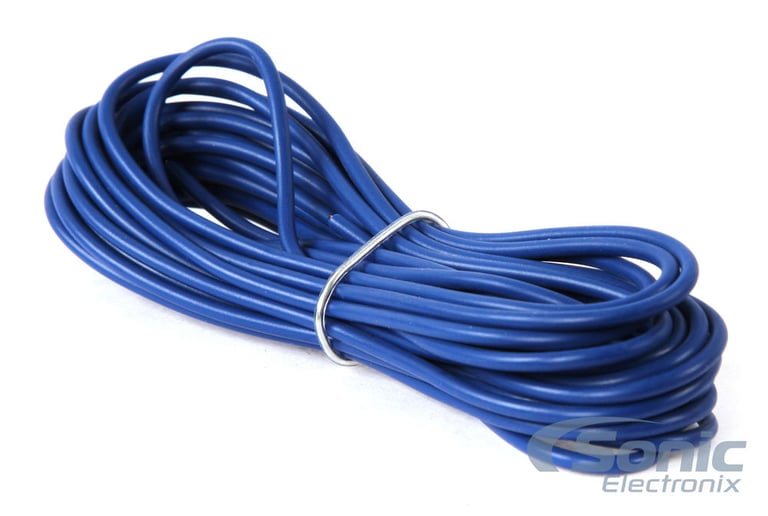

  3. 17 ft. of Blue remote turn-on wire

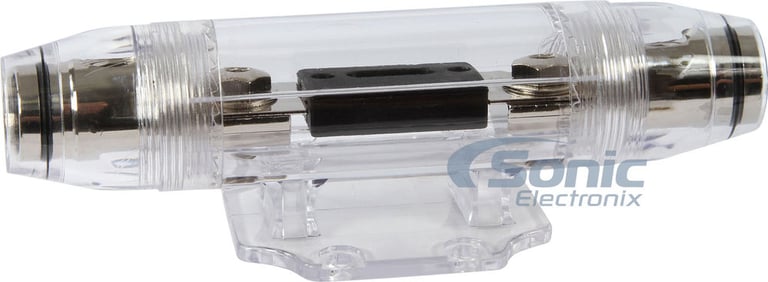

  4. In-line mini ANL fuseholder
  5. 60 Amp mini ANL fuse
  6. Ring Terminals
  7. Ground Terminals
  8. Vinyl Cable Ties
  9. Screws
  10. Butt connectors

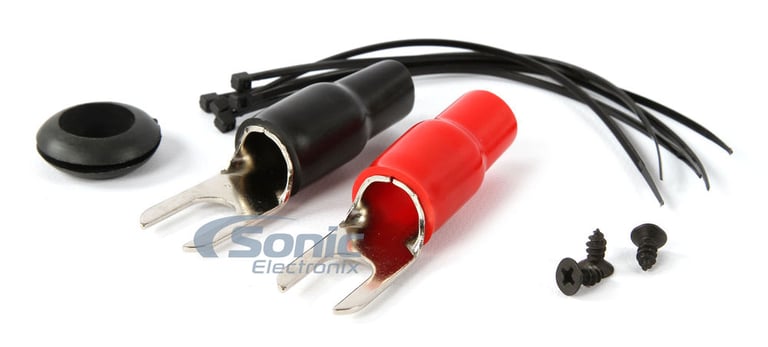

  11. Spade Terminals
  12. Grommets

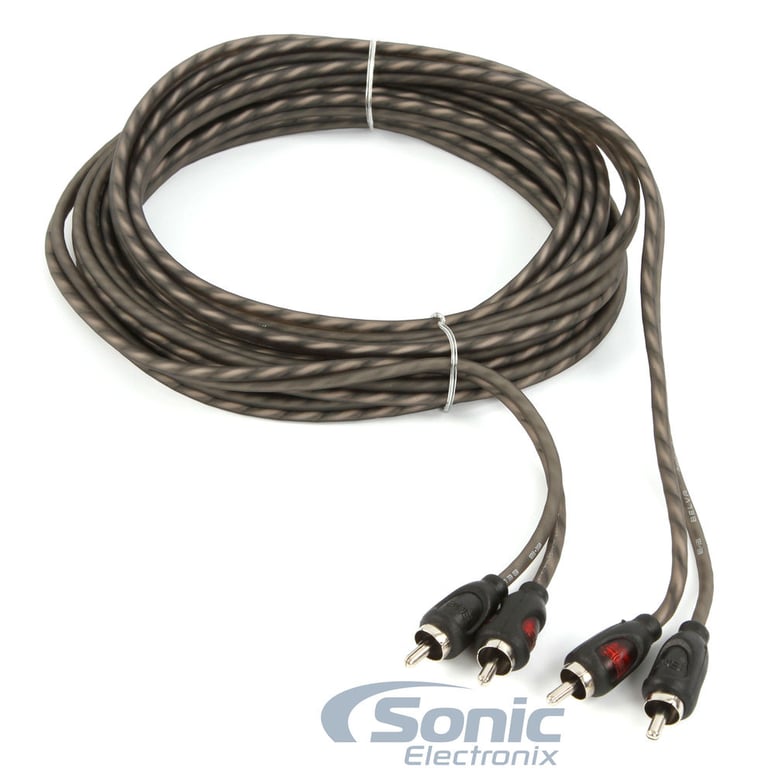

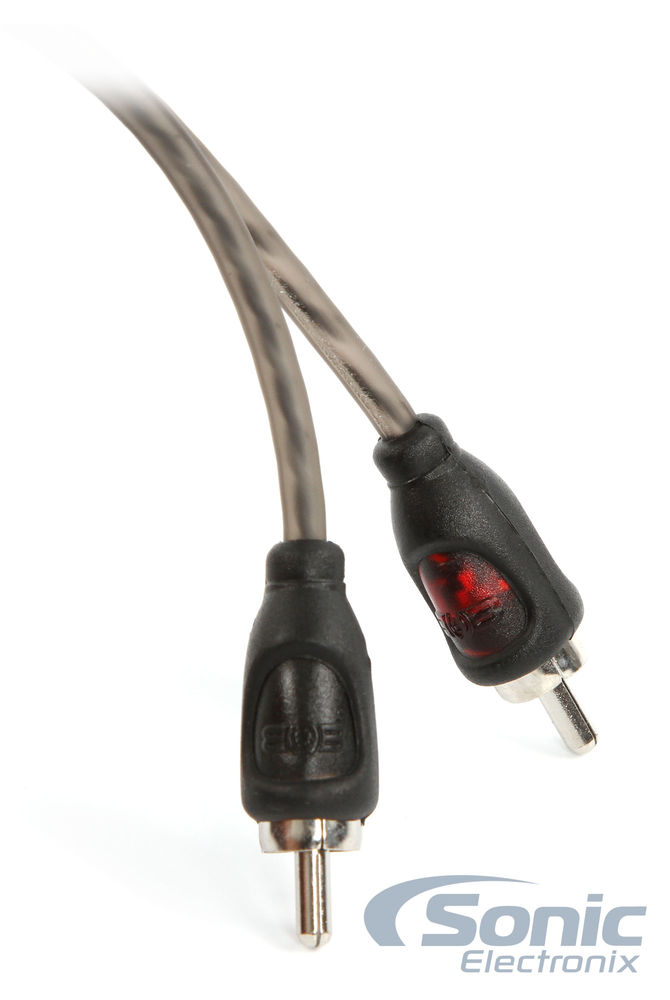

Belva BBIC5

5m (16.4 Ft) 2-Channel RCA Audio Interconnect Cable (CCA)
Quantity: 1

General Features:

  • Audio Interconnect Cable (CCA)
  • 2-Channel RCA, perfect for stacking, strapping or connecting amps
  • Helical Twist construction minimizes noise and interference
  • Patented high tolerance compact machined metal end
  • Packed in resealable bag
  • Length: 5m (16.4 feet)
  • Also available in 9.8 Ft.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(196)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

QB12SPA small

NVX QB12SPA

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$199.99

List price $299.98

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
1040 watts x 1 channel
RMS Power @ 2 ohms
1940 watts x 1 channel
RMS Power @ 1 ohm
3000 watts x 1 channel
Peak Power Output
3500 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
3500 watts
Total RMS Power Output
3000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Speaker Level Inputs
Yes
Preamp Outputs
2 pairs
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
35 - 250 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

APK-3500_MOFO-124X_TC6KIT-0B_BBIC5

Weight:

85.15lbs

Internal SKU:

apk3500_mofo124x_tc6kit0b_bbic5

Internal Product ID:

108787

Product and How-to Videos


Customer Ratings & Reviews


Audiopipe and PowerAcoustik Complete Amp and Subwoofer Upgrade Package thumbnail image

5 star
84%
4 star
13%
3 star
1%
2 star
0%
1 star
2%



Durability
4.7
Value
4.8
Features
4.7
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

Poor quality

The following review is for BBIC5, which is a part of the bundle you are viewing.

I had ordered a Kicker pk8 amplifier wiring kit and these were part of a package that only Sonic had offered. To put it shortly, one of the jacks was grounding out when I plugged it all the way in the RCA jacks in the headunit. It was causing a lot of doubts in the equipment in my system, but I got down to the root and these were the culprit. I contacted Sonic and they gladly replaced the with a set of StreetWire RCA's that worked just fine when I installed them. Thanks Sonic! But as far as these go, I wouldn't recommend them. Spend a little more and get some better ones.

By Sumgruuvz on July 23, 2015

56 found this helpful


Great RCA Cable

The following review is for BBIC5, which is a part of the bundle you are viewing.

I used this with a 5 channel kenwood amp and a pioneer head unit. worked like it should.

By Scott on January 19, 2015

61 found this helpful


Belva BBIC5

The following review is for BBIC5, which is a part of the bundle you are viewing.

high quality wire , good ends, great price what else could you ask for?

By Anonymous on May 31, 2018 Checkmark Icon Verified purchase

37 found this helpful


Just what I needed

The following review is for BBIC5, which is a part of the bundle you are viewing.

I would recommend this product to anyone looking to do a simple set up! Great quality and easy to use.

By Avery on February 15, 2017 Checkmark Icon Verified purchase

37 found this helpful


Good Quality - Met My Needs

The following review is for BBIC5, which is a part of the bundle you are viewing.

Pros:
This product looks, feels and functions exactly the way you would expect.
Good quality

Cons:
I haven't discovered anything of concern

I would def recommend this product.
I Have Found Sonic Electronix To Be Superior In Customer Service, Products and Shipping

By Joe on May 1, 2016 Checkmark Icon Verified purchase

35 found this helpful


Nice and durable

The following review is for BBIC5, which is a part of the bundle you are viewing.

This design is awesome rca ends fit nice and tight and it solved a ground noise problem that I couldn’t fix with the other rca jacks.

By Anonymous on October 1, 2019

34 found this helpful


Belva BBIC5

The following review is for BBIC5, which is a part of the bundle you are viewing.

These came along with my powered sub. They were well made, and quite long enough, to reach the back of my suv.

By Anonymous on May 31, 2018

35 found this helpful


Great value

The following review is for BBIC5, which is a part of the bundle you are viewing.

Really good nice cables good quality very pleased with them will buy again as needed love them...

By Shaila on April 18, 2018

33 found this helpful


decent cables they work

The following review is for BBIC5, which is a part of the bundle you are viewing.

Got this in a package deal not extremely long, go from dash to amp under passenger seat. Overall feel is light ,
connections aren't extremely firm but have not been any issue.

By Eric on July 2, 2016

32 found this helpful


Good RCA cables.

The following review is for BBIC5, which is a part of the bundle you are viewing.

These RCA cables were perfect for long run to amp. The price was right also.

By Mike on April 23, 2016 Checkmark Icon Verified purchase

32 found this helpful




AVH-3300NEX, VTL300C small

Pioneer AVH-3300NEX Android Auto/Apple CarPlay Stereo w/ License Plate Mount Backup Camera

Single DIN Apple CarPlay and Android Auto In-Dash Bluetooth Car Stereo Receiver with License Plate Frame Mount Rearview Backup Camera

$668.26

List price $869.99

MF-10S D4 small

Deaf Bonce Machete MF-10S D4

1600W Peak (800W RMS) 10” Machete Series Dual 4-ohm Car Subwoofer

$139.90

List price $139.90

SQW10W small

Cadence SQW10W - White Marine Subwoofer

600W 10" Single-4ohm Marine Subwoofer (White)

$49.99

List price $132.95

NE101P_51MWE104 small

NVX NE101P w/ Kicker 51MWE104

Single 10" Slot Ported 3/4" MDF Black Carpeted Subwoofer Enclosure – 1.5 Cu. Ft. with Polyfil and NVX Logo w/ Marine Subwoofer with RGBW LED and Charcoal Grille

(2)

$467.98

List price $531.98

BRX2016.1D small

Hifonics Brutus BRX2016.1D Monoblock Amplifier

2000 Watt Monoblock Brutus Series Class D 1-Ohm Stable Subwoofer Amplifier - (Brutus 2000 Watt)

(241)

$229.95

List price $399.99

SW-ZV618D2 small

Sundown Audio Z-18 v.6 D2 18" (Z18V6D2)

6500W Peak (3250W RMS) 18" Z Series Dual 2-ohm Car Subwoofer (SW-ZV618D2)

$1149.99

List price $1379.99

Replacement HD222/HD230 Ear-Pads small

Sennheiser Replacement HD 222/HD 230 Ear-Pads - 034659

Genuine Original HD222/HD230 Headphones Replacement Foam Ear-Pad Cushions

$14.99

List price $39.95

FEXST01BK10A-FPR small

MTX Audio Thunderform FEXST01BK10A-FPR (Black, Amplified)

2001-05 and 2007-10 Ford Explorer Sport Trac Amplified Loaded 10" Thunderform Subwoofer Enclosure

$649.95

List price $749.95

T1500-1bdCP, XKIT42 small

Rockford Fosgate Power T1500-1BDCP with Amplifier Wiring Kit

1500W RMS Constant Power Series Monoblock Amplifier + NVX 4 Gauge Amp Wiring Kit

(216)

$769.99

List price $913.98

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 Hyundai Veloster

2011 Nissan Titan

2009 Mazda B4000

2014 Fiat 500

1995 Ford Aerostar

2002 BMW 330Ci

2018 Nissan Titan XD

2004 Mazda B3000

2004 GMC Sierra 1500

2015 Nissan Frontier

Vehicle
Store
Delete

1994 Harley Davidson FLHT Electra Glide Standard

1960 Harley Davidson FLH Electra Glide

Vehicle
Store
Delete

2022 Can-Am Defender MAX HD10 XT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
