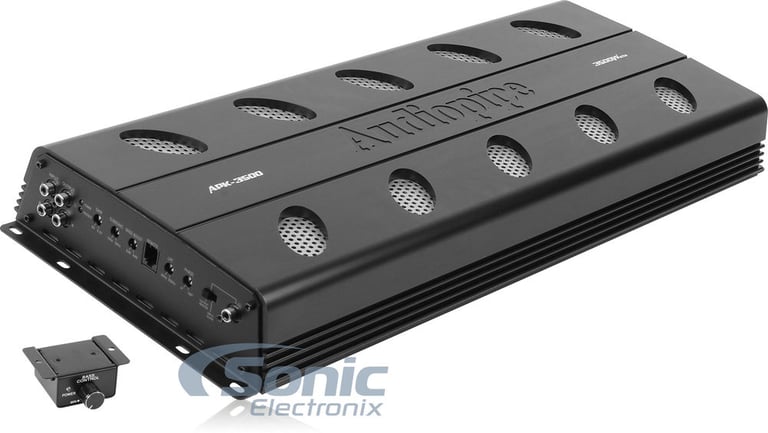

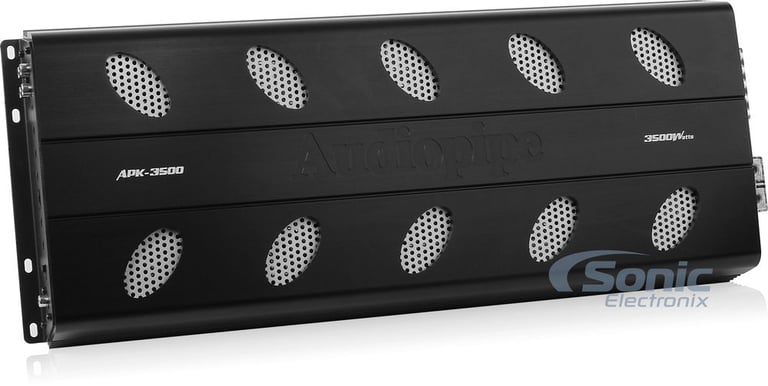

Audiopipe APK-3500

3500W APK Series Monoblock Class D Car Amplifier

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• RMS Power: 1040W x 1 @ 4 ohm, 1940W x 1 @ 2 ohm, 3000W x 1 @ 1 ohm
• Total Peak Power: 3000W
• Variable Low-Pass Filter (10-50 Hz, 24 dB/Octave)
• Dimensions: 9"W x 21"L x 2.5"H
• High Purity Copper Trace Circuit Boards

Learn more about the apk3500

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
C2-600 main

JL Audio C2-600

120W RMS 6" C2 Series 2-Way 4-ohm Component Speaker System

5
-22.73%

$254.99

List price $329.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

Limited time!
C2-650X main

JL Audio C2-650x

120W RMS 6.5" C2 Series 2-Way Coaxial 4-ohm Car Speakers

26
-17.86%

$229.99

List price $279.99

iLX-407 main

Alpine iLX-407

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

7
-16.93%

$539.95

List price $650.00

Limited time!

JL Audio C2-600cw (Sold Individually)

60W RMS 6” C2 Series Component 4-ohm Car Midwoofer

-15.63%

$134.99

List price $159.99

Product Highlights


• RMS Power: 1040W x 1 @ 4 ohm, 1940W x 1 @ 2 ohm, 3000W x 1 @ 1 ohm
• Total Peak Power: 3000W
• Variable Low-Pass Filter (10-50 Hz, 24 dB/Octave)
• Dimensions: 9"W x 21"L x 2.5"H
• High Purity Copper Trace Circuit Boards

Description


Audiopipe brand icon

Authorized dealer

General Features:

  • APK Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 1040 watts x 1 chan.
    • 2 ohm: 1940 watts x 1 chan.
    • 1 ohm: 3000 watts x 1 chan.
  • Max power output: 3500 watts
  • High purity copper trace circuit boards

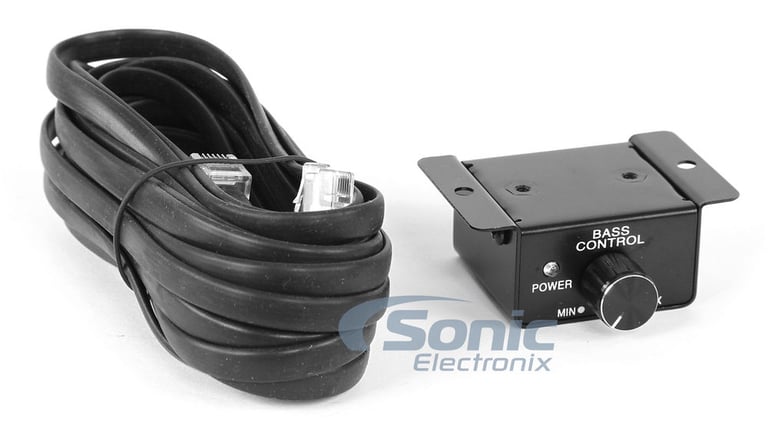

  • Wired remote bass level control included
  • Variable Bass Boost (0 to +9 dB bass boost at 45 Hz)
  • Mono channel operation
  • Variable low-pass filter (35-250 Hz, 24 dB/octave)
  • Subsonic filter (24 dB at 10-50 Hz)
  • 0/1 gauge power and ground wiring is required for installation
    • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 9"W x 21"L x 2.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
1040 watts x 1 channel
RMS Power @ 2 ohms
1940 watts x 1 channel
RMS Power @ 1 ohm
3000 watts x 1 channel
Amplifier Specifications
Series
APK Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
3500 watts
Total RMS Power Output
3000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Speaker Level Inputs
Yes
Preamp Outputs
2 pairs
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
35 - 250 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

APK-3500

Weight:

22.80lbs

Internal SKU:

apk3500

Internal Product ID:

85914

Product and How-to Videos


Customer Ratings & Reviews


Audiopipe APK-3500 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

apk3500

Best amp i think you can get for the money.. i have 2 of these on 4 rival 12s peaks at 31hz and plays 26ish music it should. The other amps iv had were barely able to play 32 33hz and wasnt anything like this amp. Its not a huge amp which is great for me i havent clamped the 2 of them but the 1amp was putting out 2400watts at 31hz and had plenty more in it i just had it were my voltage wasnt dropping below 13.5 at idle with 3 105amp alts. Point being that if u got the electrical and subs to handle it this amp will kick ass all day everyday. Buy um while you can because i keep hearing they are to be discontinued soon.

By Tyler on September 15, 2015
