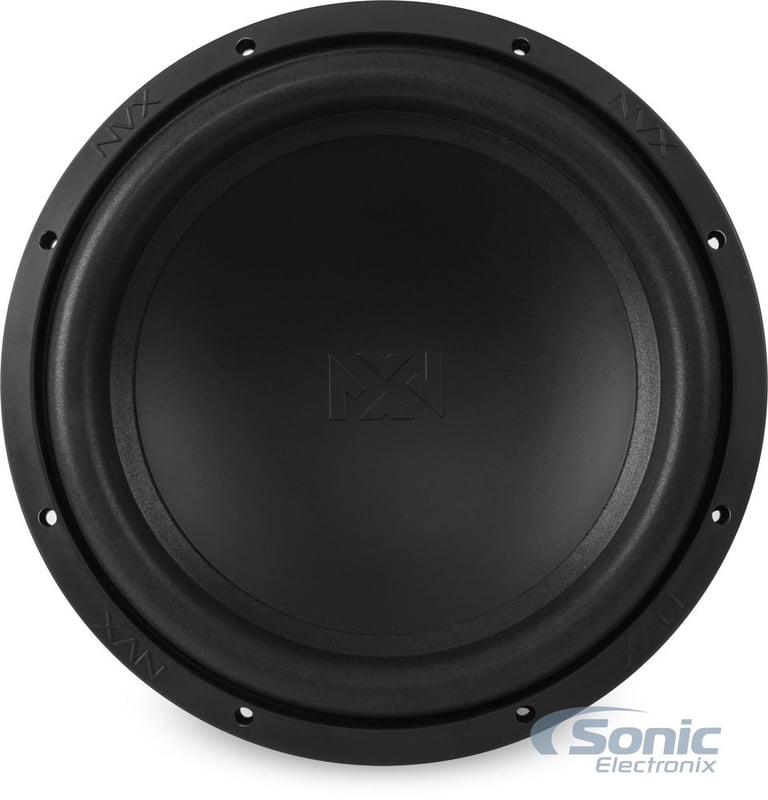

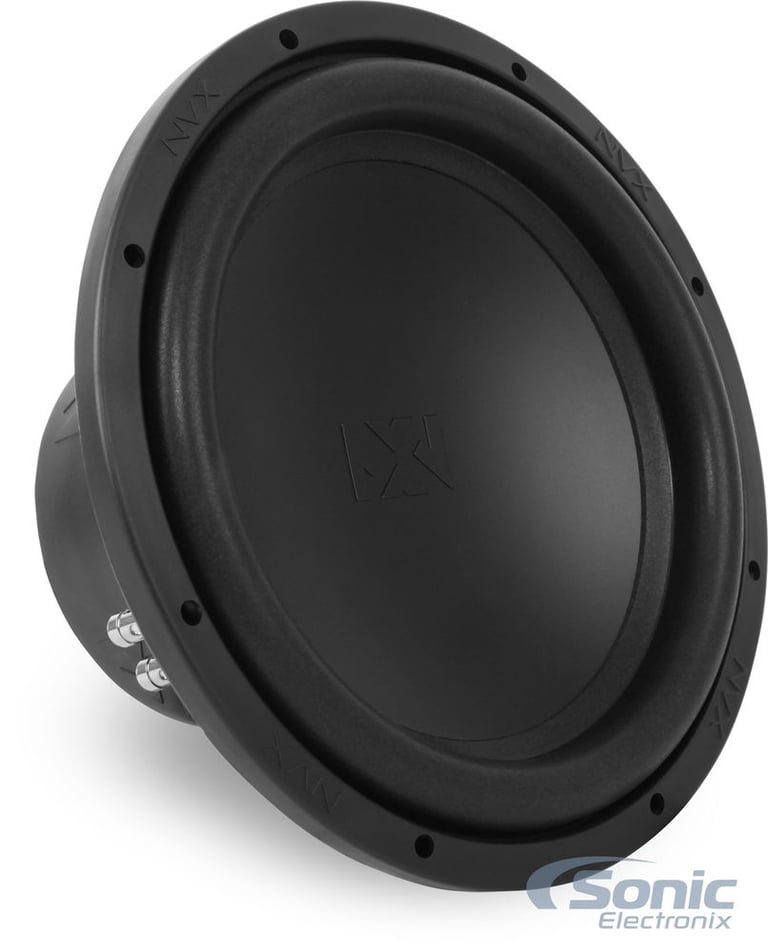

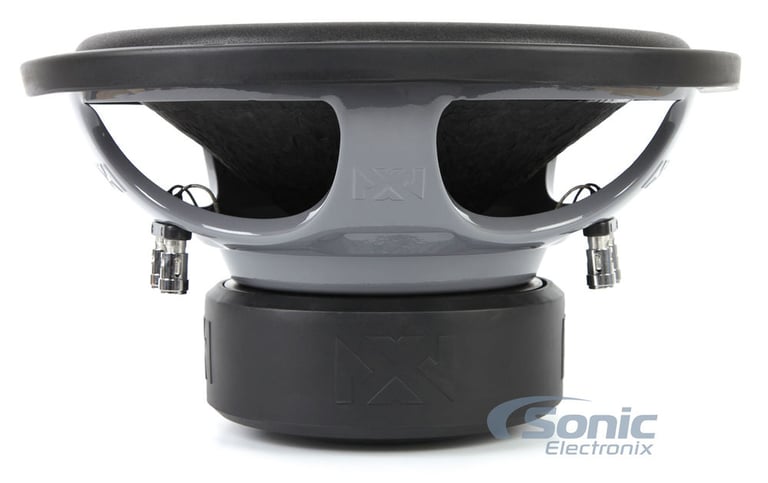

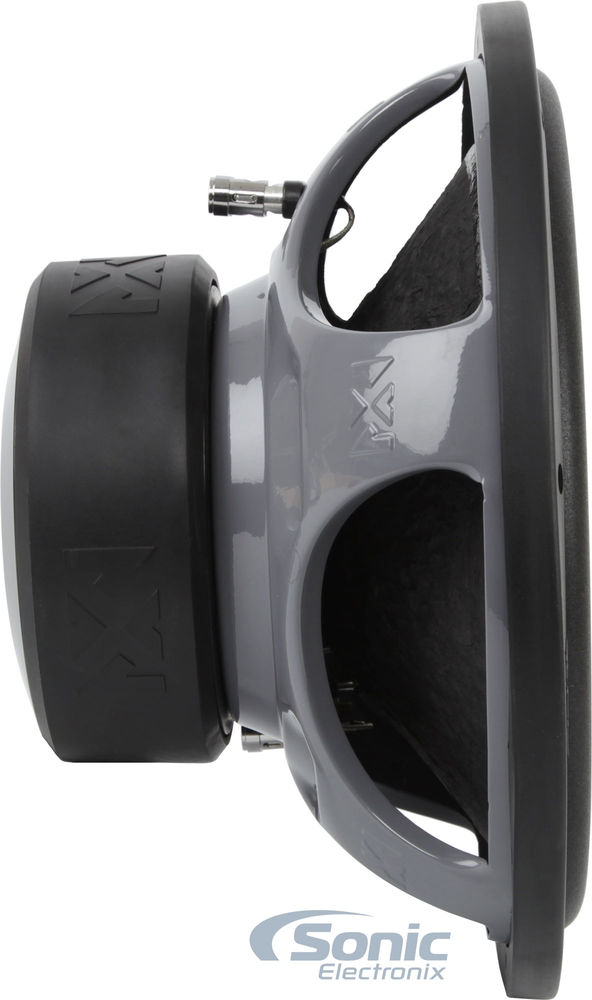

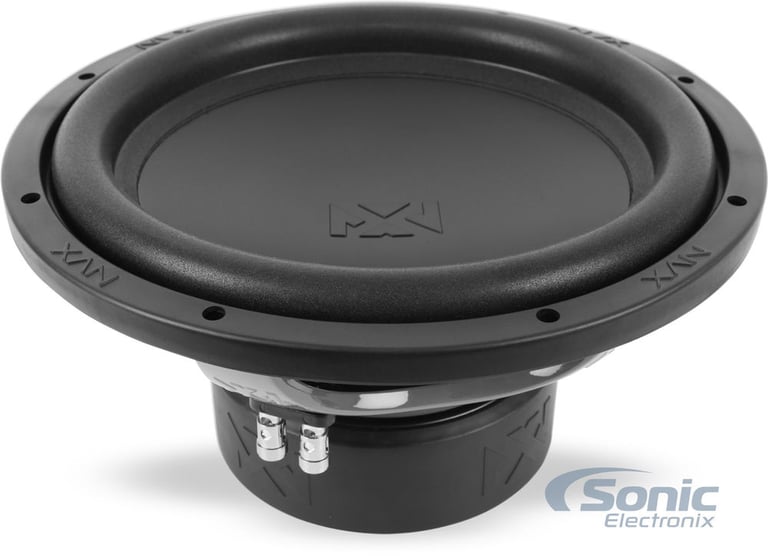

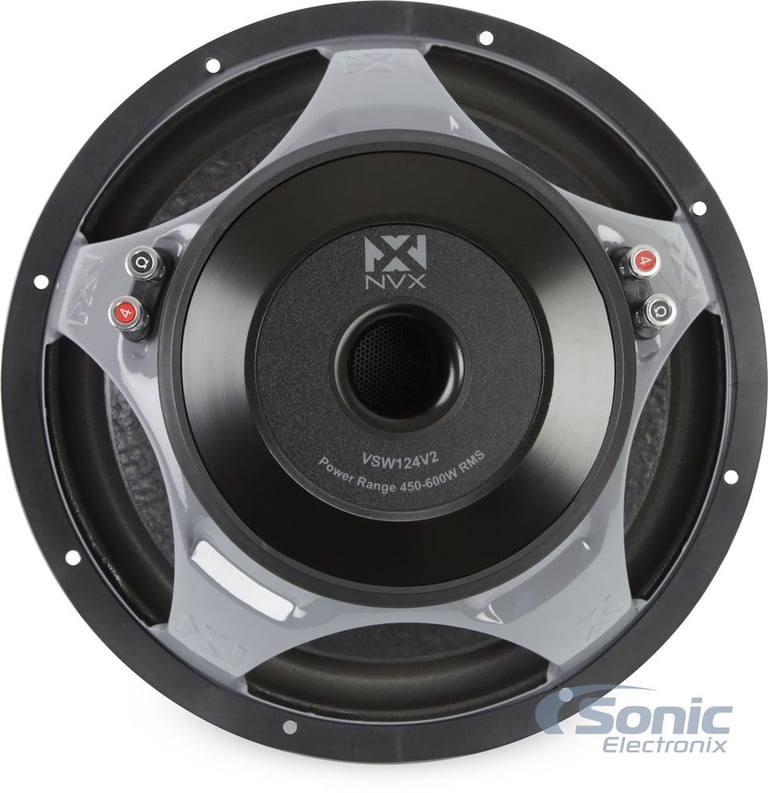

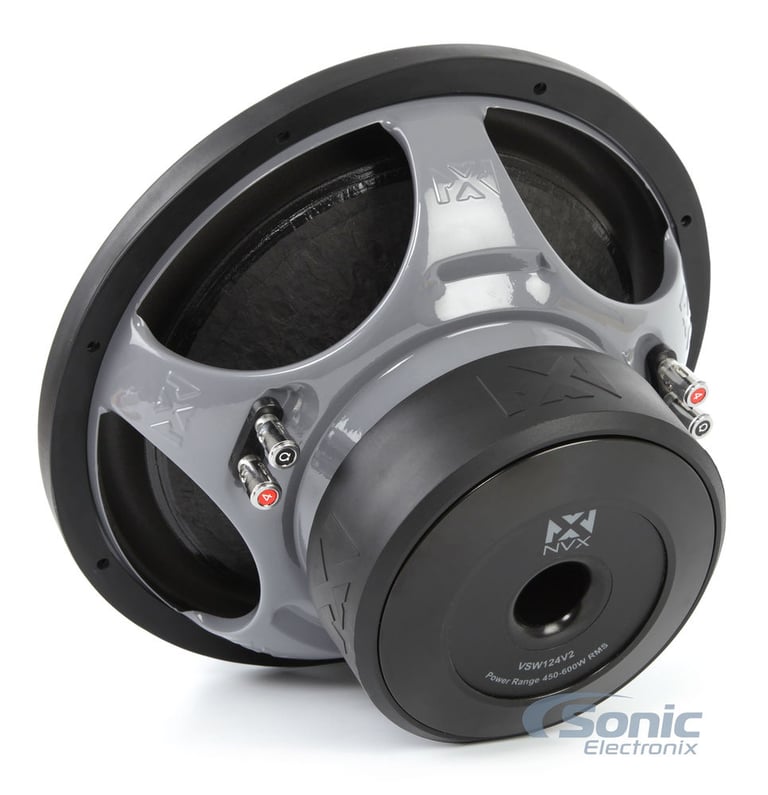

NVX VSW124V2
600W 12" VS-Series Version 2 Dual 4-ohm Car Subwoofer
Quantity: 2
General Features:
- 12" VS-Series Version 2 Dual 4-ohm Car Subwoofer
- Power Handling:
- RMS: 450 - 600watts
- Recommended power range: 225 - 600 RMS
- Aluminum Shorting Ring to prevent rises in inductance
- Non Pressed Paper cone
- High Roll Custom Blended Foam surround
- Stamped Steel basket
- 100oz Y30 High Energy Ferrite Magnet
- Impedance: Dual 4 Ohm
- Mounting depth: 5.95" (151 mm)
- Cutout diameter: 11.12" (282.50 mm)
- Mounting Diameter: 11.63" (295.50 mm)
- Overall Diamter: 12.44" (316 mm)
- Frequency Response: 20 - 200 Hz
- Sensitivity: 90 dB (1W/M)
- Xmax: 12mm
- Sd: 49.08 cm²
- Resonance Frequency (Fs): 25 Hz
- Net Weight: 15.58 lbs (7.05 kg)
- Recommended Ported Enclosure: 1.75ft³
- Recommended Sealed Enclosure: 1.25ft³
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Priced Individually
Additional Information:
Why a 12" Subwoofer? Choosing the right subwoofer size can be a difficult decision to make. To help with your decision, you can check out our K-Base Article, that breaks down the difference in the sound generated by the four most common subwoofer sizes. Click Here to read about The Differences In Subwoofer Sizes.
Check out the NVX VS-Series User Manual

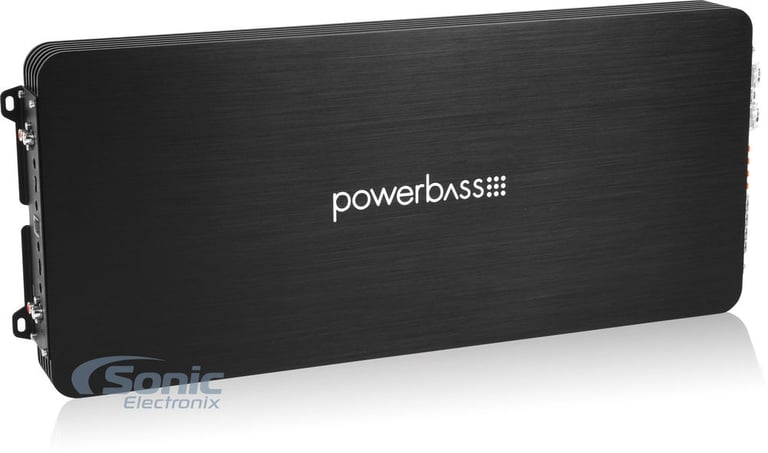

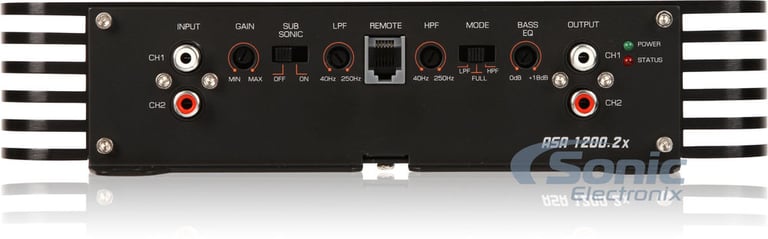

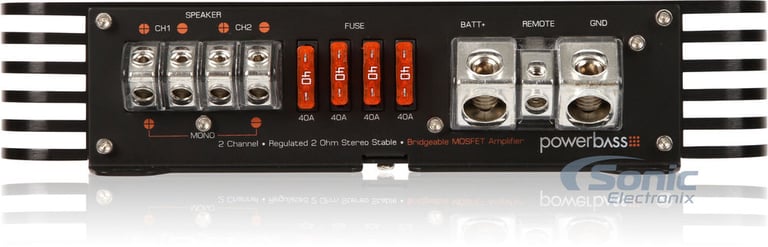

PowerBass ASA 1200.2x
2400W Max 2-Channel Class A/B Auto Sound Series Amplifier (ASA1200.2x)
Quantity: 1
General Features:
- Auto Sound Series 2-Channel Class A/B Car Amplifier
- RMS Power Rating:
- 4 ohm: 300 watts x 2 chan.
- 2 ohm: 600 watts x 2 chan.
- Bridged, 4 ohm: 1200 watts x 1 chan.
- Max power output: 2400 watts
- Pulse Width Modulated MOSFET power supply
- LED power (green) and protect (red) indicators
- Soft start turn-on
- 2 or Mono channel operation
- Preamp RCA outputs to daisy chain multiple amps
- 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
- Heavy duty aluminum alloy ribbed heatsink for maximum heat dissipation
- Silver-plated RCA level inputs
- Silver-plated screw terminals
- Input sensitivity: 500mV - 8V
- Frequency Response: 20 - 22,000 Hz
- Total Harmonic Distortion (THD): <0.5%
- Signal to Noise Ration: 90dB
- Damping factor: >150
- Selectable crossover mode: LPF / FULL / HPF
- Variable high-pass filter: 40 - 250 Hz, 12 dB/octave
- Variable low-pass filter: 40 - 250 Hz, 12 dB/octave
- Selectable Subsonic filter: 28 Hz , 12 dB/octave
- Variable Bass Boost: 0 to +18 dB bass boost at 40 Hz
- Fuse Rating: 40 A x 4
- 0 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
- Dimensions: 21.40"L x 9.30"W x 1.90"H
- 1-year Manufacturer's Warranty

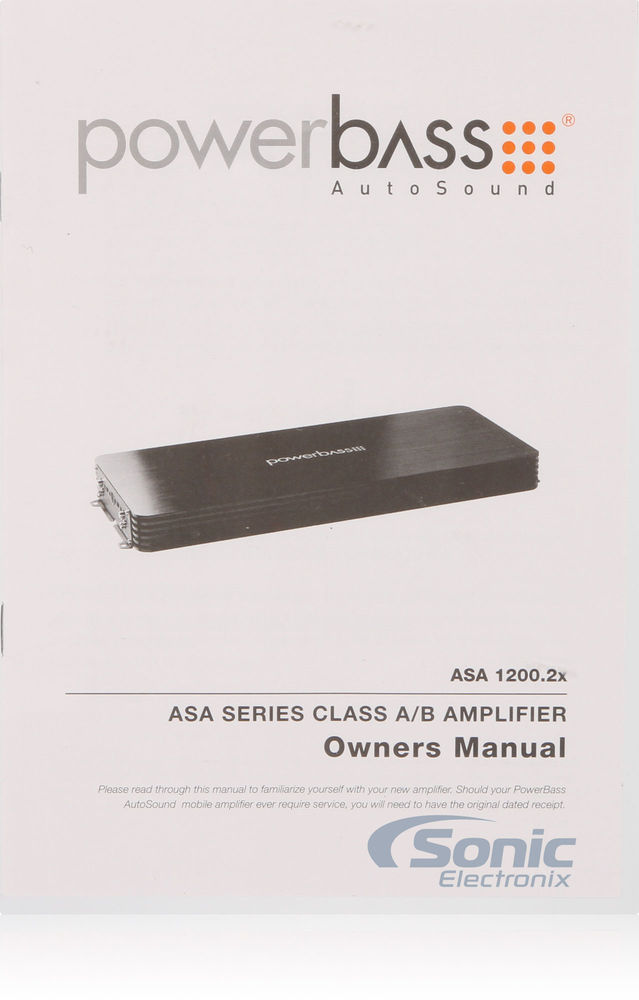

Check out the ASA1200.2X Owner's Manual

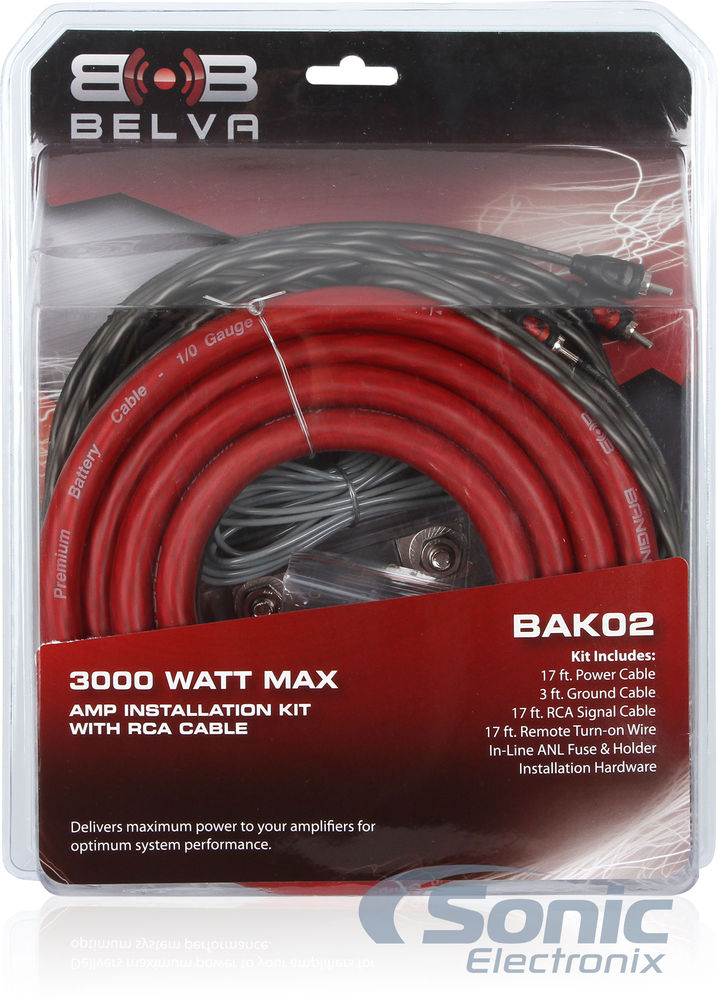

Belva BAK02
Complete 0/1 Gauge Amplifier Wiring Kit with RCA Interconnects (CCA Wiring)
Quantity: 1
General Features:
- 1/0 Gauge 2-Channel Amplifier Installation Kit
- Designed specifically for car audio systems up to 1500 watts RMS
- Premium Powerflex power and ground wire provides optimal power transfer
- Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
- Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
- Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
- ANL Fuse holder with a 150 amp ANL fuse offers ideal protection for high-powered systems
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Kit includes:

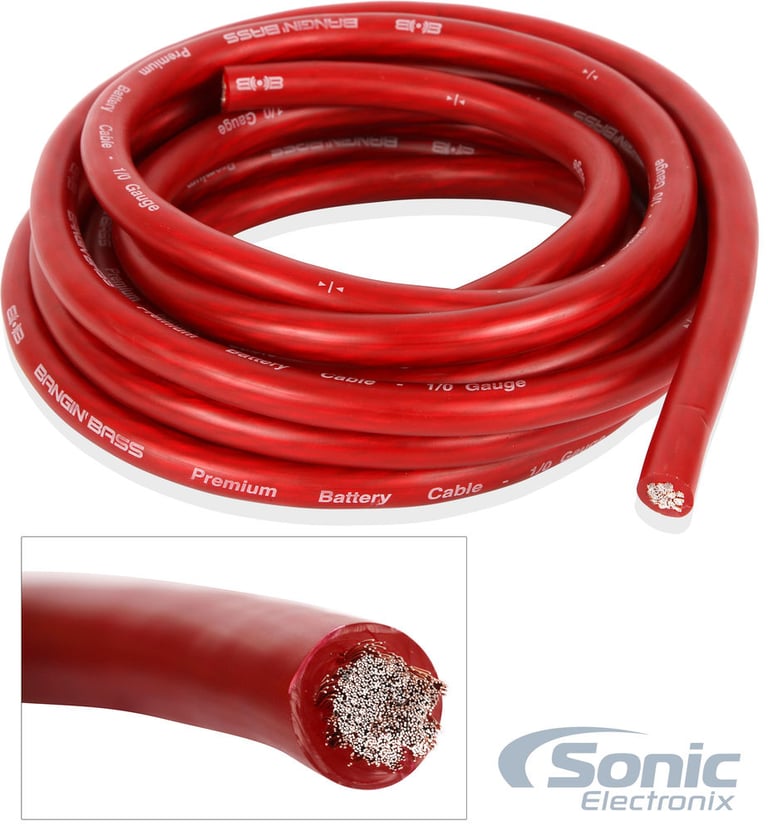

- 17 ft. (5.2 meters) Red 1/0 gauge power wire

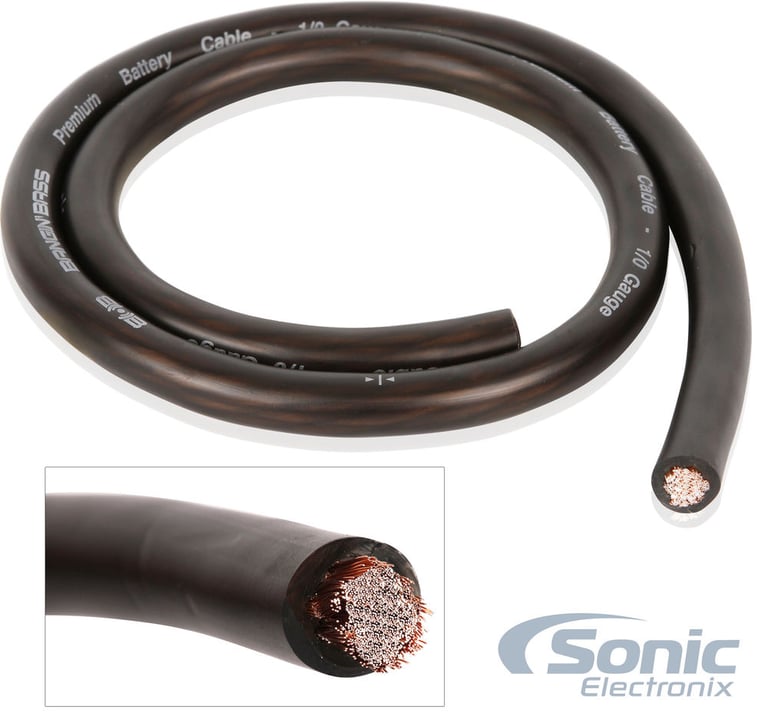

- 3 ft. (.91 meters) Black 1/0 gauge ground wire
- 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
- 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

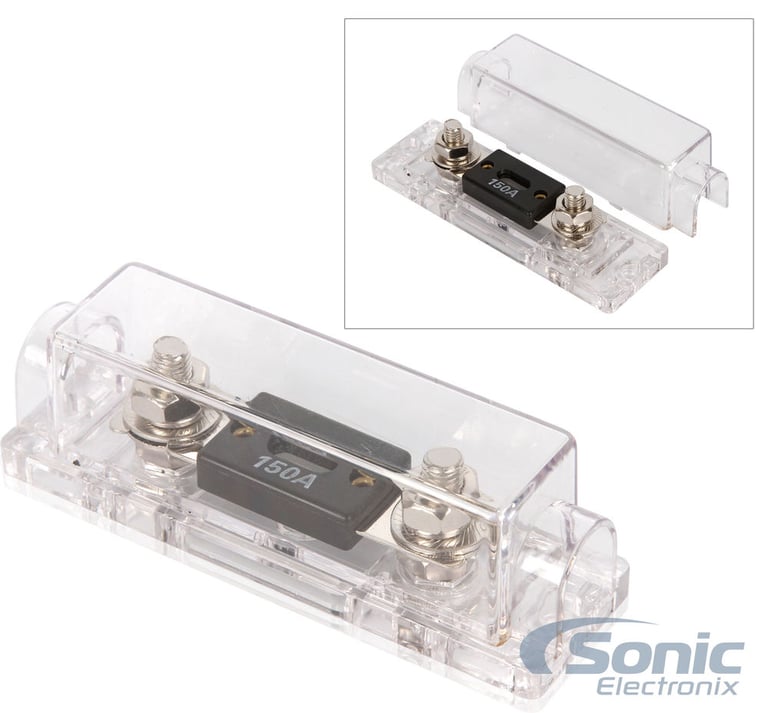

- One In-line ANL Fuse Holder with a 150 amp ANL fuse

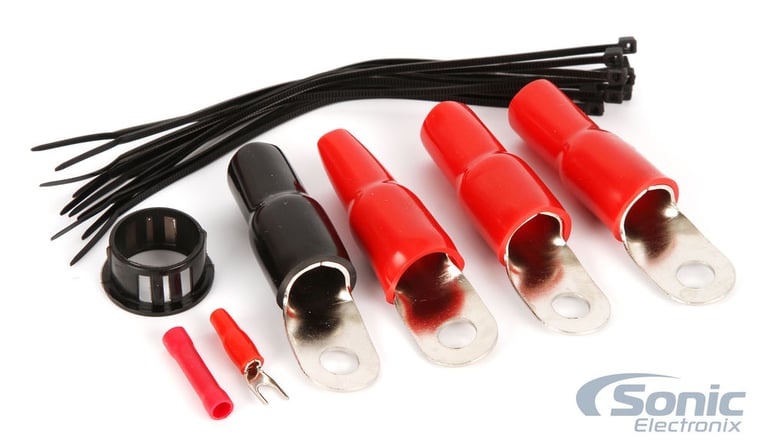

- One Black rubber firewall grommet
- Three 1/0 Gauge red chrome plated ring terminals
- One 1/0 Gauge chrome plated ring terminal
- One 18 Gauge red Spade terminal
- One 18 Gauge red butt connector
- Eight 6" Black zip ties
