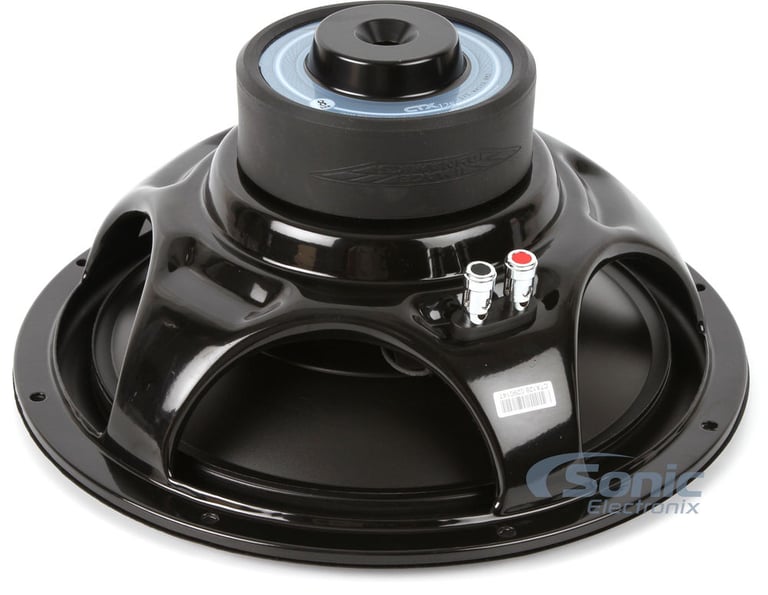

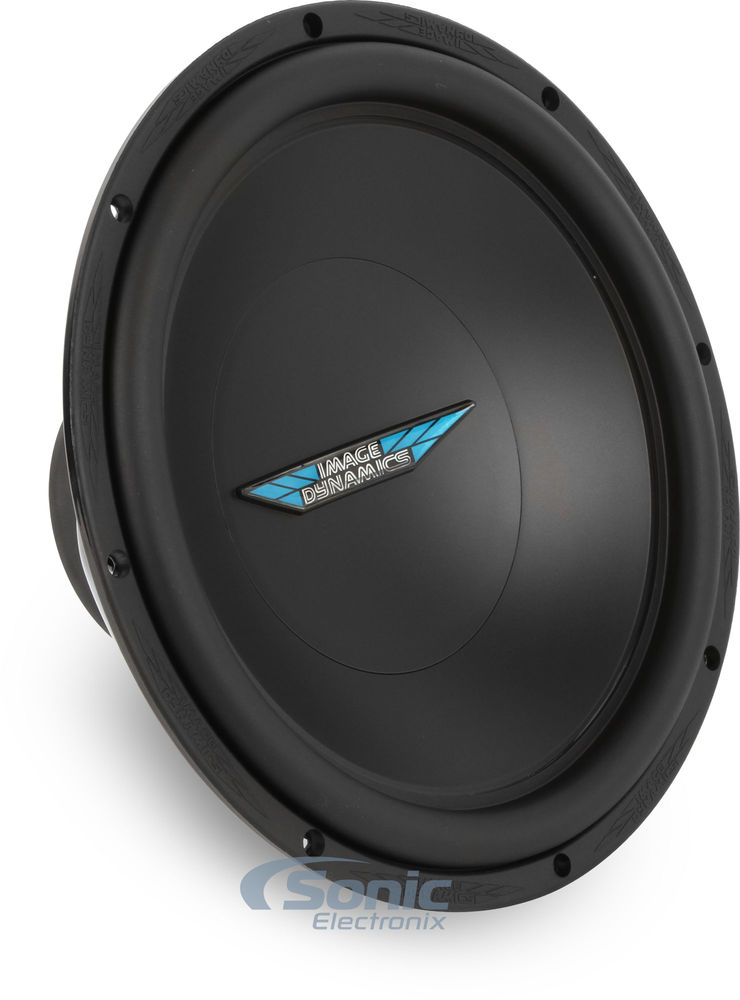

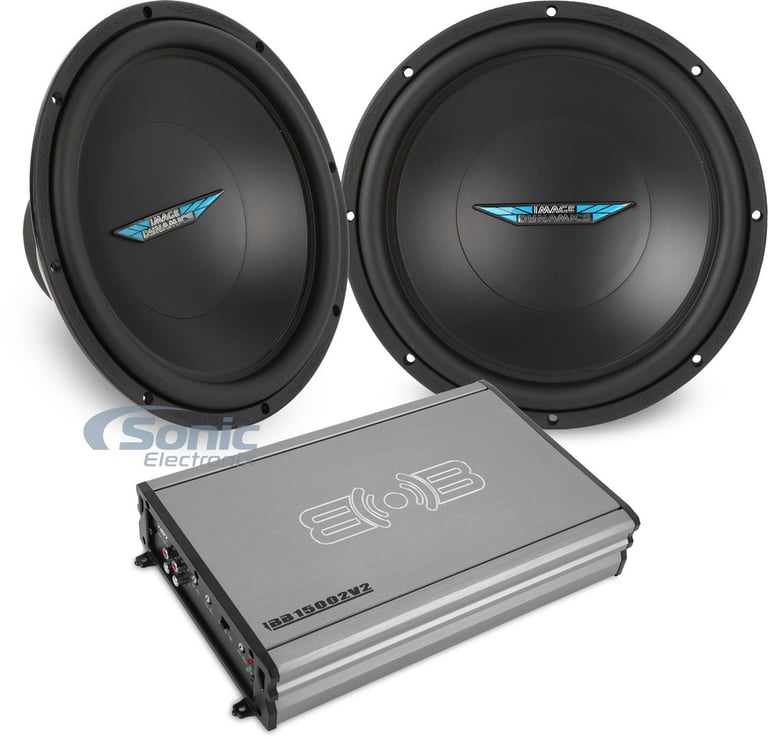

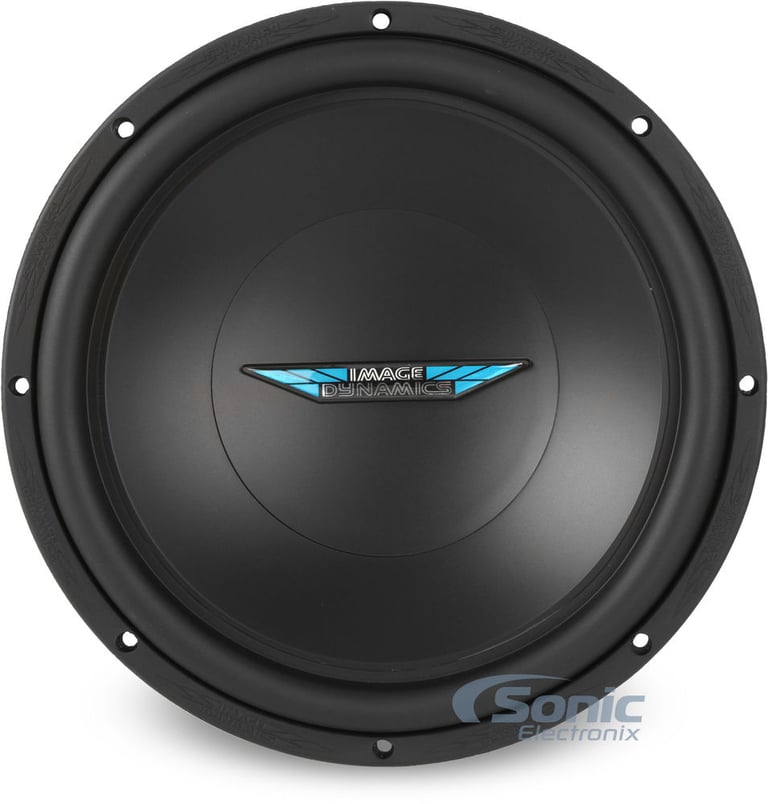

Image Dynamics CTX128
175W 12" CTX Series Single 8-Ohm Subwoofer Driver
Quantity: 2
General Features
- 12" Single 8-Ohm CTX Series Subwoofer
- Power Handling:
- Peak RMS: 350 watts
- Recommended RMS: 175 watts
- *Recommended Power Range: 50-350 watts

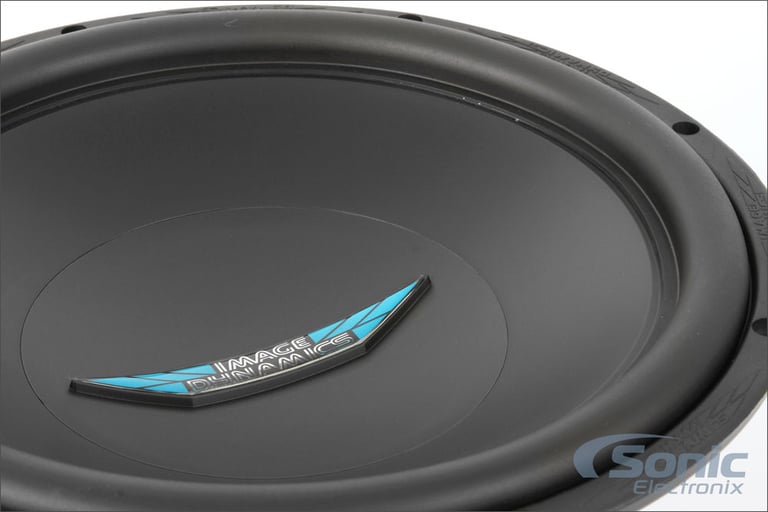

- Poly-mica cone woofer
- Butyl rubber surround
- Spring loaded push terminals for easy installation
- Conex spider with integrated tinsel leads
- Black anodized aluminum voice coil former
- Frequency response: 16 - 180 Hz
- Sensitivity: 86 dB
- Xmax: 16.0 mm
- Mounting Depth: 5.65"
- Cutout Dimensions: 11.0"
- Infinite Baffle "Free Air" Ready/Compatible
- Recommended Sealed Enclosures:
- Audiophile (Large Box): 1.5 ft³ w/ 2lbs of Poly fill
- Universal (Med Box): 1.5 ft³ w/ No Poly fill
- Compact (Sm Box): 1.2 ft³ w/ 1lb of Poly fill
- Recommended Ported Enclosures:
- Audiophile (Large Box): 2.8 ft³ @ 28 Hz w/ 2lbs of Poly fill
- Universal (Med Box): 2.8 ft³ @ 28 Hz w/ No Poly fill
- Compact (Sm Box): 2.2 ft³ @ 28 Hz w/ 1lb of Poly fill
- 1-year Manufacturer's Warranty

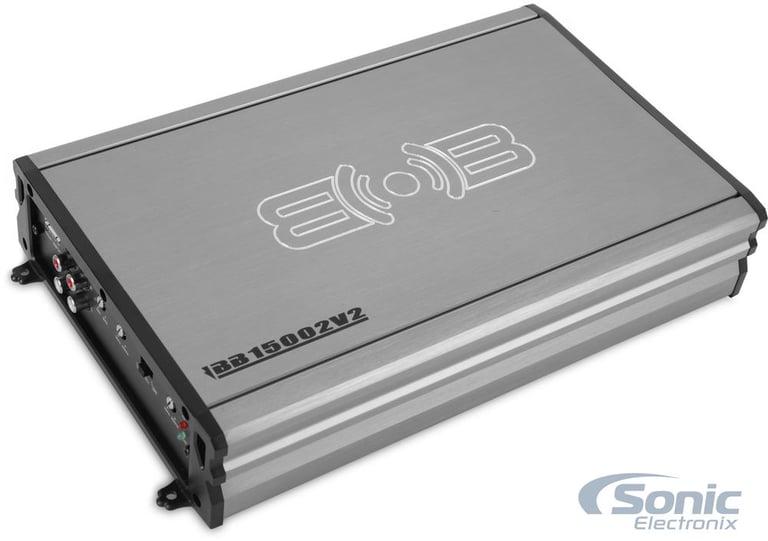

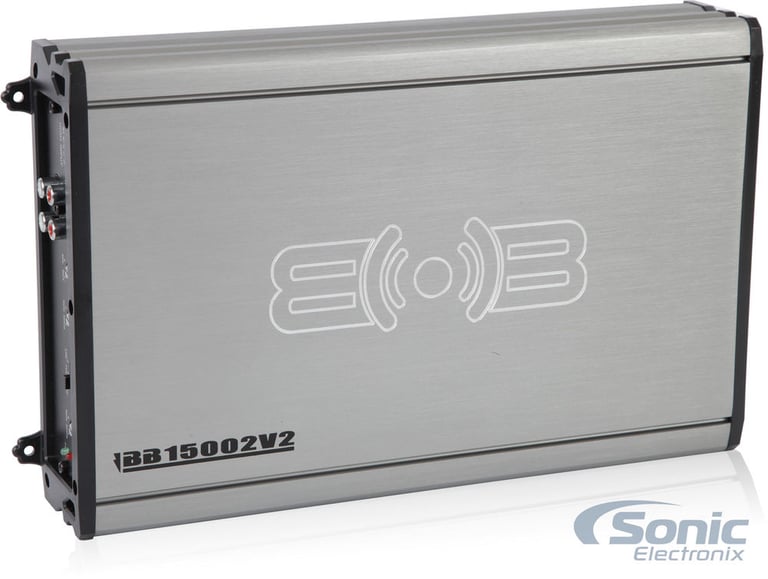

Belva BB15002v2
1500W Max (600W RMS) Full Range Class A/B 2-Channel Amplifier
Quantity: 1
General Features:
- BB Series 2-Channel Class AB Car Amplifier
- RMS Power Rating:
- 4 ohm: 170 watts x 2 chan.
- 2 ohm: 300 watts x 2 chan.
- Bridged: 600 watts x 1 chan.
- Max power output: 1500 watts
- Pulse Width Modulated MOSFET power supply

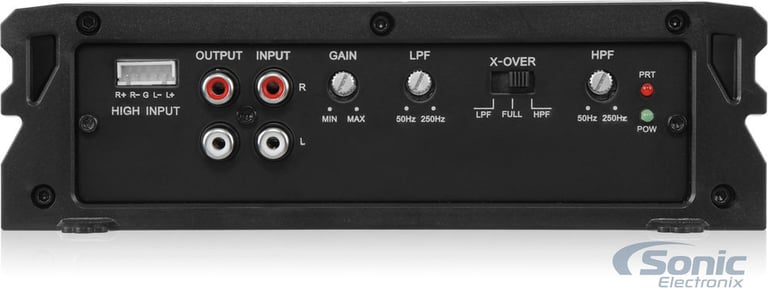

- LED power (green) and protect (red) indicators
- High-level speaker inputs
- 2 or Mono channel operation
- Preamp RCA outputs to daisy chain multiple amps
- Heavy duty aluminum alloy heat-sink
- 3-way protection circuitry (thermal, overload, and speaker short protection)

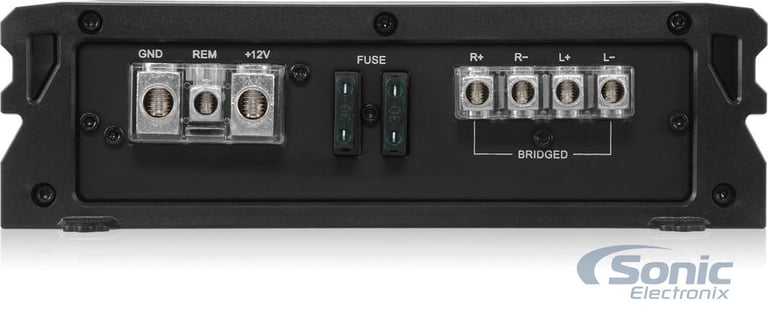

- Nickel plated RCA, Speaker and Power connections
- Input sensitivity: 200mV - 5V
- Selectable crossover modes: LPF / FULL / HPF
- Variable high-pass filter: 50 - 250 Hz, 24 dB/octave
- Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
- Total Harmonic Distortion (THD): <1.0%
- Frequency response: 15-20,000 Hz
- Signal to Noise Ratio: 86dB @ 1W

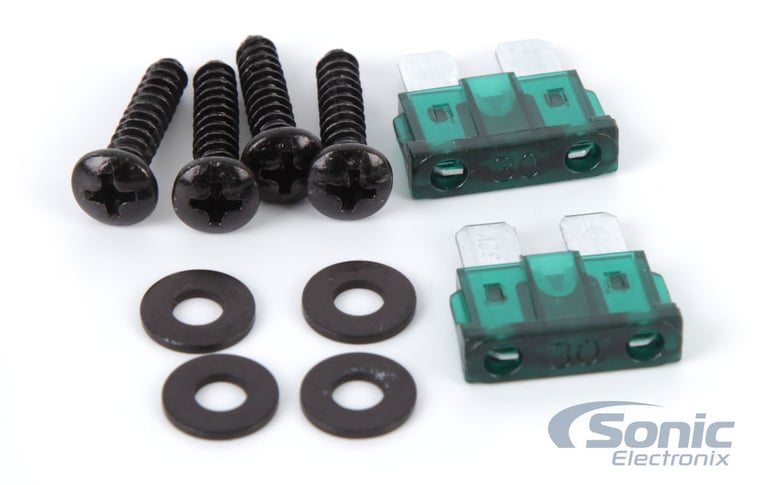

- Fuse Rating: 30 A x 2
- 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
- Dimensions: 12.25"W x 8"D x 2.25"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
