Soundstream PA1.5000D

5000W Max (2500W RMS) Picasso Series Class D Monoblock 1-Ohm Stable Amplifier with Bass Knob Included

Product videos
highlight-star-icon

• 1100 Watts RMS x 1 @ 4 ohm
• 1750 Watts RMS x 1 @ 2 ohm
• 2500 Watts RMS x 1 @ 1 ohm
• Total Peak Power: 5000 Watts
• Subsonic filter: 10 - 50 Hz , 12 dB/octave
• Variable low-pass filter: 30 - 250 Hz, 12 dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost
• Dimensions: 8.25"W x 19.7"L x 2"H

Learn more about the pa15000d

We apologize

This item has been discontinued


Loading...
ACC-NAV2 main

iDataLink Maestro ACC-NAV2

Connect Factory GPS Antenna to Select Pioneer Navigation Stereos

-22.74%

$16.99

List price $21.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

PNW1 main

AudioControl PNW1

125W RMS 1" PNW Series Component Car Tweeters

3
-13.42%

$129.00

List price $149.00

P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

85
P1692 main

Rockford Fosgate Punch P1 P1692

300W Peak (150W RMS) 6x9" Punch Series 2 Way Coaxial 4-ohm Speakers

81
Limited time!
DMX4710S main

Kenwood DMX4710S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM & iDatalink Maestro Ready)

2
-37.71%

$299.00

List price $480.00

P132 main

Rockford Fosgate Punch P1 P132

80W Peak (40W RMS) 3.5” Punch Series 2 Way Coaxial 4-ohm Speakers

43
T1650 main

Rockford Fosgate Power T1 T1650

300W Peak (150W RMS) 6.5" Power Series 2 Way Coaxial 4-ohm Speakers

10
Limited time!
R1T-S main

Rockford Fosgate PRIME R1T-S

160W Peak (80W RMS) 1" PRIME Series Mylar Balanced Dome Car Tweeters

34
-11.11%

$39.99

List price $44.99

C3-100CT main

JL Audio C3-100CT

150W RMS 1" Evolution C3 Series Silk Soft Dome Tweeters with Adjustable Output Level

18

Product Highlights


• 1100 Watts RMS x 1 @ 4 ohm
• 1750 Watts RMS x 1 @ 2 ohm
• 2500 Watts RMS x 1 @ 1 ohm
• Total Peak Power: 5000 Watts
• Subsonic filter: 10 - 50 Hz , 12 dB/octave
• Variable low-pass filter: 30 - 250 Hz, 12 dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost
• Dimensions: 8.25"W x 19.7"L x 2"H

Description


Soundstream brand icon

Authorized dealer

General Features:

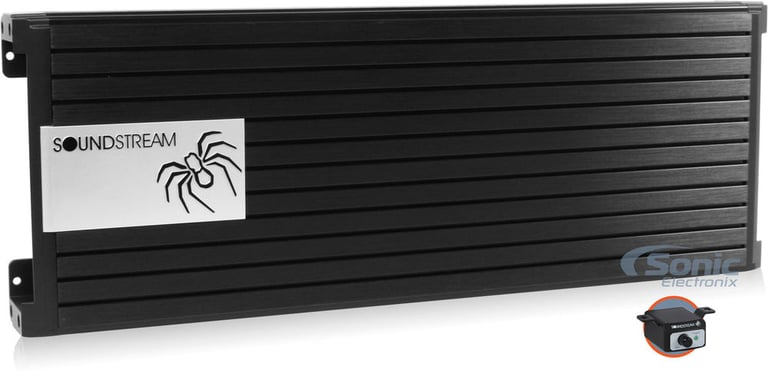

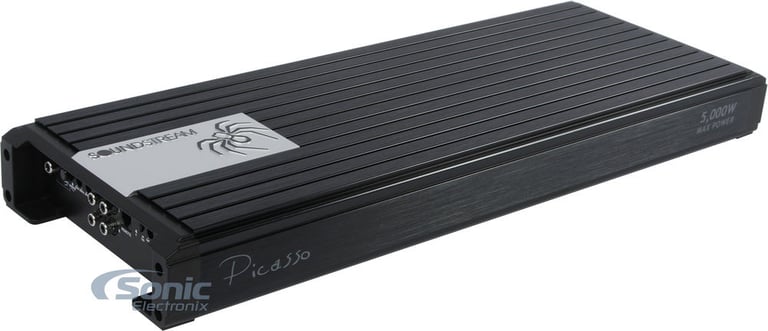

  • Soundstream Picasso Series PA1.5000D
  • Class-D 1-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 1100 watts x 1 chan.
    • 2 ohm: 1750 watts x 1 chan.
    • 1 ohm: 2500 watts x 1 chan.
  • Total power output: 5000 watts
  • Military Grade PCB w/ PWM MOSFET Power Supply

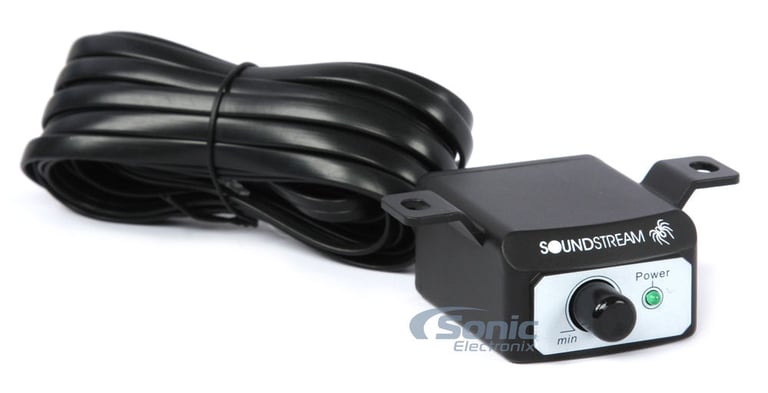

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Signal to Noise Ration: >104dB

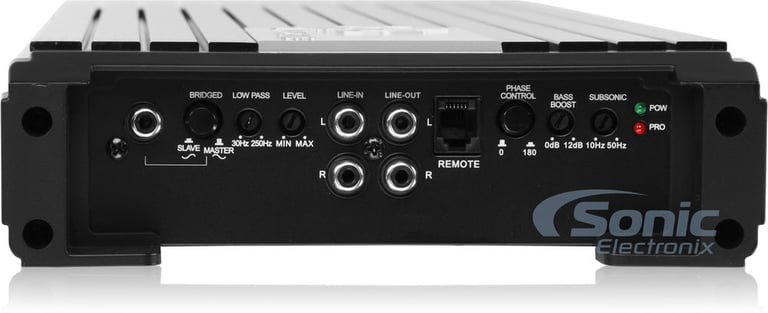

  • Variable low-pass filter: 30 - 250 Hz, 12 dB/octave
  • Subsonic filter: 10 - 50 Hz , 12 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz

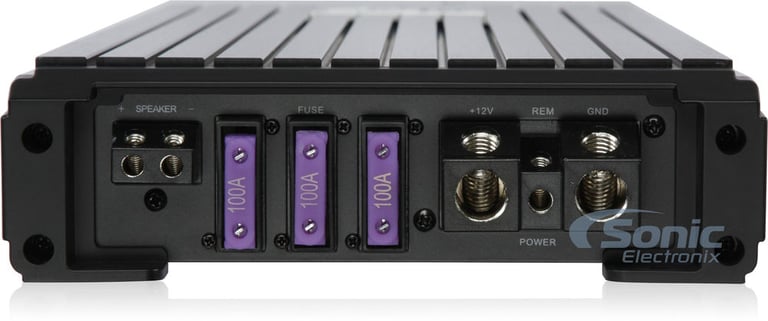

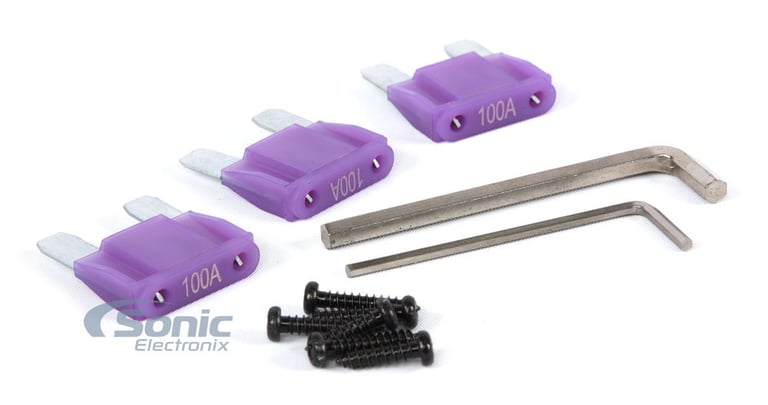

  • Fuse Rating: 100 A x 3
  • Phase Control: 0° to 180°
  • 0/1 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 8.25"W x 19.7"L x 2"H
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
Check out the Picasso Series Owner's Manual

Product history:

Soundstream PA1.5000D thumbnail
(newest, current model)
Soundstream P1.1500D thumbnail
(previous model, replaced by Soundstream PA1.5000D)

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1100 watts x 1 channel
RMS Power @ 2 ohms
1750 watts x 1 channel
RMS Power @ 1 ohm
2500 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
2200 watts x 1 channel
Peak Power @ 2 ohms
3500 watts x 1 channel
Peak Power @ 1 ohm
5000 watts x 1 channel
Amplifier Specifications
Series
Picasso Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
5000 watts
Total RMS Power Output
2500 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
30 - 250 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
>104 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
100A x 3
Strappable
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

PA1.5000D

Weight:

13.90lbs

Internal SKU:

pa15000d

Internal Product ID:

112895

Product and How-to Videos


Customer Ratings & Reviews


Soundstream PA1.5000D thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4
Features
5
Design
4
Usability
5

Customer Reviews

Sort by:

Loading...

Pretty Good

using this to power 2x Power Acoustik MOFO-122X
2700W 12" MOFO Series Dual 2 ohm Subwoofer

By Steven on July 24, 2016




No picture

SoundGate VIDFM8T

8 Channel Wireless FM Transmitter

$49.99

List price $63.99

KX3 small

Kicker KX3 (03KX3)

3-way Electronic Crossover

(8)

$149.95

List price $169.95

SM-104 small

Soundstream SM-104

10" 4 ohm Pro Series Mid-Range Driver

$69.95

List price $89.99

XIX22 small

NVX XIX22

6.56 ft (2 meter) 2-Channel X-Series RCA Audio Interconnect Cable

(8)

$17.99

List price $21.99

010-00777-00 small

Garmin Foretrex 401

Slim Wrist-Mounted GPS Navigator with HotFix, TracBack Feature, Barometric Altimeter and Electronic Compass (010-00777-00)

$199.99

List price $424.99

A300.2 small

Realm A300.2

300W RMS, 2-Channel Class A/B Car Amplifier

$119.99

List price $349.00

No picture

Legacy LCA2000DB

2 Farad Digital Power Capacitor

$79.99

List price $139.99

HCAP-20 small

Tsunami HCAP-20

True 20 Farad Digital Hybrid Stiffening Capacitor (X15HCAP-20)

$259.99

List price $299.99

VM9510 small

Jensen VM9510

Motorized In-Dash 7" LCD with DVD Multimedia (VM-9510)

(13)

$449.99

List price $1199.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2014 Ford Taurus

2004 Ford Thunderbird

2017 Ford Edge

2000 Ford Windstar

2003 Buick Rendezvous

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
