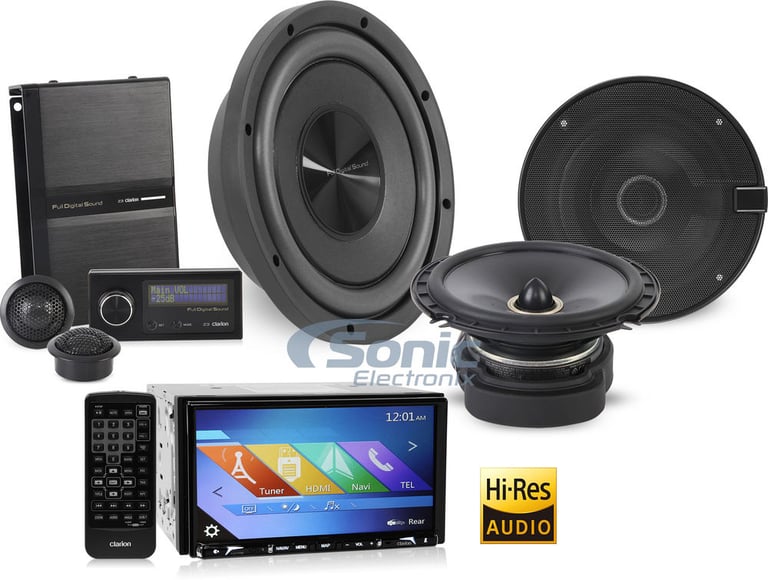

Clarion Complete Full Digital Sound Hi-Res Audio System

General Features:

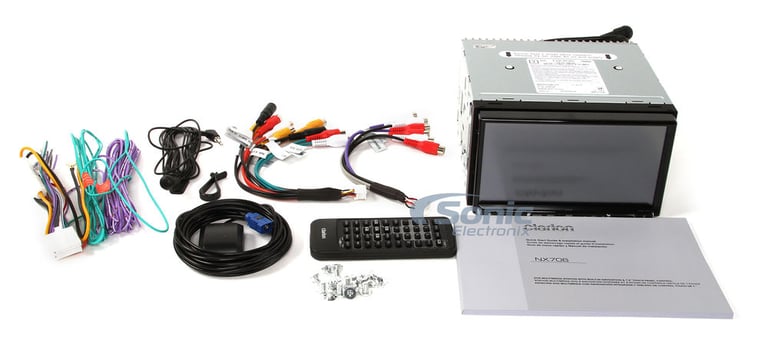

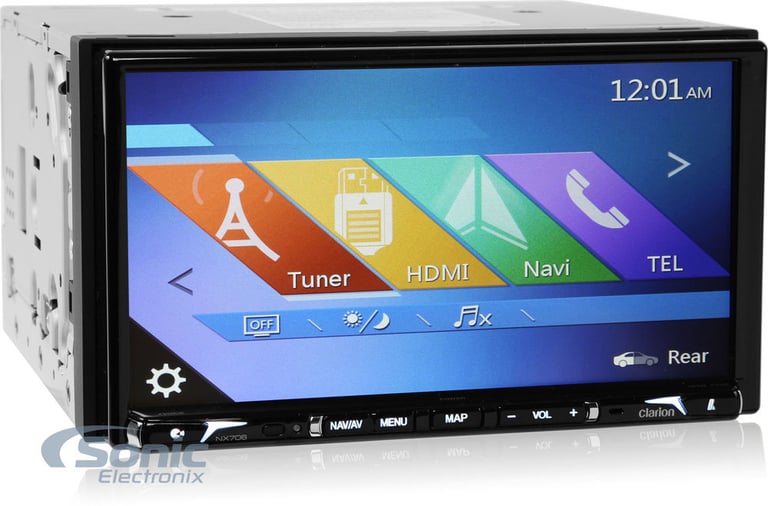

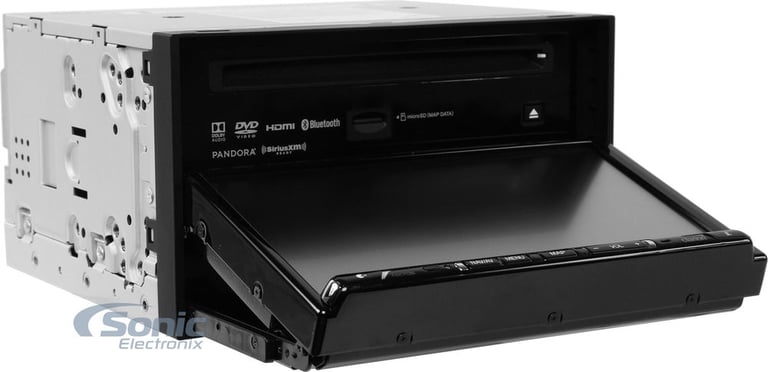

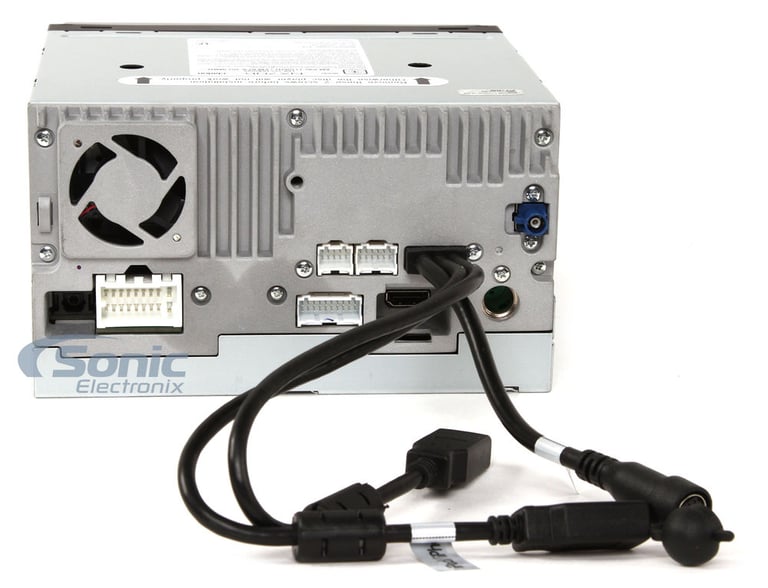

• Clarion NX706 Hi-Res Digital Sound Navigation Stereo
• Compatible with Clarion's new Full Digital Sound components system
• CEA-2006 compliant amplifier

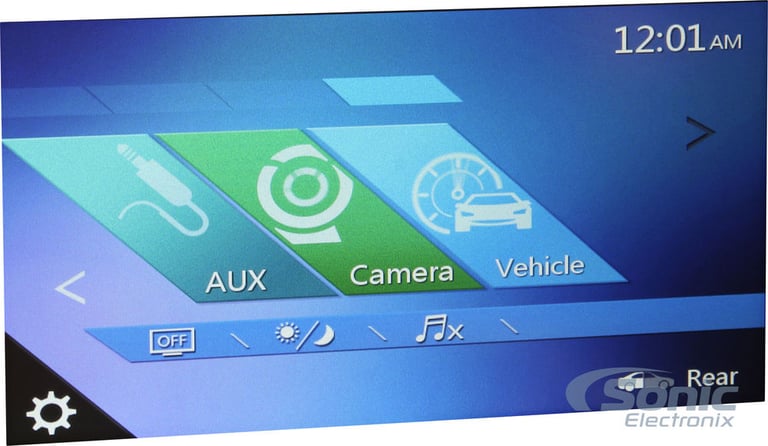

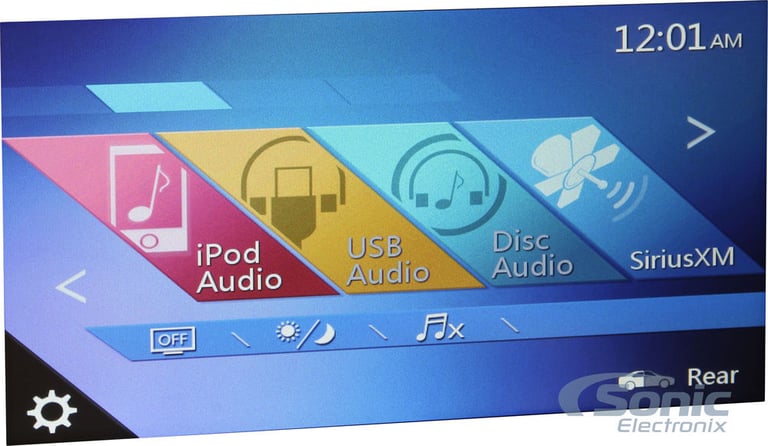

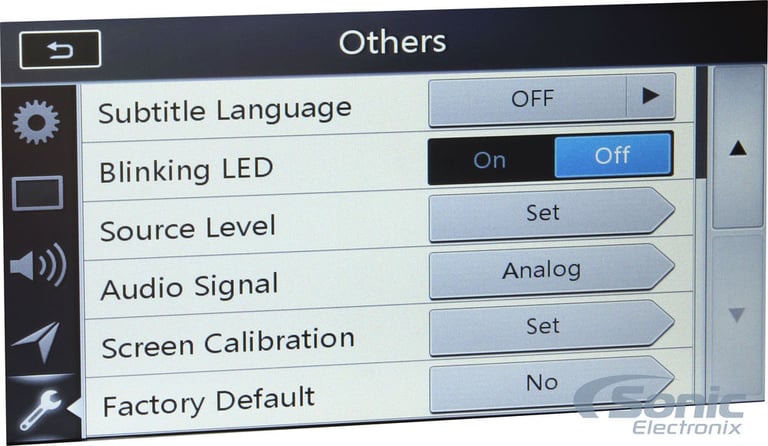

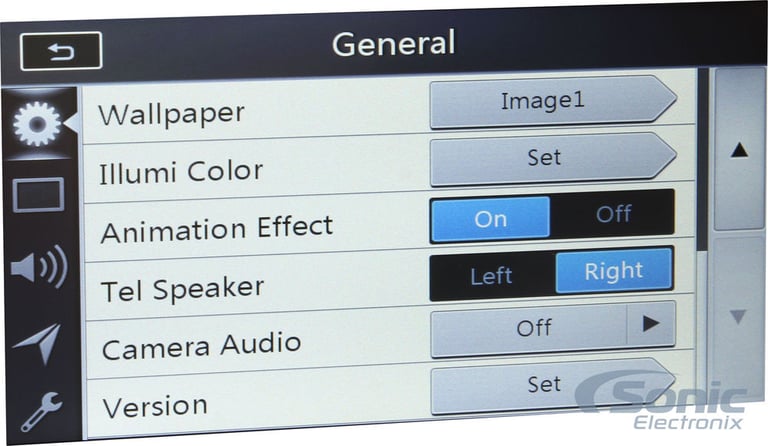

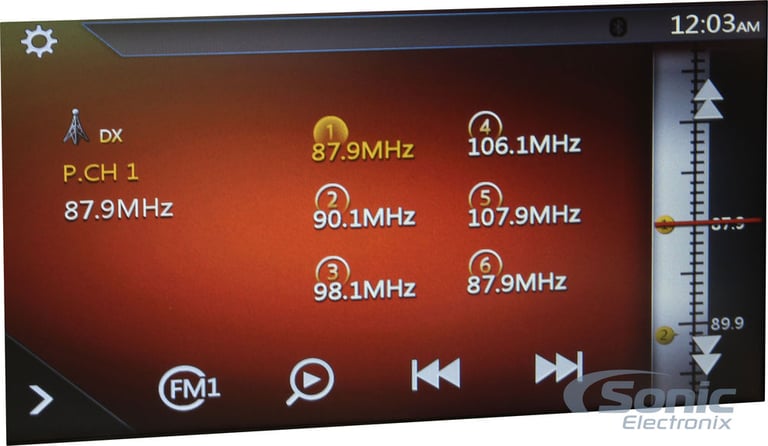

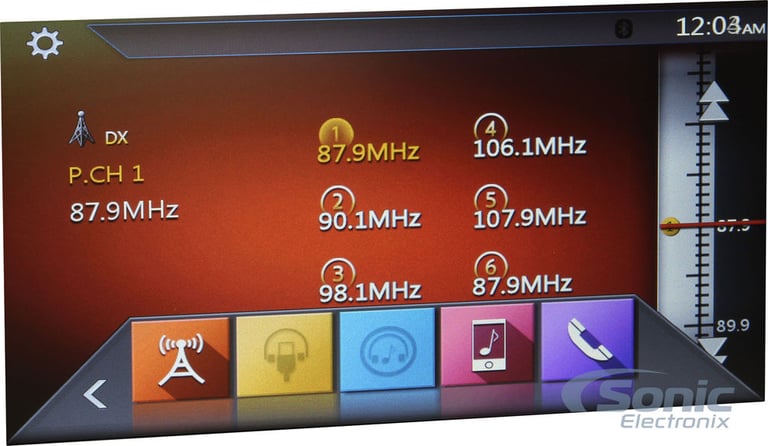

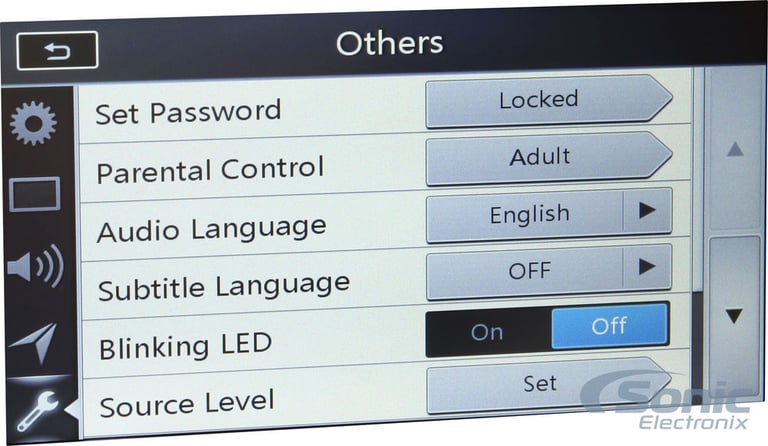

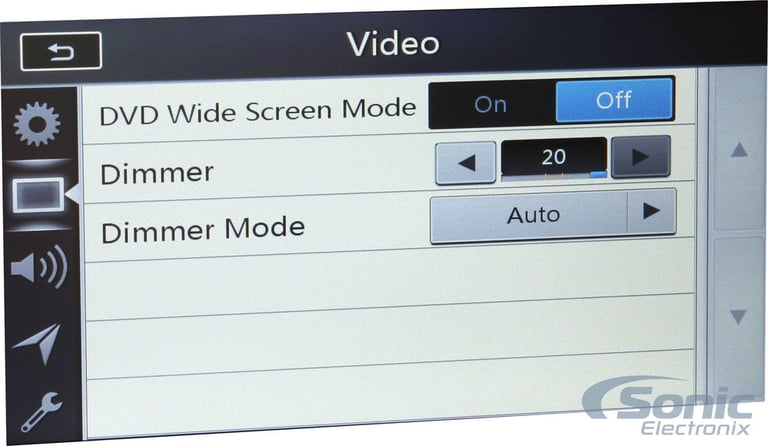

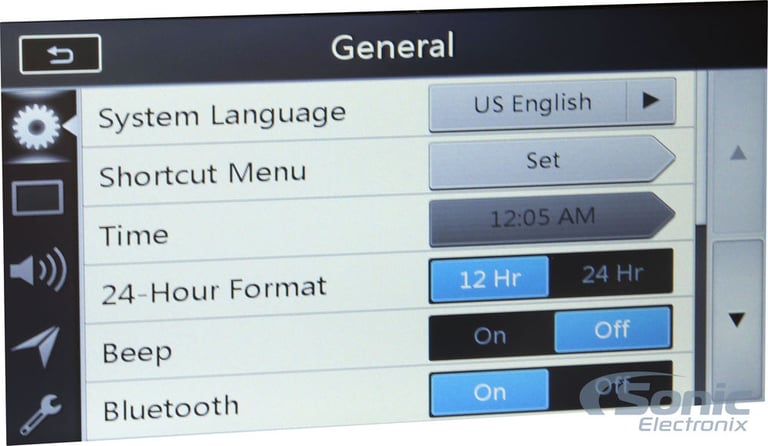

• 7" WVGA touch screen
• Power Output:
• Peak: 50 watts x 4 channels
• RMS: 20 watts x 4 channels
• Full Digital Sound Ready
• First LSI optimized for in-vehicle use to achieve high quality playback of full digital sound
• Toslink Output - The NX706 is the only 7" AVN with an out-of-the-box optical output. This will output high resolution audio up to 24-bit/96kHz. Better than CD quality!
• Siri Eyes Free
• MP3 ID3 Tag Display (Title/Artist/Album)

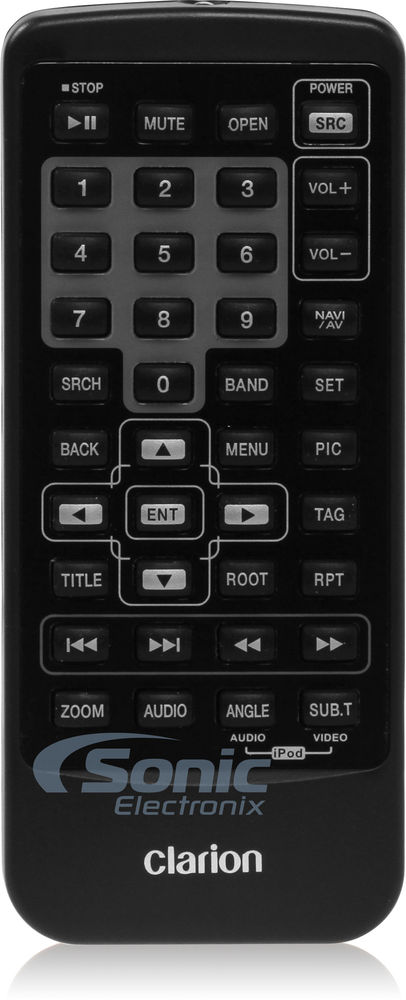

• Remote control included
• 2-zone entertainment

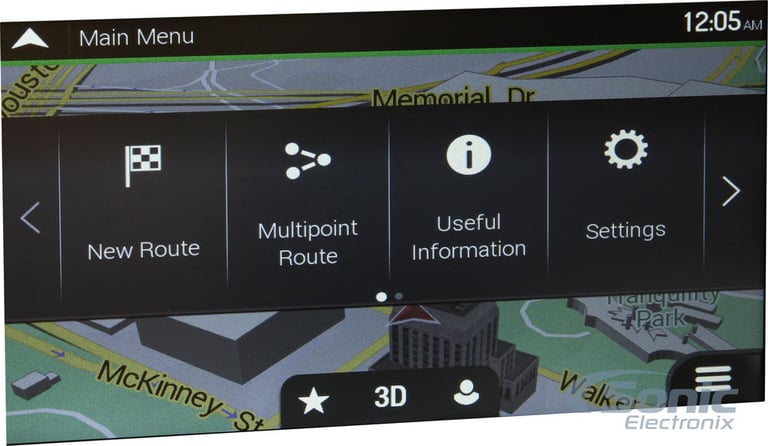

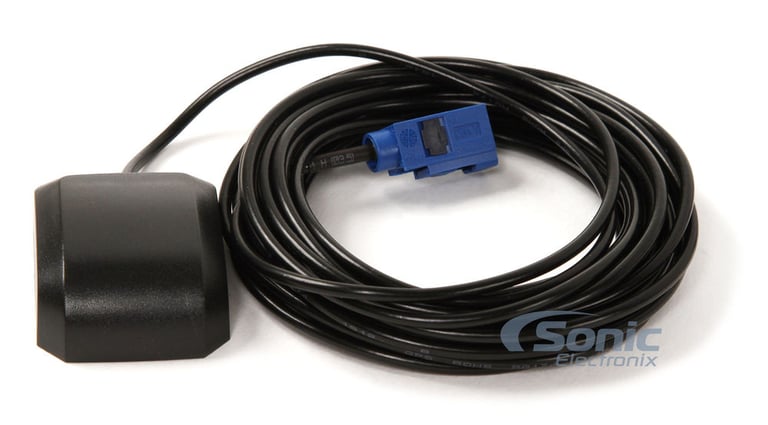

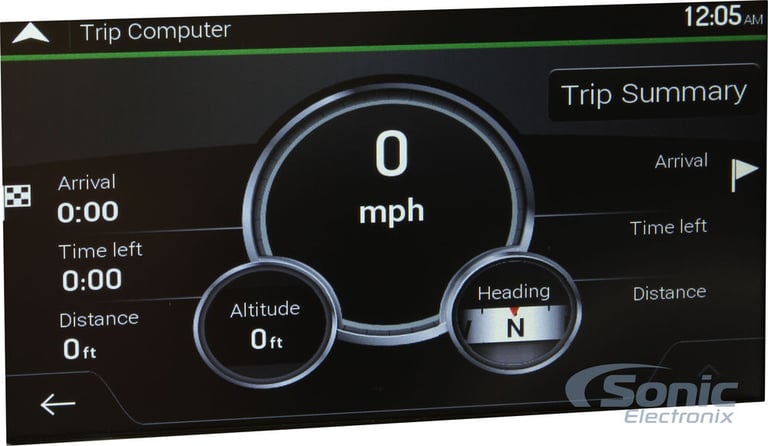

• On-board GPS Navigation
• Optical Digital Output for Sound System Upgradability
• Variable Color Key illumination
• HDMI input to display your smartphone screen on the NX706 display
• Android devices require a compatible HDMI to MHL Cable
• Apple devices require an Apple 30-pin digital AV adapter
• Dimensions: 7"W x 6.3"D x 4"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

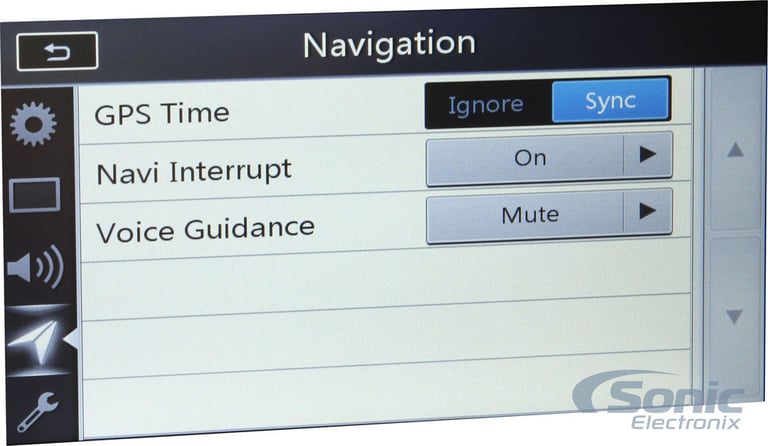

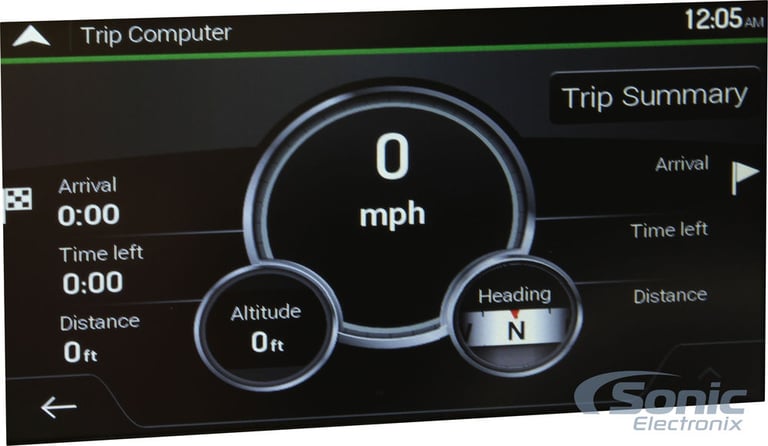

Navigation Features:

• Coverage of all 50 states, Puerto Rico and Canada
• 8GB map storage
• 11 million points of interest
• Supports English, Spanish and French

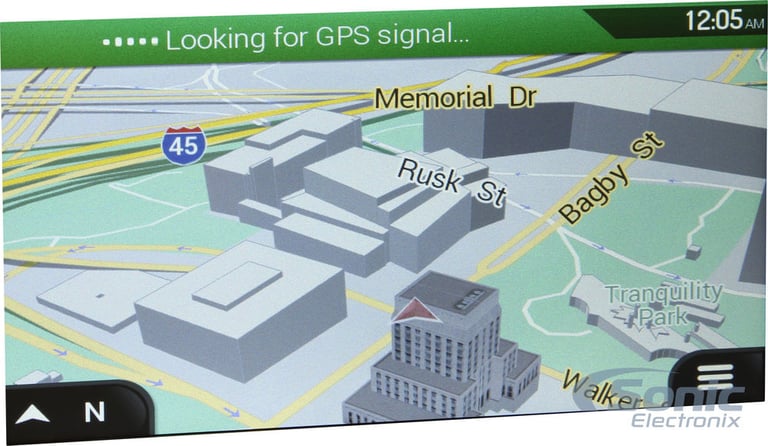

• 3D mapping shows elevation, 3D buildings and landmarks for select cities
• microSD card slot for map updates

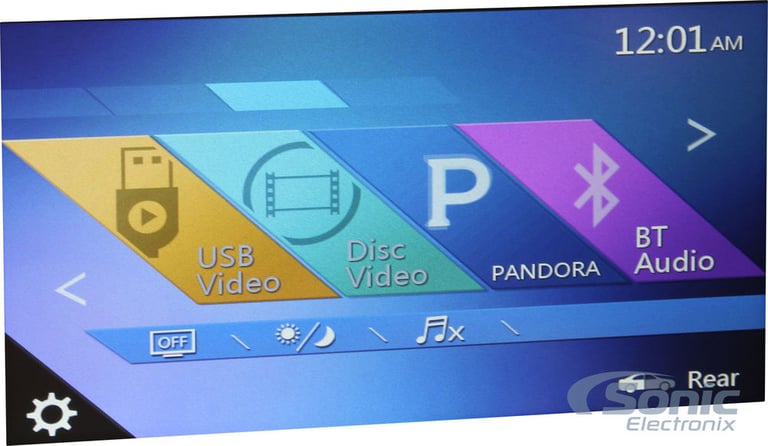

Playback and Audio Features:

• CD/CD-R/RW , DVD/DVD±R/DVD±RW, MP3/WMA/AAC/FLAC Playback
• MP3/WMA/AAC/FLAC/MP4/MP2 Playback via USB
• Compatible with Apple iPhone 6/6+ and iOS 8 software

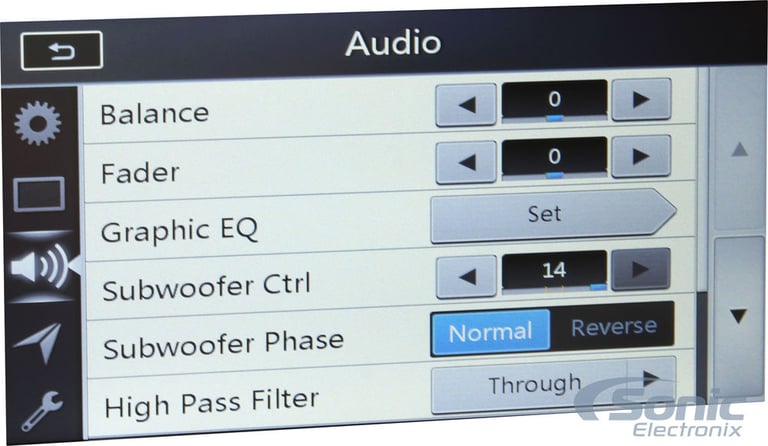

• 15-band parametric equalizer
• Rear Auxiliary Input
• Two USB Inputs
• TOSLINK output
• HDMI input

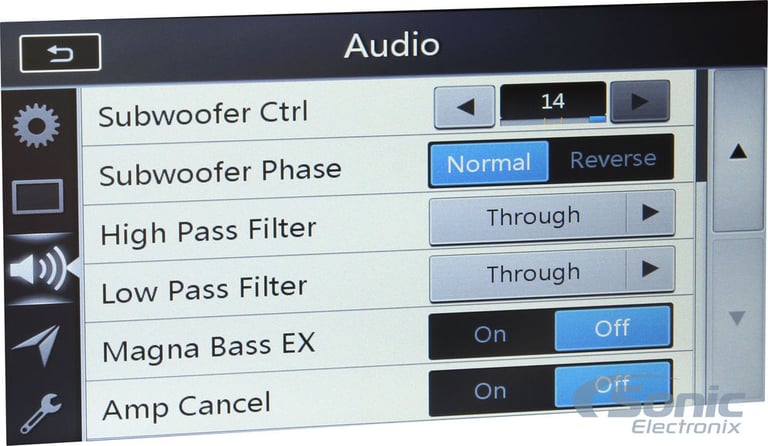

• Low pass and high pass filters
• 96kHz audio support

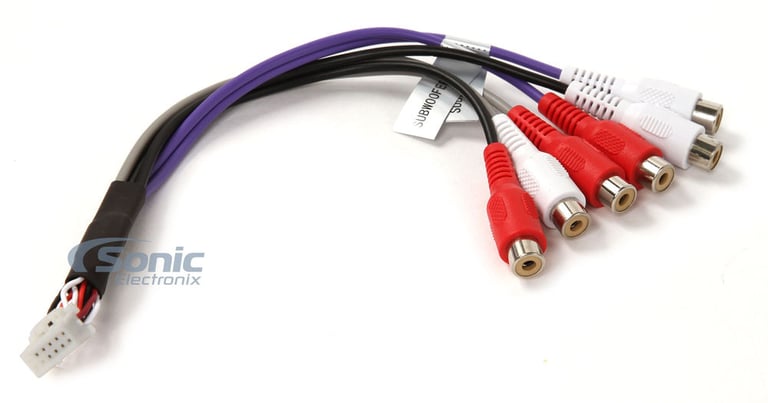

• 3 Sets of 2V preamp outputs (front, rear and subwoofer)

Bluetooth Features:

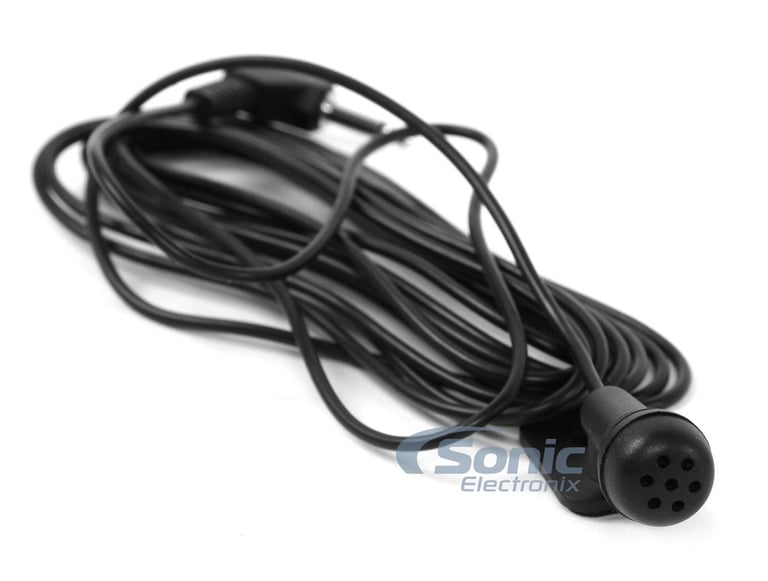

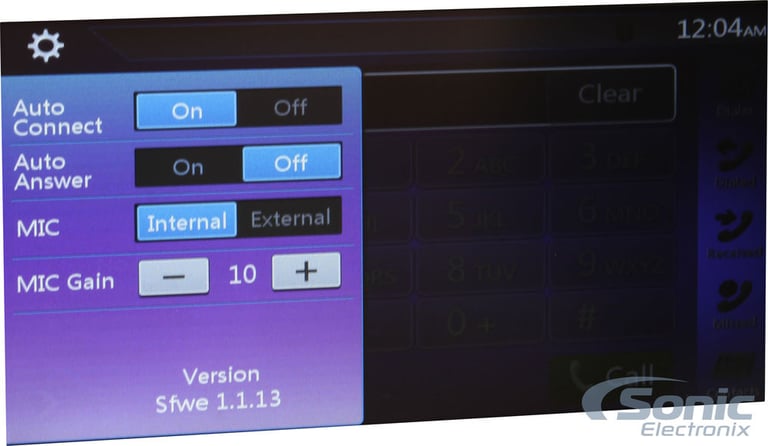

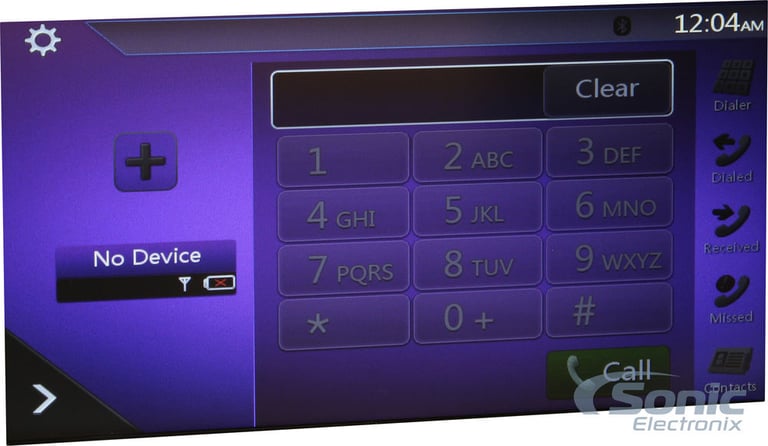

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Bluetooth Profiles Supported:
• HFP1.5: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
• A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
• HSP1.0: Headset Profile enables a Bluetooth headset to connect to a compatible mobile phone
• PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
• AVRCP1.2,1.3,1.4: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
• SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
• Works with most Bluetooth enabled cell phones
• Maximum communication rage: 32.8 feet (approx, line of sight)

Expandability Options:

• SiriusXM Satellite Radio Ready: SiriusXM SXV300v1 and subscription required, sold separately
• Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input.
• Steering Wheel Control Ready: PAC ControlPRO or the Axxess ASWC-1 required and sold separately

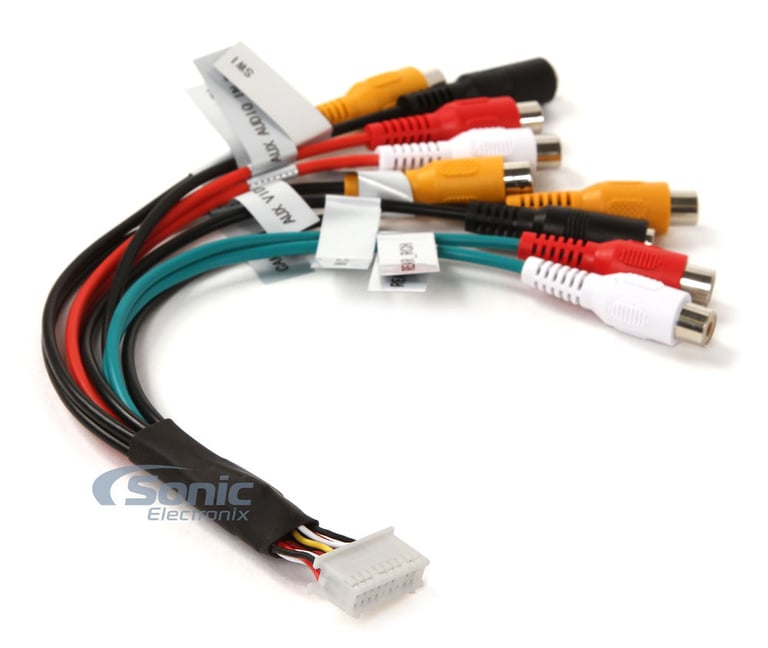

• Rear RCA Audio/Video Output: Used for connection to separate monitors and other devices
• Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input. The Clarion CC510 is recommended and sold separately

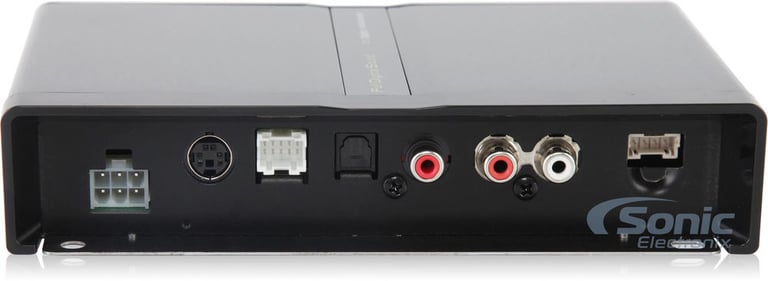

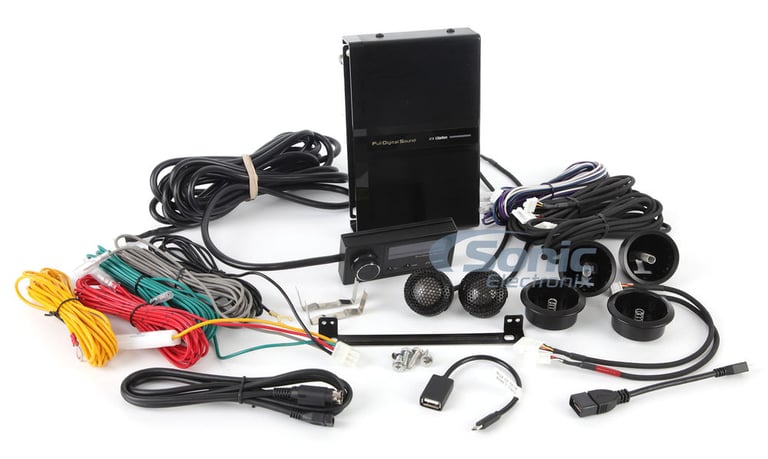

General Features:

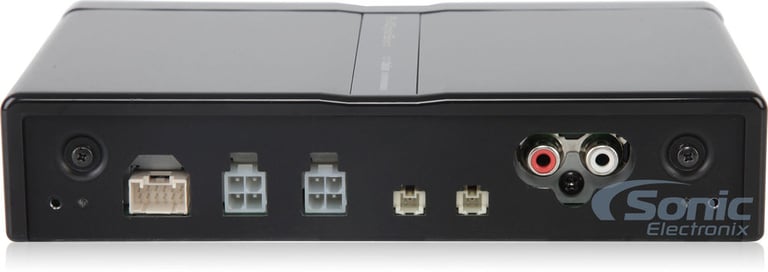

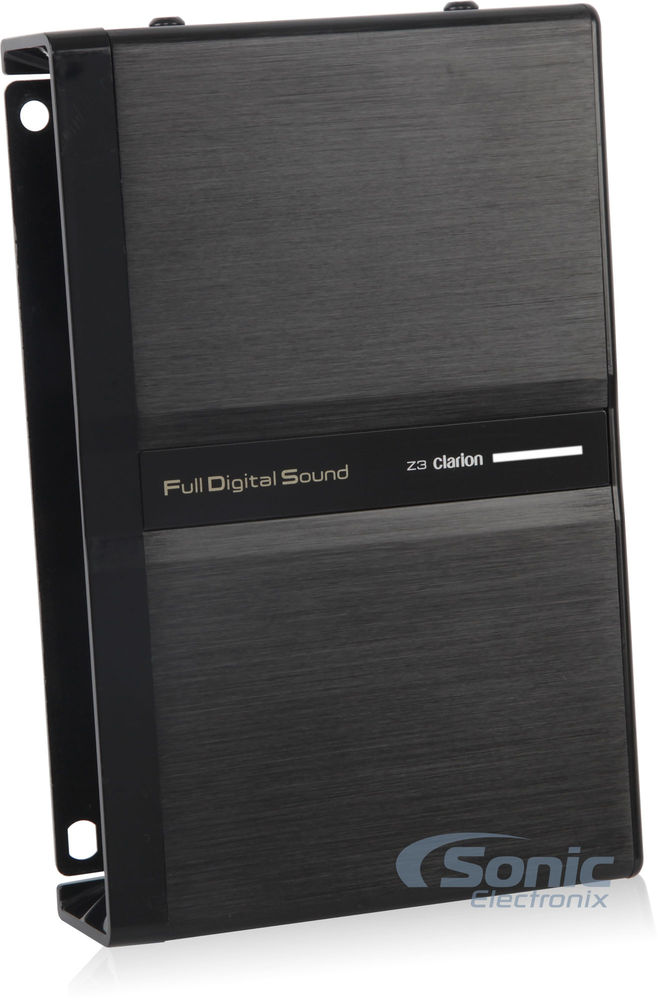

• Z3 Processor
• Custom Developed LSI
• Modern Black Aluminum High Quality Chassis
• 32-Bit SHARC® DSP (Digital Signal Processor)
• Optical and coaxial digital inputs
• RCA, Analog speaker level and USB input
• Designed to interface with the NX706 Full Digital Sound head unit
• "Z-Tune" iOS and Android Smart Phone and tablet app - adjust crossover setting, time alignment and 31-band EQ settings
• 4 Custom memory settings selections
• 2-Channel Stereo Analog Outputs
• Intelligent Tune sound processing control:
• Sound restorer
• Virtual Bass
• Tone Filter
• Reverb Control
• Dimensions: 7" (W) x 1 4/9" (H) x 4 7/12" (D)

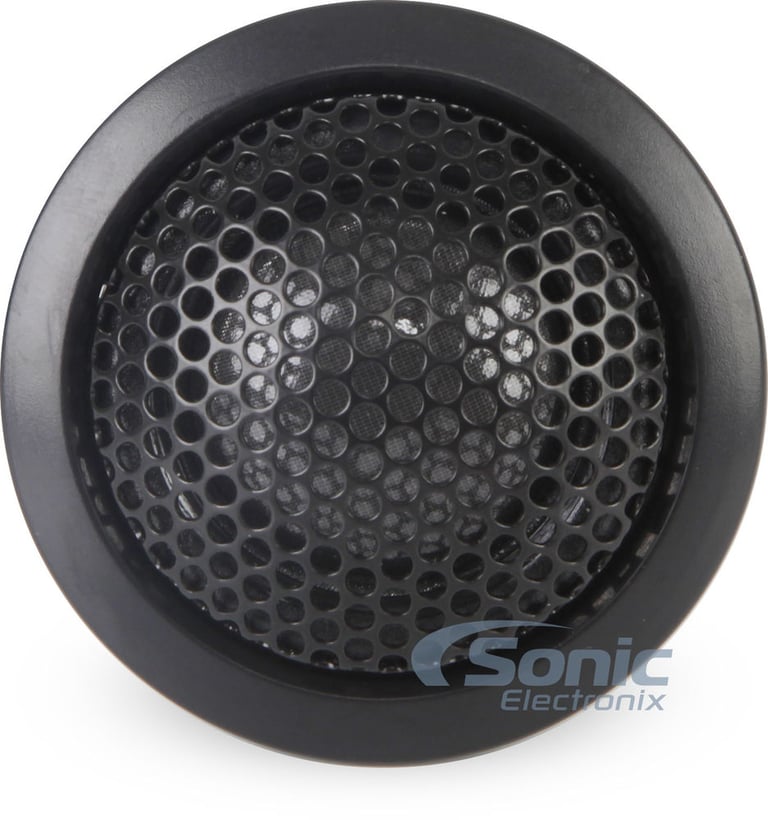

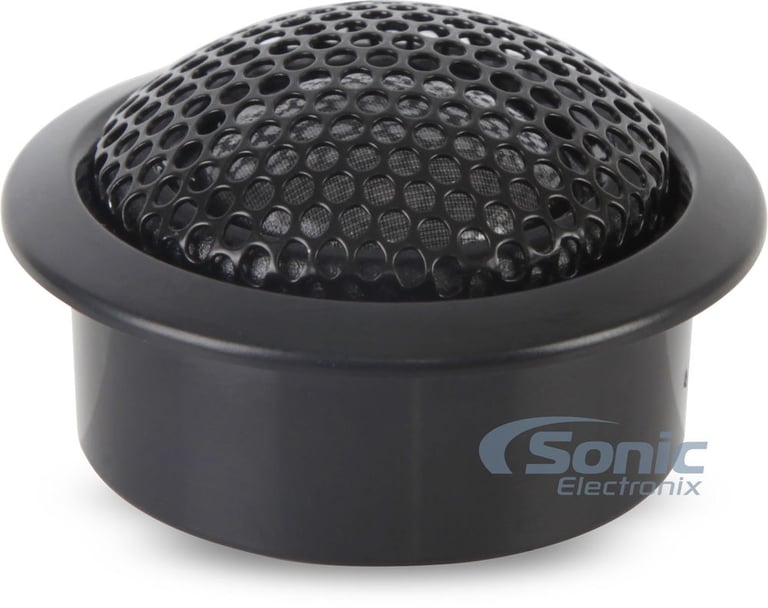

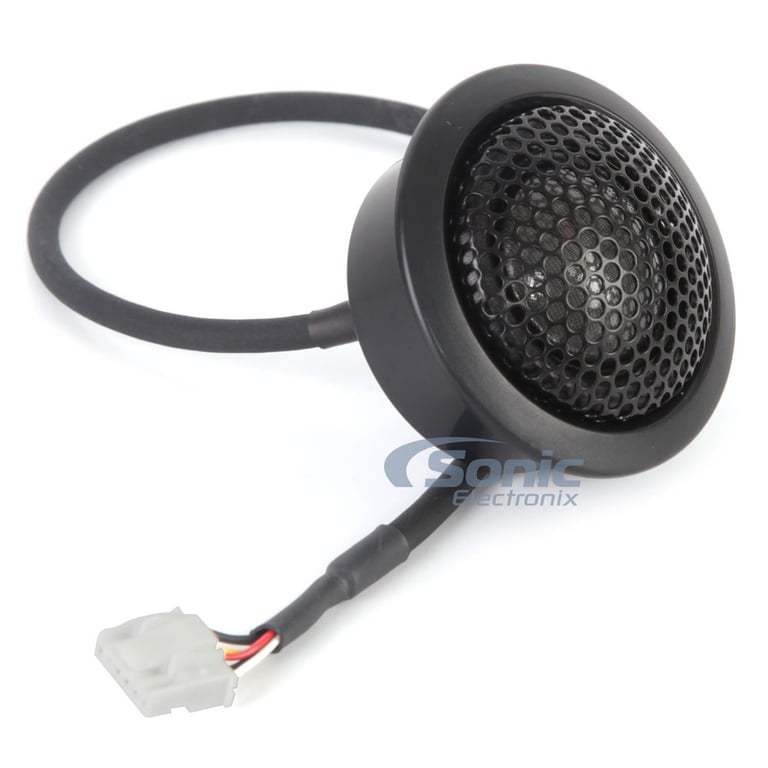

• Full Digital Tweeters
• 1" Polyester Fiber Soft Dome Tweeter
• Dual magnet
• 2-Layer Dual voice coil

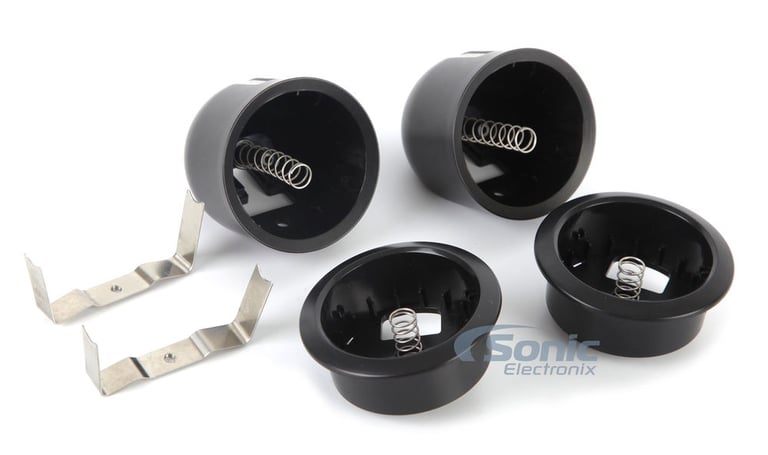

• Surface or Flush mounting capability
• Frequency Response: 1.5kHz - 40kHz

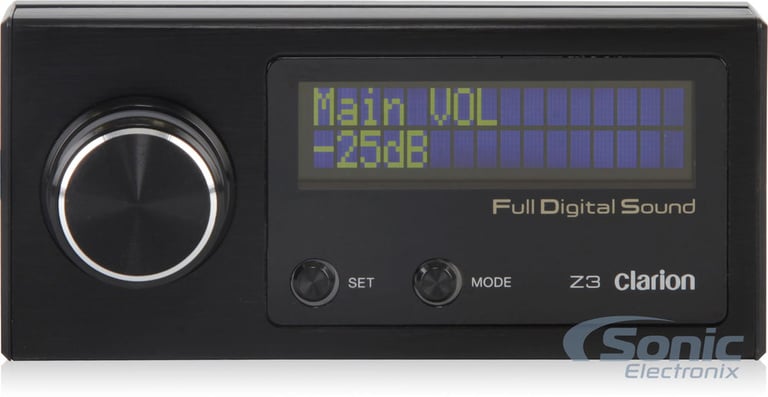

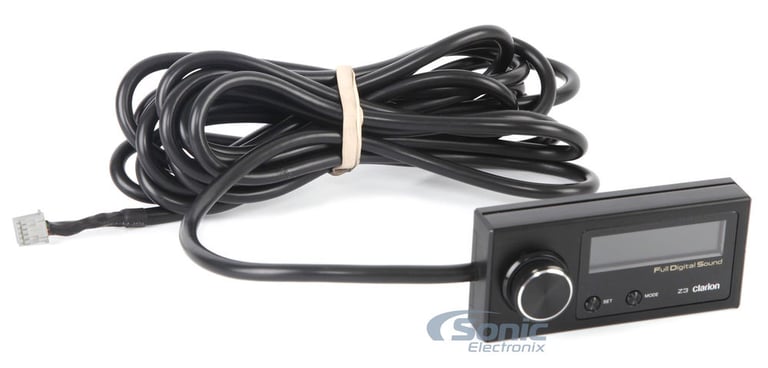

• Commander Control Module
• Modern Black Aluminum Finish
• Large roatary volume control
• 5x7 dot display
• Dimensions: 3 1/4" (W) x 1" (H) x 1 4/5" (D)
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

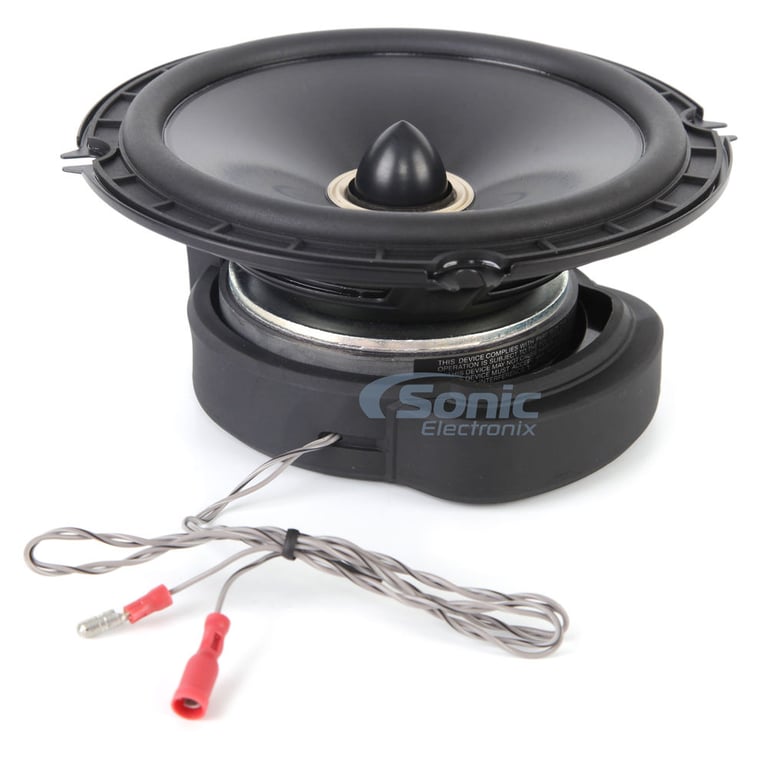

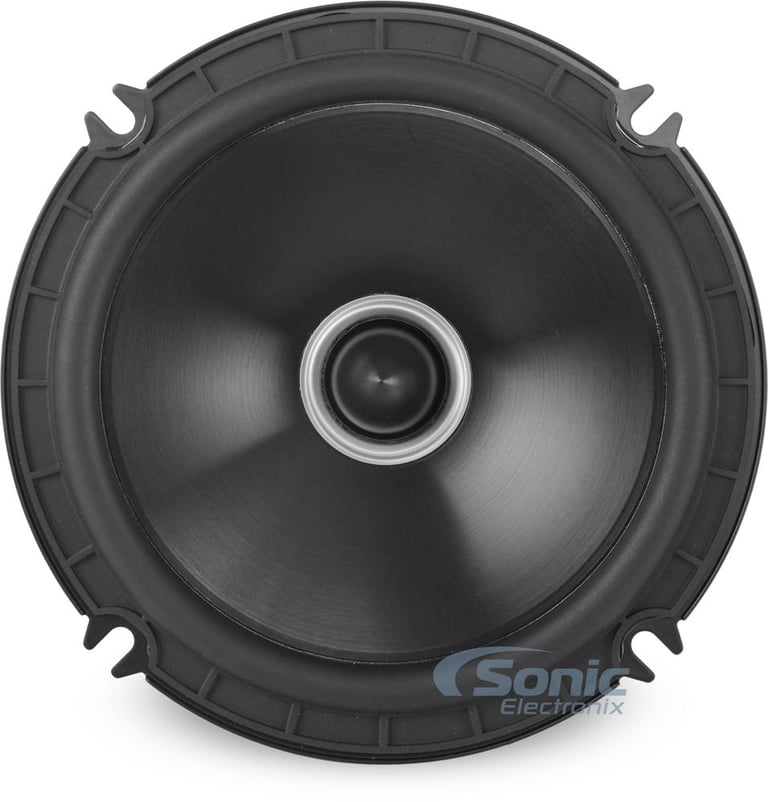

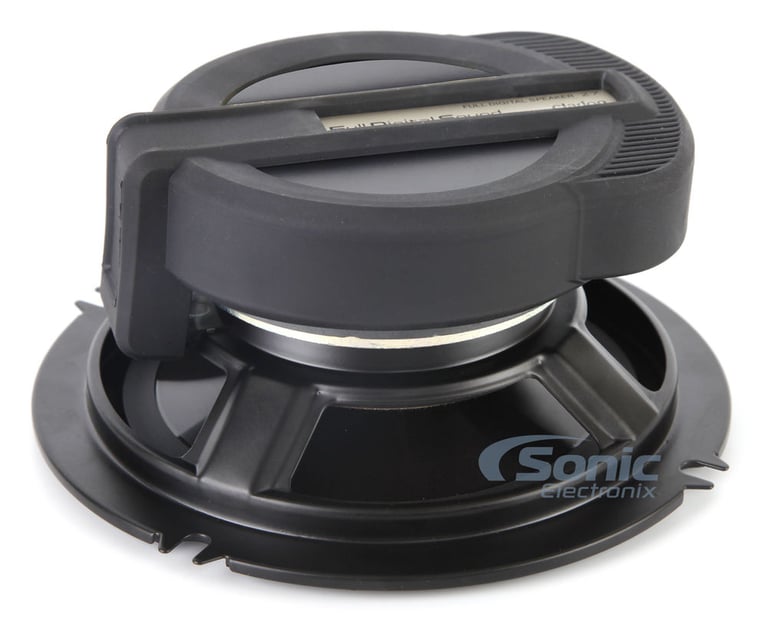

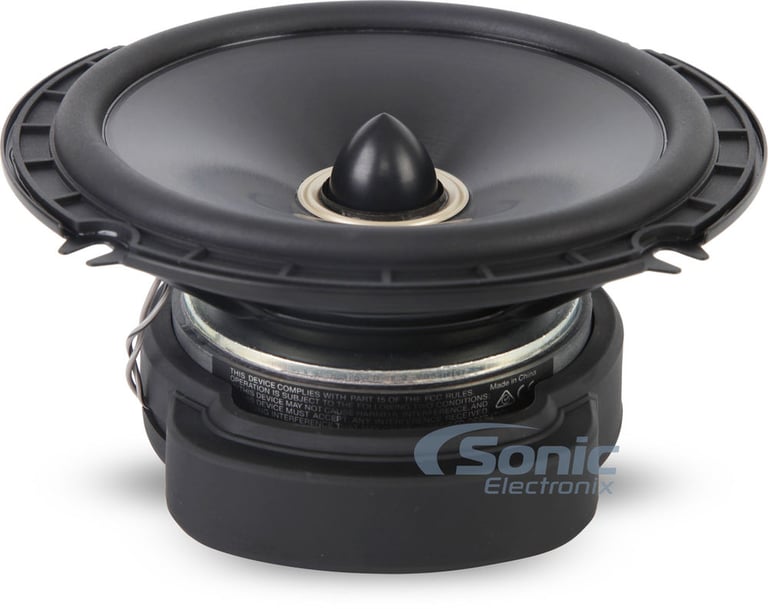

• 6.75" Mid-Bass Full Digital Sound Car Speakers
• Modern Black Aluminum Finish
• Custom developed LSI
• Phase plug
• 6.75" Aramid Carbon Mica composite cone woofer
• 6-layer voice coil
• Built-in full digital driver circuit
• Light weight constructed woofer basket and frame
• Frequency Response: 28Hz - 15kHz

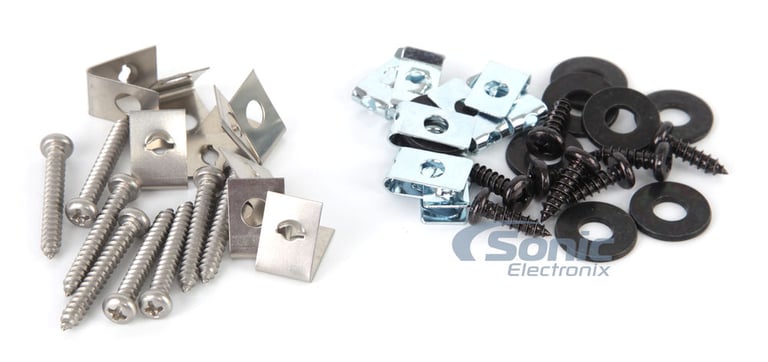

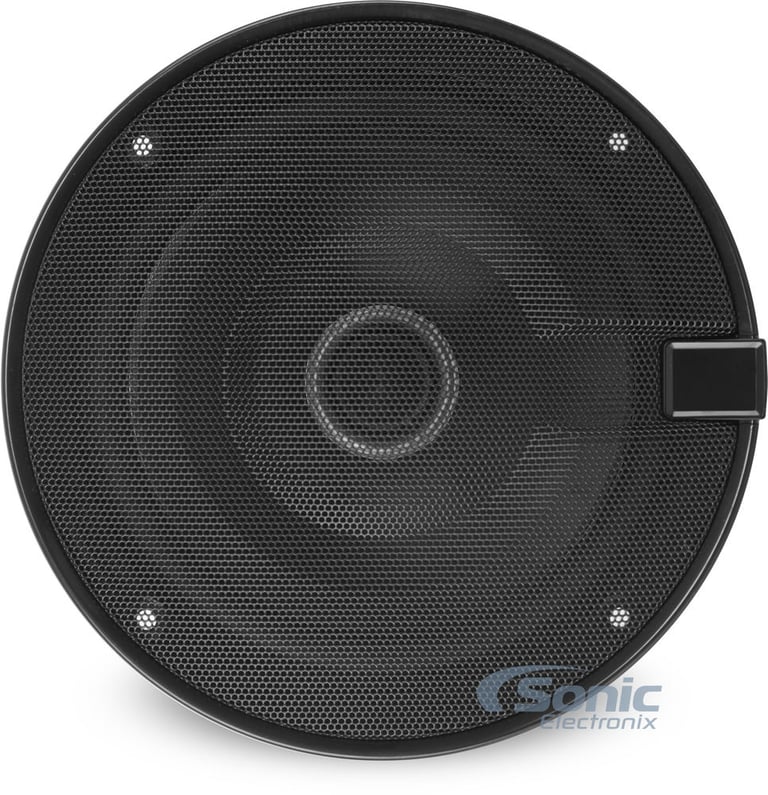

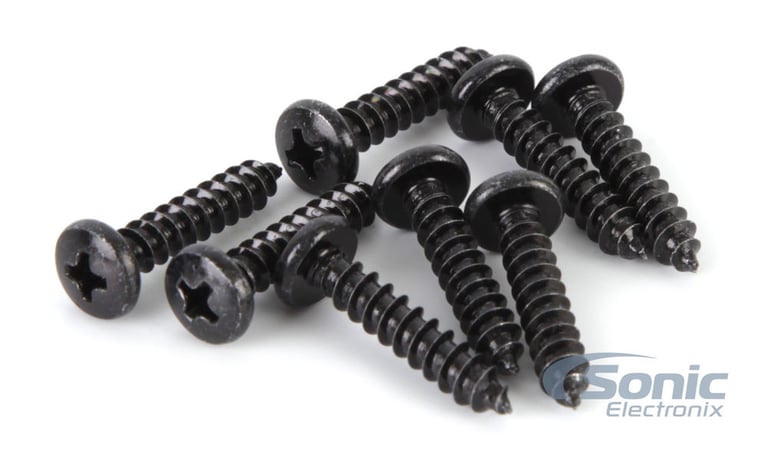

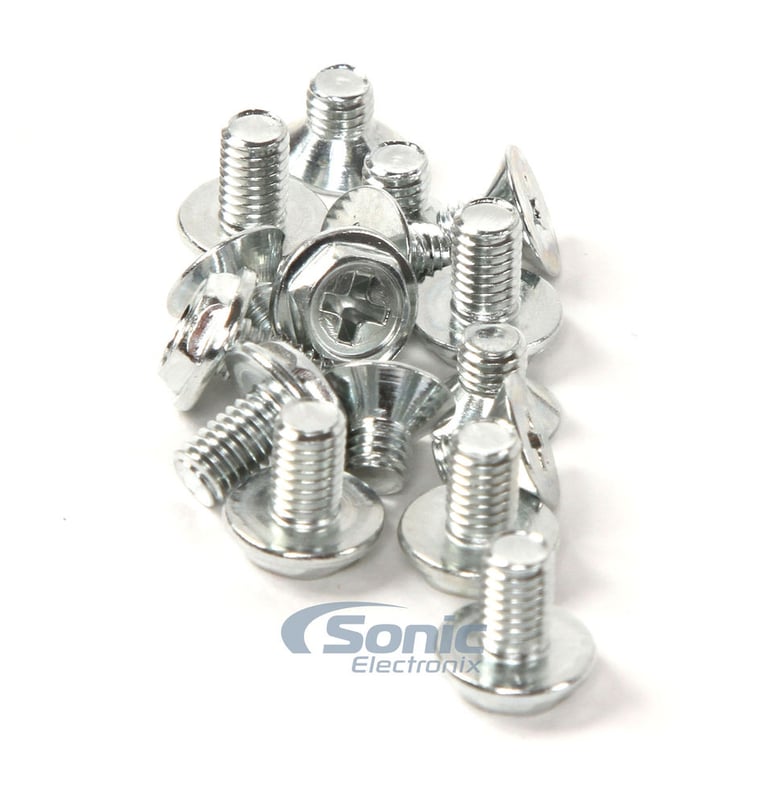

• Grilles and Mounting Hardware included
• Cutout dimensions: 5.5"
• Mounting Depth: 2.75"
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Sold in pairs

General Features:

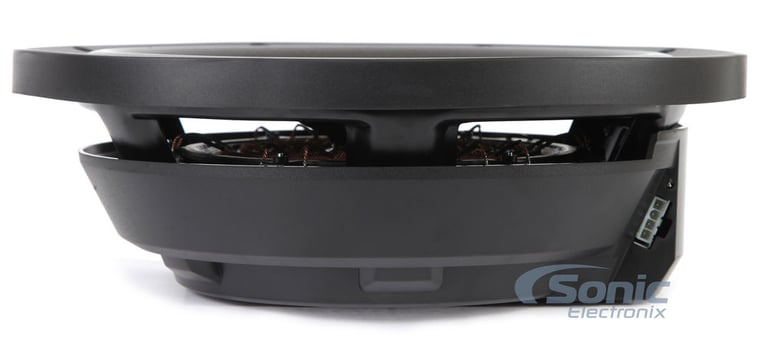

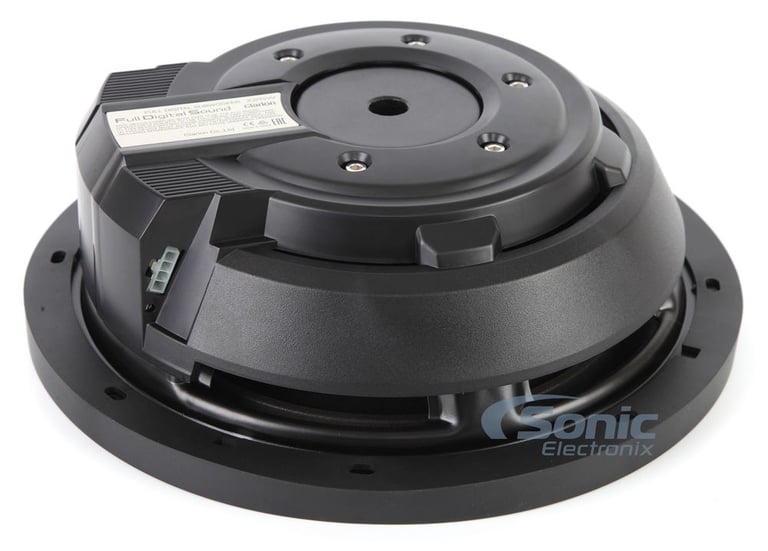

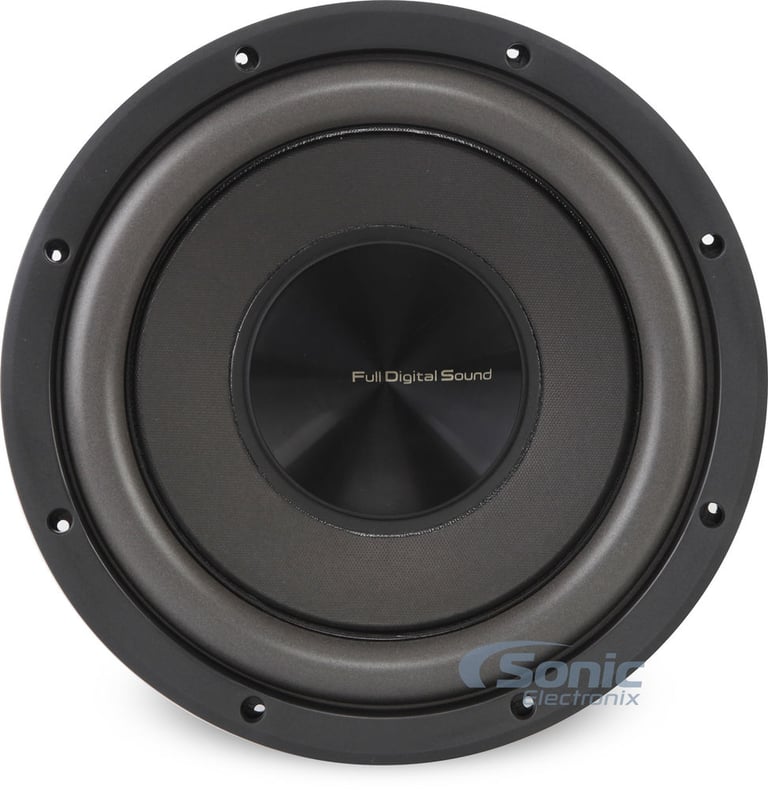

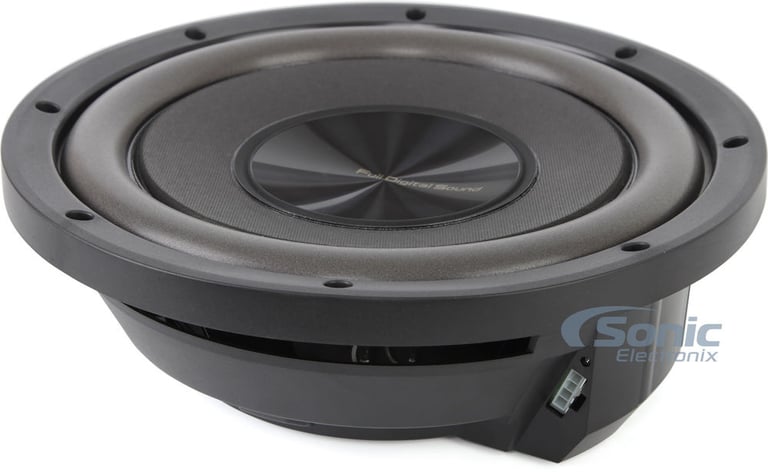

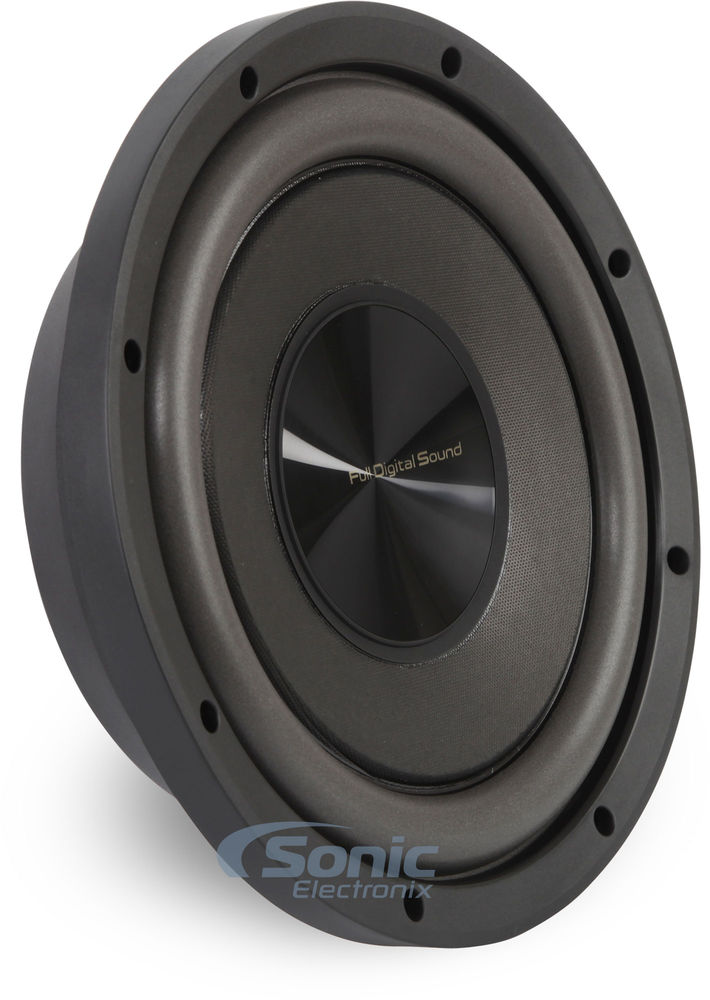

• Full Digital Sound Subwoofer
• Custom developed LSI
• Shallow basket design
• 10" Fiberglass Aramid Carbon composite cone woofer
• 6-layer voice coil
• Built-in full digital driver circuit
• Modern Black Aluminum Finish
• Light weight constructed woofer basket and frame
• Cutout dimensions: 9"
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
