Kicker Solo-Baric L5 08S12L54

12" Dual 4 ohm Subwoofer (S12L5, S12L54)

Kicker
Shop all Kicker
Product videos
highlight-star-icon

12" Solo-Baric L5 Series Subwoofer • 1200W Max • 600W RMS • Titanium deposit impregnated cone woofer with rolled outer edge • Santoprene rubber surround • Stamped steel basket • Vented 360° back bracing • Poly-cotton semi-progressive spider

Learn more about the 08s12l54

We apologize

This item has been discontinued

Product Highlights


12" Solo-Baric L5 Series Subwoofer • 1200W Max • 600W RMS • Titanium deposit impregnated cone woofer with rolled outer edge • Santoprene rubber surround • Stamped steel basket • Vented 360° back bracing • Poly-cotton semi-progressive spider

Description


Kicker

Authorized dealer

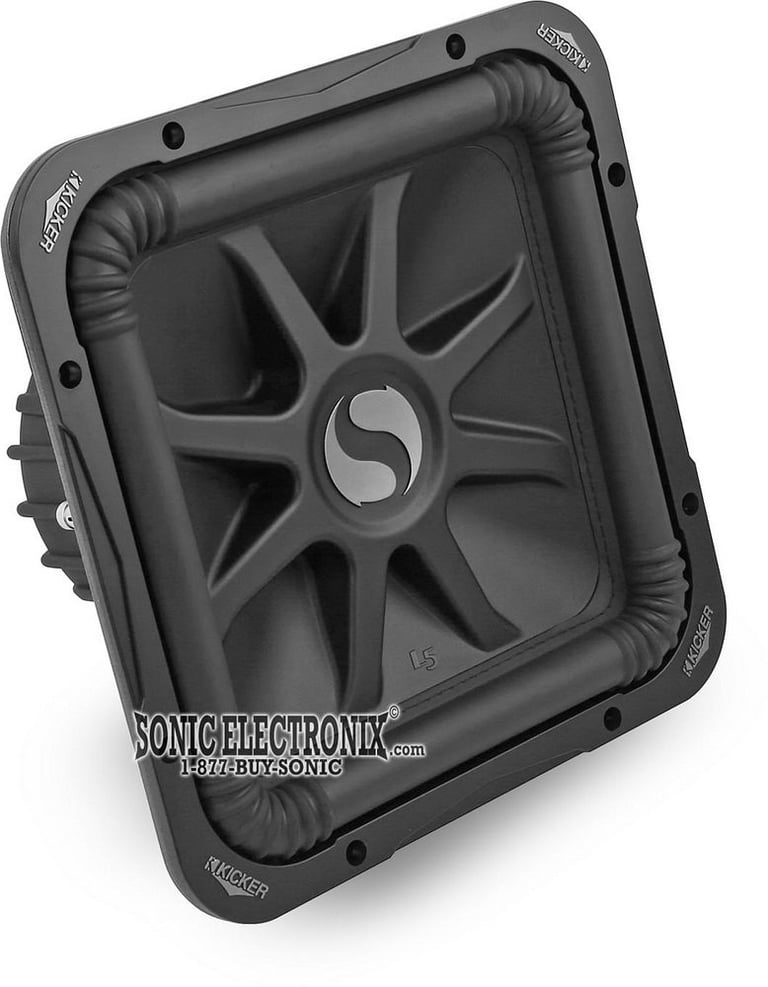

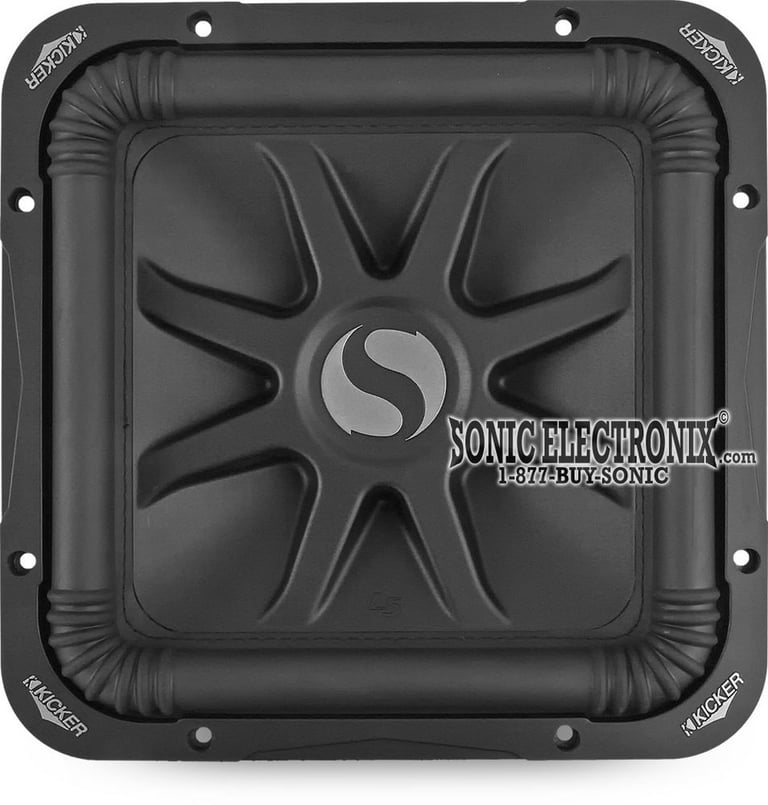

The Kicker Solo-Baric L5 woofers inherit all the same patented technology as the dominant L7 square woofers at a more affordable price target. The 08/09 series offers a hot new look and improved design, specifically with the new SoloKon technology and heating disbursement. The patented square design allows for 18% more cone area, which translates to more sound compared to competing round subs. The SoloKon one-piece, injection-molded cone offers full-coverage back bracing that pushes more air and creates louder bass than ever before.

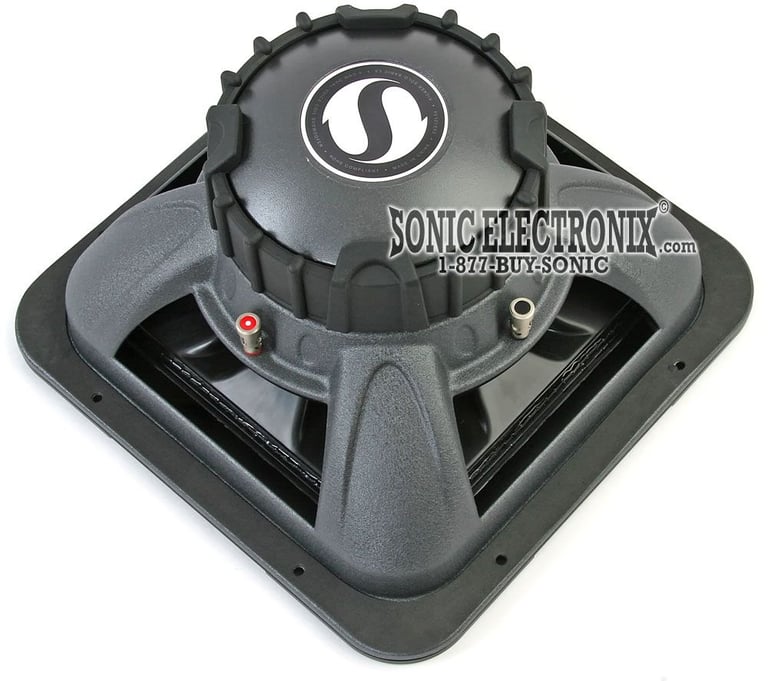

The Santoprene rubber surround of the L5 handles the power of the motor and cone, and a rear foam gasket secures the stamped-steel basket to any given baffle. The logo-bearing steel basket with spring-loaded terminals, a stout magnet, and the logo-bearing protective front gasket also allow the L5 to take on power like never before.

Key Features:

  • 12" Solo-Baric L5 Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • Titanium deposit impregnated cone woofer with rolled outer edge
  • Santoprene rubber surround
  • Stamped steel basket
  • Vented 360° back bracing
  • Rear foam gasket
  • Spring loaded terminals
  • Poly-cotton semi-progressive spider
  • Heat-dispersing, solid pole piece
  • Spiralead™ tinsel leads
  • High-temperature dual 4 ohm voice coils
  • Frequency response: 20-100 Hz
  • Sensitivity: 87 dB
  • Other search terms: S12L5, S12L54, 12L5, 12L54, 08S12L54
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

Kicker 08S12L54 thumbnail
(newest, current model)
Kicker S12L54 thumbnail
(previous model, replaced by Kicker Solo-Baric L5 08S12L54)
Kicker 05S12L54 thumbnail
(previous model, replaced by Kicker 06S12L54 Solo-Baric L5 Series)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kicker Solo-Baric L5 08S12L54 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker Solo-Baric L5 08S12L54 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker Solo-Baric L5 08S12L54 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Kicker Solo-Baric L5 08S12L54 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
1200 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
Frequency Response
20 - 100 Hz
Sensitivity
87 dB
Subwoofer Design
Square
Main Cone Color
Black
Woofer Composition
Titanium Deposit Impregnated w/ Rolled Outer Edge
Woofer Surround
Santoprene Rubber
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
.88 cubic feet
Maximum Sealed Box Volume
2.00 cubic feet
Minimum Ported Box Volume
1.75 cubic feet
Maximum Ported Box Volume
3.25 cubic feet
Top-Mount Depth (Mounting Depth)
6-13/16"
Cutout Diameter
11-1/16" x 11-1/16"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

08S12L54

Weight:

22.00lbs

Internal SKU:

08s12l54

Internal Product ID:

11355
