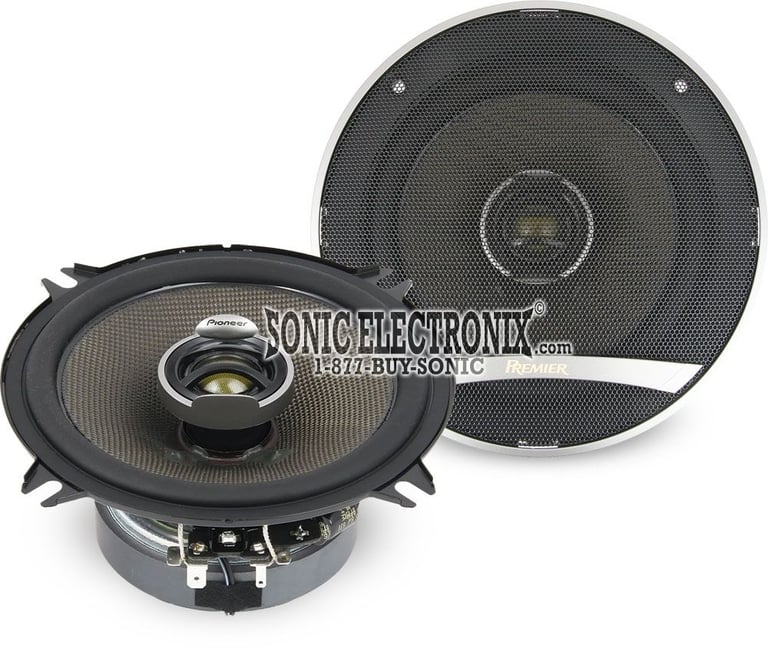

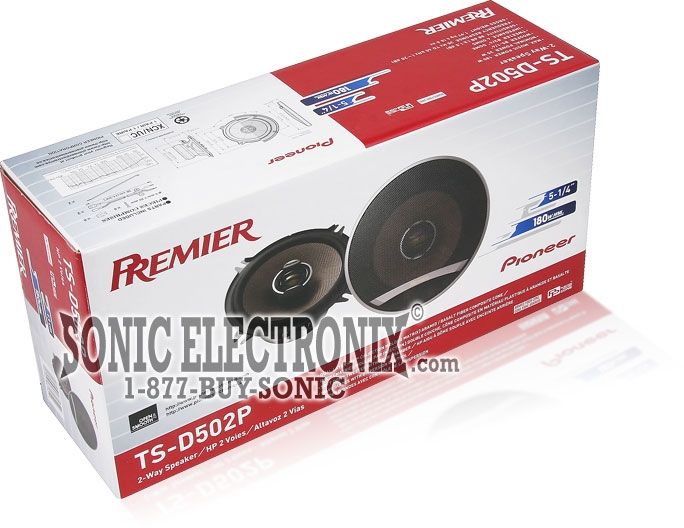

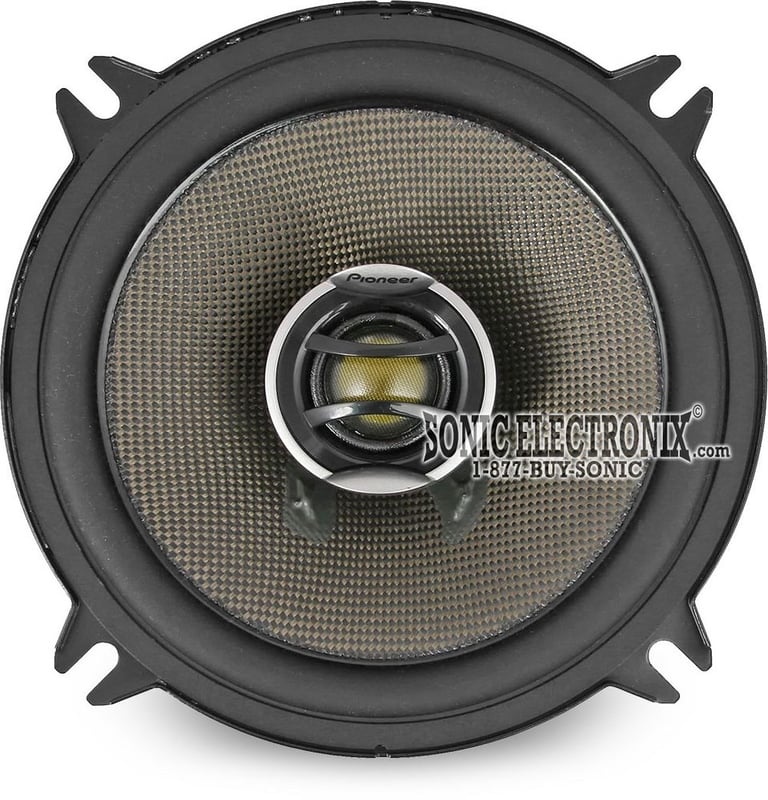

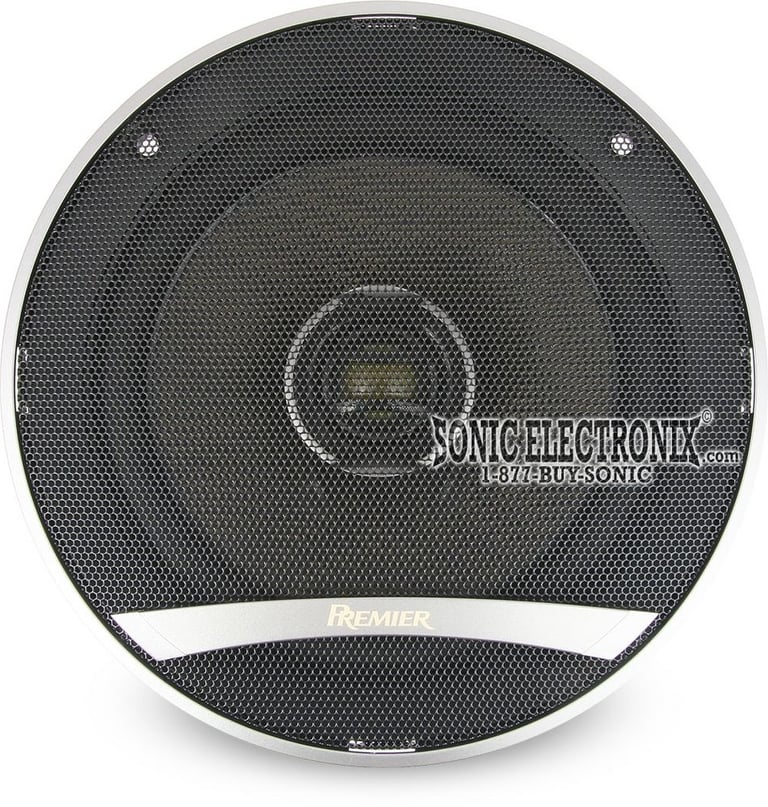

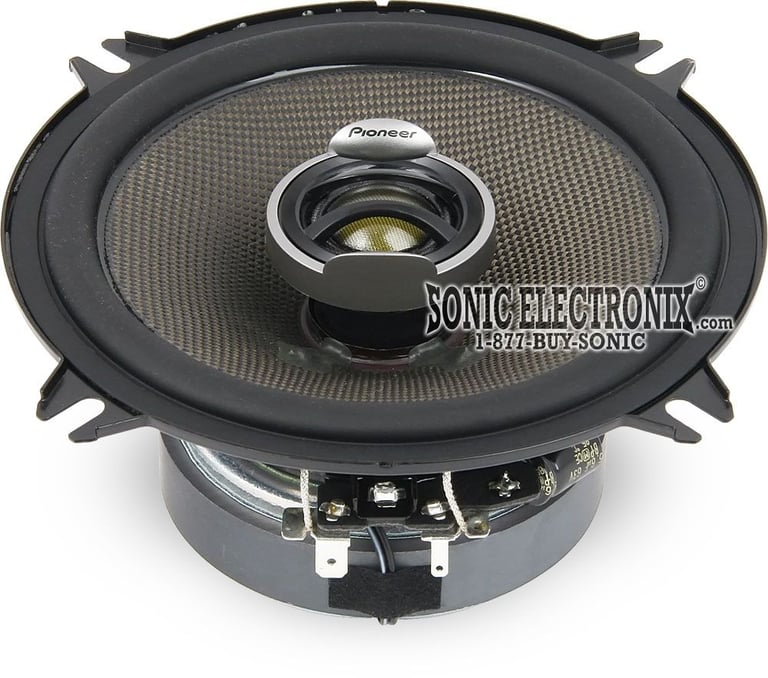

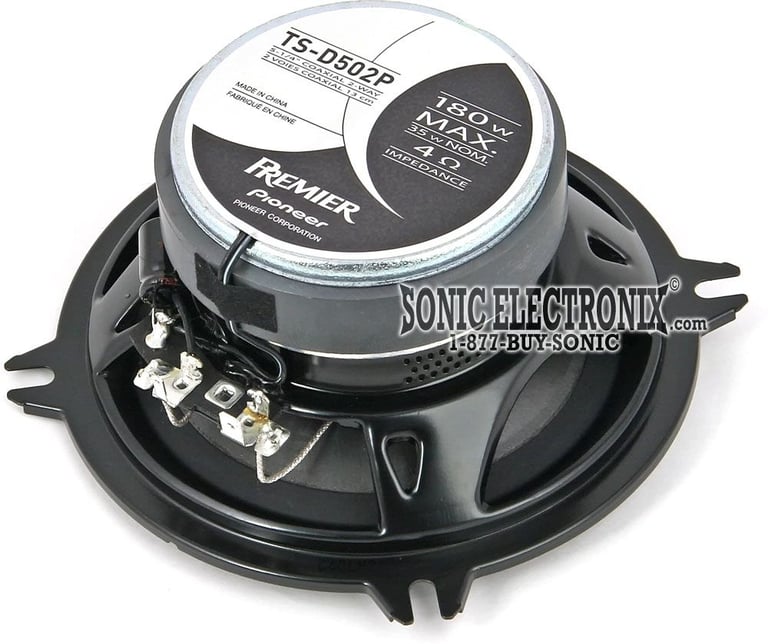

Pioneer Premier TS-D502P

5-1/4" 2-way D-Series Speakers

Pioneer
Shop all Pioneer
highlight-star-icon

5.25" Premier D Series Car Speakers • 180W Max • 35W RMS • Dual layer IMX aramid-basalt fiber composite cone woofer • Butyl rubber surround • 3/4" Soft dome tweeter with magnetic fluid and neodymium magnet structure

Learn more about the tsd502p

We apologize

This item has been discontinued


Loading...
70-7001 main

Metra 70-7001 Wiring Harness

Install a new car stereo in select 1992-2012 vehicles from Mitsubishi, Eagle, Dodge

7
Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

14
-25.50%

$298.00

List price $399.99

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

43DSC404 main

Kicker DSC40 (43DSC404)

240W Peak (60W RMS) 4" DS Series 2-way 4-ohm Coaxial Car Speakers

2
-13.34%

$64.99

List price $74.99

Limited time!
46CSS654 main

Kicker CSS65 (46CSS654)

600W Peak (200W RMS) 6.5" CS Series 2 Way Component 4-ohm Speaker System

9
-28.02%

$143.96

List price $199.99

SXE-1751S main

Alpine SXE-1751S

440W Peak (80W RMS) 6.5" SXE-Series 2-way 4-ohm Component Speakers with Mylar-Titanium Tweeters

4
-16.67%

$64.99

List price $77.99

XED42 main

Cerwin-Vega XED42

300W Peak (40W RMS) 4" XED Series 2-Way Coaxial 4-ohm Speakers

4
-16.67%

$39.99

List price $47.99

STAGE2524 main

JBL STAGE2524 (STAGE2 524)

420W Peak (70W RMS) 5.25" Stage2 Series 2 Way Coaxial 4-ohm Speakers

3
-44.49%

$49.95

List price $89.99

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

JBL Stage3 637F (STAGE3637FAM)

270W Peak (90W RMS) 6.5" Stage3 Series 3-Way Coaxial 3-Ohm Speakers

2
-18.19%

$89.95

List price $109.95

Description


Pioneer brand icon

Authorized dealer

  • 5-1/4" 2-Way Premier D Series Car Speakers
  • Power Handling:
    • Peak: 360 watts per pair / 180 watts each
    • RMS: 70 watts per pair / 35 watts each
  • Dual layer IMX aramid-basalt fiber composite cone woofer
  • Butyl rubber surround
  • 3/4" Soft dome tweeter with magnetic fluid and neodymium magnet structure
  • Wave guides dispersion control
  • Rear chamber tweeter enclosure
  • Built-in high-pass and low-pass crossover (12 dB/octave high/low pass filter)
  • Smooth off-axis response
  • Low distortion
  • Thick woofer basket
  • 4 ohm impedance
  • Conex damper
  • Glass-imide voice coil bobbin
  • OFC copper 4 ohm voice coil
  • Top-mount depth: 2-1/4"
  • 2-year SonicElectronix.com warranty

Priced Per Pair


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99


Best selling similar products

Club 522F small

JBL Club 522F (SPKCB522FAM)

• 135 watts Peak Each, 45 watts RMS Each
• Silk Edge Driven Dome tweeters
• UV-Resistant Polypropylene cone material
• Plus One woofer architecture
• Impedance: 3 ohm
• Sensitivity: 91 dB

$74.99

List price $129.95

46CSC54 small

Kicker CSC5 (46CSC54)

• 225 watts Peak Each, 75 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters with neodymium magnets
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(5)

$79.96

List price $119.99

43DSC504 small

Kicker DSC50 (43DSC504)

• 200 watts Peak Each, 50 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(17)

$74.99

List price $84.99

Specifications & Details


Speaker Specifications
Speaker Size
5-1/4"
Design
2-way Coaxial
Tweeter Design
Dome
Woofer Composition
Aramid Fiber
Woofer Surround
Butyl Rubber
Peak Power Handling
180 watts
RMS Power Handling
35 watts
Sensitivity
88 dB
Frequency Response
35 - 40000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2-1/4"
Cutout Dimensions
4-3/4" x 4-3/4"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-D502P

Weight:

4.00lbs

Internal SKU:

tsd502p

Internal Product ID:

11632
