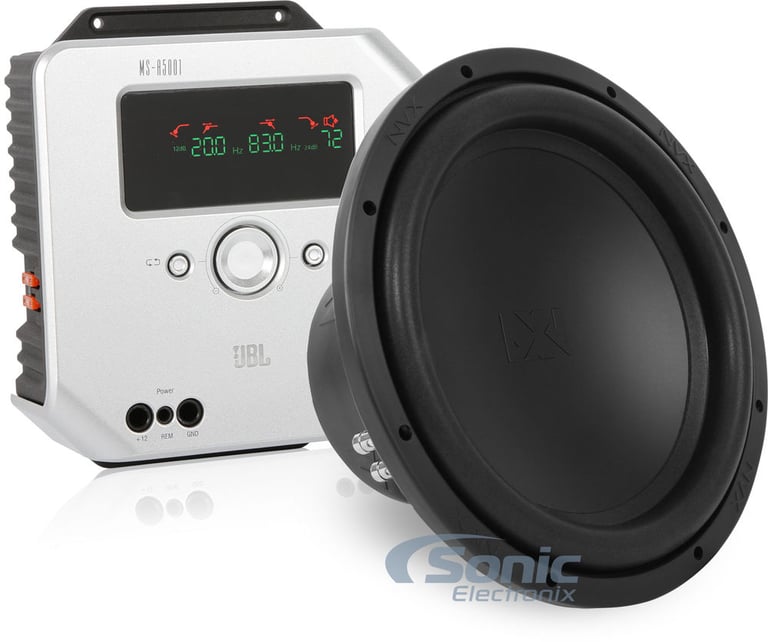

750W RMS NVX and JBL 12" Bass Package

600W RMS 12" VS-Series Dual 4-ohm Car Subwoofer + 750W RMS Monoblock Class D Car Amplifier with Digital Input Mixer and Graphical Status Display

NVX
Shop all NVX
EXCLUSIVE
Product videos
highlight-star-icon

12" VS-Series Subwoofer • Dual 4-ohm Voice Coil • RMS Range: 450 - 600 Watts • Non-Pressed Paper With Woven Carbon Fiber Top • High Excursion Foam Surround • Stamped Steel Basket • Single Nomex Spider
• RMS: 500 x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• DSP (Digital Signal Processing)
• Sophisticated Crossover Functions and Selectable Crossover Slopes

Learn more about the vsw124v2_msa5001

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

99-6503 main

Metra 99-6503 Dash Kit

Install a new Single-DIN car stereo in select 1998-2010 vehicles from Dodge, Chrysler, Jeep

17
-45.48%

$11.99

List price $21.99

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
460BRGB main

Boss Elite 460BRGB

Single DIN Digital Media Receiver with Bluetooth (Black)

8

JVC KD-X280BT

Single DIN Digital Media Receiver with Bluetooth

2
-15.50%

$109.00

List price $129.00

Product Highlights


12" VS-Series Subwoofer • Dual 4-ohm Voice Coil • RMS Range: 450 - 600 Watts • Non-Pressed Paper With Woven Carbon Fiber Top • High Excursion Foam Surround • Stamped Steel Basket • Single Nomex Spider
• RMS: 500 x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• DSP (Digital Signal Processing)
• Sophisticated Crossover Functions and Selectable Crossover Slopes

Description


NVX brand icon

Authorized dealer

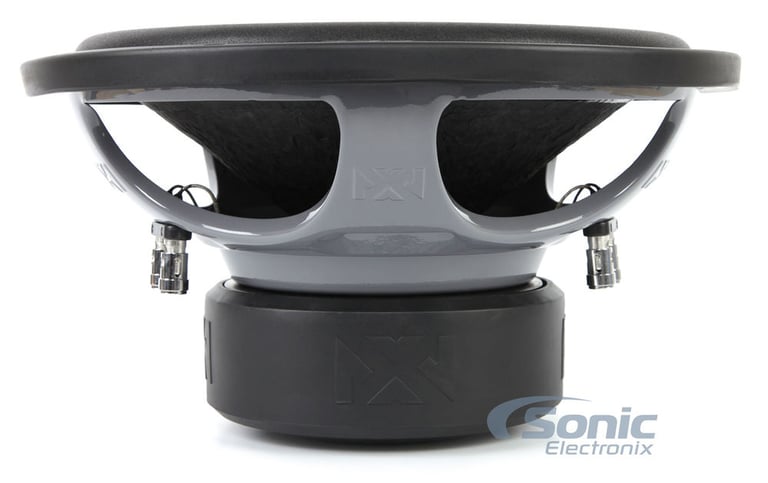

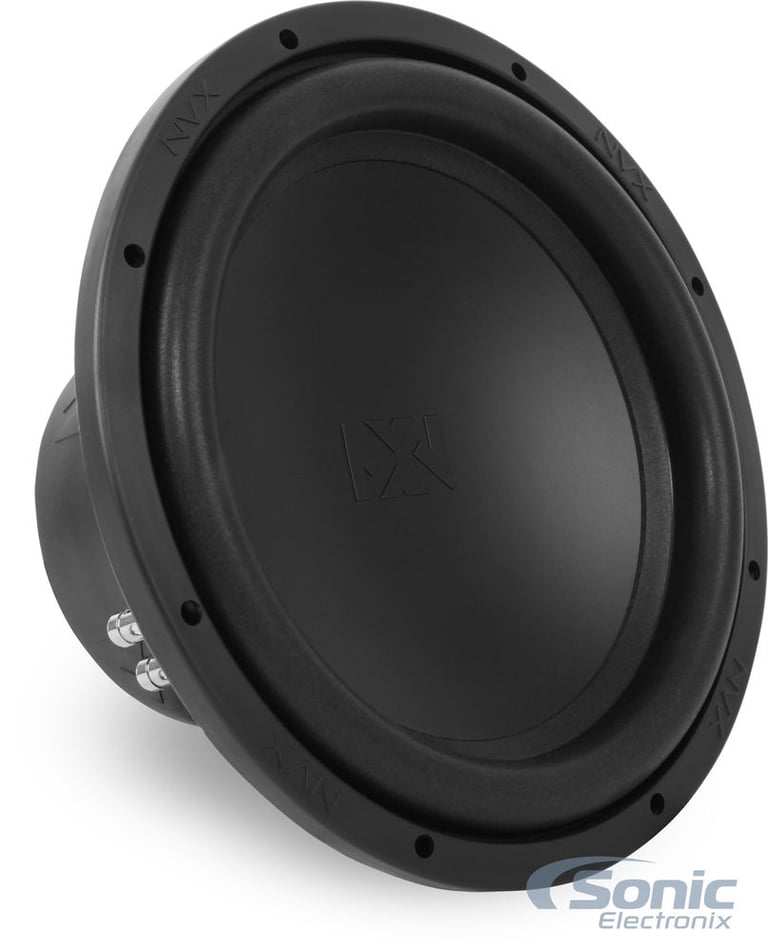

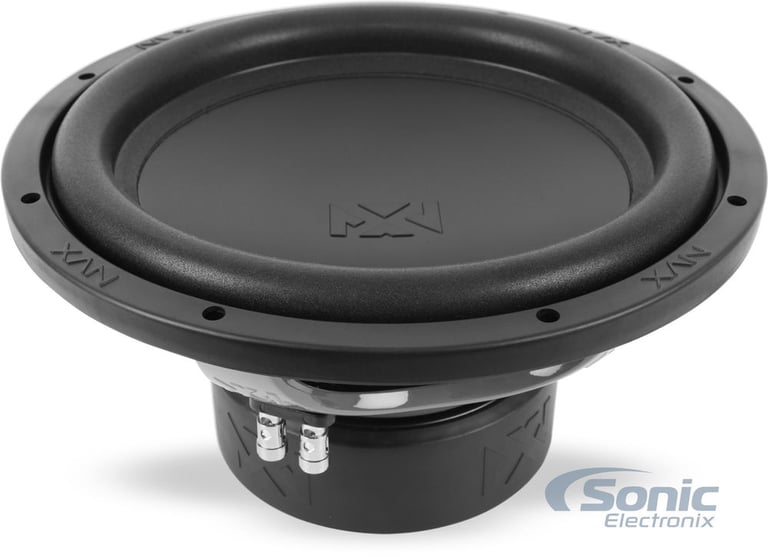

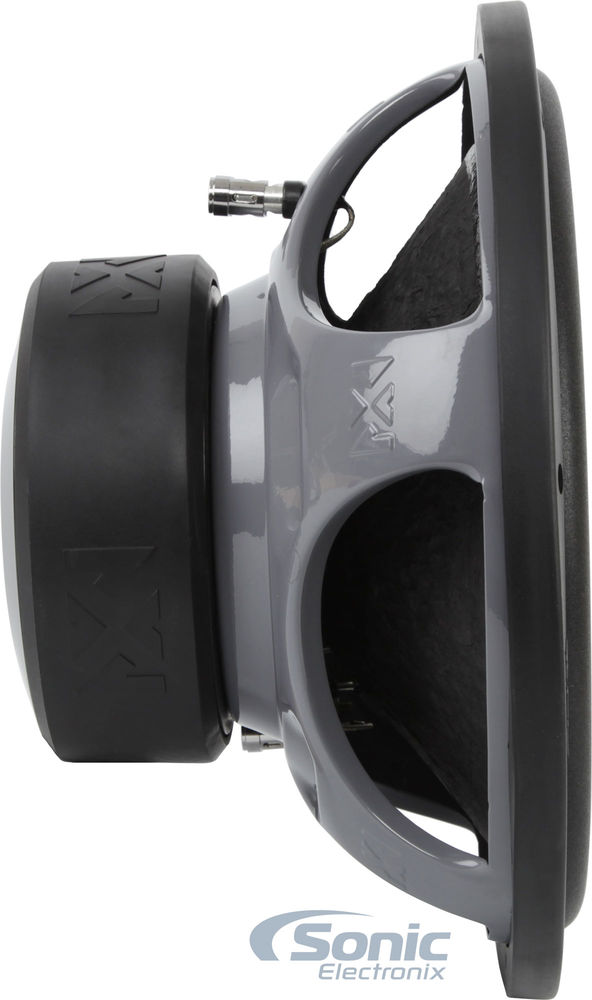

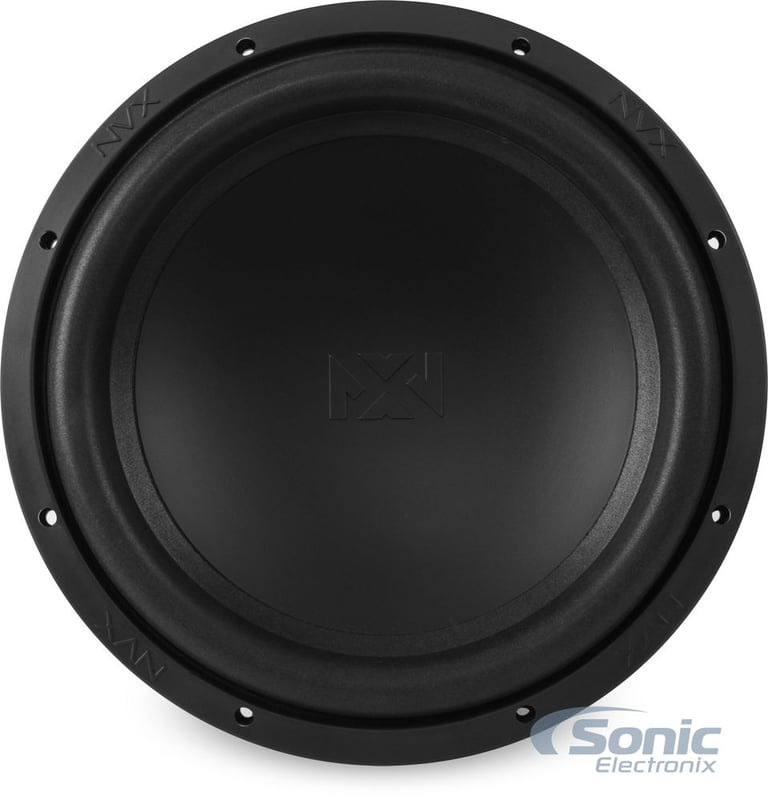

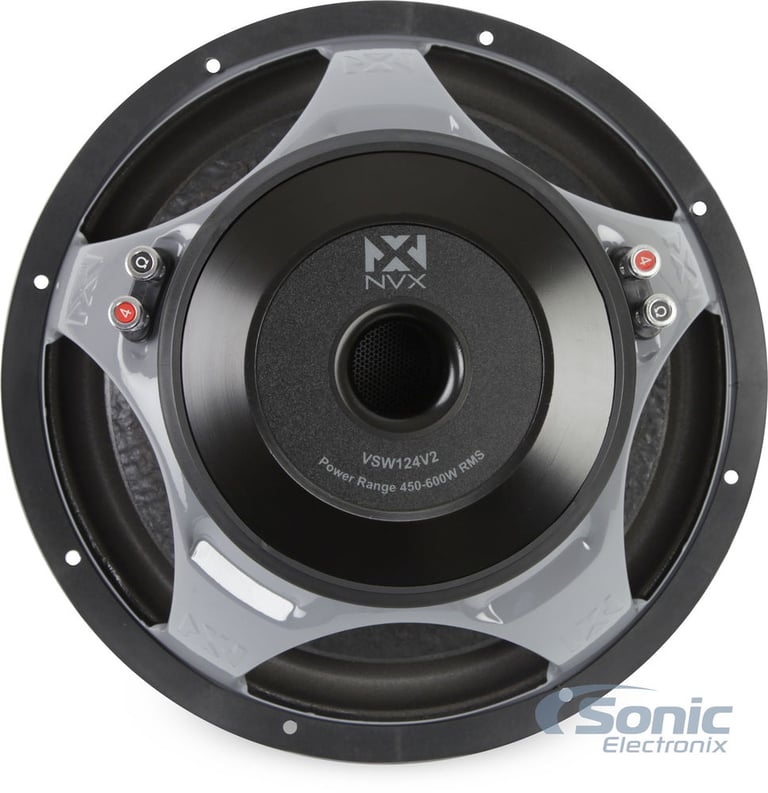

NVX VSW124 Version 3 (VSW124v3)

1200 Watt (600W RMS) 12" VS-Series v3 Dual 4-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 12" Dual 4 ohm VS Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
  • 13.5 mm Xmax
  • Enhanced Pressed Paper Cone
  • High-Roll Foam Surround with Black Nylon Stitching

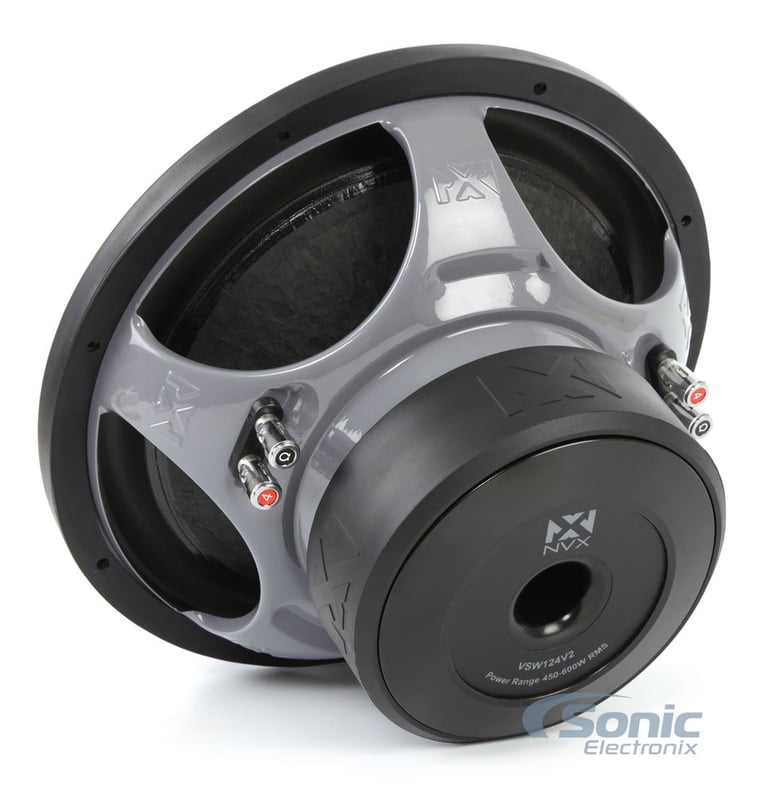

  • Stamped Steel Vented Basket with NVX Punched Logo
  • 2.5" High Temperature Copper Voice coil with Aluminum Former
  • Progressive Roll Single-layer Spider with Integrated Tinsel Leads
  • Optimized High-Velocity Pole Vent
  • 107 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 37.35 Hz
  • Sensitivity: 86 dB
  • Recommended sealed box volume: 1.0 cubic feet
  • Recommended ported box volume: 1.85 cubic feet
  • Top-mount depth: 6.45"
  • Cutout diameter: 11.22"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

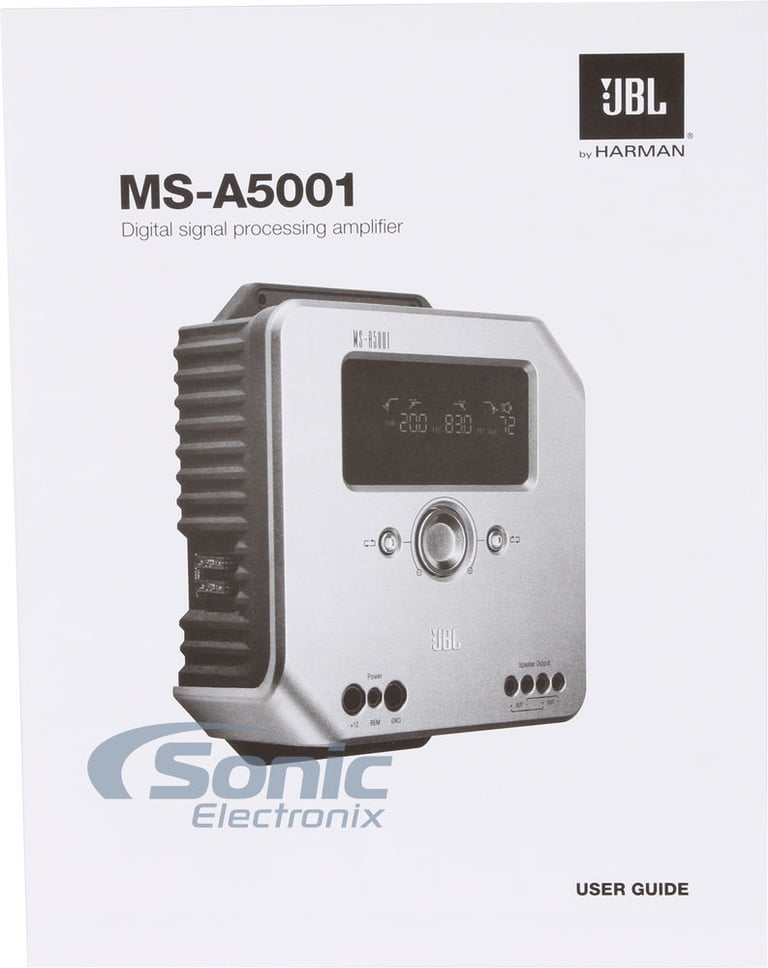

PDF IconNVX VSW124V3 owner’s manual

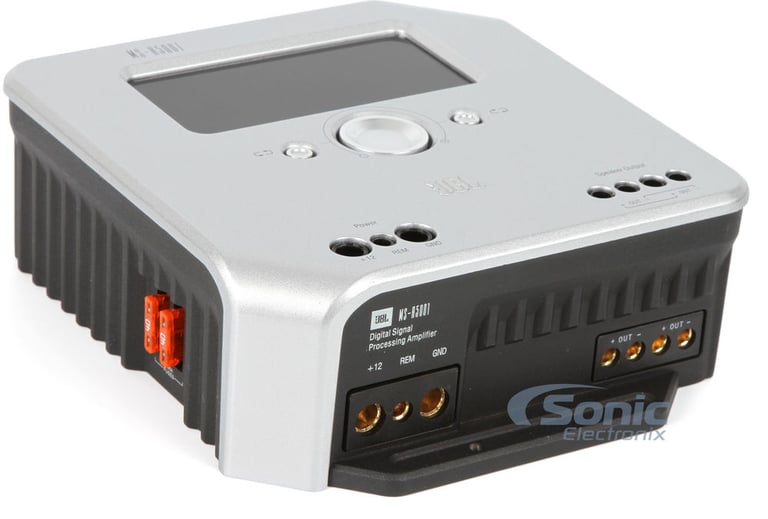

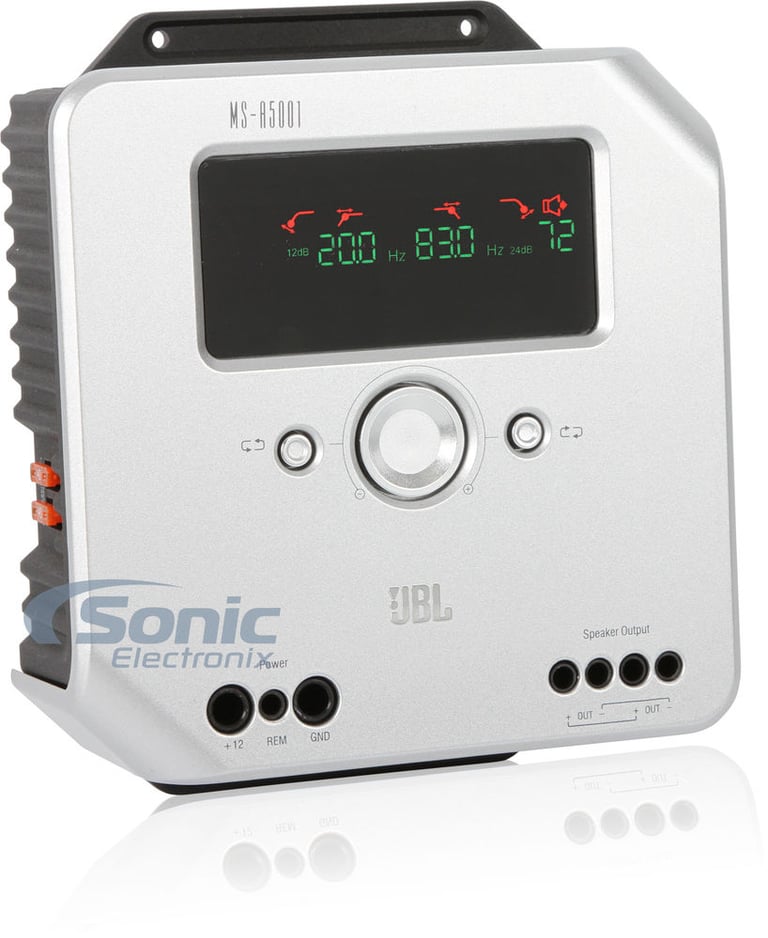

JBL MS-A5001

Tested at 750W RMS on our Amp Dyno! (Rated 500W RMS by JBL), 1-Channel Monoblock Class D Car Amplifier with Digital Input Mixer and Graphical Status Display
Quantity: 1

General Features

  • MS Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 500 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
  • Sonic Electronix Certified Power Rating*:
    • 4 ohm: 468 watts x 1 chan.
    • 2 ohm: 692 watts x 1 chan.
  • CEA-2006 compliant amplifier
  • Digital signal processing amplifier
  • Pulse Width Modulated MOSFET power supply
  • Wireless Remote bass level input (JBL MS-WBC remote level control sold separately)
  • Built-in display shows tone and gain settings
  • Soft Start Turn-on
  • Mono channel operation
  • "Hi2" input setting provides factory system amps with output loads, eliminating "speaker disconnected" error messages
  • Speaker-level inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Digital input-mixer control eliminates the need for Y adapters
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • CD for system setup included
  • Gold-plated RCA level inputs

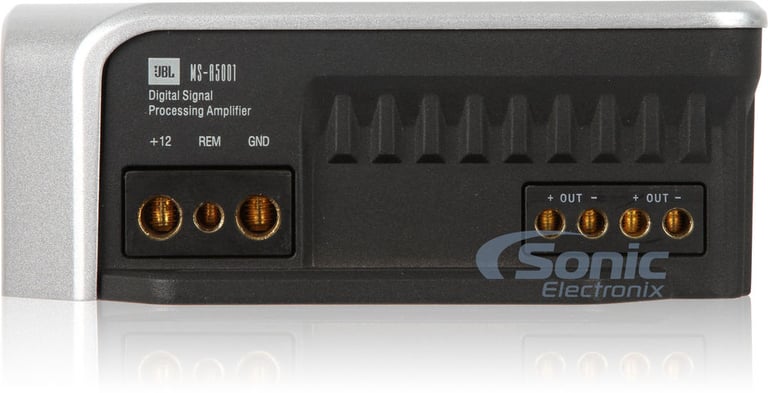

  • Gold-plated screw terminals
  • Input sensitivity: 100mV - 20V
  • Signal to Noise Ratio: 80 dB
  • Frequency Response: 20 - 270 Hz
  • Selectable crossover slopes: 6 dB/oct, 12 dB/oct, 24 dB/oct
  • Variable low-pass filter: 97 points from 20 - 140 Hz
  • Variable high-pass filter: 97 points from 20 - 140 Hz
  • Dimensions: 8-13/16"L x 7-1/4"W x 2-13/16"H
  • 4 - 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Recommended Configurations:

  • Two JBL GTO1214 12" Subwoofers wired to a 2ohm load for 692W @ 13.42v - 826W @ 13.28v RMS
  • One JBL W12GTi-MkII 12" Subwoofer wired to a 3ohm load for 500W - 725W RMS
  • One JBL GT5-2402BR Dual 12" Subwoofer/Enclosure wired to a 2ohm load for 692W @ 13.42v - 826W @ 13.28v RMS
  • Two Infinity Kappa 120.9W 12" Subwoofers wired to a 2ohm load for 692W @ 13.42v - 826W @ 13.28v RMS

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.
