Name: Rockford Fosgate Prime R500X1D
Brand: Rockford Fosgate
SKU: ls-r500x1d-obc285033-2
Price: 129.24 USD
Availability: Discontinued

by Rockford Fosgate

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

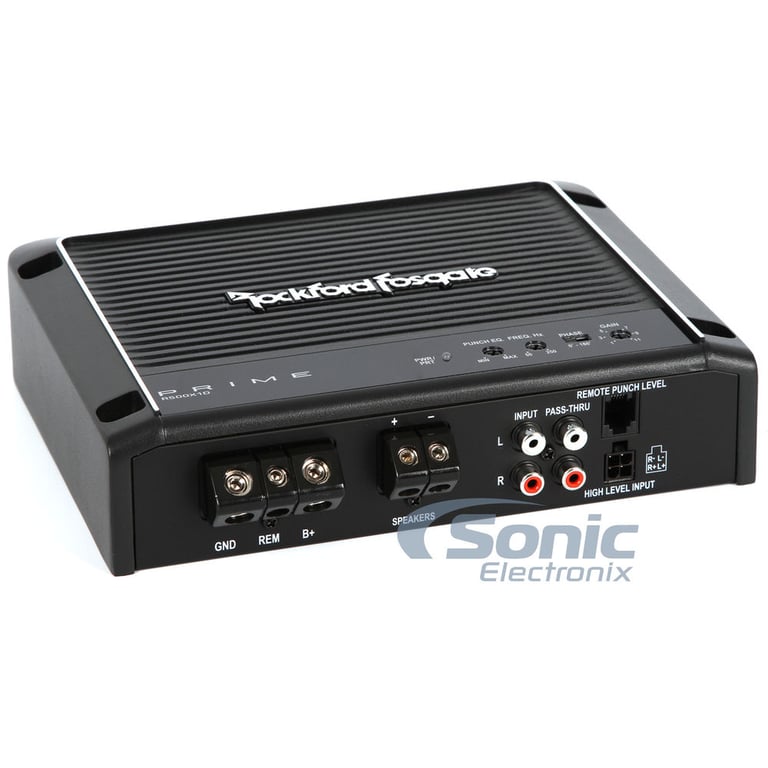

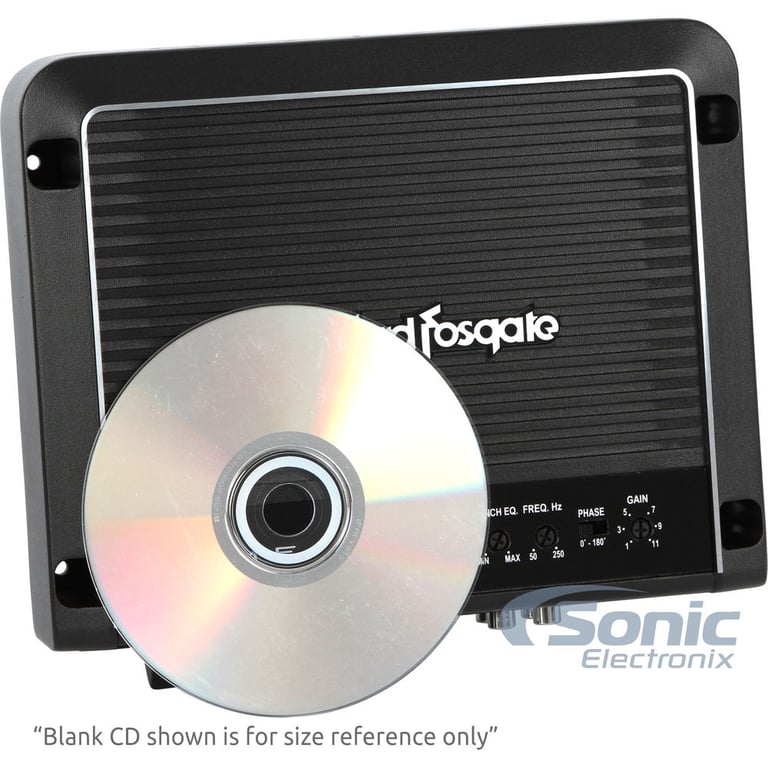

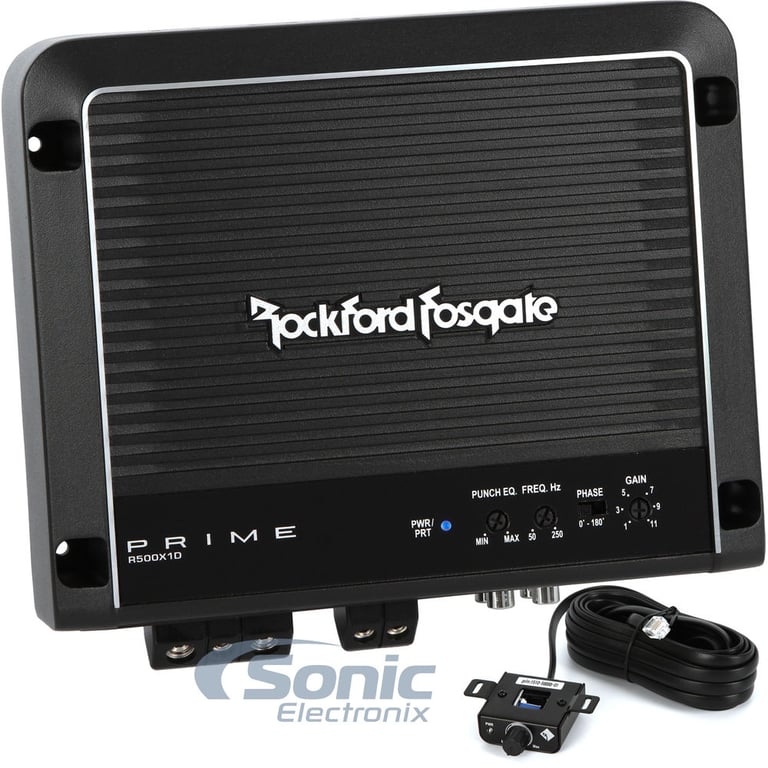

Rockford Fosgate Prime R500X1D Image 1 — Rockford Fosgate Prime R500X1D

Rockford Fosgate Prime R500X1D Image 2 — Rockford Fosgate Prime R500X1D

Rockford Fosgate Prime R500X1D Image 3 — Rockford Fosgate Prime R500X1D

Rockford Fosgate Prime R500X1D Image 4 — Rockford Fosgate Prime R500X1D

Product highlights

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• Dimensions: 8-1/2"L x 6-3/4"W x 2"H

Learn more about the ls-r500x1d-obc285033-2

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Rockford Fosgate R500X1D - Prime Series Class D Monoblock Amplifier

The R500X1D is a 500 watt mono amplifier using efficient Class-D circuit topology. This amplifier is capable of running a 2-Ohm load and includes on-board Punch Bass and remote Punch Level Control. Like all Rockford Fosgate amplifiers, the R500X1D's power ratings conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

General Features:

Item Condition: Like New, Open Box, Complete
Not Refurbished

Prime Series Class D Monoblock Car Amplifier
RMS Power Rating:

4 ohm: 300 watts x 1 chan.
2 ohm: 500 watts x 1 chan.

CEA-2006 compliant amplifier
Efficient Class-D circuit topology
12dB/octave Butterworth crossover
RCA pass-thru outputs
On-board Punch EQ with +18dB boost @ 45Hz.
High level inputs

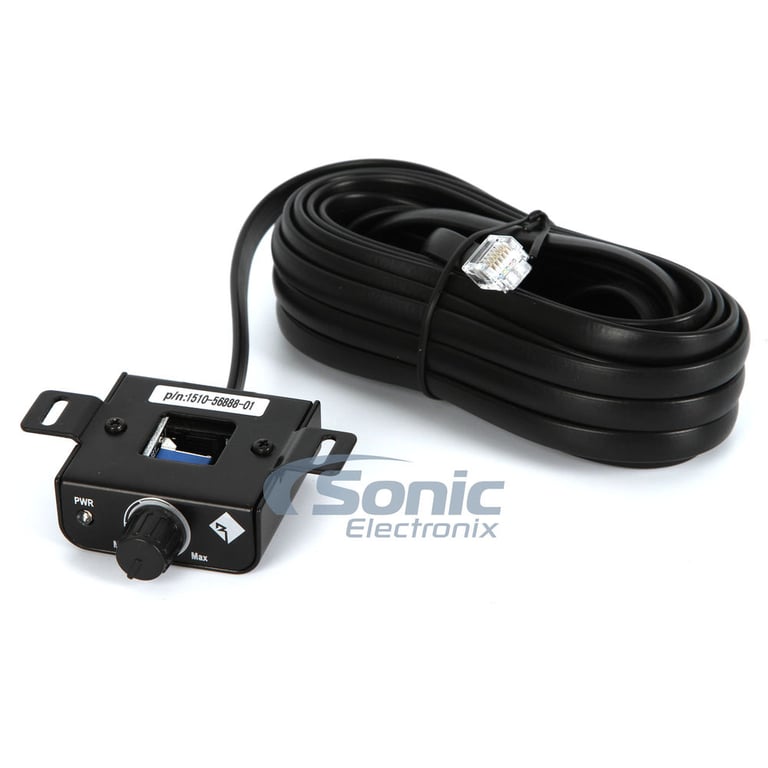

Remote PLC (Punch Level Control)
0°/180° Phase Switch
Real time output and power supply thermal sensing

Cast aluminum heatsink
4 Gauge power/ground connectors
MOSFET power supply
Over current protection
Short circuit protection
Muted turn on
Frequency Response: 20 - 250 Hz +/- 1 dB
Efficiency: 89% @ 4-ohm
Total Harmonic Distortion: <1.0%
Signal to Noise Ratio: >100 dB
Damping Factor: >200 dB
Input Sensitivity: 150 mV - 4V
Recommended Fuse: 50A x 1 (not included)
8-gauge speaker wire terminals
4-gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
Dimensions: 8.50"L x 6.80"W x 2.00"H
Authorized Internet Dealer
30 Day Sonic Electronix Warranty

Check out the Rockford Fosgate R500X1D Owner's Manual

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

300 watts x 1 channel

RMS Power @ 2 ohms

500 watts x 1 channel

Amplifier Specifications

Series

Prime Series

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

500 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

THD at Rated RMS Power

<1.0%

Speaker Level Inputs

Yes

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

50 - 250 Hz

Signal-to-Noise Ratio

>100 dB

Bass Boost

0 - 18 dB

Remote bass/level controller

Yes

Fuse Rating

50A X 1 In-Line Fuse Recommended

Strappable

Sonic Certified Amplifier

Not Tested

Warranty and Return Policy

Parts Warranty Duration

30 days

Labor Warranty Duration

30 days

Warranty Provider

Sonic Electronix
