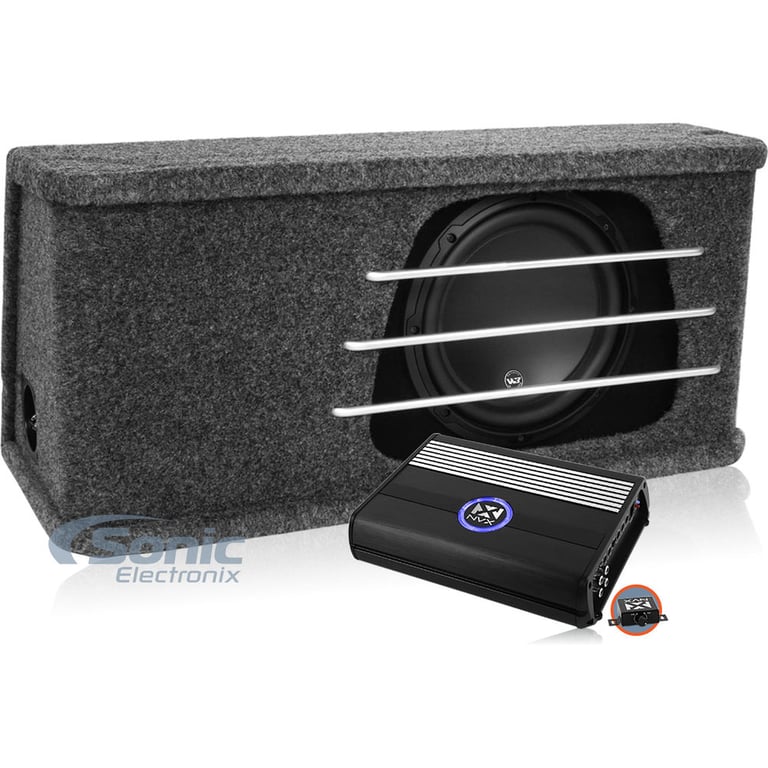

JL Audio HO110RG-W3v3
500W RMS 10" W3v3 H.O. Wedge High-Output Ported Loaded Subwoofer Enclosure Box with Grille Included
Quantity: 1
Subwoofer Features:
 |
 |
 |
 |
 |
 |
 |
 |
- Single 10" W3v3 Series H.O. Wedge Loaded Ported Enclosure
- Power Handling:
- RMS: 500 watts
- Recommended Power Range: 150 - 500 watts
- Nominal impedance: 2-Ohm
- Injection-molded, mineral-filled polypropylene cone
- Nitrile butadiene rubber surround
- Stamped steel basket
- Customization trim ring
- Floating-cone attach method
- Highly linear, DMA-Optimized motor system
- Insert molded suspension, coil and terminal sub-assembly
- Patented vented reinforcement collar (VRC®)
- Elevated frame cooling design
- Nickel plated brass spring terminals
- Engineered lead-wire design and attachments
- Sensitivity: 84.87 dB
- Xmax: 14.0 mm
- Reference Efficiency (no): 0.1900%
- Frequency response: ~25 ~ 250 Hz
- Matching Amplifiers:
- Authorized Internet Dealer
- 2 Year Manufacturer's Warranty
Subwoofer Only

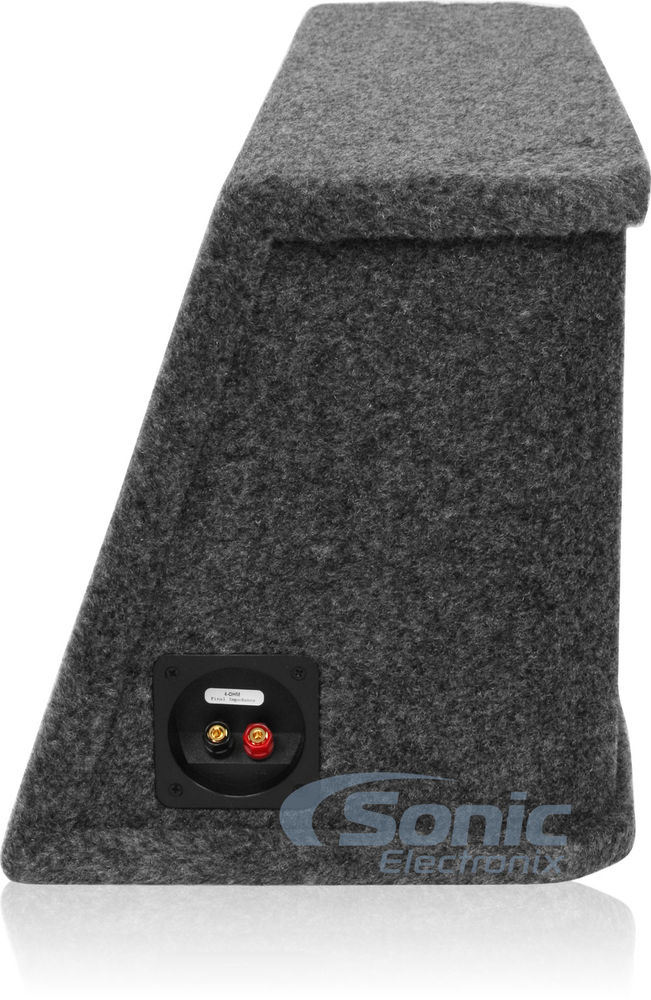

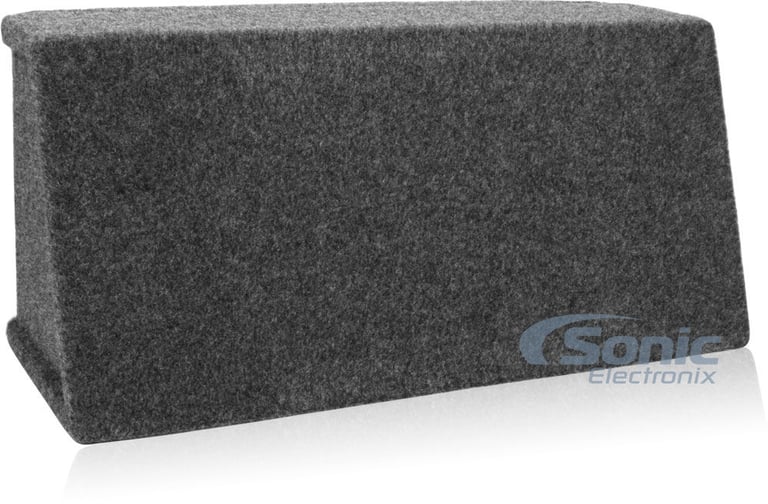

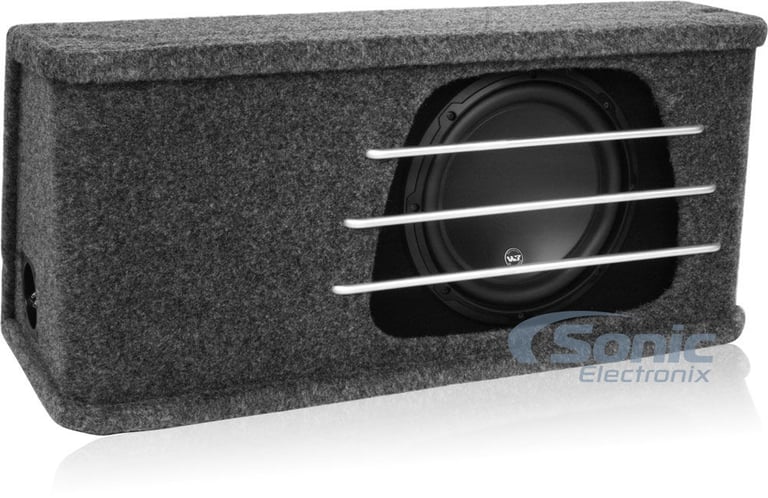

Enclosure Specifications:
- JL Audio's patented, chamber-coupled port design (U.S. patent #6,625,292)
- Engineered to the optimum ported alignment for driver
- Fine-tuned through extensive real-world listening
- Chamber-coupled, slot-ported enclosure
- Finished Dark gray, high-grade automotive carpet
- Black carpet, woofer baffle with "JL AUDIO" embroidery
- CNC-Cut High-Grade MDF enclosure material
- Pre-installed, three bar grille included
- Shipped wired, loaded and ready to connect
- Weight: 34.7 lbs (including the subwoofers)
- Dimensions: 12"D1 x 7-1/2"D2 x 29-1/2"W x 13-1/2"H
Check out the JL Audio 10W3v3 Owner's Manual

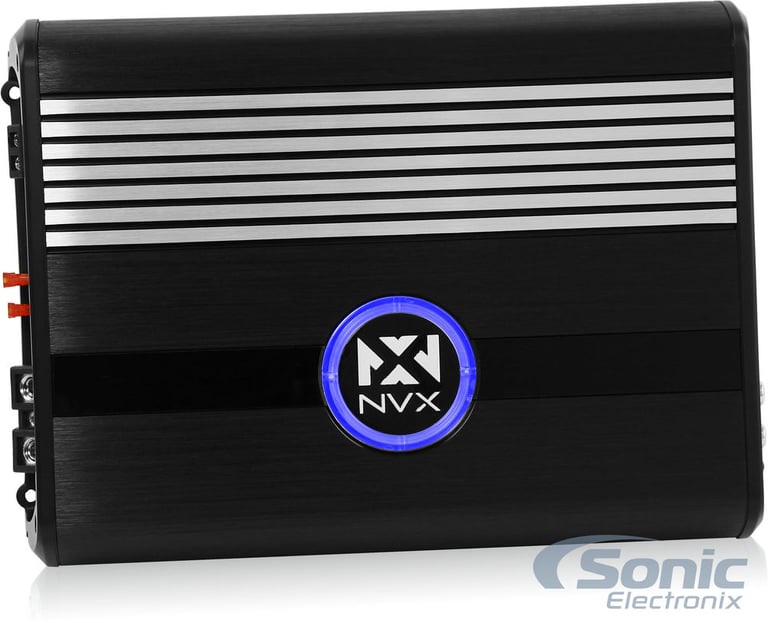

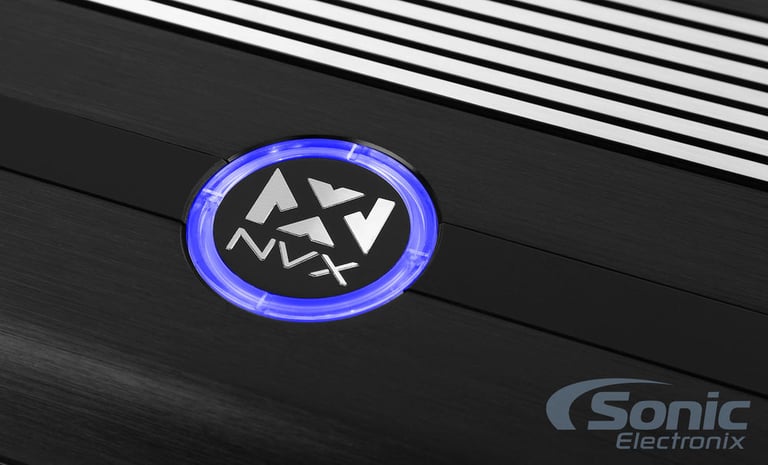

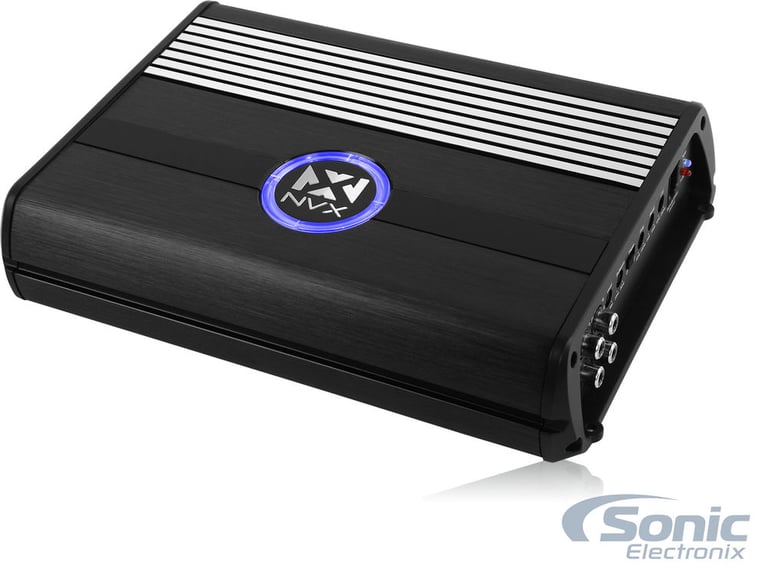

NVX BDA7501 BD Series Amp
True 750W RMS Monoblock Class D Amplifier Specifically made for BD Series
Quantity: 1
General Features:
- BD-Series Monoblock Class D Car Amplifier
- True RMS Power Rating:
- 4 ohm: 450 watts x 1 chan.
- 2 ohm: 750 watts x 1 chan.
- Sonic Electronix Certified Power Rating*:
- 4 ohm: 451 watts x 1 chan.
- 2 ohm: 782 watts x 1 chan.

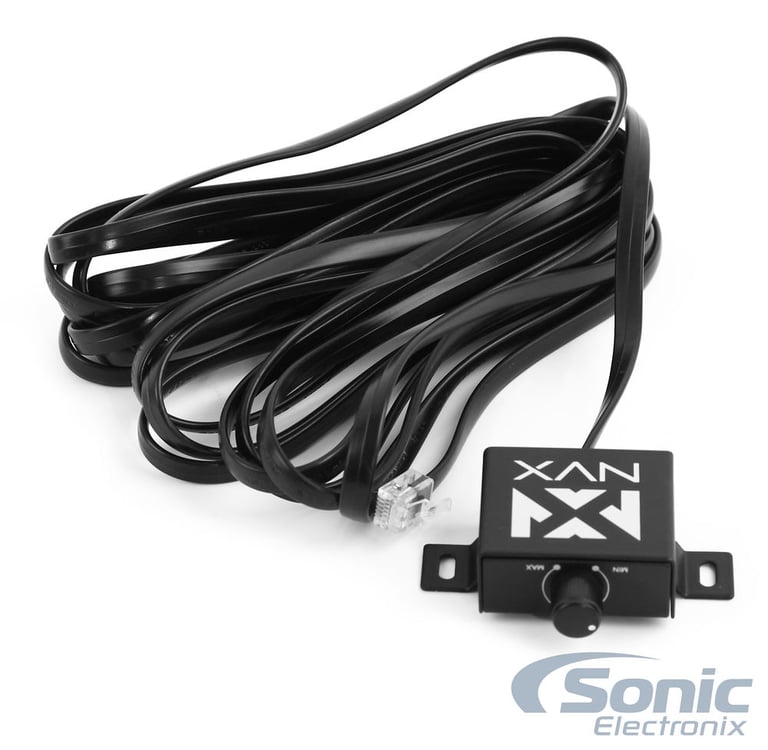

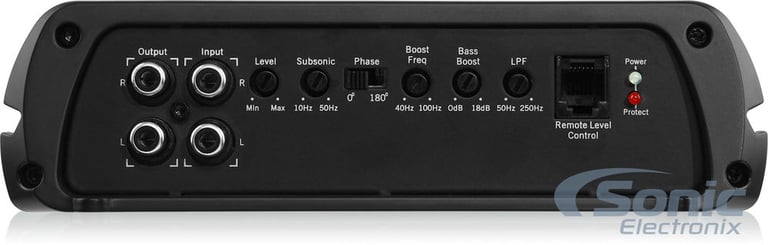

- Wired remote bass level control included
- Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
- Mono channel operation
- Variable low-pass filter (50-250 Hz, 24 dB/octave)
- Subsonic filter (24 dB at 15 Hz)
- Frequency Response: 20-500 Hz
- Signal to Noise Ratio: 90dB
- Input Sensitivity: .25-6.0 V
- High quality platinum finish connections provide solid electrical connection and resist corrosion
- Integrated overload, short circuit, thermal and reverse polarity circuit protection

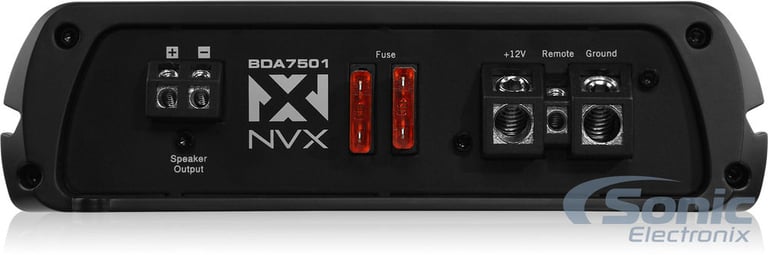

- 4 gauge power and ground wiring is required for installation
- Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
- Dimensions: 7"W x 9.75"L x 2"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.
