JBL Club 3020

120W Peak (40W RMS) 3-1/2" Club Series 2-Way Coaxial Car Speakers

JBL
Shop all JBL
highlight-star-icon

• 60 Watts Max Each, 20 Watts RMS Each
• Edge Driven PEI Tweeter
• Polypropylene Plus One ™ cone
• Sensitivity: 89 dB
• Mounting Depth: 1-7/16"

Learn more about the club3020am

We apologize

This item has been discontinued


Loading...
C6-100ct main

JL Audio C6-100ct

75W RMS 1” C6 Series 4-ohm Component Dome Tweeter

Description


JBL brand icon

Authorized dealer

General Features:

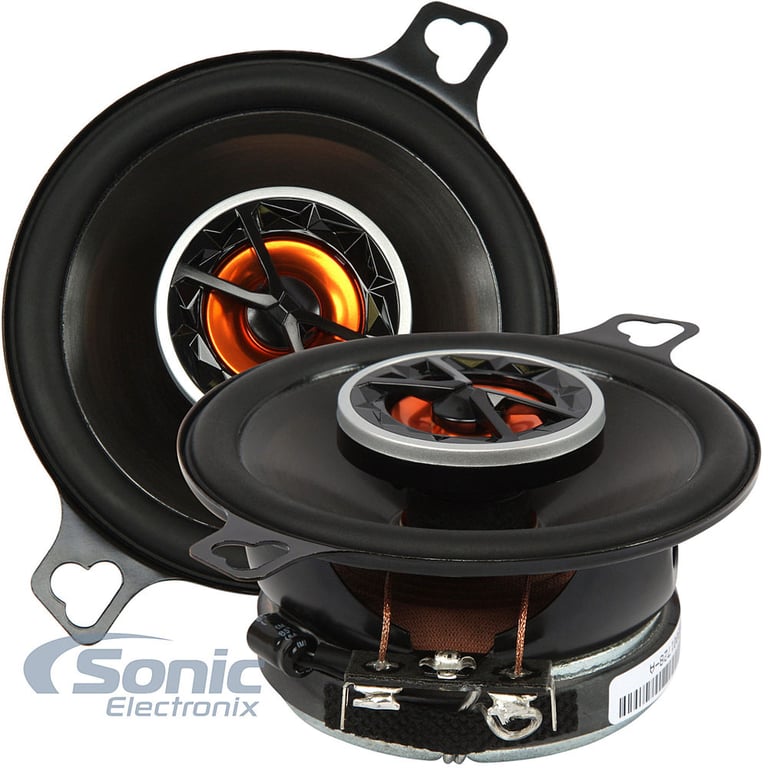

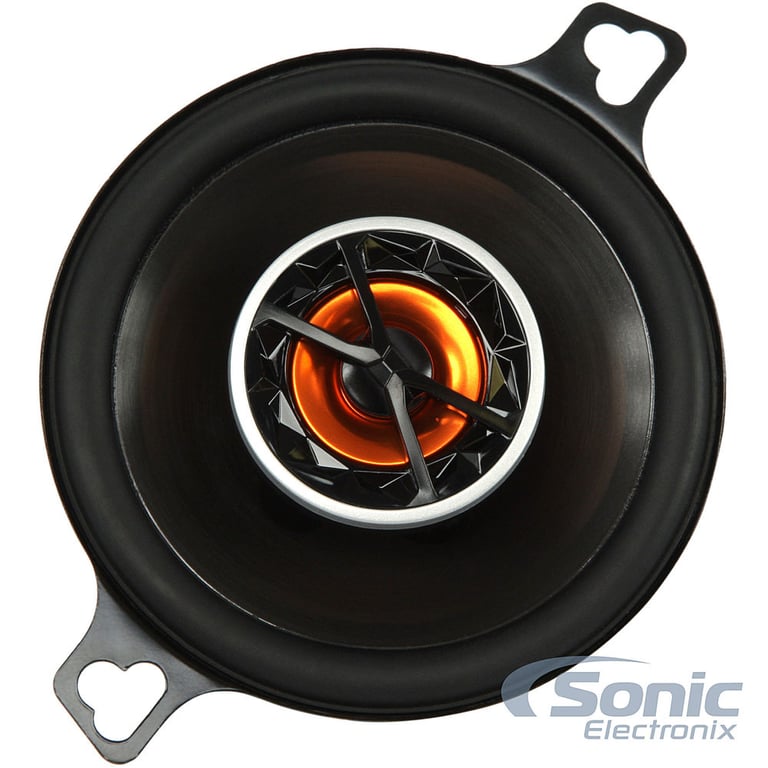

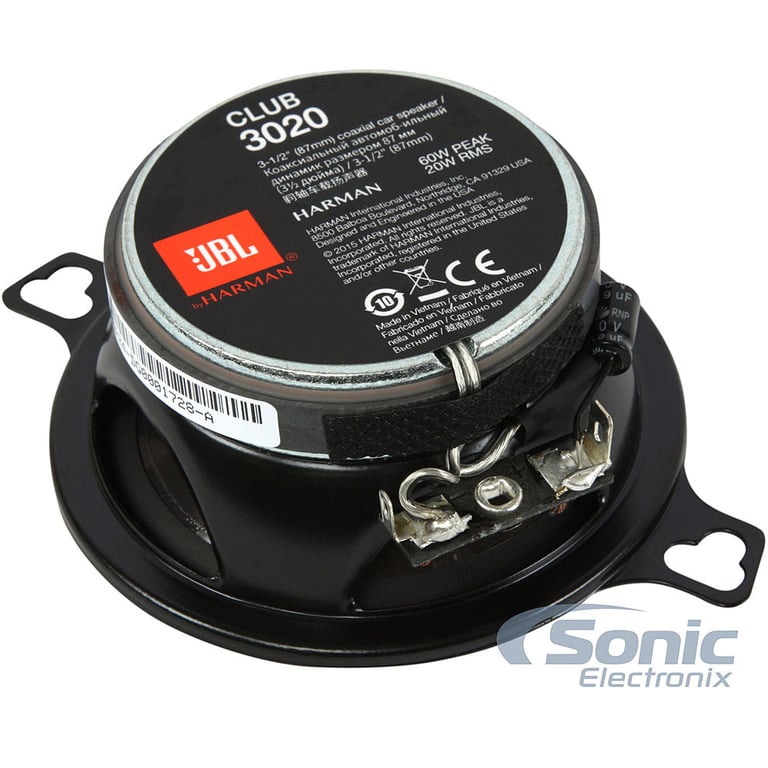

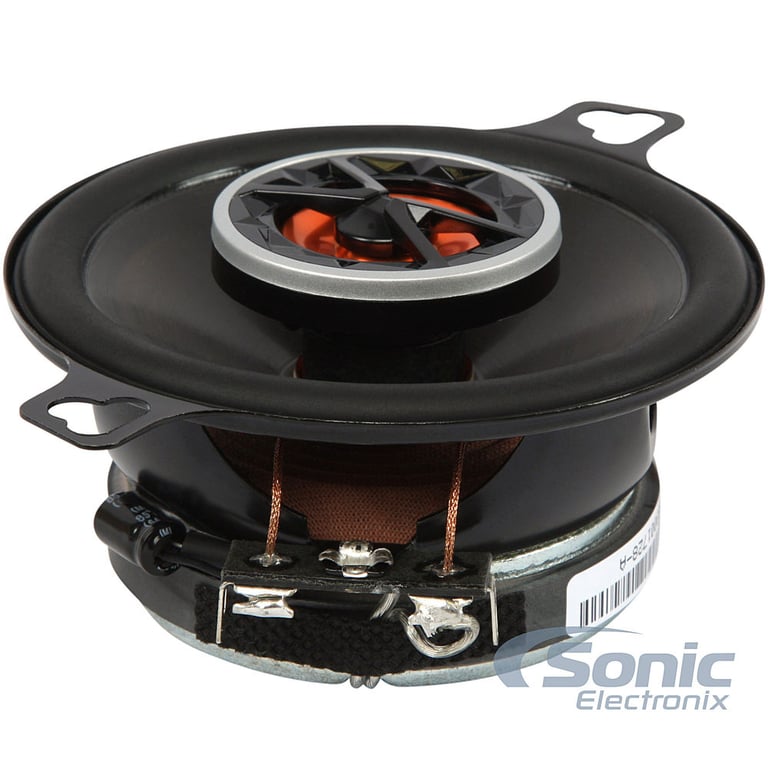

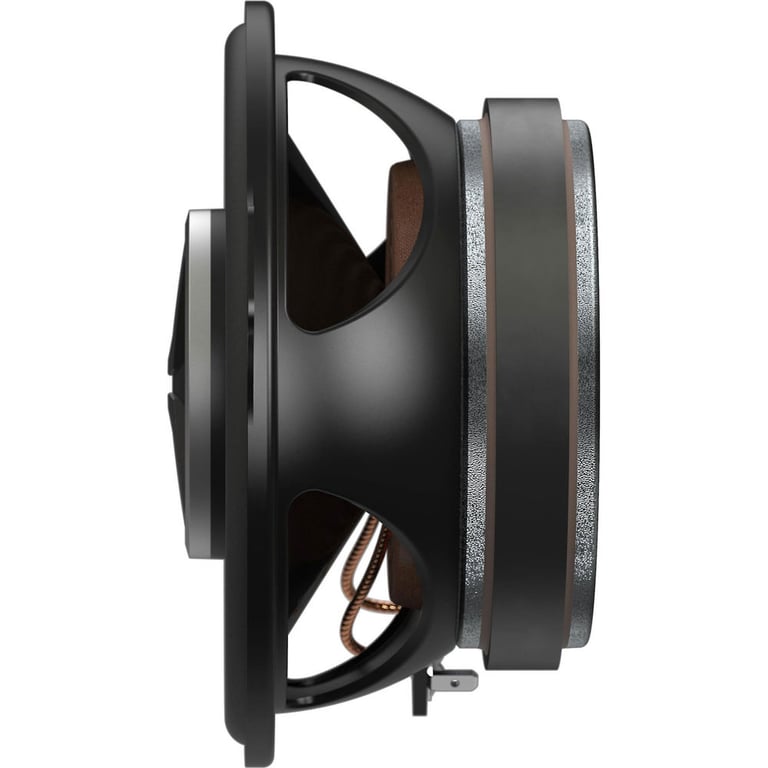

  • 3-1/2" Club Series Coaxial Car Speakers
  • Power Handling:
    • Peak: 120 watts per pair / 60 watts each
    • RMS: 40 watts per pair / 20 watts each
  • Recommended Power Range: 10 - 20 watts RMS per channel
  • Polypropylene Plus One ™ cone
  • Edge Driven PEI Tweeter
  • Rubber magnet boot cover
  • High Sensitivity Design
  • 3 ohm Impedance
  • Top-mount Depth: 1-7/16"
  • Frequency Response: 90-20,000 Hz
  • Sensitivity: 89dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Per Pair



PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

Product history:

JBL Club 3020 thumbnail
(newest, current model)
JBL Club 3020AM thumbnail
(previous model, replaced by JBL Club 3020)

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Limited time!
RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

55
-15.00%

$152.96

List price $179.95


Best selling similar products

Club 322F small

JBL Club 322F (SPKCB322FAM)

• 75 watts Peak Each, 25 watts RMS Each
• 1" Silk Dome tweeters
• UV-Resistant Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 89 dB

(1)

$79.95

List price $109.95

JS35K small

Jensen JS35K

• 75 watts Peak Each, 25 watts RMS Each
• 1/2" Silk Dome Tweeters
• Woven Aramid Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 83 dB

$79.99

List price $95.99

REF3032CFXAM small

Infinity Reference 3032cfx (REF3032CFXAM)

• 75 watts Peak Each, 25 watts RMS Each
• 1/2" Textile Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 91 dB

(28)

$79.99

List price $129.95

46CSC354 small

Kicker CSC35 (46CSC354)

• 90 watts Peak Each, 30 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

(39)

$51.96

List price $74.99

P132 small

Rockford Fosgate Punch P1 P132

• 40 watts Peak Each, 20 watts RMS Each
• 3/4" PEI (Polyetherimide) Dome tweeters
• Mineral-Filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 85 dB

(47)

$89.99

List price $89.99

51KSC3504 small

Kicker KSC35 (51KSC3504)

• 100 watts Peak Each, 50 watts RMS Each
• 1/2" Silk Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

(4)

$79.99

List price $89.99

TS-A878 small

Pioneer TS-A878

• 60 watts Peak Each, 15 watts RMS Each
• Custom-fit for select GM, Ford and Volkswagen models
• 1" PEI (Polyetherimide) Dome tweeters
• Carbon Graphite IMPP Interlaced Aramid Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

(31)

$49.99

List price $70.00

H735 small

Cerwin-Vega H735

• 250 watts Peak Each, 30 watts RMS Each
• 1" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 84.5 dB

(34)

$59.99

List price $71.99

KFC-835C small

Kenwood KFC-835C

• 40 watts Peak Each, 10 watts RMS Each
• Paper Dome tweeters
• Whizzer cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB

(31)

$39.00

List price $70.00

XQS3v2 small

NVX XQS3 v2 (XQS3v2)

• 100 watts Peak Each, 50 watts RMS Each
• tweeters
• Carbon Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 85 dB

(7)

$129.99

List price $155.99

Specifications & Details


Speaker Specifications
Series
Chameleon / CXS Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
3-1/2"
Design
2-way Coaxial
Tweeter Design
Balanced Dome
Tweeter Composition
PEI (Polyetherimide)
Woofer Composition
Polypropylene
Peak Power Handling
120 watts
RMS Power Handling
40 watts
Sensitivity
89 dB
Frequency Response
90 - 20,000 Hz
Impedance (Per Voice Coil)
3 ohm
Top-Mount Depth (Mounting Depth)
1-7/16"
General specifications
Speaker Grilles
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

Club 3020

Weight:

5.00lbs

Internal SKU:

club3020am

Internal Product ID:

116627

Customer Ratings & Reviews


JBL Club 3020 thumbnail image

5 star
67%
4 star
0%
3 star
33%
2 star
0%
1 star
0%



Durability
3.7
Value
4.7
Features
4.7
Design
5
Usability
4.7

Customer Reviews

Sort by:

Loading...

Awesome

I highly recomend these speakers, they sound awesome, and look nice, the treble is just what i was looking for(they don't include wiring)

By Ian on December 26, 2017 Checkmark Icon Verified purchase

2 found this helpful


Great speaker to round out factory sound - quality issue?

My 2017 Toyota Highlander (non-JBL) shipped with some of the cheapest dash speakers imaginable. The JBL Club 3020s brought the vocal up on top of the dash exactly where it should be. The cheapest bang for your buck out there. I would give it 5 stars if not for the buzz.

I like my music a little on the loud side, and within a two weeks of install, the right speaker has developed a buzz. I removed it today to make sure it wasn't something else rattling, and sure enough, it's the speaker. Haven't had a chance to contact Sonic or JBL about it, but really, I expected better quality than this.

Installation (in the Highlander) was easy with the TacoTunes wiring harness. Simply plug and play with that little attachment.

By Joshua on March 4, 2018 Checkmark Icon Verified purchase


Sound quality at its finest

I'm a big fan of the gto series thought I'd give these a try since it's a new line of JBL's amazing quality and they did it again!

By Big E on January 20, 2017 Checkmark Icon Verified purchase
