Refurbished - NVX JAD1200.1 1200W RMS Class D Monoblock Car Amplifier (JAD12001)

by NVX

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

NVX JAD1200.1 (Factory Refurbished) Image 1 — NVX JAD1200.1 (Factory Refurbished)

NVX JAD1200.1 (Factory Refurbished) Image 2 — NVX JAD1200.1 (Factory Refurbished)

NVX JAD1200.1 (Factory Refurbished) Image 3 — NVX JAD1200.1 (Factory Refurbished)

NVX JAD1200.1 (Factory Refurbished) Image 4 — NVX JAD1200.1 (Factory Refurbished)

NVX JAD1200.1 (Factory Refurbished) Image 5 — NVX JAD1200.1 (Factory Refurbished)

NVX JAD1200.1 (Factory Refurbished) Image 6 — NVX JAD1200.1 (Factory Refurbished)

NVX JAD1200.1 (Factory Refurbished) Image 7 — NVX JAD1200.1 (Factory Refurbished)

NVX JAD1200.1 (Factory Refurbished) Image 8 — NVX JAD1200.1 (Factory Refurbished)

NVX JAD1200.1 (Factory Refurbished) Image 9 — NVX JAD1200.1 (Factory Refurbished)

NVX JAD1200.1 (Factory Refurbished) Image 10 — NVX JAD1200.1 (Factory Refurbished)

NVX JAD1200.1 (Factory Refurbished) Image 11 — NVX JAD1200.1 (Factory Refurbished)

NVX JAD1200.1 (Factory Refurbished) Image 12 — NVX JAD1200.1 (Factory Refurbished)

Product highlights

• RMS: 500W x 1 @ 4 ohm, 800W x 1 @ 2 ohm, 1200W x 1 @ 1 ohm
• Total RMS Power: 1200W
• CEA-2006 Compliant
• Wired Bass Remote Included
• Ultra Efficient Class D Design
• Dimensions: 6-7/10"W x 12-8/10"L x 1-8/10"H

Learn more about the LS-jad12001-RBC

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

NVX JAD Series Amplifiers

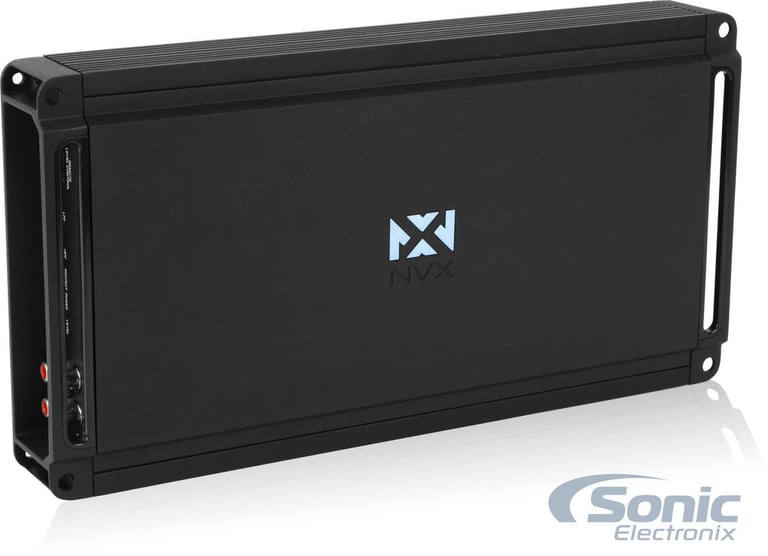

NVX's new line of JAD amplifiers are perfect for those looking for a small footprint, high output amplifier. They boast an abundance of features such as variable high and low pass filters, pre-amp outputs, and gain level control. The sleek design of the chassis combined with the illuminated badge makes these amplifiers eye-catchers. The JAD1200.1 monoblock includes a wired remote bass knob as well as a convenient power and ground gauge adapter for converting the 8 gauge inputs into 1/0 gauge inputs. Dual speaker terminals bridge the amplifier internally allowing for less confusion when wiring multiple subwoofers.

Sonic Electronix Power Certified Amplifier

NVX's JAD1200.1 monoblock amplifier is a Sonic Electronix Certified Amplifier. This amp's power output has been professionally tested with our SMD Amplifier Dyno, bringing you it's true power ratings.
Learn more about this amp's Sonic Electronix Certified Power Here!

Impedance	Claimed Output	Certified Results	Dynamic Results
4 Ω	500W @ 14.4v	662W @ 14.59v	666W @ 14.70v
2 Ω	800W @ 14.4v	1037W @ 14.3v	1128W @ 14.60v
1 Ω	1200W @ 14.4v	1384W @ 14.05v	1647W @ 14.42v

General Features:

Factory Refurbished to Like New Condition

Class D Monoblock Amplifier with Bass Remote
CEA-2006 Compliant
RMS Power Rating:

4 ohm: 500 watts x 1 chan.
2 ohm: 800 watts x 1 chan.
1 ohm: 1200 watts x 1 chan.

Sonic Electronix Certified Power Rating*:

4 ohm: 662 watts x 1 chan.
2 ohm: 1037 watts x 1 chan.
1 ohm: 1384 watts x 1 chan.

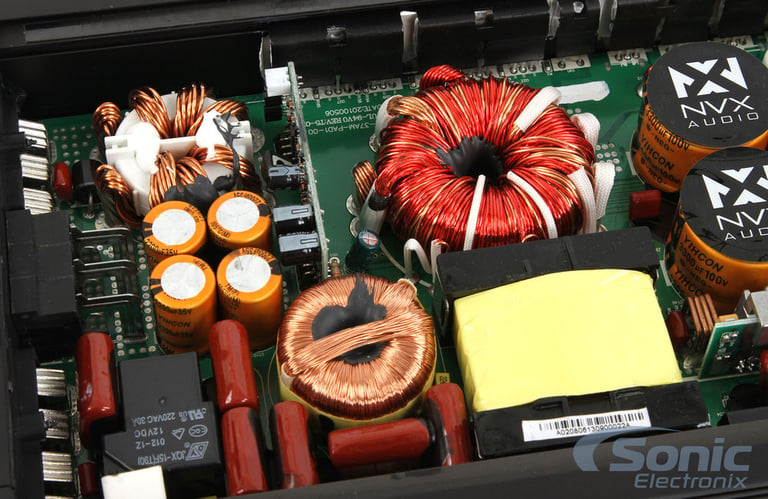

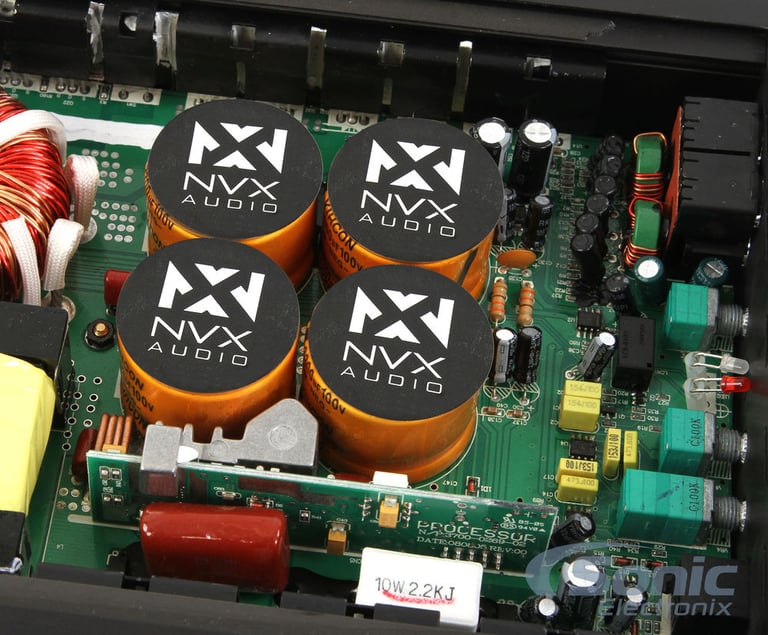

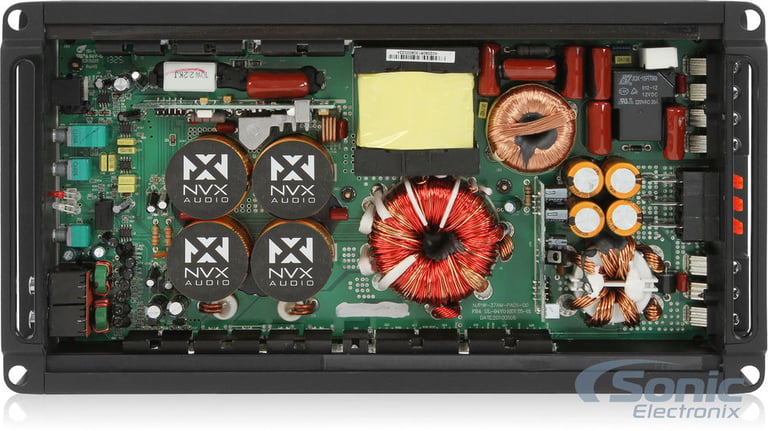

Non-regulated efficient S.M.P.S power supply design
Pulse Width Modulated MOSFET power supply

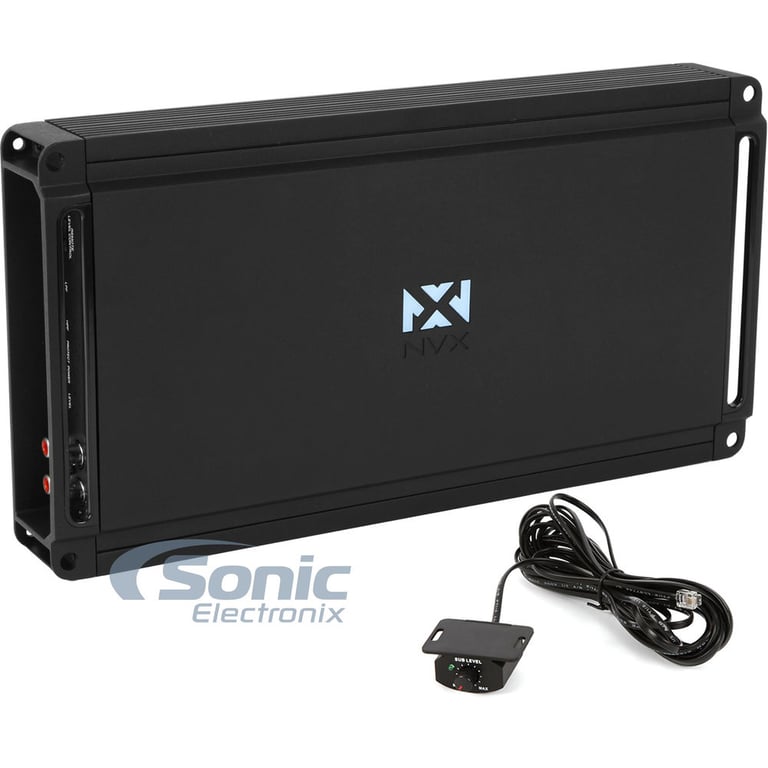

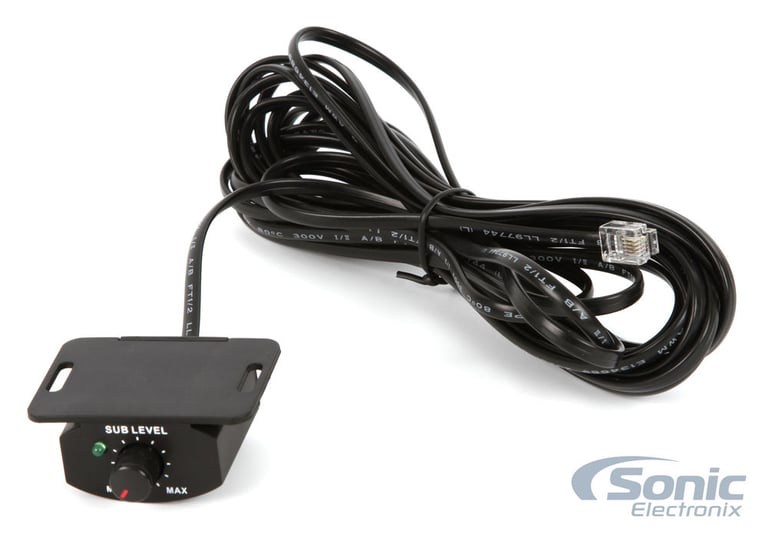

Wired remote bass level control included
LED power (green) and protect (red) indicators

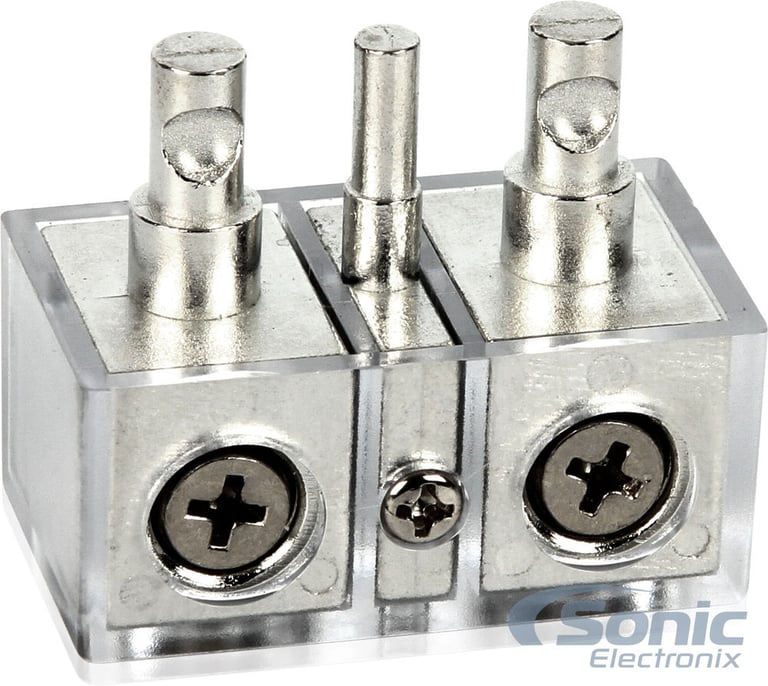

Power and ground Gauge adapter included (Up to 0 gauge)
Soft start turn-on
Mono channel operation
Preamp RCA outputs to daisy chain multiple amps
3-way protection circuitry (thermal, overload, and speaker short protection)

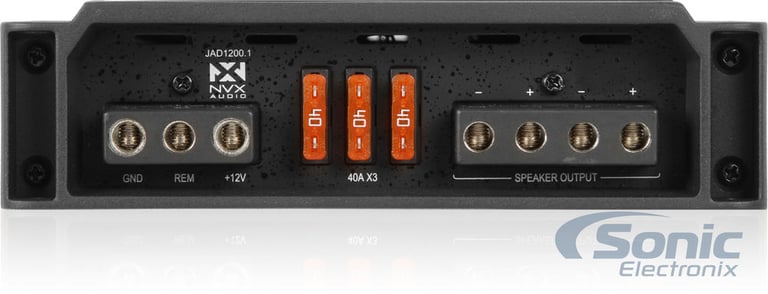

Dual speaker terminals simplify the hookup of multiple speakers
Heavy duty aluminum alloy heat-sink
Nickel-plated RCA level inputs
Nickel-plated screw terminals

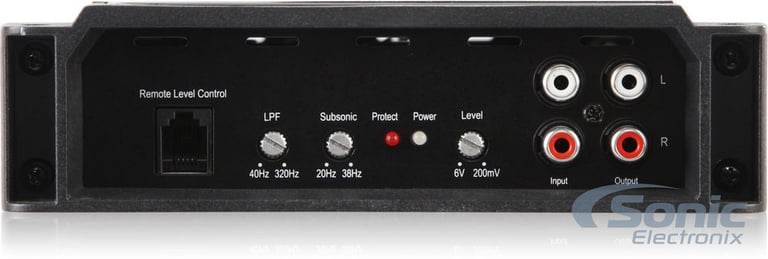

Variable subsonic filter: 20 - 38 Hz, 24 dB/octave
Variable low-pass filter: 40 - 320 Hz, 24 dB/octave
Signal to Noise Ratio: 111 dB
Total Harmonic Distortion: <1.0%
Damping factor: 200
Input Sensitivity: 200mV-6V
Frequency response: 20 - 200 Hz

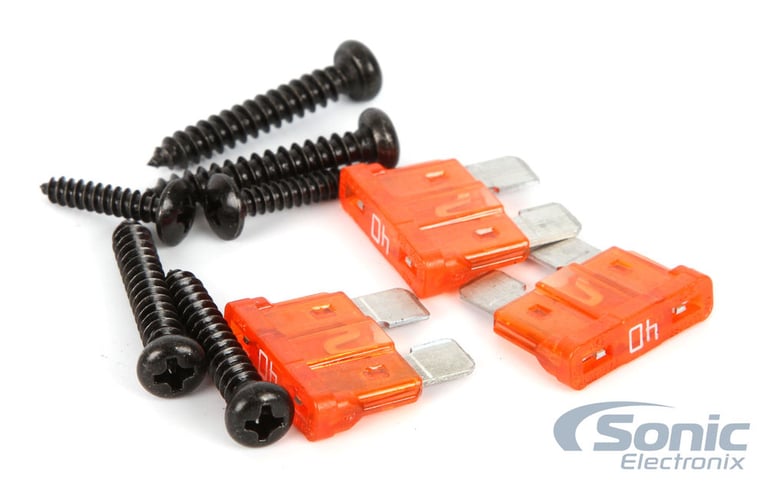

Fuse Rating: 40A x 3
Accepts 8, 4, 2, and 1/0 Gauge wire with gauge adapter
4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
Dimensions: 6-7/10"W x 12-8/10"L x 1-8/10"H
Authorized Internet Dealer
1-year Manufacturer's Warranty**

Recommended Configurations:

Two NVX VCW104 10" Subwoofers wired to a 1ohm load for 1384W @ 14.05v - 1647W @ 14.42v RMS
One NVX VCW104 10" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS
One NVX VCW124 12" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS
One NVX VCW154 15" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS
Two NVX VSW124 10" Subwoofers wired to a 1ohm load for 1384W @ 14.05v - 1647W @ 14.42v RMS
Two NVX NSW102V2 10" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS

**Extend your NVX Manufacturer's Warranty to 2 Years when you install your new NVX amplifier with a compatible NVX power installation kit! This offer is only available through Authorized NVX dealers and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: NVX XAPK1D, NVX XKIT42, or NVX XAPK4

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

Specifications & Details

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

500 watts x 1 channel

RMS Power @ 2 ohms

800 watts x 1 channel

RMS Power @ 1 ohm

1200 watts x 1 channel

Amplifier Specifications

Series

JAD Series

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

1200 watts

Maximum Input Gauge Size

1/0 AWG

Minimum Impedance Unbridged

1 ohm

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

40 - 320 Hz

Subsonic Filter

20 - 38 Hz

Signal-to-Noise Ratio

111 dB

Remote bass/level controller

Yes

Fuse Rating

40A x 3

Strappable

Sonic Certified Amplifier

Yes

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Sonic Electronix
