Product videos

Product highlights

500 watts, MonoBlock Class D Amplifier • Differential-Balanced Input Topology • On-board Crossover • Signal-Sensing Turn-On • Dual Mono Speaker Output Connections

Learn more about the LS-jl5001-RB

Product Highlights

500 watts, MonoBlock Class D Amplifier • Differential-Balanced Input Topology • On-board Crossover • Signal-Sensing Turn-On • Dual Mono Speaker Output Connections

Description

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

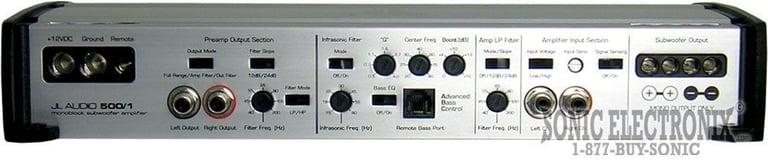

Features:

Differential-Balanced Input Topology: (1 pair of Inputs)
On-board Crossover: fully variable (40Hz - 200Hz), selectable-slope LP (12 or 24 dB per octave)
Preamp Output: 2-channel (independent active filter, parallel with amp filter or full-range)
Bass EQ: parametric with variable boost up to 15dB and Remote Bass Control (optional)
Infrasonic Filter: fully-variable 24dB/octave from 15-60Hz
Signal-Sensing Turn-On: permits operation without remote lead
Dual Mono Speaker output connections: accepts up to 8ga. wire
+12V and Ground connections: accepts up to 4ga. wire

Specifications:

Rated Power: 500W RMS @ 1.5 ohm-4 ohm
(11V-14.5V)
THD at Rated Power: <0.05% @ 4 ohm
S/N Ratio: >95dB below rated power
Frequency Response: 5 Hz-500Hz (+0, -1dB)
Damping Factor: >500 @ 4 ohm per channel/50 Hz
Input Range: switchable from 200mV-2V RMS
to 800mV-8V RMS
90 day repair only warranty
Dimensions: 13.4"L x 9.25"W x 2.36"H

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

500 watts x 1 channel

RMS Power @ 2 ohms

500 watts x 1 channel

RMS Power @ 1 ohm

(at 1.5 ohms) 500 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

500 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1.5 ohm

THD at Rated RMS Power

0.05%

Speaker Level Inputs

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

40 - 200 Hz

Low-Pass Crossover Frequency

40 - 200 Hz

Signal-to-Noise Ratio

95 dB

Bass Boost

0 - 15 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

JL Audio RBC-1

Fuse Rating

50A x 1
