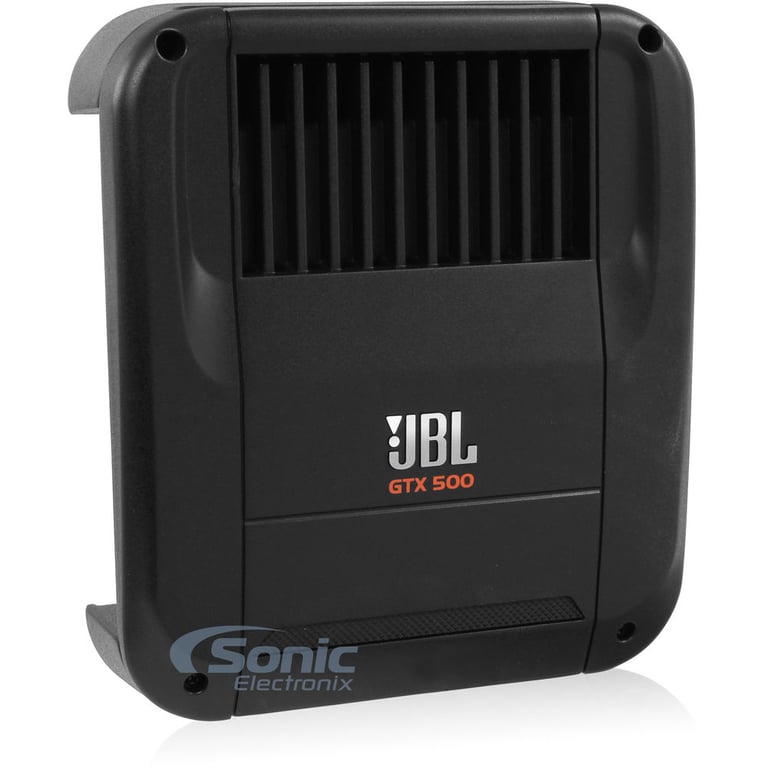

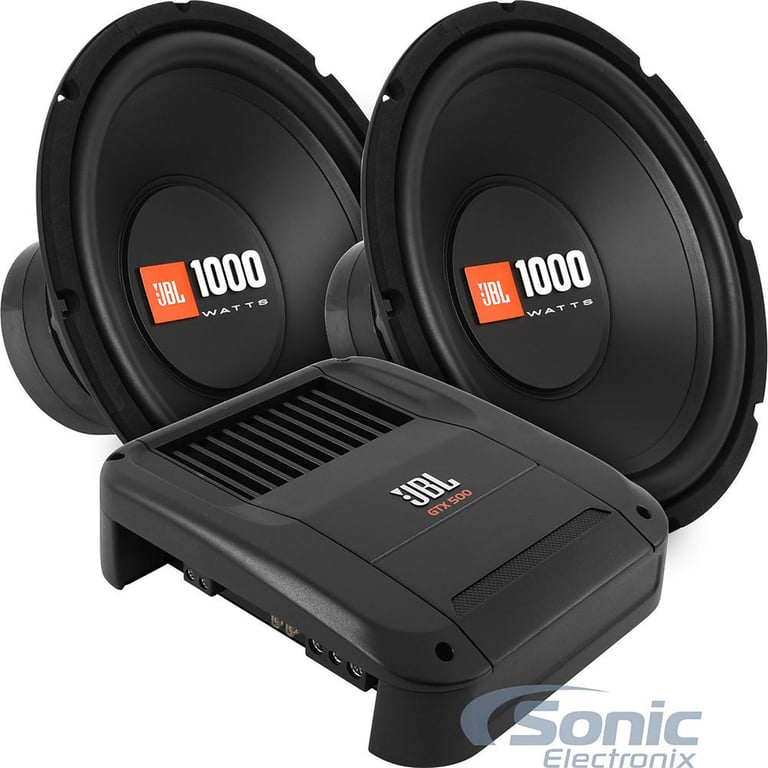

JBL GTX500 (GTX 500)
770W Max (500W RMS) GTX Series Class-D Monoblock 2-Ohm Stable Amplifier
Quantity: 1
General Features:
- JBL Mono Subwoofer Amplifier
- RMS Power Rating:
- 4 ohm: 350 watts x 1 chan.
- 2 ohm: 500 watts x 1 chan.
- 1 ohm: ----------N/A----------
- Total max power output: 770 watts
- Pulse Width Modulated MOSFET power supply
- LED power (green) and protect (red) indicators
- Soft start turn-on
- Signal sensing turn-on
- Speaker-level (high-level) inputs

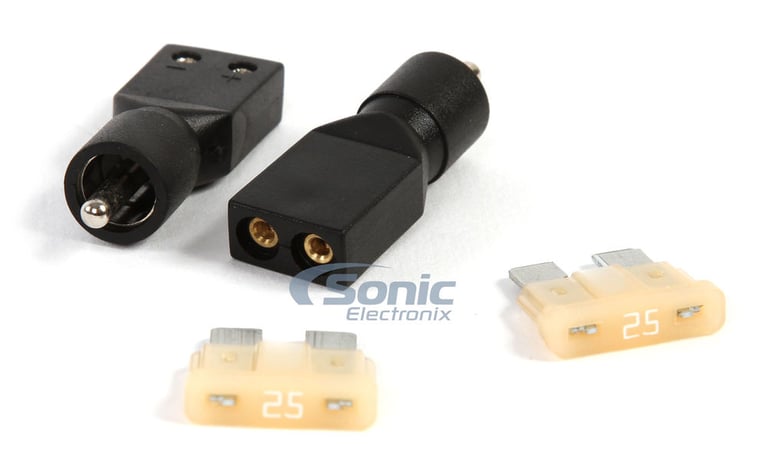

- Bare wire-to-RCA adapters included
- Removable endcaps for clean installs

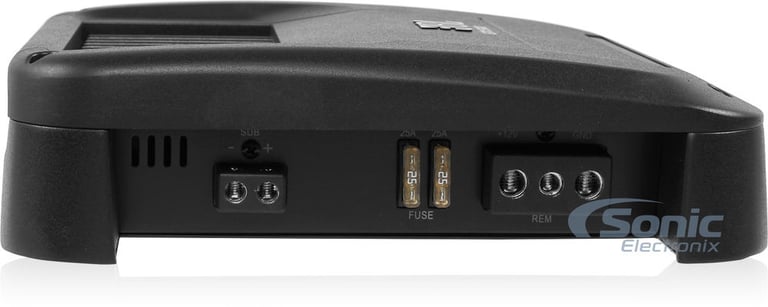

- Nickel plated Power, Ground and Speaker connections
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- High-density split-dome convection heat-sink for extreme heat dissipation

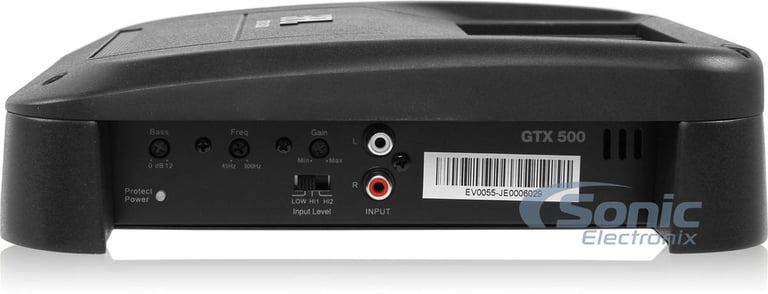

- Input sensitivity:
- Low level: 100mV - 2V
- High level: 2V - 15V
- Frequency Response: 20 - 200 Hz (±0.5 dB); 10 - 300 Hz (±3dB)
- Signal to Noise Ratio: > 80 dB
- Variable Bass Boost: 0 to +12 dB @ 45Hz
- Variable low-pass filter: 40 - 280 Hz
- Fuse Rating: 25A x 2
- 4 - 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
- Dimensions: 8-3/8"W x 9-11/16"L x 2-9/16"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Check out the JBL GTX 500 Owner's Manual

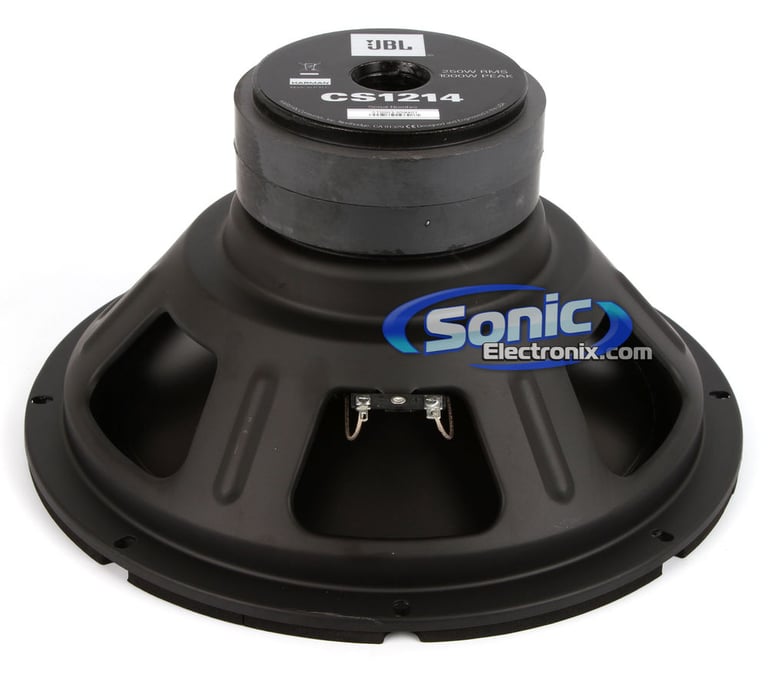

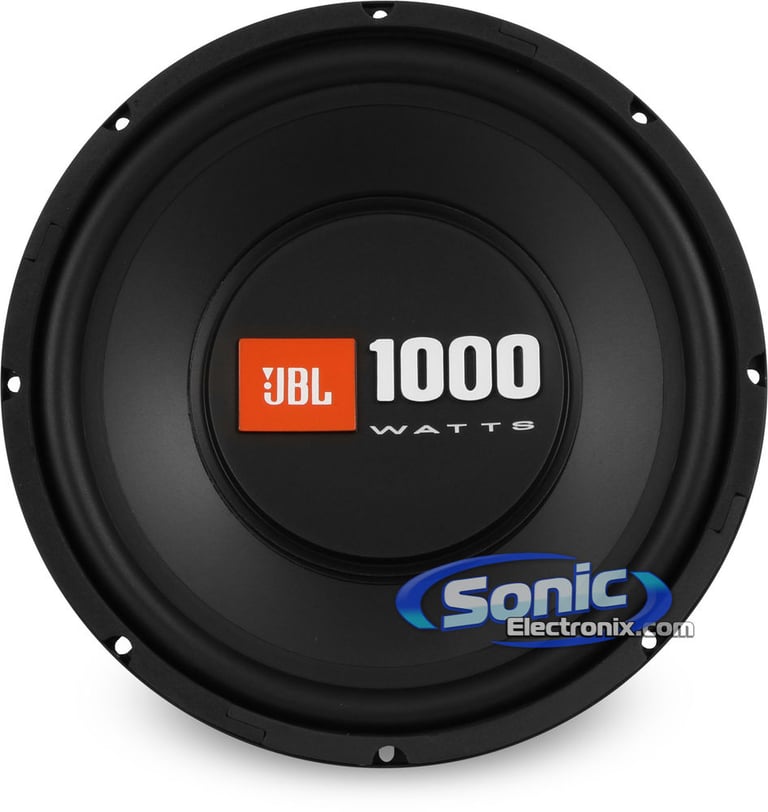

JBL CS1214
250W 12" CS Series Single 4 Ohm Subwoofer
Quantity: 2 Subwoofers
General Features:
- 12" CS Series Car Subwoofer
- Power Handling:
- Peak: 2000 watts per pair / 1000 watts each
- RMS: 500 watts per pair / 250 watts each
- Recommended power range: 200 - 500 watts RMS @ 2ohm (pair)
- Impedance: 4 ohm each
2ohm Final Impedance When Wired In Parallel: Click Here to see how. - High excursion, high BL motor
- Polypropylene Cone
- Rubber Surround
- 1-1/2" Voice coil
- Frequency response: 35-200 Hz
- Resonance Frequency (Fs): 28 Hz
- Top-mount depth: 6-1/16"
- Sensitivity: 90dB
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
