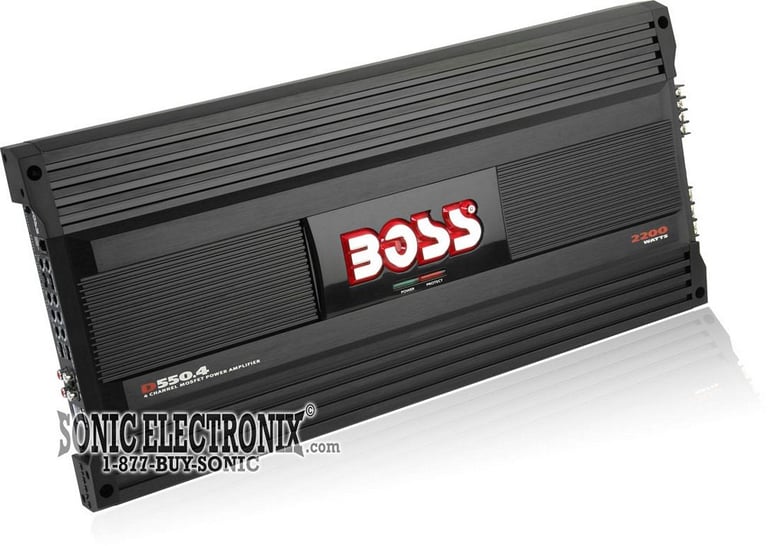

Boss D550.4 R/B

2200W Max, 4-Channel Diablo Series Amplifier (D5504)

Boss
Shop all Boss
Product videos
highlight-star-icon

Diablo Series 4-Channel Class AB Car Amplifier • 230W x 4 chan. @ 4 ohm • 550W x 2 chan. Max • MOSFET power supply • LED power and protection indicators • Variable high/low pass crossovers

Learn more about the LS-d5504-RB

We apologize

This item has been discontinued

Product Highlights


Diablo Series 4-Channel Class AB Car Amplifier • 230W x 4 chan. @ 4 ohm • 550W x 2 chan. Max • MOSFET power supply • LED power and protection indicators • Variable high/low pass crossovers

Description


Boss brand icon

Authorized dealer

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

  • Diablo Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 230 watts x 4 chan.
  • Max power output: 550 watts x 4 chan.
  • Tuned Bass EQ (0-18 dB bass boost)
  • MOSFET power supply
  • Remote subwoofer level control
  • LED power and protection indicators
  • Variable high/low pass crossovers
  • Input gain control
  • Input sensitivity selector
  • Line and speaker level inputs
  • Trimode operation
  • Line and speaker level inputs
  • Dimensions: 23-1/16"L x 11"W x 2-5/16"H
  • 2-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Manufacturer's warranty

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
230 watts x 4 channel
RMS Power @ 2 ohms
Not Specified
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
Not Specified
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
2200 watts
Total RMS Power Output
920 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

D550.4-RB

Weight:

25.00lbs

Internal SKU:

LS-d5504-RB

Internal Product ID:

20425
