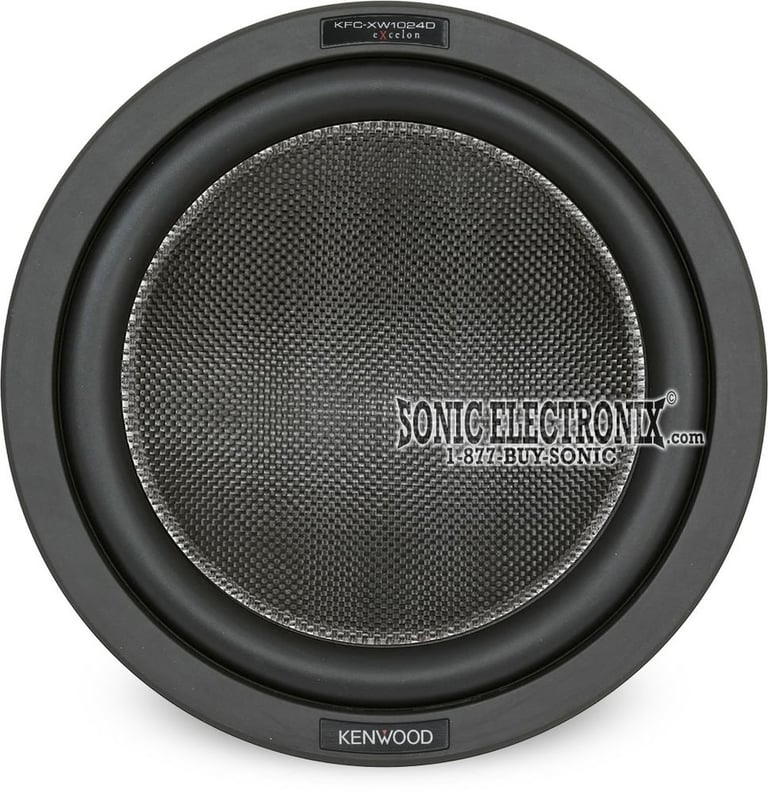

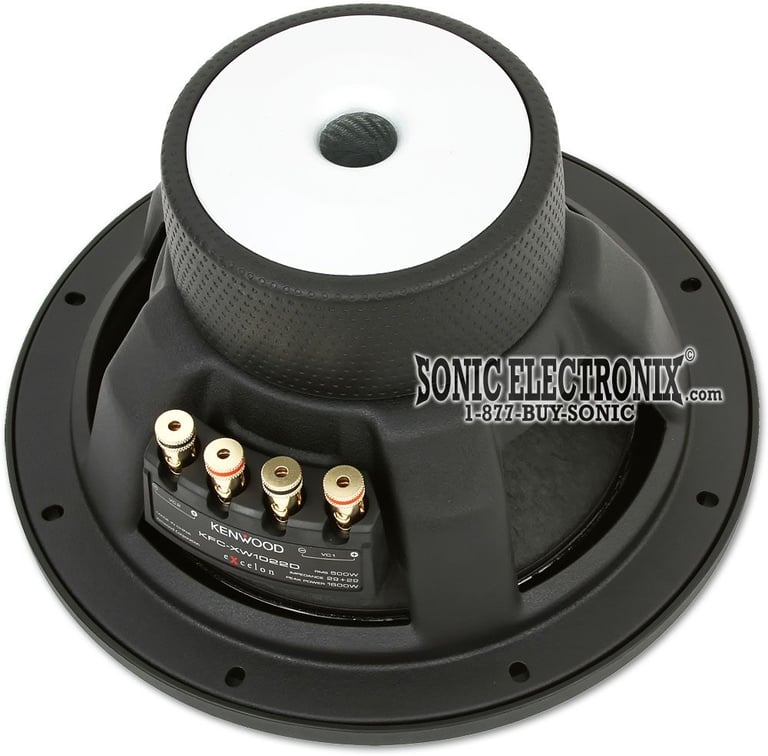

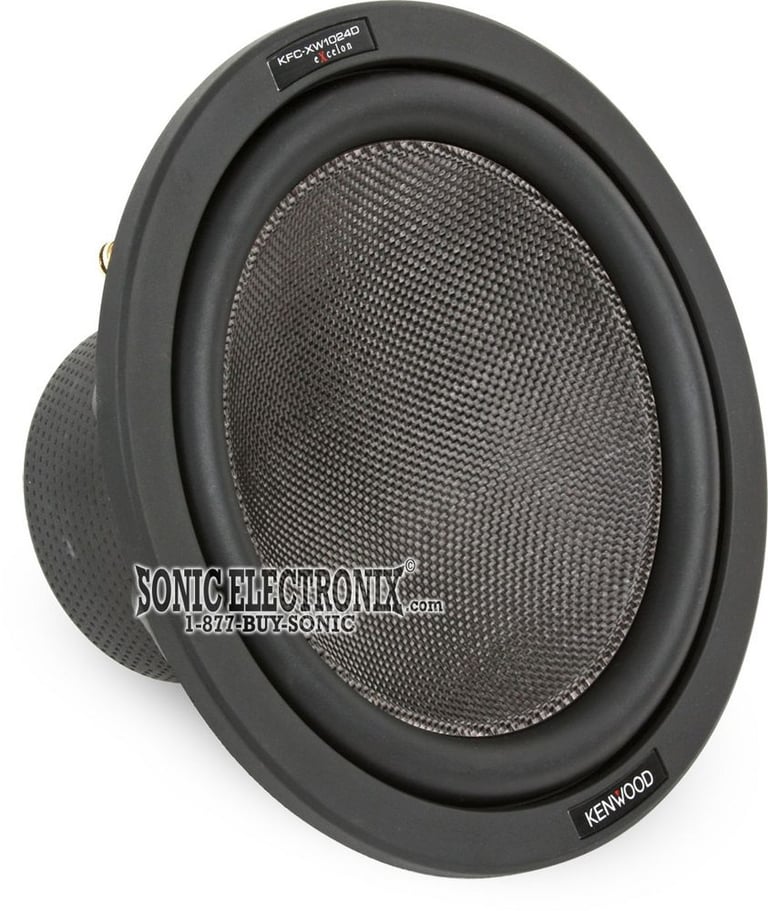

Kenwood eXcelon KFC-XW1024D

10" Dual 4 ohm eXcelon Series Car Subwoofer

Kenwood
Shop all Kenwood
Product videos
highlight-star-icon

10" Dual 4 Ohm eXcelon Series Subwoofer • 1600W Max • 500W RMS • Carbon glass fiber cone woofer • Rubber surround • One-side terminals • Super linear spider • Dual 4 ohm voice coil

Learn more about the kfcxw1024d

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

T2652-S main

Rockford Fosgate Power T2 T2652-S

400W Peak (200W RMS) 6.5" Power Series 2 Way Component 4-ohm Speaker System

42

Product Highlights


10" Dual 4 Ohm eXcelon Series Subwoofer • 1600W Max • 500W RMS • Carbon glass fiber cone woofer • Rubber surround • One-side terminals • Super linear spider • Dual 4 ohm voice coil

Description


Kenwood brand icon

Authorized dealer

Knows No Bounds

Limits are unknown to the eXcelon series of subwoofers by Kenwood. The KFC-XW1024D is a subwoofer that is all business when it comes to exceptional bass response, and precision sound quality. This eXcelon series subwoofer handles 500 watts of continuous RMS power, and boasts Dual voice coils to maximize output from the amplifier.

Higher output subwoofers require a strong, clean signal to keep thumping with precision. The Kenwood KFC-XW1024D ensures that it maintains the cleanest possible signal with a rubber magnet cover to improve cosmetics and performance. It maintains optimal signal with its reduced basket vibration, dual magnet drive, super linear spiders, and goal-plated push terminals.

  • 10" Dual 4 Ohm eXcelon Series Subwoofer
  • Power Handling:
    • Peak: 1600 watts
    • RMS: 500 watts
  • Impedance: Dual 4 ohm
  • Carbon glass fiber cone woofer
  • Rubber surround
  • One-side terminals
  • Rubber magnet cover
  • Dual magnet drive
  • Super linear spider
  • Push terminals
  • Removable gasket
  • Heat transfer structure design
  • Dual 4 ohm voice coil
  • Frequency response: 35-1000 Hz
  • Sensitivity: 90 dB
  • 2-year Sonic Electronix warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kenwood eXcelon KFC-XW1024D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kenwood eXcelon KFC-XW1024D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kenwood eXcelon KFC-XW1024D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Kenwood eXcelon KFC-XW1024D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
eXcelon Series
Subwoofer Size
10"
Peak Power Handling
1600 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
35 - 1000 Hz
Sensitivity
90 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Glass Carbon Fiber
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Top-Mount Depth (Mounting Depth)
5.79"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

KFC-XW1024D

Weight:

14.00lbs

Internal SKU:

kfcxw1024d

Internal Product ID:

12043

Product and How-to Videos


Customer Ratings & Reviews


Kenwood eXcelon KFC-XW1024D thumbnail image

5 star
75%
4 star
0%
3 star
0%
2 star
25%
1 star
0%



Durability
3.8
Value
4.5
Features
4.5
Design
5
Usability
4.8

Customer Reviews

Sort by:

Loading...

Longevity??

Owned this subwoofer for less than a month and it crapped out on me. It was hooked up to a Kenwood KAC-8105D. It was not being pushed too hard at all. The settings on the amp were conservative compared to the 2 12" MTX Terminators it was hooked up to. All of a suddenn the subwoofer just stopped. I went to go check it out and it had over exerted itself. I saw smoke coming from the box when i was able to get the woofer back into its place. It was in a box that was 1 Cubic Feet as specified by Kenwood. I expected it to last a lot longer than 3 weeks.

By Mike on February 6, 2012

5 found this helpful


Great subs for the money

Bought 2 of them in a bandpass box with 1000w nitro amp. They sound great, don't think I could have done better

By xj jim on April 15, 2011

5 found this helpful


Great subwoofer!

One of the best 10" subwoofers I've ever owned. Make sure you use 8 gauge power and ground wires from the amp to subwoofer, sounds so much better.

By Damian on June 18, 2012

4 found this helpful


i like tooooooo.

i love.

By mr rush on September 14, 2011

5 found this helpful
